Model Whirlpool CM46B-9P MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL

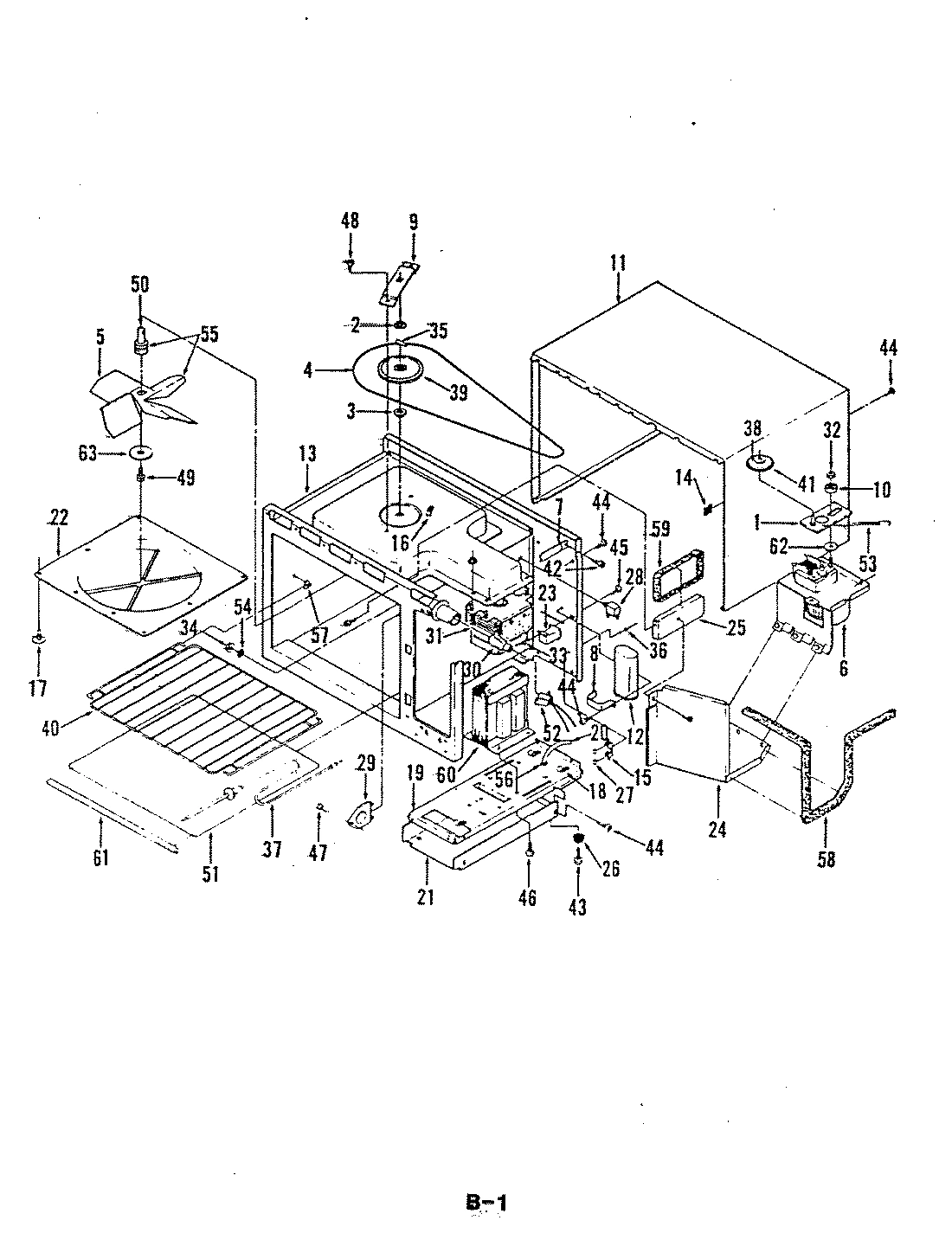

01 - BASE & CAVITY

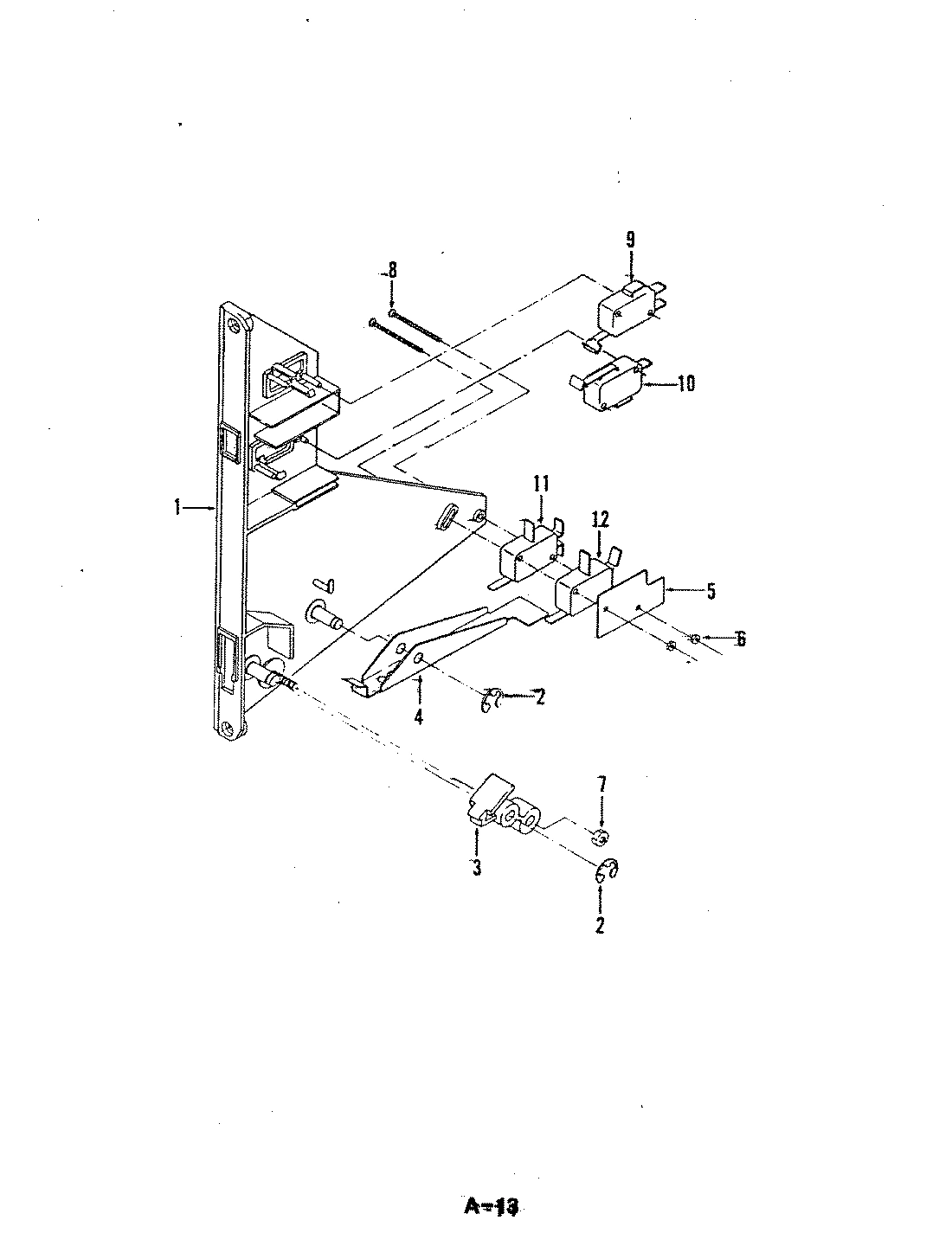

04 - LATCH

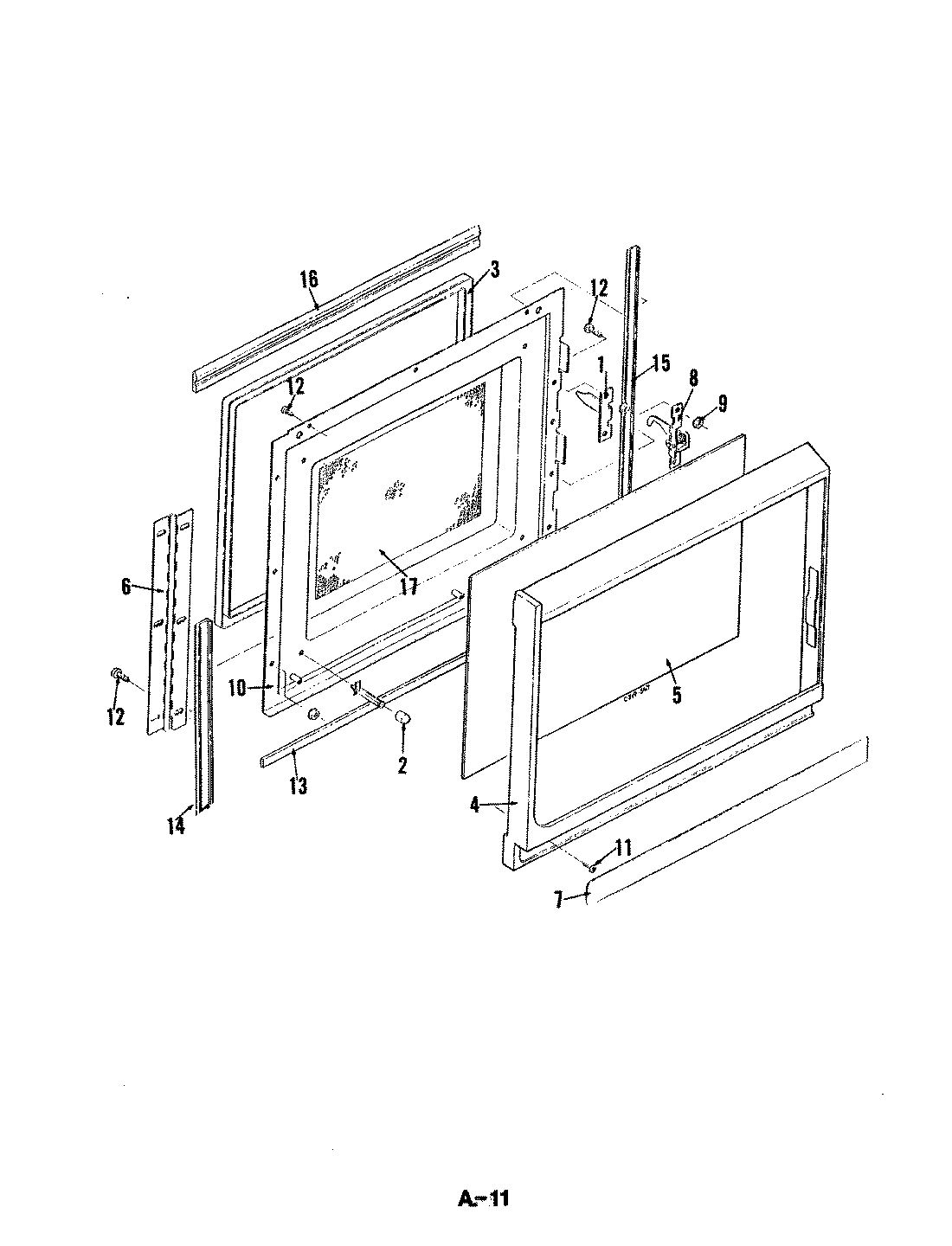

03 - DOOR
Common parts from model Whirlpool CM46B-9P MICROWAVE
1
BOARD, CONTROL WPL 01210016 Contact Us For Availability
1
ARM, IDLER SHAFT WPL 04020962 Contact Us For Availability
1
BRACKET INTER WPL 02030115 Contact Us For Availability
1
BRACKET, DOOR TRIM WPL 02010047 Contact Us For Availability
1
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
2
CONTROL FRAME CHROME WPL 02100049 Contact Us For Availability
2
BEARING WPL 03140016 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
BUMPER WPL 02230011 Contact Us For Availability
3
INSERT, TRIM DOOR WPL 02100091 Contact Us For Availability
3
MFG LABEL MAGIC CHEF WPL 02240211 Contact Us For Availability
3
LABEL, RELAMPING WPL 02240407 Contact Us For Availability
3
BEARING WPL 03140015 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
HANDLE, EXTRUSION WPL 02120137 Contact Us For Availability
3
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
4
FRAME, CONTROL PANEL WPL 02060256 Contact Us For Availability
4
STIRRER BELT WPL Y02390008 Contact Us For Availability
4
SWITCH LEVER WPL 02180010 Contact Us For Availability
4
FRAME, DOOR WPL 02100108 Contact Us For Availability
5
SCREW WPL 03020063 Contact Us For Availability
5
STIRRER BLADE WPL 02360012 Contact Us For Availability
5
SWITCH INSULATOR WPL 01100032 Contact Us For Availability
5
GLASS, DOOR WPL Y02220082 Contact Us For Availability
6
SCREW WPL 03020054 Contact Us For Availability
6
BRACE WPL 04020816 Contact Us For Availability
6
BLOWER ASSY. WPL 04021096 Contact Us For Availability
6
NUT WPL Y03050001 Contact Us For Availability
6
HINGE, DOOR WPL Y02200017 Contact Us For Availability
7
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
7
NUT WPL 03050003 Contact Us For Availability
8
BRACKET WPL 02030123 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
DOOR LATCH WPL 02190048 Contact Us For Availability
9
BRACKET WPL 02030121 Contact Us For Availability
9
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
BUSHING PULLEY WPL 02360022 Contact Us For Availability
10
BUSHING WPL 02360034 Contact Us For Availability
10
BUSHING WPL 03140014 Contact Us For Availability
10
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
10
INNER DOOR WPL 02060221 Contact Us For Availability
11
CABINET ASSY WPL 02140044 Contact Us For Availability
11
SWITCH WPL Y01140040 Contact Us For Availability
11
SCREW WPL Y03010118 Contact Us For Availability
12
SWITCH WPL 01140037 Contact Us For Availability
12
SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability
13
CAVITY WPL 04020963 Contact Us For Availability
13
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
14
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
14
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
14
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
15
PLASTIC GUIDE WPL Y03110052 Contact Us For Availability
15
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
16
CLIP WPL 03110056 Contact Us For Availability
16
SEAL, TOP WPL 02120129 Contact Us For Availability
16
TAPE, BUFFER WPL 02310129 Contact Us For Availability
16
BUMPER WPL Y02100135 Contact Us For Availability
16
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
16
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
17
CLIP STIRRER WPL 03110018 Contact Us For Availability
17
CLIP WPL Y03110050 Contact Us For Availability
17
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
17
+ DBLE TAPE 36`` WPL Y05080027 Contact Us For Availability
18
CLIP WPL Y03110059 Contact Us For Availability
19
PLATE, COMPONENT MOUNTING WPL 02040053 Contact Us For Availability
20
CORD, POWER (BLK) WPL 01080050 Contact Us For Availability
21
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
22
COVER, STIRRER WPL Y02300021 Contact Us For Availability
23
DIODE WPL Y01030010 Contact Us For Availability
24
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
25
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
26
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
27
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
27
GUIDE WPL Y02360036 Contact Us For Availability
28
JACK, PROBE WPL 01170008 Contact Us For Availability
29
LENS, BULB WPL Y02400007 Contact Us For Availability
30
BULB, LIGHT WPL Y01060024 Contact Us For Availability
31
MAGNETRON WPL 01040004 Contact Us For Availability
33
NUT LOCK 1/2 X 20 WPL 03050021 Contact Us For Availability
34
PROBE JACK NUT WPL 03050035 Contact Us For Availability
35
COTTER PIN WPL 03070013 Contact Us For Availability
37
PROBE, TEMP. WPL 01220006 Contact Us For Availability
39
PULLEY WPL 02360038 Contact Us For Availability
40
RACK, OVEN WPL Y02410004 Contact Us For Availability
41
RUBBER,IDLER SHAFT WPL 02210008 Contact Us For Availability
42
GROUND SCREW WPL 03010082 Contact Us For Availability
44
SCREW WPL 03020077 Contact Us For Availability
46
SCREW WPL 03010094 Contact Us For Availability
47
SCREW WPL 03020060 Contact Us For Availability
48
SCREW WPL 03010129 Contact Us For Availability
49
SCREW WPL 03020004 Contact Us For Availability
49
SCREW WPL 03020074 Contact Us For Availability
50
SHAFT WPL 02360039 Contact Us For Availability
51
SHELF WPL Y02280013 Contact Us For Availability
52
LAMP SOCKET WPL 01100033 Contact Us For Availability
53
WAVEGUIDE BUMPER WPL 03120021 Contact Us For Availability
53
SPRING WPL 03180024 Contact Us For Availability
54
PROBE JACK LOCKNUT WPL 03030011 Contact Us For Availability
54
STARWASHER WPL 03030012 Contact Us For Availability
55
STIRRER ASSY WPL 04020778 Contact Us For Availability
56
STRAIN RELIEF WPL 03150018 Contact Us For Availability
57
SUPPORT, RACK WPL 02010031 Contact Us For Availability
58
TAPE, FOAM WPL 02310109 Contact Us For Availability
59
TAPE, FOAM WPL 02310126 Contact Us For Availability
60
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
60
TRIM, INTAKE EXHAUST WPL 02100107 Contact Us For Availability
61
SHELF TRIM WPL 02100052 Contact Us For Availability
62
WASHER WPL 03040034 Contact Us For Availability
63
WASHER WPL 03040032 Contact Us For Availability
63
WIRING HARNESS WPL 04010158 Contact Us For Availability
63
LEAD WIRE 8`` WPL Y04060341 Contact Us For Availability
63
H V LEAD 5``GRAY WPL Y04060510 Contact Us For Availability
63
H.V. LEAD 16`` GRAY WPL Y04060511 Contact Us For Availability
× ![]()
