Model Whirlpool CLY2242BDT RV GAS RANGE – Common Parts & Diagrams

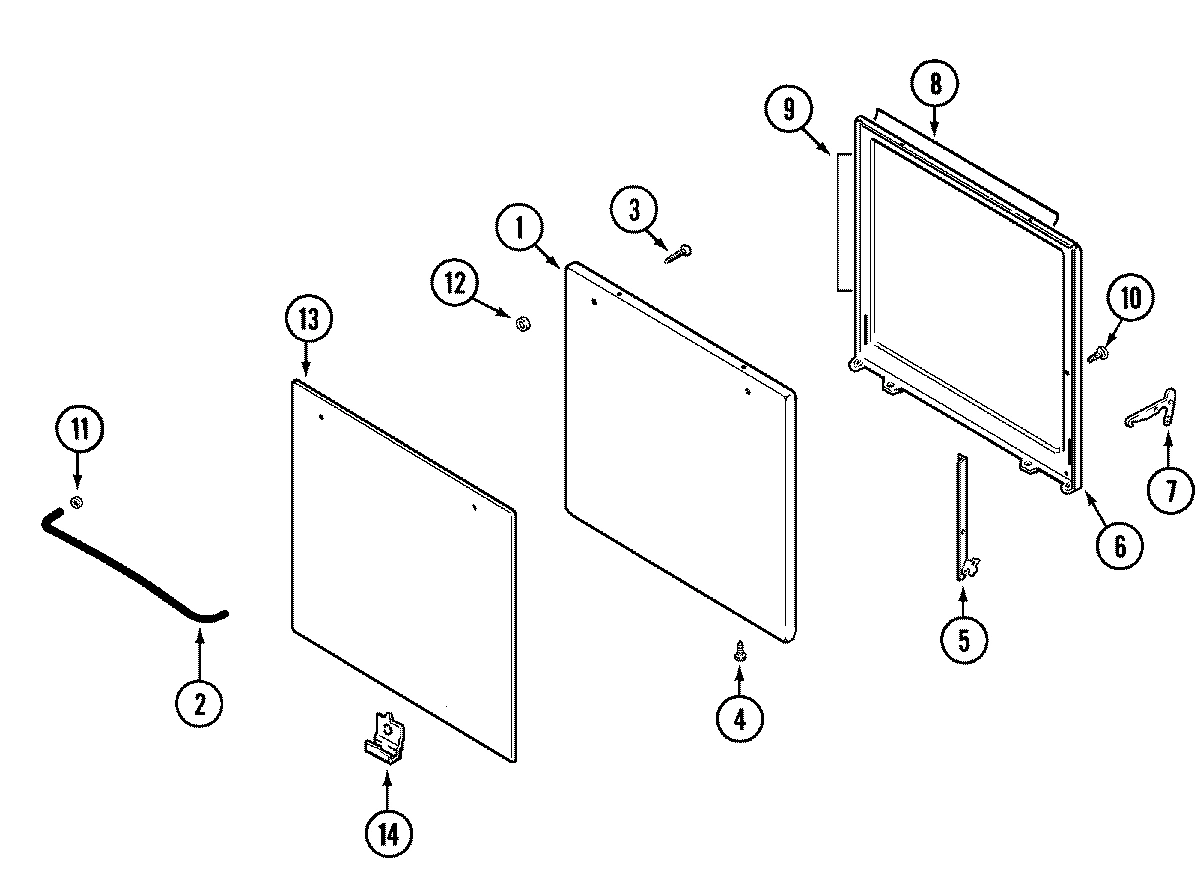

01 - DOOR

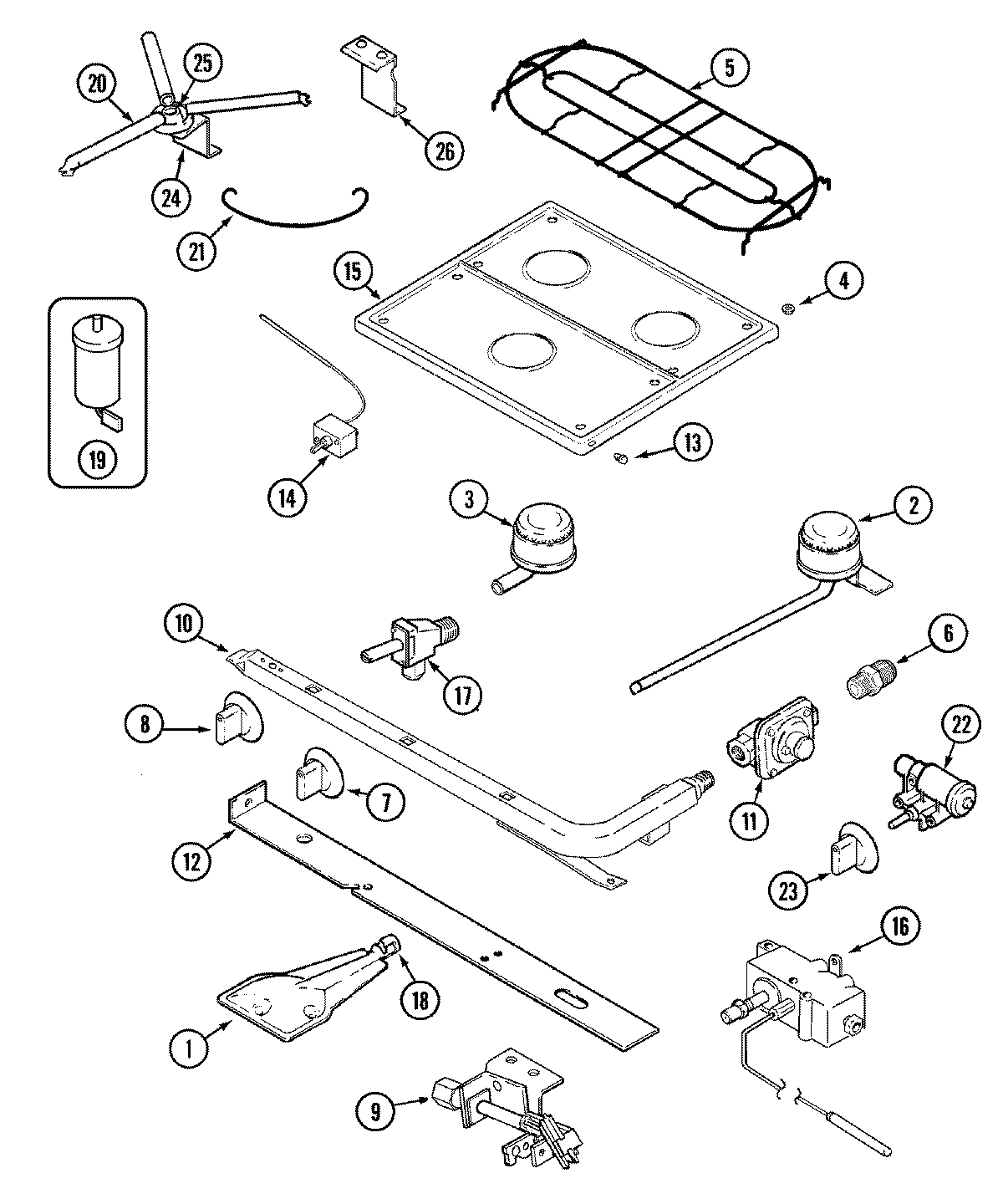

02 - TOP & GAS CONTROLS (CLY2242BDT)
Common parts from model Whirlpool CLY2242BDT RV GAS RANGE
1
BURNER, OVEN WPL 74003343 Contact Us For Availability
2
HANDLE, DOOR WPL 7701P09260 Contact Us For Availability
2
BURNER, TOP (R.R.) WPL 74004583 Contact Us For Availability
2
BURNER, TOP (L.R.) WPL 74004584 Contact Us For Availability
3
BURNER, TOP (FRT) WPL 74004582 Contact Us For Availability
4
GROMMET WPL Y8007P02060 Contact Us For Availability
5
HINGE, OVEN DOOR (LEFT) WPL 3418D09134 Contact Us For Availability
5
HINGE, OVEN DOOR (RIGHT) WPL 3418D09234 Contact Us For Availability
5
GRATE, TOP WPL 74003358 Contact Us For Availability
6
LINING, DOOR WPL 74004228 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
7
KNOB, VALVE WPL 74001794 Contact Us For Availability
7
KNOB, VALVE WPL 7733P07260 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
8
KNOB, THERMOSTAT (BLK) WPL 74004359 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03960 Contact Us For Availability
9
PILOT, OVEN WPL 74004586 Contact Us For Availability
9
PILOT, OVEN WPL 74006334 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
10
PIPE, MANIFOLD WPL 74004360 Contact Us For Availability
11
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 74004235 Contact Us For Availability
12
SPACER, NYLON (BLK) WPL 74003460 Contact Us For Availability
12
SUPPORT, OVEN BURNER WPL 74001834 Contact Us For Availability
13
GLASS, DOOR WPL 7902P26660 Contact Us For Availability
13
BUMPER WPL 8003P00860 Contact Us For Availability
14
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
14
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
14
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
14
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
14
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
14
TUBING (1/4`` X 43``) WPL 74002278 Contact Us For Availability
14
TUBING (3/16`` X 44``) WPL 74002279 Contact Us For Availability
14
THERMOSTAT WPL 74004361 Contact Us For Availability
14
THERMOSTAT WPL 74006332 Contact Us For Availability
14
TUBING 3/16 WPL 74006336 Contact Us For Availability
14
TUBING 1/4 WPL 74006338 Contact Us For Availability
14
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
15
TOP, MAIN (BSQ) WPL 74005204 Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
VALVE, OVEN WPL 74004585 Contact Us For Availability
16
VALVE, OVEN WPL 74006333 Contact Us For Availability
17
VALVE, BURNER (REAR) WPL 74004362 Contact Us For Availability
17
VALVE, BURNER (FRT) WPL 74004363 Contact Us For Availability
18
MIXER, AIR WPL 3411F00334 Contact Us For Availability
19
FASTENER, PUSH RING RV WPL 7104P00260 Contact Us For Availability
19
IGNITER, TOP WPL 7432P07760 Contact Us For Availability
20
EXTENSION, FLASHTUBE (REAR) WPL 74003326 Contact Us For Availability
20
EXTENSION, FLASHTUBE (FRT) WPL 74003327 Contact Us For Availability
21
CLIP WPL 7112P06860 Contact Us For Availability
22
WIRE, IGNITER WPL 5111A71960 Contact Us For Availability
24
SUPPORT, TOP BURNER WPL 3807F46245 Contact Us For Availability
26
SHIELD WPL 3604F21145 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003355 Contact Us For Availability
NI
FITTING, HALF UNION WPL 74004234 Contact Us For Availability
× ![]()
