Model Whirlpool CLY2210BDB RV GAS RANGE – Common Parts & Diagrams

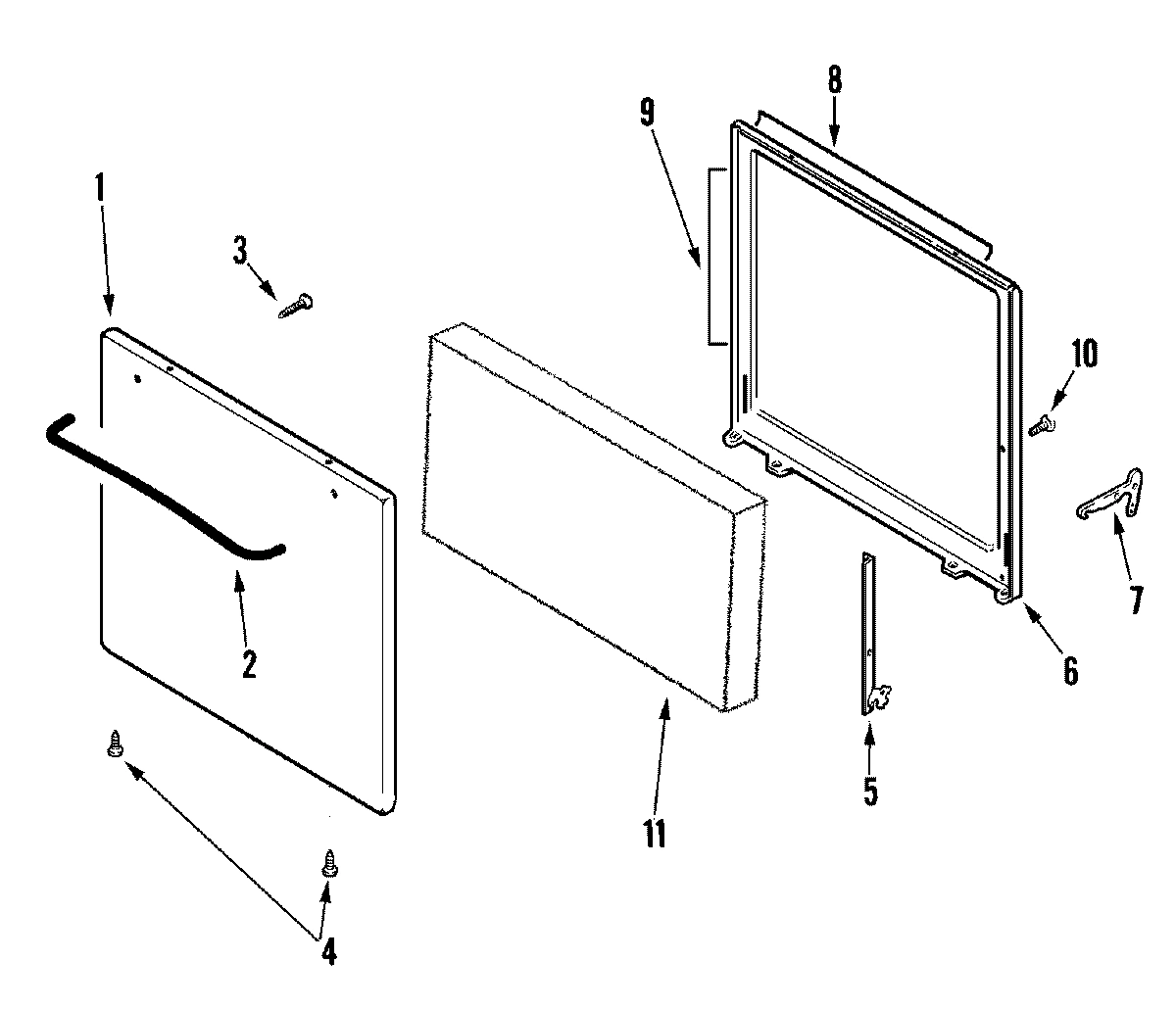

01 - DOOR
03 - SUPPLEMENTAL INFORMATION

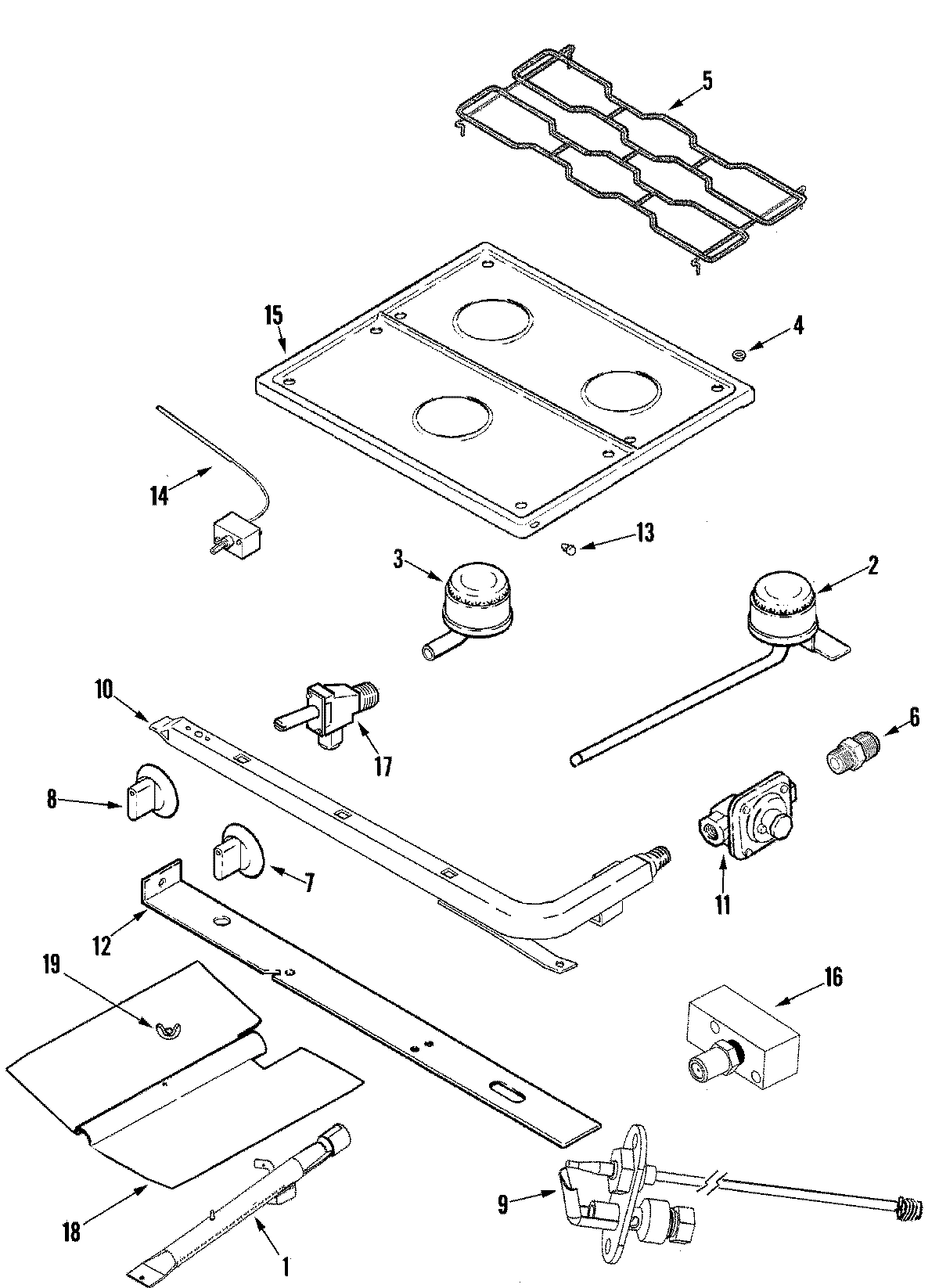

04 - TOP & GAS CONTROLS

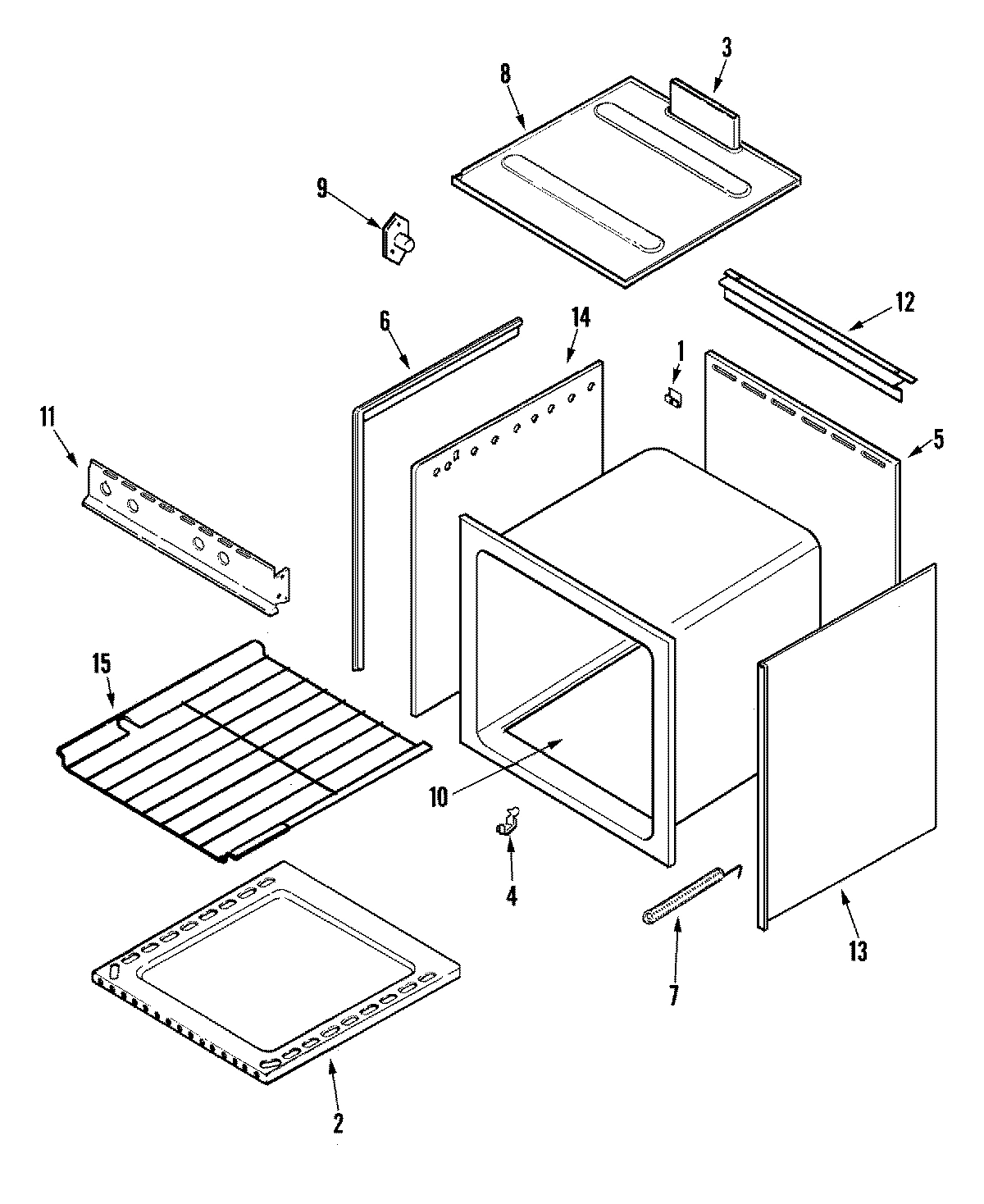

02 - OVEN
Common parts from model Whirlpool CLY2210BDB RV GAS RANGE
1
BURNER, OVEN (W/SHUTTER) WPL 74009853 Contact Us For Availability
1
CLIP, MAIN TOP WPL 74003998 Contact Us For Availability
2
BURNER, TOP (REAR) WPL 74004674 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
3
BURNER, TOP (FRT) WPL 74004675 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
4
BUSHING/WASHER ASY WPL 8007P05260 Contact Us For Availability
4
GROMMET WPL Y8007P02060 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
HINGE KIT (RT) WPL 12400029 Contact Us For Availability
5
GRATE (BLK) WPL 74007277 Contact Us For Availability
5
GRATE, OPEN BNR (BLK) WPL 7518P41860 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 74004883 Contact Us For Availability
5
BACK, MAIN (RV-22) WPL 74009875 Contact Us For Availability
5
INSULATION, (18 X 20) WPL 74009878 Contact Us For Availability
6
LINING, DOOR WPL 74004228 Contact Us For Availability
6
FITTING, HALF UNION WPL 74004234 Contact Us For Availability
6
TRIM, SIDE (RT) WPL 74002827 Contact Us For Availability
6
TRIM, SIDE (LT) WPL 74002828 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
7
KNOB, BURNER (BLK) WPL 74003941 Contact Us For Availability
7
SPRING, OVEN DOOR WPL 74001835 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
8
KNOB, THERMOSTAT (BLK) WPL 74009858 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 74009863 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03960 Contact Us For Availability
9
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
9
SCREW No.6 X 1/2 WPL 7101P30160 Contact Us For Availability
9
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
10
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
10
PIPE, MANIFOLD WPL 74009856 Contact Us For Availability
10
BOTTOM, MAIN WPL 74003342 Contact Us For Availability
11
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 74004235 Contact Us For Availability
11
PANEL, MANIFOLD (BLK) WPL 74007291 Contact Us For Availability
12
SUPPORT, OVEN BURNER WPL 74009851 Contact Us For Availability
12
SHIELD, DEFLECTOR FLUE (BLK) WPL 74002829 Contact Us For Availability
13
BUMPER WPL 8003P00860 Contact Us For Availability
13
SIDE, BODY (RT) WPL 74005022 Contact Us For Availability
14
TUBING 3/16 (RV-22) WPL 74009876 Contact Us For Availability
14
TUBING 1/4 (RV-22) WPL 74009877 Contact Us For Availability
14
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
14
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
14
SCREW WPL 7101P35660 Contact Us For Availability
14
SIDE, BODY (LT) WPL 74005023 Contact Us For Availability
15
TOP, MAIN (BLK) WPL 2001F30209 Contact Us For Availability
15
TOP, MAIN (BLK) WPL 74007287 Contact Us For Availability
15
RACK, OVEN WPL 74003106 Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
ELBOW BLOCK ASSY. WPL 74009864 Contact Us For Availability
17
VALVE, TOP BURNER (6500) WPL 74010756 Contact Us For Availability
17
KIT, VALVE & SCREW (MUELLER) WPL 12002245 Contact Us For Availability
17
KIT, VALVE & SCREW (MUELLER) WPL 12002246 Contact Us For Availability
18
BAFFLE, RV BURNER WPL 74009848 Contact Us For Availability
19
NUT, WING WPL 7103P03060 Contact Us For Availability
NI
SVC MAN, RANGE, GAS, RV WPL 16023515 Contact Us For Availability
NI
TECH SHT, RANGE, GAS, RV WPL 16023520 Contact Us For Availability
NI
INSTALLATION INSTRUCTIONS WPL 74009865 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8110P25860 Contact Us For Availability
NI
INSERT, LIGHTING INST. WPL 8113P43960 Contact Us For Availability
× ![]()
