Model Whirlpool CLY1641BDB RV GAS RANGE – Common Parts & Diagrams

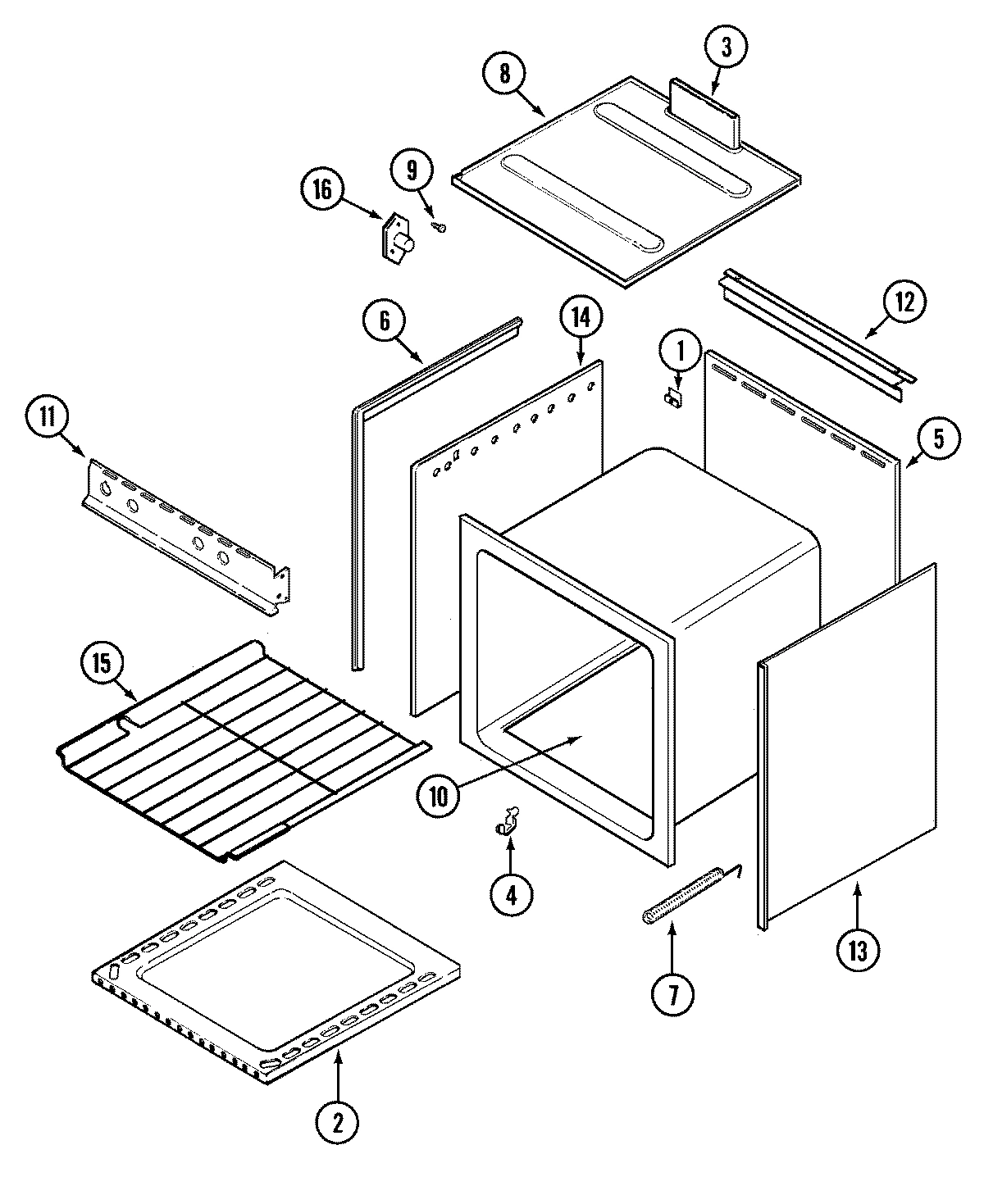

02 - OVEN

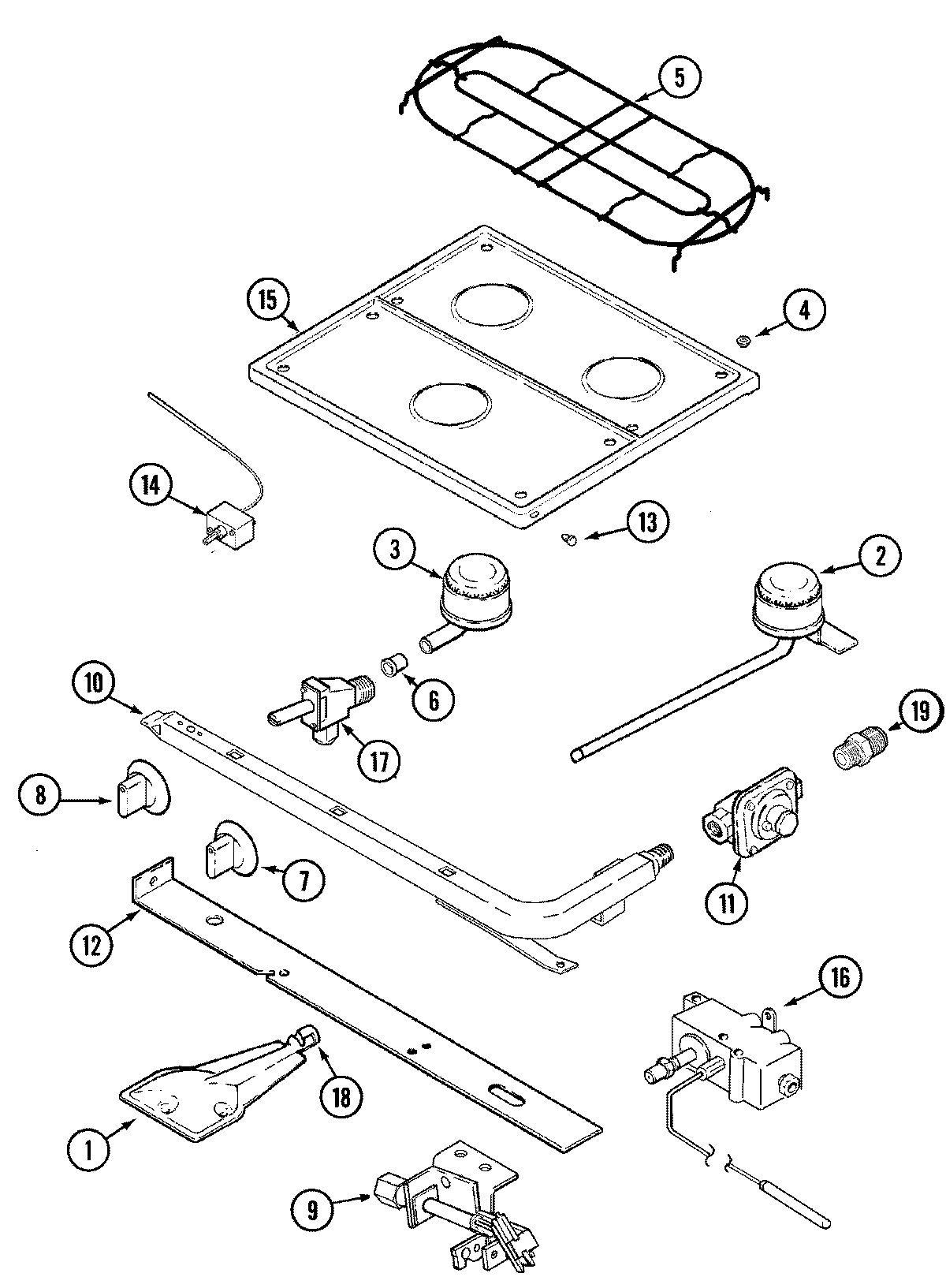

04 - TOP & GAS CONTROLS (SERIES 11)

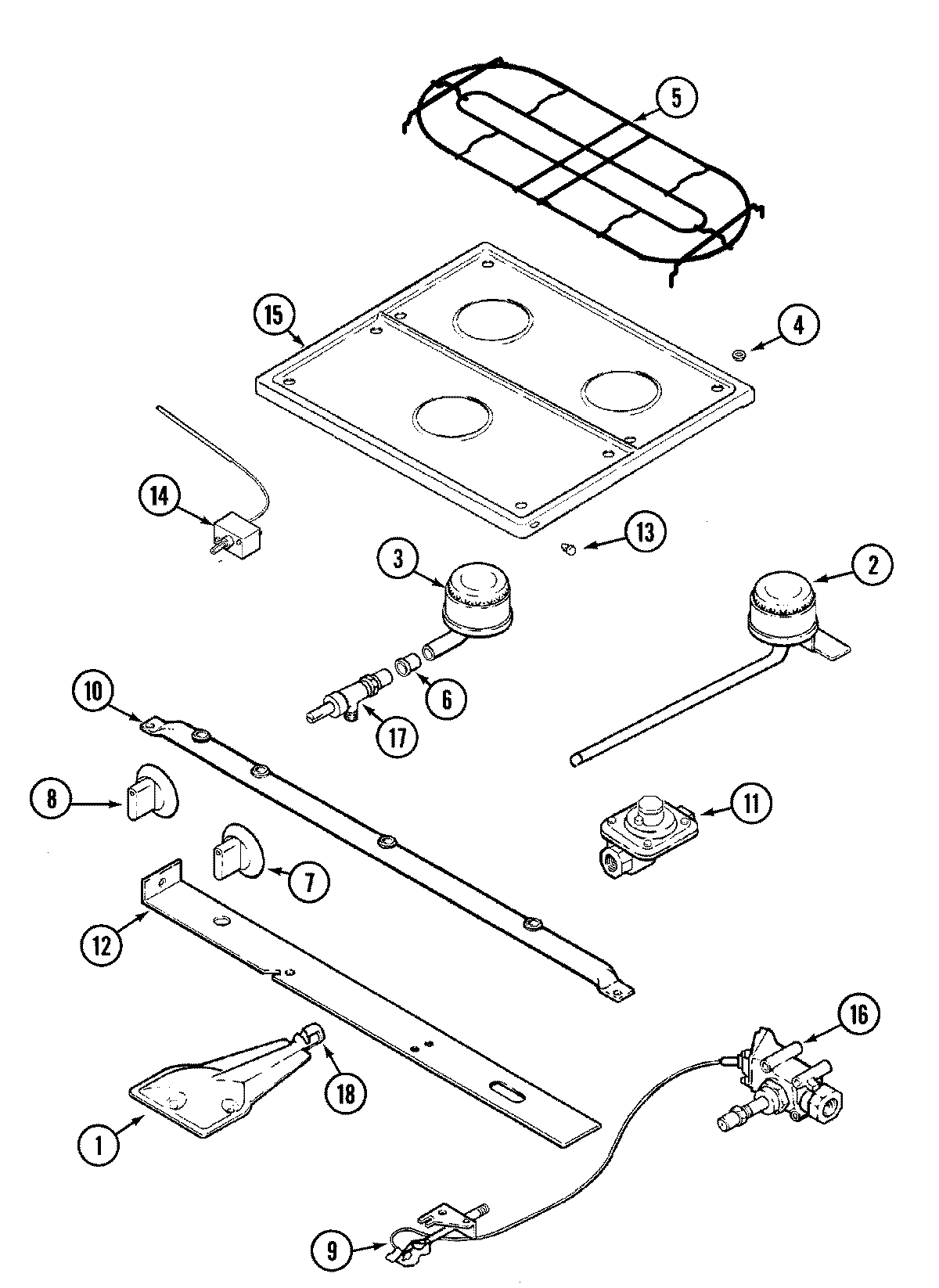

03 - TOP & GAS CONTROLS (BDB, BDH, BDL)

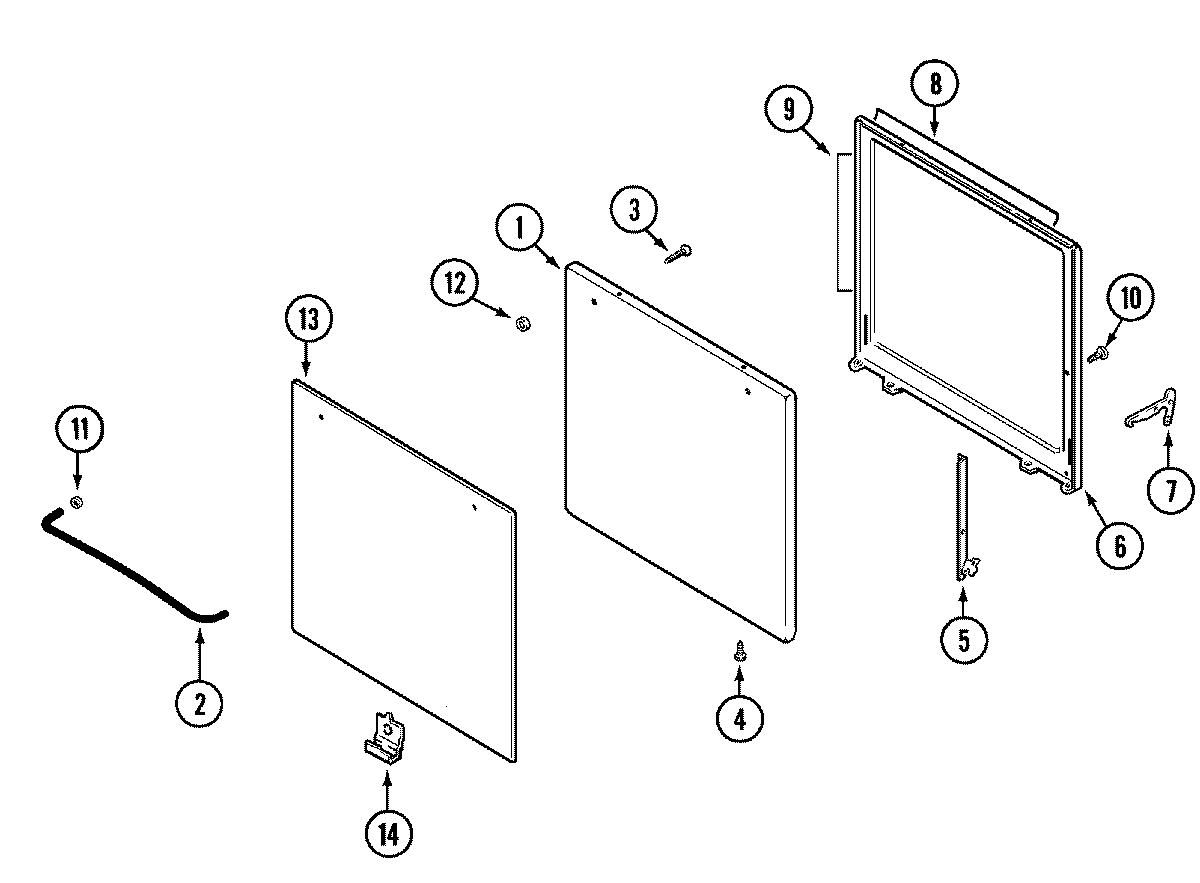

01 - DOOR
Common parts from model Whirlpool CLY1641BDB RV GAS RANGE
1
CLIP, MAIN TOP REAR WPL 7112P07160 Contact Us For Availability
1
BURNER, OVEN WPL 74003343 Contact Us For Availability
1
PANEL, DOOR (BLK) WPL 74001273 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
2
BURNER, TOP (REAR) WPL 74004674 Contact Us For Availability
2
BURNER, TOP ASSY. (REAR) WPL 7505P18160 Contact Us For Availability
2
HANDLE, DOOR WPL 7701P09260 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
3
BURNER, TOP (FRT) WPL 74004675 Contact Us For Availability
3
BURNER, ASSY FRONT WPL 7505P14260 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
4
GROMMET WPL Y8007P02060 Contact Us For Availability
5
SCREW WPL 7101P35660 Contact Us For Availability
5
SCREW WPL 74001747 Contact Us For Availability
5
BACK, MAIN WPL 74002418 Contact Us For Availability
5
GRATE, TOP WPL 74003358 Contact Us For Availability
5
HINGE, OVEN DOOR (LEFT) WPL 3418D09134 Contact Us For Availability
5
HINGE, OVEN DOOR (RIGHT) WPL 3418D09234 Contact Us For Availability
6
TRIM, SIDE (BLK) (RT) WPL 74002812 Contact Us For Availability
6
TRIM, SIDE (BLK) (LT) WPL 74002813 Contact Us For Availability
6
INSERT, BURNER WPL 7214P01560 Contact Us For Availability
6
LINING DOOR WPL 2402F12119 Contact Us For Availability
7
SPRING, OVEN DOOR WPL 7803P05260 Contact Us For Availability
7
KNOB, VALVE WPL 74001794 Contact Us For Availability
7
KNOB, VALVE WPL 7733P07260 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 4011F15351 Contact Us For Availability
8
KNOB, THERMOSTAT (BLK) WPL 74004359 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P10960 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
9
SCREW No.6 X 1/2 WPL 7101P30160 Contact Us For Availability
9
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
9
PILOT, OVEN WPL 74004586 Contact Us For Availability
9
PILOT, OVEN WPL 74006334 Contact Us For Availability
9
PILOT, OVEN WPL 968143 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03860 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
10
SCREW WPL 7101P06460 Contact Us For Availability
10
BOTTOM, MAIN WPL 74003342 Contact Us For Availability
10
PIPE, MANIFOLD WPL 74004360 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P16160 Contact Us For Availability
11
PANEL, MANIFOLD WPL 74003350 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 74004235 Contact Us For Availability
11
FITTING, HALF UNION WPL 7507P08360 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P04160 Contact Us For Availability
11
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
12
SHIELD, DEFLECTOR FLUE (BLK) WPL 74002809 Contact Us For Availability
12
SUPPORT, OVEN BURNER WPL 74001834 Contact Us For Availability
12
SPACER, NYLON (BLK) WPL 74003460 Contact Us For Availability
13
SIDE BODY RT WPL 4016F03451 Contact Us For Availability
13
BUMPER WPL 8003P00860 Contact Us For Availability
13
GLASS, DOOR WPL 7902P26160 Contact Us For Availability
14
SIDE BODY LF WPL 4016F03351 Contact Us For Availability
14
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
14
TUBING, 3/16 X 41.5`` WPL 3414F07744 Contact Us For Availability
14
TUBING, 1/4``- ODX42 1/2 WPL 3414F07944 Contact Us For Availability
14
THERMOSTAT WPL 74004361 Contact Us For Availability
14
THERMOSTAT WPL 74006332 Contact Us For Availability
14
TUBING 3/16 WPL 74006335 Contact Us For Availability
14
TUBING 1/4 WPL 74006337 Contact Us For Availability
14
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
14
THERMOSTAT WPL 7515P02960 Contact Us For Availability
14
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
14
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
15
RACK, OVEN WPL 74003106 Contact Us For Availability
15
TOP, MAIN (BLK) WPL 74003323 Contact Us For Availability
16
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
16
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
VALVE, OVEN WPL 74004585 Contact Us For Availability
16
VALVE, OVEN WPL 74006333 Contact Us For Availability
16
VALVE, OVEN WPL 7501P05660 Contact Us For Availability
17
VALVE, BURNER (REAR) WPL 74004362 Contact Us For Availability
17
VALVE, BURNER (FRT) WPL 74004363 Contact Us For Availability
17
VALVE, BURNER WPL 74003348 Contact Us For Availability
17
VALVE, BURNER WPL 74003349 Contact Us For Availability
18
MIXER, AIR WPL 3411F00334 Contact Us For Availability
19
FITTING, HALF UNION WPL 74004234 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003355 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
× ![]()
