Model LG CK99 – Common Parts & Diagrams
Diagram 0

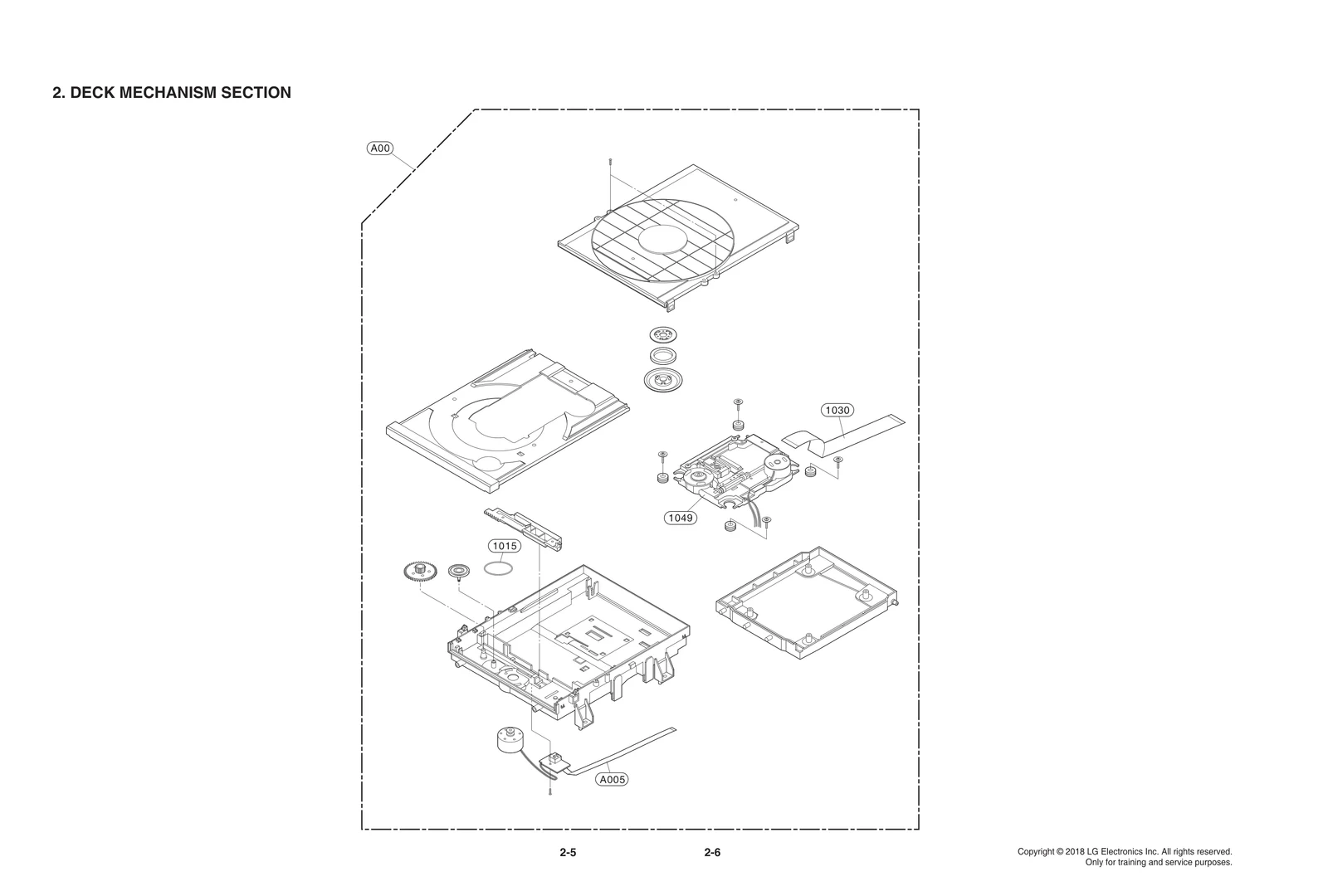

Diagram 1

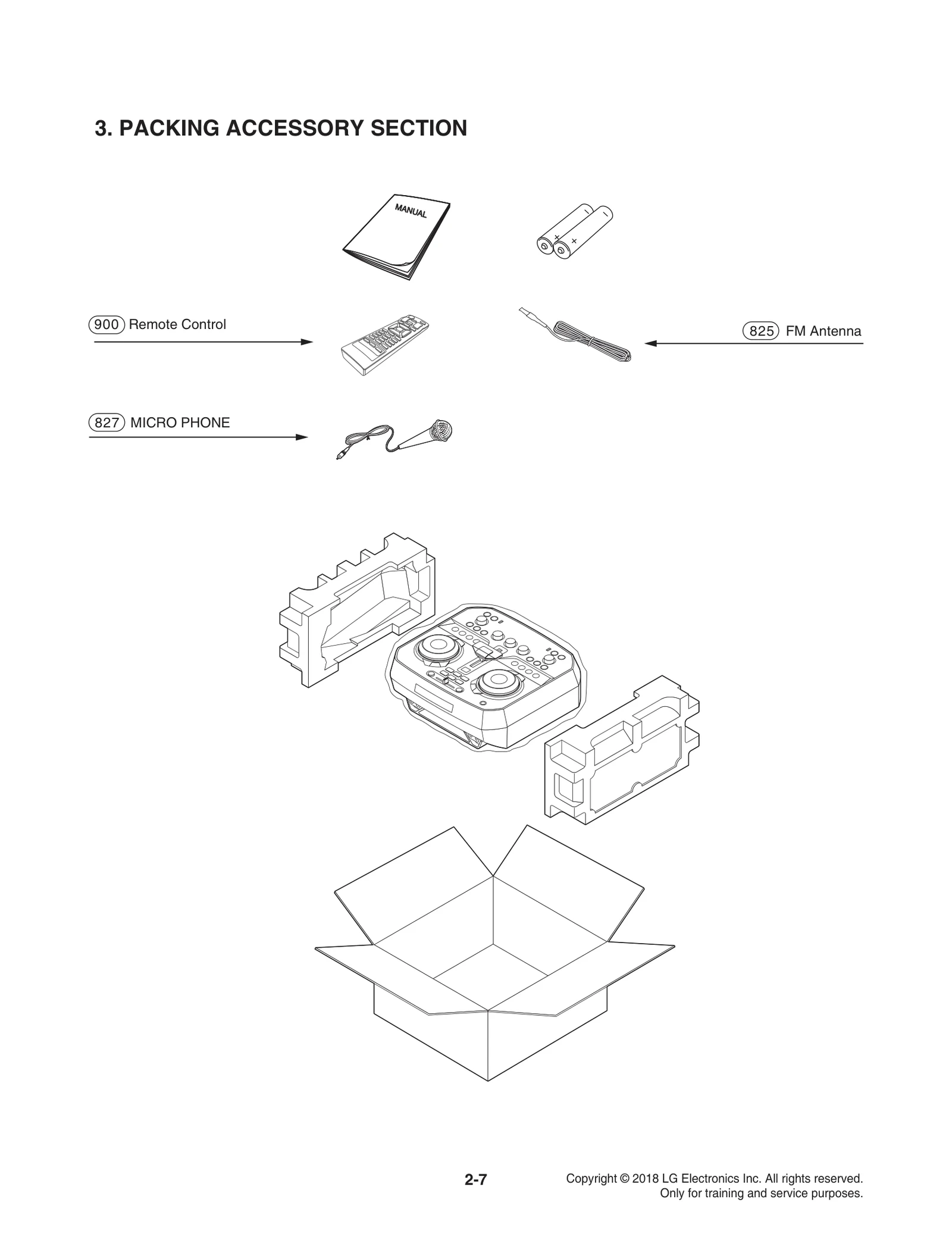

Diagram 2

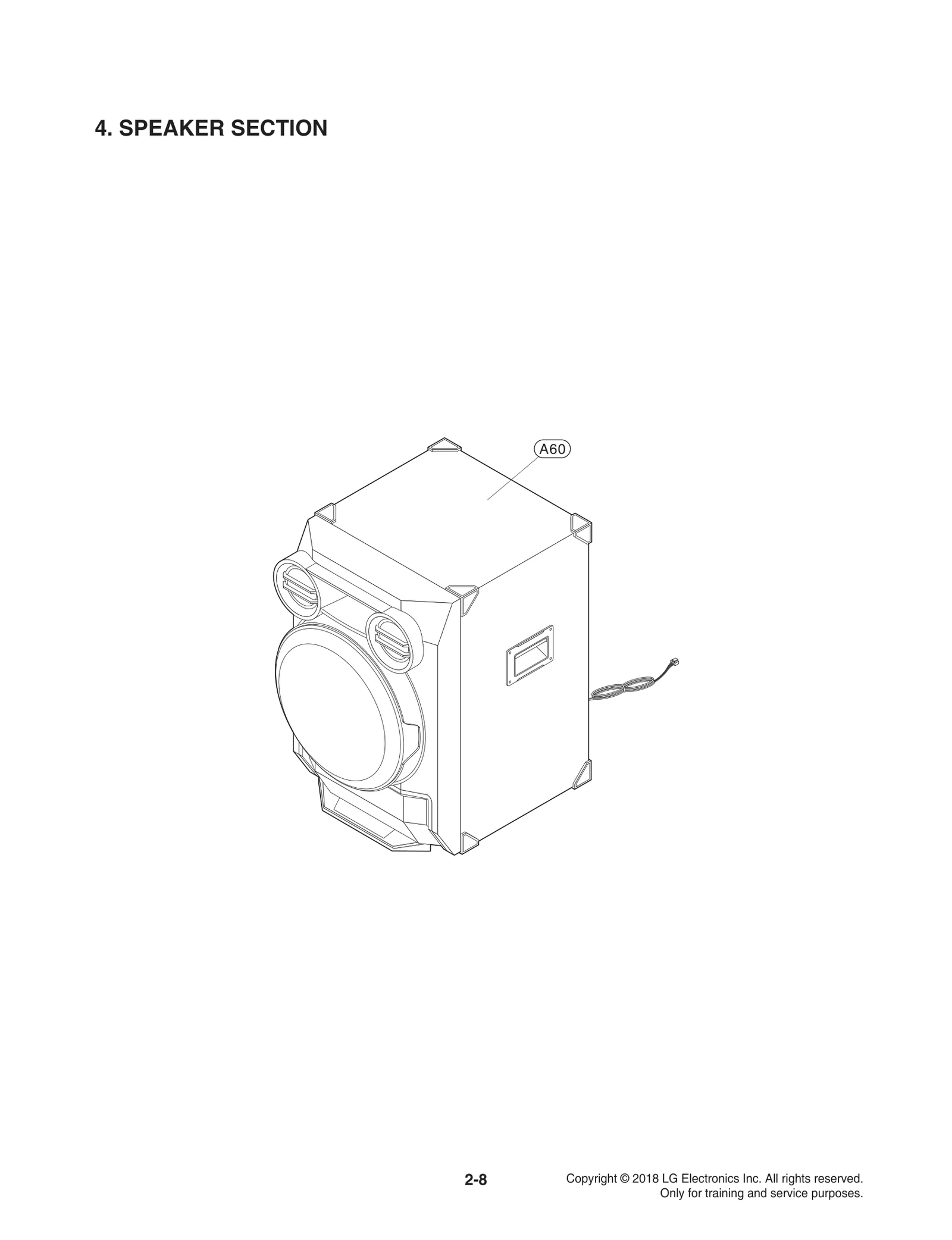

Diagram 3
Diagram 4
Common parts from model LG CK99
250
Frame Assembly LGE ADV76807108 Contact Us For Availability
251
Lens LGE MFB64773301 Contact Us For Availability
252
Case LGE MBN65226101 Contact Us For Availability
254
Plate,Ground LGE MGJ65891201 Contact Us For Availability
263
Fan Module LGE EAL60700911 Contact Us For Availability
264
Bracket LGE MAZ63859601 Contact Us For Availability
266
Panel,Rear LGE MGC65101113 Contact Us For Availability
267
Bracket LGE MAZ64567901 Contact Us For Availability
269
Holder LGE MEG64781001 Contact Us For Availability
270
Holder Assembly LGE AEJ75439602 Contact Us For Availability
273
Chassis LGE MBS63665401 Contact Us For Availability
275
Knob LGE MEY64574401 Contact Us For Availability
276
Knob LGE MEY62914901 Contact Us For Availability
300
Power Cord LGE EAD62608202 Contact Us For Availability
300
Power Cord,Attach LGE EAD62608221 Contact Us For Availability
827
Microphone Assembly LGE EAB60772003 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74955361 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1030
Cable,FFC LGE EAD62056604 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
A00
Deck Assembly,DVD LGE EAZ62861201 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR74553001 Contact Us For Availability
A44A
Frame Assembly LGE ADV76807201 Contact Us For Availability
A44B
Frame Assembly LGE ADV76807409 Contact Us For Availability
A45
PCB Assembly LGE EBR85584305 Contact Us For Availability
A46
Option Code Assembly LGE EBR85801014 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR85904401 Contact Us For Availability
A48
PCB Assembly LGE EBR85496502 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833602 Contact Us For Availability
A56
PCB Assembly LGE EBR85497005 Contact Us For Availability
A58
PCB Assembly,Control LGE EBR85517702 Contact Us For Availability
A59
PCB Assembly LGE EBR85864802 Contact Us For Availability
A60
Front Speaker System LGE TCG36968207 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130054 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD43523207 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD61048310 Contact Us For Availability
CABLE4
Harness,Single LGE EAD63828701 Contact Us For Availability
CABLE5
Harness,Single LGE 6631R-G007D Contact Us For Availability
CABLE6
Harness,Single LGE EAD64166204 Contact Us For Availability
CABLE7
Harness,Single LGE EAD63448001 Contact Us For Availability
CABLE8
Harness,Single LGE EAD42218212 Contact Us For Availability
CABLE9
Harness,Single LGE EAD63448101 Contact Us For Availability
IC3B1A
S/W,System Program LGE SAA39951801 Contact Us For Availability
IC303A
S/W,System Program LGE SAA39951601 Contact Us For Availability
IC304A
S/W,System Program LGE SAA39951901 Contact Us For Availability
IC402A
S/W,System Program LGE SAA39951701 Contact Us For Availability
× ![]()
