Model LG CHECK – Common Parts & Diagrams

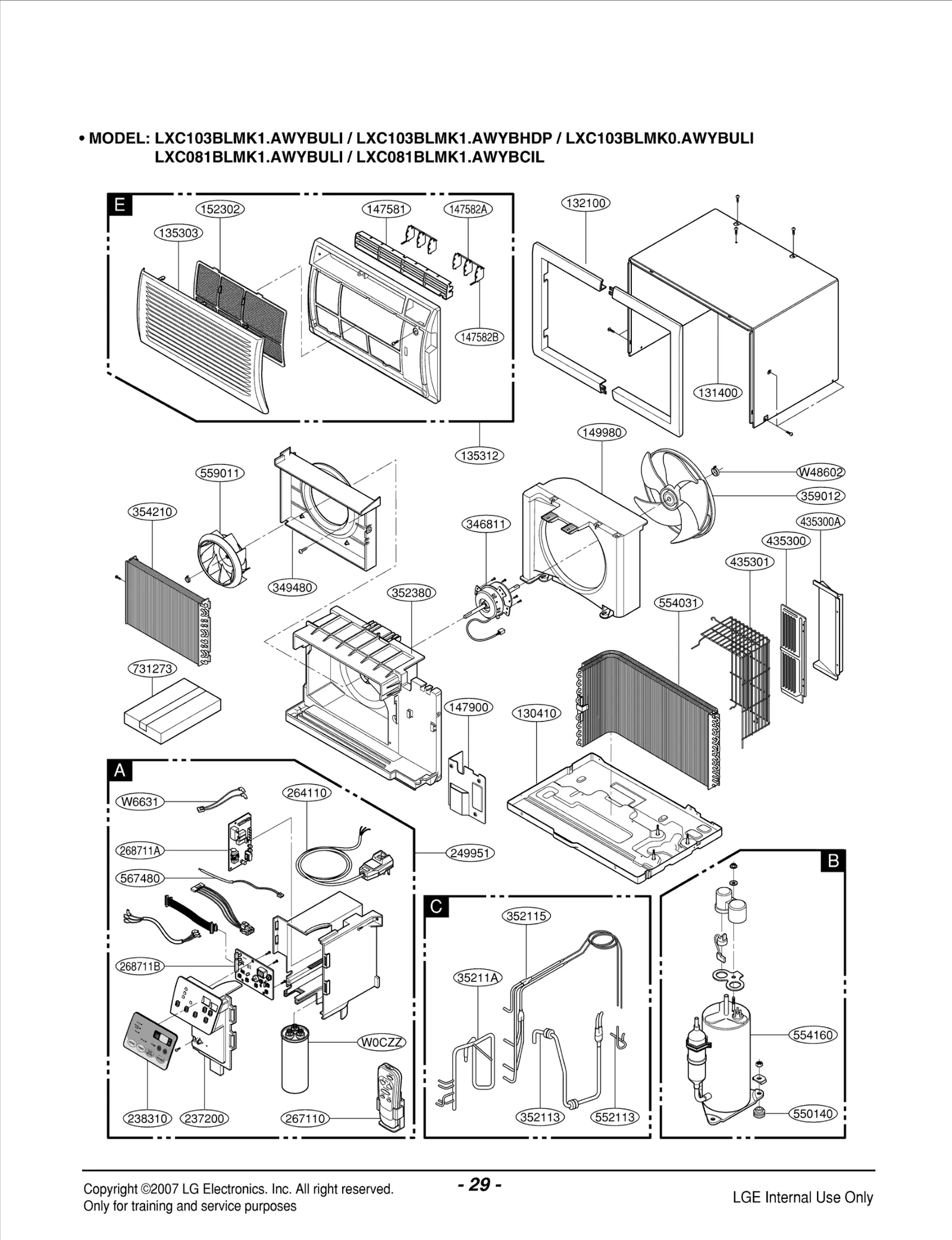

Diagram 0
Common parts from model LG CHECK
147581
LOUVER,HORIZONTAL LGE 4758A20058A Contact Us For Availability
147900
Barrier,Single LGE 4790A11001A Contact Us For Availability
237200
PANEL,CONTROL LGE 3720A20251A Contact Us For Availability
238310
Escutcheon LGE 3831A10037F Contact Us For Availability
249951
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20493U Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20048W Contact Us For Availability
267110
REMOTE CONTROLLER ASSEMBLY LGE 6711A20093A Contact Us For Availability
268711A
PWB(PCB) ASSEMBLY,MAIN LGE 6871A01001A Contact Us For Availability
268711B
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20448A Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20175B Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071H Contact Us For Availability
435300
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
435300A
GRILLE,REAR LGE 3530A30015A Contact Us For Availability
554031
Condenser Assembly,Bending LGE 5403A20183K Contact Us For Availability
554160
COMPRESSOR SET,CHINA LGE 2520UCDA020 Contact Us For Availability
559011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
567480
THERMISTOR ASSEMBLY LGE 6323A20004E Contact Us For Availability
731273
INSTALL PART ASSEMBLY,SINGLE LGE 3127A20017C Contact Us For Availability
W0CZZ
CAPACITOR LGE 6120AR2194P Contact Us For Availability
× ![]()
