Model Whirlpool CHE9800BCM ELECTRIC RANGE – Common Parts & Diagrams

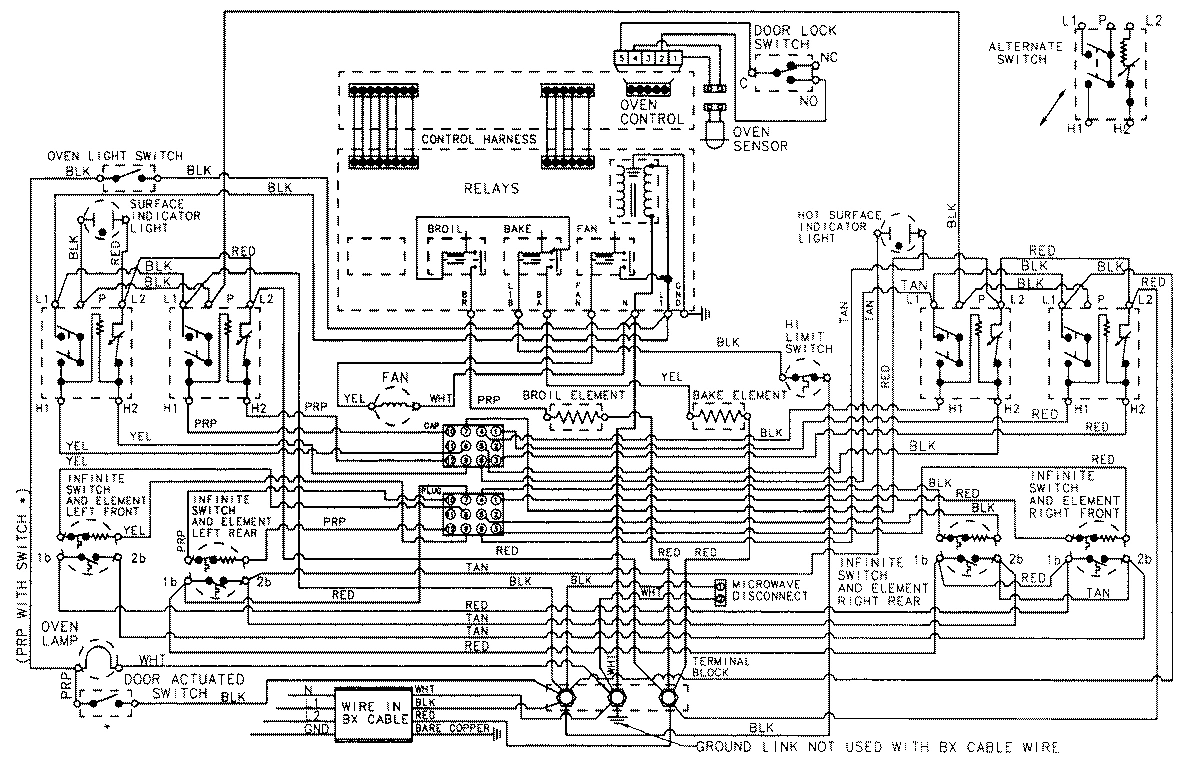

06 - WIRING INFORMATION

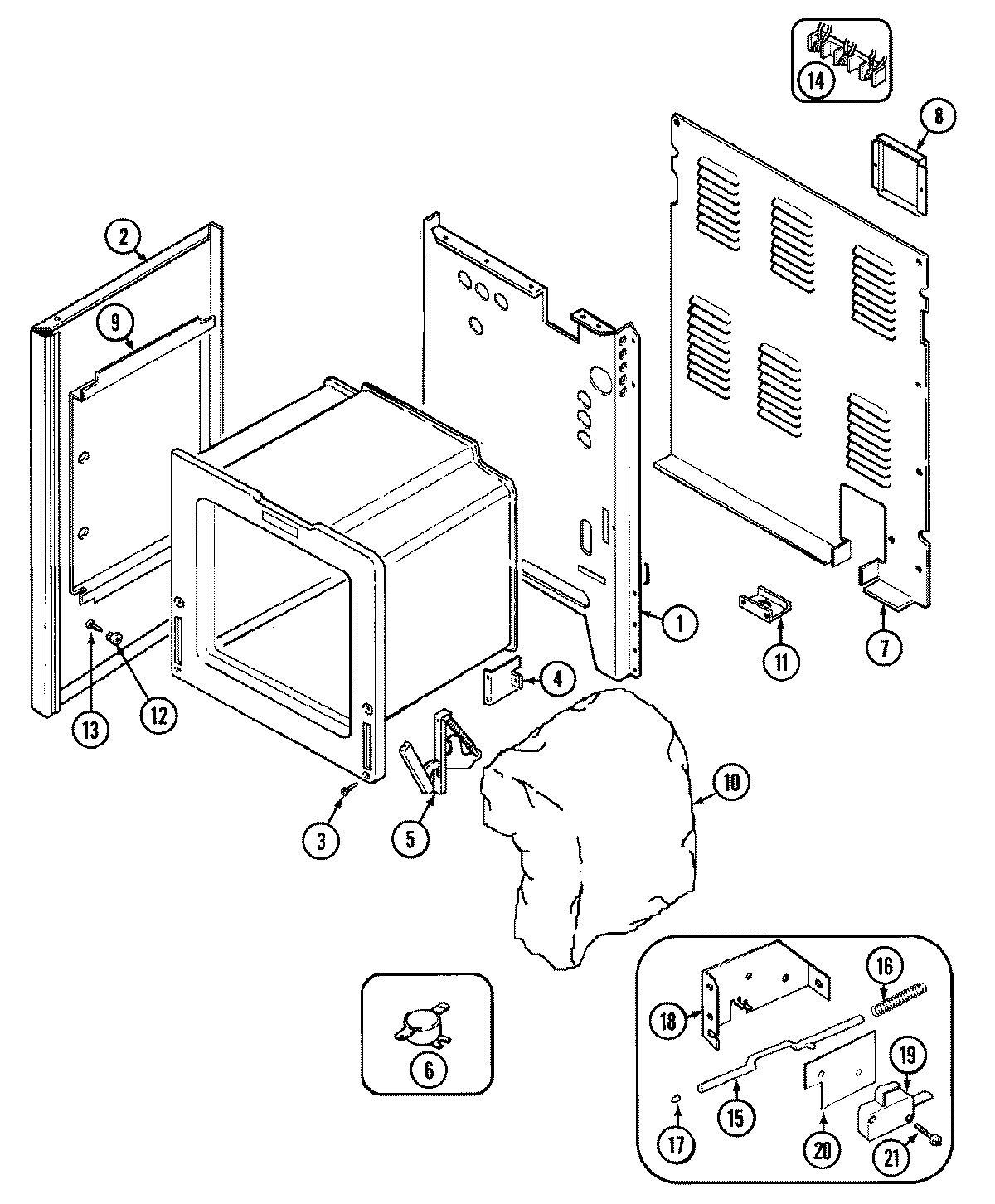

01 - BODY (CHE9800BCM)

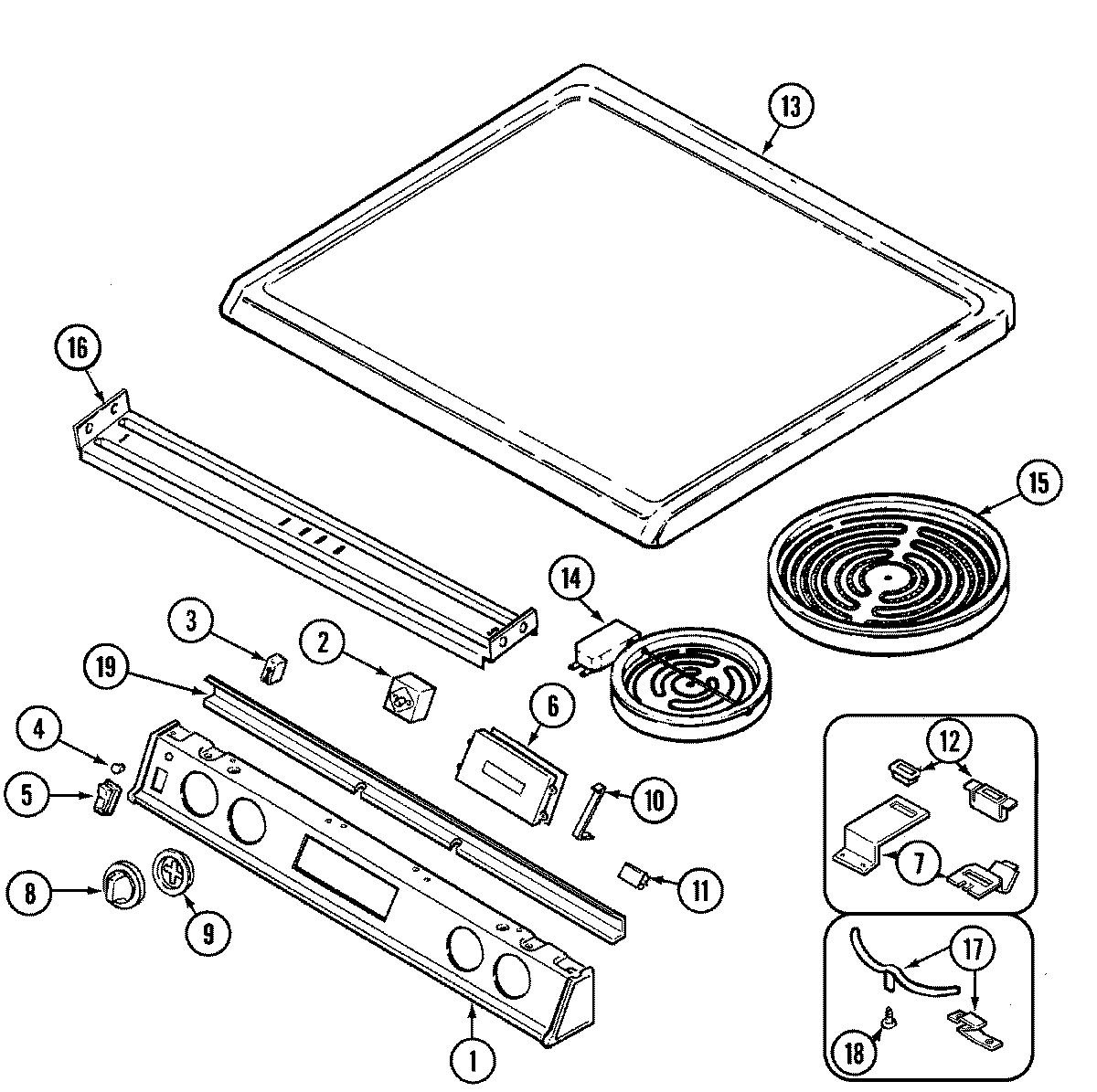

05 - TOP ASSEMBLY (CHE9800BCM)

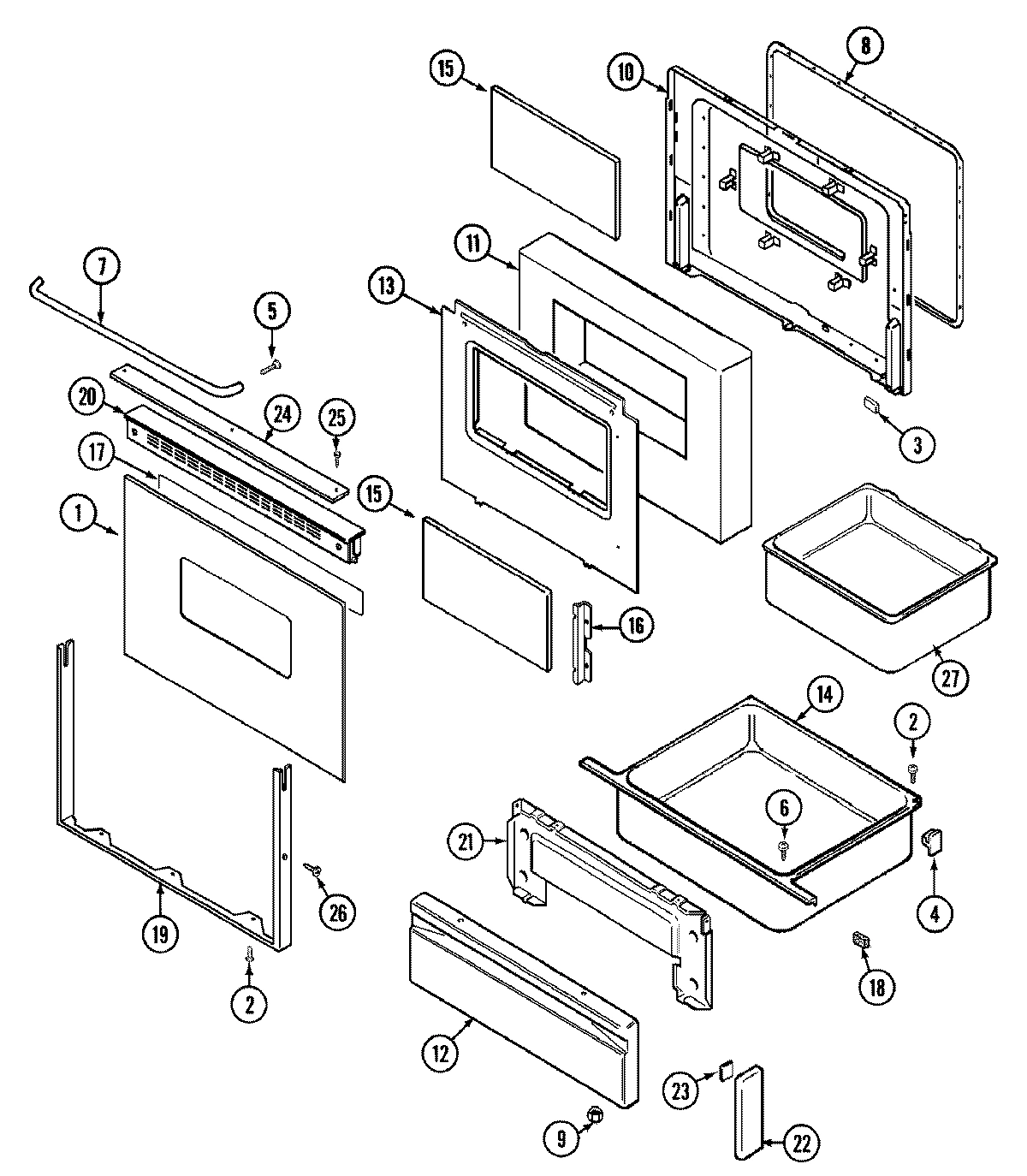

02 - DOOR/DRAWER (CHE9800BCM)

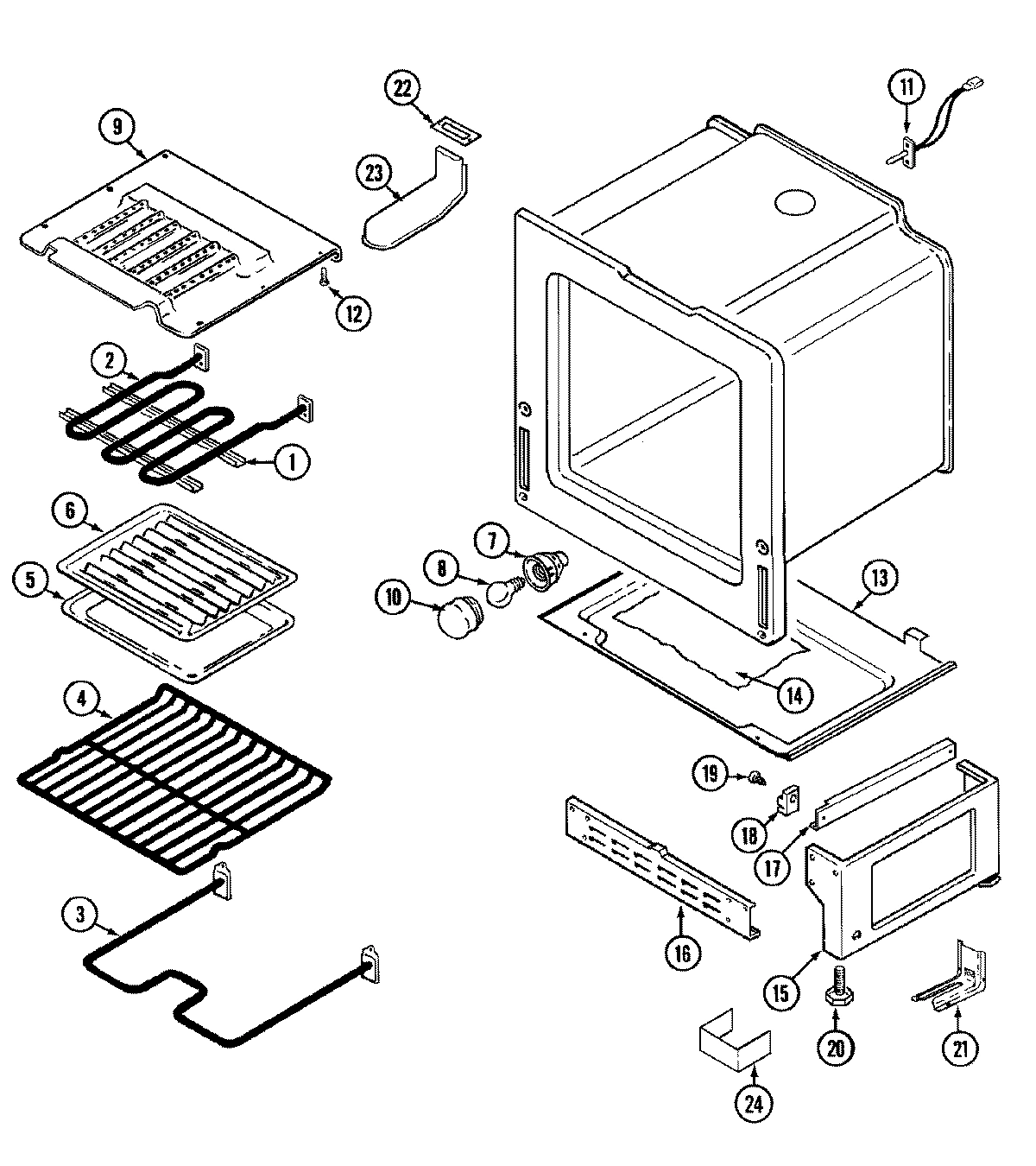

04 - OVEN/BASE (CHE9800BCM)

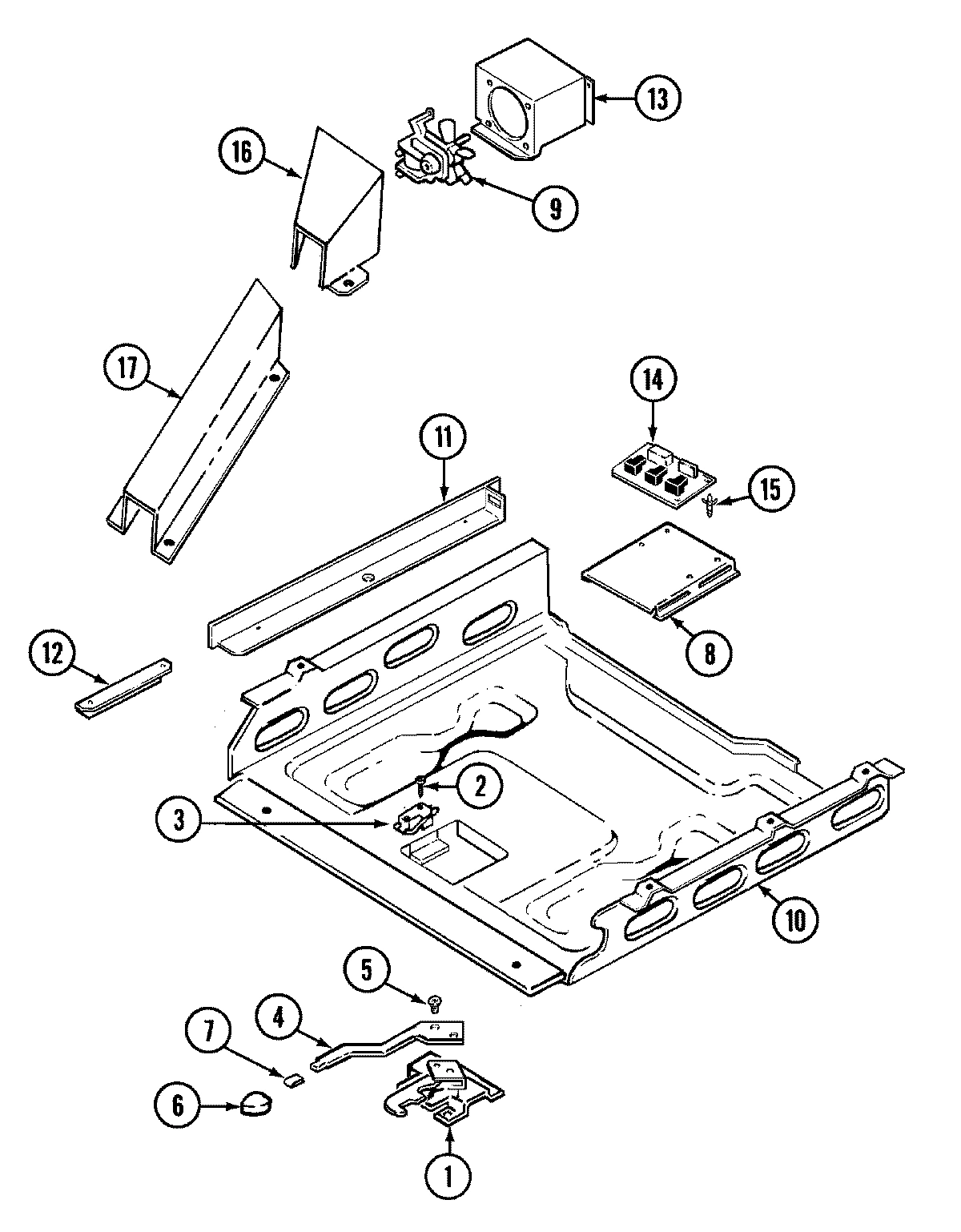

03 - INTERNAL CONTROLS (CHE9800BCM)
Common parts from model Whirlpool CHE9800BCM ELECTRIC RANGE
1
BACK, MAIN WPL 74001582 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
1
PANEL, CONTROL (ALM) WPL 74002676 Contact Us For Availability
1
GLASS, OUTER DOOR (ALM) WPL 74001294 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
1
LATCH ASSY. WPL 74003032 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
PANEL, SIDE (LT-ALM) WPL 74001576 Contact Us For Availability
2
PANEL, SIDE (RT-ALM) WPL 74001577 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
3
SCREW WPL 7101P11560 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P09260 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
RACK WPL 7801P04660 Contact Us For Availability
4
LEVER, LATCH (BRN) WPL 74003006 Contact Us For Availability
4
LEVER, DOOR LATCH WPL 8009P02560 Contact Us For Availability
5
HINGE WPL 7106P05660 Contact Us For Availability
5
SWITCH, ROCKER (ALM) WPL 7403P35860 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
6
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
6
CLOCK (ALM) WPL 74002674 Contact Us For Availability
6
SCREW WPL 7101P07260 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
HANDLE, LATCH (ALM) WPL 7701P15160 Contact Us For Availability
7
COVER, WIRE WPL 4005F44751 Contact Us For Availability
7
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
7
BRACKET, INDICATOR LIGHT WPL 74002978 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
7
HANDLE, OVEN DOOR (ALM) WPL 74001284 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
KNOB, SWITCH (ALM) WPL 7737P04660 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
COVER, DOOR LATCH WPL 4005F44351 Contact Us For Availability
9
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
9
BEZEL, KNOB (ALM) WPL 74002677 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
10
INSULATION, BACK WPL 74001159 Contact Us For Availability
10
INSULATION, OVEN WRAP WPL 74003037 Contact Us For Availability
10
BRACKET, CLOCK WPL 74003191 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
LINING, DOOR WPL 74003244 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
BOX, BURNER WPL 4011F23180 Contact Us For Availability
11
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
11
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
11
INSULATION, DOOR WPL 74001842 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
SCREW WPL 7101P29060 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
LIGHT, SURFACE INDICATOR WPL 74003043 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P09860 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 74001478 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 74003522 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
13
TOP, MAIN (ALM TOP/ALM GLASS) WPL 74002675 Contact Us For Availability
13
TOP, MAIN (ALM TRIM/ALM GLASS) WPL 74003340 Contact Us For Availability
13
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09851 Contact Us For Availability
14
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
14
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
BOARD, RELAY WPL 7428P02160 Contact Us For Availability
15
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
15
LIMITER (8``) WPL 74002652 Contact Us For Availability
15
GLASS, INNER WPL 74001841 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01580 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
15
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
16
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
16
SUPPORT, ELEMENT WPL 3807F39045 Contact Us For Availability
16
RETAINER, GLASS WPL 74001844 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
17
BUMPER, ROD WPL 74001631 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 74002614 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 74002976 Contact Us For Availability
17
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
17
CHANNEL, BOTTOM WPL 3818F05451 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05951 Contact Us For Availability
18
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
18
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
18
NUT WPL 7103P08260 Contact Us For Availability
18
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
18
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
19
TRIM, SHIELD MANIFOLD PANEL WPL 74002647 Contact Us For Availability
19
FRAME, DOOR (ALM) WPL 7706P31160 Contact Us For Availability
19
SCREW WPL 7101P10360 Contact Us For Availability
20
INSULATOR, DOOR SWITCH WPL 74001626 Contact Us For Availability
20
TRIM, TOP DOOR (ALM) WPL 74001279 Contact Us For Availability
20
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
21
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
21
LINING WPL 2404F04380 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
END CAP, DRAWER (ALM) WPL 7744P09160 Contact Us For Availability
22
GASKET, VENT WPL 7201P06060 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
23
BOX, VENT WPL 4006W11245 Contact Us For Availability
23
COVER, VENT WPL 74001674 Contact Us For Availability
24
INSERT, DOOR TRIM (ALM) WPL 7728P09560 Contact Us For Availability
24
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
25
SCREW, TRIM (ALM) WPL 7101P37060 Contact Us For Availability
26
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
27
BASKET, DRAWER WPL 74001458 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P22860 Contact Us For Availability
NI
HARNESS, COOKTOP TO SWITCH WPL 5175D07660 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74001180 Contact Us For Availability
NI
HARNESS, CLOCK/RELAY WPL 74001583 Contact Us For Availability
NI
HARNESS, WIRE CONTROL PANEL WPL 74001595 Contact Us For Availability
NI
WIRES, LOOSE WPL 74001672 Contact Us For Availability
NI
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
NI
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
× ![]()
