Model Whirlpool CGW6C5GWK GAS RANGE – Common Parts & Diagrams

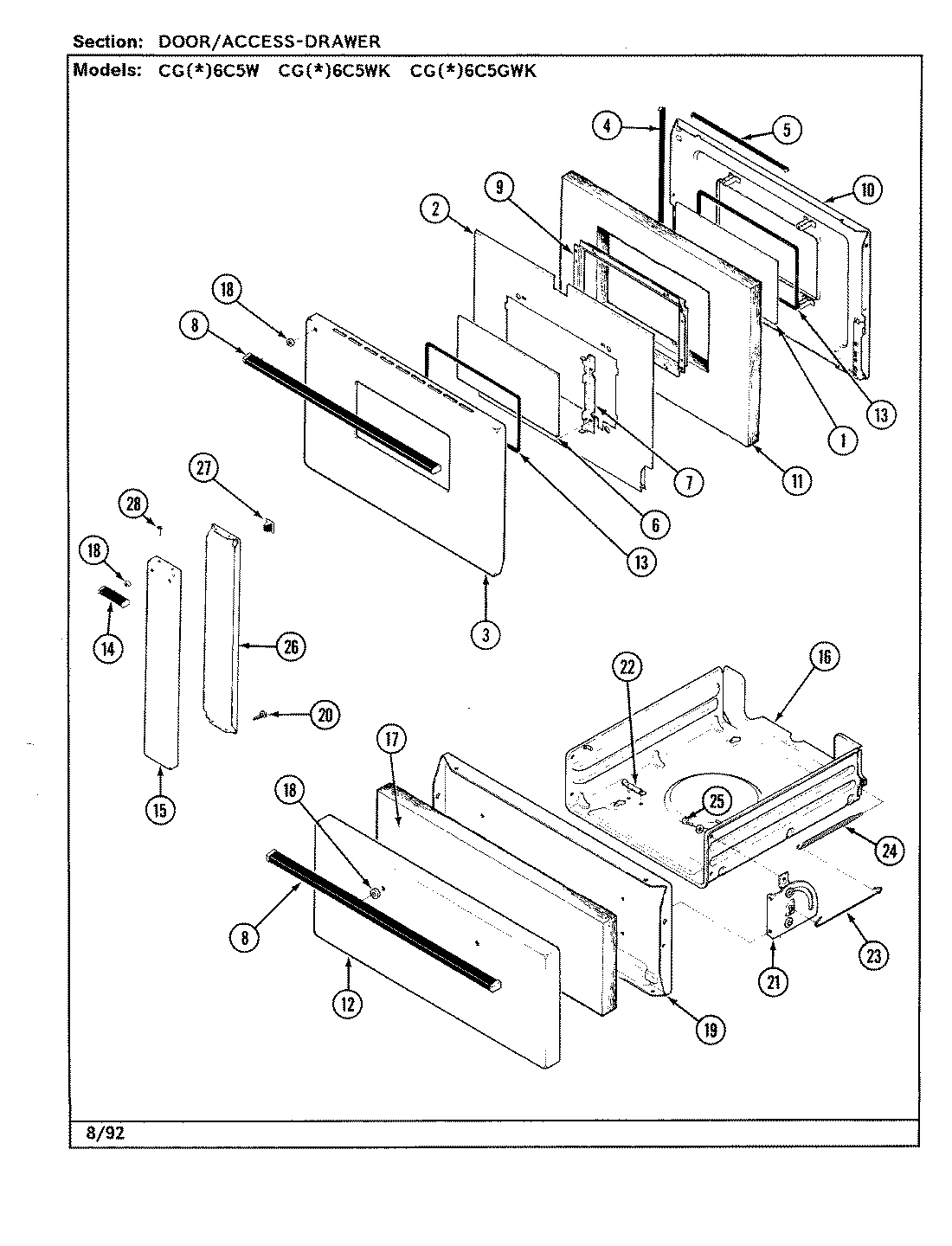

03 - DOOR/DRAWER

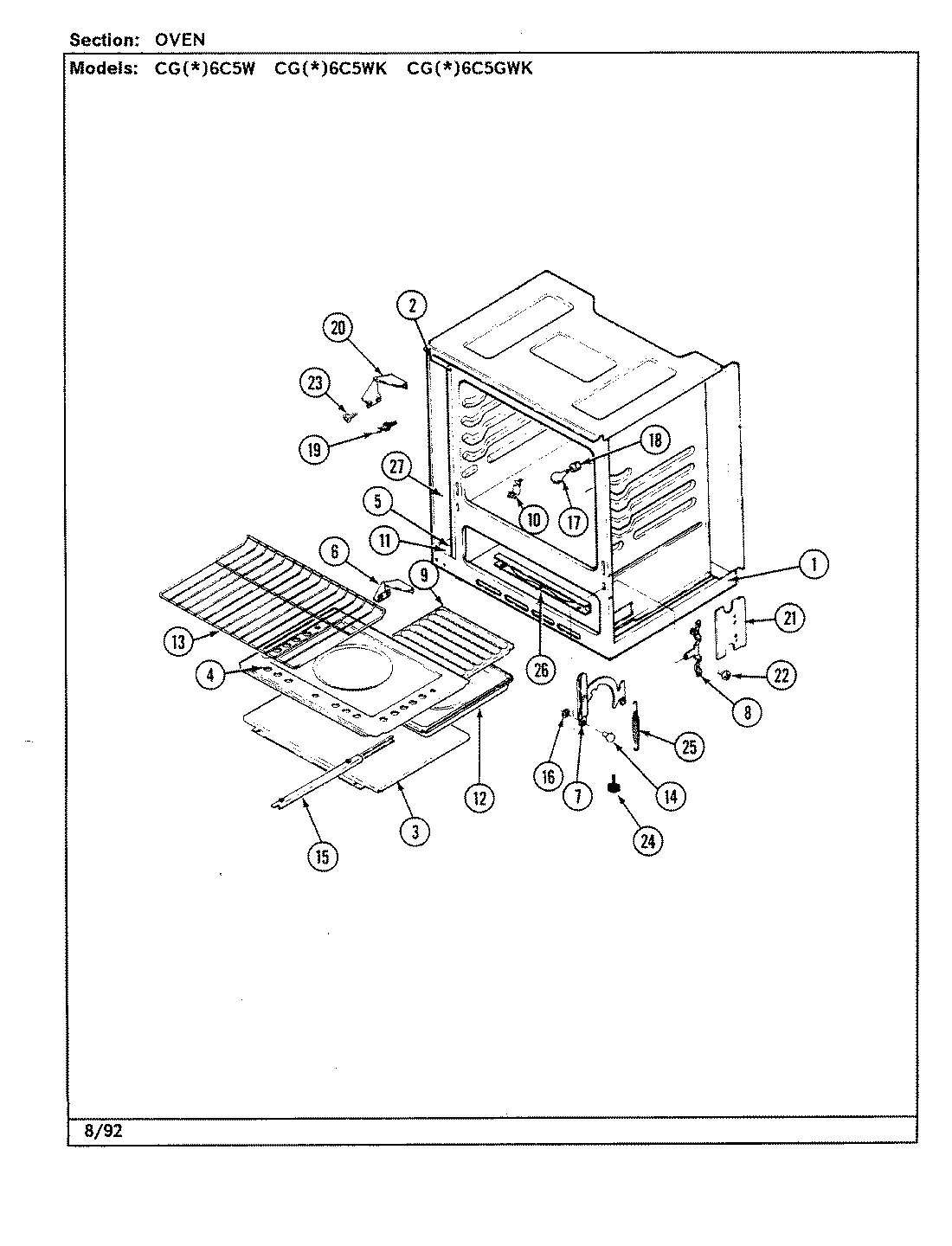

05 - OVEN

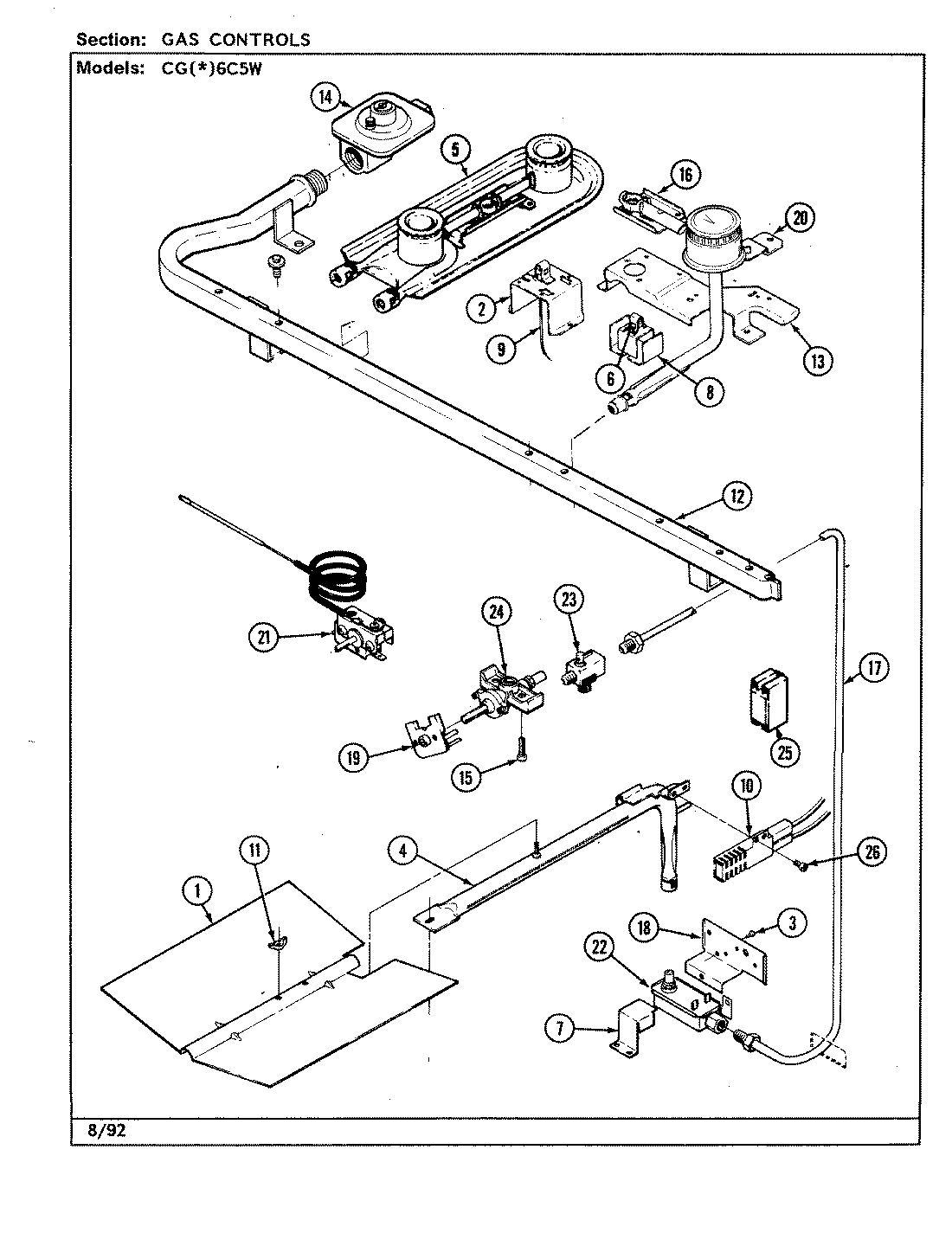

04 - GAS CONTROLS (CGx6C5WK, CGx6C5GWK)

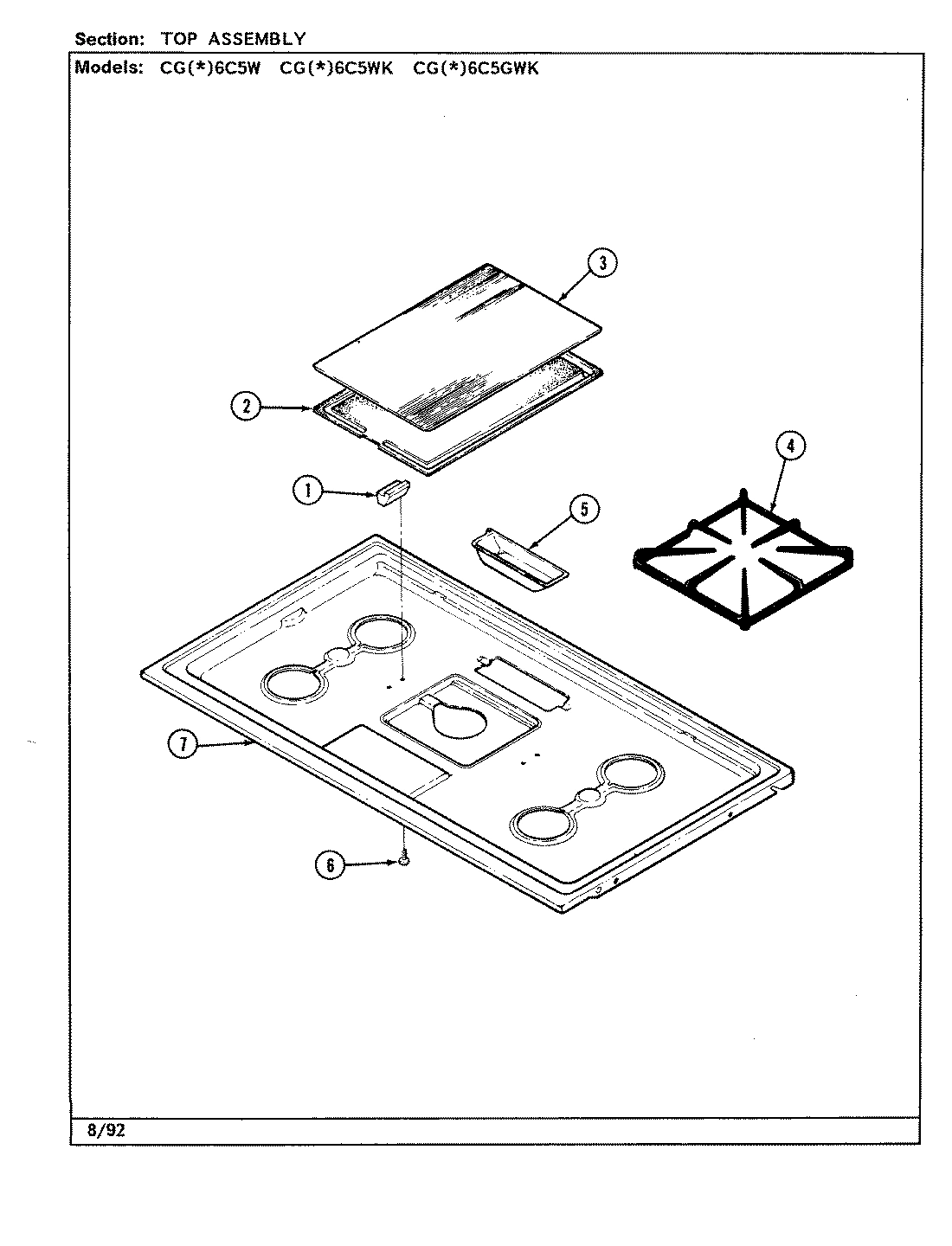

06 - TOP ASSEMBLY

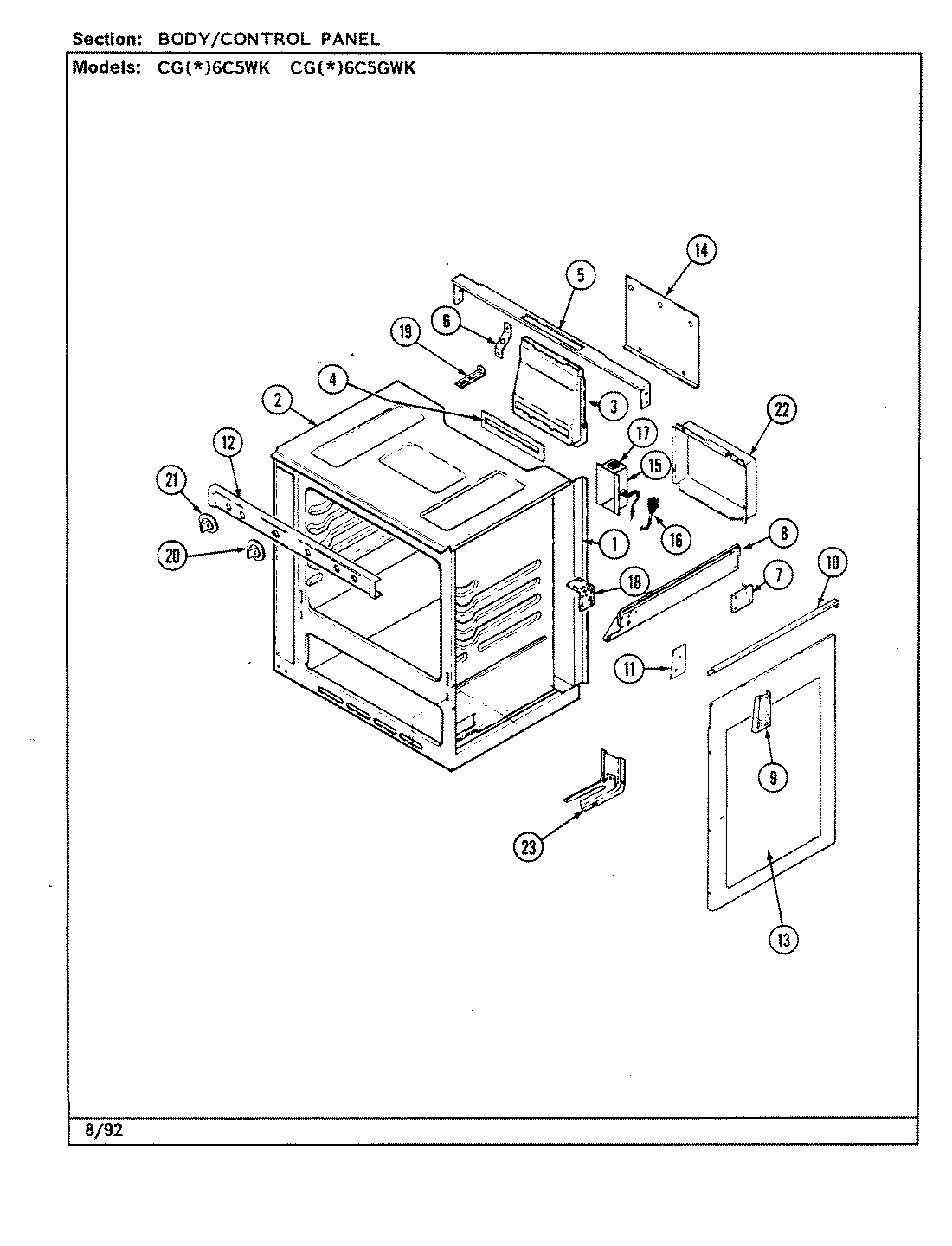

01 - BODY (CGx6C5WK, Cx6C5GWK)

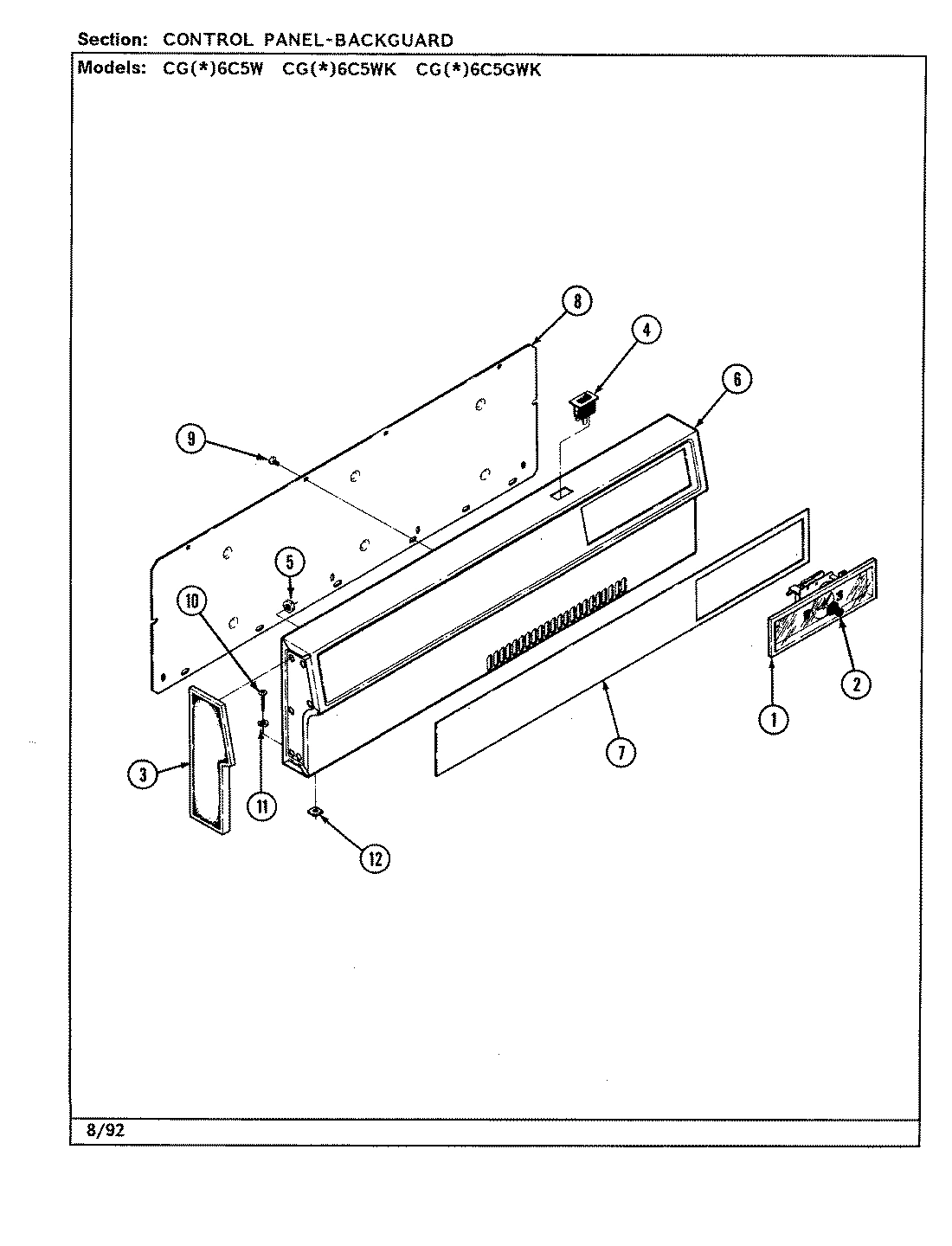

02 - CONTROL PANEL
Common parts from model Whirlpool CGW6C5GWK GAS RANGE
1
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
1
BRACE, BASE WPL 3802F01280 Contact Us For Availability
1
BASE ASSY. RANGE WPL 4003W00280 Contact Us For Availability
1
SCREW WPL 7101P00460 Contact Us For Availability
1
NUT, BASE MTG. WPL 7103P00460 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F10145 Contact Us For Availability
1
SUPPORT, GRATE WPL 8004P01660 Contact Us For Availability
1
BACK, MAIN WPL 4002F06380 Contact Us For Availability
1
CLOCK----NA WPL 7602P06460 Contact Us For Availability
2
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
BRACE COMPT. TOP WPL 3802F07280 Contact Us For Availability
2
SUPPORT WPL 3807F11234 Contact Us For Availability
2
KIT, GRIDDLE WPL W10116823 Contact Us For Availability
2
BOX, BURNER WPL 4011F13580 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
3
PANEL, OV DR WPL 2401F10071 Contact Us For Availability
3
PANEL, OV DOOR WPL 2401F10074 Contact Us For Availability
3
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
3
BOTTOM WPL 4011F14551 Contact Us For Availability
3
SCREW WPL 7101P11560 Contact Us For Availability
3
COVER, GRIDDLE STAINLESS WPL 2005F00230 Contact Us For Availability
3
FLUE ASSY. WPL 4006W01780 Contact Us For Availability
3
TRIM WPL 7726P00360 Contact Us For Availability
3
TRIM WPL 7726P01460 Contact Us For Availability
4
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F00923 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F01719 Contact Us For Availability
4
BAFFLE WPL 3601F20123 Contact Us For Availability
4
INSULATION, BAFFLE WPL 7002P00960 Contact Us For Availability
4
BURNER, OVEN WPL 7505P06560 Contact Us For Availability
4
GRATE WPL 2003W00100 Contact Us For Availability
4
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
4
GASKET WPL 7201P00660 Contact Us For Availability
4
SWITCH WPL 7403P02060 Contact Us For Availability
4
SWITCH, LIGHT WPL 7403P24260 Contact Us For Availability
5
CLIP, SEAL WPL 7112P06460 Contact Us For Availability
5
SEAL, OVEN DOOR WPL 7212P02560 Contact Us For Availability
5
SIDE, OVEN COMPARTMENT WPL 4016F01480 Contact Us For Availability
5
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
5
PAN, GREASE WPL 3401F01723 Contact Us For Availability
5
BRACE TOP REAR WPL 3802F03870 Contact Us For Availability
5
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
6
GLASS WPL 7902P05160 Contact Us For Availability
6
HINGE WPL 7106P00360 Contact Us For Availability
6
SCREW, BKGD TRIM BWN WPL 7101P00660 Contact Us For Availability
6
BRACE WPL 3802F01480 Contact Us For Availability
6
BRACE WPL 3802F03734 Contact Us For Availability
6
PANEL, BACKGUARD WHITE WPL 2601W20281 Contact Us For Availability
6
PANEL, BACKGUARD ALMOND WPL 2601W20284 Contact Us For Availability
6
BACKGUARD WPL 2601W34681 Contact Us For Availability
6
NAMEPLATE WPL 7719P06060 Contact Us For Availability
7
RETAINER, GLASS WPL 3804F09580 Contact Us For Availability
7
STOP, OVEN DOOR WPL 3420A03534 Contact Us For Availability
7
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
7
TOP, MAIN WHITE WPL 2001F04581 Contact Us For Availability
7
HINGE, MAIN TOP R.H. WPL 5720A00234 Contact Us For Availability
7
HINGE, MAIN TOP L.H. WPL 5720A00934 Contact Us For Availability
7
INLAY, BKGD WPL 7703P18460 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
HINGE, OVEN DOOR (LT) WPL 3418D07534 Contact Us For Availability
8
HINGE, OVEN DOOR (RT) WPL 3418D07634 Contact Us For Availability
8
SCREW WPL 7101P07160 Contact Us For Availability
8
SUPPORT WPL 3807F06934 Contact Us For Availability
8
SIDE, BURNER BOX RIGHT WPL 4016F00280 Contact Us For Availability
8
SIDE, BURNER BOX LEFT WPL 4016F00680 Contact Us For Availability
8
SHIELD WPL 4005F03680 Contact Us For Availability
9
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
9
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
9
TRIM, LEFT WPL 7720P05560 Contact Us For Availability
9
TRIM, RIGHT WPL 7720P05860 Contact Us For Availability
9
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W16519 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W16523 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
IGNITER, BAKE WPL 7432P05160K Contact Us For Availability
10
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
TRIM WPL 7720P05660 Contact Us For Availability
10
TRIM WPL 7720P05960 Contact Us For Availability
10
SCREW WPL 7101P06960 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
11
BOTTOM, COMPARTMENT WPL 4011F13180 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
TRIM WPL 2610F00132 Contact Us For Availability
11
TRIM WPL 2610F00232 Contact Us For Availability
11
LOCKWASHER 1/4`` WPL 7109P03360 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2403F02971 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2403F02974 Contact Us For Availability
12
PAN, BROIL WPL 3401F00423 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
NUT WPL 7103P06460 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P05360 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P11360 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P13860 Contact Us For Availability
12
PANEL, MANIFOLD WHITE WPL 2616F02981 Contact Us For Availability
12
SCREW WPL 7118P00460 Contact Us For Availability
13
SCREW WPL 7101P06160 Contact Us For Availability
13
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
13
RACK, OVEN WPL 7801P01360 Contact Us For Availability
13
SUPPORT, GRIDDLE BURNER WPL 3807F23034 Contact Us For Availability
13
PANEL, SIDE (WHITE) WPL 2618F07571 Contact Us For Availability
13
PANEL, SIDE (ALMOND) WPL 2618F07574 Contact Us For Availability
13
SCREW, TRIM WPL 7101P25060 Contact Us For Availability
14
HANDLE WPL 7701P04360 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
14
BAFFLE WPL 3601F06051 Contact Us For Availability
15
PANEL, COMPARTMENT DOOR - WHIT WPL 2409F00971 Contact Us For Availability
15
PANEL, COMPARTMENT DOOR - ALMO WPL 2409F00974 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
15
SCREW 6-32X.625 TY23PH WPL 7101P01560 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SCREW WPL 7101P29660 Contact Us For Availability
15
BOX, DISCONNECT WPL 4006F00580 Contact Us For Availability
16
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
16
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
16
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
16
TUBE WPL 7506P01860 Contact Us For Availability
16
CORD, POWER WPL 7402P01160 Contact Us For Availability
16
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
17
INSULATION WPL 7002P00260 Contact Us For Availability
17
LAMP, OVEN WPL 7407P02760 Contact Us For Availability
17
TUBING 3/8 X 56.5`` WPL 3414F05144 Contact Us For Availability
17
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
18
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
18
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
18
SUPPORT WPL 3807F12434 Contact Us For Availability
18
BRACKET WPL 3801F05334 Contact Us For Availability
19
LINING, BROILER WPL 2404F02723 Contact Us For Availability
19
LINING DOOR BROILER WPL 2404F02819 Contact Us For Availability
19
CATCH WPL 8024P00260 Contact Us For Availability
19
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
19
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
19
SWITCH WPL 7403P25960 Contact Us For Availability
19
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
19
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
20
BUMPER WPL 8003P00360 Contact Us For Availability
20
HINGE WPL 7106P00760 Contact Us For Availability
20
BURNER - GRIDDLE----NA WPL 7505P10260 Contact Us For Availability
21
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
21
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
21
GUARD, HINGE WPL 3609F00361 Contact Us For Availability
21
SCREW, COUNTERWEIGHT WPL 7101P12760 Contact Us For Availability
21
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
21
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
21
+ THERMOSTAT, OVEN WPL 7515P01960 Contact Us For Availability
21
KNOB, GRIDDLE HI/LO WPL 7711P36560 Contact Us For Availability
21
KNOB, VALVE WPL 7733P02660 Contact Us For Availability
21
KNOB, VALVE WPL 7733P05560 Contact Us For Availability
21
KNOB, VALVE WPL 7733P08860 Contact Us For Availability
22
SCREW WPL 7101P11260 Contact Us For Availability
22
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
22
VALVE, OVEN (NATURAL) WPL 7501P01560 Contact Us For Availability
22
VALVE, OVEN WPL 7501P10660 Contact Us For Availability
22
COVER WPL 4005F11180 Contact Us For Availability
23
LINK, BROILER WPL 7807P00160 Contact Us For Availability
23
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
23
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
24
SPRING WPL 7803P01460 Contact Us For Availability
24
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
24
VALVE, BURNER WPL 7502P04760 Contact Us For Availability
24
VALVE, NATURAL WPL 7502P17760 Contact Us For Availability
24
VALVE, BURNER WPL 7502P18560 Contact Us For Availability
24
VALVE WPL 7502P22660 Contact Us For Availability
24
VALVE, BURNER WPL 7502P23460 Contact Us For Availability
25
SCREW WPL 7101P11460 Contact Us For Availability
25
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
25
SPRING WPL 7803P00360 Contact Us For Availability
25
MODULE, SPARK WPL 7431P00360 Contact Us For Availability
25
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
26
LINING, COMPARTMENT DOOR WPL 2408F00580 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM WPL 5720A01023 Contact Us For Availability
26
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
27
SCREW WPL 7101P05860 Contact Us For Availability
27
CATCH, FEMALE WPL 8002P01360 Contact Us For Availability
27
UPRIGHT, FRONT CORNER WPL 3822F00180 Contact Us For Availability
27
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
27
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
× ![]()
Login and Registration Form
