Model Whirlpool CGW4D59EZK GAS RANGE – Common Parts & Diagrams
01 - BODY

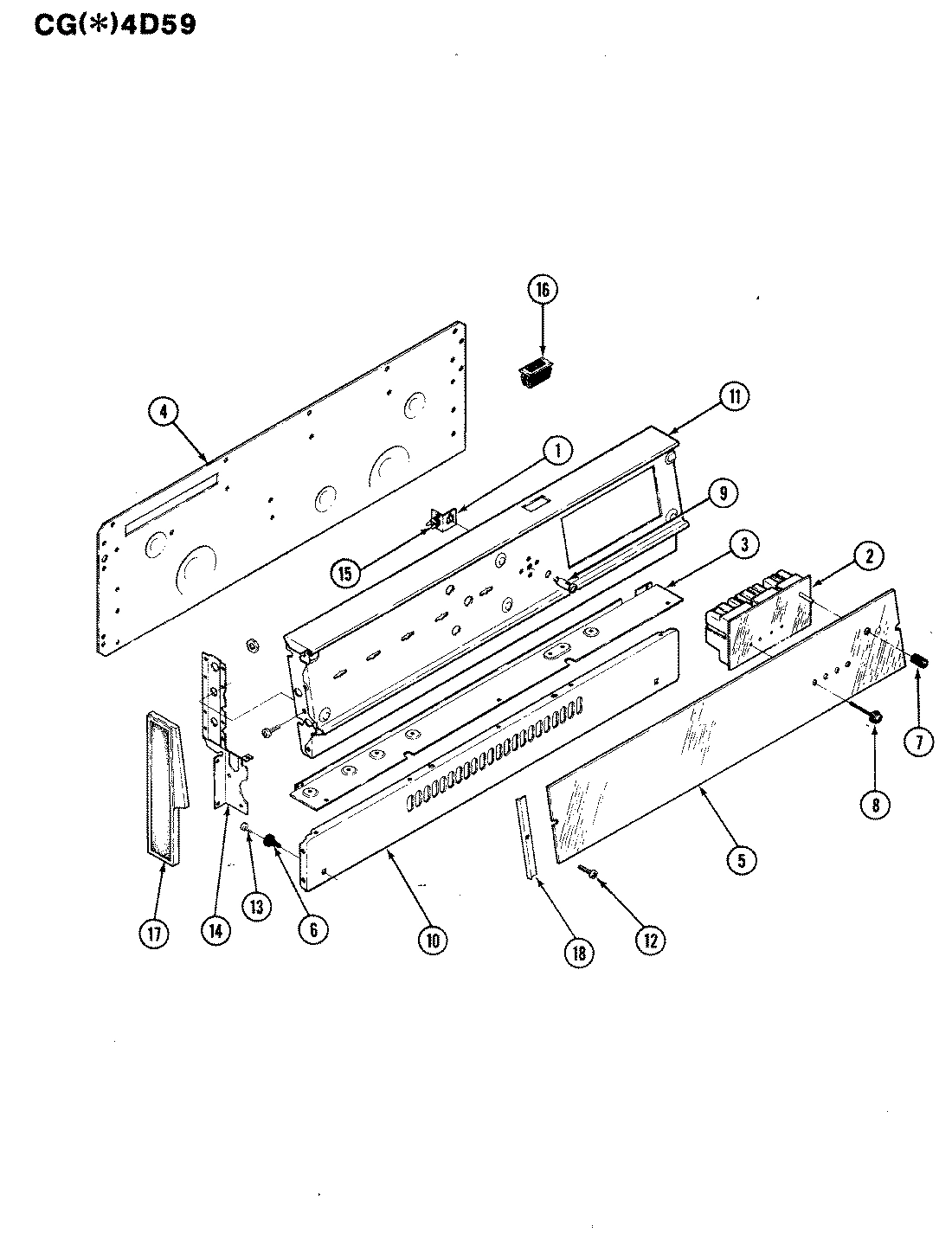

02 - CONTROL PANEL

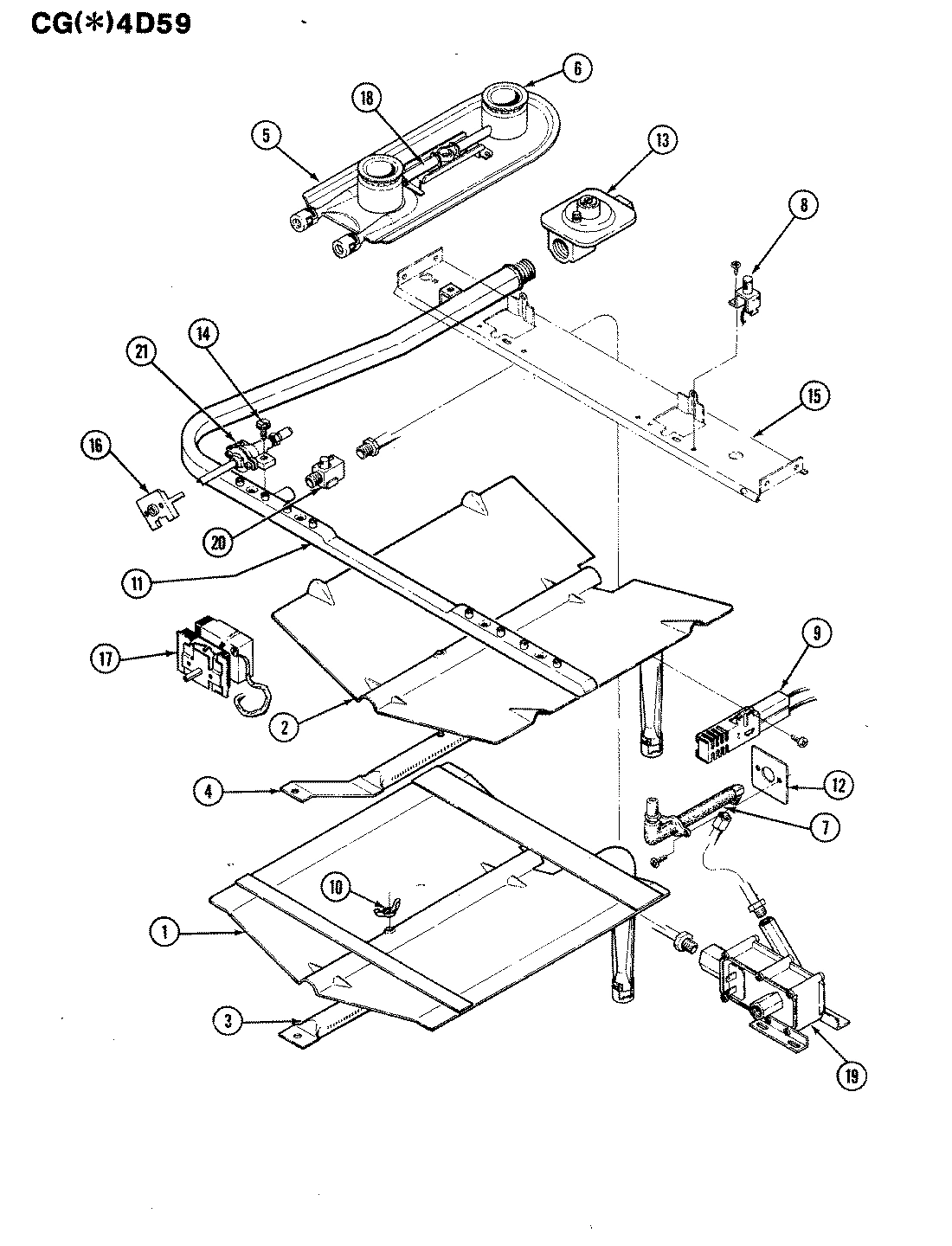

04 - OVEN CONTROLS

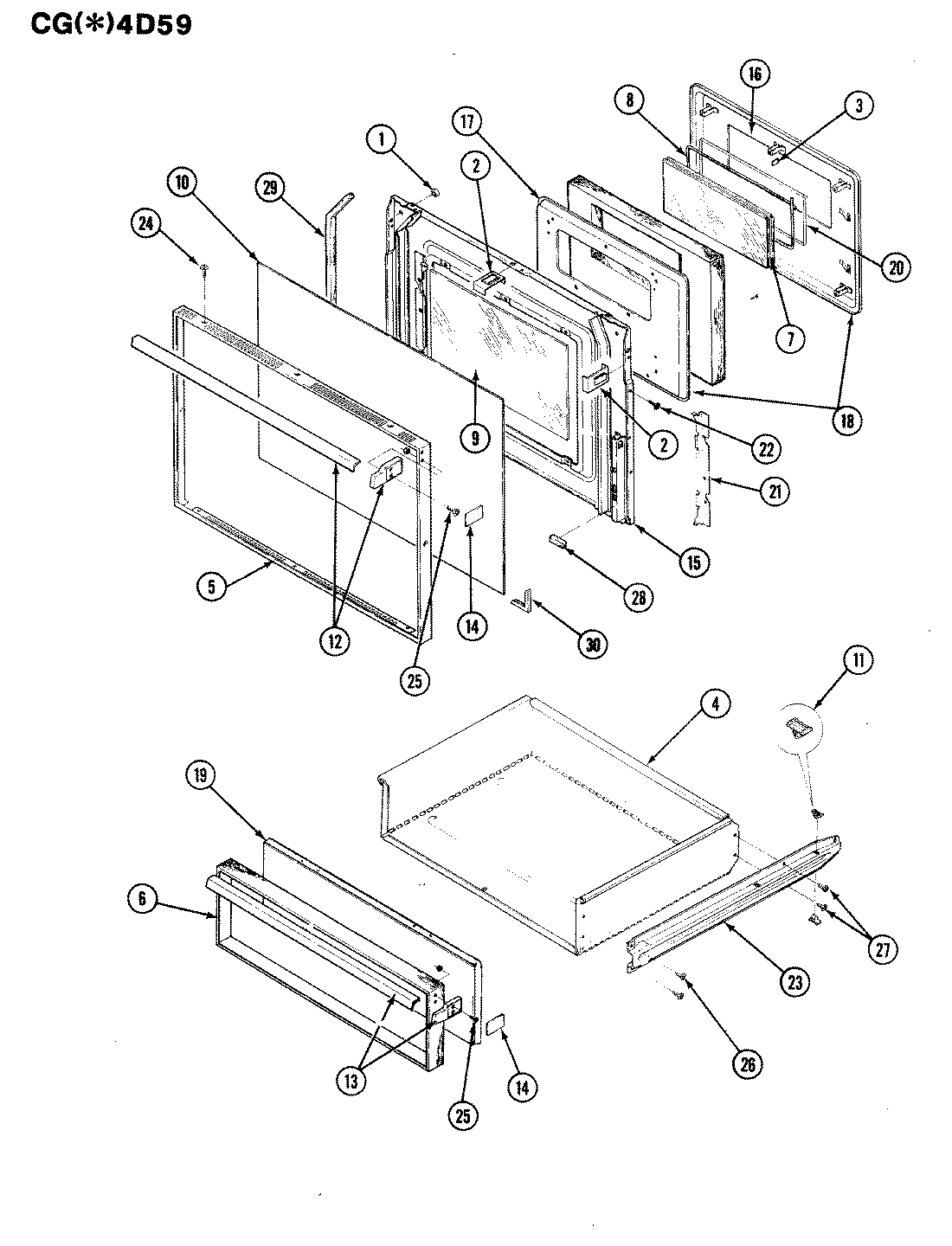

03 - DOOR/DRAWER
Common parts from model Whirlpool CGW4D59EZK GAS RANGE
1
BACK, BROILER SECTION WPL 4002F06645 Contact Us For Availability
1
BAFFLE WPL 3601W18415 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
2
CLOCK WPL 7601P12360 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
3
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
4
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
4
COVER, BKGD WIRE WPL 4005F16180 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
5
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
5
GLASS, BKGD WPL 7910P06060 Contact Us For Availability
5
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
6
COVER, MODULE WPL 4005F17480 Contact Us For Availability
6
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
6
CAP, BURNER WPL 7504P00160 Contact Us For Availability
6
FRAME, STORAGE DRAWER WPL 7706P19660 Contact Us For Availability
7
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
7
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
7
BLOCK WPL 7401P01860 Contact Us For Availability
7
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
7
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
7
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
7
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
7
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
8
BOLT WPL 7116P00360 Contact Us For Availability
8
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
8
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
8
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
9
BOX, BURNER WPL 4011F07580 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7711P32260 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7731P02060 Contact Us For Availability
9
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
9
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P01360 Contact Us For Availability
9
MIXER, AIR WPL 3411F00434 Contact Us For Availability
9
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
9
GLASS, INNER WPL 7902P09760 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F01215 Contact Us For Availability
10
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
10
NUT, WING WPL 7103P03060 Contact Us For Availability
10
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
11
BOWL, DRIP TRAY WPL 7725P00460 Contact Us For Availability
11
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
11
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
11
PANEL, BKGD HVT WHEAT WPL 2601W19986 Contact Us For Availability
11
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
11
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
12
BOX, FLUE WPL 4006W02615 Contact Us For Availability
12
SCREW, BKGD TRIM BWN WPL 7101P00660 Contact Us For Availability
12
PLATE, FITTING WPL 3605F01951 Contact Us For Availability
12
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
13
BRACE WPL 3802F00380 Contact Us For Availability
13
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
14
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
14
BRACKET WPL 3801F09351 Contact Us For Availability
14
BRACE, INNER SIDE WPL 3802F05045 Contact Us For Availability
14
SUPPORT WPL 3807F01080 Contact Us For Availability
14
SUPPORT WPL 3807F01280 Contact Us For Availability
14
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
14
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
15
BRACKET WPL 3801F02451 Contact Us For Availability
15
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
15
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
15
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
15
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
15
SWITCH, H.L. FAN WPL 7403P08760 Contact Us For Availability
15
SWITCH WPL 7403P18860 Contact Us For Availability
15
LINING WPL 2402W12815 Contact Us For Availability
15
NUT, SNAP WPL 7103P11460 Contact Us For Availability
16
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
16
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
16
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
16
PAD, DOOR WPL 2410W02915 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
17
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
17
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
17
THERMOSTAT, OV WPL 7515P02060 Contact Us For Availability
17
PAD, INNER WPL 2410F01651 Contact Us For Availability
18
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
18
TRIM, GLASS RETAINER WPL 7720P08960 Contact Us For Availability
18
TUBING, 3/8 X 51-1/2 WPL 3414F04844 Contact Us For Availability
18
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
18
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
18
PAD, OVEN DOOR WPL 2410A03715 Contact Us For Availability
19
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
19
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
19
PANEL, STORAGE DOOR BLK WPL 2416F02770 Contact Us For Availability
20
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
20
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
20
RETAINER WPL 3804F02245 Contact Us For Availability
21
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
21
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
21
VALVE, BURNER WPL 7502P11160 Contact Us For Availability
21
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
22
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
22
RIVET WPL 7107P01760 Contact Us For Availability
23
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
23
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
24
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
24
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
25
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
25
SCREW WPL 7101P12360 Contact Us For Availability
26
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
27
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
27
SCREW WPL 7101P06160 Contact Us For Availability
28
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
28
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
29
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
29
SEAL WPL 7208P00260 Contact Us For Availability
30
GASKET WPL 7201P01360 Contact Us For Availability
30
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
30
TAPE, 2`` X 16`` REFLECTIVE WPL 8270P05160 Contact Us For Availability
31
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
32
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
33
HANDLE, DOOR WPL 7701P05760 Contact Us For Availability
34
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
35
GRATE WPL 2003W00100 Contact Us For Availability
36
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
37
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
37
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
38
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
39
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
39
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
39
KNOB, SELECTOR WPL 7711P26160 Contact Us For Availability
39
KNOB, SELECTOR WPL 7711P38160 Contact Us For Availability
42
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
43
BULB, OVEN WPL 7407P02660 Contact Us For Availability
44
LINING ASSY, INNER SIDE WPL 4009W03880 Contact Us For Availability
45
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
46
PAN, BROIL WPL 3401F00423 Contact Us For Availability
46
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
47
PANEL, LOWER FRONT WPL 2614F00880 Contact Us For Availability
48
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
48
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
48
PANEL, WPL 2618F05276 Contact Us For Availability
49
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
50
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
51
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
52
WPL 3804F01050 WPL 3804F01050 Contact Us For Availability
52
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
53
WPL 3406F00780 WPL 3406F00780 Contact Us For Availability
54
WPL 3604F01651 WPL 3604F01651 Contact Us For Availability
54
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
55
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
56
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
58
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
59
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
60
WPL 3807F19545 WPL 3807F19545 Contact Us For Availability
61
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
62
WPL 3807W20745 WPL 3807W20745 Contact Us For Availability
63
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
64
WPL 3807F21951 WPL 3807F21951 Contact Us For Availability
66
WPL 3807F32945 WPL 3807F32945 Contact Us For Availability
67
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
67
WPL 7403P09260 WPL 7403P09260 Contact Us For Availability
68
WPL 7403P09160 WPL 7403P09160 Contact Us For Availability
69
WPL 7403P00460 WPL 7403P00460 Contact Us For Availability
69
WPL 7403P18760 WPL 7403P18760 Contact Us For Availability
69
WPL 7505P02060 WPL 7505P02060 Contact Us For Availability
× ![]()
Login and Registration Form
