Model Whirlpool CGW3D1 GAS RANGE – Common Parts & Diagrams

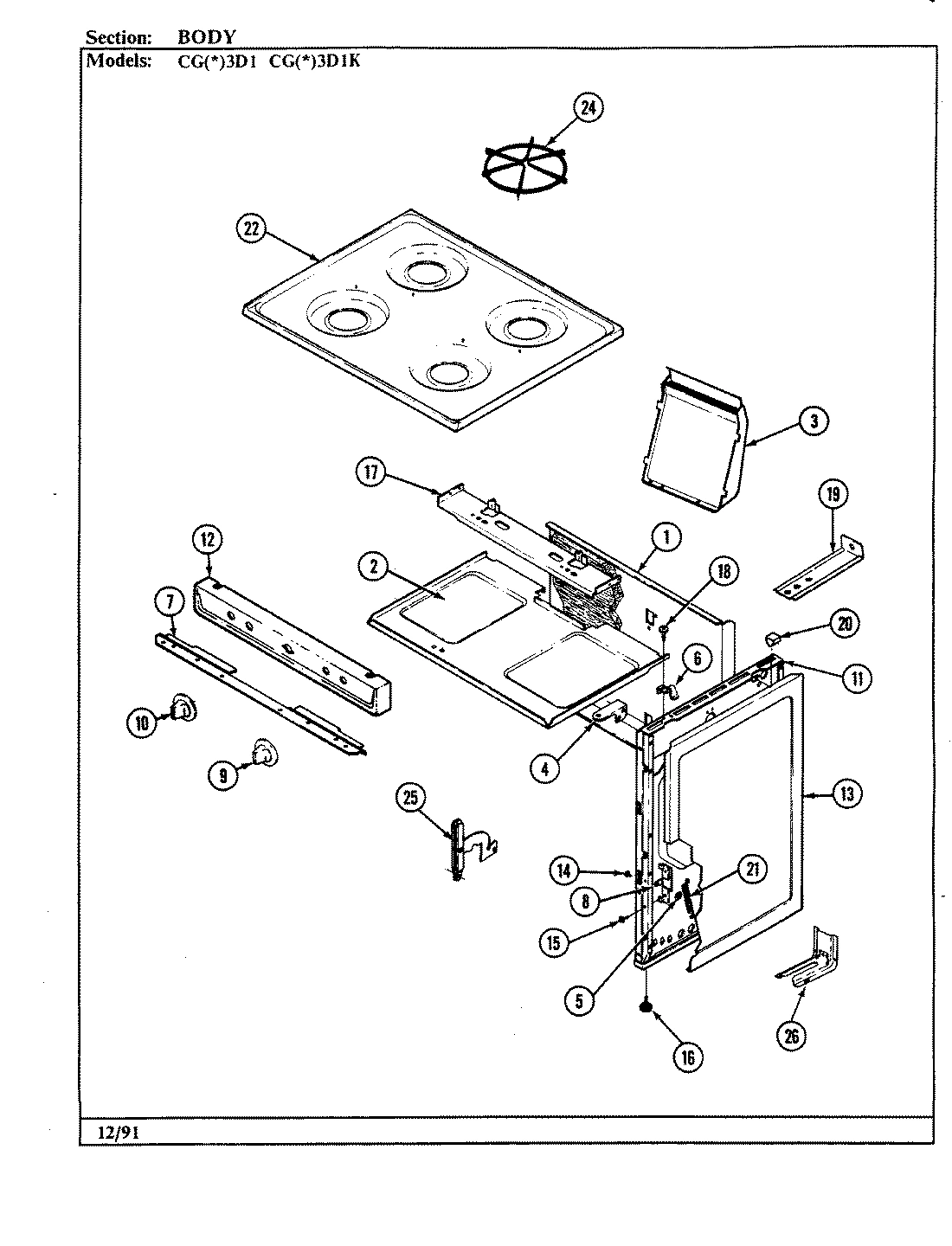

01 - BODY

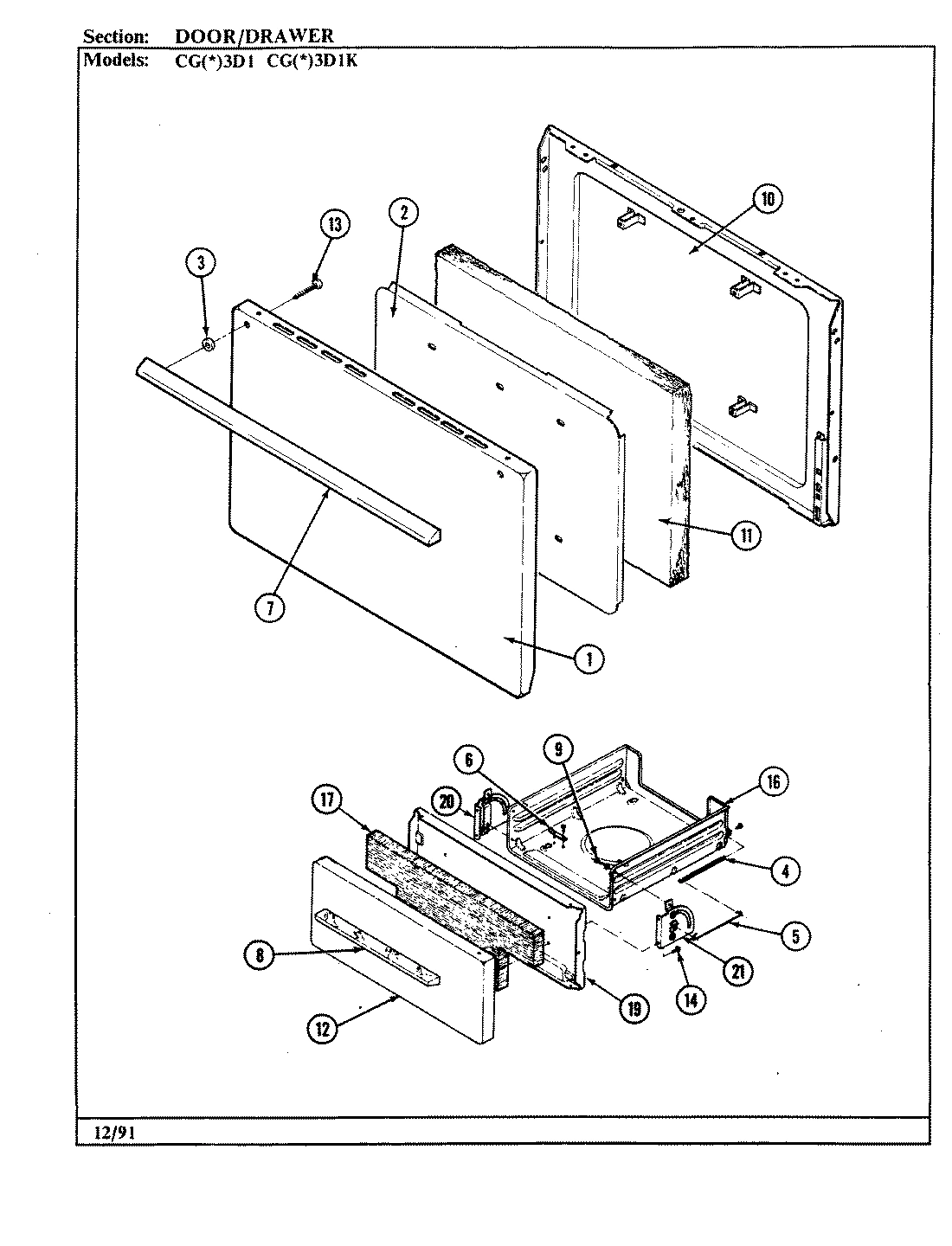

03 - DOOR/DRAWER (CGx3D1, CGx3D1K)

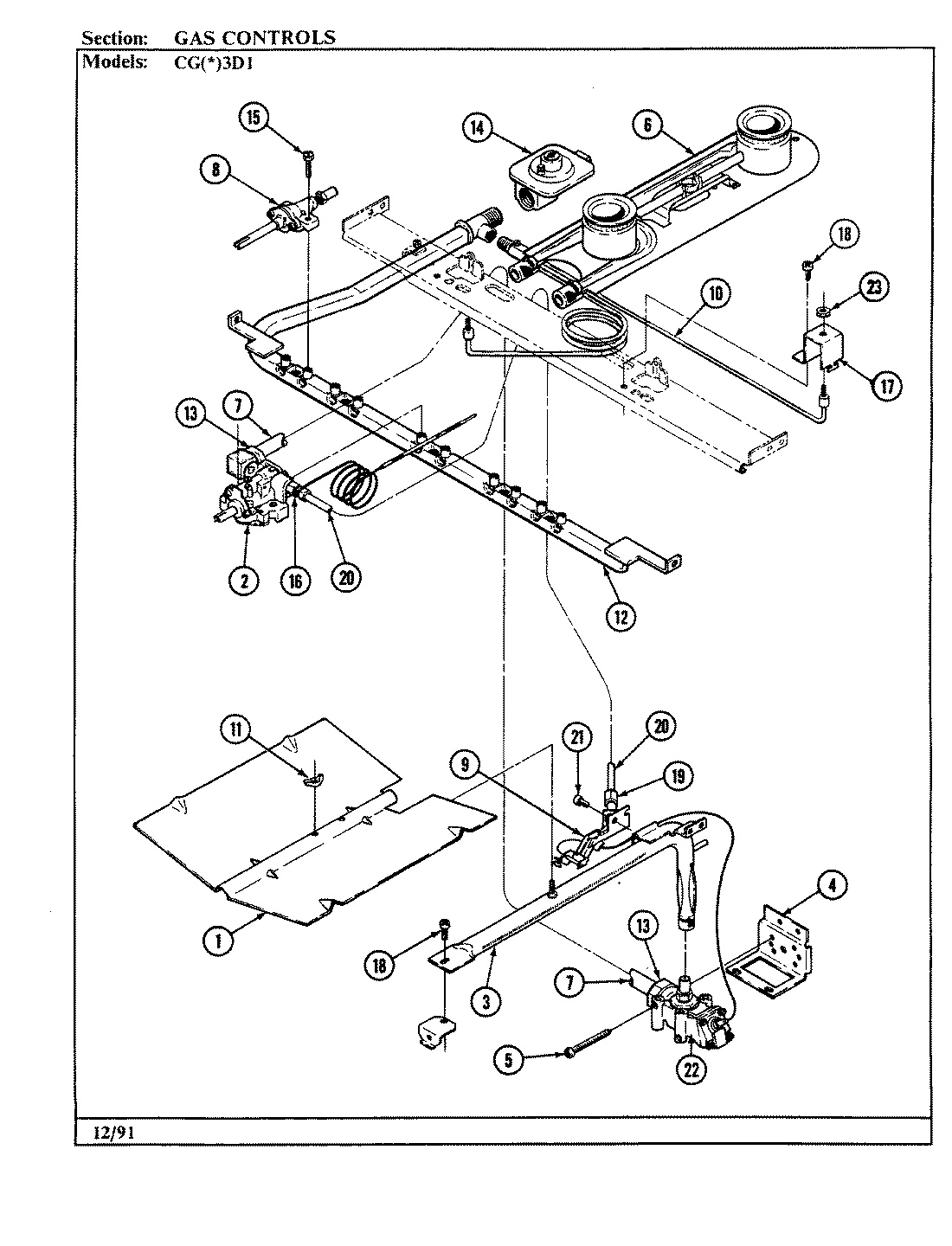

04 - GAS CONTROLS (CGx3D1)

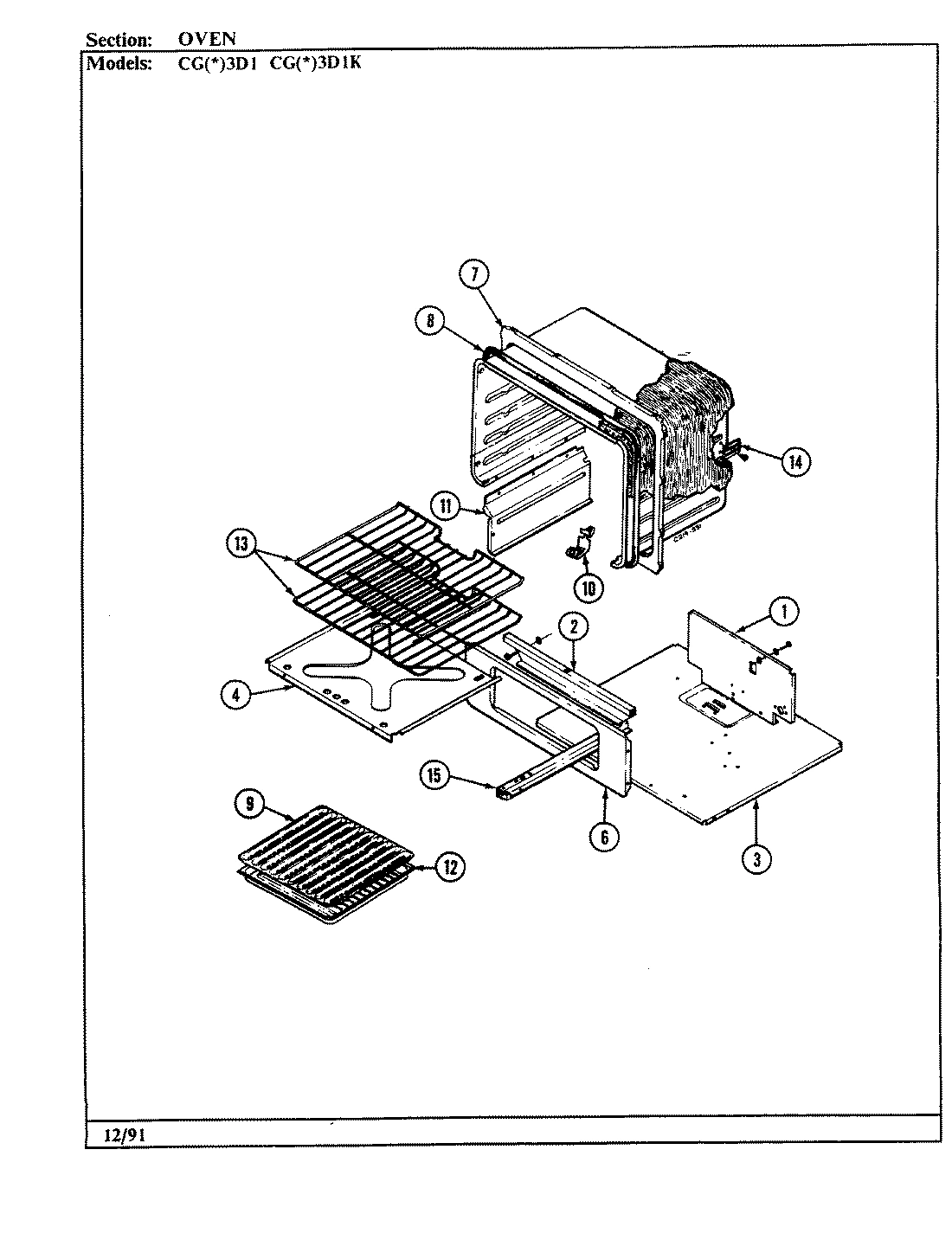

05 - OVEN
02 - CONTROL PANEL
Common parts from model Whirlpool CGW3D1 GAS RANGE
1
BACK, MAIN WPL 4002F13080 Contact Us For Availability
1
PANEL, OVEN DR-N WPL 2401F04171 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BACK, BROILER WPL 4002F16645 Contact Us For Availability
1
PANEL BKGD WHITE WPL 2601W30281 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
2
BAFFLE WPL 3601F02651 Contact Us For Availability
2
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
2
SCREW WPL 7101P29560 Contact Us For Availability
2
THERMOSTAT OVEN WPL 7515P01560 Contact Us For Availability
2
THERMOSTAT WPL 7515P02660 Contact Us For Availability
2
THERMOSTAT WPL 7515P03260 Contact Us For Availability
2
BAFFLE, OVEN FRONT WPL 3601W12419 Contact Us For Availability
2
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
2
PANEL, BACKGUARD LOWER WPL 2620W01823 Contact Us For Availability
3
BOX, FLUE WPL 4006W02680 Contact Us For Availability
3
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
3
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
4
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
4
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
4
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
4
SPRING WPL 7803P01460 Contact Us For Availability
4
SUPPORT WPL 3807F12034 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F01223K Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
5
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
5
SCREW WPL 7101P05860 Contact Us For Availability
5
LINK, BROILER WPL 7807P00160 Contact Us For Availability
5
SCREW WPL 7101P02560 Contact Us For Availability
5
SUPPORT BKGD LF WPL 3807W35751 Contact Us For Availability
5
SUPPORT BKGD RT WPL 3807W35851 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
6
CATCH WPL 8002P00160 Contact Us For Availability
6
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
6
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
6
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
7
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
7
TUBING 3/8 X 59 WPL 3414F05044 Contact Us For Availability
7
TUBING, OVEN (3/8``) WPL 3414F09944 Contact Us For Availability
7
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
7
END CAP, BACKGUARD (LT-BLK) WPL 7726P00960 Contact Us For Availability
7
END CAP, BACKGUARD (RT-BLK) WPL 7726P02060 Contact Us For Availability
8
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
8
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
8
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
8
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
8
VALVE WPL 7502P22260 Contact Us For Availability
8
SEAL WPL 7212P00160 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7731P03760 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7731P05060 Contact Us For Availability
9
SCREW WPL 7101P11460 Contact Us For Availability
9
PILOT ASSY. WPL 1566267 Contact Us For Availability
9
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
9
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
10
KNOB, VALVE WPL 7733P04160 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
10
LINING ASSY, OVEN DOOR WPL 2402W15523 Contact Us For Availability
10
BURNER, PILOT WPL 7505P08160 Contact Us For Availability
10
BURNER, PILOT (NATURAL) WPL 7505P19360 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
LINING, INNER SIDE WPL 4009W07180 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
11
INSULATION WPL 7002P01360 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
12
PANEL, MANIFOLD WPL 2616F01681 Contact Us For Availability
12
SCREW WPL 7118P00460 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P02860 Contact Us For Availability
12
MANIFOLD PIPE WPL 7513P10260 Contact Us For Availability
12
PIPE MANIFOLD WPL 7513P13160 Contact Us For Availability
12
PAN, BROIL WPL 3401F00423 Contact Us For Availability
13
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
13
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
13
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
13
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
13
RACK, OVEN WPL 7801P03060 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
14
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
15
SCREW WPL 7101P11260 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SCREW WPL 7101P29660 Contact Us For Availability
15
SCREW WPL 7101P11560 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
16
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
16
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
16
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
16
SCREW WPL 7101P07660 Contact Us For Availability
16
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
17
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
17
INSULATION WPL 7002P00260 Contact Us For Availability
17
SUPPORT, TOP PILOT WPL 3807F20434 Contact Us For Availability
19
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
19
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
19
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
20
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
20
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
20
TUBING, 3/16`` X 54``----NA WPL 3414F06244 Contact Us For Availability
21
SPRING WPL 7803P01360 Contact Us For Availability
22
TOP, MAIN WPL 2001F03581 Contact Us For Availability
22
VALVE, OVEN WPL 7501P06160 Contact Us For Availability
22
VALVE, OVEN WPL 7501P10160 Contact Us For Availability
23
NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability
24
GRATE WPL 2003W00100 Contact Us For Availability
24
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
25
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
26
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
NI
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
NI
LINING, BROILER WPL 2404F02123 Contact Us For Availability
NI
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
× ![]()
