Model Whirlpool CGW2D2 GAS RANGE – Common Parts & Diagrams
02 - CONTROLS (CGx2D2)

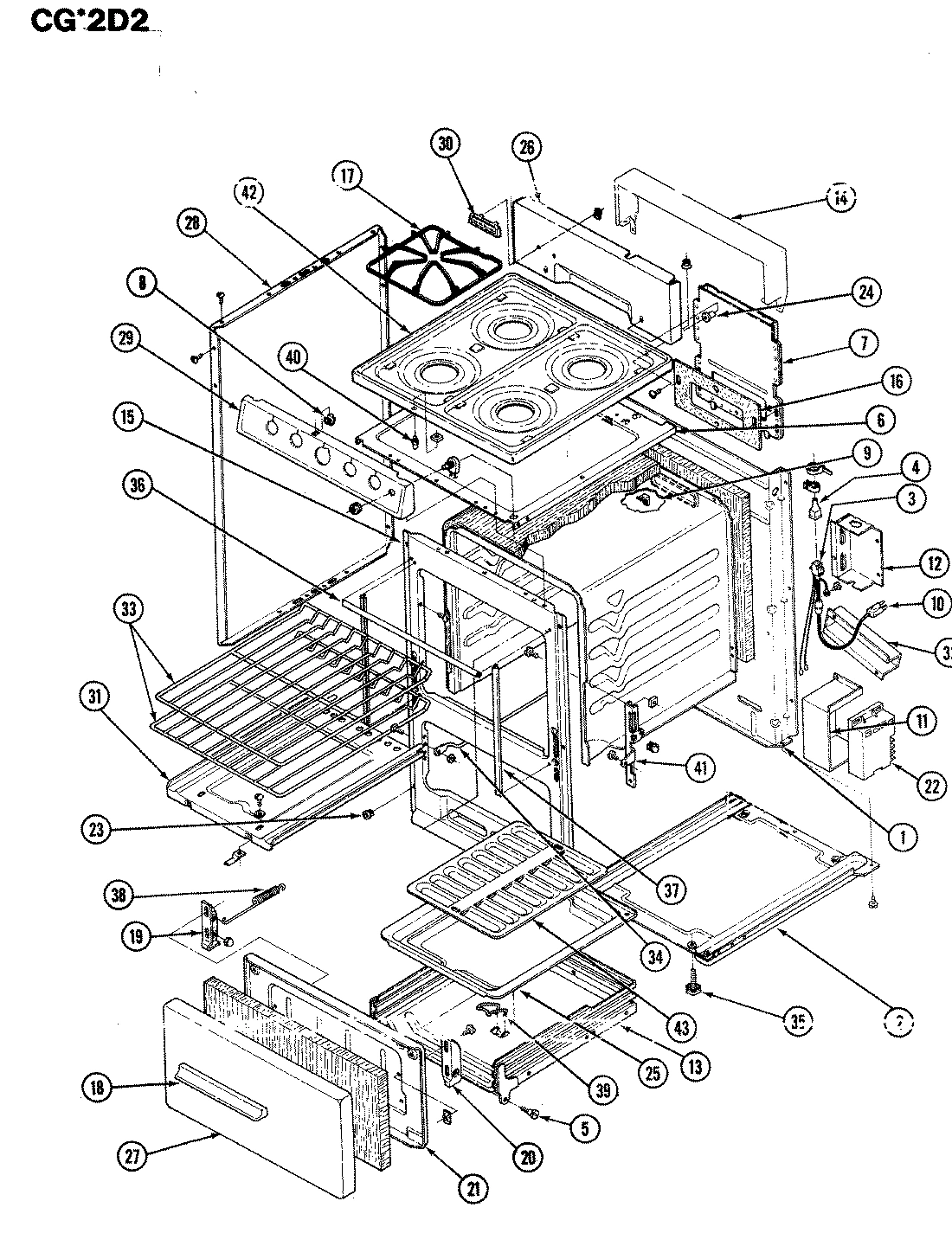

01 - BODY

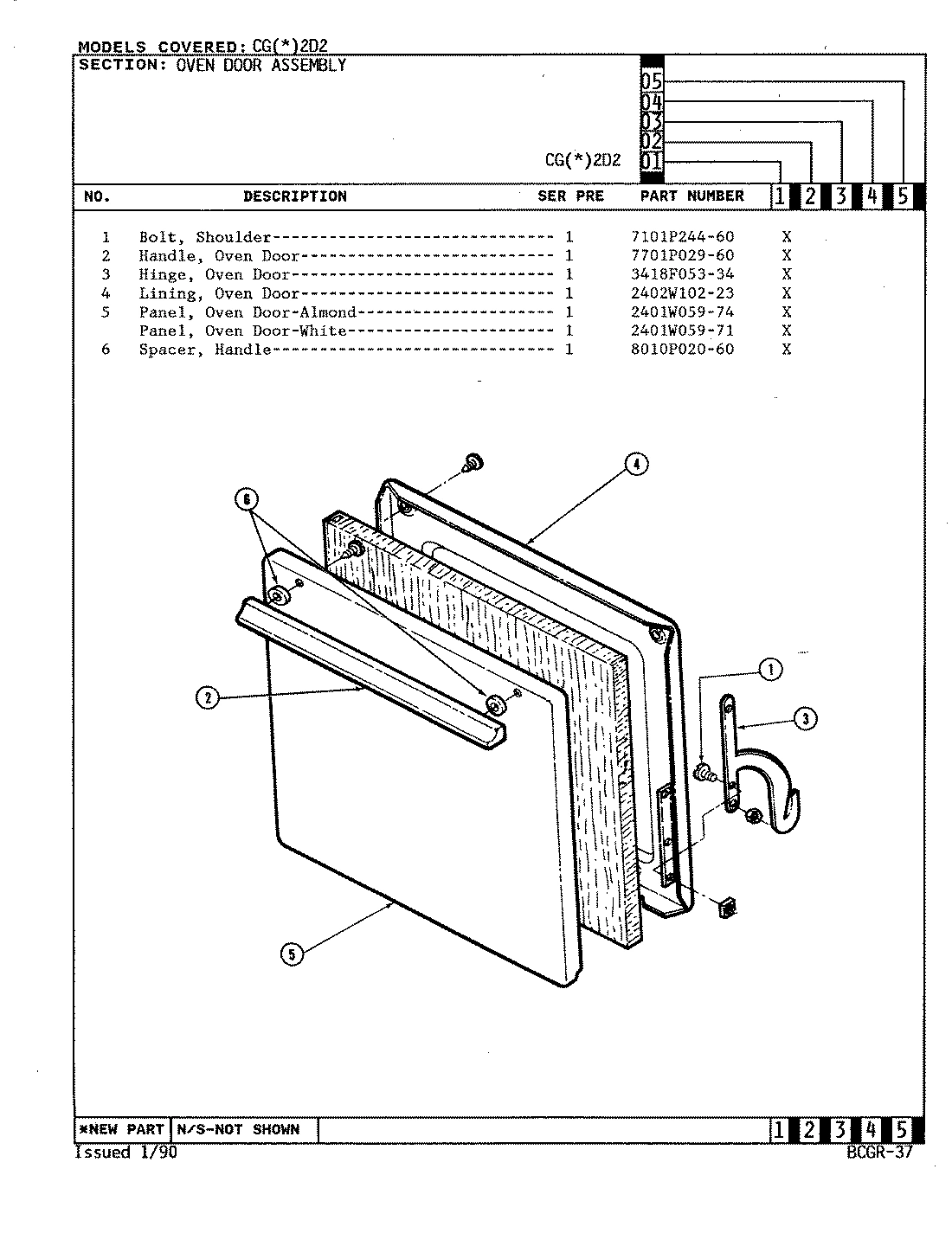

03 - DOOR
Common parts from model Whirlpool CGW2D2 GAS RANGE
1
BURNER OVEN ASSY WPL 3403A00545 Contact Us For Availability
1
BACK MAIN WPL 4002F07280 Contact Us For Availability
1
BOLT, SHOULDER WPL 7101P24460 Contact Us For Availability
2
BURNER ASSY WPL 3403A00435 Contact Us For Availability
2
BASE, MAIN WPL 4003A01480 Contact Us For Availability
2
HANDLE, DOOR (CHR) WPL 7701P02960 Contact Us For Availability
3
BURNER TOP REAR WPL 3403A01035 Contact Us For Availability
3
BAFFLE, BURNER WPL 7504P00360 Contact Us For Availability
3
HINGE, OVEN DOOR WPL 3418F05334 Contact Us For Availability
4
CAP TOP BURNER WPL 7504P00460 Contact Us For Availability
4
BLOCK, DISCONNECT FE WPL 7401P02260 Contact Us For Availability
4
LINING, OV DR WPL 2402W10223 Contact Us For Availability
5
CONE, TOP LIGHTER----NA WPL 8030P00160 Contact Us For Availability
5
BOLT, SHOULDER WPL 7101P24360 Contact Us For Availability
5
PANEL, OVEN DOOR (WHT) WPL 2401W05971 Contact Us For Availability
6
CONTROL, OVEN WPL 7515P02160 Contact Us For Availability
6
THERMOSTAT WPL 7515P02760 Contact Us For Availability
6
BOTTOM BURNER BOX WPL 4011F10280 Contact Us For Availability
6
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
7
FILTER, TOP LIGHTER WPL 7507P03260 Contact Us For Availability
7
BOX FLUE VENT WPL 4006W06245 Contact Us For Availability
8
DIAL, OVEN CONTROL WPL 7711P39460 Contact Us For Availability
8
CHANNEL AIR SIDE WPL 3818F03451 Contact Us For Availability
8
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
9
KNOB, VALVE WPL 7733P01560 Contact Us For Availability
9
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
10
LIGHTER, OVEN BURNER WPL 7432P04460 Contact Us For Availability
10
CORD, POWER WPL 7402P01860 Contact Us For Availability
11
SWITCH----NA WPL 7403P04960 Contact Us For Availability
12
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
13
MIXER, AIR WPL 3411F00334 Contact Us For Availability
13
DRAWER BROILER WPL 3407W00523 Contact Us For Availability
14
PIPE, MANIFOLD 3/4 S WPL 7513P06760 Contact Us For Availability
14
FRAME, BACKGUARD WPL 3603F01750 Contact Us For Availability
15
REGULATOR PRESSURE WPL 7510P02260 Contact Us For Availability
15
FRONT, MAIN WPL 2201W04823 Contact Us For Availability
16
SHIELD TOP LIGHTER WPL 3604F12251 Contact Us For Availability
16
SUPPORT, OV LIGHTER WPL 3807F30445 Contact Us For Availability
16
GASKET, VENT DEFLECT WPL 7201P03860 Contact Us For Availability
17
SUPPORT, BURNER WPL 3807F33651 Contact Us For Availability
17
GRATE WPL 2003W00100 Contact Us For Availability
18
HANGER, TOP BUR WPL 3807F23680 Contact Us For Availability
18
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
19
TUBING, CNTRL/PILO (3/16``) WPL 3414F01344 Contact Us For Availability
19
HINGE, BROILER DRAWER (LT) WPL 3418F03480 Contact Us For Availability
20
TUBING, 3/8 WPL 3414F04444 Contact Us For Availability
20
HINGE, BROILER DRAWER (RT) WPL 3418F03580 Contact Us For Availability
21
SUPPORT, OVEN VALVE WPL 3807F31180 Contact Us For Availability
21
VALVE, OVEN WPL 7501P05360 Contact Us For Availability
21
LINING, BROILER DRAWER WPL 2404F02223 Contact Us For Availability
22
BURNER, VALVE WPL 7502P09160 Contact Us For Availability
22
NUT WPL 7103P03460 Contact Us For Availability
23
NUT, EXPANSION WPL 7103P08060 Contact Us For Availability
24
NUT, PROJECTION WELD WPL 7103P08960 Contact Us For Availability
25
PAN, BROILER WPL 3401F01623 Contact Us For Availability
26
PANEL, BKGD WHT WPL 2601F21081 Contact Us For Availability
27
PANEL, DRAWER (WHT) WPL 2403W01971 Contact Us For Availability
28
PANEL, SIDE WPL 2618F07071 Contact Us For Availability
29
PANEL, MANIFOLD (WHITE) WPL 2616F06971 Contact Us For Availability
30
NAMEPLATE WPL 7719P06060 Contact Us For Availability
31
PLATE, OVEN BOTTOM WPL 5720A00323 Contact Us For Availability
33
RACK, OVEN WPL 7801P01960 Contact Us For Availability
34
ROD, BROILER RUNNER (LT) WPL 3808F00761 Contact Us For Availability
34
ROD, BROILER RUNNER (RT) WPL 3808F00861 Contact Us For Availability
34
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
35
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
36
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
37
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
38
SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability
38
SPRING, BROILER DRAWER WPL 7803P03360 Contact Us For Availability
39
STOP, BROILER DRAWER WPL 7809P00460 Contact Us For Availability
40
STRIKE, MAIN TOP WPL 8024P00360 Contact Us For Availability
41
SUPPORT, HINGE (LT) WPL 3807F29034 Contact Us For Availability
41
SUPPORT, HINGE (RT) WPL 3807F29134 Contact Us For Availability
42
TOP, MAIN (WHT) WPL 2001F05081 Contact Us For Availability
43
TRAY, BROILER WPL 3413F00723 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8110P11560 Contact Us For Availability
× ![]()
