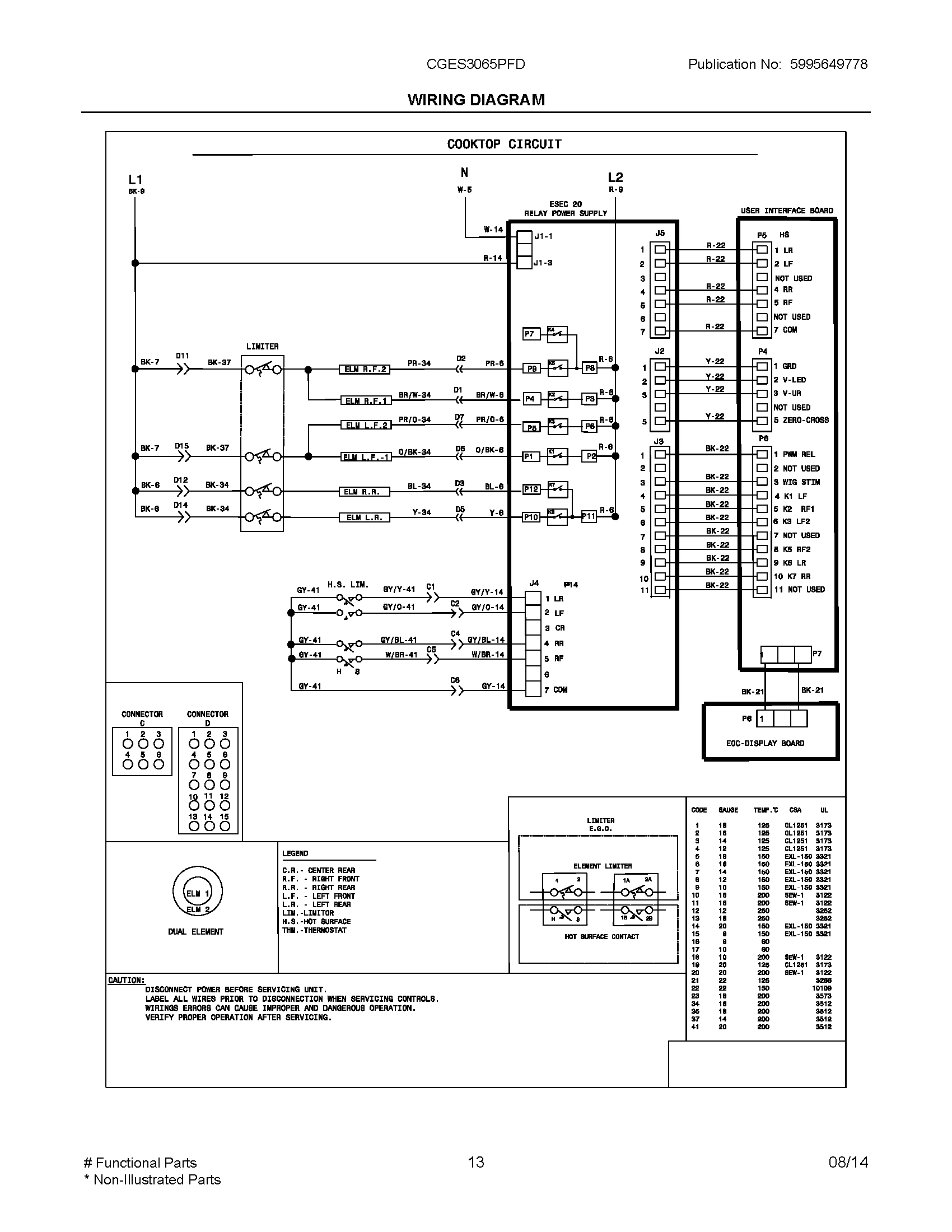

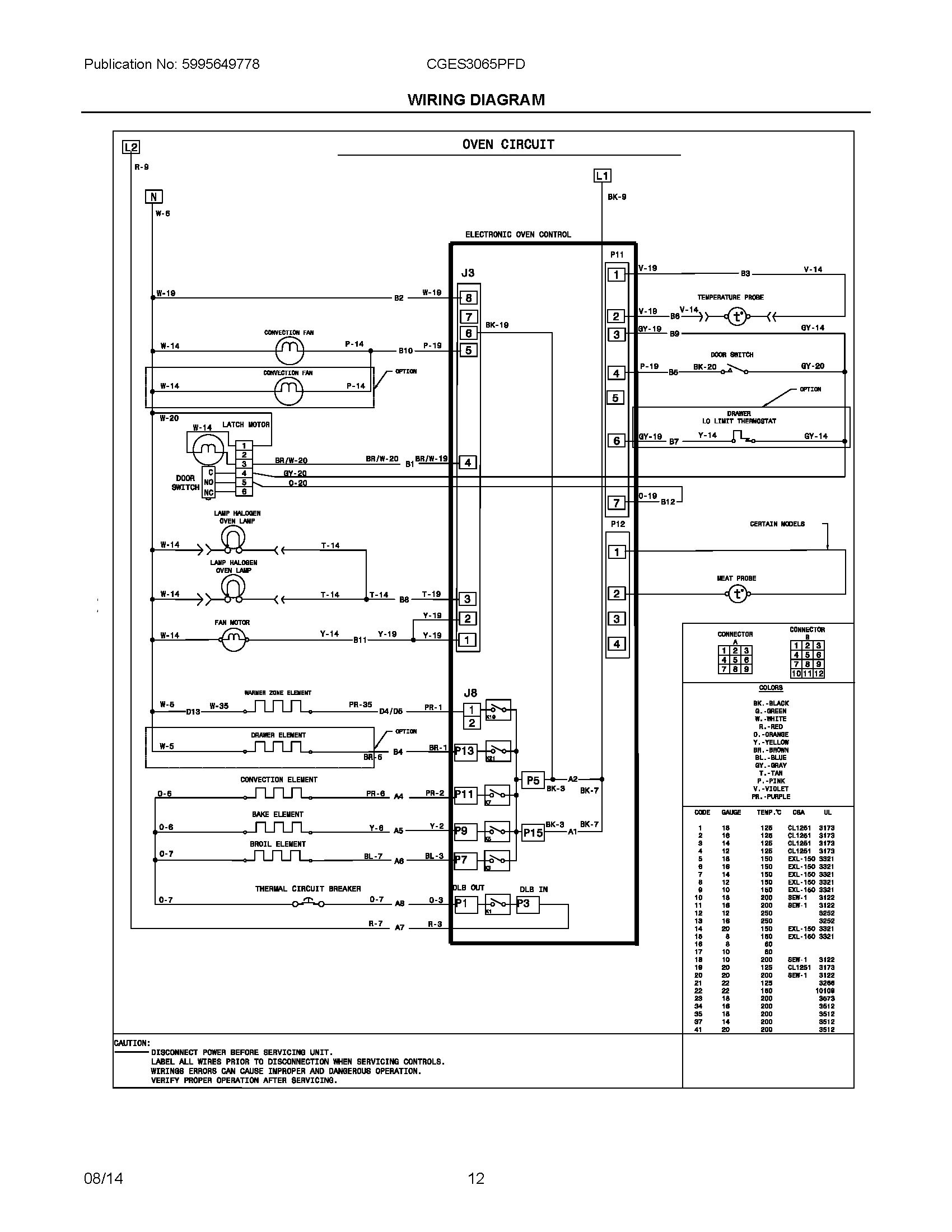

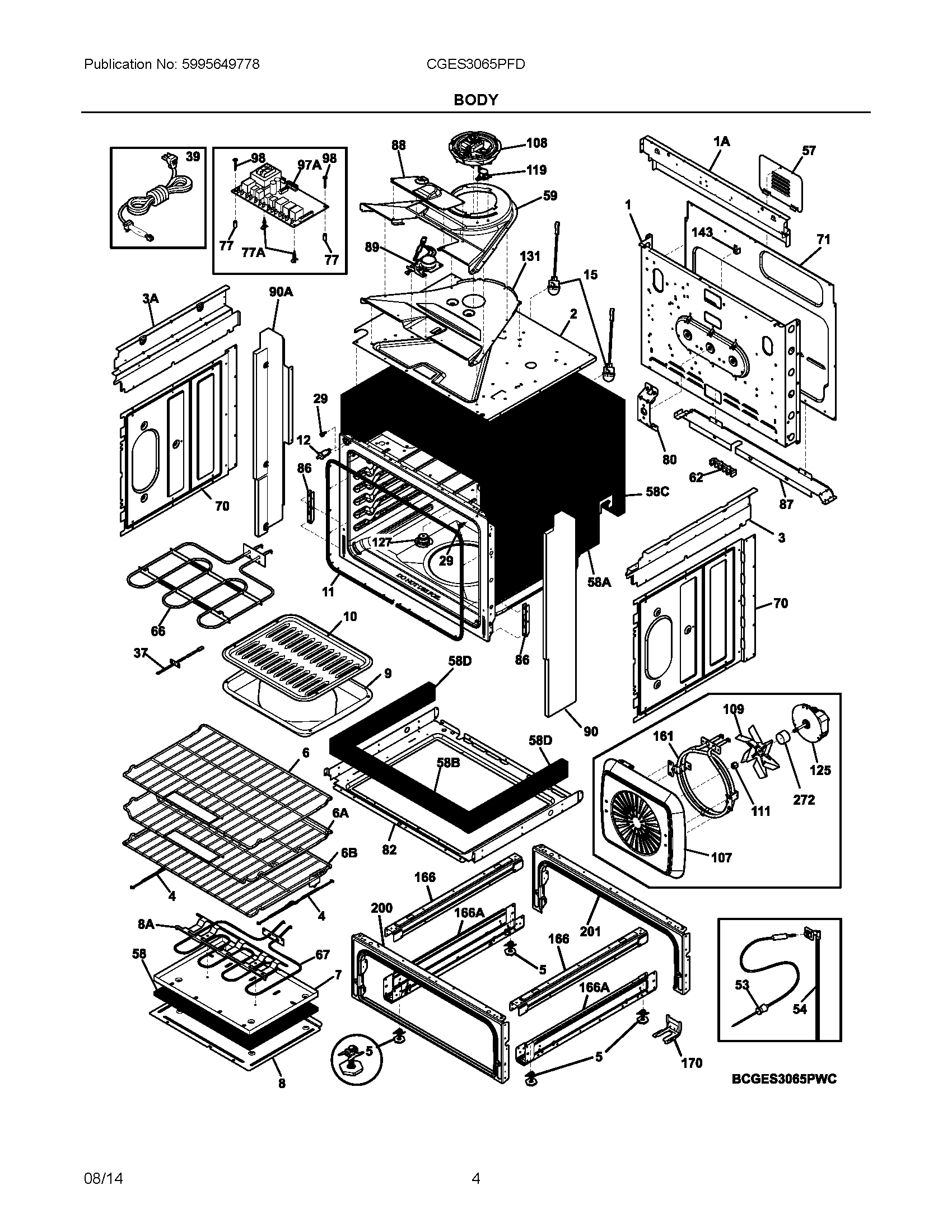

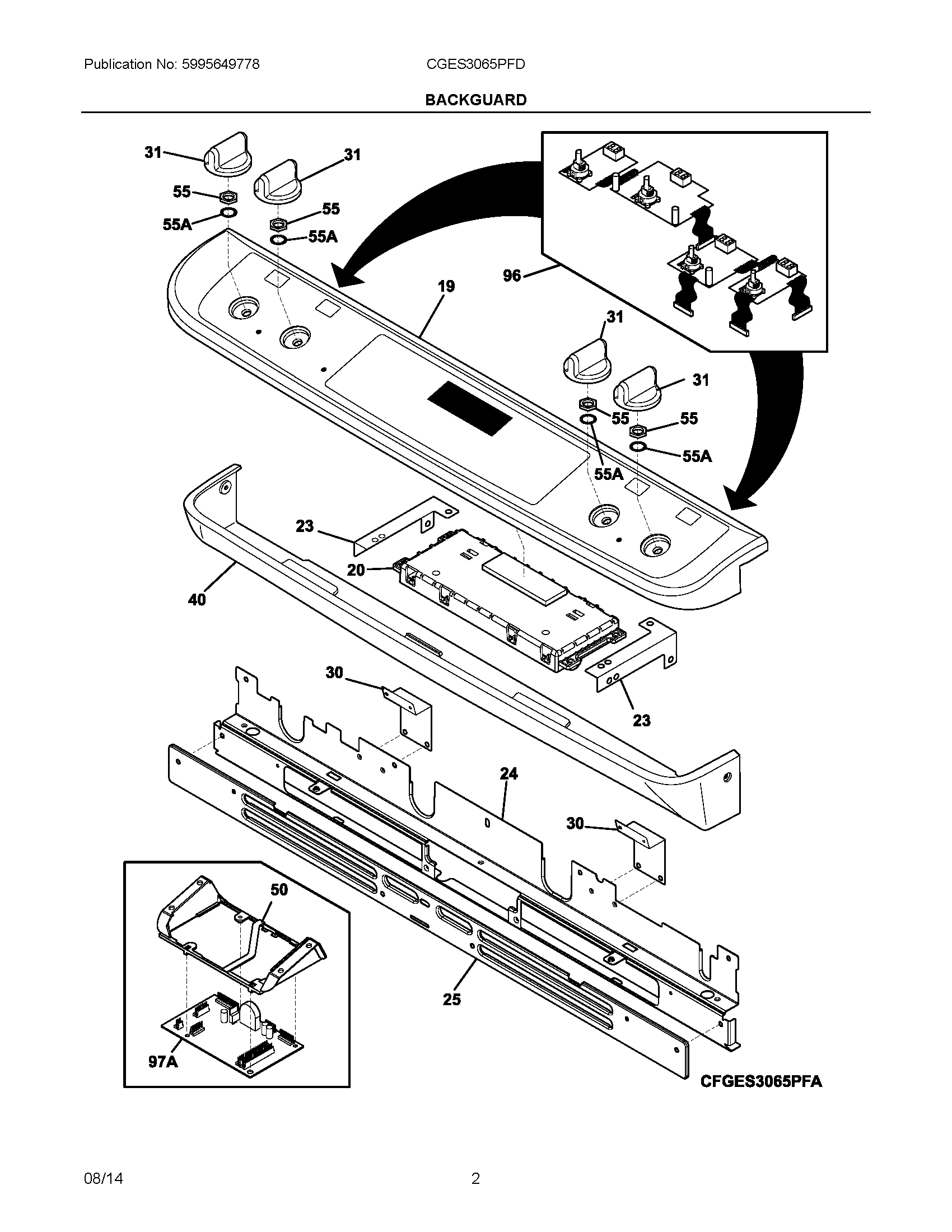

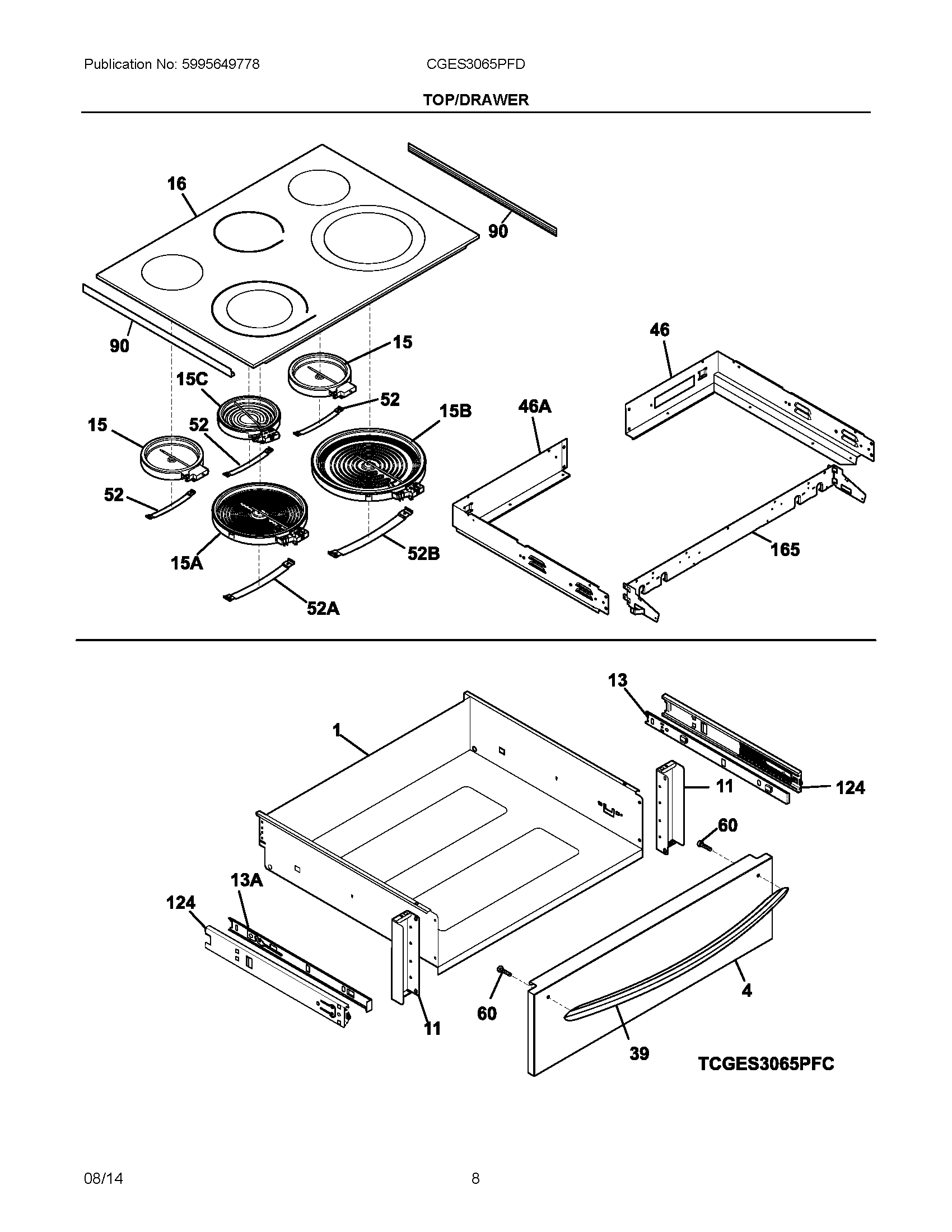

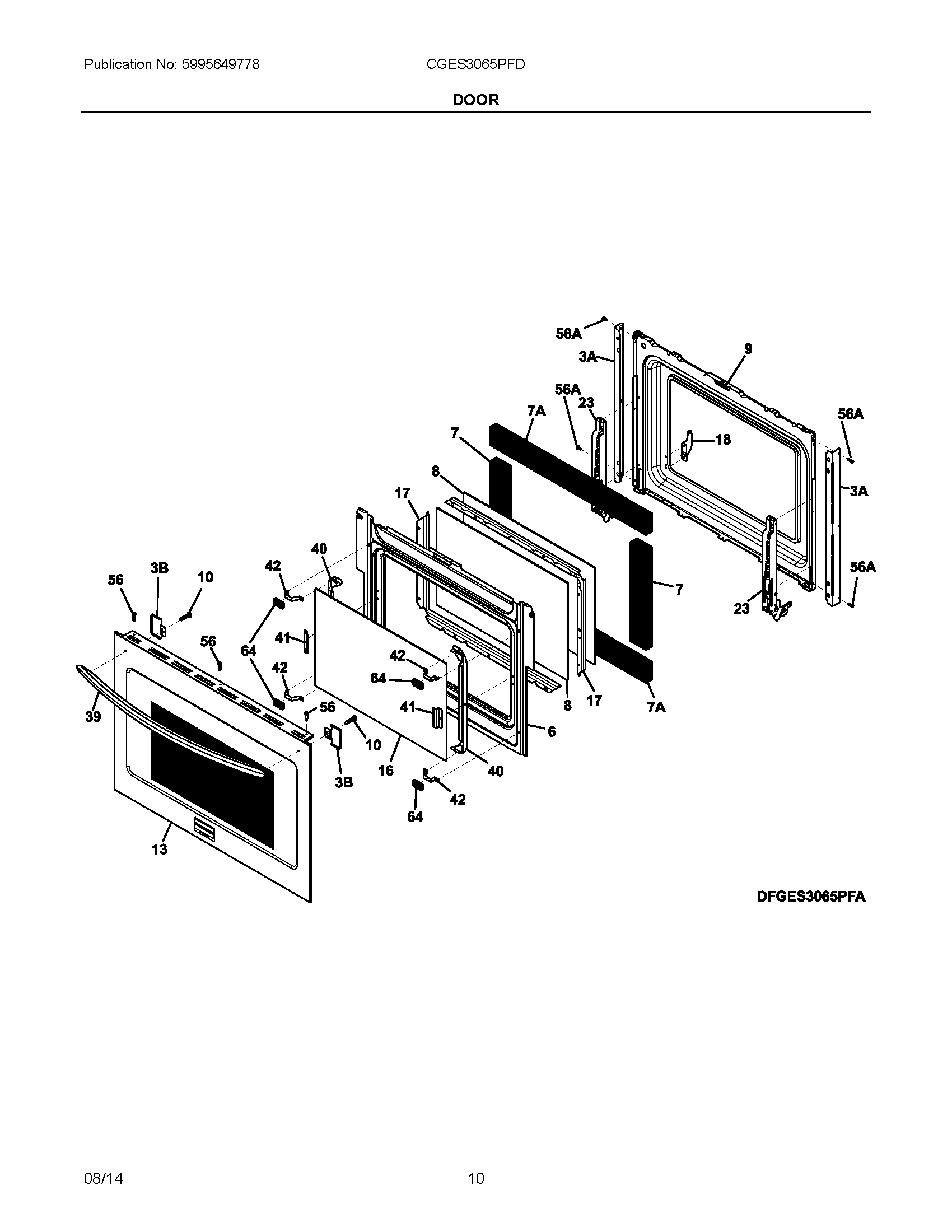

Model Electrolux CGES3065PFD ELECTRIC RANGE – Common Parts &amp; Diagrams

2

139028107 Frigidaire Shield Backorder WCI 139028107 $48.25

3A

139014401 Frigidaire Oven Trim Backorder WCI 139014401 $21.06

3B

COVER, REAR DOOR, BLACK, (2) WCI 318262111 Contact Us For Availability

4

318298829 Frigidaire Oven Panel Backorder WCI 318298829 $151.96

4

SUPPORT, AUTO RACK, (2) WCI 318927600 Contact Us For Availability

6

5304514983 Frigidaire Oven Rack Backorder WCI 5304514983 $115.35

6A

139012400 Frigidaire Oven Rack Backorder WCI 139012400 $132.01

7

318297303 Frigidaire Oven Box Backorder WCI 318297303 $87.64

7

318372017 Frigidaire Insulation Backorder WCI 318372017 $12.72

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $13.86

8

318359500 Frigidaire Oven Panel Backorder WCI 318359500 $100.95

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $91.51

8A

318313601 Frigidaire Oven Bracket Backorder WCI 318313601 $53.27

9

139000423 Frigidaire Oven Liner Backorder WCI 139000423 $163.62

9

318138801 Frigidaire Oven Pan Backorder WCI 318138801 $57.37

10

316082001 Frigidaire Oven Insert Backorder WCI 316082001 $37.97

11

807545502 Frigidaire Oven Seal Backorder WCI 807545502 $109.80

11

BRACKET, DRAWER SUPPORT, (2) WCI 318298600 Contact Us For Availability

13

808950006 Frigidaire Door Assembly Backorder WCI 808950006 $476.37

13

GLIDE, WARMER, INNER RH WCI 318259504 Contact Us For Availability

13A

GLIDE, WARMER, INNER LH WCI 318259505 Contact Us For Availability

15

318178110 Frigidaire Oven Range 6" Surface El In Stock WCI 318178110 $98.96

15

5304528790 Frigidaire Lamp Assembly Appliance In Stock WCI 5304528790 $15.82

15A

5304533520 Frigidaire Element In Stock WCI 5304533520 $67.44

15B

316282101 Frigidaire Oven Element In Stock WCI 316282101 $210.78

15C

140273621015 Frigidaire Warmer Element, Radia Backorder WCI 140273621015 $27.98

16

316446401 Frigidaire Oven Glass In Stock WCI 316446401 $91.53

16

SMOOTHTOP ASSEMBLY, GLASS, BLACK WCI 139033802 Contact Us For Availability

18

LINK, DOOR, (2), AUTO RACK WCI 316547900 Contact Us For Availability

19

PANEL ASSEMBLY, CONTROL, BLACK/STAINLESS WCI 139059402 Contact Us For Availability

20

5304503758 Frigidaire Controller Backorder WCI 5304503758 $347.98

23

BRACKET, CONTROL MTG, (2) WCI 318921300 Contact Us For Availability

25

139075001 Frigidaire Oven Cover Backorder WCI 139075001 $46.59

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $9.42

31

KNOB, CONTROL, STAINLESS WCI 316564406 Contact Us For Availability

37

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $33.26

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 $14.42

40

318912908 Frigidaire Oven Panel Backorder WCI 318912908 $202.42

41

318370602 Frigidaire Oven Bracket Backorder WCI 318370602 $8.83

42

318382302 Frigidaire Bracket Backorder WCI 318382302 $37.17

50

CHASSIS, UIB MOUNTING WCI 318917700 Contact Us For Availability

52

318122006 Frigidaire Small Element Mounting S Backorder WCI 318122006 $49.36

52A

318122010 Frigidaire Oven Spring Assembly Backorder WCI 318122010 $46.57

52B

318122011 Frigidaire Oven Spring Backorder WCI 318122011 $43.27

53

5304504202 Frigidaire Red Meat Temperature Pr Backorder WCI 5304504202 $88.18

54

139017201 Frigidaire Assembly Receptacle Backorder WCI 139017201 $146.98

55

316247700 Frigidaire Oven Nut Backorder WCI 316247700 $13.29

55A

316247800 Frigidaire Oven Washer Backorder WCI 316247800 $13.29

56

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $11.09

57

316283600 Frigidaire Oven Cover Backorder WCI 316283600 $8.87

59

139027600 Frigidaire Oven Duct Backorder WCI 139027600 $67.10

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $13.86

66

5304521498 Frigidaire Element In Stock WCI 5304521498 $60.67

67

5304521880 Frigidaire Element Backorder WCI 5304521880 $84.31

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 $52.66

77

316247900 Frigidaire Oven Spacer Backorder WCI 316247900 $34.93

77A

316114100 Frigidaire Oven Spacer Backorder WCI 316114100 $47.68

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 $15.51

88

5304506964 Frigidaire Oven Cover Backorder WCI 5304506964 $18.86

89

5304528836 Frigidaire Motor Backorder WCI 5304528836 $57.12

90

5304511889 Frigidaire Oven Panel Backorder WCI 5304511889 $58.23

90

CHANNEL, GLASS PROTECTOR, (2) WCI 318368001 Contact Us For Availability

90A

5304511890 Frigidaire Oven Panel Backorder WCI 5304511890 $59.34

96

CONTROL ASSEMBLY, COMPLETE, ROTARY, W/4 CONTR WCI 318411400 Contact Us For Availability

97A

316442080 Frigidaire Oven Control Board Backorder WCI 316442080 $200.91

97A

316442112 Frigidaire Oven Control Board Backorder WCI 316442112 $262.92

98

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $4.41

107

139013903 Frigidaire Oven Vent Hood Cover Backorder WCI 139013903 $33.26

108

318575612 Frigidaire Oven Cooling Fan Motor In Stock WCI 318575612 $155.31

109

318398302 Frigidaire Stove Oven Range Convect In Stock WCI 318398302 $18.84

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $14.94

119

807144901 Frigidaire Thermostat Backorder WCI 807144901 $42.70

124

GLIDE, DRAWER, OUTER/RH & LH, (2) WCI 318330600 Contact Us For Availability

125

139008500 Frigidaire Oven Motor Backorder WCI 139008500 $162.60

127

139042600 Frigidaire Tube Assembly Backorder WCI 139042600 $33.82

131

139027700 Frigidaire Oven Duct Backorder WCI 139027700 $50.47

161

139006500 Frigidaire Oven Element In Stock WCI 139006500 $71.54

165

DEFLECTOR, BOX, FRONT WCI 318913300 Contact Us For Availability

166

318298410 Frigidaire Oven Bracket Backorder WCI 318298410 $55.47

170

5304486410 Frigidaire Oven Kit Backorder WCI 5304486410 $115.92

201

318298233 Frigidaire Oven Frame Backorder WCI 318298233 $35.50

272

139021700 Frigidaire Oven Tube Backorder WCI 139021700 $13.86

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $8.85

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $11.09

316303501 Frigidaire Assembly Harness Backorder WCI 316303501 $64.89

5304495807 Frigidaire Oven Harness Backorder WCI 5304495807 $241.59

HARNESS, WIRING, DISPLAY WCI 807633202 Contact Us For Availability

HARNESS, WIRING, INTERFACE WCI 318402398 Contact Us For Availability

316001017 Frigidaire Screw Backorder WCI 316001017 $2.24

316418900 Frigidaire Oven Screw In Stock WCI 316418900 $11.09

318531701 Frigidaire Spacer Backorder WCI 318531701 $9.42

318946500 Frigidaire Oven Light Bulb Range/Wa Backorder WCI 318946500 $58.33

NIB

316205500 Frigidaire Oven Nut Backorder WCI 316205500 $8.87

NIC

318264200 Frigidaire Oven Plate Backorder WCI 318264200 $17.18
