Model Whirlpool CGE914KLZ GAS WALL OVEN – Common Parts & Diagrams
03 - CONTROL PANEL

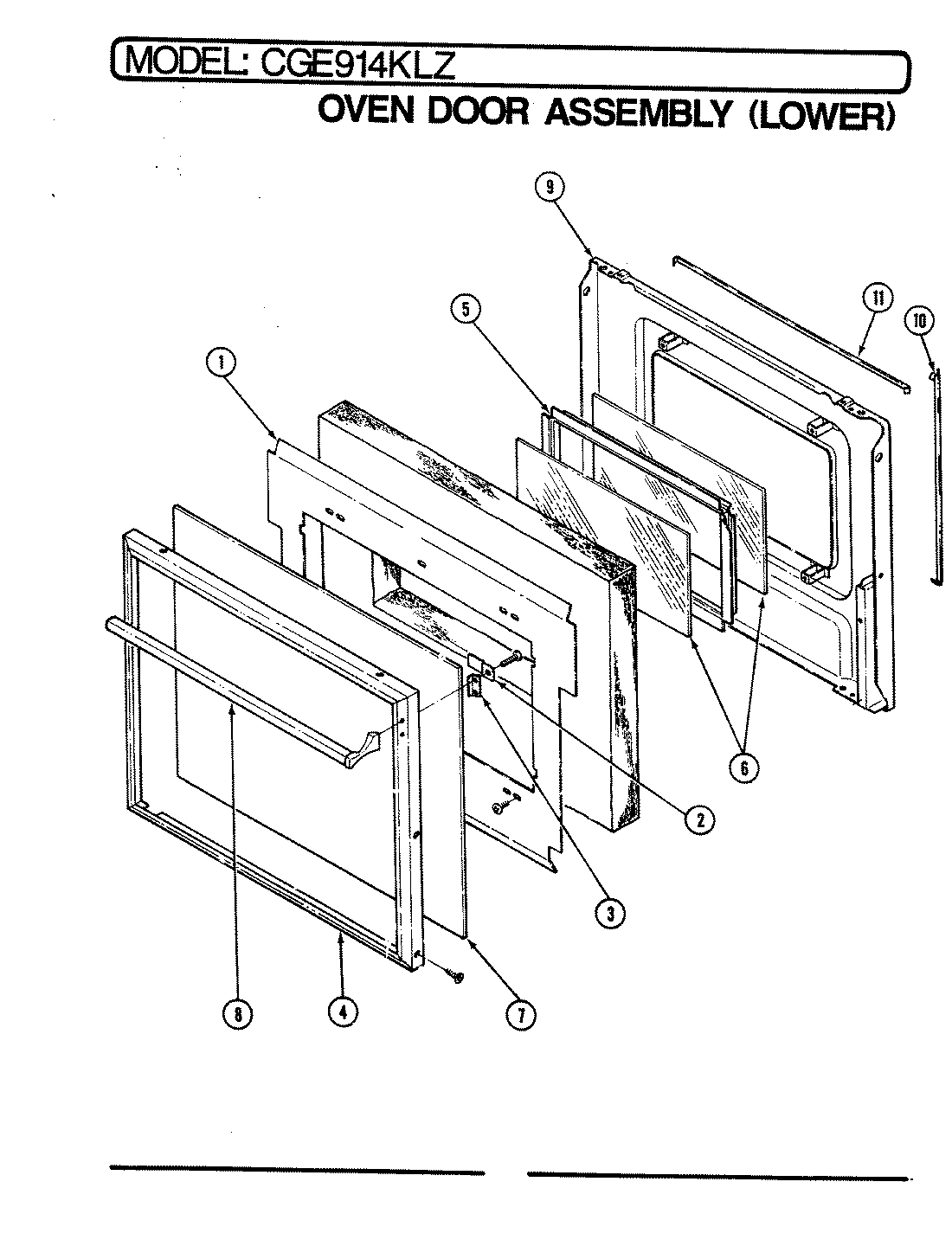

04 - DOOR (LOWER)

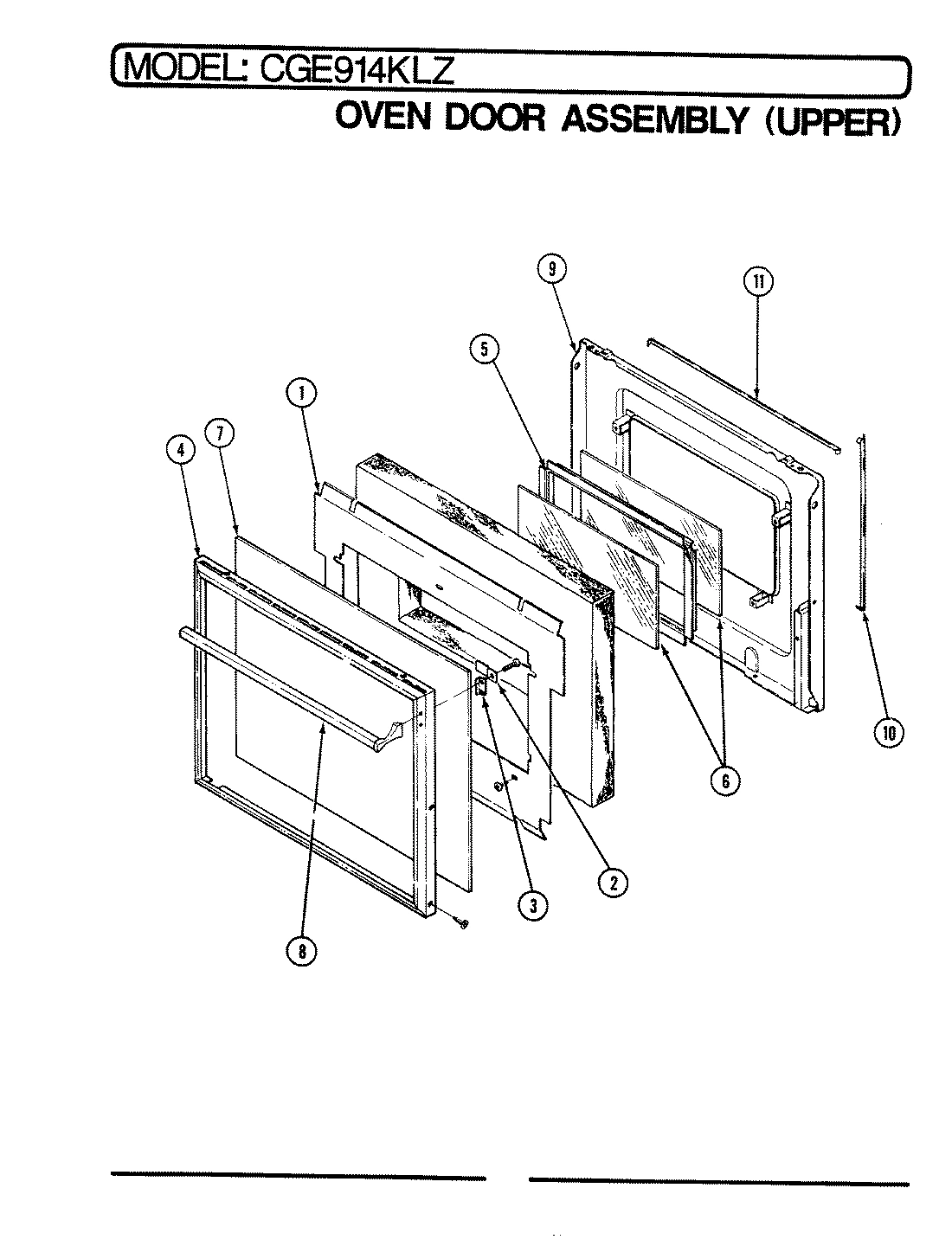

05 - DOOR (UPPER)

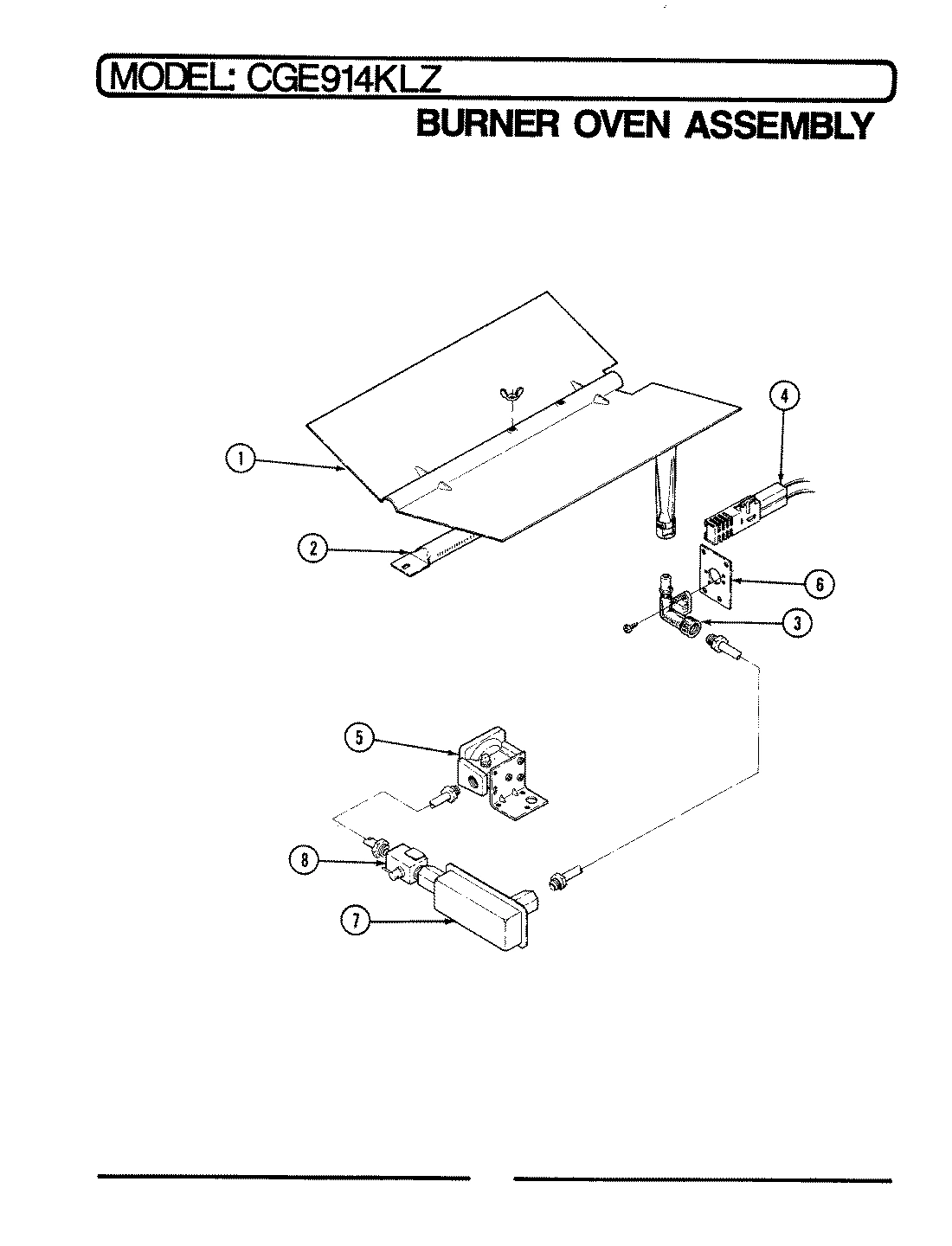

02 - BURNER ASSEMBLY

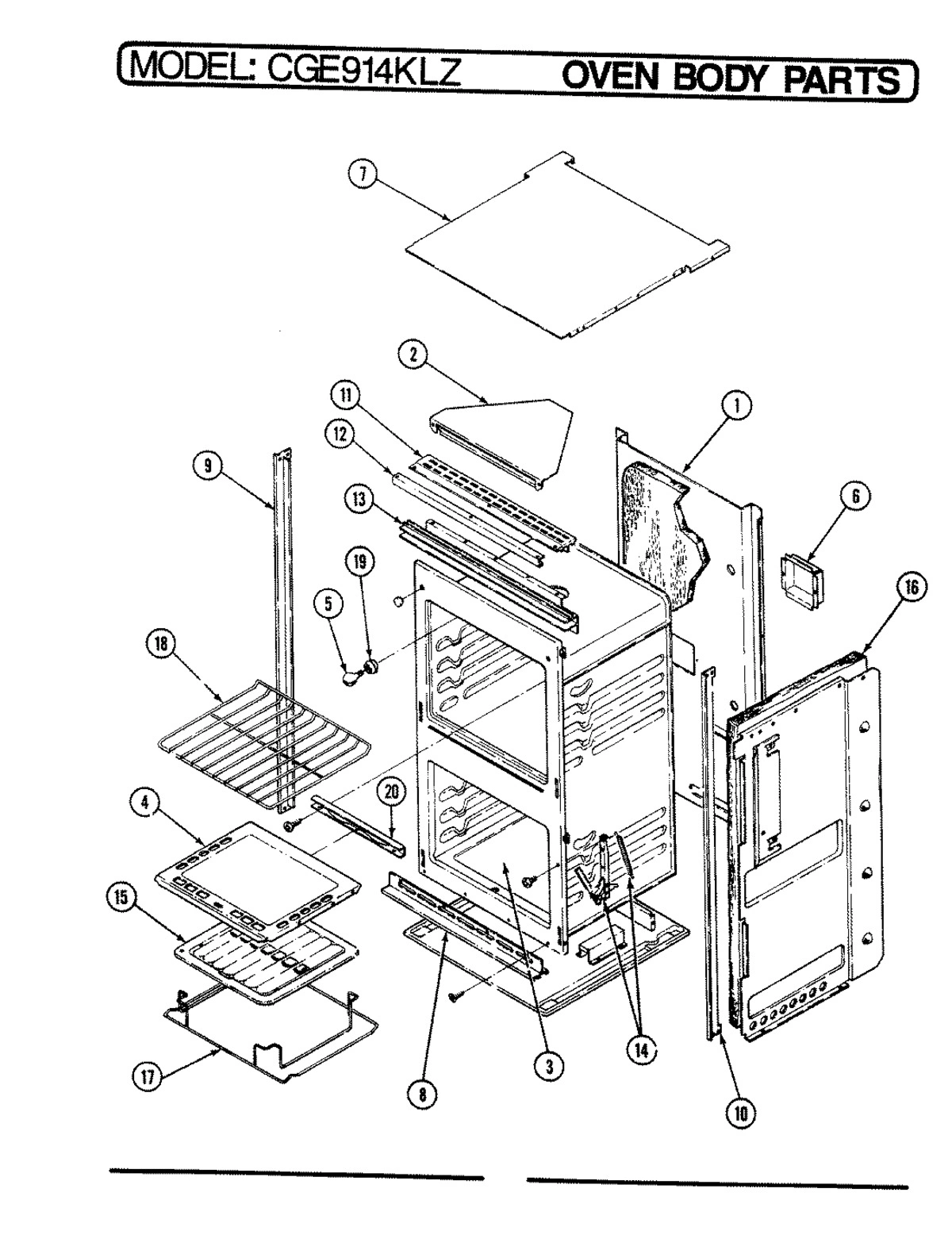

01 - BODY ASSEMBLY
Common parts from model Whirlpool CGE914KLZ GAS WALL OVEN
1
COVER, REAR WIRE WPL 4005F15151 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F10145 Contact Us For Availability
1
BACK, MAIN WPL 4002F04151 Contact Us For Availability
2
COVER, WIRE WPL 4005F15351 Contact Us For Availability
2
CLIP WPL 3819F00334 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06560 Contact Us For Availability
2
FLUE BOX ASSY WPL 4006W00823 Contact Us For Availability
2
BOX ASSY, FLUE WPL 4006W07723 Contact Us For Availability
3
CLOCK WPL 7602P05760 Contact Us For Availability
3
CLIP, DOOR HANDLE WPL 7112P01760 Contact Us For Availability
3
CLIP, HANDLE WPL 7712P01760 Contact Us For Availability
3
FITTING, BAKE BNR. WPL 7507P00860 Contact Us For Availability
3
BOTTOM, OVEN WPL 2205F00516 Contact Us For Availability
4
GLASS, CONTROL PANEL WPL 7912P03160 Contact Us For Availability
4
FRAME, DOOR LOWER WPL 7706P21960 Contact Us For Availability
4
FRAME, DOOR UPPER WPL 7706P22060 Contact Us For Availability
4
IGNITER, BAKE WPL 7432P05160 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F00816 Contact Us For Availability
5
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
5
FRAME, WINDOW WPL 3603F01370 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P01460 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
6
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
6
SUPPORT WPL 3807F12234 Contact Us For Availability
6
COVER WPL 4005F08880 Contact Us For Availability
7
KNOB WPL 7711P08560 Contact Us For Availability
7
GLASS, DOOR WPL 7902P26460 Contact Us For Availability
7
VALVE, BAKE WPL 7501P01860 Contact Us For Availability
7
COVER BOX WALL OVEN WPL 4005F15251 Contact Us For Availability
8
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P01760 Contact Us For Availability
8
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
8
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
9
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
9
LINING ASSY, WD D.D. WPL 2402W09816 Contact Us For Availability
9
LINING, DOOR WPL 2402W13317 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W09916 Contact Us For Availability
9
EXTRUSION, SIDE-L WPL 7706P11260 Contact Us For Availability
9
EXTRUSION, SIDE-L WPL 7750P01460 Contact Us For Availability
10
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
10
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
EXTRUSION, SIDE-R WPL 7706P11360 Contact Us For Availability
10
EXTRUSION, SIDE-R WPL 7750P01560 Contact Us For Availability
11
CONTROL WPL 7404P02360 Contact Us For Availability
11
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
11
EXTRUSION, TOP WPL 7706P11460 Contact Us For Availability
13
EXTRUSION, VENT WPL 7756P00860 Contact Us For Availability
13
EXTRUSION VENT WPL 7756P02760 Contact Us For Availability
14
HINGE, LOWER DOOR WPL 7106A01360 Contact Us For Availability
14
HINGE, UPPER DOOR WPL 7106A01560 Contact Us For Availability
14
HINGE, OVEN DOOR WPL 7106A01860 Contact Us For Availability
14
HINGE, OVEN DOOR WPL 7106A02060 Contact Us For Availability
15
PANEL, SIDE-LT WPL 2618F05651 Contact Us For Availability
15
PAN, BROIL WPL 3401F00423 Contact Us For Availability
16
PANEL, SIDE RIGHT WPL 2618F05551 Contact Us For Availability
17
RACK, BROIL BRIGHT CHROME WPL 7801P01660 Contact Us For Availability
18
RACK WPL 7801P00560 Contact Us For Availability
19
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
20
SUPPORT, OVEN BOTTOM WPL 3807P02715 Contact Us For Availability
× ![]()
