Model Whirlpool CGA6C5W GAS RANGE – Common Parts & Diagrams

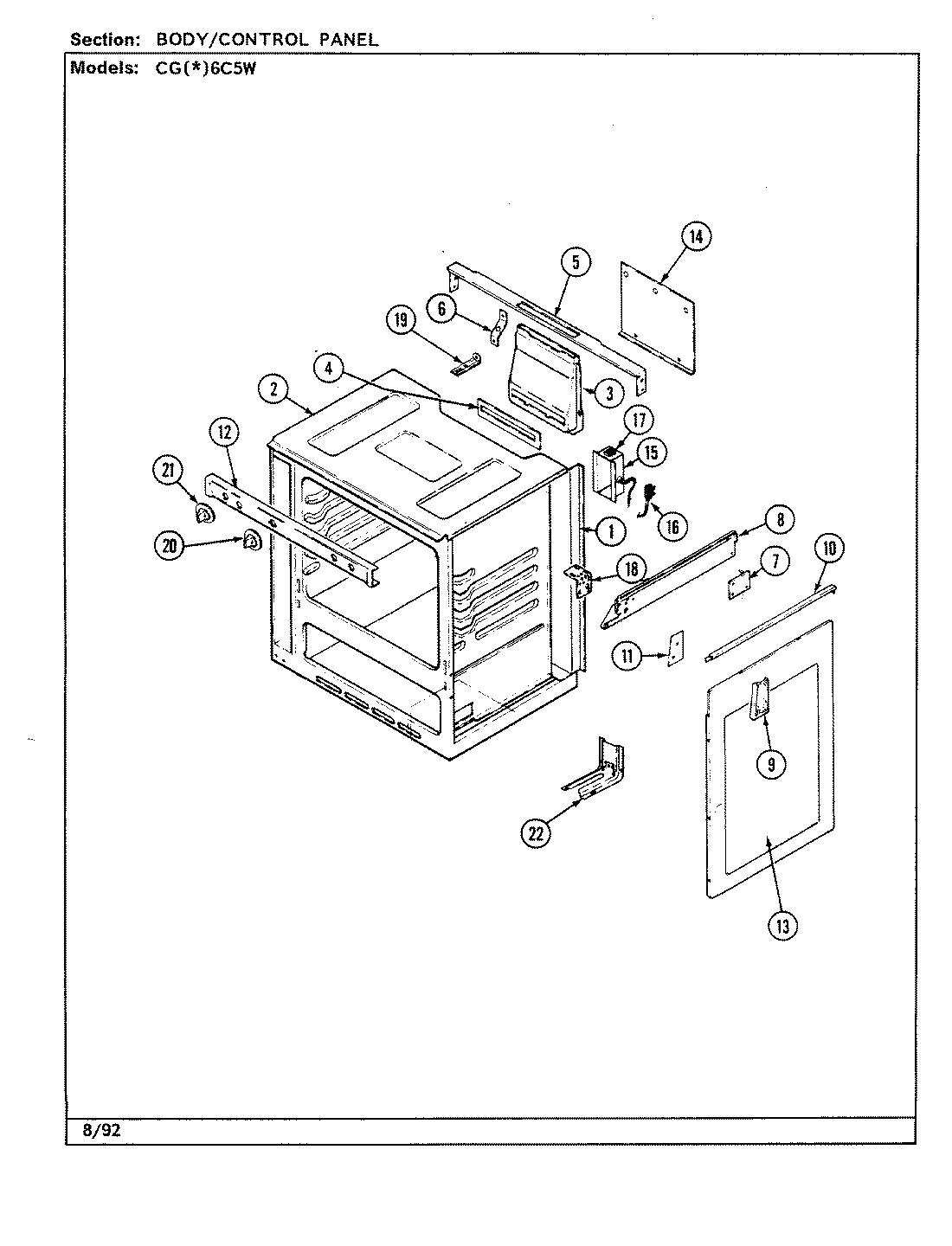

01 - BODY (CGx6C5W)

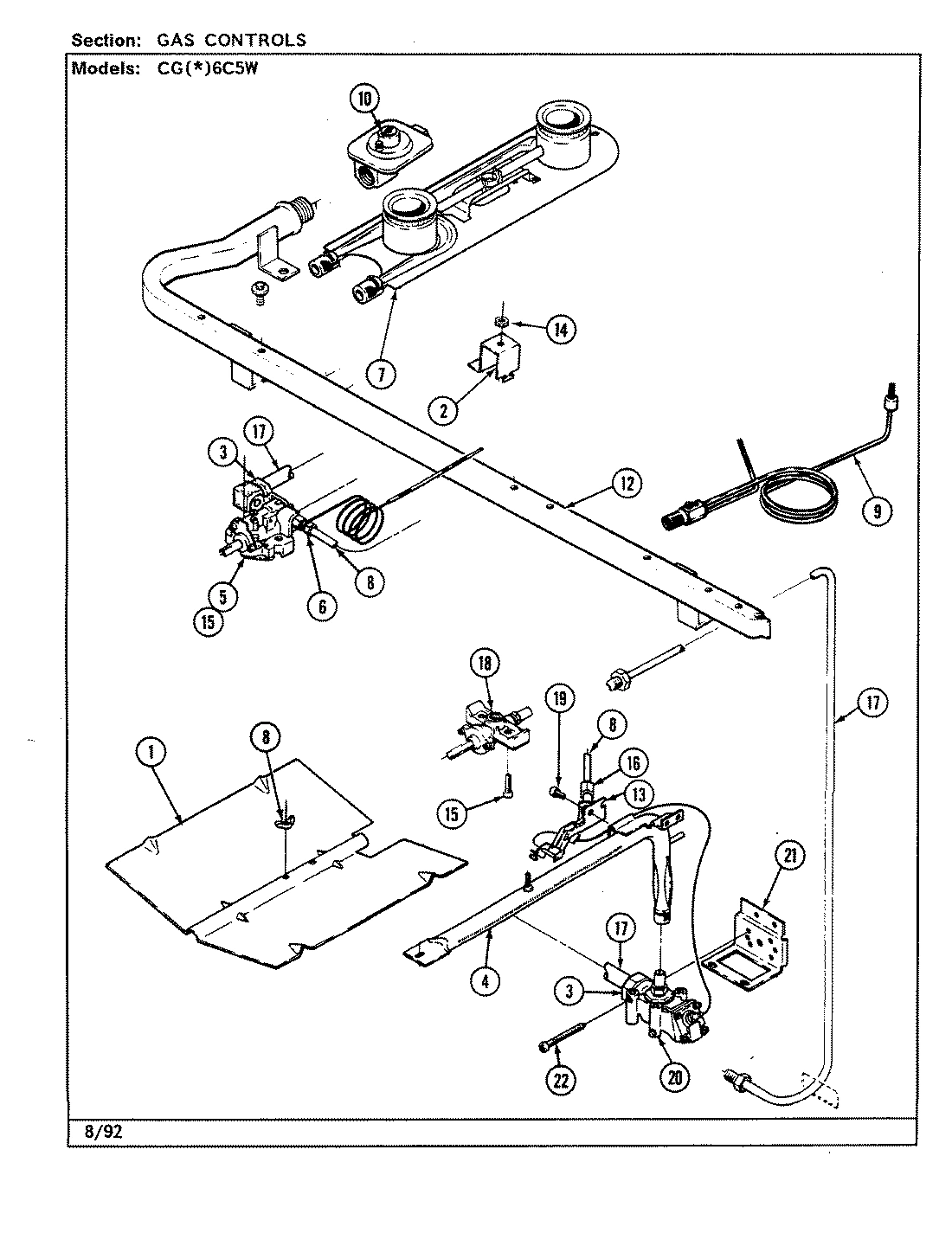

04 - GAS CONTROLS

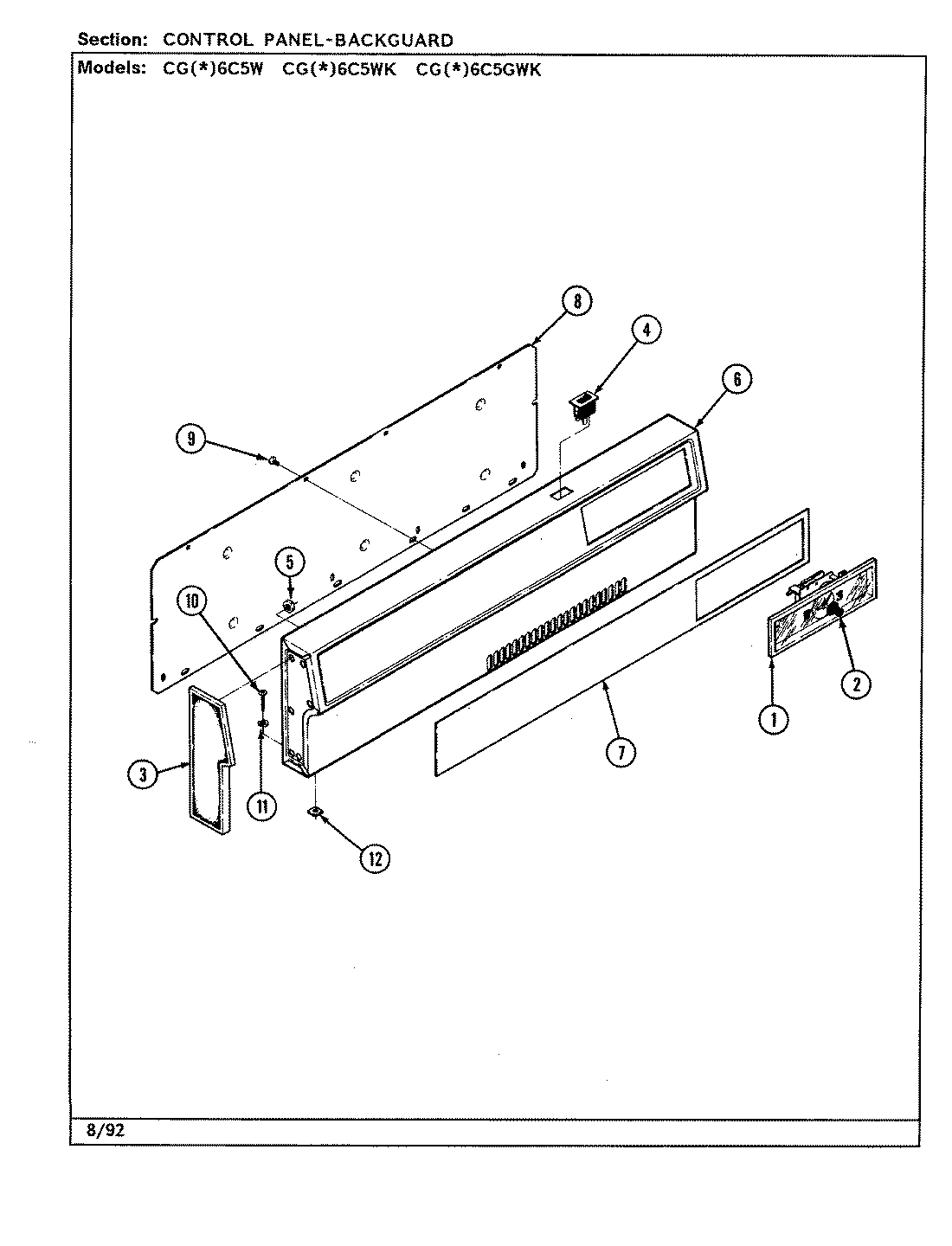

02 - CONTROL PANEL

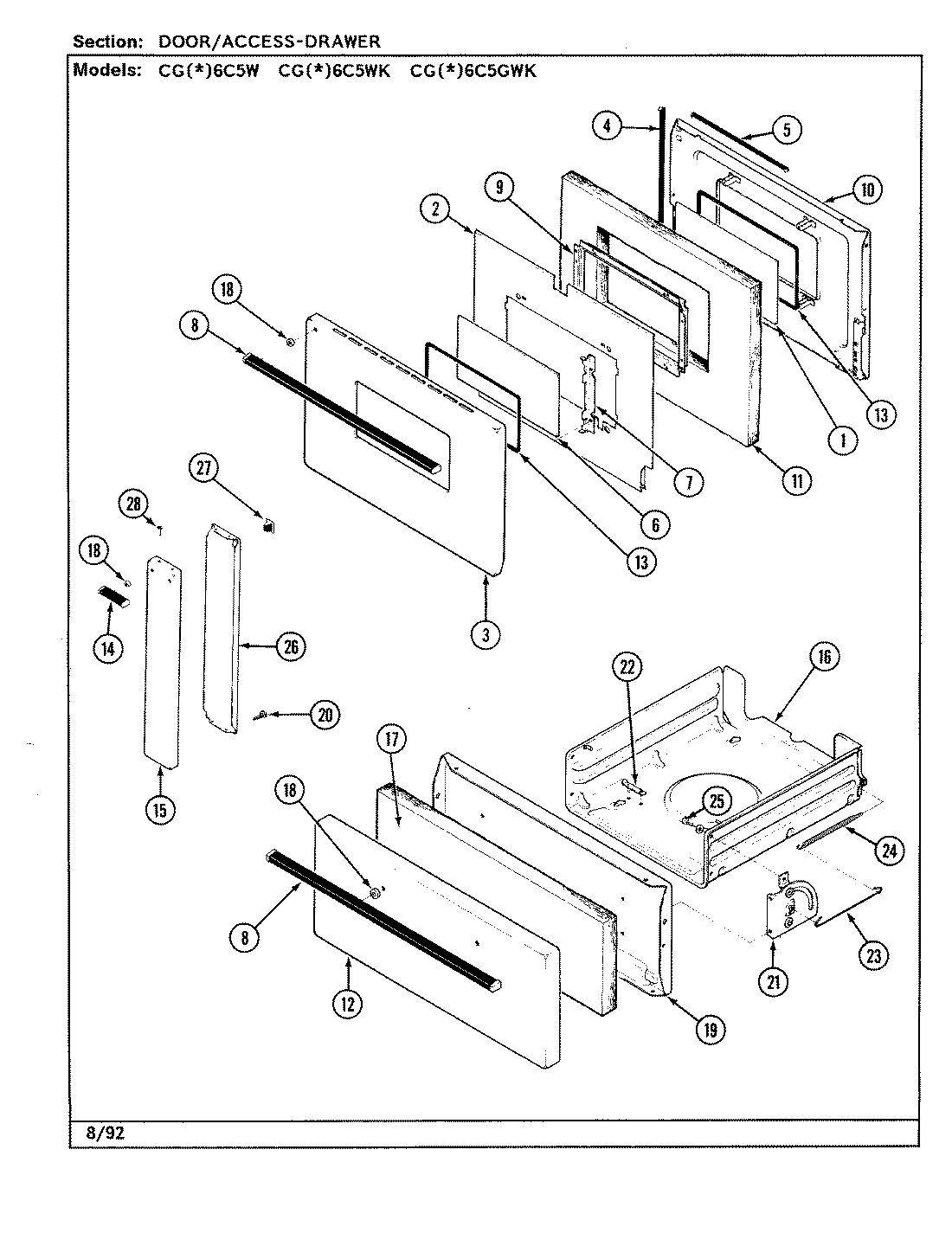

03 - DOOR/DRAWER

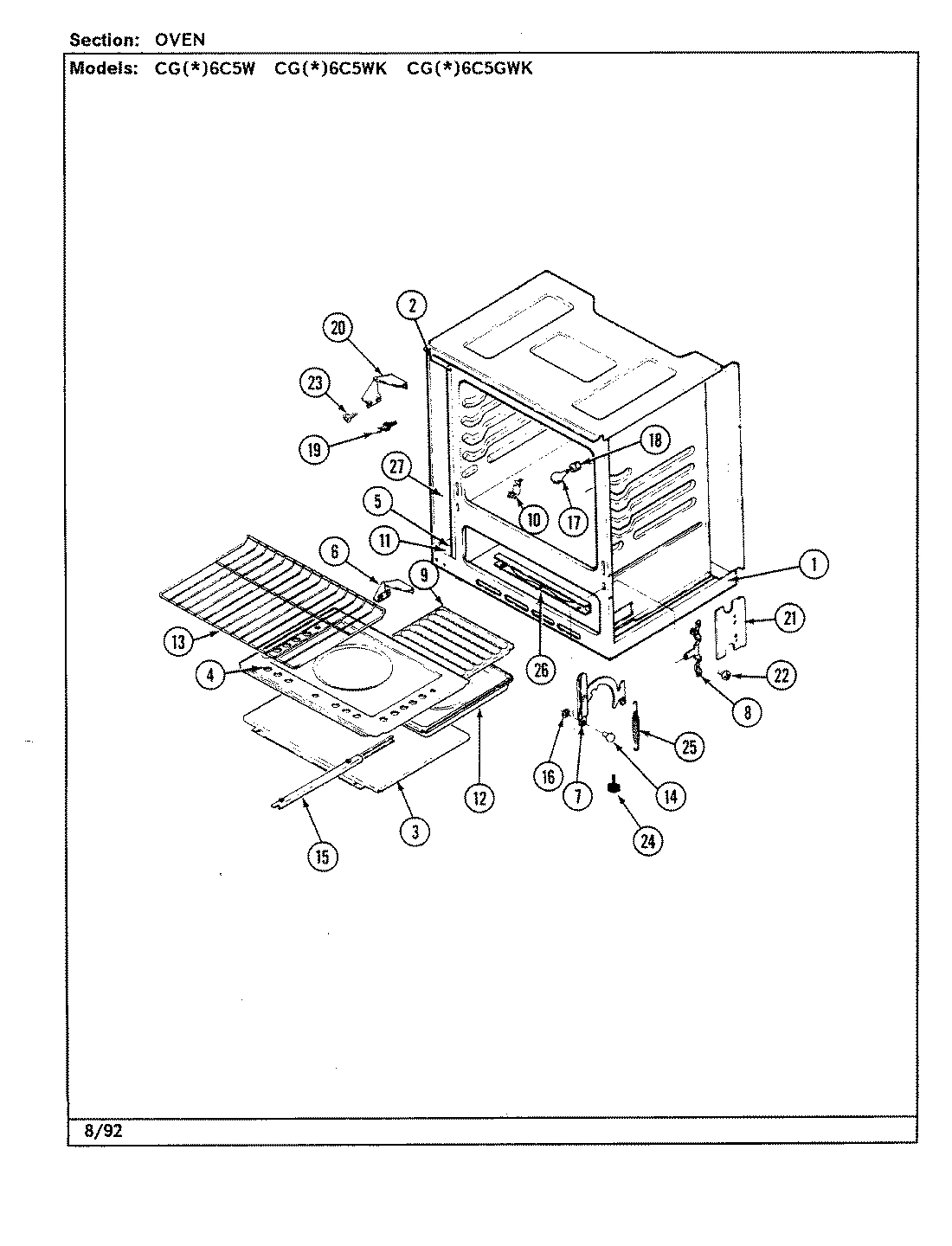

05 - OVEN

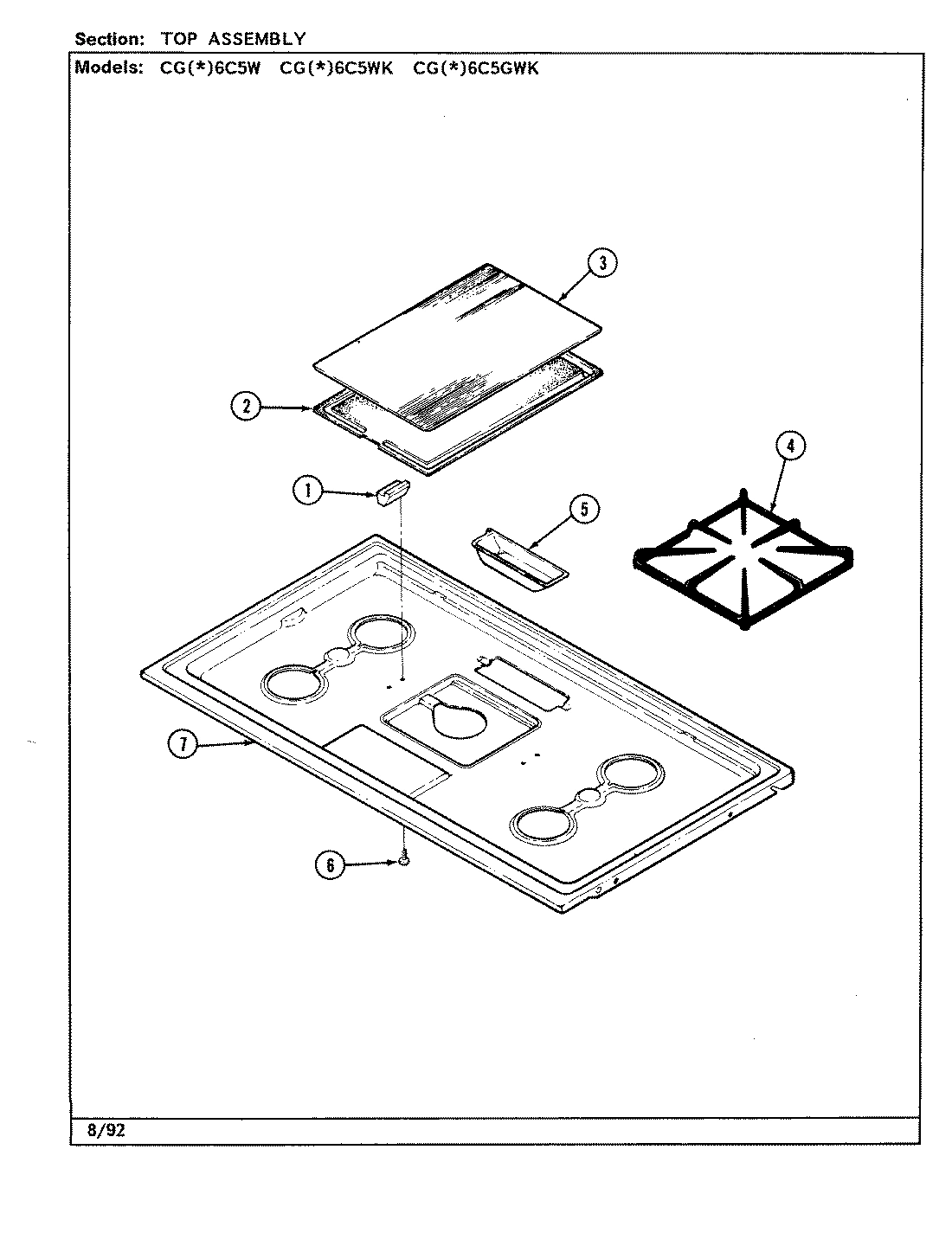

06 - TOP ASSEMBLY
Common parts from model Whirlpool CGA6C5W GAS RANGE
1
BACK, MAIN WPL 4002F06380 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F10145 Contact Us For Availability
1
CLOCK----NA WPL 7602P06460 Contact Us For Availability
1
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
1
BRACE, BASE WPL 3802F01280 Contact Us For Availability
1
BASE ASSY. RANGE WPL 4003W00280 Contact Us For Availability
1
SCREW WPL 7101P00460 Contact Us For Availability
1
NUT, BASE MTG. WPL 7103P00460 Contact Us For Availability
1
SUPPORT, GRATE WPL 8004P01660 Contact Us For Availability
2
BOX, BURNER WPL 4011F13580 Contact Us For Availability
2
SUPPORT, TOP PILOT WPL 3807F20434 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
BRACE COMPT. TOP WPL 3802F07280 Contact Us For Availability
2
KIT, GRIDDLE WPL W10116823 Contact Us For Availability
3
FLUE ASSY. WPL 4006W01780 Contact Us For Availability
3
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
3
TRIM WPL 7726P00360 Contact Us For Availability
3
TRIM WPL 7726P01460 Contact Us For Availability
3
PANEL, OV DR WPL 2401F10071 Contact Us For Availability
3
PANEL, OV DOOR WPL 2401F10074 Contact Us For Availability
3
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
3
BOTTOM WPL 4011F14551 Contact Us For Availability
3
COVER, GRIDDLE STAINLESS WPL 2005F00230 Contact Us For Availability
4
GASKET WPL 7201P00660 Contact Us For Availability
4
BURNER, OVEN WPL 7505P06560 Contact Us For Availability
4
SWITCH WPL 7403P02060 Contact Us For Availability
4
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F00923 Contact Us For Availability
4
BAFFLE WPL 3601F20123 Contact Us For Availability
4
INSULATION, BAFFLE WPL 7002P00960 Contact Us For Availability
4
GRATE WPL 2003W00100 Contact Us For Availability
5
BRACE TOP REAR WPL 3802F03870 Contact Us For Availability
5
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
5
THERMOSTAT WPL 7515P01860 Contact Us For Availability
5
THERMOSTAT WPL 7515P02660 Contact Us For Availability
5
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
5
CLIP, SEAL WPL 7112P06460 Contact Us For Availability
5
SEAL, OVEN DOOR WPL 7212P02560 Contact Us For Availability
5
SIDE, OVEN COMPARTMENT WPL 4016F01480 Contact Us For Availability
5
PAN, GREASE WPL 3401F01723 Contact Us For Availability
6
BRACE WPL 3802F01480 Contact Us For Availability
6
BRACE WPL 3802F03734 Contact Us For Availability
6
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
6
PANEL, BACKGUARD ALMOND WPL 2601W20284 Contact Us For Availability
6
GLASS WPL 7902P05160 Contact Us For Availability
6
HINGE WPL 7106P00360 Contact Us For Availability
6
SCREW, BKGD TRIM BWN WPL 7101P00660 Contact Us For Availability
7
HINGE, MAIN TOP R.H. WPL 5720A00234 Contact Us For Availability
7
HINGE, MAIN TOP L.H. WPL 5720A00934 Contact Us For Availability
7
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
7
INLAY, BKGD WPL 7703P18460 Contact Us For Availability
7
RETAINER, GLASS WPL 3804F09580 Contact Us For Availability
7
STOP, OVEN DOOR WPL 3420A03534 Contact Us For Availability
7
TOP MAIN, ALMOND WPL 2001F00784 Contact Us For Availability
8
SIDE, BURNER BOX RIGHT WPL 4016F00280 Contact Us For Availability
8
SIDE, BURNER BOX LEFT WPL 4016F00680 Contact Us For Availability
8
TUBING (3/16 X 50``) WPL 3414F06144 Contact Us For Availability
8
SHIELD WPL 4005F03680 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
HINGE, OVEN DOOR (LT) WPL 3418D07534 Contact Us For Availability
8
HINGE, OVEN DOOR (RT) WPL 3418D07634 Contact Us For Availability
8
SCREW WPL 7101P07160 Contact Us For Availability
9
TRIM, LEFT WPL 7720P05560 Contact Us For Availability
9
TRIM, RIGHT WPL 7720P05860 Contact Us For Availability
9
BURNER, PILOT WPL 7505P07960 Contact Us For Availability
9
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
9
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
9
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
10
TRIM WPL 7720P05660 Contact Us For Availability
10
TRIM WPL 7720P05960 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
10
SCREW WPL 7101P06960 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W16523 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
TRIM WPL 2610F00132 Contact Us For Availability
11
TRIM WPL 2610F00232 Contact Us For Availability
11
LOCKWASHER 1/4`` WPL 7109P03360 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
11
BOTTOM, COMPARTMENT WPL 4011F13180 Contact Us For Availability
12
PANEL, MANIFOLD ALMOND WPL 2616F05284 Contact Us For Availability
12
SCREW WPL 7118P00460 Contact Us For Availability
12
PIPE, MANIFOLD (W/GRIDDLE) WPL 7513P05160 Contact Us For Availability
12
PIPE MANIFOLD WPL 7513P11560 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2403F02974 Contact Us For Availability
12
PAN, BROIL WPL 3401F00423 Contact Us For Availability
13
PANEL, SIDE ALMOND WPL 2618F01374 Contact Us For Availability
13
SCREW, TRIM WPL 7101P25060 Contact Us For Availability
13
PILOT ASSY. WPL 1566267 Contact Us For Availability
13
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
13
RACK, OVEN WPL 7801P01360 Contact Us For Availability
14
BAFFLE WPL 3601F06051 Contact Us For Availability
14
NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability
14
HANDLE WPL 7701P04360 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
15
BOX, DISCONNECT WPL 4006F00580 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
PANEL, COMPARTMENT DOOR - ALMO WPL 2409F00974 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
15
SCREW 6-32X.625 TY23PH WPL 7101P01560 Contact Us For Availability
16
CORD, POWER WPL 7402P01160 Contact Us For Availability
16
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
16
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
16
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
16
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
17
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
17
TUBING, 3/8 X 72`` WPL 3414F05444 Contact Us For Availability
17
INSULATION WPL 7002P00260 Contact Us For Availability
17
LAMP, OVEN WPL 7407P02760 Contact Us For Availability
18
BRACKET WPL 3801F05334 Contact Us For Availability
18
VALVE, BURNER WPL 7502P00960 Contact Us For Availability
18
VALVE, BURNER WPL 7502P23460 Contact Us For Availability
18
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
18
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
19
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
19
SCREW WPL 7101P06760 Contact Us For Availability
19
LINING, BROILER WPL 2404F02723 Contact Us For Availability
19
CATCH WPL 8024P00260 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 7711P36360 Contact Us For Availability
20
VALVE, OVEN WPL 7501P06760 Contact Us For Availability
20
BUMPER WPL 8003P00360 Contact Us For Availability
20
HINGE WPL 7106P00760 Contact Us For Availability
21
KNOB, VALVE WPL 7733P02660 Contact Us For Availability
21
SUPPORT WPL 3807F14334 Contact Us For Availability
21
NUT WPL 7103P06460 Contact Us For Availability
21
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
21
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
21
GUARD, HINGE WPL 3609F00361 Contact Us For Availability
21
SCREW, COUNTERWEIGHT WPL 7101P12760 Contact Us For Availability
22
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
22
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
SCREW WPL 7101P02560 Contact Us For Availability
22
SCREW WPL 7101P11260 Contact Us For Availability
23
LINK, BROILER WPL 7807P00160 Contact Us For Availability
23
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
24
SPRING WPL 7803P01460 Contact Us For Availability
24
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
25
SCREW WPL 7101P11460 Contact Us For Availability
25
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
25
SPRING WPL 7803P00360 Contact Us For Availability
26
LINING, COMPARTMENT DOOR WPL 2408F00580 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM WPL 5720A01023 Contact Us For Availability
27
SCREW WPL 7101P05860 Contact Us For Availability
27
CATCH, FEMALE WPL 8002P01360 Contact Us For Availability
27
UPRIGHT, FRONT CORNER WPL 3822F00180 Contact Us For Availability
27
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
27
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
NI
NUT, WING WPL 7103P03060 Contact Us For Availability
× ![]()
