Model Whirlpool CGA4C58CZKW GAS RANGE – Common Parts & Diagrams
03 - DOOR

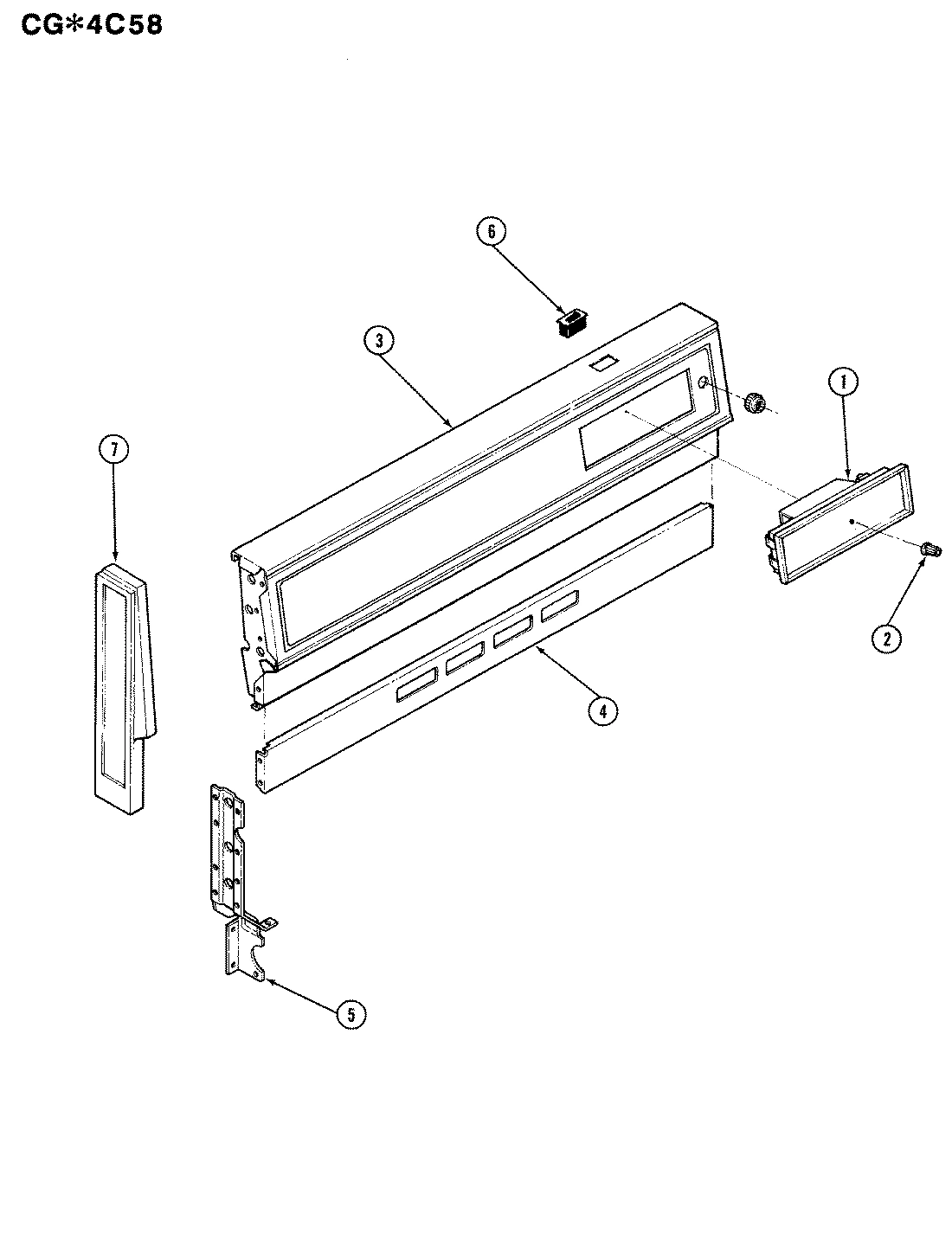

02 - CONTROL PANEL

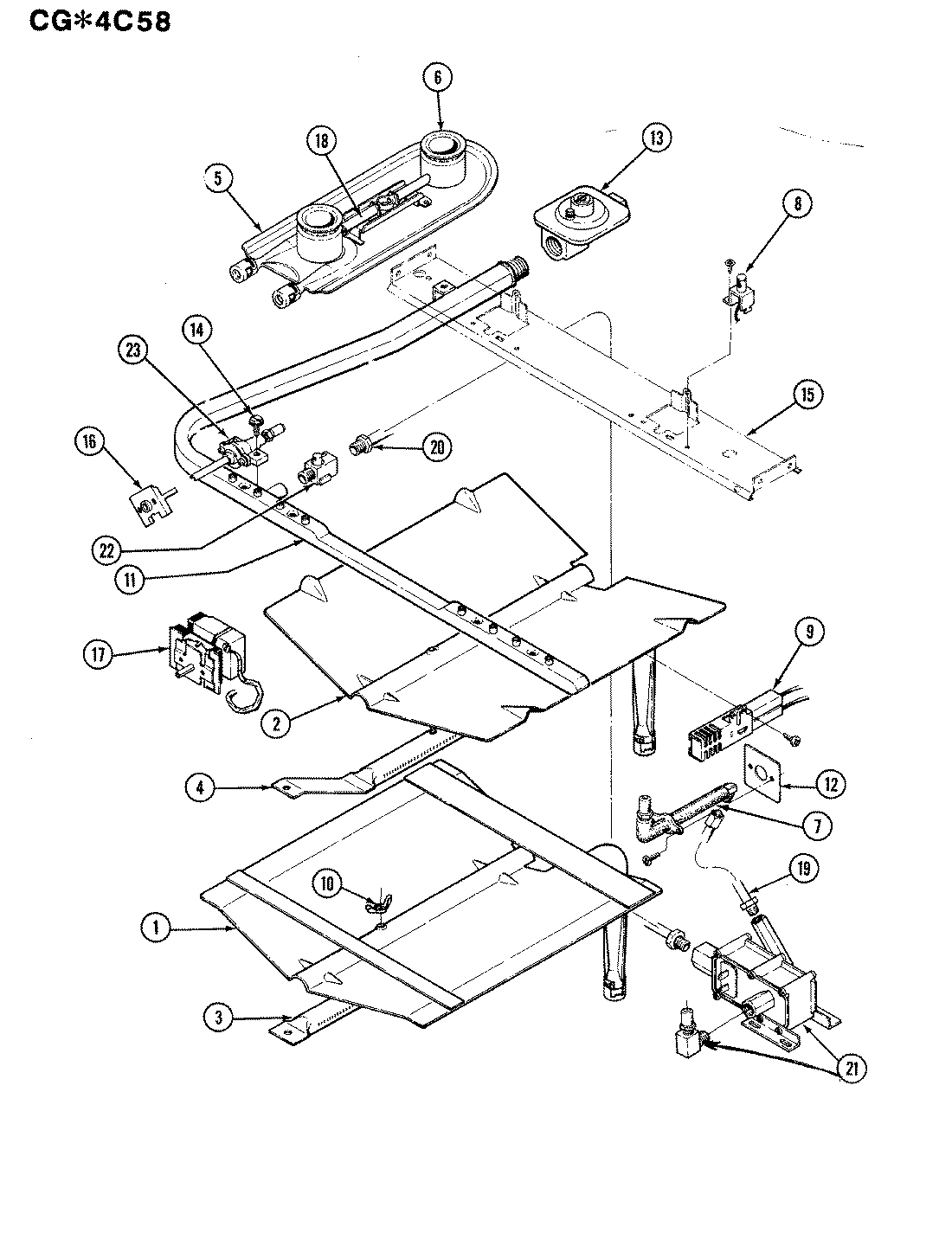

04 - GAS CONTROLS

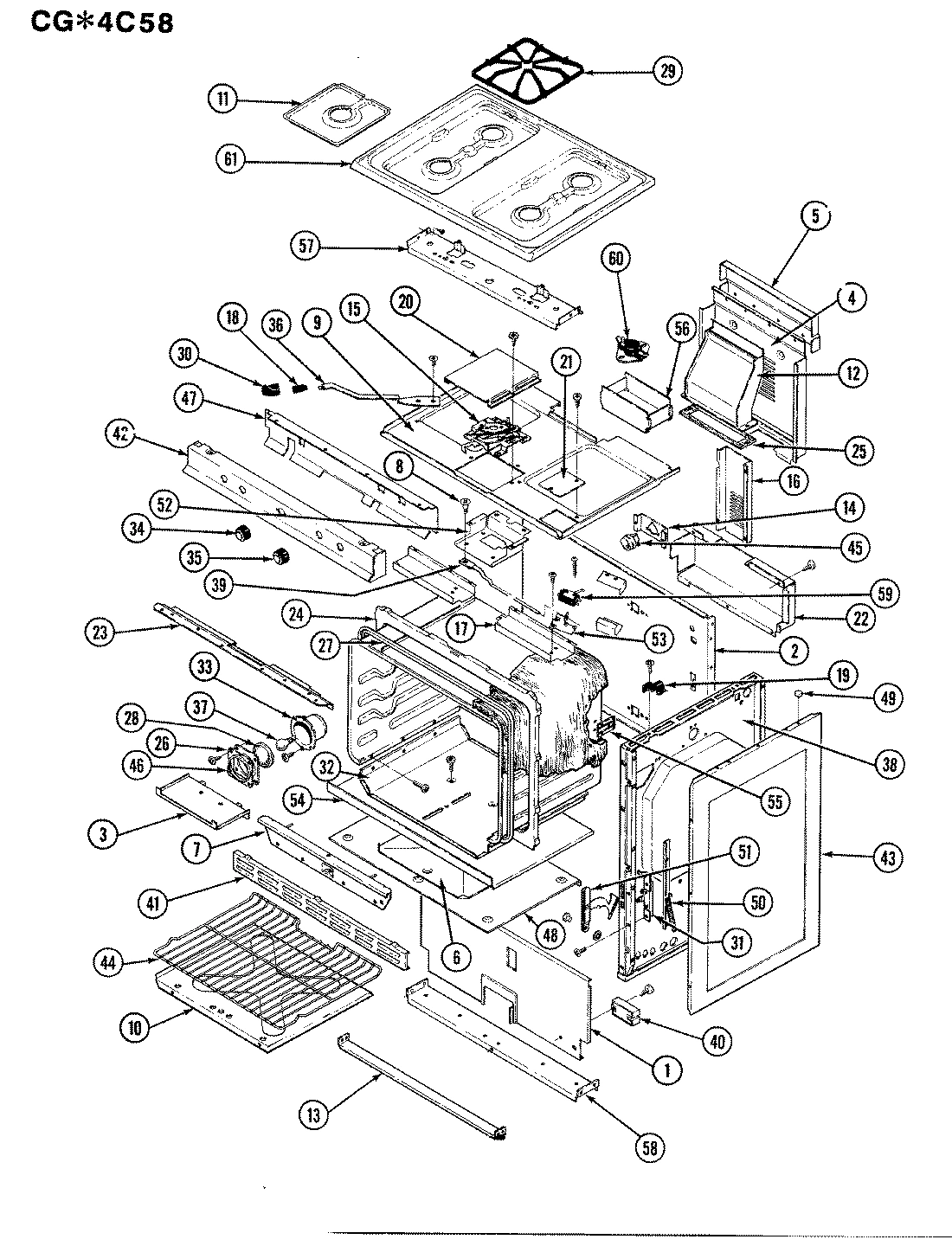

01 - BODY
Common parts from model Whirlpool CGA4C58CZKW GAS RANGE
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
1
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
1
+ CLOCK, AUTOMATIC WPL 7601P04360 Contact Us For Availability
1
BAFFLE, BAKE BURNER WPL 3601W12915 Contact Us For Availability
1
BACK, BROILER SECTION WPL 4002F06645 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
2
LIGHT, SIGNAL LOCK WPL 7407P01060 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
3
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
3
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
BACKGUARD ASSY, SN WHT WPL 2601W11181 Contact Us For Availability
3
BACKGUARD ASSY, ALM WPL 2601W11184 Contact Us For Availability
3
BACKGUARD ASSY, HVST WHT WPL 2601W11186 Contact Us For Availability
3
BACKGUARD ASSY, FSH AVOC WPL 2601W11187 Contact Us For Availability
3
BACKGUARD ASSY, COFF WPL 2601W11188 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
4
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
4
PANEL, BKGD LOWER WPL 2620W01800 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
5
SUPPORT WPL 3807F01080 Contact Us For Availability
5
SUPPORT WPL 3807F01280 Contact Us For Availability
5
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
5
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
6
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
6
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
6
CAP, BURNER WPL 7504P00160 Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
TRIM, BKGD WPL 7703P12560 Contact Us For Availability
7
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
7
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
7
FITTING, BROIL BURNE WPL 7507P02460 Contact Us For Availability
7
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
7
BAFFLE, ASSY OVEN FRONT WPL 3601W12415 Contact Us For Availability
7
BLOCK, DISCONNECT CAP WPL 7401P00460 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
8
LINING, BROILER WPL 2404F02123 Contact Us For Availability
8
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
8
BOLT WPL 7116P00360 Contact Us For Availability
9
LINING, DOOR WPL 2402W12515 Contact Us For Availability
9
LINING WPL 2402W12815 Contact Us For Availability
9
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
9
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
9
NUT, SNAP WPL 7103P11460 Contact Us For Availability
9
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
9
BOX, BURNER WPL 4011F07580 Contact Us For Availability
10
PAD ASSY, OV DR W/W WPL 2410W02715 Contact Us For Availability
10
PAD, DOOR WPL 2410W02915 Contact Us For Availability
10
+ PAD ASSEMBLY WPL 2430F016 Contact Us For Availability
10
NUT, WING WPL 7103P03060 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F01215 Contact Us For Availability
11
PAD, INNER WPL 2410F01651 Contact Us For Availability
11
PANEL, STORAGE DWR WHITE WPL 2416F01871 Contact Us For Availability
11
PANEL, STORAGE DWR ALMOND WPL 2416F01874 Contact Us For Availability
11
PANEL, STORAGE DWR HVT WHEAT WPL 2416F01876 Contact Us For Availability
11
PANEL, STORAGE DWR AVOC. WPL 2416F01877 Contact Us For Availability
11
PANEL, STORAGE DWR COFFEE WPL 2416F01878 Contact Us For Availability
11
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
11
BOWL, DRIP TRAY WPL 7725P00460 Contact Us For Availability
12
RETAINER WPL 3804F02245 Contact Us For Availability
12
PLATE, FITTING WPL 3605F01950 Contact Us For Availability
12
BOX, FLUE WPL 4006W02615 Contact Us For Availability
13
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
13
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
13
BRACKET WPL 3801F09351 Contact Us For Availability
13
BRACE WPL 3802F00380 Contact Us For Availability
14
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
14
BRACKET WPL 3801F02451 Contact Us For Availability
14
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
14
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
14
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
15
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
15
SCREW WPL 7101P12360 Contact Us For Availability
15
CATCH, DOOR LOCK WPL 8002E009 Contact Us For Availability
16
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
16
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
16
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
17
SEAL WPL 7208P00260 Contact Us For Availability
17
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
17
CHANNEL, SWITCH LOCK WPL 3818F027 Contact Us For Availability
17
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
18
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
18
TAPE, 2`` X 16`` REFLECTIVE WPL 8270P05160 Contact Us For Availability
18
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
18
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
18
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
19
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
19
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
19
CORD, POWER WPL 7402P01460 Contact Us For Availability
20
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
20
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
21
VALVE, OVEN WPL 7501P03060 Contact Us For Availability
21
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
21
COVER, FUSE BOX WPL 4005F02751 Contact Us For Availability
22
COVER, MODULE WPL 4005F17680 Contact Us For Availability
22
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
23
VALVE WPL 7502P03160 Contact Us For Availability
23
VALVE, BURNER WPL 7502P11160 Contact Us For Availability
23
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
24
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
25
GASKET WPL 7201P01360 Contact Us For Availability
25
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
26
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
27
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
28
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
29
GRATE WPL 2003W00100 Contact Us For Availability
30
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
31
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
31
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
32
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
33
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
33
HOUSING WPL 4001F02015 Contact Us For Availability
33
KNOB, SELECTOR WPL 7711P26060 Contact Us For Availability
34
KNOB, THERMOSTAT WPL 7711P32260 Contact Us For Availability
35
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
36
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
37
BULB, OVEN WPL 7407P02660 Contact Us For Availability
38
LINING ASSY, INNER SIDE WPL 4009W03880 Contact Us For Availability
39
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
40
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
40
PAN, BROIL WPL 3401F00423 Contact Us For Availability
41
PANEL, LOWER FRONT WPL 2614F00880 Contact Us For Availability
42
TRIM ASSY, MANIFOLD WPL 7712A01860 Contact Us For Availability
43
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
43
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
43
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
43
PANEL, SIDE (HV WHT) WPL 2618F05276 Contact Us For Availability
43
PANEL, SID WPL 2618F05277 Contact Us For Availability
43
WPL 2618F05278 WPL 2618F05278 Contact Us For Availability
44
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
45
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
46
WPL 7107P01760 WPL 7107P01760 Contact Us For Availability
46
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
46
WPL 7101P25260 WPL 7101P25260 Contact Us For Availability
47
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
48
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
48
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
49
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
50
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
51
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
52
WPL 3807F195 WPL 3807F195 Contact Us For Availability
53
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
54
WPL 3807W20745 WPL 3807W20745 Contact Us For Availability
55
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
56
WPL 3807F21951 WPL 3807F21951 Contact Us For Availability
57
WPL 3807F22180 WPL 3807F22180 Contact Us For Availability
57
WPL 3807F20934 WPL 3807F20934 Contact Us For Availability
58
WPL 3807F21645 WPL 3807F21645 Contact Us For Availability
59
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
59
WPL 7403P09260 WPL 7403P09260 Contact Us For Availability
60
WPL 7515P00560 WPL 7515P00560 Contact Us For Availability
60
WPL 7515P02060 WPL 7515P02060 Contact Us For Availability
60
WPL 7403P09160 WPL 7403P09160 Contact Us For Availability
61
WPL 2001F03581 WPL 2001F03581 Contact Us For Availability
61
WPL 2001F03584 WPL 2001F03584 Contact Us For Availability
61
WPL 2001F03586 WPL 2001F03586 Contact Us For Availability
61
WPL 2001F03587 WPL 2001F03587 Contact Us For Availability
61
WPL 2001F03 WPL 2001F03 Contact Us For Availability
× ![]()
