Model Whirlpool CGA3D5XK GAS RANGE – Common Parts & Diagrams
04 - DOOR/DRAWER (CGx3D5VK)

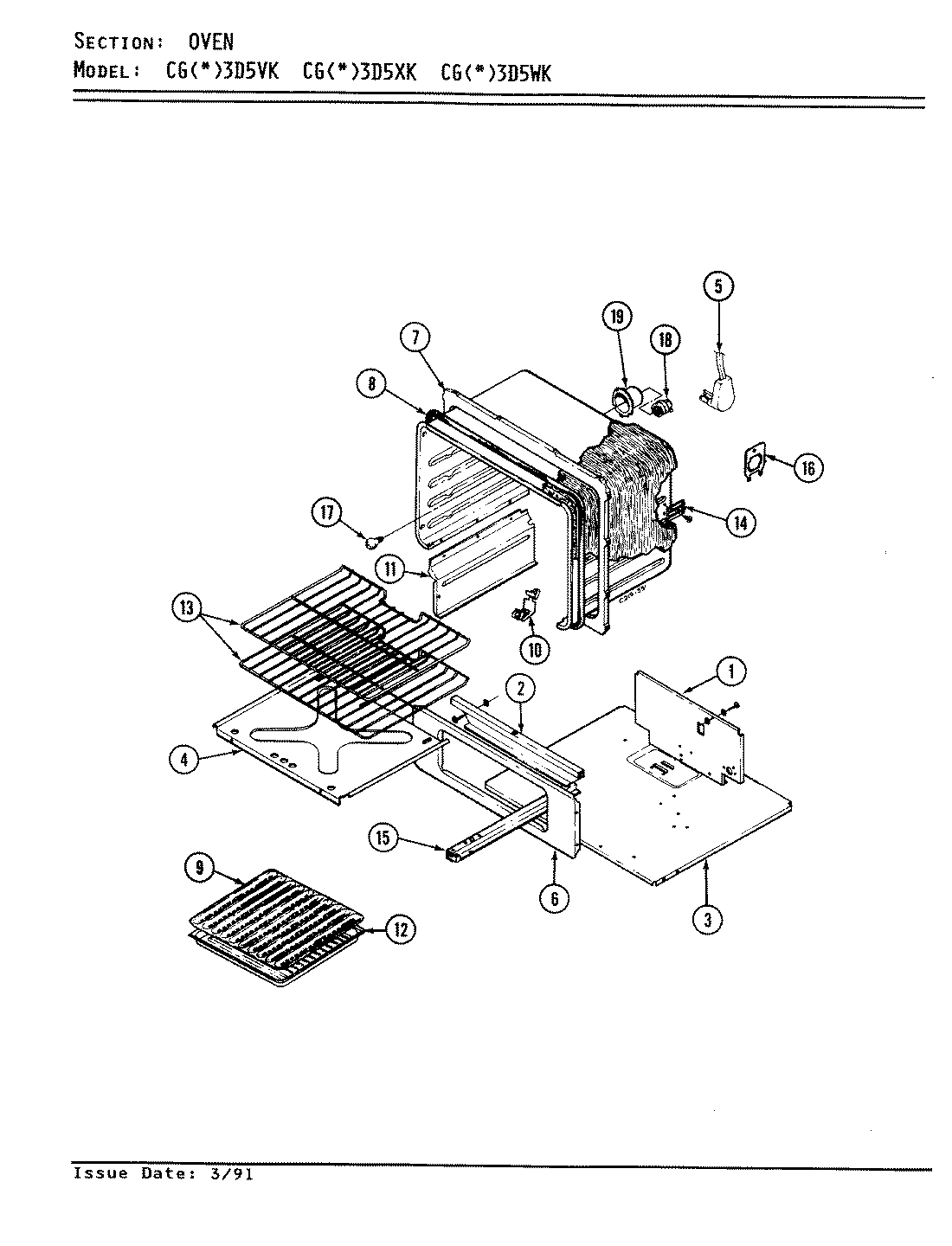

06 - OVEN

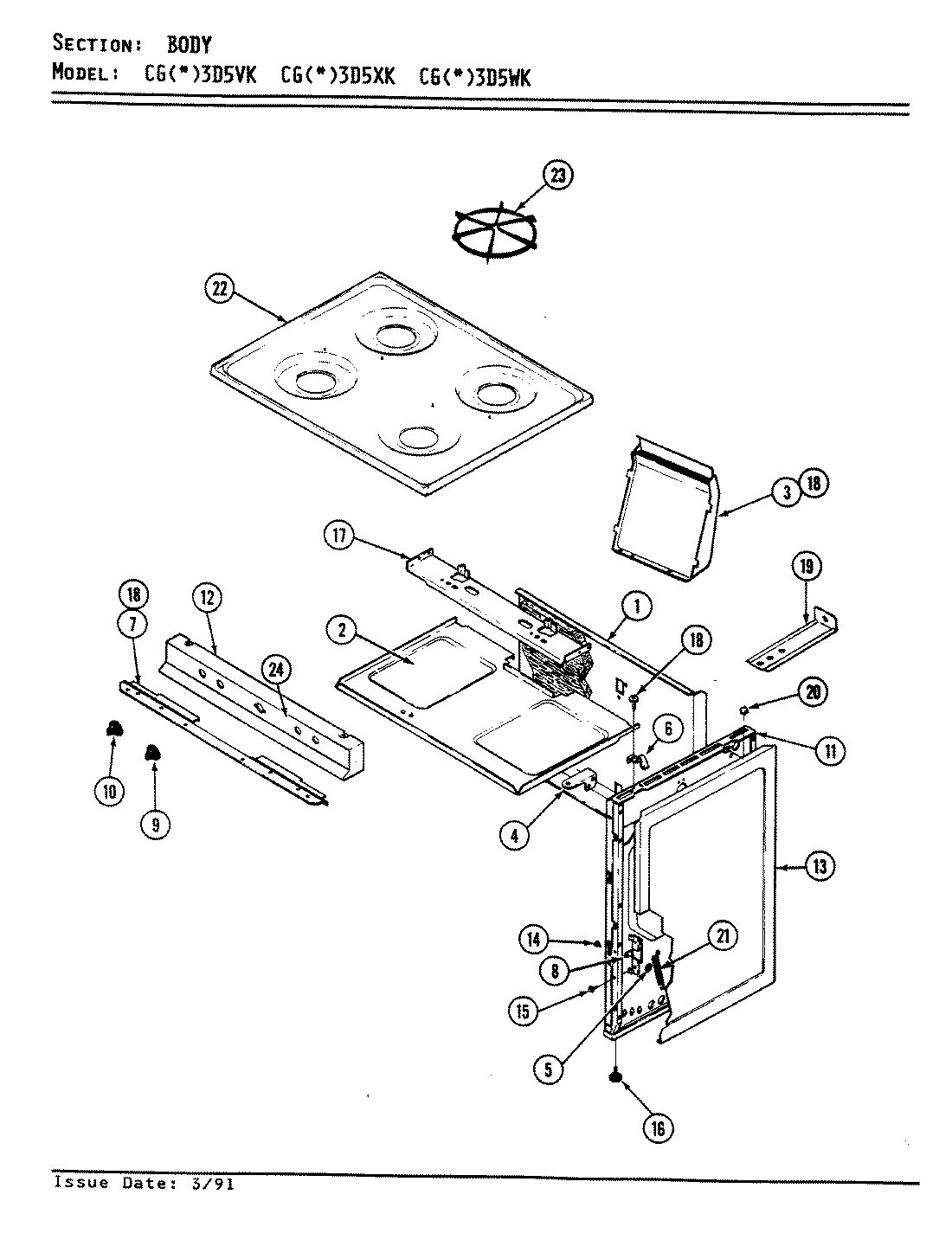

01 - BODY

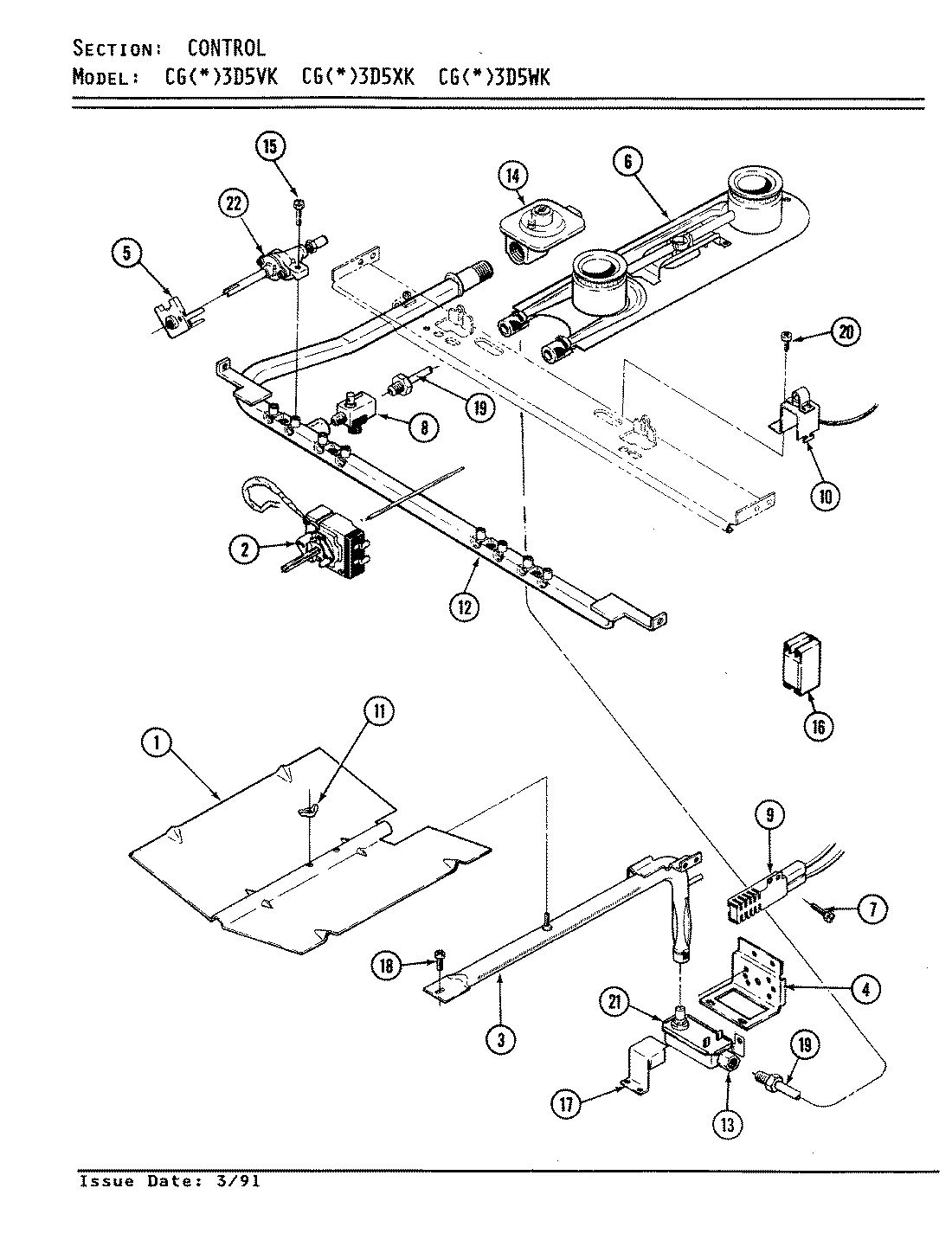

03 - CONTROLS

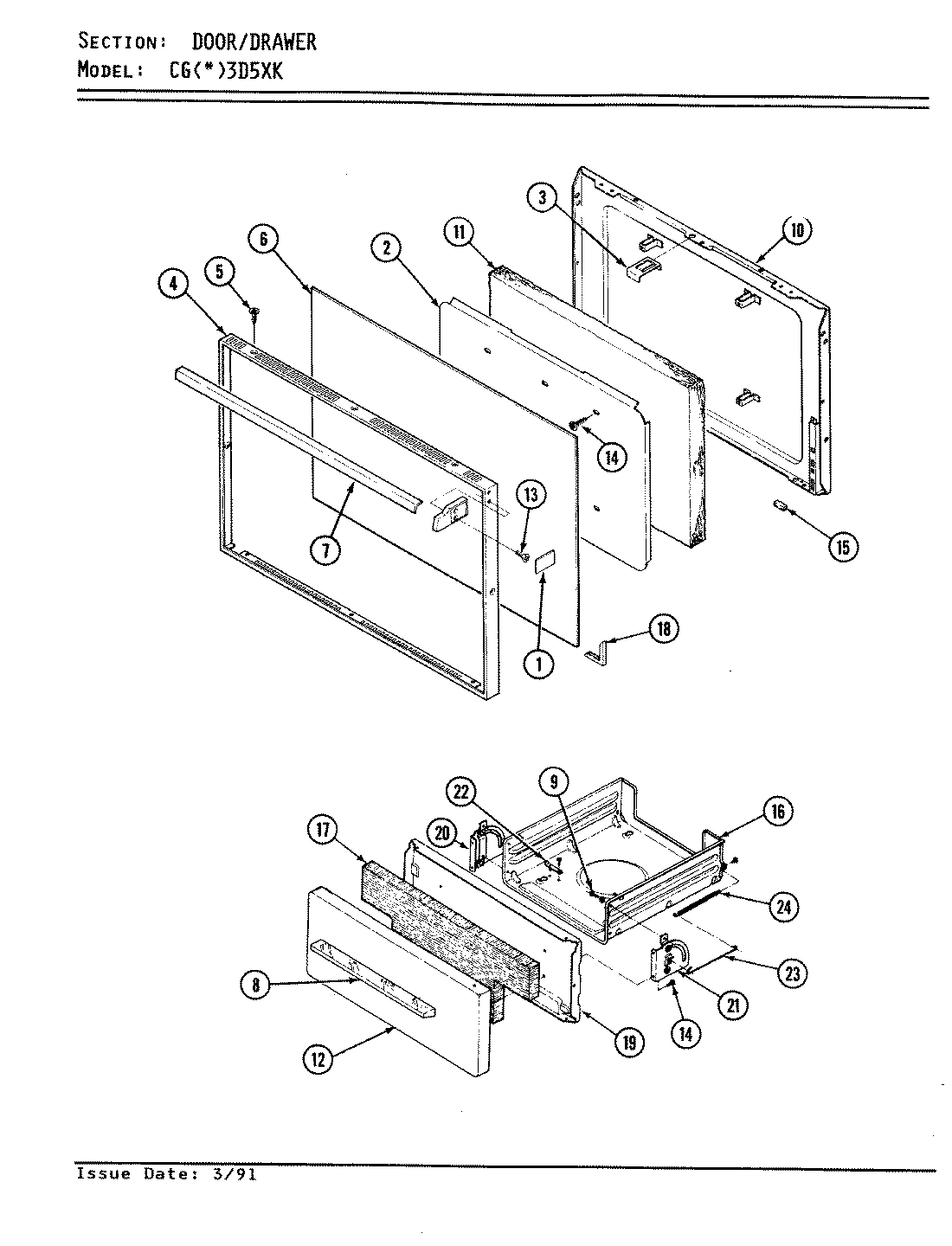

05 - DOOR/DRAWER (CGx3D5XK)

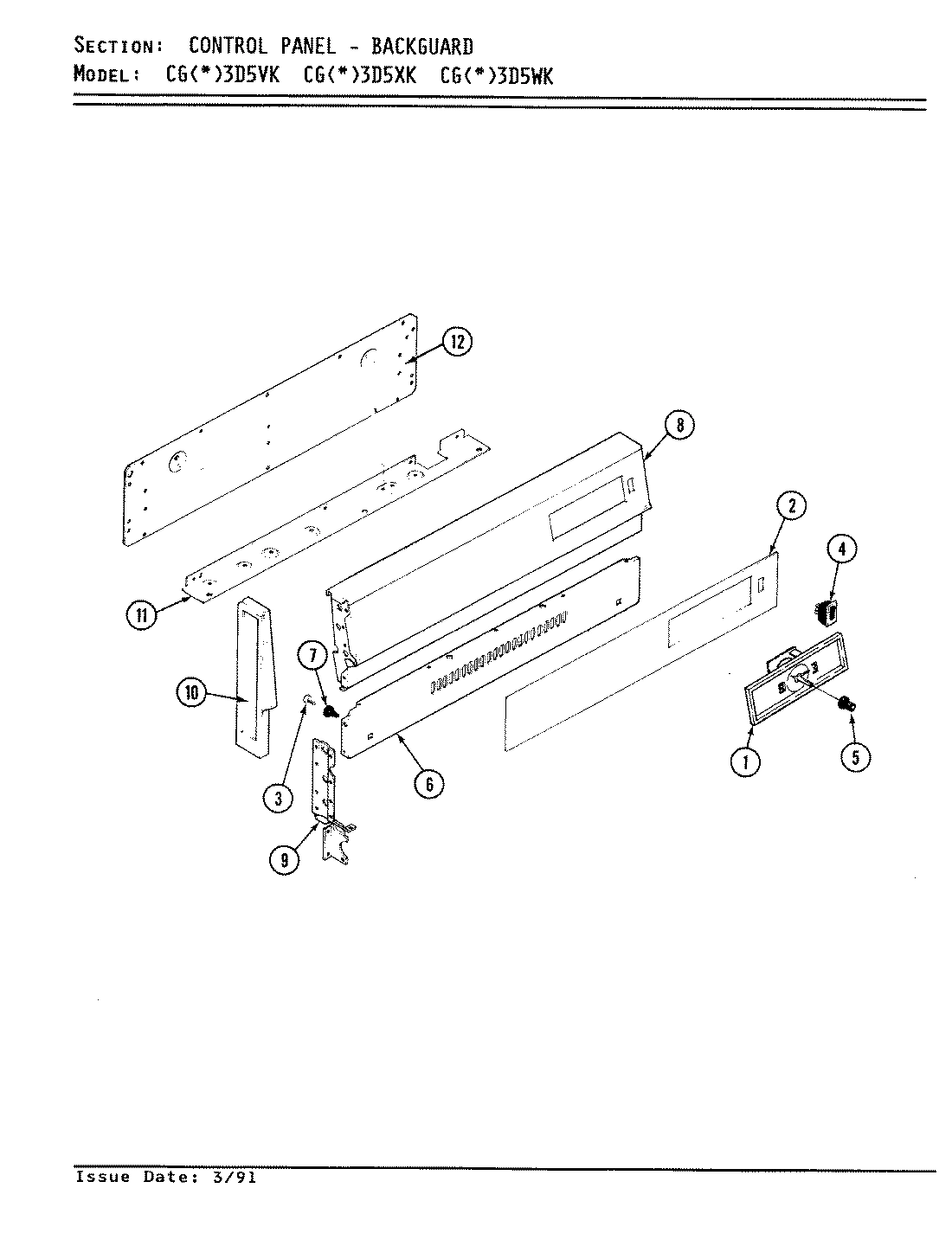

02 - CONTROL PANEL
Common parts from model Whirlpool CGA3D5XK GAS RANGE
1
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
1
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BACK, MAIN WPL 4002F13080 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
CLOCK WPL 7602P08560 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10860 Contact Us For Availability
2
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
2
SHIELD, THEMOSTAT WPL 3604F03051 Contact Us For Availability
2
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
2
THERMOSTAT WPL 7515P00860 Contact Us For Availability
2
BAFFLE WPL 3601F02651 Contact Us For Availability
2
TRIM BKGD INSERT WPL 7703P23360 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
3
BOX, FLUE WPL 4006W02680 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F01223K Contact Us For Availability
4
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
4
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
4
SUPPORT WPL 3807F12034 Contact Us For Availability
4
PLUG, HOLE WPL 7718P00960 Contact Us For Availability
5
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
5
CORD, POWER WPL 7402P01460 Contact Us For Availability
5
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
5
SWITCH, TOP BURNER WPL 7403P10760 Contact Us For Availability
5
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
5
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
5
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
6
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
6
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
6
PANEL, LOWER BKGD. (BLK) WPL 2620W05323 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
7
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
7
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
SEAL WPL 7212P00160 Contact Us For Availability
8
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
8
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
8
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
8
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
BKGD ASSY, WHITE WPL 2601W28281 Contact Us For Availability
8
BKGD ASSY, ALM WPL 2601W28284 Contact Us For Availability
9
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
9
SCREW WPL 7101P05860 Contact Us For Availability
9
SCREW WPL 7101P07660 Contact Us For Availability
9
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
9
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7731P03660 Contact Us For Availability
9
BLOCK WPL 7401P01860 Contact Us For Availability
9
LIGHTER, BAKE AND BROIL WPL 7432P06460 Contact Us For Availability
9
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
9
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
9
SCREW WPL 7101P07460 Contact Us For Availability
10
LINING, DOOR WPL 2402W15423 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
KNOB, VALVE WPL 7733P04160 Contact Us For Availability
10
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
10
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
10
LINING ASSY, OVEN DOOR WPL 2402W15523 Contact Us For Availability
10
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
10
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
10
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
11
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
11
LINING, INNER SIDE WPL 4009W07180 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
INSULATION WPL 7002P01360 Contact Us For Availability
11
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
12
PAN, BROIL WPL 3401F00423 Contact Us For Availability
12
PANEL, UPPER FRONT (ALM) WPL 2616F01084 Contact Us For Availability
12
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P10160 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P13360 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2416F02574 Contact Us For Availability
12
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
12
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
13
SCREW WPL 7101P12360 Contact Us For Availability
13
RACK, OVEN WPL 7801P03060 Contact Us For Availability
13
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
13
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
14
SCREW WPL 7101P06160 Contact Us For Availability
14
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
15
SCREW WPL 7101P11560 Contact Us For Availability
15
SCREW WPL 7101P11260 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SCREW WPL 7101P29660 Contact Us For Availability
16
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
16
SCREW WPL 7101P11460 Contact Us For Availability
16
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
16
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
17
INSULATION WPL 7002P00260 Contact Us For Availability
17
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
17
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
18
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
19
LINING, BROILER WPL 2404F02123 Contact Us For Availability
19
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
19
TUBING, 3/8`` X 54.5`` WPL 3414F04944 Contact Us For Availability
20
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
20
SCREW WPL 7118P00460 Contact Us For Availability
20
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
20
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
21
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
21
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
21
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
22
CATCH WPL 8002P00160 Contact Us For Availability
22
TOP, MAIN WPL 2001F03584 Contact Us For Availability
22
SLEEVE WPL 7214P00360 Contact Us For Availability
22
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
22
VALVE, BURNER WPL 7502P13260 Contact Us For Availability
22
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
23
LINK, BROILER WPL 7807P00160 Contact Us For Availability
23
GRATE WPL 2003W00100 Contact Us For Availability
24
SPRING WPL 7803P01460 Contact Us For Availability
24
TRIM MANIFOLD INSERT WPL 7728P06260 Contact Us For Availability
27
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
× ![]()
