Model Whirlpool CGA3C6CVK GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

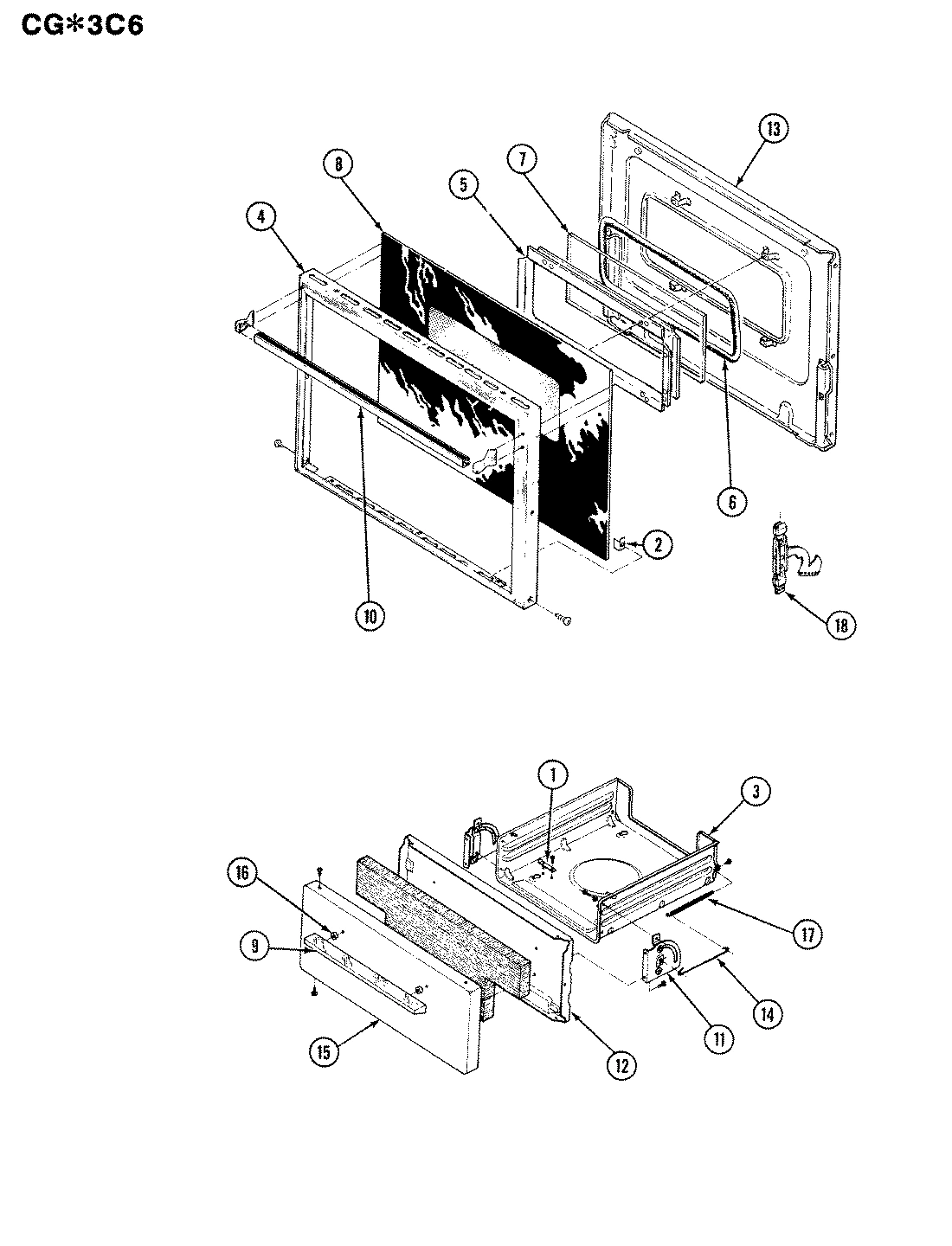

04 - DOOR/DRAWER

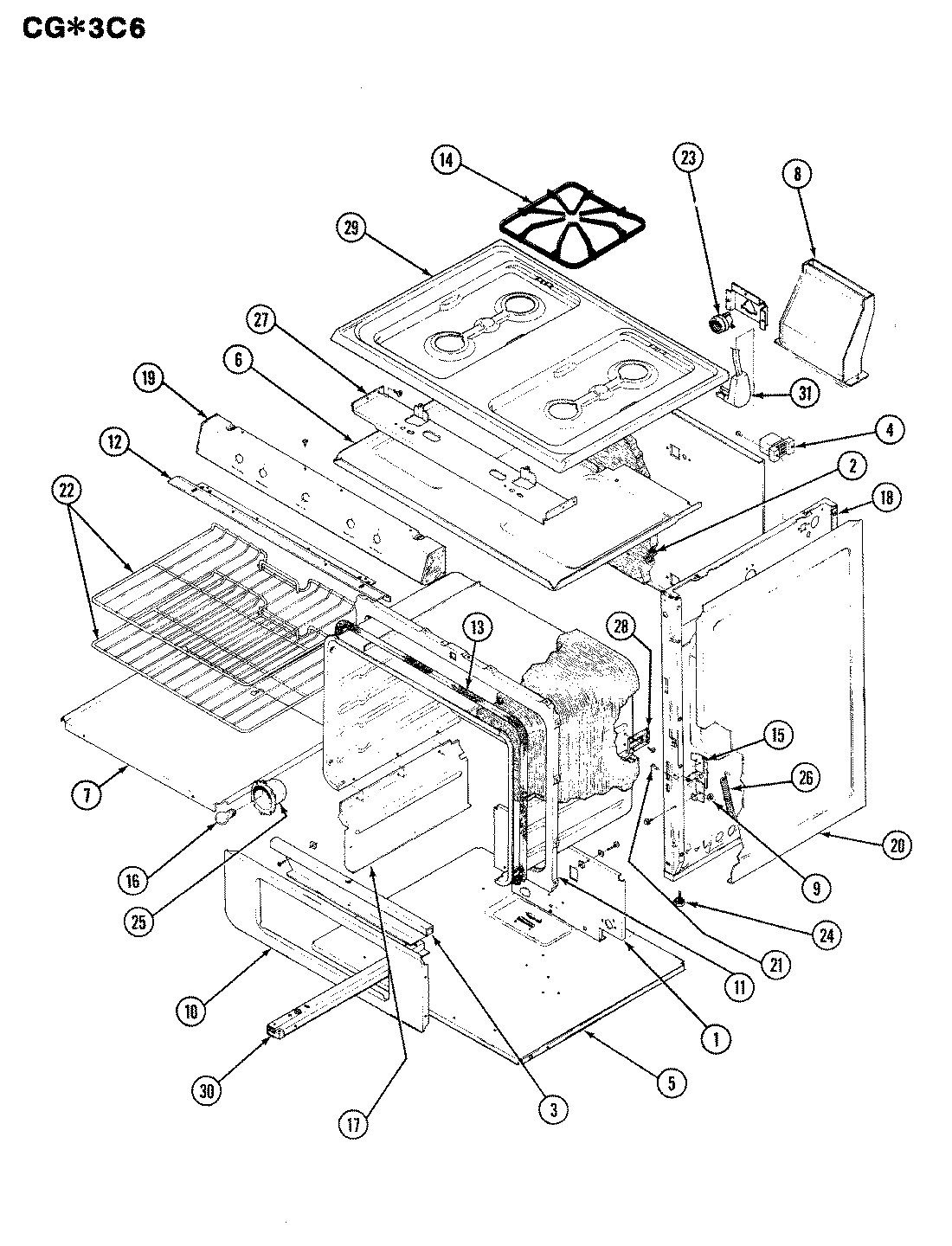

01 - BODY

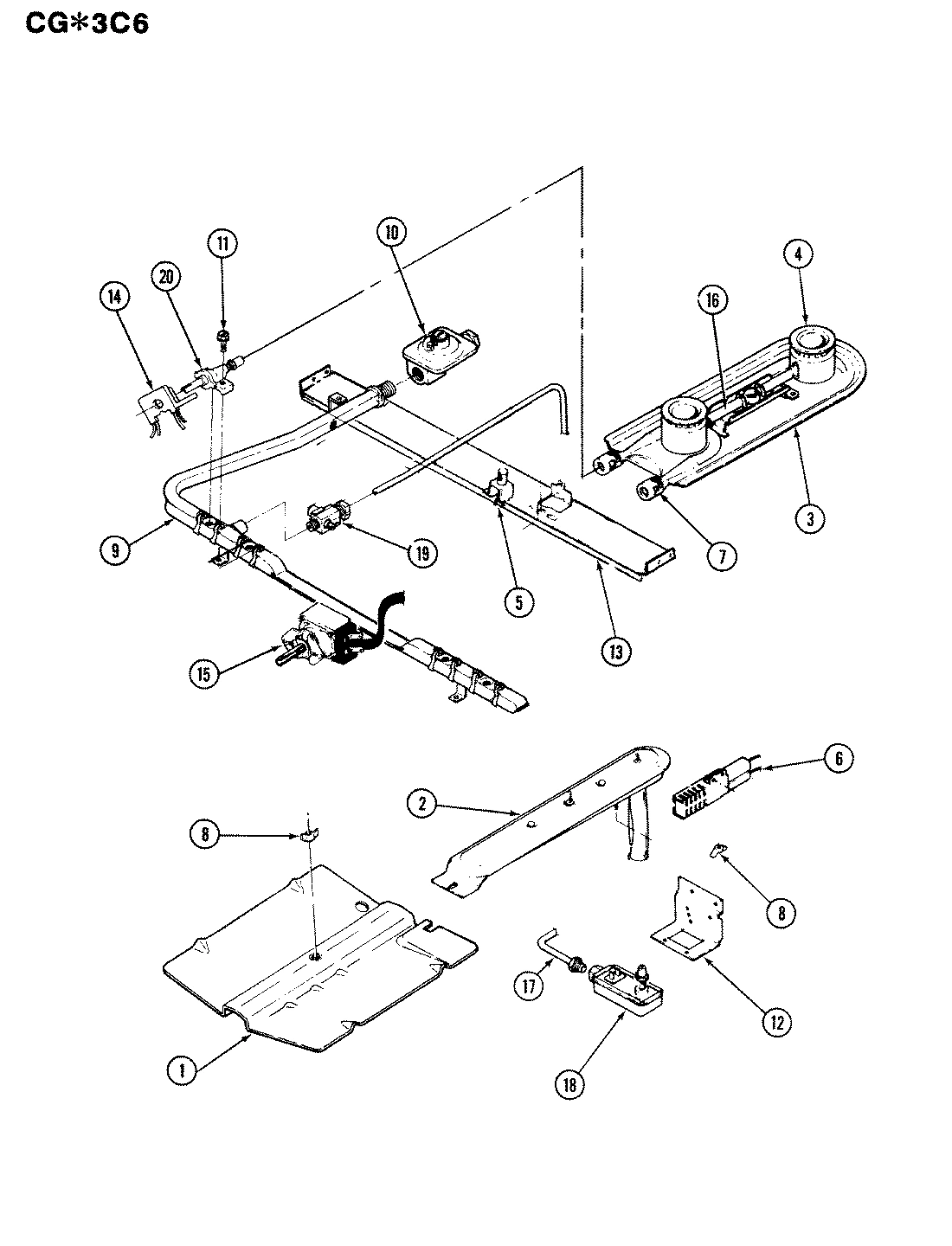

03 - CONTROLS
Common parts from model Whirlpool CGA3C6CVK GAS RANGE
1
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
1
CLOCK WPL 7601P09660 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
CATCH WPL 8002P00160 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
2
GLASS, BACKGUARD WPL 7910P05960 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
3
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
3
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
3
DRAWER, BROILER WPL 3407W00911 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
4
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
4
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
4
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
COVER, WIRE WPL 4005F30451 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
5
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
5
PANEL, BKGD HVT WHEAT WPL 2601W19986 Contact Us For Availability
5
PANEL, BKGD AVOCADO WPL 2601W19987 Contact Us For Availability
5
PANEL, BKGD COFFEE WPL 2601W19988 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F14680 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
6
SUPPORT WPL 3807F01080 Contact Us For Availability
6
SUPPORT WPL 3807F01280 Contact Us For Availability
6
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
KNOB, THERM WPL 7711P15460 Contact Us For Availability
6
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
6
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
6
KNOB, VALVE WPL 7711P15160 Contact Us For Availability
7
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
7
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01217 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01224 Contact Us For Availability
7
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
7
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
7
MIXER, AIR WPL 3411F00434 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
8
TRIM, BKGD. (LT) WPL 7726P00860 Contact Us For Availability
8
TRIM, BKGD. WPL 7726P01960 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
BRACKET WPL 3801F02145 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
8
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
8
BOX, FLUE WPL 4006W02680 Contact Us For Availability
8
3/8`` NUT & FERRULE WPL 1555258 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
9
TRIM, GLASS RETAINER WPL 7720P08960 Contact Us For Availability
9
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
9
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
9
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
11
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
12
LINING, BROILER WPL 2404F02123 Contact Us For Availability
12
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
12
SUPPORT WPL 3807F12034 Contact Us For Availability
13
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
13
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
13
SEAL WPL 7212P00160 Contact Us For Availability
13
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
14
LINK WPL 7807P00260 Contact Us For Availability
14
GRATE WPL 2003W00100 Contact Us For Availability
14
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
14
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
15
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
15
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
15
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
15
PANEL, DRAWER (ALM) WPL 2416F02574 Contact Us For Availability
15
PANEL, DRAWER (HV WHT) WPL 2416F02576 Contact Us For Availability
15
PANEL, DRAWER (AVOC) WPL 2416F02577 Contact Us For Availability
15
PANEL, DRAWER (COFF) WPL 2416F02578 Contact Us For Availability
15
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
15
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
15
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
INSERT WPL 3413F00211 Contact Us For Availability
15
THERMOSTAT WPL 7515P00860 Contact Us For Availability
16
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
16
BULB, OVEN WPL 7407P02660 Contact Us For Availability
16
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
17
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
17
SPRING WPL 7803P01460 Contact Us For Availability
17
LINING, SIDE BROILER COMP. WPL 4009F04445 Contact Us For Availability
17
3/16 X 56 TUBING WPL 0931202 Contact Us For Availability
17
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
18
PAN, BROIL WPL 3401F00411 Contact Us For Availability
18
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
18
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
19
TRIM ASSY, MANIFOLD WPL 7712A05560 Contact Us For Availability
19
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
20
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
20
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
20
PANEL, SIDE (HV WHT) WPL 2618F05276 Contact Us For Availability
20
PANEL, SIDE (AVOC) WPL 2618F05277 Contact Us For Availability
20
PANEL, SIDE COFFEE WPL 2618F05278 Contact Us For Availability
20
VALVE, TOP BURNER WPL 7502P01660 Contact Us For Availability
20
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
21
PIN, HINGE WPL 7113P00260 Contact Us For Availability
22
RACK, OVEN WPL 7801P03060 Contact Us For Availability
23
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
24
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
25
COVER WPL 4005F08880 Contact Us For Availability
26
SPRING WPL 7803P00260 Contact Us For Availability
26
STOP, TOP WPL 7809P00260 Contact Us For Availability
28
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
29
TOP, MAIN - N WPL 2001F03501 Contact Us For Availability
29
TOP, MAIN - A WPL 2001F03504 Contact Us For Availability
29
TOP, MAIN - Y WPL 2001F03506 Contact Us For Availability
29
TOP, MAIN - G WPL 2001F03507 Contact Us For Availability
29
TOP, MAIN - B WPL 2001F03508 Contact Us For Availability
30
TRACK WPL 3404A00151 Contact Us For Availability
30
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
30
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
31
CORD, POWER WPL 7402P01460 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8112P00960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8112P03460 Contact Us For Availability
× ![]()
