Model Whirlpool CG3177VRV GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

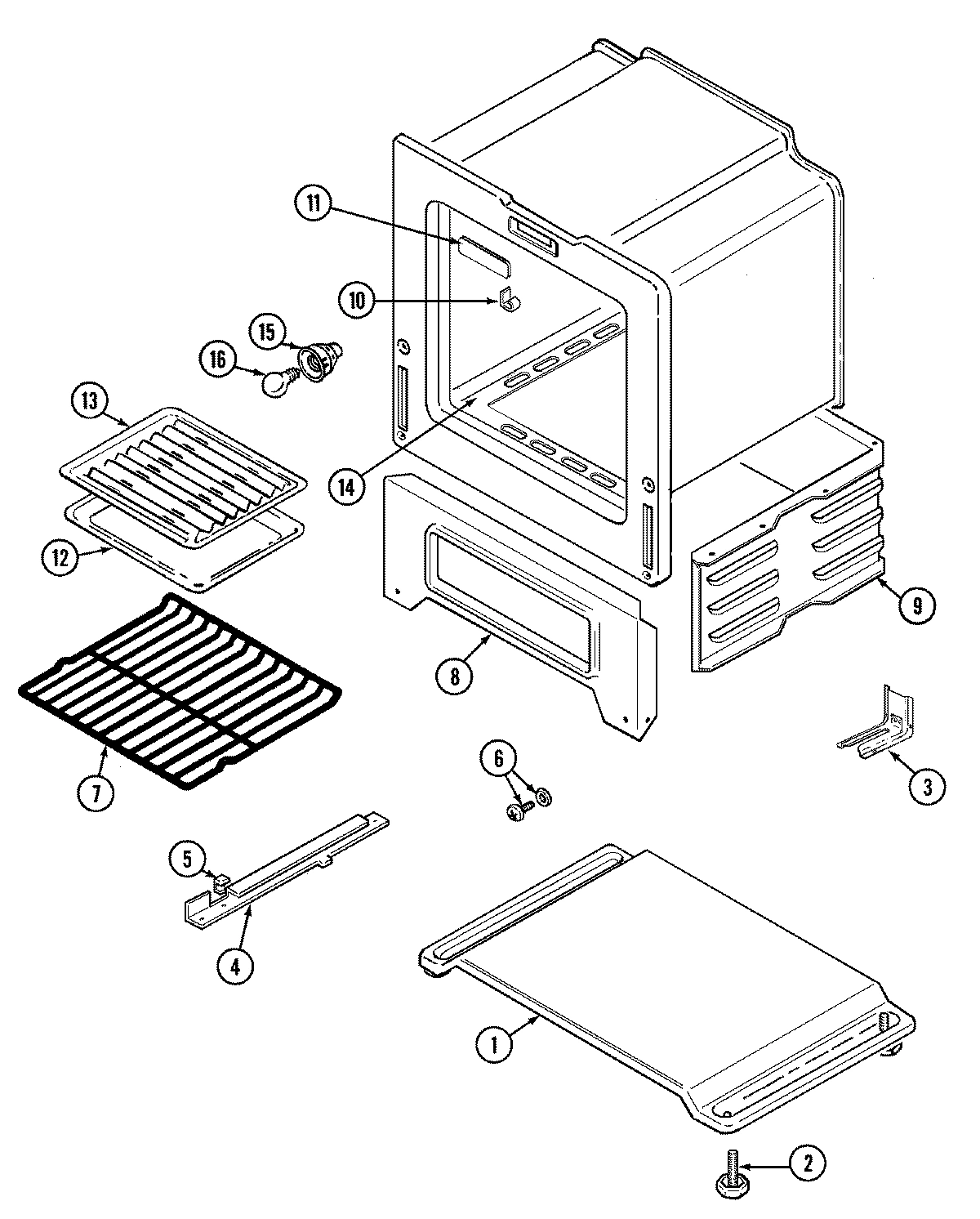

04 - OVEN/BASE

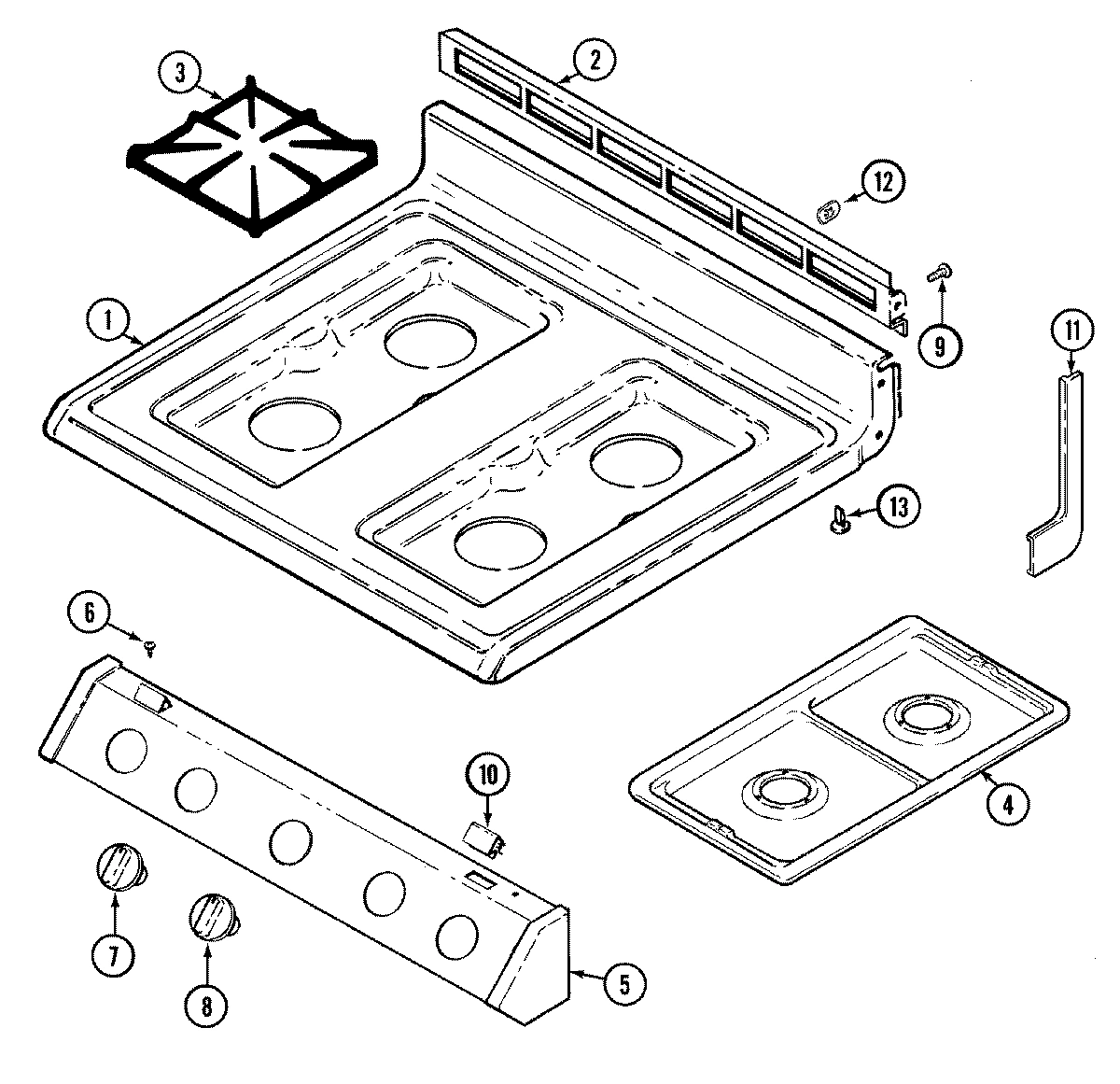

05 - TOP ASSEMBLY

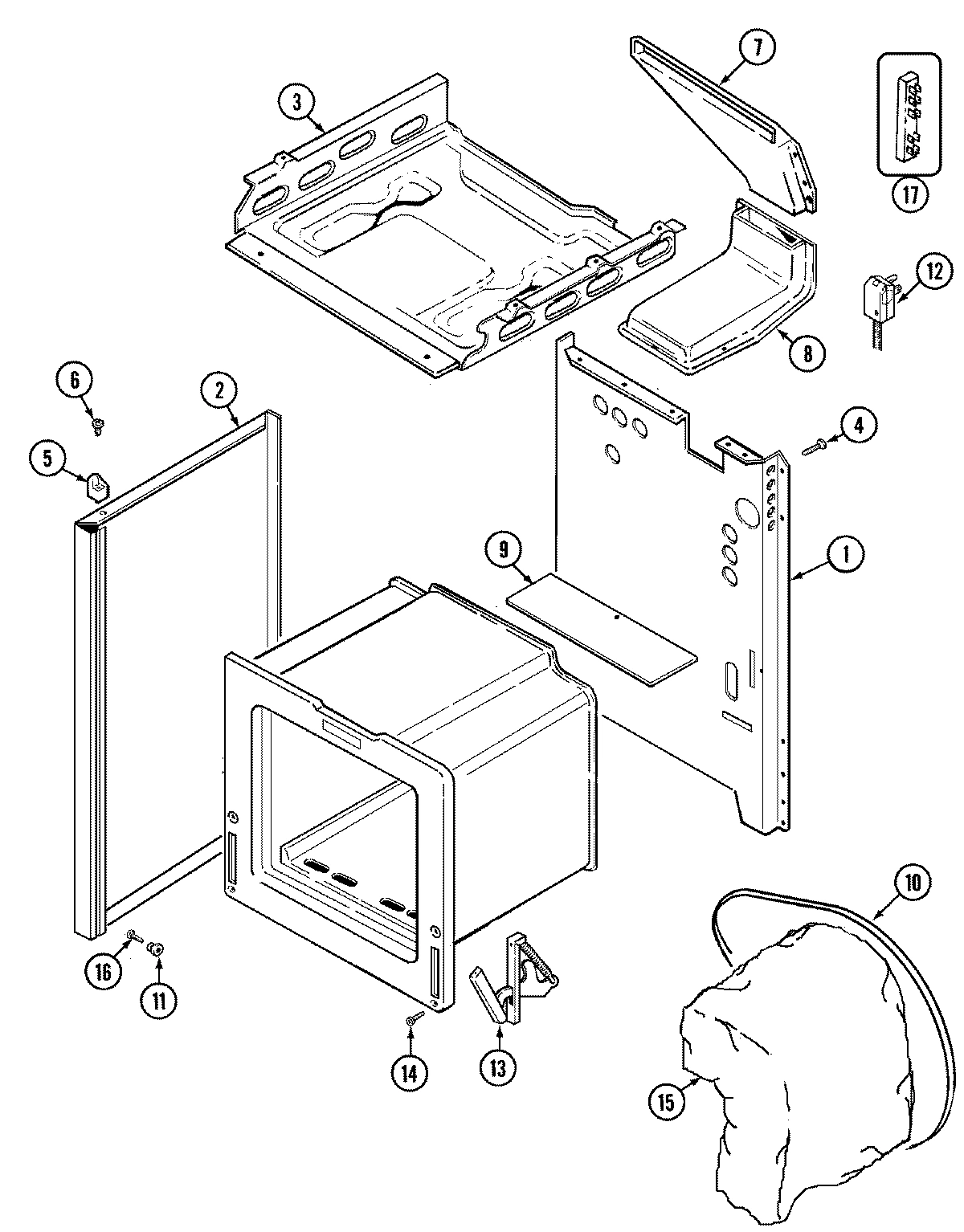

01 - BODY

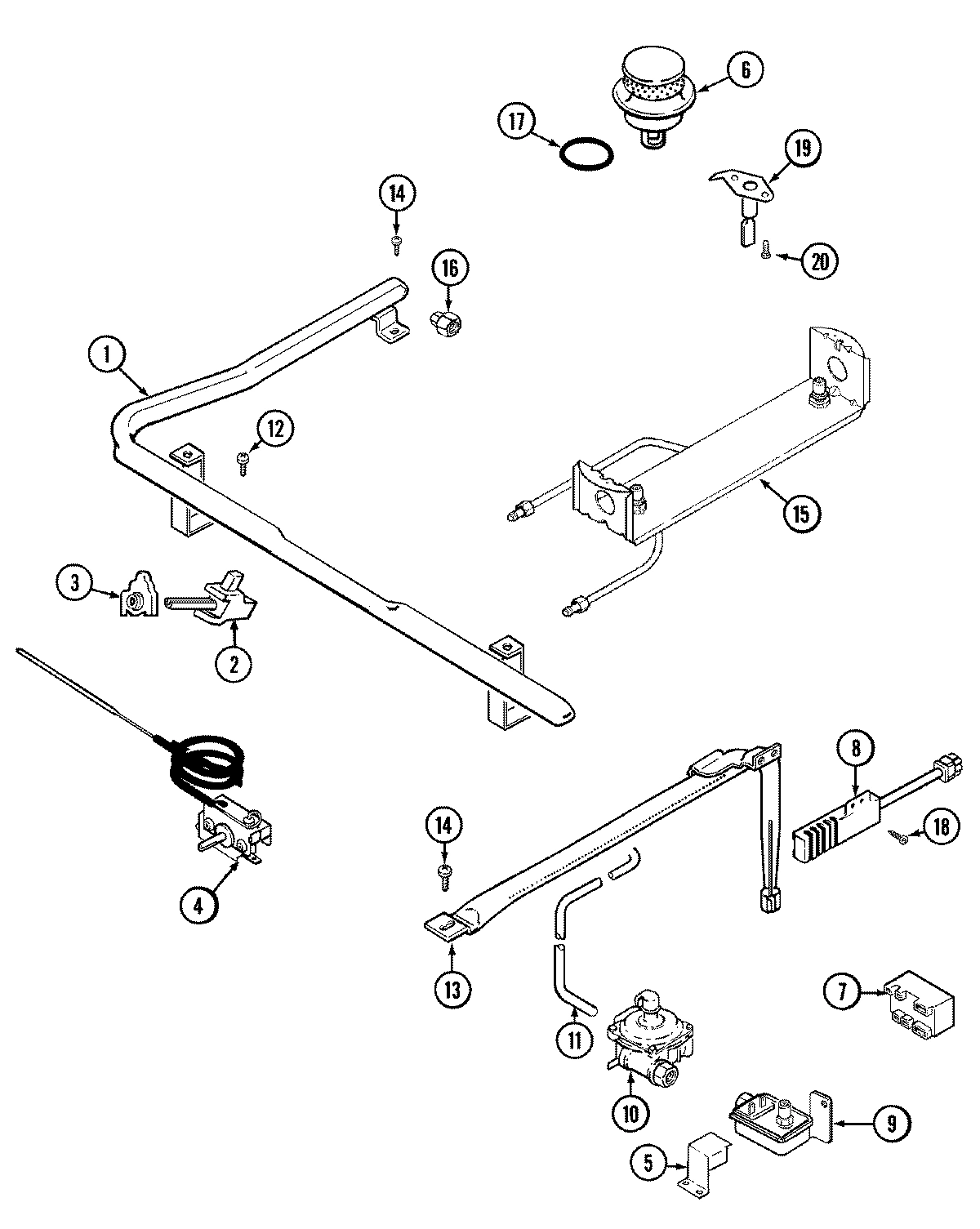

03 - GAS CONTROLS
Common parts from model Whirlpool CG3177VRV GAS RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
COVER, WIRE WPL 4005F44845 Contact Us For Availability
1
BASE WPL 4003W02980 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08581 Contact Us For Availability
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
LEG, LEVELING WPL 74001311 Contact Us For Availability
2
TRIM, VENT (DARK GRAY) WPL 3608F04226 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P21760 Contact Us For Availability
2
VALVE, BURNER WPL 7502P25060 Contact Us For Availability
3
KIT, CONTROL PANEL ASSY. WPL 12001094 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P63760 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW WPL 7101P34460 Contact Us For Availability
3
GRATE (DK GRY) WPL 2003W02326 Contact Us For Availability
3
GRATE (GRY) WPL 2003W02726 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
3
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
4
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7404P08760 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
PANEL, MANIFOLD (WHITE) WPL 7712P16360 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
COVER, VALVE WPL 4005F43351 Contact Us For Availability
6
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
6
SCREW WPL 7101P32960 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SEALED BURNER ASSY. (GRY) WPL 3412D01826 Contact Us For Availability
7
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
7
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
7
RACK, OVEN WPL 7801P04760 Contact Us For Availability
7
KNOB, THERMOSTAT (WHT) WPL 7731P09160 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
7
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
8
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
8
KNOB, VALVE WPL 7733P09160 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
END CAP (LT-WHT) WPL 7726P08560 Contact Us For Availability
9
END CAP (RT-WHT) WPL 7726P08660 Contact Us For Availability
9
SIDES, BROILER WPL 4016F04445 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
SUPPORT, OVEN BACK INSULATION WPL 3807F41651 Contact Us For Availability
9
VALVE, OVEN WPL 7501P13760 Contact Us For Availability
10
CLOCK (WHT) WPL 7602P11760 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
PIPE, NIPPLE WPL 7507P12360 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
11
BRACKET CLOCK SUPPORT WPL 3801F26645 Contact Us For Availability
11
BRACKET, CLOCK WPL 3801F34045 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
11
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
12
NUT, SPEED WPL 7103P04460 Contact Us For Availability
12
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
13
BUTTON, SET (WHT) WPL 7711P47360 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
GLIDE WPL 8016P01560 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
14
BUTTON, SLIDE (WHT)----NA WPL 7711P47260 Contact Us For Availability
14
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
15
ORIFICE FITTING ASSEMBLY WPL 5187D03460 Contact Us For Availability
15
ORIFICE FITTING ASSEMBLY WPL 5187D03560 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
18
SCREW WPL 7101P32860 Contact Us For Availability
19
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
20
SCREW WPL 7101P31560 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 16007436 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04360 Contact Us For Availability
NI
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
NI
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
× ![]()
