Model Whirlpool CG3110PRW GAS RANGE – Common Parts & Diagrams

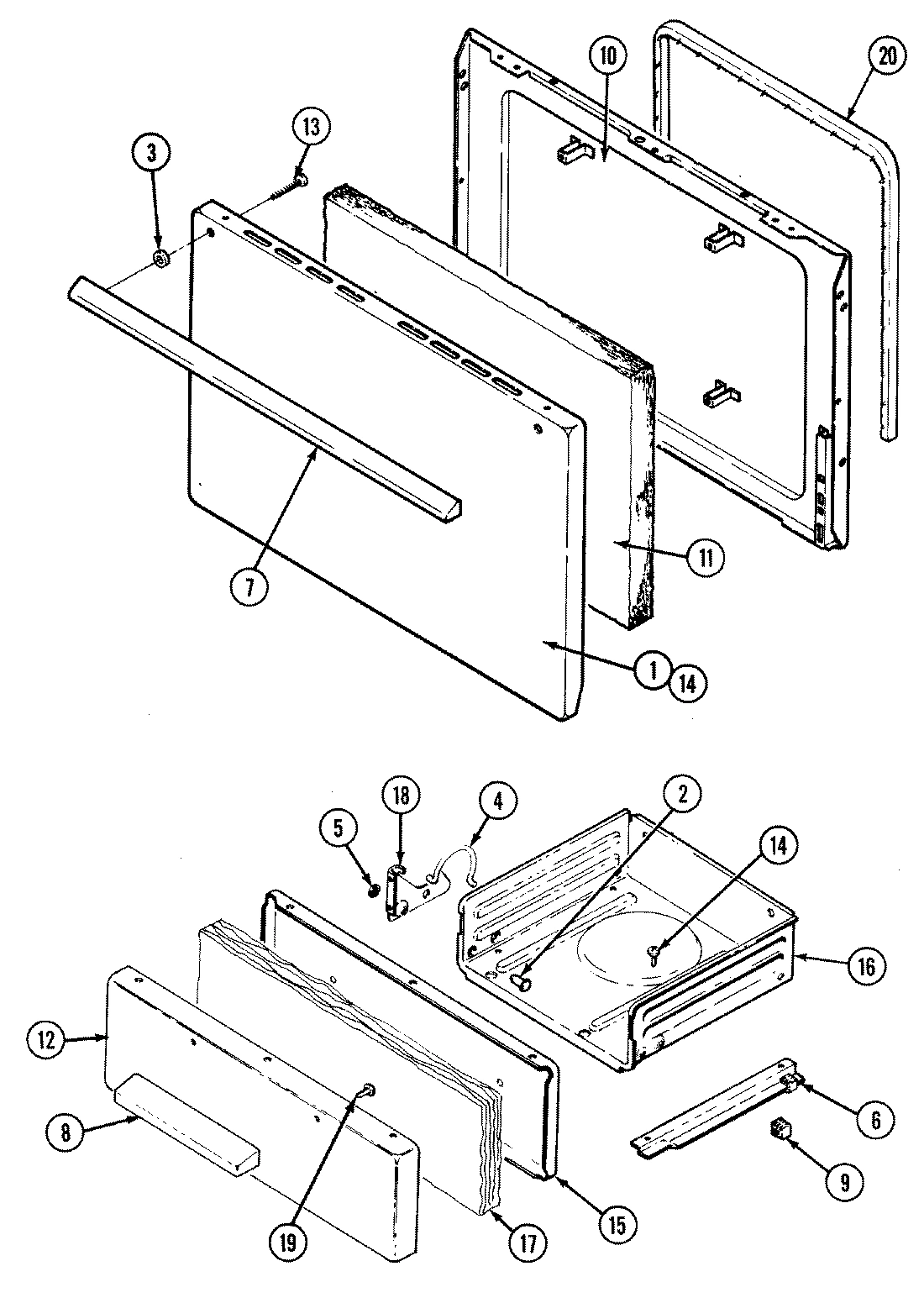

02 - DOOR/DRAWER

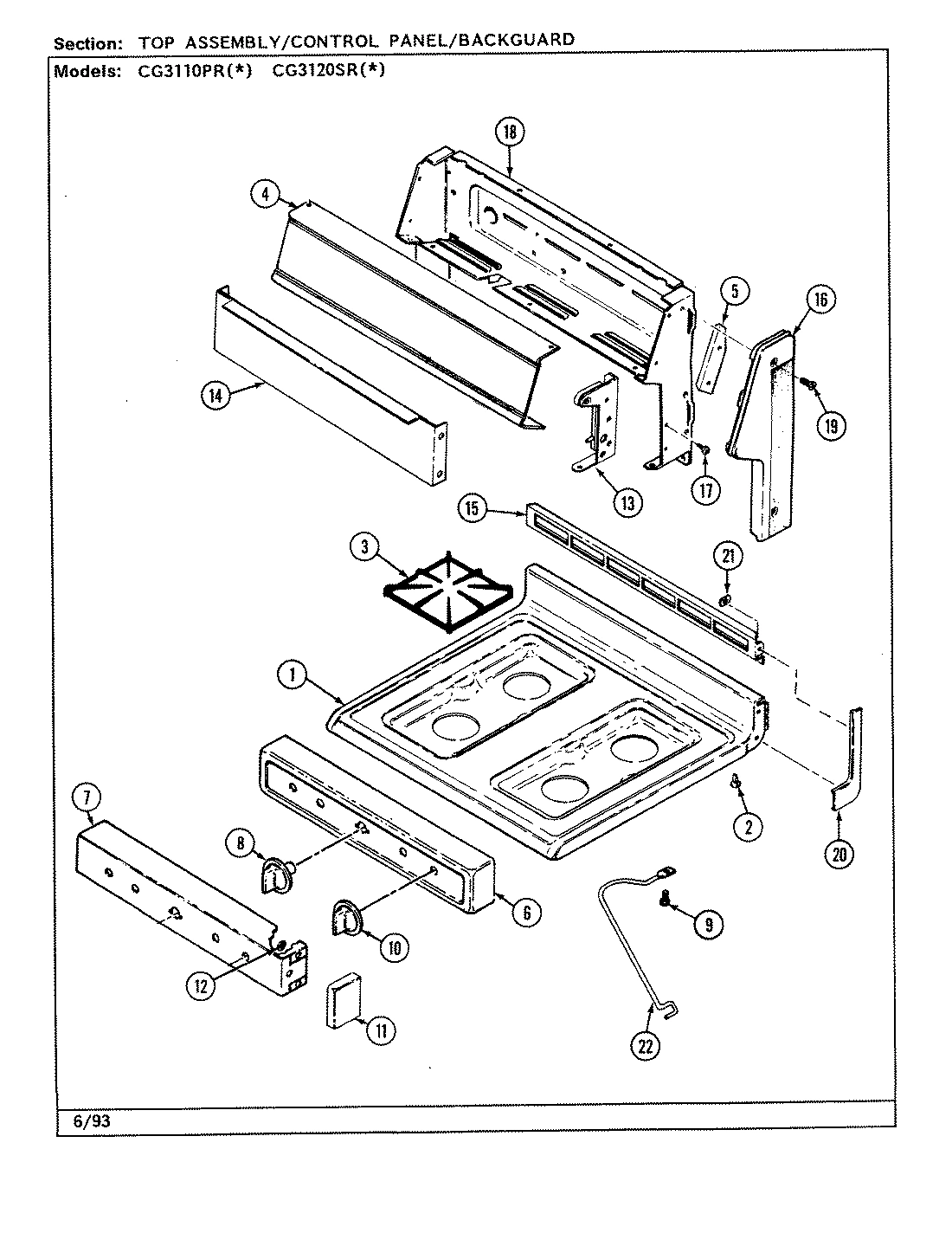

04 - TOP & CONTROL PANEL ASSEMBLY

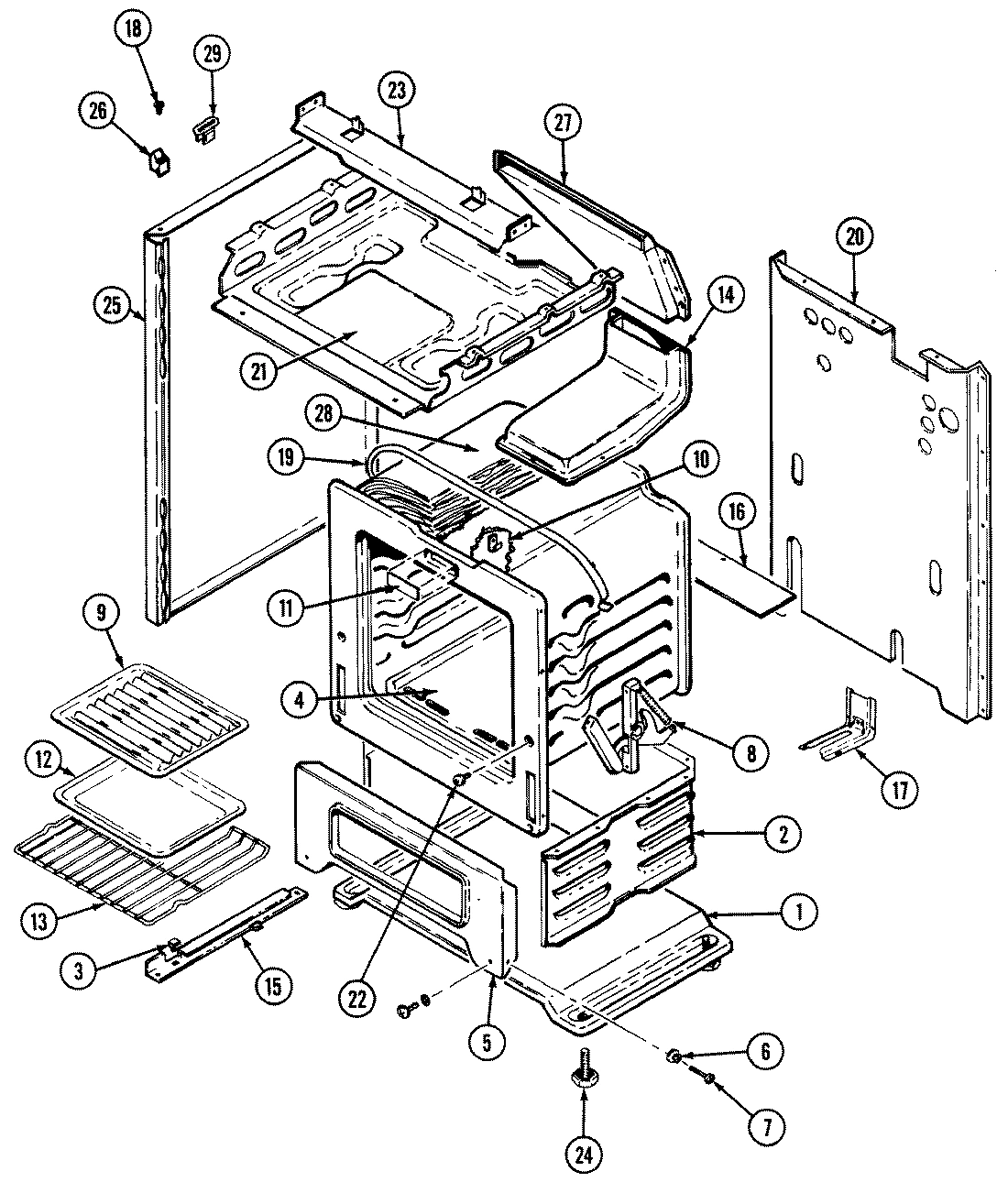

01 - BODY

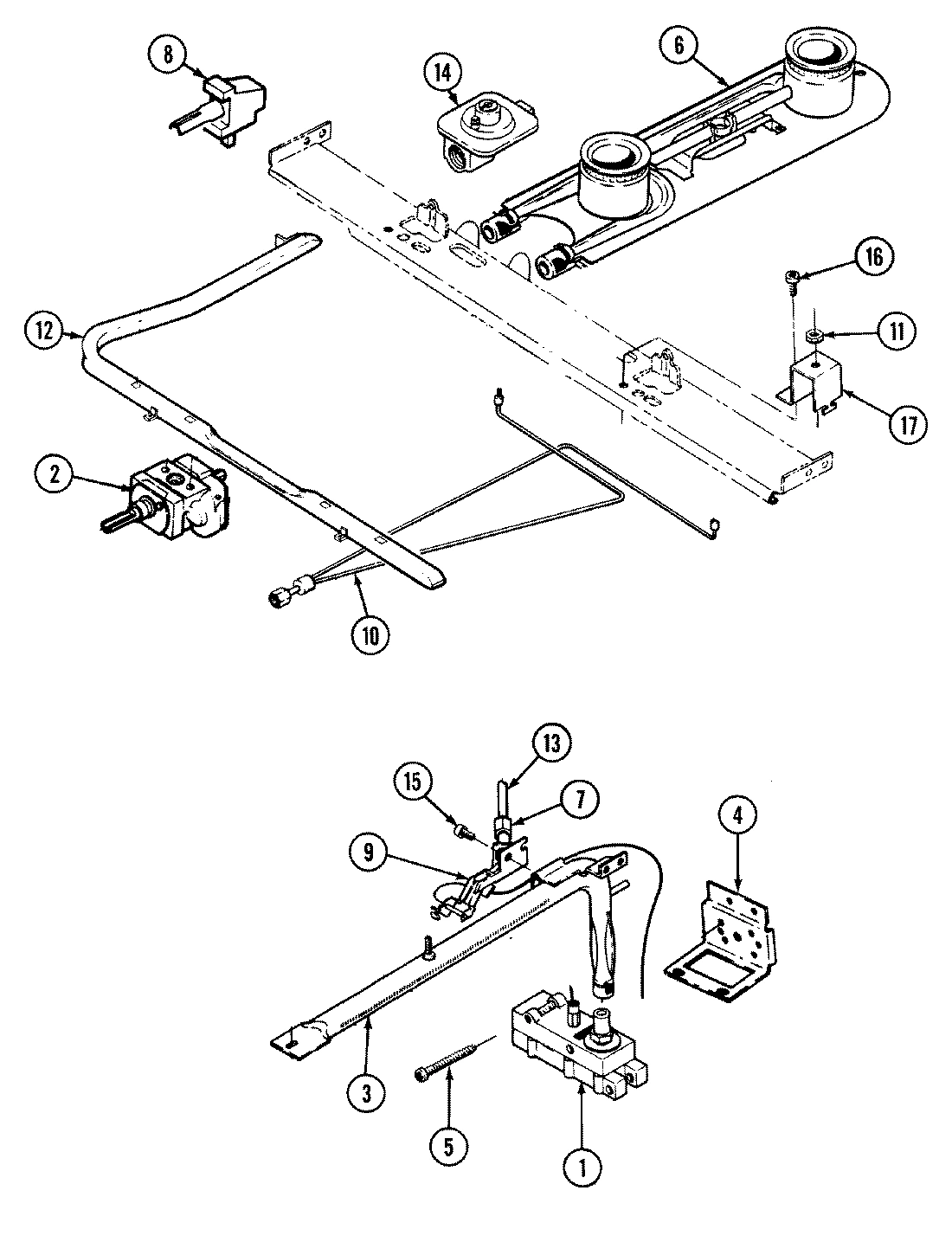

03 - GAS CONTROLS
Common parts from model Whirlpool CG3110PRW GAS RANGE
1
PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F23580 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08181 Contact Us For Availability
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
NUT WPL 7103P12560 Contact Us For Availability
1
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
1
TUBING 3/8`` WPL 3414F09444 Contact Us For Availability
1
VALVE, OVEN WPL 7501P11160 Contact Us For Availability
2
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
2
GLIDE WPL 8016P01360 Contact Us For Availability
2
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
2
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
2
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
2
THERMOSTAT WPL 7515P03260 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
3
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
4
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
4
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
4
PANEL, BACKGUARD WPL 2601F40009 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F23445 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
4
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
4
BOTTOM, OVEN WPL 5504A00321 Contact Us For Availability
4
BRACKET, TOP WPL 3801F31851 Contact Us For Availability
5
NUT, GRIP WPL 7103P02260 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
5
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
5
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
6
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
6
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
6
PANEL, MANIFOLD (BLK) WPL 2616F08509 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
7
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
7
SCREW----NA WPL 7101P31160 Contact Us For Availability
7
SCREW WPL 7101P30060 Contact Us For Availability
7
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
KNOB, THERMOSTAT (BLK) WPL 7731P07960 Contact Us For Availability
8
KIT, HINGE W/SCREWS WPL 12400042 Contact Us For Availability
8
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
8
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
9
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
10
LINING, DOOR WPL 2402W20119 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7733P06260 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
BURNER, PILOT (NATURAL) WPL 7505P19360 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
11
NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
PIPE MANIFOLD WPL 7513P13260 Contact Us For Availability
13
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
13
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
13
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
13
RACK WPL 7801P04060 Contact Us For Availability
13
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
14
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
14
BOX, VENT WPL 4006W11345 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
15
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
15
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
15
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
15
SCREW WPL 7101P11260 Contact Us For Availability
16
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
16
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
16
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
16
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
16
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
16
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
17
INSULATION WPL 4804F02560 Contact Us For Availability
17
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
17
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
17
SUPPORT WPL 3807F02434 Contact Us For Availability
18
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
18
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
18
HOUSING, BACKGUARD WPL 4001F08851 Contact Us For Availability
18
SCREW WPL 7118P01360 Contact Us For Availability
19
BOLT WPL 7101P17260 Contact Us For Availability
19
SCREW WPL 7101P03260 Contact Us For Availability
19
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
20
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
20
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
20
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
20
BACK, MAIN WPL 4002F17580 Contact Us For Availability
21
NUT, SPEED WPL 7103P12960 Contact Us For Availability
21
BOX, BURNER WPL 4011F20980 Contact Us For Availability
22
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
22
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
23
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
24
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
26
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
26
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
27
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
28
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
28
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
29
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P01160 Contact Us For Availability
× ![]()
