Model Whirlpool CG206B GAS COOK-TOP – Common Parts & Diagrams
01 - BLOWER MOTOR
03 - CONTROL ASSEMBLY

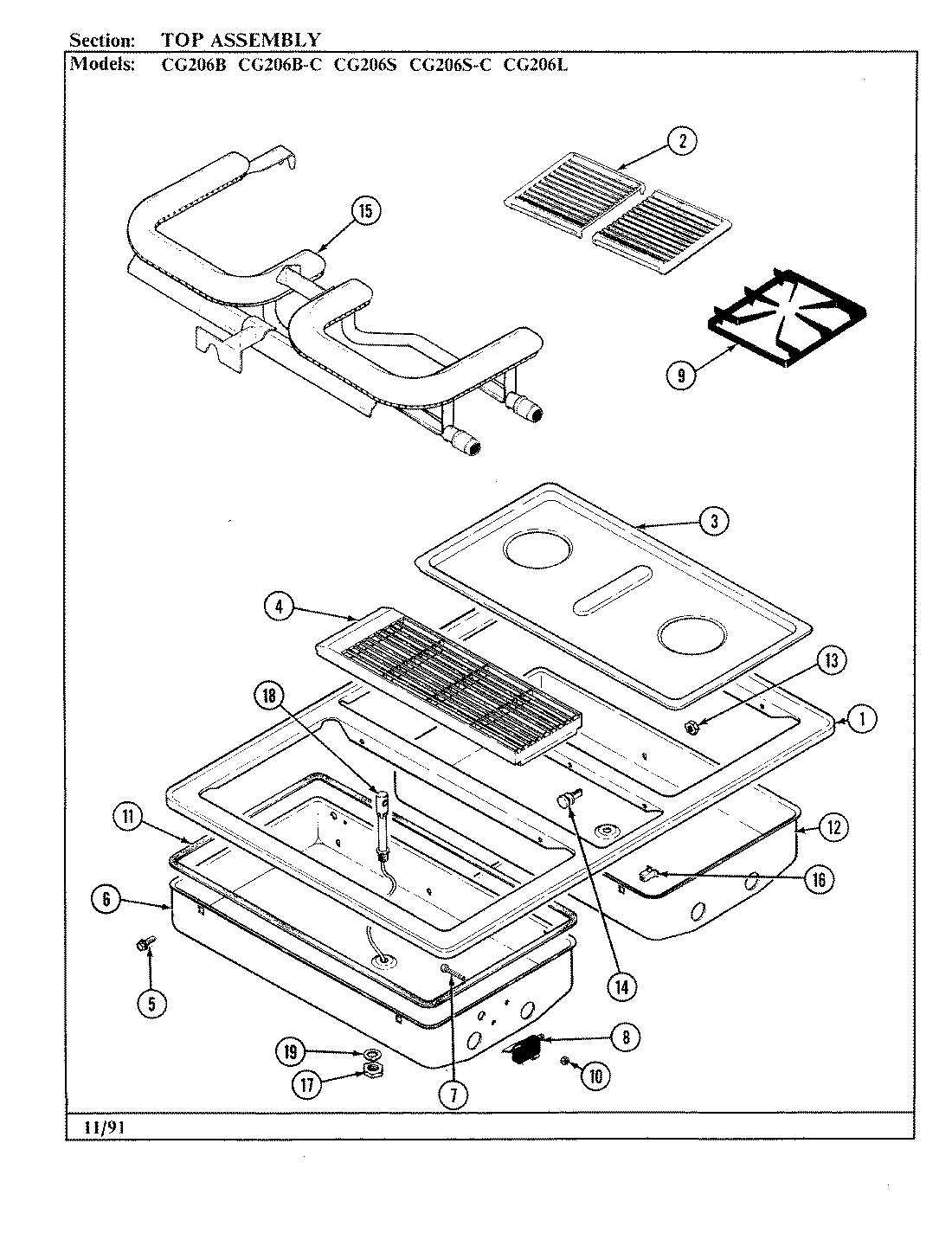

04 - TOP ASSEMBLY

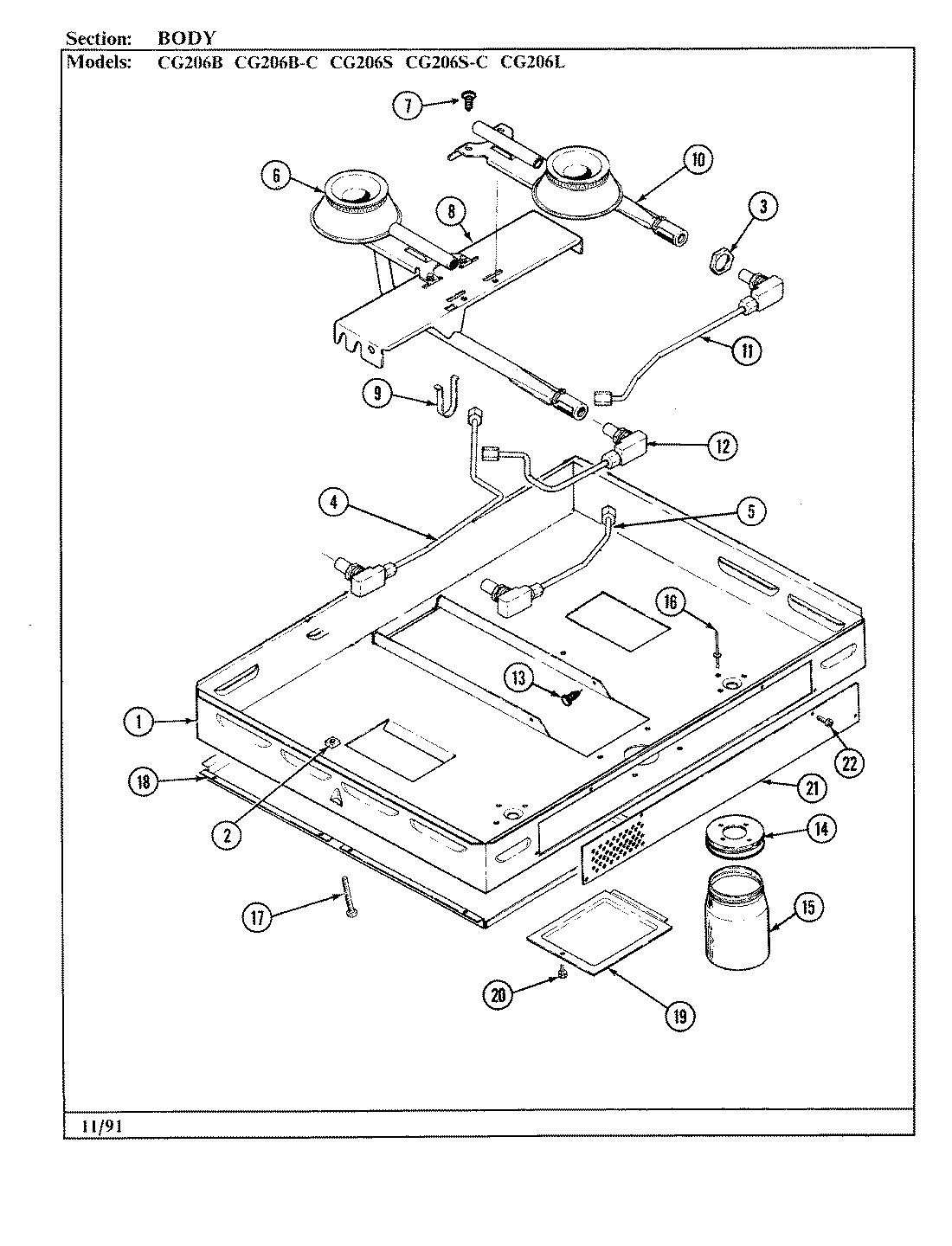

02 - BODY
Common parts from model Whirlpool CG206B GAS COOK-TOP
1
ESCUTCHEON WPL 704503 Contact Us For Availability
1
SHIELD, MOISTURE WPL 71001679 Contact Us For Availability
1
TOP, BLACK WPL 712519 Contact Us For Availability
1
BOX, BURNER WPL Y712275 Contact Us For Availability
2
GRATE, GRILL WPL Y04100054 Contact Us For Availability
2
GRATE, GRILL WPL Y704544 Contact Us For Availability
3
SWITCH, FAN (BLK) WPL Y704573 Contact Us For Availability
3
NUT, 3/4`` HEX WPL Y704588 Contact Us For Availability
3
WASHER WPL Y704947 Contact Us For Availability
3
NUT, 5/8`` HEX WPL Y704977 Contact Us For Availability
4
GRILL, AIR (BLK) WPL Y704570 Contact Us For Availability
4
TUBE (LR) WPL 704509 Contact Us For Availability
4
TUBE, REAR WPL 704701 Contact Us For Availability
4
TUBE (RR) WPL Y04100206 Contact Us For Availability
4
TUBE, REAR WPL Y705162 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
5
VALVE (RT) WPL 704504 Contact Us For Availability
5
VALVE (RT) WPL Y704893 Contact Us For Availability
5
TUBE (LF) WPL Y04100207 Contact Us For Availability
5
TUBE (LF) WPL Y704508 Contact Us For Availability
5
TUBE, FRONT (LF) WPL Y704702 Contact Us For Availability
5
TUBE, FRONT WPL Y705163 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
6
PAN, GRILL WPL 704528 Contact Us For Availability
6
PAN, GRILL WPL Y704924 Contact Us For Availability
6
BURNER, REAR WPL 705106 Contact Us For Availability
6
BURNER, REAR WPL Y704518 Contact Us For Availability
7
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
7
SCREW WPL 702380 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
MANIFOLD WPL Y712273 Contact Us For Availability
8
WASHER (TEFLON) WPL 715617 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
9
GRATE, SURFACE WPL Y704543 Contact Us For Availability
9
GRATE, SURFACE WPL Y705021 Contact Us For Availability
9
GRATE, SURFACE WPL Y705483 Contact Us For Availability
9
CLIP, SPRING WPL 704549 Contact Us For Availability
10
PALNUT WPL Y705023 Contact Us For Availability
10
NUT WPL Y704522 Contact Us For Availability
10
INSULATOR, SWITCH WPL Y704534 Contact Us For Availability
10
BURNER, FRONT WPL 705105 Contact Us For Availability
10
BURNER, FRONT WPL Y704517 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
11
SEAL, PAN WPL Y704979 Contact Us For Availability
11
TUBE (RF) WPL 704700 Contact Us For Availability
11
TUBE (RF) WPL Y04100209 Contact Us For Availability
11
TUBE (RF) WPL Y704506 Contact Us For Availability
11
TUBE, RIGHT FRONT WPL Y705165 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
12
PAN, GRILL WPL Y04100517 Contact Us For Availability
12
TUBE (RR) WPL 704507 Contact Us For Availability
12
TUBE (RR) WPL 704699 Contact Us For Availability
12
TUBE (RR) WPL Y04100208 Contact Us For Availability
12
TUBE, RIGHT REAR WPL Y705164 Contact Us For Availability
13
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
14
PIN, LOCATOR WPL 704536 Contact Us For Availability
14
LID, JAR WPL Y707870 Contact Us For Availability
16
BUSHING WPL 712311 Contact Us For Availability
16
CLIP, RETAINER WPL Y700503 Contact Us For Availability
17
RING, INLET WPL Y704758 Contact Us For Availability
17
SCREW WPL Y707121 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
18
BAFFLE, BOTTOM (LT) WPL 704527 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
19
LOCKWASHER WPL 704568 Contact Us For Availability
19
COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability
20
PLENUM WPL 712312 Contact Us For Availability
21
COVER, FRONT WPL Y704538 Contact Us For Availability
22
PLATE, COVER WPL 704547 Contact Us For Availability
27
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
30
RELIEF, STRAIN WPL Y04100254 Contact Us For Availability
32
CORD, POWER WPL 704548 Contact Us For Availability
34
CLIP, J WPL Y704423 Contact Us For Availability
34
RELAY WPL Y704541 Contact Us For Availability
36
MODULE, SPARK WPL Y704540 Contact Us For Availability
38
SCREW WPL Y707150 Contact Us For Availability
39
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
41
WIRE, GREEN WPL 704514 Contact Us For Availability
41
WIRE, GREEN WPL 715564 Contact Us For Availability
42
HARNESS, WIRE WPL 04100255 Contact Us For Availability
42
TINNERMAN WPL 712310 Contact Us For Availability
42
CONNECTOR, CRIMP WPL Y705273 Contact Us For Availability
42
INSULATOR, SPLICE CAP WPL Y705274 Contact Us For Availability
NI
CLIP WPL 705463 Contact Us For Availability
NI
CLIP, J WPL Y700556 Contact Us For Availability
NI
COVER, MOTOR WPL Y704968 Contact Us For Availability
NI
MOTOR COVER ASSY WPL Y712550 Contact Us For Availability
NI
SCREW & WASHER WPL Y712320 Contact Us For Availability
NI
HARNESS, WIRE WPL 704556 Contact Us For Availability
NI
VALVE (LT) WPL 704894 Contact Us For Availability
NI
VALVE (LT) WPL Y704505 Contact Us For Availability
× ![]()
