Model Whirlpool CG1100PRW GAS RANGE – Common Parts & Diagrams
02 - DOOR/DRAWER

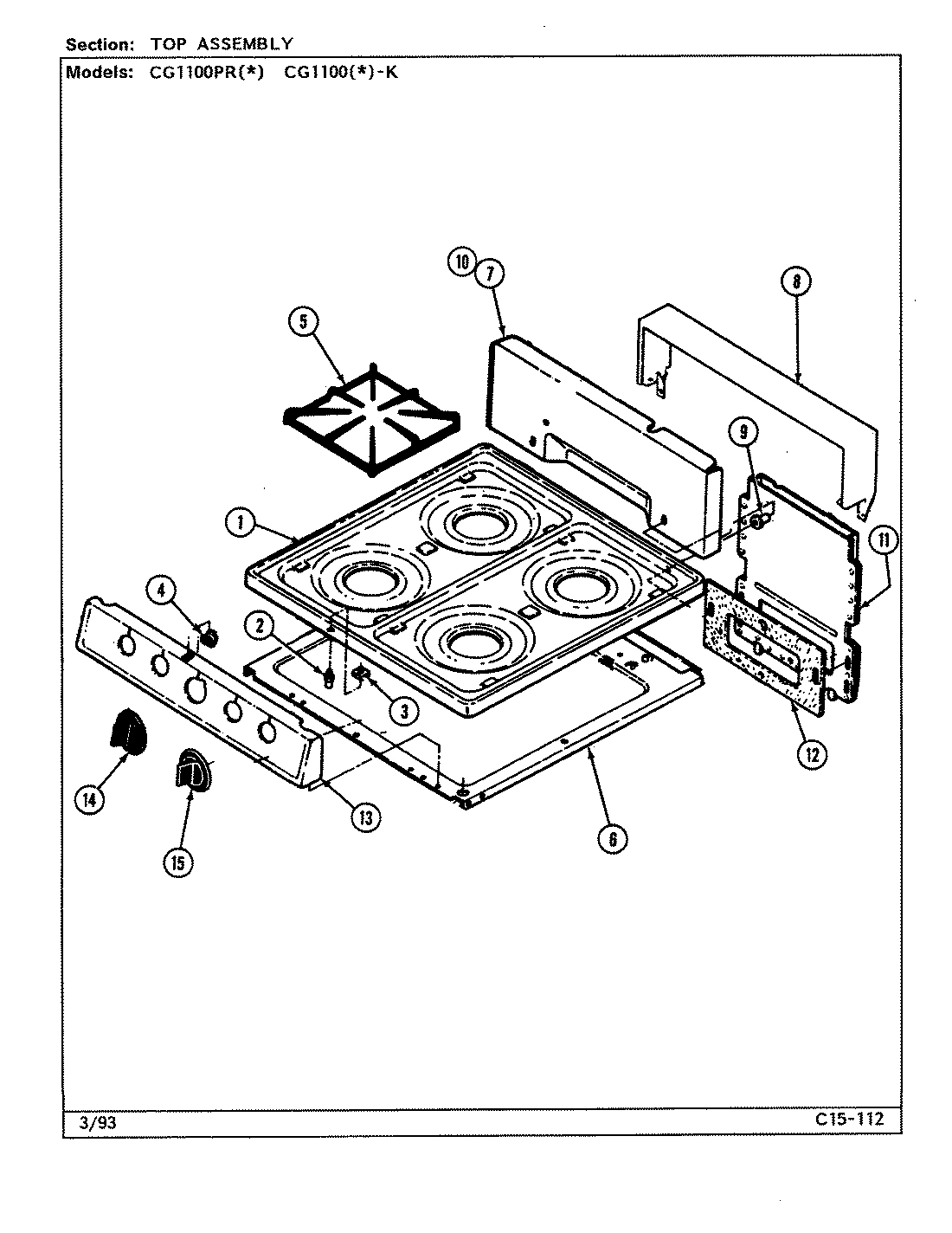

04 - TOP ASSY.

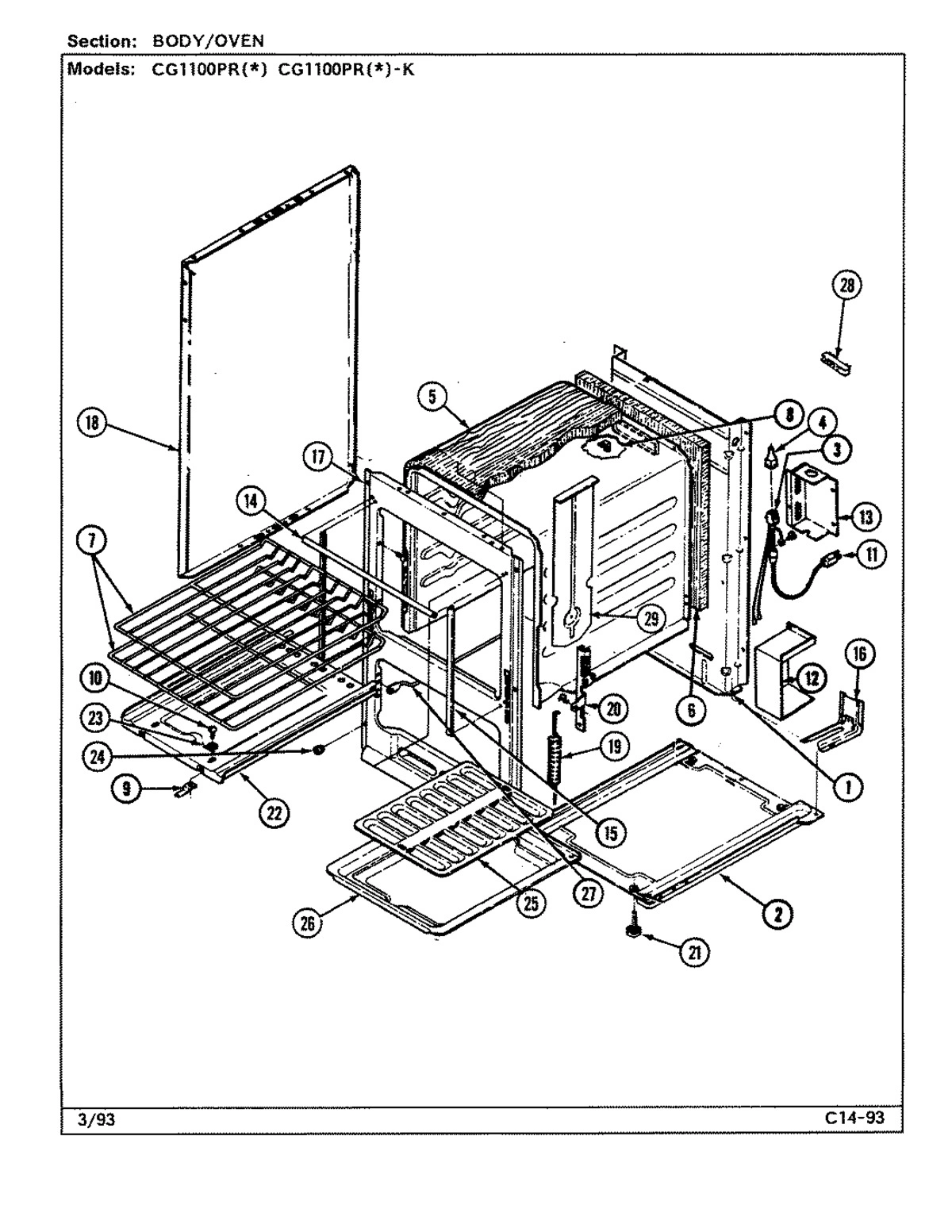

01 - BODY/OVEN

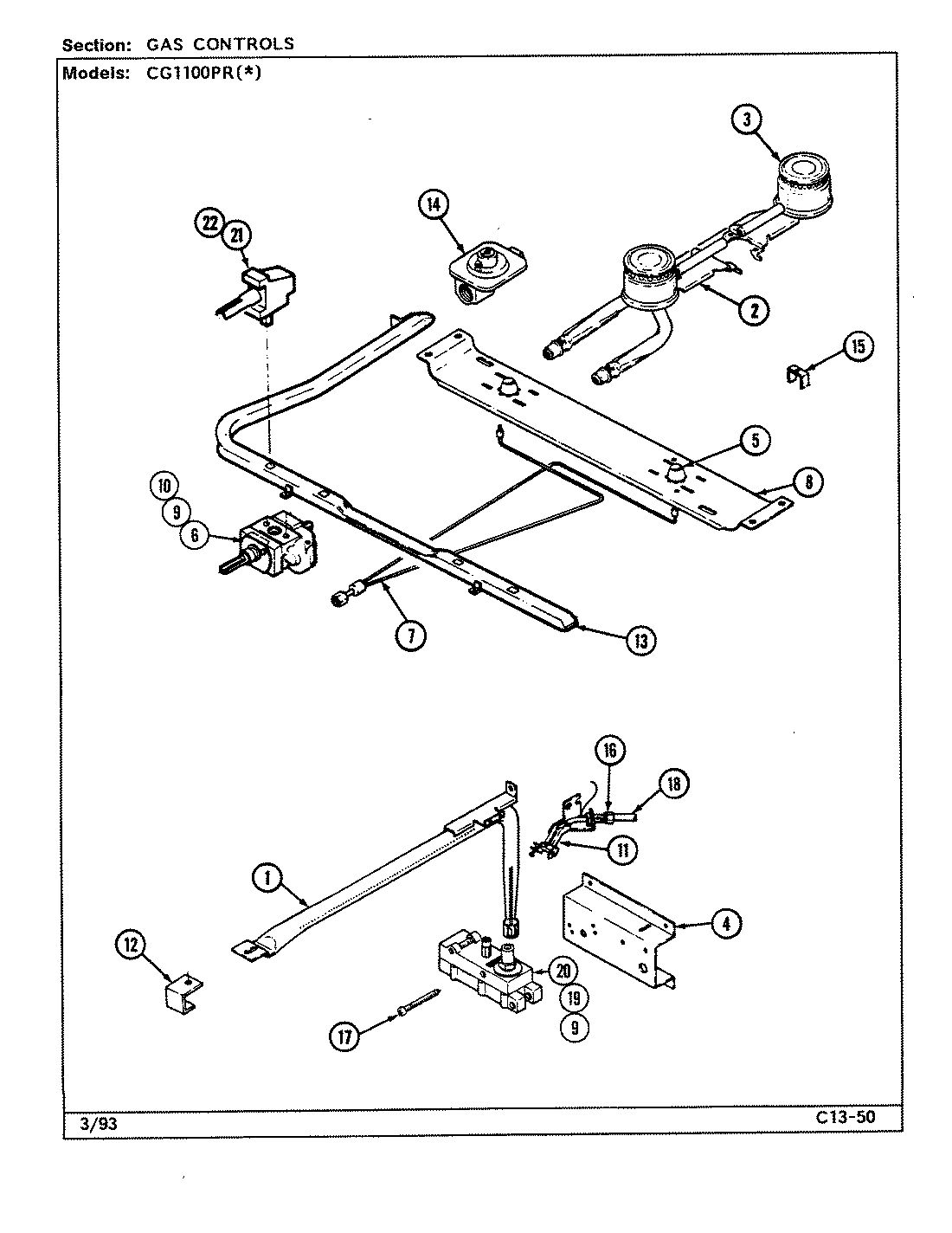

03 - GAS CONTROLS
Common parts from model Whirlpool CG1100PRW GAS RANGE
1
BOLT, SHOULDER WPL 7118P00960 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001F05081 Contact Us For Availability
1
BACK, MAIN WPL 4002F13780 Contact Us For Availability
1
BURNER, OVEN WPL 3403D04045 Contact Us For Availability
2
HANDLE, DOOR (CHR) WPL 7701P02960 Contact Us For Availability
2
STRIKE, MAIN TOP WPL 8024P00360 Contact Us For Availability
2
BASE, MAIN WPL 4003A01480 Contact Us For Availability
2
BURNER, TOP (FRT) WPL 7505P17360 Contact Us For Availability
3
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
3
NUT, STRIKE WPL 7103P10560 Contact Us For Availability
3
MALE PIN TERMINAL WPL 7405P01660 Contact Us For Availability
3
BURNER, TOP (REAR) WPL 7505P17260 Contact Us For Availability
4
HINGE, OVEN DOOR WPL 3418F05334 Contact Us For Availability
4
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
4
FEMALE PIN TERMINAL WPL Y7405P01560 Contact Us For Availability
4
SUPPORT, OVEN VALVE WPL 3807F36945 Contact Us For Availability
5
LINING, DOOR WPL 2402W10219 Contact Us For Availability
5
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 7002P08360 Contact Us For Availability
5
CONE, TOP LIGHTER----NA WPL 8030P00160 Contact Us For Availability
6
PANEL, OVEN DOOR (WHT) WPL 2401W05971 Contact Us For Availability
6
PANEL, OVEN DOOR (ALM) WPL 2401W05974 Contact Us For Availability
6
BOX, BURNER WPL 4011F16480 Contact Us For Availability
6
INSULATION, OVEN BACK WPL 7002P09160 Contact Us For Availability
6
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
6
THERMOSTAT WPL 7515P03660 Contact Us For Availability
7
NUT WPL 7103P03460 Contact Us For Availability
7
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
7
PANEL, BKGD WHT WPL 2601F21081 Contact Us For Availability
7
RACK, OVEN WPL 7801P01960 Contact Us For Availability
7
PILOT, BURNER (TOP) WPL 7505P07360 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
FRAME, BACKGUARD WPL 3603F01750 Contact Us For Availability
8
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
8
SUPPORT, TOP BURNER WPL 3807F35380 Contact Us For Availability
9
NUT LOCK WPL 7103P07260 Contact Us For Availability
9
NUT, PROJECTION WELD WPL 7103P08960 Contact Us For Availability
9
CLIP, OVEN BOTTOM PL WPL 3819F01161 Contact Us For Availability
9
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
10
DRAWER, BROILER WPL 3407W00519 Contact Us For Availability
10
NAMEPLATE WPL 7719P06060 Contact Us For Availability
10
SCREW WPL 7118P00460 Contact Us For Availability
10
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
11
STOP, BROILER DRAWER WPL 7809P00460 Contact Us For Availability
11
BOX FLUE VENT WPL 4006W06245 Contact Us For Availability
11
CORD, POWER WPL 7402P01860 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06960 Contact Us For Availability
12
HINGE, BROILER DRAWER (RT) WPL 3418F03580 Contact Us For Availability
12
GASKET, VENT DEFLECT WPL 7201P03860 Contact Us For Availability
12
COVER, MODULE SPARK WPL 4005F31851 Contact Us For Availability
12
SUPPORT, BURNER WPL 3807F33651 Contact Us For Availability
13
HINGE, BROILER DRAWER (LT) WPL 3418F03480 Contact Us For Availability
13
PANEL, MANIFOLD (WHITE) WPL 2616F06971 Contact Us For Availability
13
NUT, TINNERMAN WPL 7103P10060 Contact Us For Availability
13
COVER, WIRE ASSEMBLY WPL 4005F32651 Contact Us For Availability
13
PIPE MANIFOLD WPL 7513P14460 Contact Us For Availability
14
SPRING, BROILER DRAWER WPL 7803P06860 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7731P09460 Contact Us For Availability
14
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
15
PANEL, DRAWER (WHT) WPL 2403W01971 Contact Us For Availability
15
PANEL, DRAWER (ALM) WPL 2403W01974 Contact Us For Availability
15
KNOB, VALVE WPL 7733P01560 Contact Us For Availability
15
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
15
SHIELD TOP LIGHTER WPL 3604F12251 Contact Us For Availability
16
INSULATION, BROILER DOOR WPL 7002P06760 Contact Us For Availability
16
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
16
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
16
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
17
LINING DOOR BROILER WPL 2404F02219 Contact Us For Availability
17
FRONT, MAIN WPL 2201W04819 Contact Us For Availability
17
NUT 10-24 WPL 7103P07160 Contact Us For Availability
17
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
18
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
18
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
18
PANEL, SIDE WPL 2618F07071 Contact Us For Availability
18
TUBING, CNTRL/PILO (3/16``) WPL 3414F01344 Contact Us For Availability
19
SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability
19
TUBING, 3/8 WPL 3414F04444 Contact Us For Availability
20
SCREW WPL 7101P07260 Contact Us For Availability
20
NUT WPL 7103P06460 Contact Us For Availability
20
SUPPORT, HINGE (LT) WPL 3807F29034 Contact Us For Availability
20
SUPPORT, HINGE (RT) WPL 3807F29134 Contact Us For Availability
20
SCREW, W/WASHER WPL 7101P18860 Contact Us For Availability
20
SUPPORT, OVEN VALVE WPL 3807F37045 Contact Us For Availability
20
VALVE, OVEN WPL 7501P06860 Contact Us For Availability
21
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
21
VALVE, TOP BURNER WPL 7502P24460 Contact Us For Availability
22
PLATE, OVEN BOTTOM WPL 5720A00323 Contact Us For Availability
22
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
23
WASHER WPL 7109P01560 Contact Us For Availability
24
NUT, EXPANSION WPL 7103P08060 Contact Us For Availability
25
INSERT PAN WPL 3413F00719 Contact Us For Availability
26
PAN, BROILER WPL 3401F01619 Contact Us For Availability
27
SCREW WPL 7101P06860 Contact Us For Availability
27
ROD, BROILER RUNNER (LT) WPL 3808F00761 Contact Us For Availability
27
ROD, BROILER RUNNER (RT) WPL 3808F00861 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
29
CHANNEL AIR SIDE WPL 3818F03451 Contact Us For Availability
NI
SCREW WPL 7101P06160 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8112P11460 Contact Us For Availability
× ![]()
