Model Whirlpool CG100S GAS COOK-TOP – Common Parts & Diagrams
01 - BLOWER PLENUM

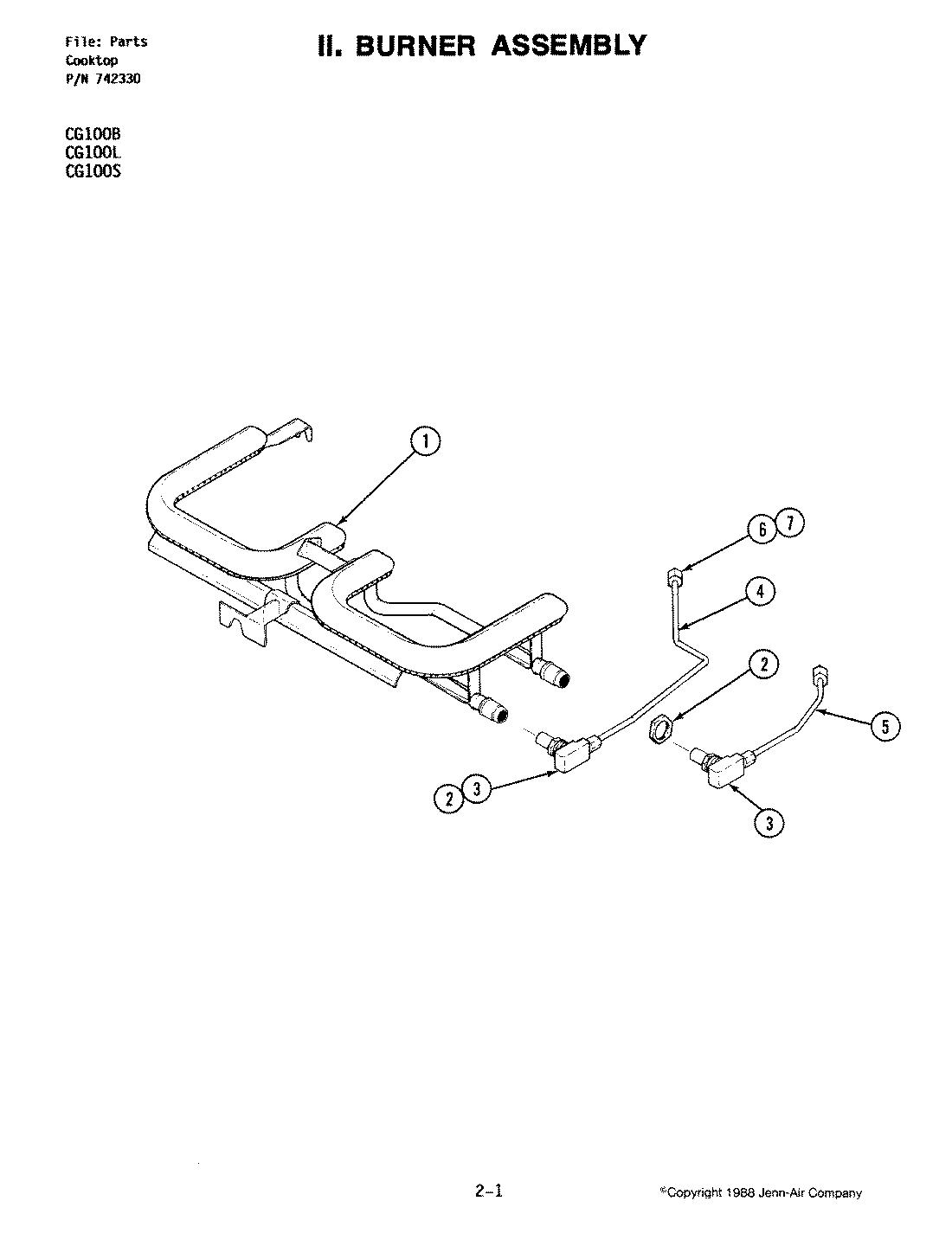

02 - BURNER ASSEMBLY

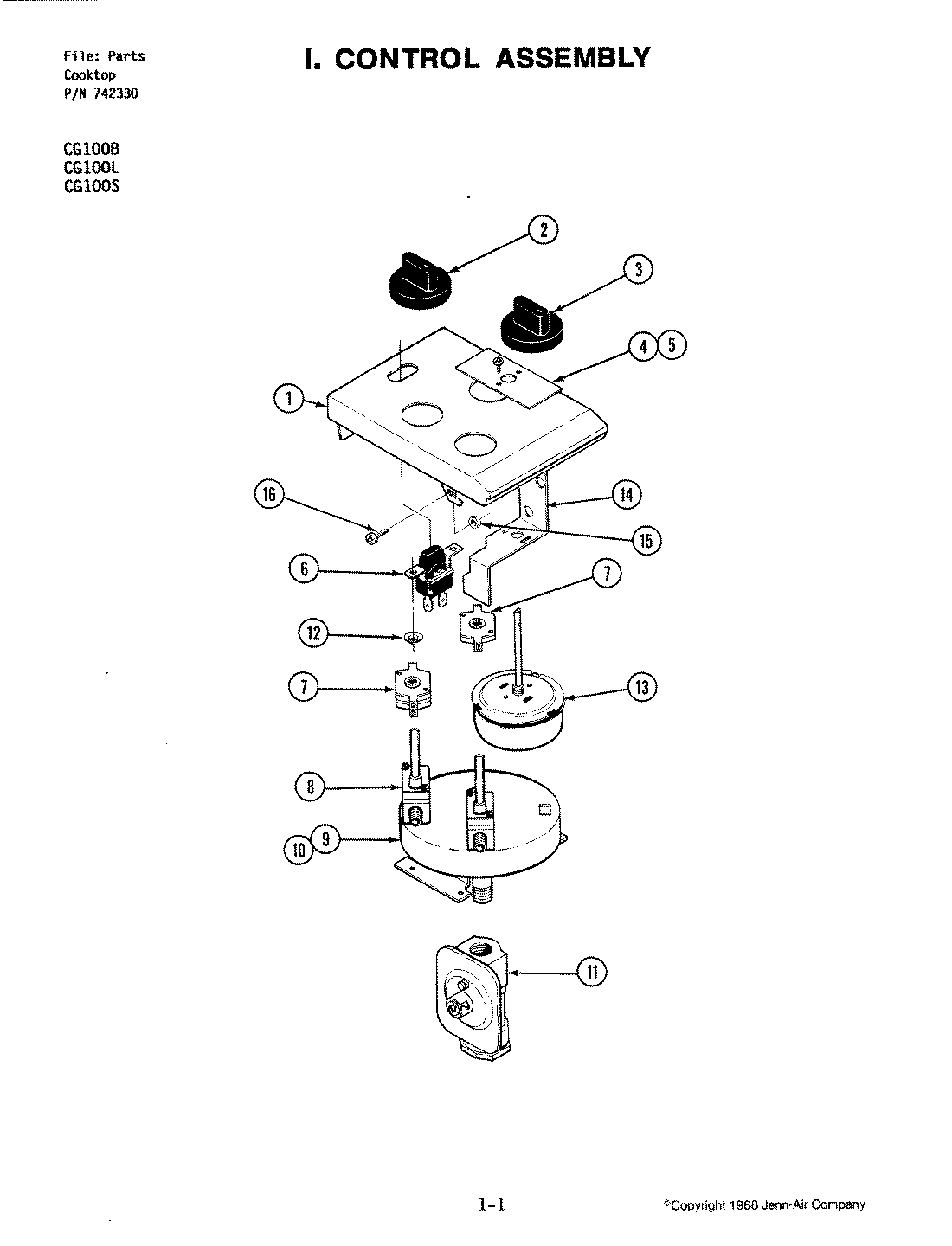

03 - CONTROL ASSEMBLY
Common parts from model Whirlpool CG100S GAS COOK-TOP
1
ESCUTCHEON WPL 704382 Contact Us For Availability
2
COVER,MOTOR WPL 708863 Contact Us For Availability
2
NUT, 3/4`` HEX WPL Y704588 Contact Us For Availability
3
CLAMP,CABLE WPL 707753 Contact Us For Availability
3
ORIFICE WPL 704530 Contact Us For Availability
4
CONNECTOR WPL 707766 Contact Us For Availability
4
TUBE (LR) WPL 704509 Contact Us For Availability
4
TUBE, REAR WPL 704701 Contact Us For Availability
4
PLATE, TIMER WPL 704738 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
5
TUBE (LF) WPL Y704508 Contact Us For Availability
5
TUBE, FRONT (LF) WPL Y704702 Contact Us For Availability
5
SCREW WPL 703534 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
6
SWITCH, FAN (BLK) WPL Y704573 Contact Us For Availability
7
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
7
WASHER, FLAT WPL 704328 Contact Us For Availability
7
SLEEVE WPL 704590 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
VALVE (LT) WPL Y704505 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
9
MANIFOLD, COMPLETE WPL 712470 Contact Us For Availability
10
HARNESS, WIRE WPL 704384 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
13
TIMER WPL 704381 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
14
BRACKET, TIMER WPL 704439 Contact Us For Availability
16
BUSHING WPL 708185 Contact Us For Availability
17
ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
PLENUM WPL 712312 Contact Us For Availability
22
PLATE, COVER WPL 704547 Contact Us For Availability
24
CLIP WPL Y700834 Contact Us For Availability
27
TINNERMAN WPL 712310 Contact Us For Availability
32
CORD, POWER WPL 704548 Contact Us For Availability
33
CLIP, J WPL Y700556 Contact Us For Availability
34
RELAY WPL Y704541 Contact Us For Availability
36
MODULE, SPARK WPL Y704540 Contact Us For Availability
38
SCREW WPL Y707150 Contact Us For Availability
39
PLUG, MALE LOAD WPL 704542 Contact Us For Availability
41
WIRE, GREEN WPL 704380 Contact Us For Availability
NI
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
NI
RELIEF, STRAIN WPL 704554 Contact Us For Availability
× ![]()
