Model GE CFN50RSP111CW01 General Electric Model CFN50RSP111CW01 – Common Parts & Diagrams

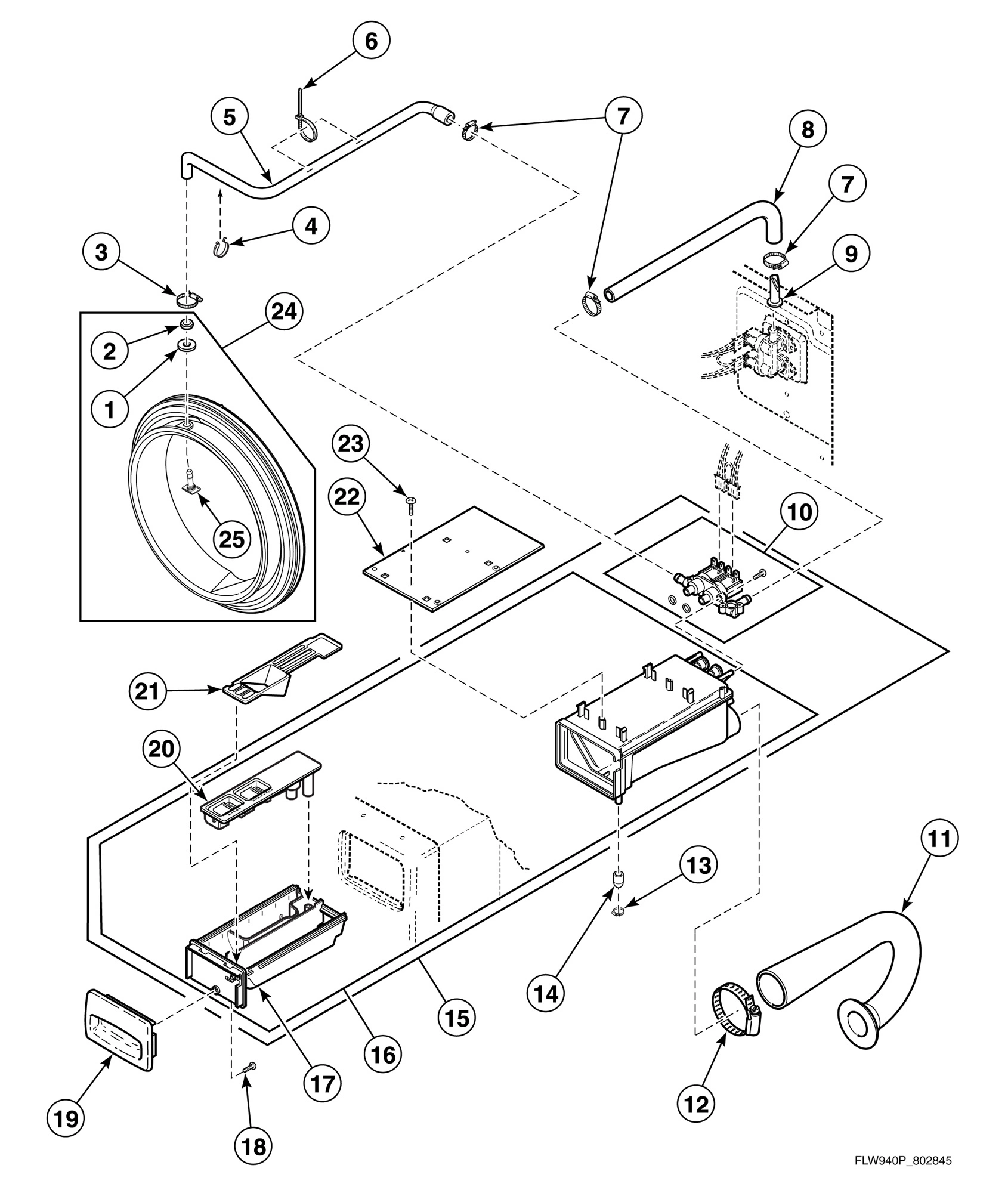

Dispenser Assembly

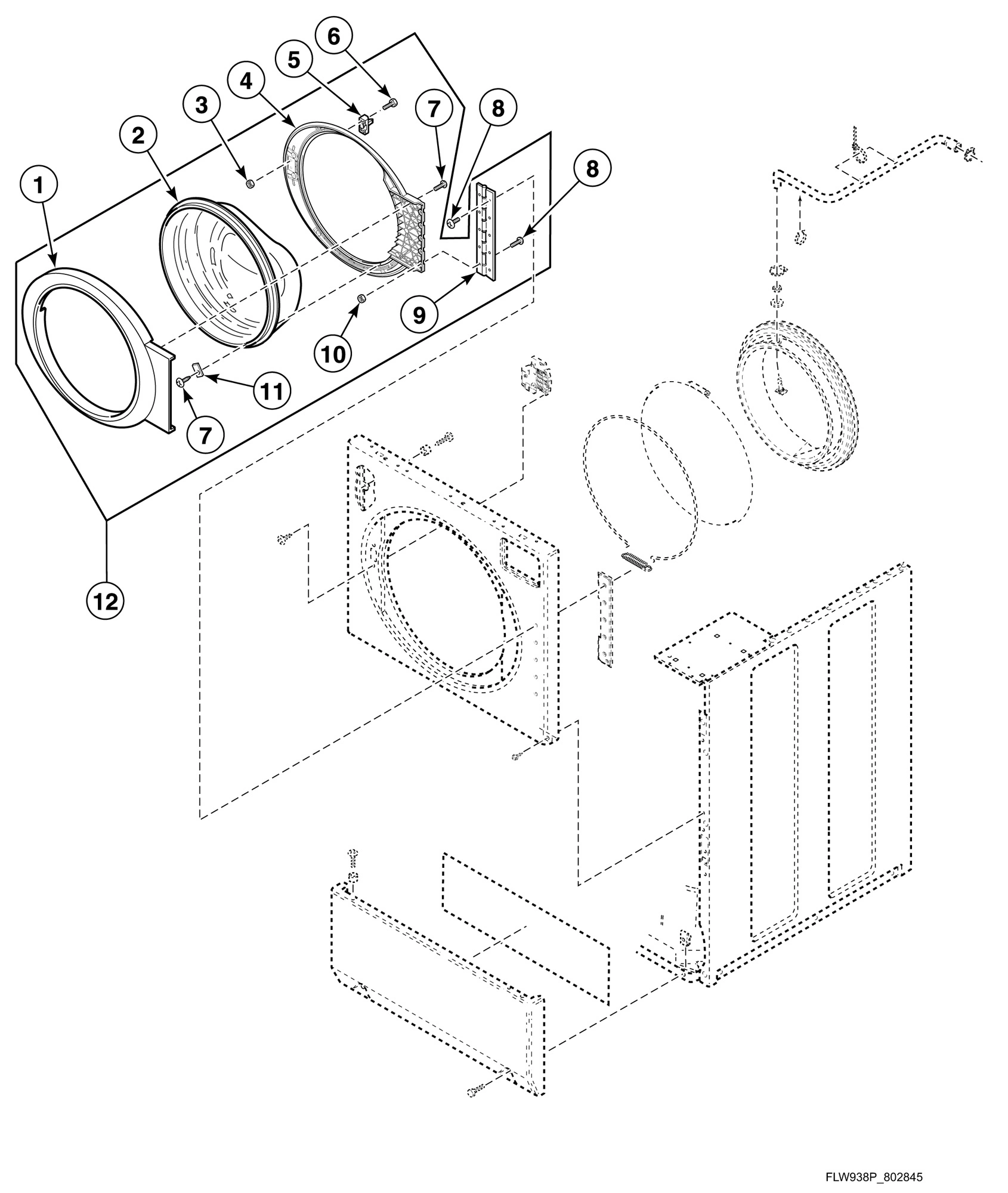

Door Assembly

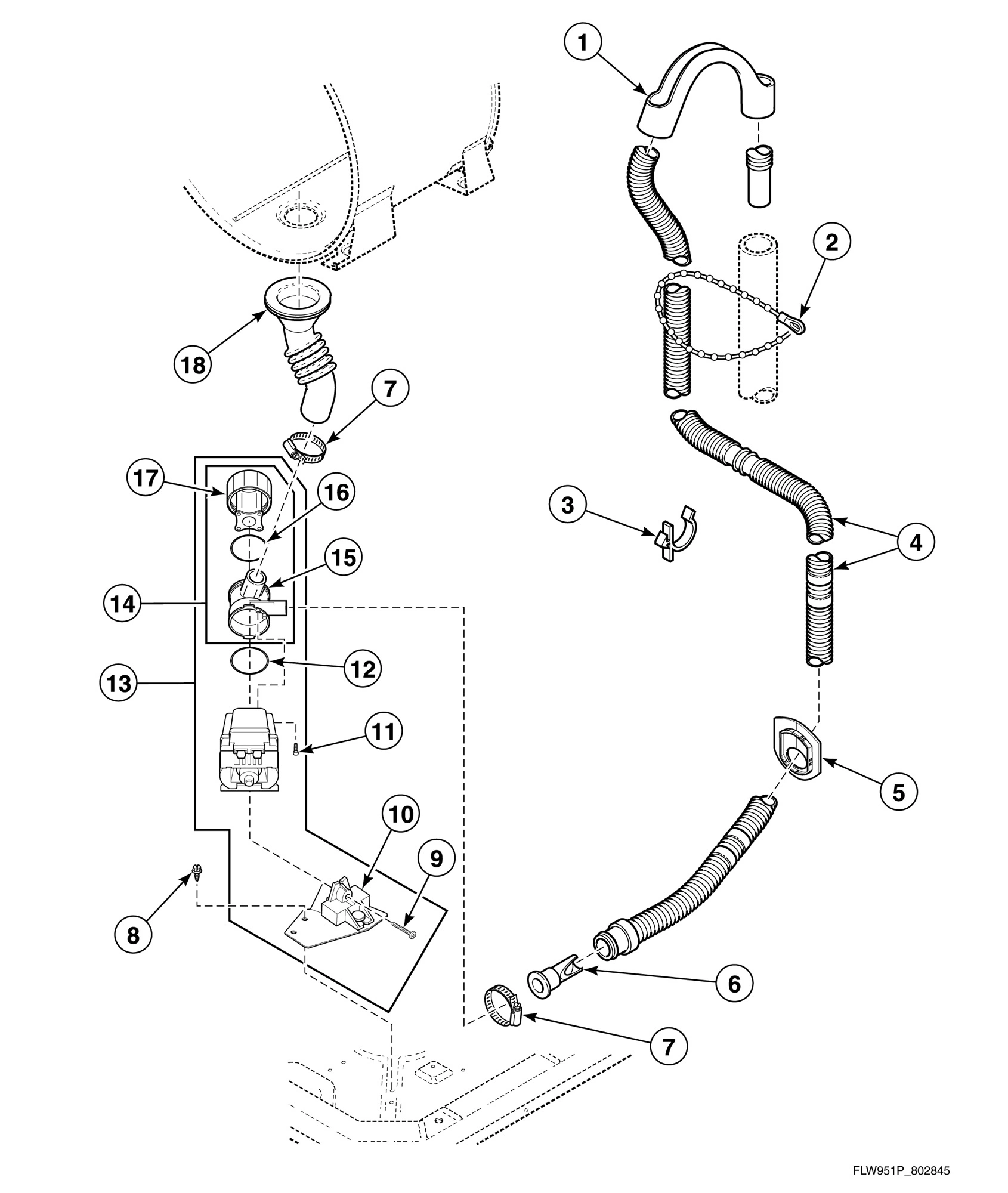

Drain Hose and Pump

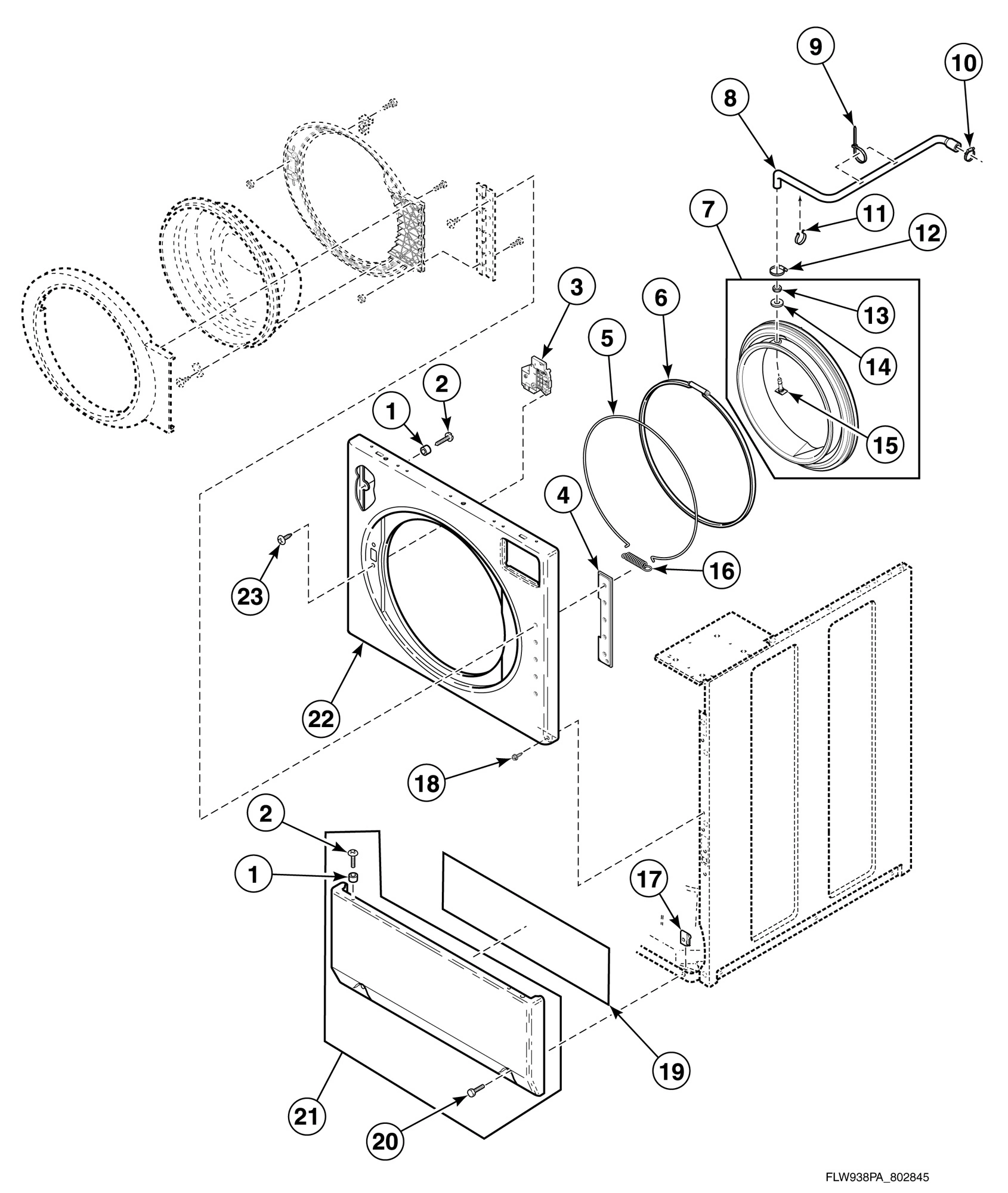

Front Panel and Door Seal

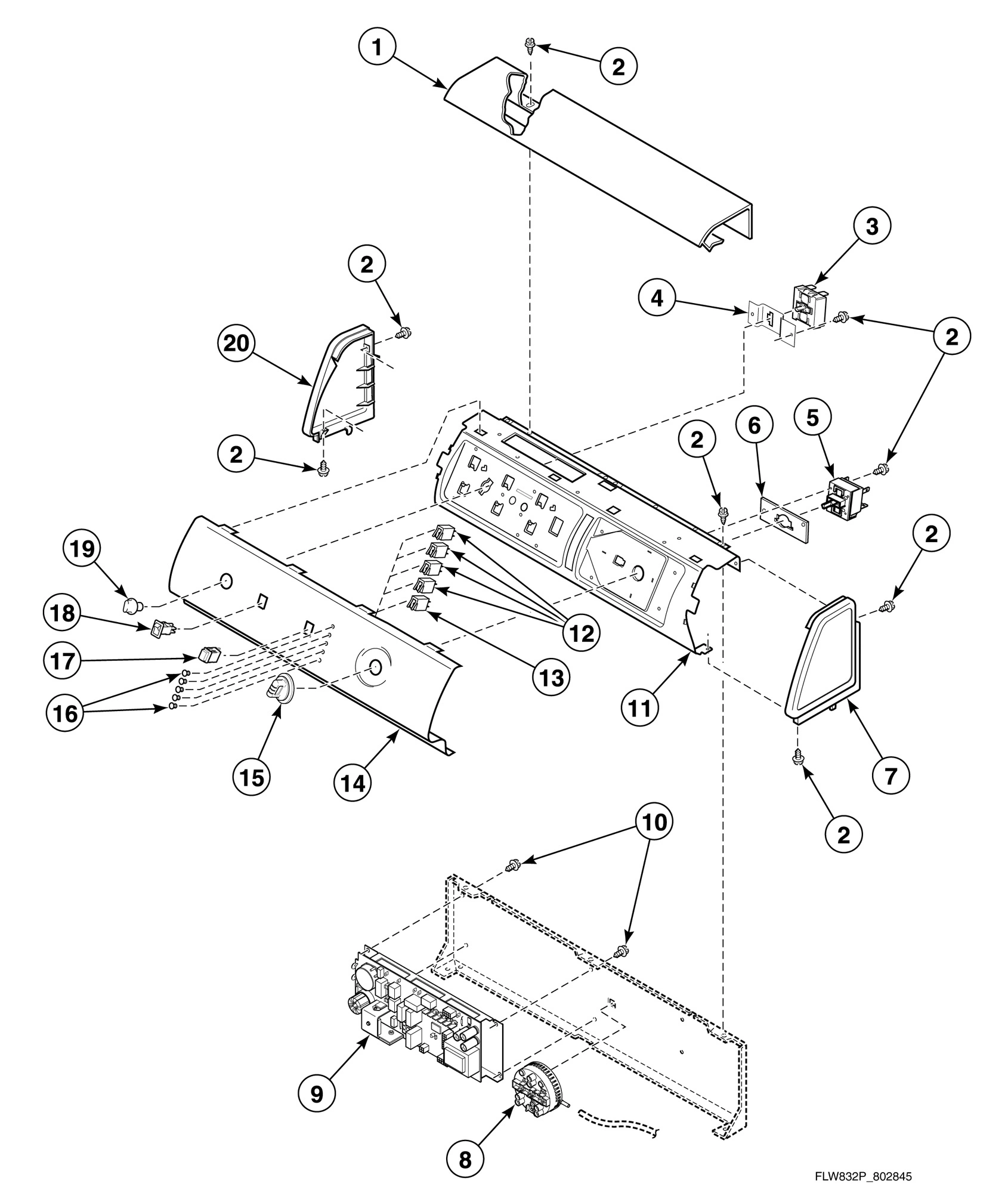

Graphic Panel, Control Support Panel and Controls

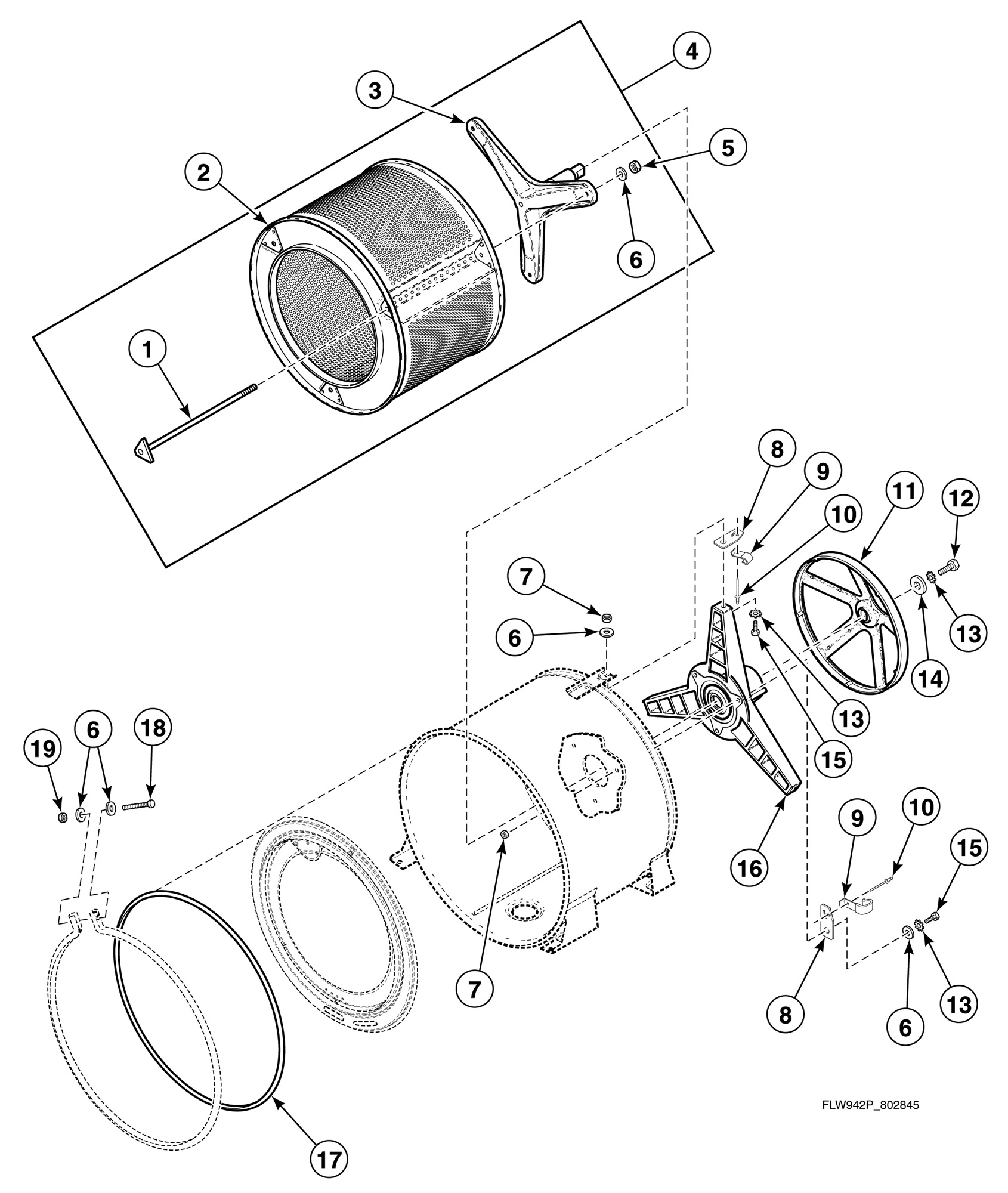

Inner Basket, Trunnion, Bearing Housing and Pulley

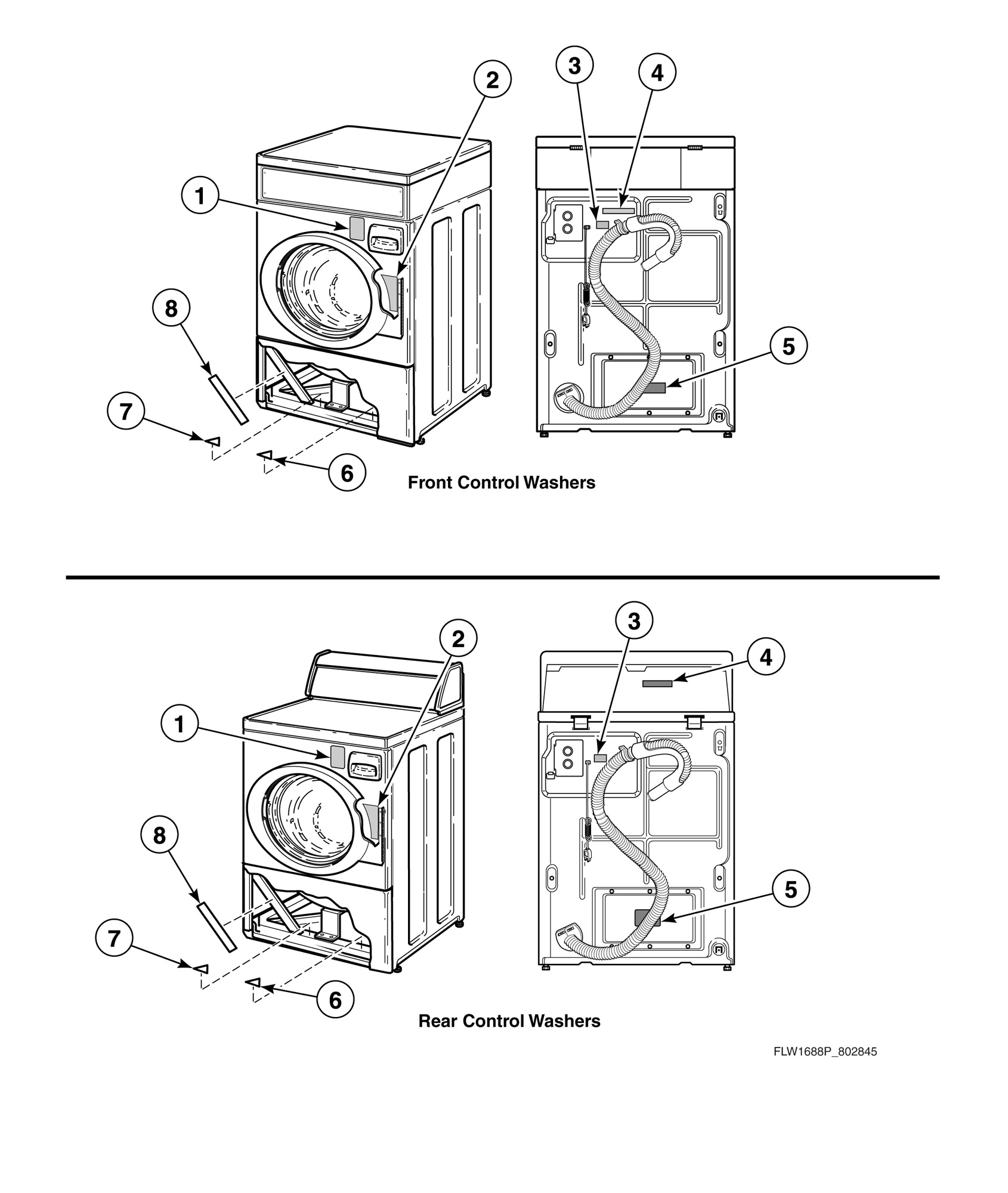

Labels

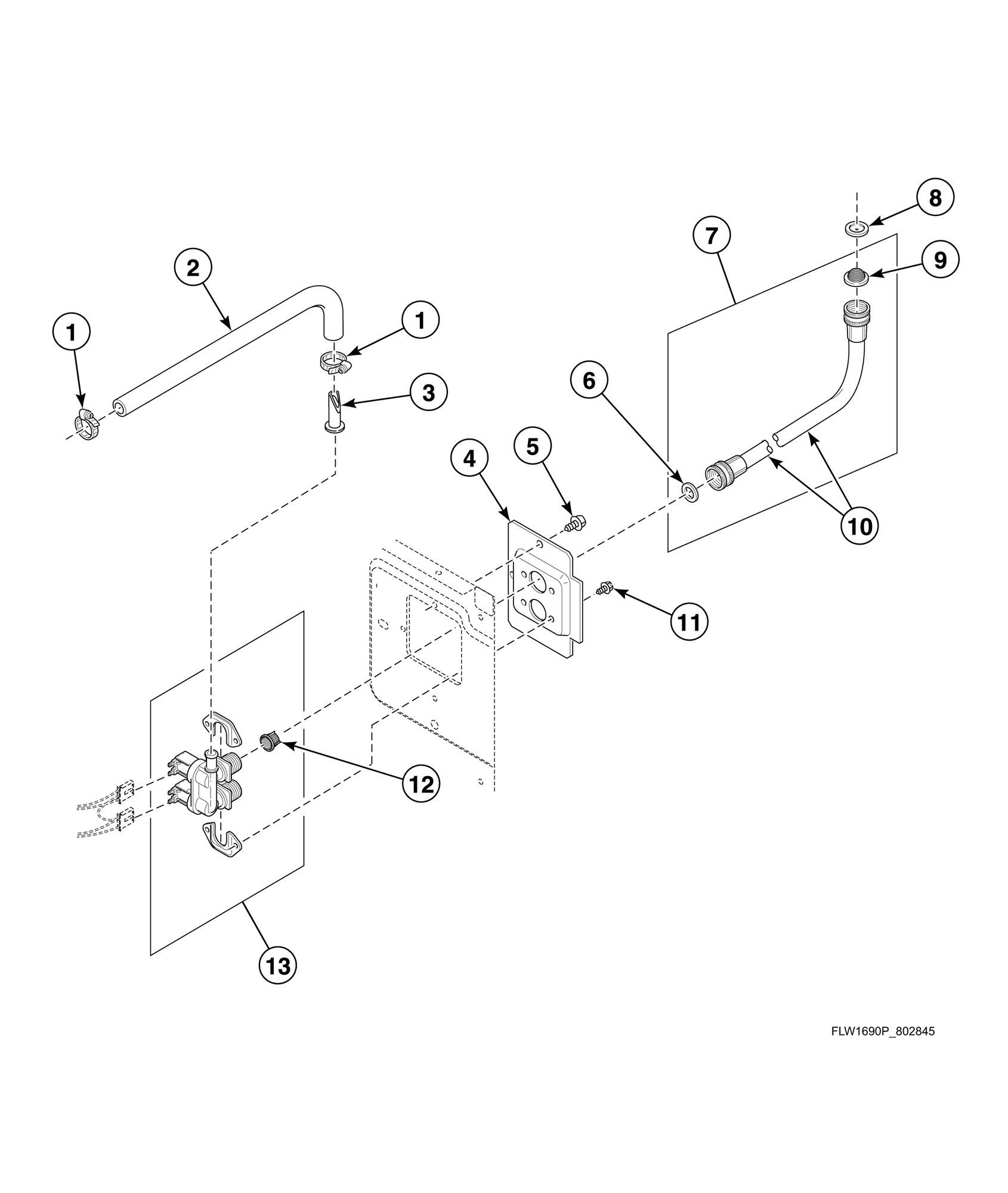

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

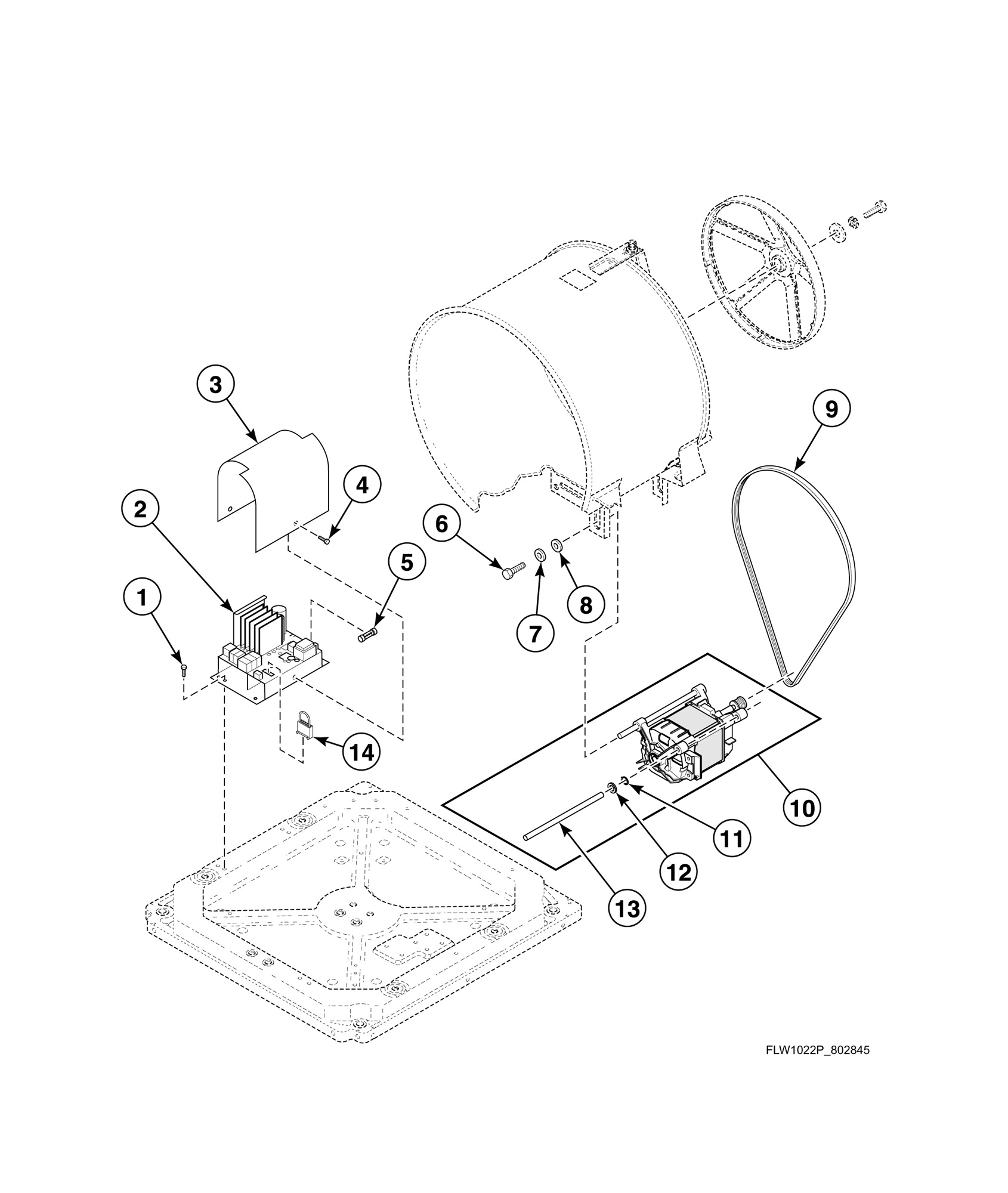

Motor and Belt

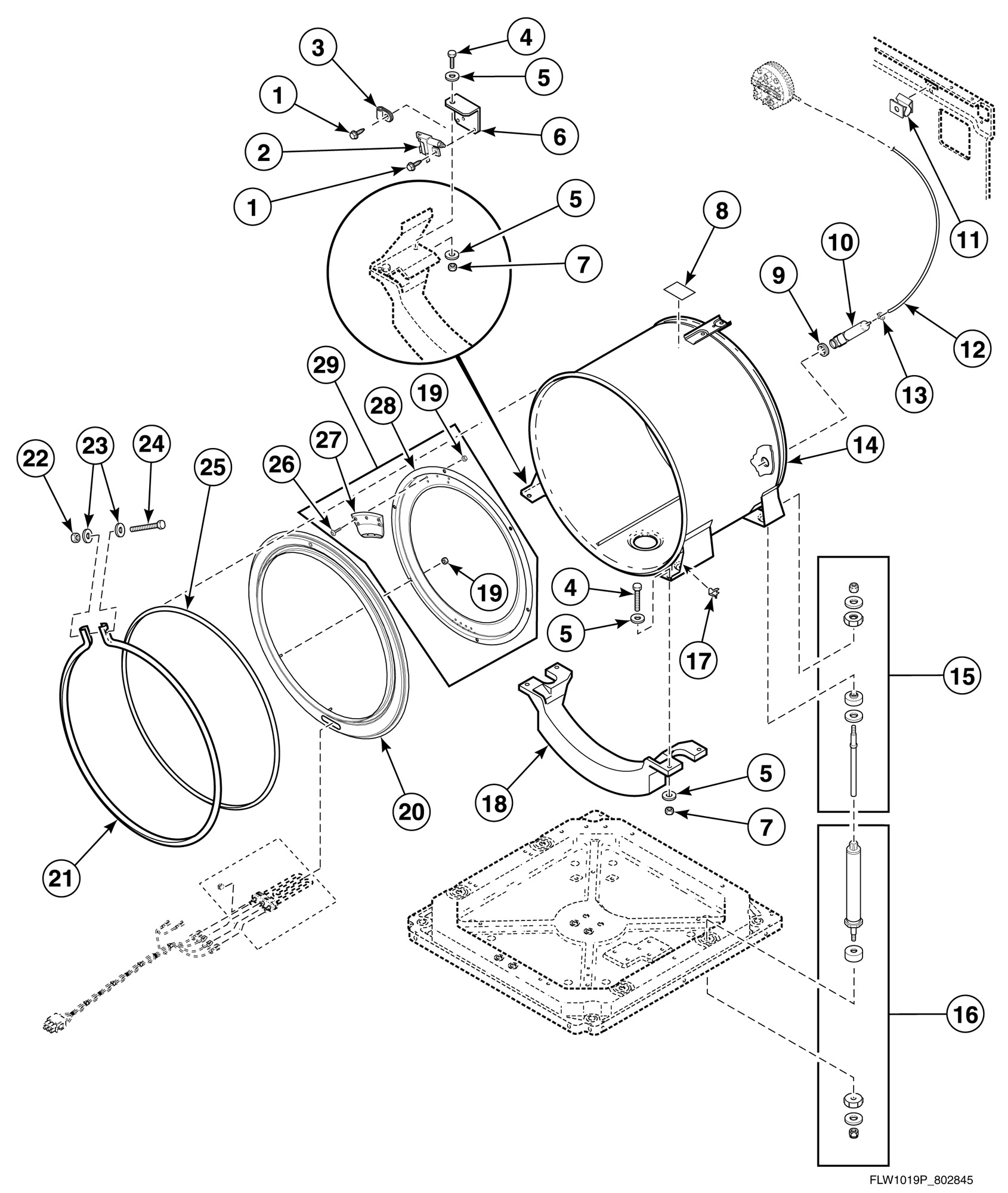

Outer Tub, Front and Clamp Ring

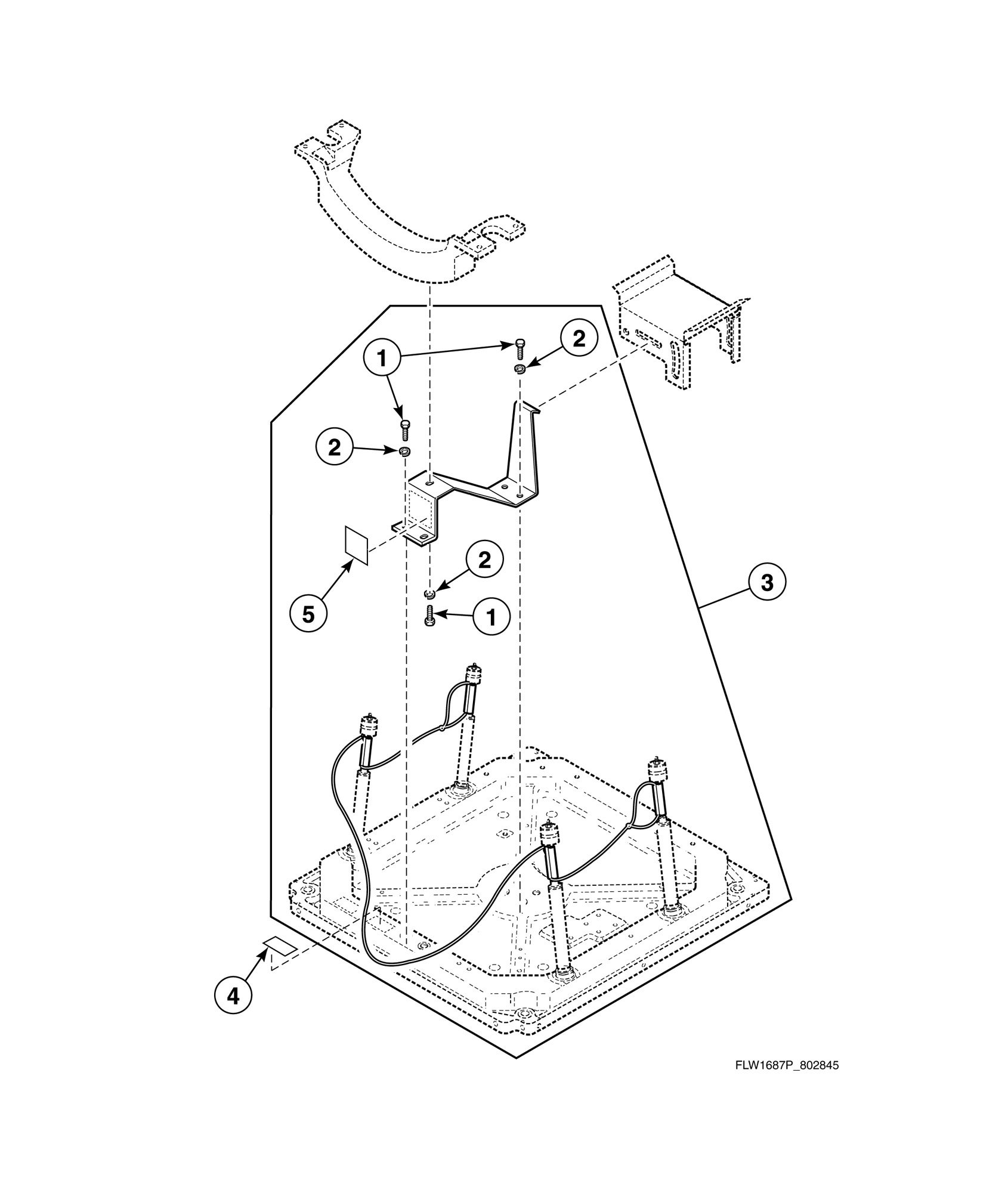

Shipping Materials

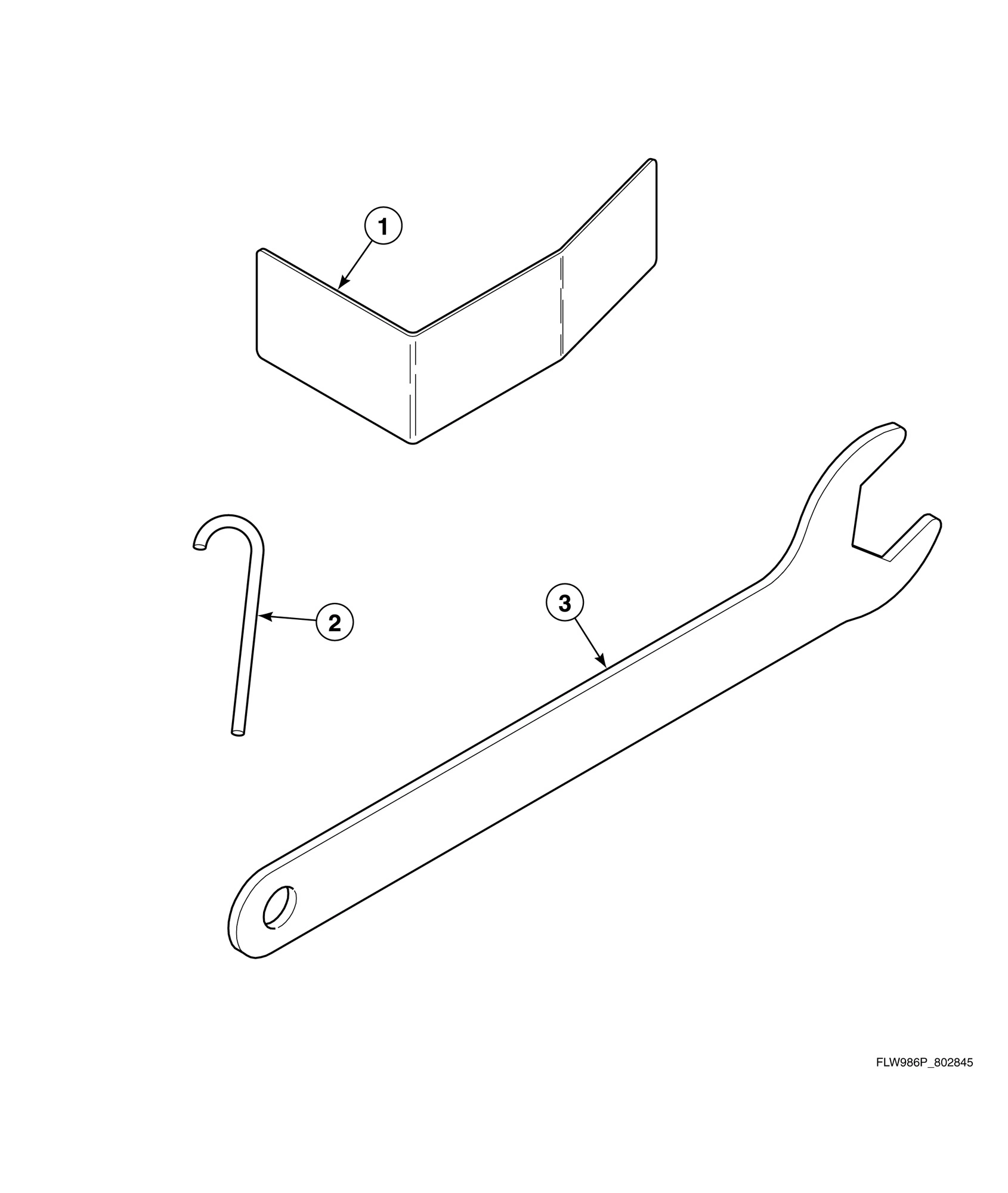

Special Tools

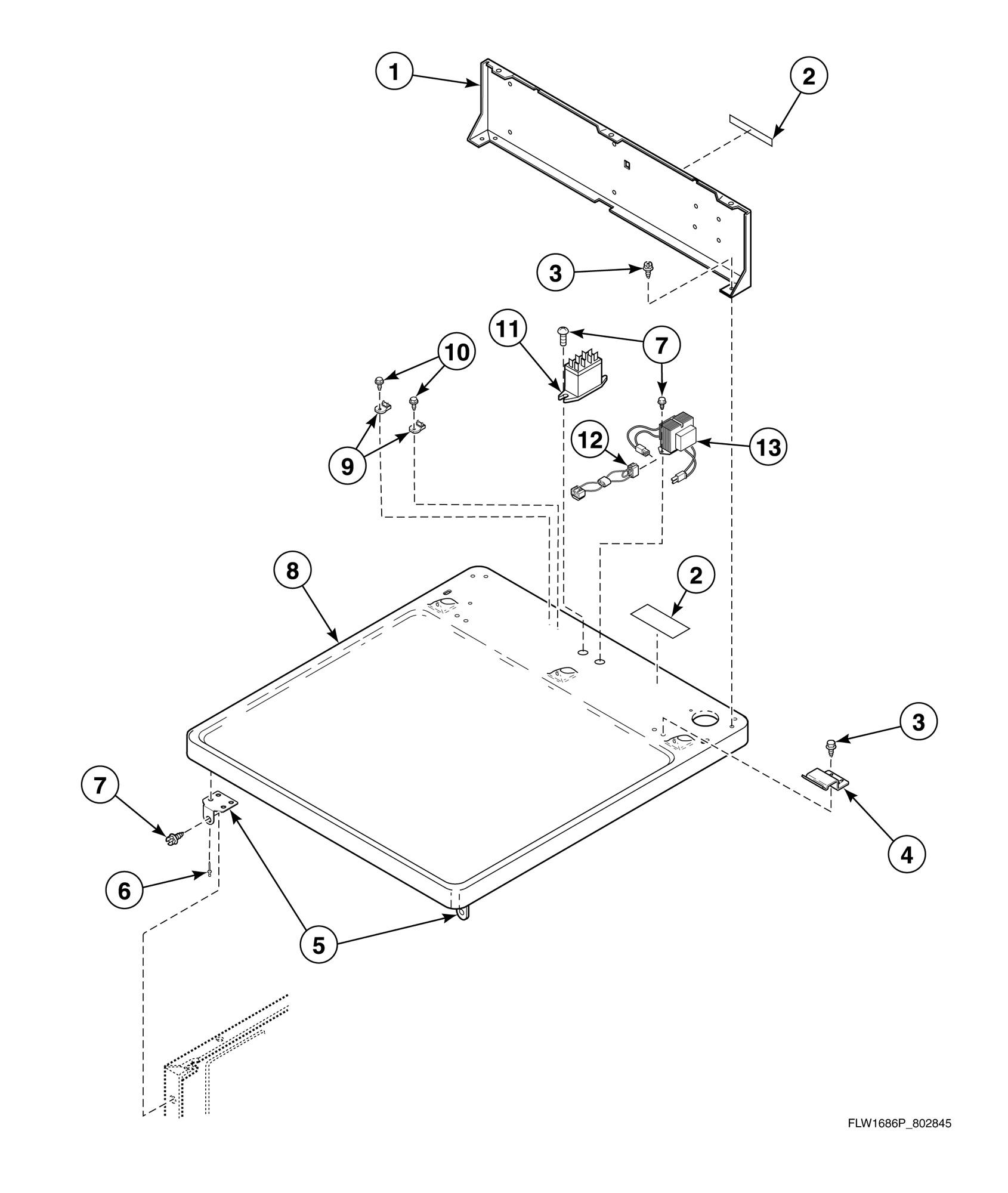

Top and Hood Back Panel

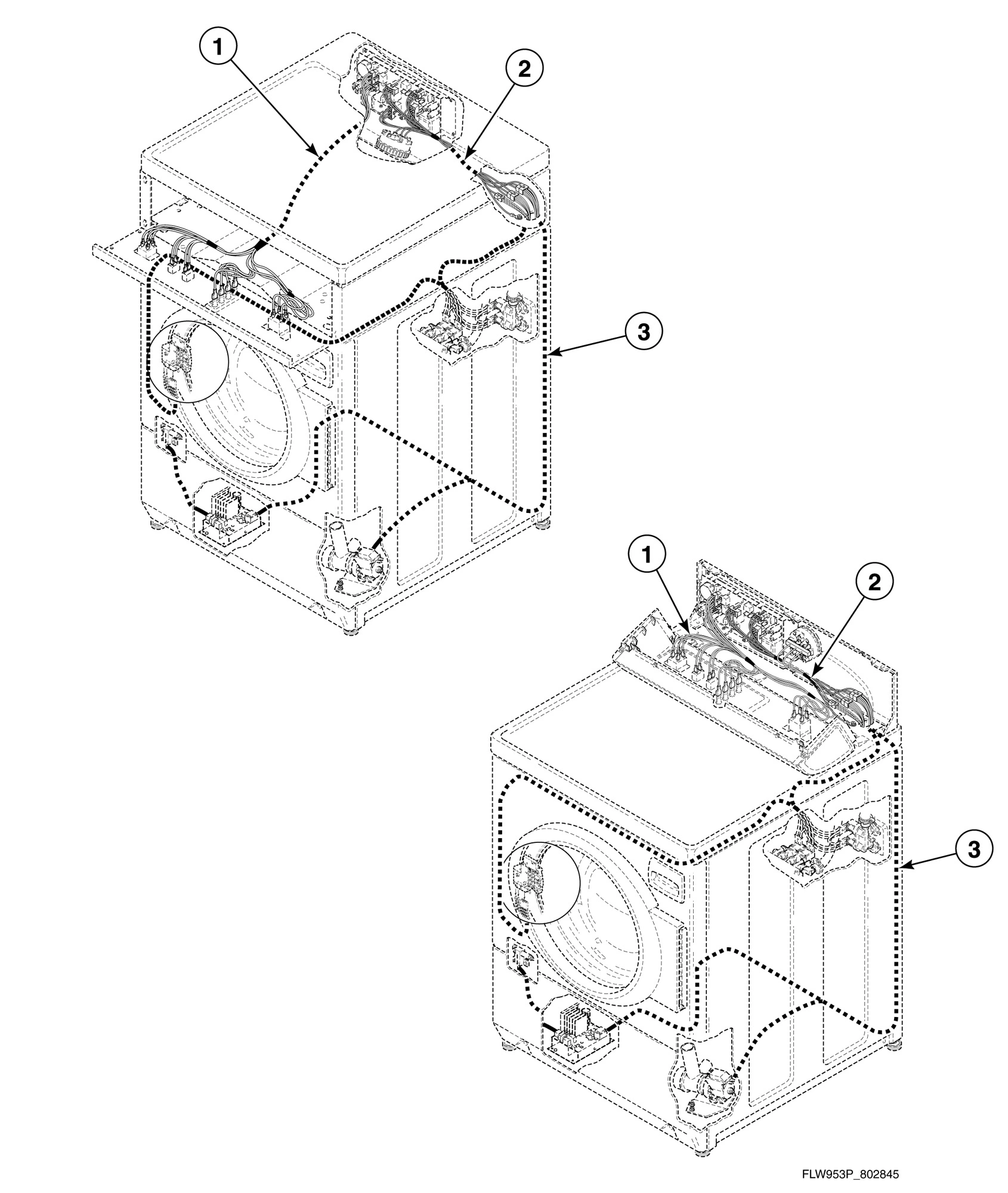

Wire Harnesses and Wires (Drawing 1 of 2)

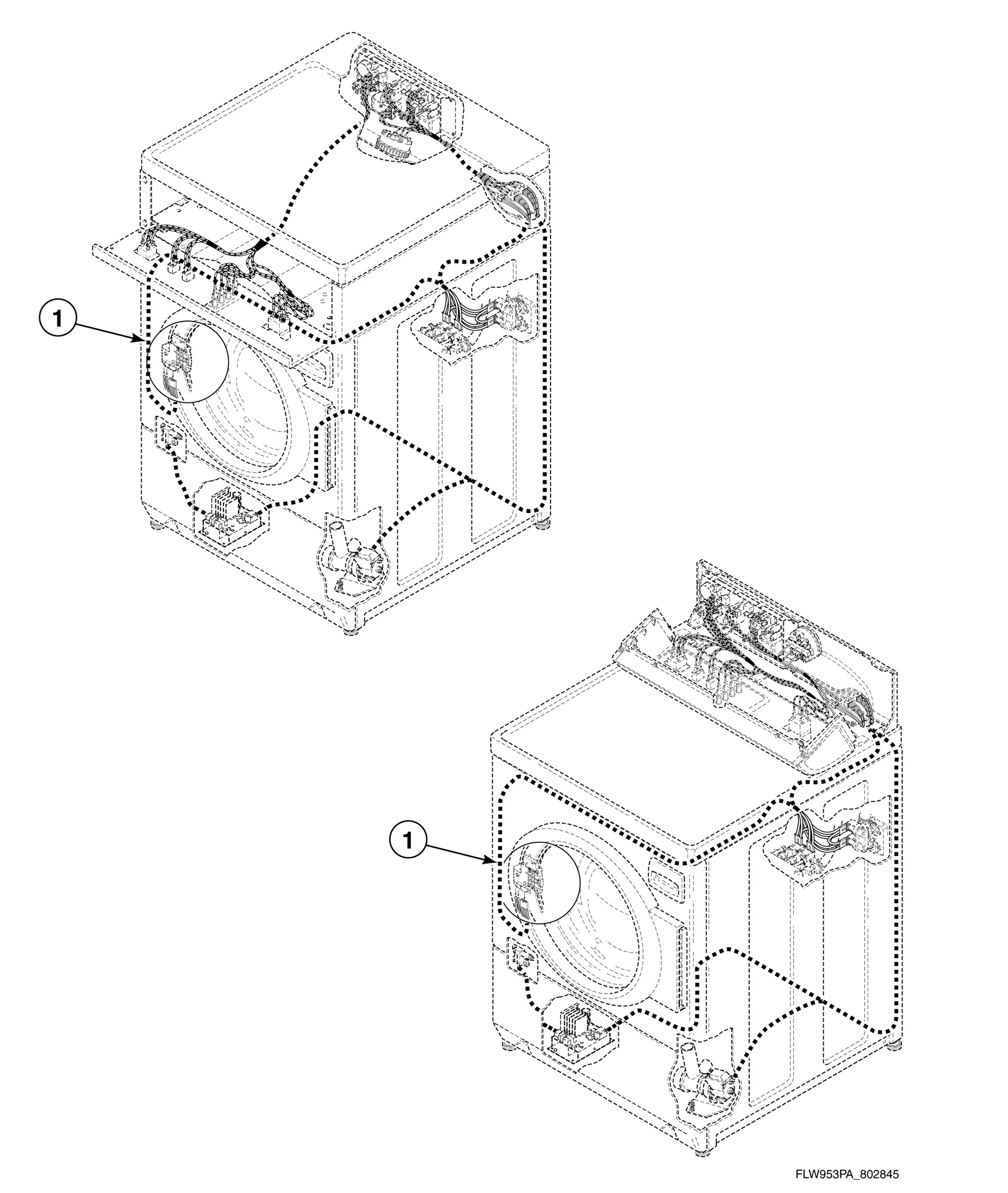

Wire Harnesses and Wires (Drawing 2 of 2)

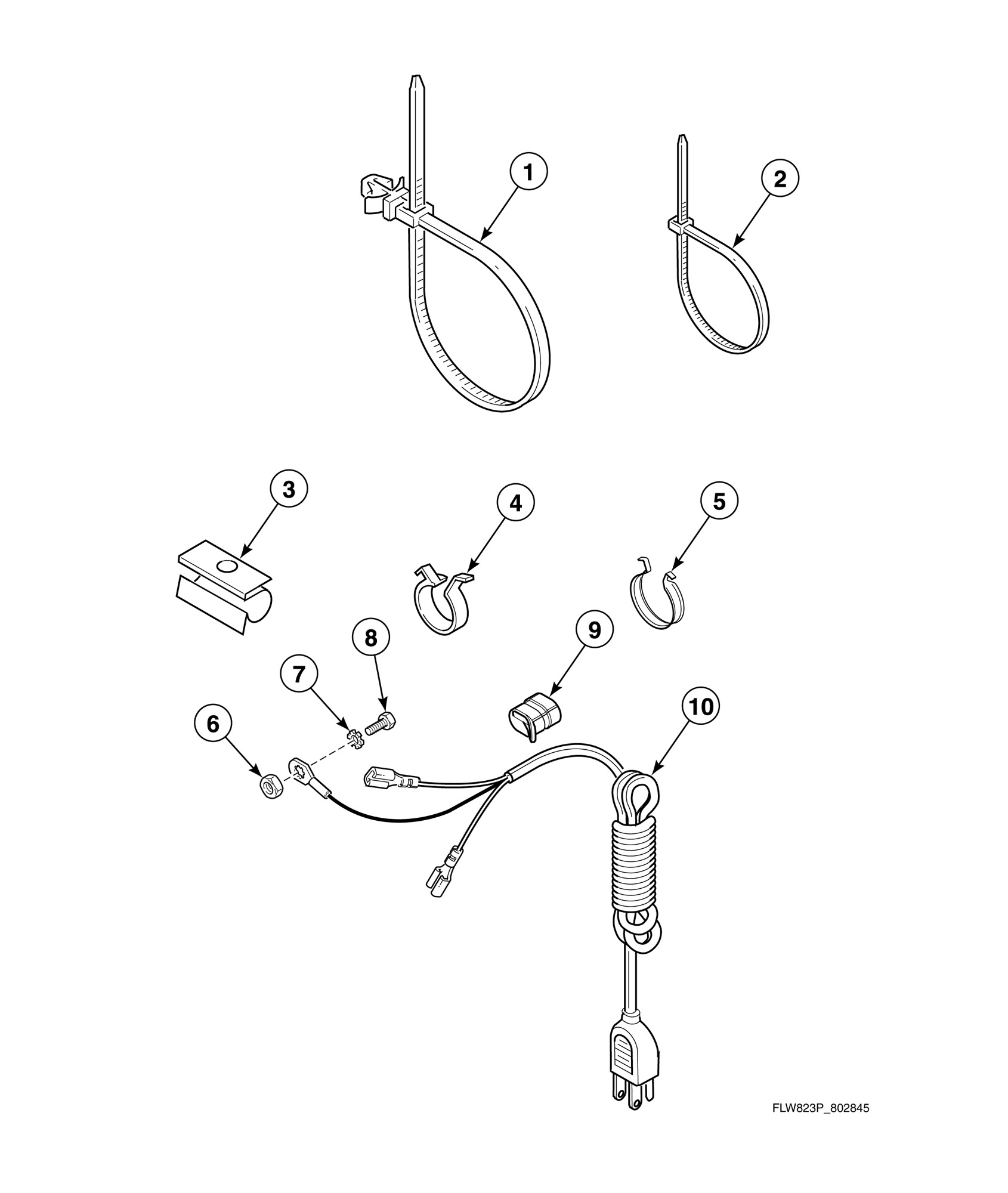

Wire Ties, Clips and Lead-In Cord
Common parts from model GE CFN50RSP111CW01 General Electric Model CFN50RSP111CW01
1
Hose Clamp GEN 802164 Contact Us For Availability
1
Outer Bezel Assembly (Comment: Gray with whit GEN 802616WP Contact Us For Availability
1
Drain Hose Sleeve GEN 33615 Contact Us For Availability
1
Panel Locator GEN 56079 Contact Us For Availability
1
Top Cover (Comment: Bisque) GEN D505808Q Contact Us For Availability
1
Top Cover (Comment: White) GEN D505808W Contact Us For Availability
1
Tension Rod Assembly GEN 800666 Contact Us For Availability
1
Screw GEN M400043 Contact Us For Availability
1
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
1
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
1
Oversudsing Label (Comment: Quebec French) GEN 802839 Contact Us For Availability
1
Dispenser Drawer Tool (Comment: Use to remove GEN 318P4 Contact Us For Availability
1
Hood Back Panel GEN 801060 Contact Us For Availability
1
Hood Harness Assembly GEN 801347P Contact Us For Availability
1
Base Harness Assembly GEN 802831P Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Valve-to-Dispenser Inlet Hose GEN 801464 Contact Us For Availability
2
Door Glass GEN 802695P Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Screw (Comment: Use with painted panels) GEN 39733 Contact Us For Availability
2
Screw (Comment: Use with stainless steel pane GEN D512921 Contact Us For Availability
2
Inner Basket Assembly GEN 803008P Contact Us For Availability
2
Warning Label GEN 802367 Contact Us For Availability
2
Inverter Control Assembly (Comment: 120 Volt) GEN 803254P Contact Us For Availability
2
Out-of-Balance Switch Assembly (Comment: Mode GEN 803415 Contact Us For Availability
2
Out-of-Balance Switch Assembly Kit (Comment: GEN 806512 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
2
Warning Label GEN D500316 Contact Us For Availability
2
Control Harness Assembly GEN 801324P Contact Us For Availability
3
Backflow Preventer GEN 34500 Contact Us For Availability
3
Nut GEN 685846 Contact Us For Availability
3
Retainer Clip GEN 36014 Contact Us For Availability
3
Door Latch/Switch Assembly GEN 802317P Contact Us For Availability
3
Screw GEN D501086 Contact Us For Availability
3
Temperature Switch GEN 687542 Contact Us For Availability
3
Trunnion Shaft and Hardware Kit (Comment: Inc GEN 800749P Contact Us For Availability
3
Warning Label GEN 803260 Contact Us For Availability
3
Control Shield GEN 801061 Contact Us For Availability
3
Wire Clamp GEN 800811 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Shipping Materials Kit (Comment: Includes ite GEN 930P3 Contact Us For Availability
3
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
3
Motor Harness Assembly (Comment: Models throu GEN 802274P Contact Us For Availability
3
Motor Harness Assembly (Comment: Models start GEN 803581 Contact Us For Availability
4
Inner Door Bezel Kit GEN 802307P Contact Us For Availability
4
Drain Hose GEN 685730 Contact Us For Availability
4
Hinge Plate GEN 802206 Contact Us For Availability
4
Temperature Switch Bracket GEN 800669 Contact Us For Availability
4
Inner Basket Assembly GEN 802365P Contact Us For Availability
4
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
4
Mixing Valve Plate GEN 800323 Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Screw GEN 800461 Contact Us For Availability
4
Warning Label (Comment: Non-grounded) GEN 800632 Contact Us For Availability
4
Hold-Down Clip GEN 35358 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Door Catch Assembly GEN 802803 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Wire Clamp Ring GEN 802283 Contact Us For Availability
5
Cycle Switch GEN 801240 Contact Us For Availability
5
Nut GEN 803017 Contact Us For Availability
5
Electrical Shock Label (Comment: Icon) GEN F8211201 Contact Us For Availability
5
Warning Label (Comment: English) GEN D500049 Contact Us For Availability
5
Fuse GEN 801755 Contact Us For Availability
5
Washer GEN M400081 Contact Us For Availability
5
Shipping Bracket Label GEN 686901 Contact Us For Availability
5
Bracket GEN D510146 Contact Us For Availability
6
Screw GEN 801993 Contact Us For Availability
6
Backflow Preventer GEN 800310 Contact Us For Availability
6
Hose Clamp (Comment: Seal to outer tub front) GEN 802281 Contact Us For Availability
6
Cycle Switch Bracket GEN 801390 Contact Us For Availability
6
Washer GEN 20290 Contact Us For Availability
6
Screw GEN M400057 Contact Us For Availability
6
Switch Mounting Bracket (Comment: Models thro GEN 800663 Contact Us For Availability
6
Switch Mounting Bracket (Comment: Models star GEN 803388 Contact Us For Availability
6
Pop Rivet GEN 70058501 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Door Seal Kit (Comment: Gray, Optional, Inclu GEN 802830P Contact Us For Availability
7
Door Seal Assembly (Comment: Black, Units are GEN 802866P Contact Us For Availability
7
Hose Clamp GEN F200204 Contact Us For Availability
7
Screw GEN D503661 Contact Us For Availability
7
End Panel (Comment: Bisque, Right) GEN D504008QP Contact Us For Availability
7
End Panel (Comment: White, Right) GEN D504008WP Contact Us For Availability
7
Nut GEN 800452 Contact Us For Availability
7
Fill Hose Kit (Comment: 5 feet, Hose is equip GEN 38349P Contact Us For Availability
7
Water Hose (Comment: 5 feet, Hose is equipped GEN F200116 Contact Us For Availability
7
Washer GEN 02834 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Dispenser-to-Door Seal Hose GEN 802256 Contact Us For Availability
8
Screw GEN 801019 Contact Us For Availability
8
Pressure Switch GEN 802299P Contact Us For Availability
8
Hose Mounting Plate GEN 800552 Contact Us For Availability
8
Warning Label GEN D500314 Contact Us For Availability
8
Warning Label GEN 803522 Contact Us For Availability
8
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
8
Washer GEN M400080 Contact Us For Availability
8
Top Panel Kit GEN D510029WP Contact Us For Availability
8
Screw GEN 20530 Contact Us For Availability
9
Door Hinge GEN 802934 Contact Us For Availability
9
Screw GEN 802430 Contact Us For Availability
9
Control Assembly GEN 802523P Contact Us For Availability
9
Hose Clip GEN 800553 Contact Us For Availability
9
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
9
Drive Belt GEN 800319P Contact Us For Availability
9
Grommet GEN 29175 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
10
Nut GEN 23951 Contact Us For Availability
10
Pump Mount Bracket GEN 802626 Contact Us For Availability
10
Screw GEN 685837 Contact Us For Availability
10
Pop Rivet GEN 685847 Contact Us For Availability
10
Fill Hose (Comment: 8 feet, Hose is equipped GEN 20617 Contact Us For Availability
10
Fill Hose (Comment: 10 feet, Hose is equipped GEN 20618 Contact Us For Availability
10
Fill Hose (Comment: 8 feet, Hose is equipped GEN 37380 Contact Us For Availability
10
Fill Hose (Comment: 10 feet, Hose is equipped GEN 37381 Contact Us For Availability
10
Motor and Rod Assembly Kit (Comment: Includes GEN 801684P Contact Us For Availability
10
Pressure Bulb GEN 30907 Contact Us For Availability
10
Lead-In Cord GEN 34458 Contact Us For Availability
11
Glass Mounting Clip GEN 802700 Contact Us For Availability
11
Screw GEN 802431 Contact Us For Availability
11
Control Support Panel GEN 801388 Contact Us For Availability
11
Driven Pulley GEN 800866 Contact Us For Availability
11
Retaining Ring GEN 23748 Contact Us For Availability
12
Hose Clamp GEN 802698 Contact Us For Availability
12
Door Assembly (Comment: White, Includes items GEN 802617WP Contact Us For Availability
12
O-Ring GEN 802429P Contact Us For Availability
12
Indicator Light (Comment: Green) GEN 801356 Contact Us For Availability
12
NOT ON YOUR MODEL GEN - Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Mixing Valve Screen GEN 802926 Contact Us For Availability
12
Washer GEN 52549 Contact Us For Availability
12
Tubing GEN 29214 Contact Us For Availability
13
Nut GEN 802292 Contact Us For Availability
13
Drain Pump GEN 802623P Contact Us For Availability
13
Washer GEN M403958 Contact Us For Availability
13
Mixing Valve GEN 802220P Contact Us For Availability
13
Motor Mount Rod GEN 801062 Contact Us For Availability
13
Hose Clamp GEN 39282 Contact Us For Availability
13
Transformer GEN 210018P Contact Us For Availability
14
Pump Housing Assembly (Comment: Includes item GEN 802434P Contact Us For Availability
14
Washer GEN 802293 Contact Us For Availability
14
Graphic Panel GEN 801906W Contact Us For Availability
14
Washer GEN 800464 Contact Us For Availability
14
Jumper Harness (Comment: Use to limit spin RP GEN D513268 Contact Us For Availability
14
Outer Tub Assembly GEN 801081P Contact Us For Availability
15
Boot Nozzle GEN 802291 Contact Us For Availability
15
Pump Housing GEN 802428 Contact Us For Availability
15
Timer Knob Assembly (Comment: Bisque) GEN D512117Q Contact Us For Availability
15
Timer Knob Assembly (Comment: White) GEN D512117W Contact Us For Availability
15
Tub Shock Absorber Kit GEN 800622P Contact Us For Availability
16
Gasket GEN 802427 Contact Us For Availability
16
Extension Spring GEN 802285 Contact Us For Availability
16
Indicator Light Lens GEN 801435 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes 838P3 GEN 800428P Contact Us For Availability
16
Base Shock Absorber Kit (Comment: Must replac GEN 802881P Contact Us For Availability
17
Lid Assembly (Comment: Includes filter) GEN 802426P Contact Us For Availability
17
Nut GEN 36020 Contact Us For Availability
17
Push-to-Start Switch (Comment: Bisque) GEN 801434Q Contact Us For Availability
17
Push-to-Start Switch (Comment: White) GEN 801434W Contact Us For Availability
17
Grounding Clip GEN 00161 Contact Us For Availability
18
Sealant (Comment: Tub-to-pump hose to outer t GEN 27615P Contact Us For Availability
18
Tub-to-Pump Hose GEN 800317 Contact Us For Availability
18
Drain Kit (Comment: Includes 803344 Tub-to-Pu GEN 985P3 Contact Us For Availability
18
Rocker Switch (Comment: Bisque, Extra rinse) GEN 38424Q Contact Us For Availability
18
Rocker Switch (Comment: White, Extra rinse) GEN 38424W Contact Us For Availability
18
Ballast Weight GEN 800205 Contact Us For Availability
19
Dispenser Drawer Front (Comment: Bisque) GEN 685715QP Contact Us For Availability
19
Dispenser Drawer Front (Comment: White) GEN 685715WP Contact Us For Availability
19
Front Panel Pad (Comment: 1 inch by 26 inches GEN 36204 Contact Us For Availability
19
Knob Assembly (Comment: Bisque) GEN 36701Q Contact Us For Availability
19
Knob Assembly (Comment: White) GEN 36701W Contact Us For Availability
19
Nut GEN 802343 Contact Us For Availability
20
Insert GEN 685716 Contact Us For Availability
20
Screw GEN 801045 Contact Us For Availability
20
End Panel (Comment: Bisque, Left) GEN D504009QP Contact Us For Availability
20
End Panel (Comment: White, Left) GEN D504009WP Contact Us For Availability
20
Tub Front Assembly GEN 802258 Contact Us For Availability
21
Detergent Cover GEN 800899 Contact Us For Availability
21
Access Panel Assembly (Comment: Bisque) GEN D514250Q Contact Us For Availability
21
Access Panel Assembly (Comment: White) GEN D514250WP Contact Us For Availability
21
Clamp Ring GEN 800312 Contact Us For Availability
22
Dispenser Plate GEN 801024 Contact Us For Availability
22
Front Panel (Comment: Bisque) GEN 802277QP Contact Us For Availability
22
Front Panel (Comment: White) GEN 802277WP Contact Us For Availability
22
Nut GEN F430218 Contact Us For Availability
23
Screw GEN 800548 Contact Us For Availability
23
Screw GEN 801001 Contact Us For Availability
23
Washer GEN 800457 Contact Us For Availability
24
Screw GEN 800462 Contact Us For Availability
25
Tub Front Seal GEN 800432P Contact Us For Availability
26
Screw GEN 802596 Contact Us For Availability
27
Clothes Guard Deflector GEN 804174P Contact Us For Availability
27
Clothes Guard Deflector (Comment: Heavy duty) GEN 804482 Contact Us For Availability
28
Clothes Guard GEN 803537 Contact Us For Availability
29
Clothes Guard and Deflector Kit (Comment: Inc GEN 804560P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Hardware Kit (Comment: Includes (8) of item 6 GEN 838P3 Contact Us For Availability
NA
Bearing Kit GEN RB160001 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
