Model Electrolux CFMV156DBA OVER-RANGE – Common Parts & Diagrams
COVER

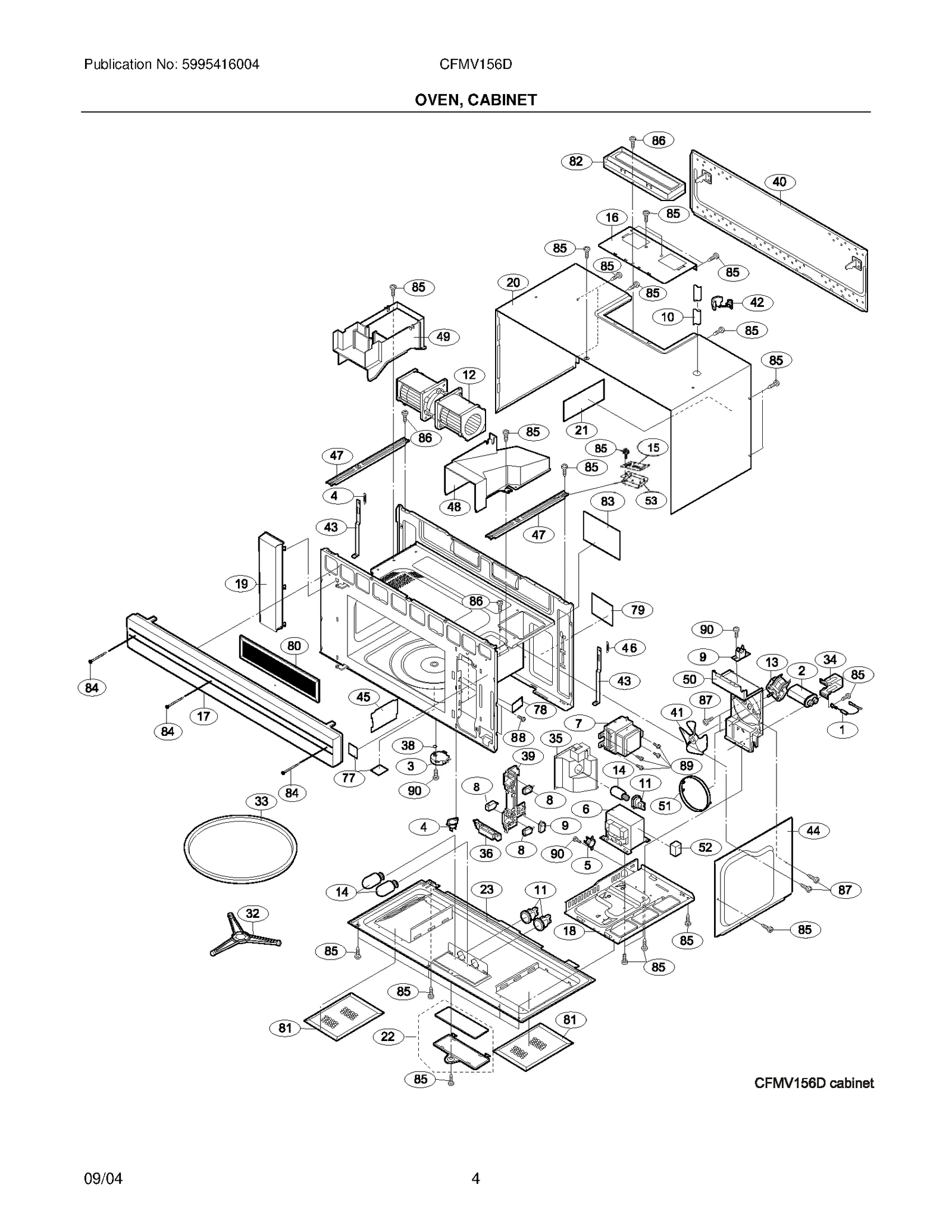

OVEN, CABINET
OVEN, CABINET

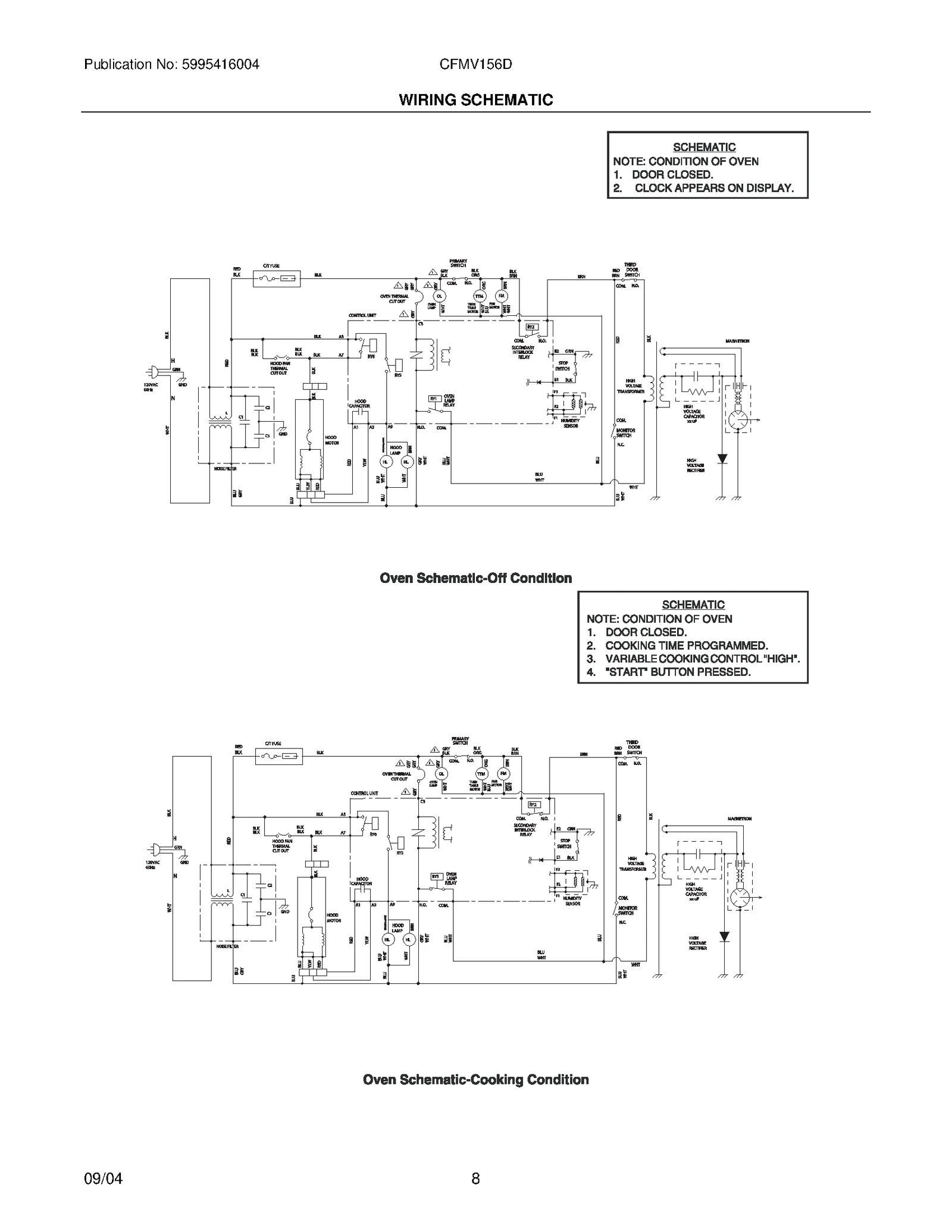

WIRING SCHEMATIC
Common parts from model Electrolux CFMV156DBA OVER-RANGE
4
Thermal Cutout, oven cavity, N.C. 145 deg C WCI 5304440032 Contact Us For Availability
5
Thermal Cutout, hood, N.O.60 deg C WCI 5304440023 Contact Us For Availability
10
Power Cord, electric WCI 5304440028 Contact Us For Availability
22
Lens/Frame Assy, oven lamp WCI 5304440242 Contact Us For Availability
23
Cover, unit base, cab bottom WCI 5304441862 Contact Us For Availability
34
Retainer, capacitor strap WCI 5304441873 Contact Us For Availability
35
Duct, magnetron WCI 5304441874 Contact Us For Availability
38
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
39
Latch Hook WCI 5304440289 Contact Us For Availability
40
Bracket, unit mtg plate, rear WCI 5304441833 Contact Us For Availability
41
Fan Blade, cooling fan WCI 5304440843 Contact Us For Availability
42
Bushing, power cord WCI 5303319605 Contact Us For Availability
43
Lever, unit mounting, release WCI 5304441875 Contact Us For Availability
44
Duct, hood intake, right side WCI 5304441876 Contact Us For Availability
47
Support, chassis WCI 5304441877 Contact Us For Availability
48
Duct, hood intake, right side WCI 5304441878 Contact Us For Availability
49
Duct, exhaust hood, left side WCI 5304441879 Contact Us For Availability
50
Duct, cooling fan WCI 5304441880 Contact Us For Availability
51
Ring, fan orifice WCI 5304441881 Contact Us For Availability
52
Cushion, transformer pad WCI 5304441882 Contact Us For Availability
53
Bracket, noise filter, angle WCI 5303322975 Contact Us For Availability
77
Label, Caution-DHHS WCI 5304441900 Contact Us For Availability
80
Filter, inside exhaust, charcoal WCI 5304441901 Contact Us For Availability
83
Label, Caution-NHW WCI 5304440348 Contact Us For Availability
89
Screw WCI 5303319636 Contact Us For Availability
90
Screw, 3mm x 8mm WCI 5303319633 Contact Us For Availability
× ![]()
