Model Whirlpool CFE9000ACB ELECTRIC RANGE – Common Parts & Diagrams

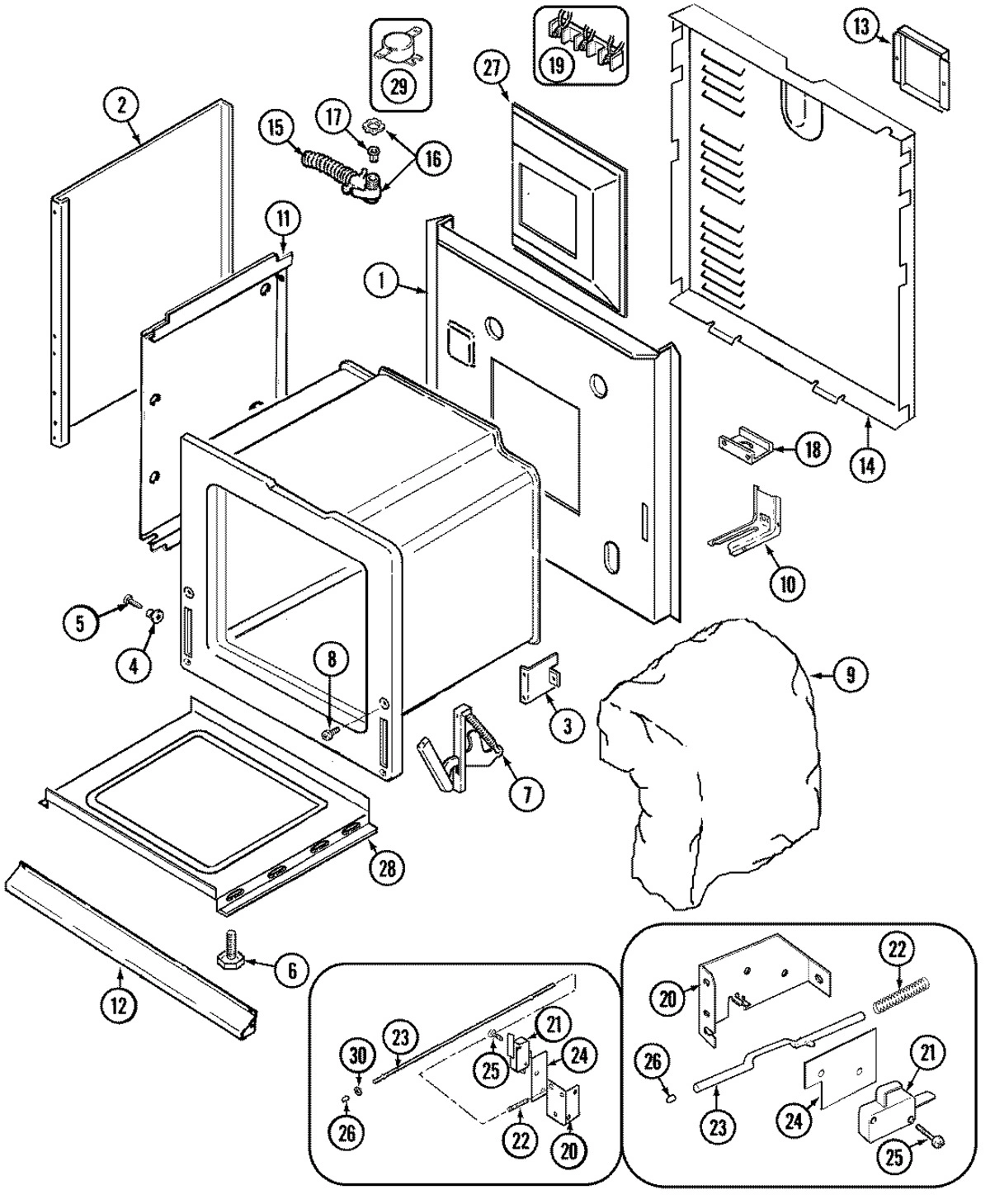

01 - BODY
03 - INTERNAL CONTROLS
05 - TOP ASSEMBLY (BLK)
06 - WIRING INFORMATION
02 - DOOR/DRAWER
04 - OVEN
Common parts from model Whirlpool CFE9000ACB ELECTRIC RANGE
1
SCREW WPL 7101P33460 Contact Us For Availability
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 7722P11960 Contact Us For Availability
1
GLASS, DOOR (OUTER/BLK) WPL 7902P36160 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F10870 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F10970 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
SCREW WPL 7101P03160 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
SCREW WPL 7101P32660 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P09260 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
LEVER, DOOR LATCH WPL 8009P02560 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
6
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
6
CLOCK WPL 7601P20760 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
6
NUT, SNAP WPL 7103P11460 Contact Us For Availability
6
NUT, SNAP WPL 7103P13660 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
HINGE WPL 7106P05660 Contact Us For Availability
7
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F22245 Contact Us For Availability
7
HANDLE, OVEN DOOR (BLK) WPL 7701P14960 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005F46651 Contact Us For Availability
8
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
9
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
BEZEL, KNOB (BLK) WPL 7740P05260 Contact Us For Availability
9
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
10
BOX, BURNER WPL 4011F25080 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P48660 Contact Us For Availability
10
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10751 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
11
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
12
SHIELD, LOWER VENT (BLK) WPL 3604W15570 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
12
SWITCH, MEMBRANE (BLK) WPL 7403P33660 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
GASKET, VENT WPL 7201P05560 Contact Us For Availability
13
COVER, ACCESS WPL 4005F41351 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09851 Contact Us For Availability
13
TOP ASSY. (BLK TOP/BLK GLASS) WPL 74001185 Contact Us For Availability
13
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
13
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
13
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
13
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
14
COVER, WIRE WPL 4005F41151 Contact Us For Availability
14
RELAY BOARD WPL 7428P00960 Contact Us For Availability
14
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
14
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
15
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
15
WIRES CONDUIT WPL 5140A02660 Contact Us For Availability
15
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
15
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
15
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
15
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
16
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
16
SUPPORT, ELEMENT WPL 3807F39045 Contact Us For Availability
16
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
17
GROMMET WPL 8008P01760 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
17
CHANNEL, BOTTOM WPL 3818F05451 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05951 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
17
FRAME, DOOR (BLK) WPL 7706P29460 Contact Us For Availability
17
FRAME, DOOR (BLK) WPL 7706P30960 Contact Us For Availability
18
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
18
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
18
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
18
TRIM, DOOR (UPPER-BLK) WPL 7706P30560 Contact Us For Availability
18
TRIM, DOOR (UPPER-BLK) WPL 7744P12860 Contact Us For Availability
19
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
19
LIGHT, INDICATOR WPL 7407P09860 Contact Us For Availability
20
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
20
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
21
SWITCH, DOOR LIGHT WPL 4874F00160 Contact Us For Availability
21
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
22
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
22
SPRING WPL 7803P06760 Contact Us For Availability
23
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
23
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
24
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
24
INSULATOR, DOOR SWITCH WPL 74001626 Contact Us For Availability
25
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
26
BUMPER, ROD WPL 74001631 Contact Us For Availability
26
BUMPER WPL 8003P01260 Contact Us For Availability
27
COVER, WIRE (9`` X 9``) WPL 74001325 Contact Us For Availability
28
BOTTOM, MAIN WPL 4011F17651 Contact Us For Availability
29
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
30
WASHER WPL 7109P02060 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 5170P13860 Contact Us For Availability
NI
HARNESS, CONTROL TO RELAY WPL 5170P14760 Contact Us For Availability
NI
HARNESS, COOKTOP TO SWITCH WPL 5175D07660 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 74001323 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P02560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001261 Contact Us For Availability
× ![]()
