Model Whirlpool CFE8010ACB ELECTRIC RANGE – Common Parts & Diagrams

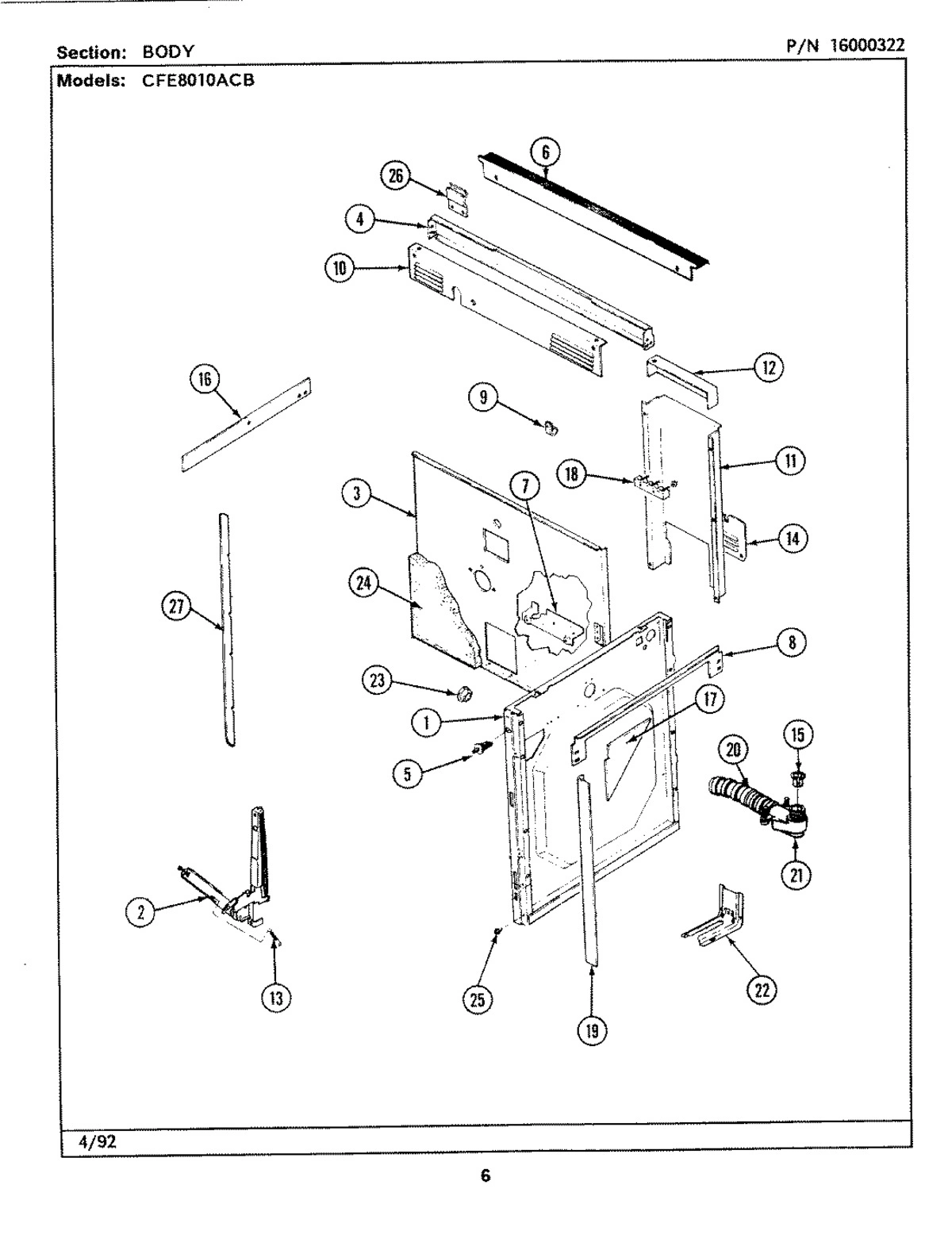

01 - BODY

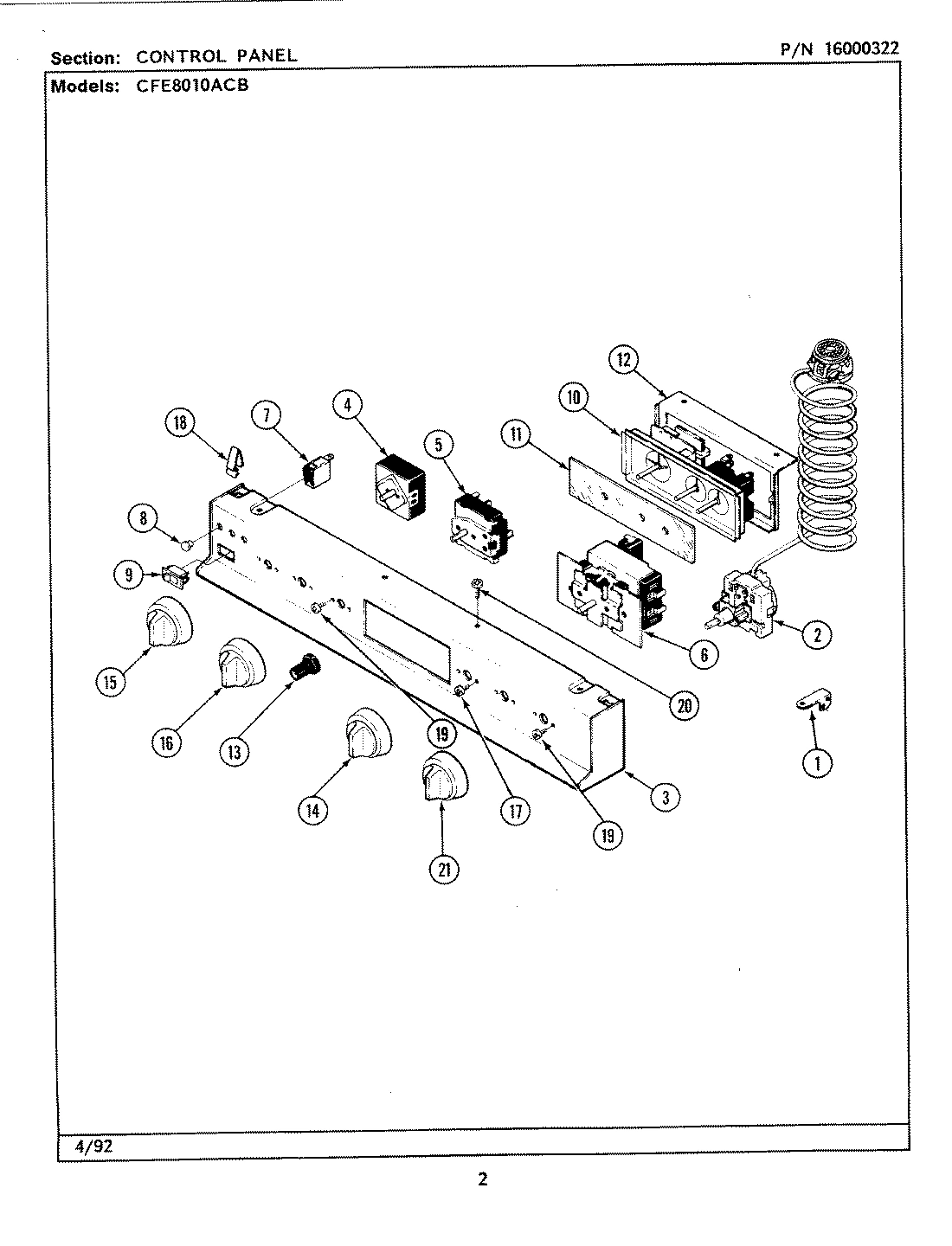

02 - CONTROL PANEL

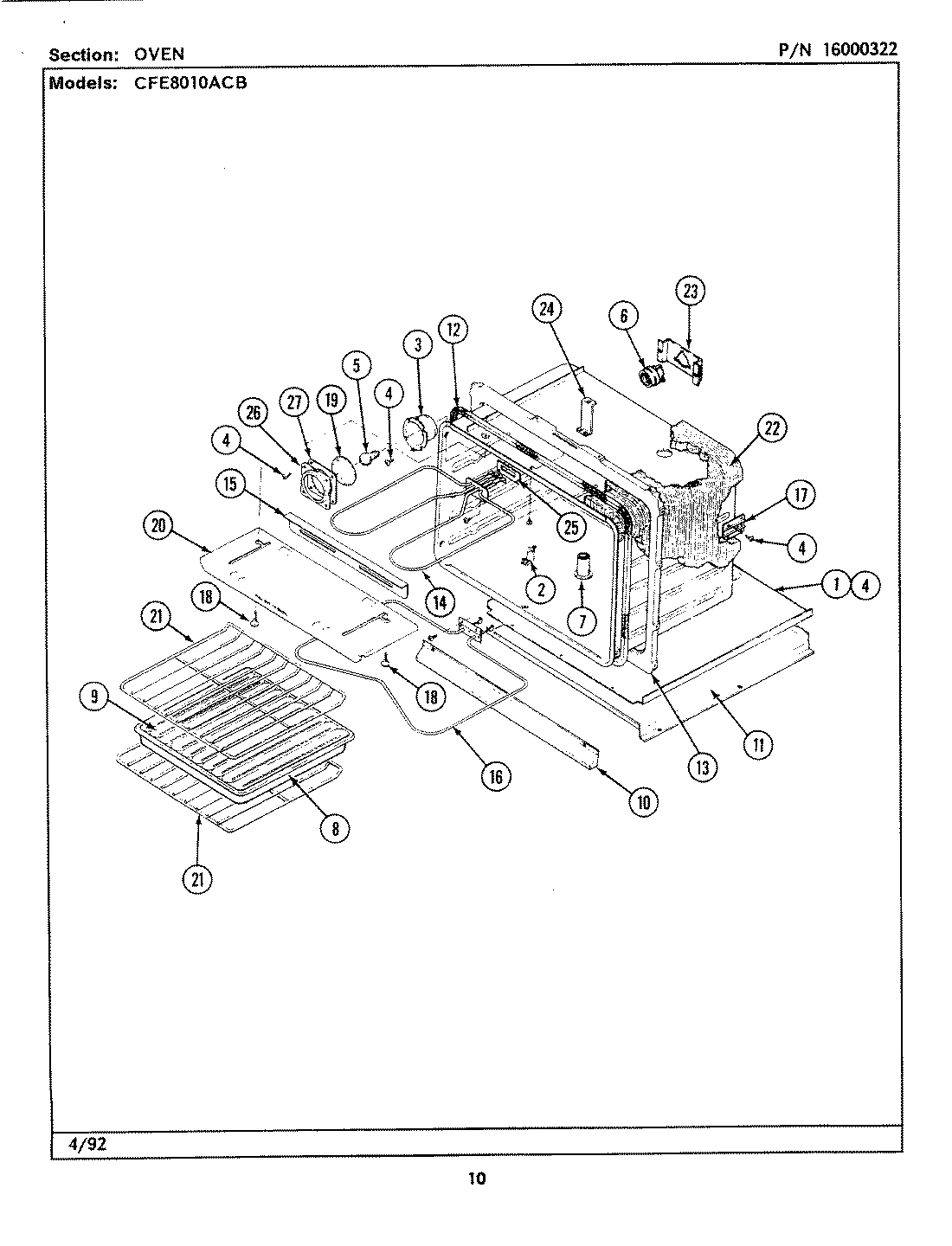

05 - OVEN

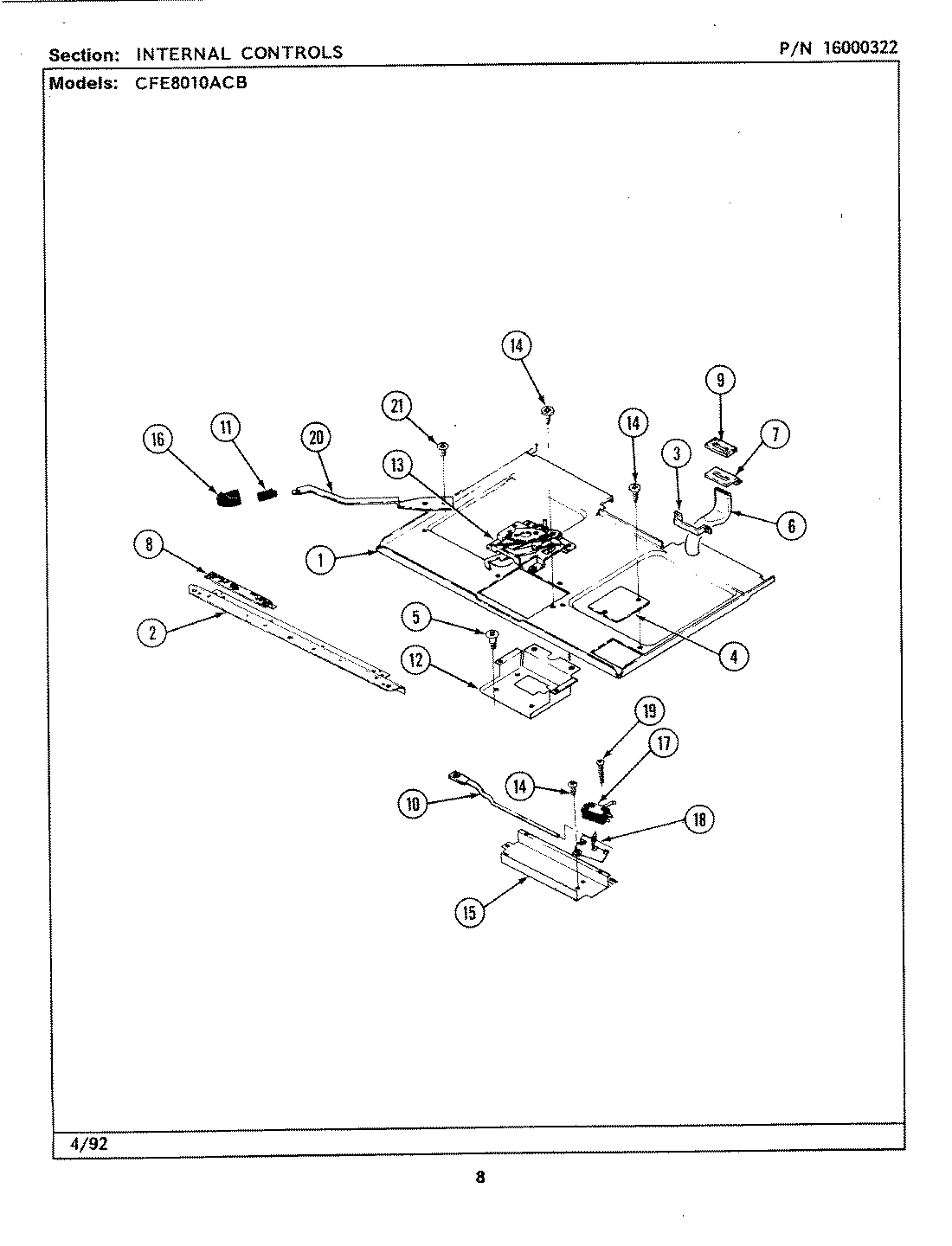

04 - INTERNAL CONTROLS

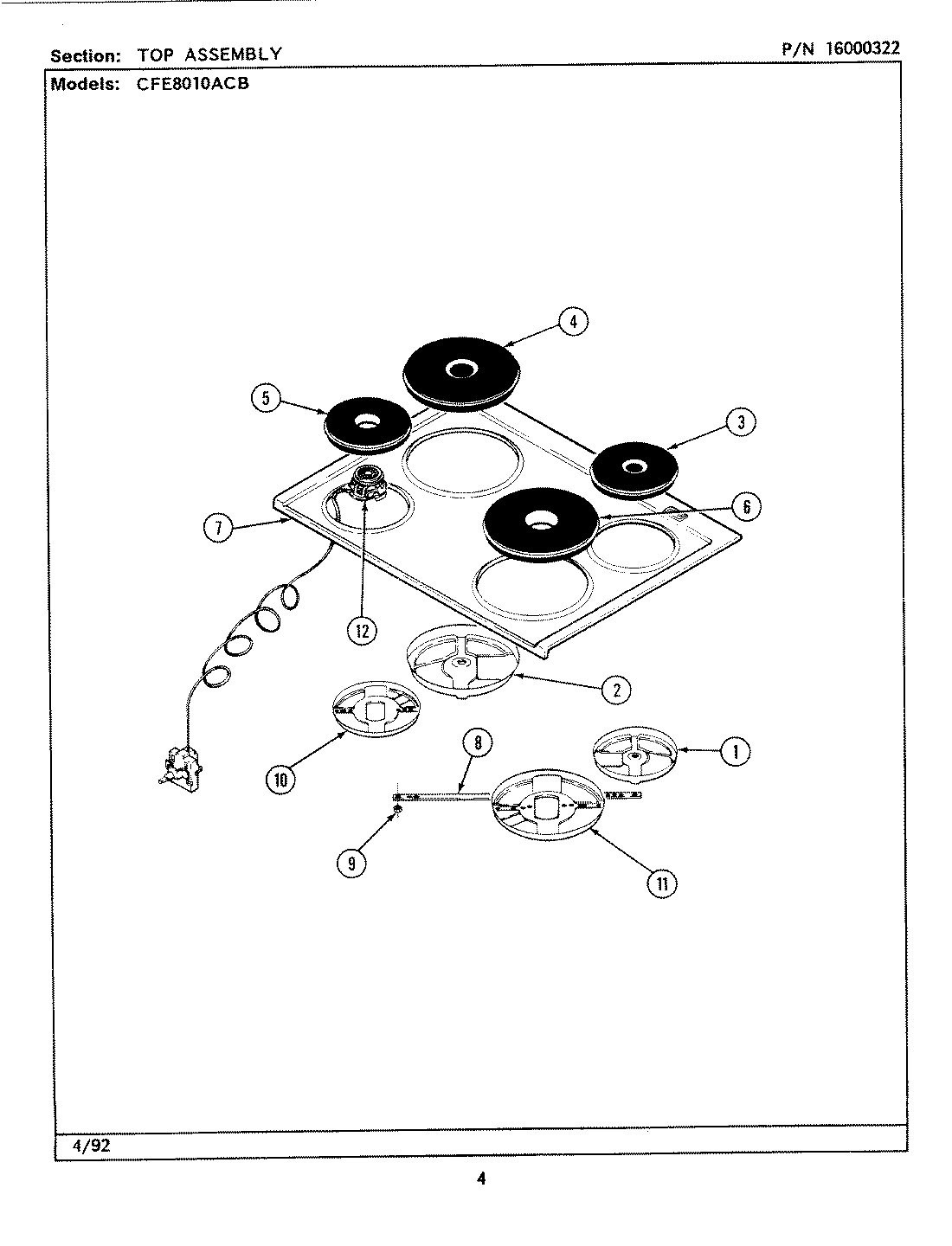

06 - TOP ASSEMBLY

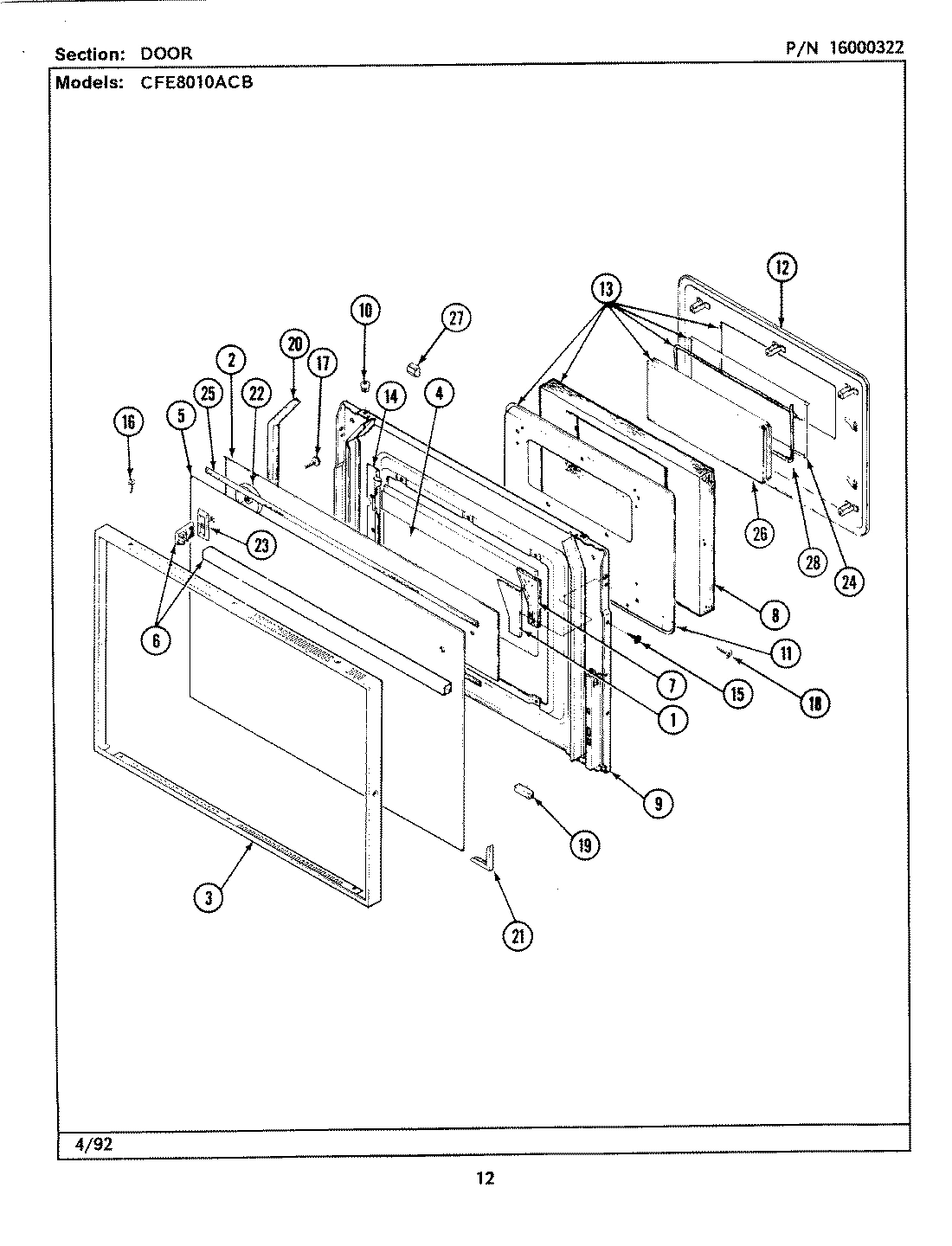

03 - DOOR
Common parts from model Whirlpool CFE8010ACB ELECTRIC RANGE
1
BAFFLE, OVEN DOOR WPL 3601F16180 Contact Us For Availability
1
LINING,INNER SIDE (L) WPL 4009W08580 Contact Us For Availability
1
LINING,INNER SIDE (R) WPL 4009W08680 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
1
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
1
BOTTOM, BURNER BOX WPL 4011F19880 Contact Us For Availability
1
SUPPORT, 6`` WPL 8004P01160 Contact Us For Availability
1
BAFFLE,CORNER (RIGHT) WPL 3601F15870 Contact Us For Availability
1
BAFFLE, CORNER (LEFT) WPL 3601F15970 Contact Us For Availability
2
HINGE, DOOR WPL 7106P02960 Contact Us For Availability
2
HINGE WPL 7106P03960 Contact Us For Availability
2
SCREW WPL 7118P00460 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
SUPPORT, 8`` WPL 8004P01260 Contact Us For Availability
2
BAFFLE, DOOR HANDLE WPL 3601F17045 Contact Us For Availability
3
BACK, MAIN WPL 4002F10380 Contact Us For Availability
3
PANEL, CONTROL WPL 7722A09860 Contact Us For Availability
3
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
3
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
3
BRACKET, VENT TUBE WPL 3801F12245 Contact Us For Availability
3
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24660 Contact Us For Availability
4
BRACE, MAIN TOP WPL 3802F07160 Contact Us For Availability
4
SWITCH, INF. 250V WPL 7403P18160 Contact Us For Availability
4
COVER, SWITCH WPL 4005F36451 Contact Us For Availability
4
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
4
GLASS, INNER WPL 7902P09760 Contact Us For Availability
5
SWITCH, PUSH (OVEN LAMP) WPL 7403P10560 Contact Us For Availability
5
SWITCH, SELECTOR WPL 7403P03760 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
ELEMENT (6``- AUTO SWITCH) WPL 7406P01960 Contact Us For Availability
5
GLASS, OUTER WPL 7902P27160 Contact Us For Availability
6
FILLER, STRIP WPL 7706P00960 Contact Us For Availability
6
THERMOSTAT WPL 7404P05060 Contact Us For Availability
6
SHIELD, LIGHT RECEPTACLE WPL 3604F00780 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
TUBE, VENT WPL 8026P01260 Contact Us For Availability
6
ELEMENT (8``- AUTO SWITCH) WPL 7406P02260 Contact Us For Availability
6
POLISH, ELECTROL RESTORING WPL 8308P00160 Contact Us For Availability
6
HANDLE, DOOR WPL 7701P04560 Contact Us For Availability
7
PLATE CONDUIT WPL 3605F16380 Contact Us For Availability
7
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
7
CATALYST BURNER WPL 7505P04160 Contact Us For Availability
7
TUBE, VENT WPL 8026A00760 Contact Us For Availability
7
BRACKET, SEAL WPL 3801F12645 Contact Us For Availability
7
TOP, MAIN WPL 2002F06430 Contact Us For Availability
7
INSULATION DOOR WPL 7002P10660 Contact Us For Availability
8
SUPPORT, PANEL UNIT WPL 3807F19480 Contact Us For Availability
8
LENS, INDICATOR LIGHT WPL 7730P00960 Contact Us For Availability
8
PAN, BROIL WPL 3401F00415 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
SHIELD, TERMINAL WPL 3604F14980 Contact Us For Availability
8
BRACKET WPL 3801F10051 Contact Us For Availability
8
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
9
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
9
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
9
PAN, BROILER WPL 3401F01619 Contact Us For Availability
9
INSERT, PAN WPL 3413F00215 Contact Us For Availability
9
GASKET, VENT WPL 7201P02860 Contact Us For Availability
9
NUT, KEPS WPL 7103P07560 Contact Us For Availability
9
LINING DOOR WPL 2402W18619 Contact Us For Availability
9
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
10
SHIELD, HOUSING WPL 3604F09780 Contact Us For Availability
10
CLOCK WPL 7601P18760 Contact Us For Availability
10
SHIELD,LOWER VENT (BLK) WPL 3604W15270 Contact Us For Availability
10
SHIELD, LOWER VENT (BLK) WPL 3604W15570 Contact Us For Availability
10
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
10
SUPPORT, 6``(AUTO) WPL 8004P00960 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
11
HOUSING, WIRE WPL 4011F05151 Contact Us For Availability
11
GLASS, CLOCK WPL 7902P02760 Contact Us For Availability
11
SHIELD BOTTOM WPL 3604F18480 Contact Us For Availability
11
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
11
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
11
SUPPORT, 8``(AUTO) WPL 8004P01060 Contact Us For Availability
11
PAD, INNER WPL 2410F01651 Contact Us For Availability
12
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
12
SWITCH, AUTOMATIC WPL 7403P17560 Contact Us For Availability
12
BRACKET, CLOCK MTG WPL 3801F11351 Contact Us For Availability
12
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
12
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
12
PAD, DOOR WPL 2410W04119 Contact Us For Availability
13
SCREW WPL 7101P06160 Contact Us For Availability
13
SPRING, MINI-STANLEY WPL 04000040 Contact Us For Availability
13
KNOB, CLOCK WPL 7711P35960 Contact Us For Availability
13
FRONT, OVEN UPPER WPL 2201F06119 Contact Us For Availability
13
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
13
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
13
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
14
COVER ACCESS WPL 4005F36151 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7735P01860 Contact Us For Availability
14
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
14
CLIP, BROIL ELEMENT SUPPORT WPL 8004P01360 Contact Us For Availability
14
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
15
WASHER WPL 7109P00260 Contact Us For Availability
15
SLEEVE, TUBE WPL 8018P00260 Contact Us For Availability
15
KNOB, INFINITE SWITCH WPL 7737P01660 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
15
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
15
RIVET WPL 7107P01760 Contact Us For Availability
16
BAFFLE SIDE PANEL WPL 3601F21451 Contact Us For Availability
16
KNOB, SELECTOR WPL 7739P02260 Contact Us For Availability
16
SCREW WPL 7101P10460 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
16
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
17
SPRING WPL 7803P05760 Contact Us For Availability
17
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
17
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
17
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
17
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
17
SWITCH, DOOR LOCK WPL 7403P04560 Contact Us For Availability
17
SCREW WPL 7101P06860 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
18
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
18
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
18
SUPPORT, LOCK SWITCH WPL 3807F19345 Contact Us For Availability
18
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
19
PANEL, SIDE RIGHT WPL 2618F07180 Contact Us For Availability
19
PANEL, SIDE LEFT WPL 2618F07280 Contact Us For Availability
19
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
19
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
19
SCREW WPL 7101P03160 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
20
SCREW WPL 7101P07460 Contact Us For Availability
20
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
20
SHIELD, BROIL WPL 3604F09245 Contact Us For Availability
20
LEVER, DOOR LOCK WPL 8009P01960 Contact Us For Availability
20
SEAL WPL 7208P00260 Contact Us For Availability
21
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
21
RACK WPL 7801P03260 Contact Us For Availability
21
SCREW WPL 7101P01860 Contact Us For Availability
21
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
22
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
22
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
INSULATION - TOP WPL 4804F00860 Contact Us For Availability
22
INSULATION WPL 4804F02460 Contact Us For Availability
22
SPACER, BAFFLE WPL 8010P05160 Contact Us For Availability
23
GROMMET WPL 8008P01960 Contact Us For Availability
23
BRACKET WPL 3801F02451 Contact Us For Availability
23
SPACER, DOOR HANDLE WPL 8010P05260 Contact Us For Availability
24
INSULATION - REAR WPL 4804F02060 Contact Us For Availability
24
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
24
RETAINER WPL 3804F02245 Contact Us For Availability
25
SCREW WPL 7101P11560 Contact Us For Availability
25
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
25
FOAM TAPE WPL 4870P00260 Contact Us For Availability
25
TAPE, FOIL 16 3/16`` WPL 8270P08160 Contact Us For Availability
26
EXTRUSION,TOP HINGE WPL 7706P28160 Contact Us For Availability
26
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
26
WINDOW PAK WPL 7902S30360 Contact Us For Availability
27
SCREW, PH FLAT HD WPL 7101P15460 Contact Us For Availability
27
TRIM, CABINET FRONT WPL 7706P04260 Contact Us For Availability
27
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
27
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
28
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
× ![]()
