Model Whirlpool CEW3D3D ELECTRIC RANGE – Common Parts & Diagrams

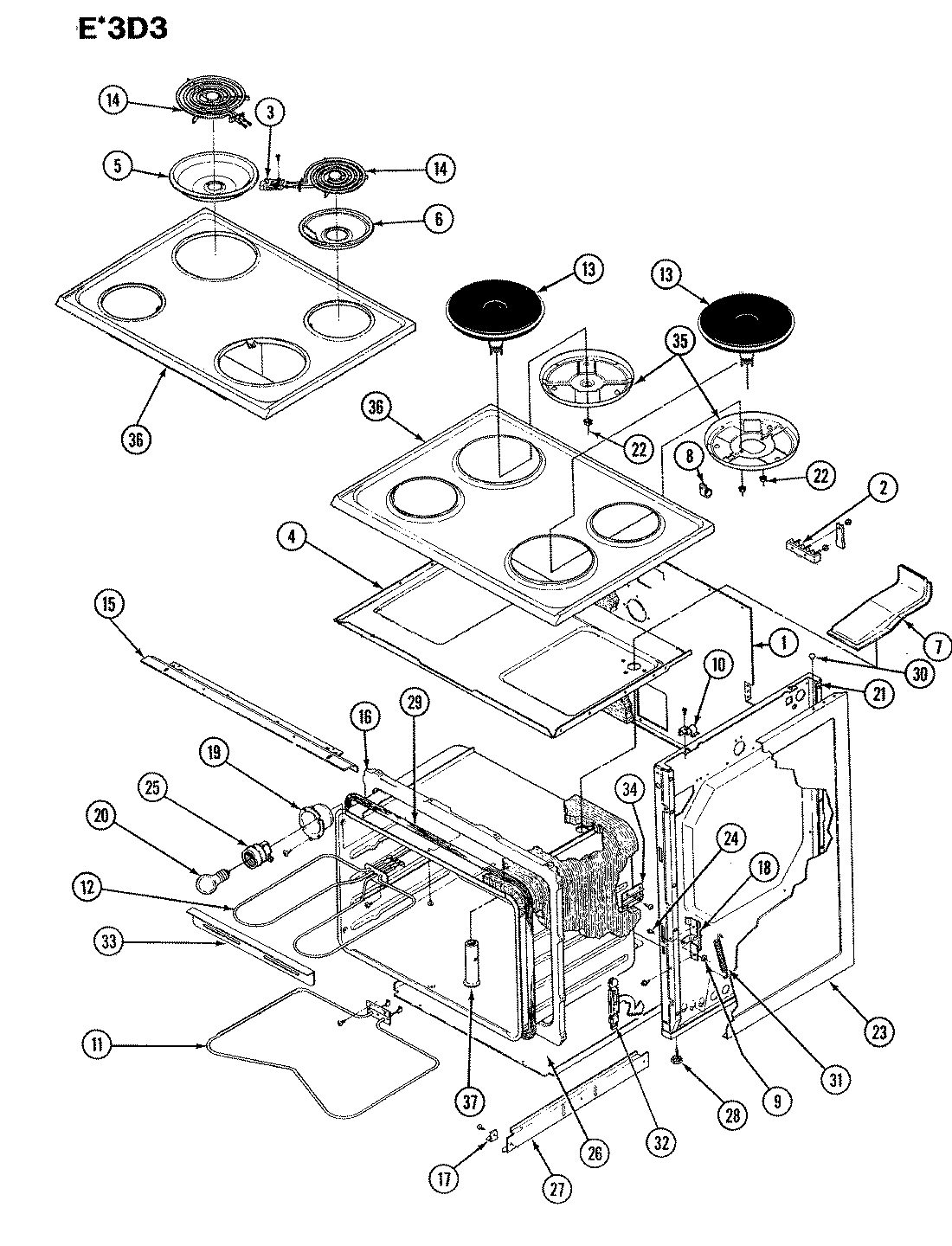

01 - BODY

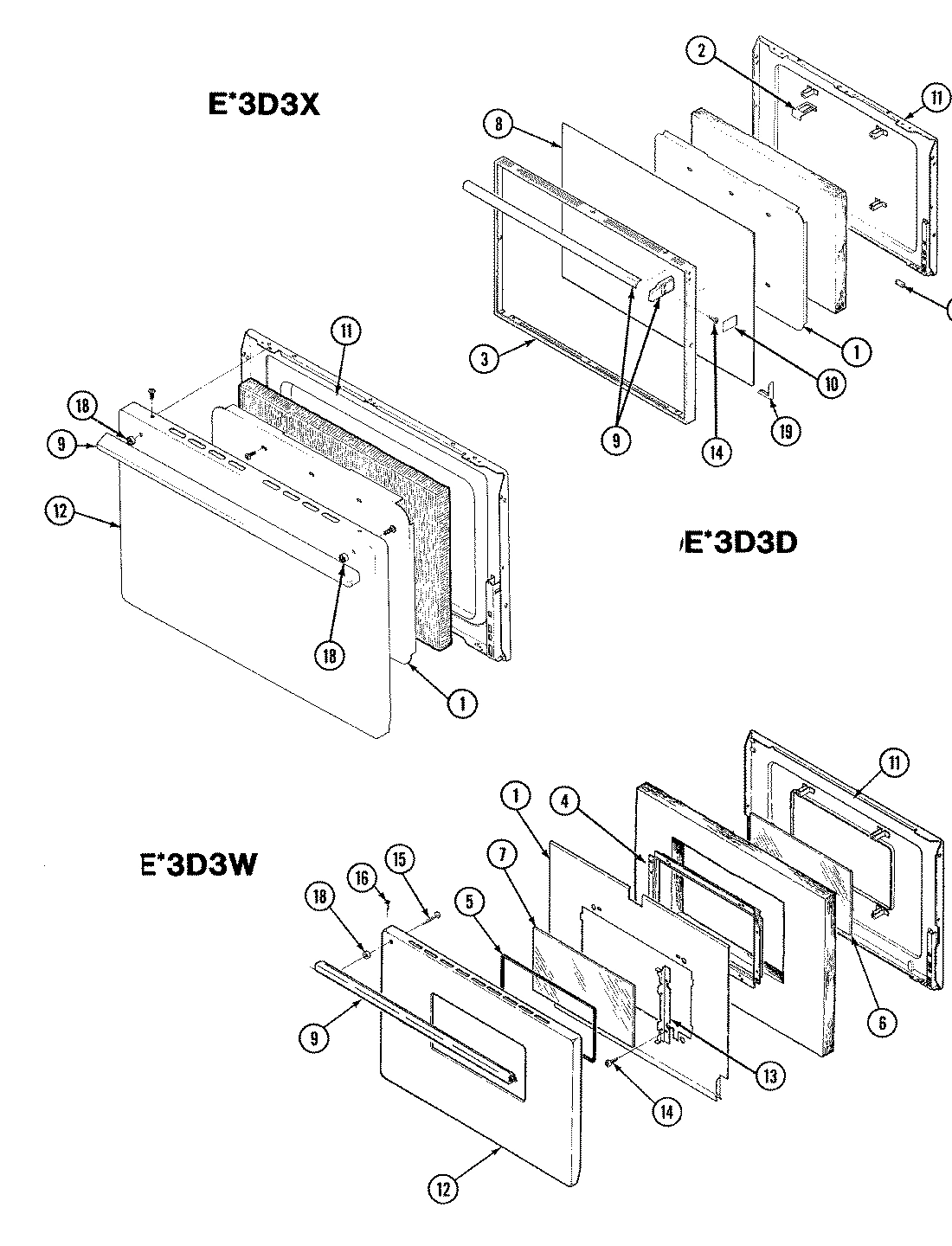

03 - DOOR

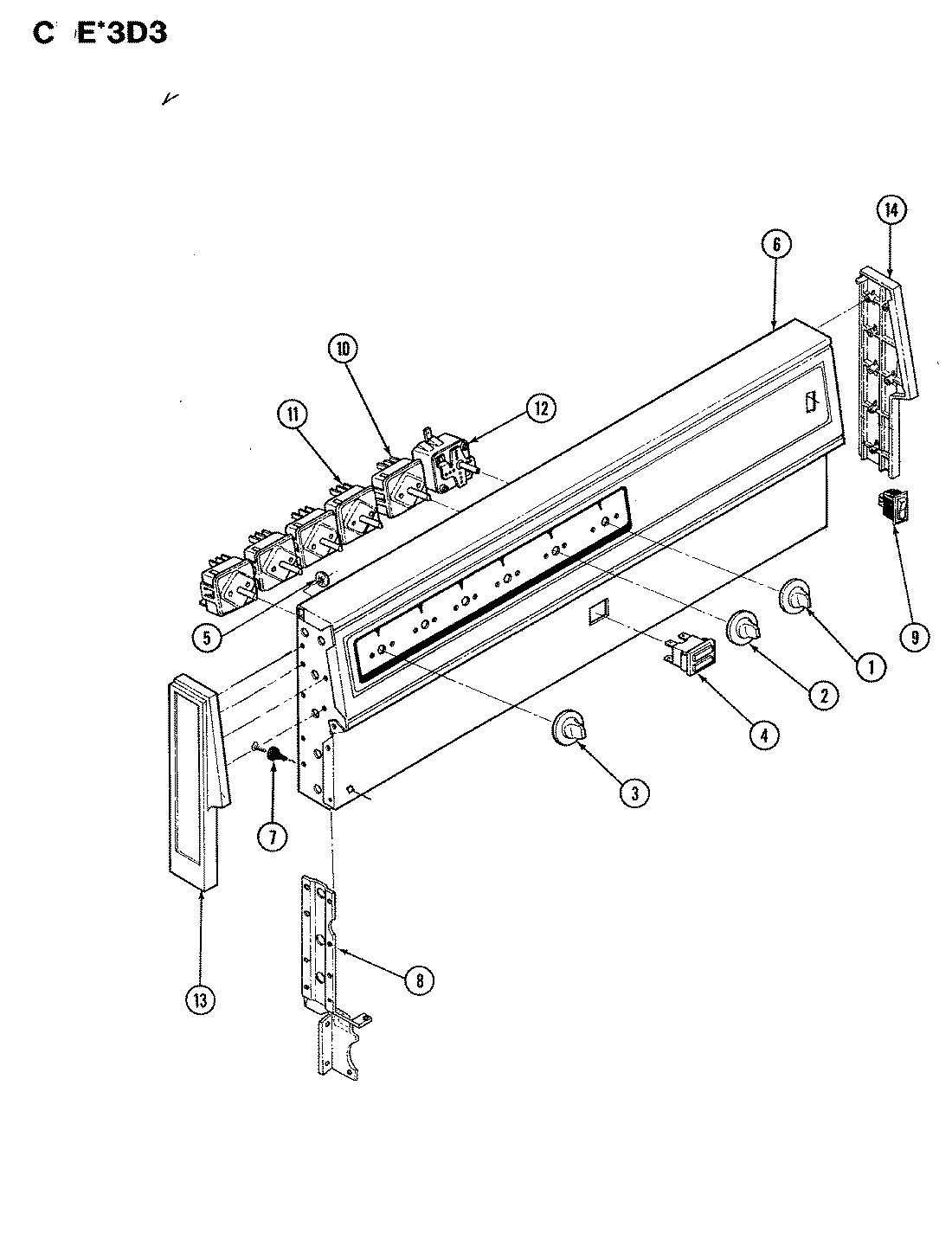

02 - CONTROL PANEL
Common parts from model Whirlpool CEW3D3D ELECTRIC RANGE
1
BACK, MAIN WPL 4002F10380 Contact Us For Availability
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
COVER, BKGD WIRE WPL 4005F25280 Contact Us For Availability
1
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
1
GASKET, COVER WPL 4005F29651 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
2
KNOB WPL 7711P32060 Contact Us For Availability
3
KNOB, SWITCH WPL 7711P32160 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F12880 Contact Us For Availability
4
LIGHT, SIGNAL WPL 7407P06860 Contact Us For Availability
5
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
6
PANEL, BKGD WHITE WPL 2601W18881 Contact Us For Availability
6
SEAL, COVER WPL 7212P03260 Contact Us For Availability
7
BRACKET WPL 3801F10051 Contact Us For Availability
7
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
7
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
7
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
7
BRACE, MAIN TOP WPL 3802F04680 Contact Us For Availability
7
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
7
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
7
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
8
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
8
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
HANDLE, DRAWER BLACK WPL 7701P01470 Contact Us For Availability
9
HANDLE, DOOR WHITE WPL 7701P01471 Contact Us For Availability
9
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
9
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
10
COVER WPL 4005F00545 Contact Us For Availability
10
COVER, BACK BURNER BOX WPL 4005F25780 Contact Us For Availability
10
COVER, FLUE BOX WPL 4005F28251 Contact Us For Availability
10
COVER,ACCESS WPL 4005F28851 Contact Us For Availability
10
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
10
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
11
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
11
SWITCH, INF. 250V WPL 7403P18160 Contact Us For Availability
12
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
12
PANEL, OVEN DR-N WPL 2401F04171 Contact Us For Availability
12
PANEL, SERVICE DRAWER WHITE WPL 2416F00671 Contact Us For Availability
12
THERMOSTAT WPL 7404P02960 Contact Us For Availability
12
TRIM BKGD WPL 7703P22760 Contact Us For Availability
13
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
13
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
13
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
13
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
14
SCREW WPL 7101P06160 Contact Us For Availability
14
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
15
FRAME, BURNER BOX WPL 4012F00780 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
16
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
16
SCREW WPL 7101P05860 Contact Us For Availability
17
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
18
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
18
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
18
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
18
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
19
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
19
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
20
BULB, OVEN WPL 7407P02660 Contact Us For Availability
21
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
22
PAN, BROIL WPL 3401F00423 Contact Us For Availability
22
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
22
NUT, NYLON WPL 7103P04560 Contact Us For Availability
22
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
23
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
24
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
24
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
24
PIN, HINGE WPL 7113P00260 Contact Us For Availability
24
RACK, OVEN WPL 7801P03060 Contact Us For Availability
25
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
26
RETAINER WPL 3804F01050 Contact Us For Availability
26
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
26
RIVET WPL 7107P01760 Contact Us For Availability
27
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
27
SCREW WPL 7101P05760 Contact Us For Availability
28
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
29
SHIELD WPL 3604F01745 Contact Us For Availability
29
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
30
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
31
SPRING WPL 7803P01360 Contact Us For Availability
31
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
32
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
33
SCREW WPL 7101P10460 Contact Us For Availability
33
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
34
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
35
SUPPORT, 6`` WPL 8004P01160 Contact Us For Availability
35
SUPPORT, 8`` WPL 8004P01260 Contact Us For Availability
36
TOP ASSY, MAIN WHITE WPL 2002W03281 Contact Us For Availability
37
TUBE, OVEN VENT WPL 8026P01560 Contact Us For Availability
37
POLI WPL 8308P00160 Contact Us For Availability
NI
WPL 8112P01760 WPL 8112P01760 Contact Us For Availability
× ![]()
