Model Whirlpool CEW3330ACW ELECTRIC WALL OVEN – Common Parts & Diagrams

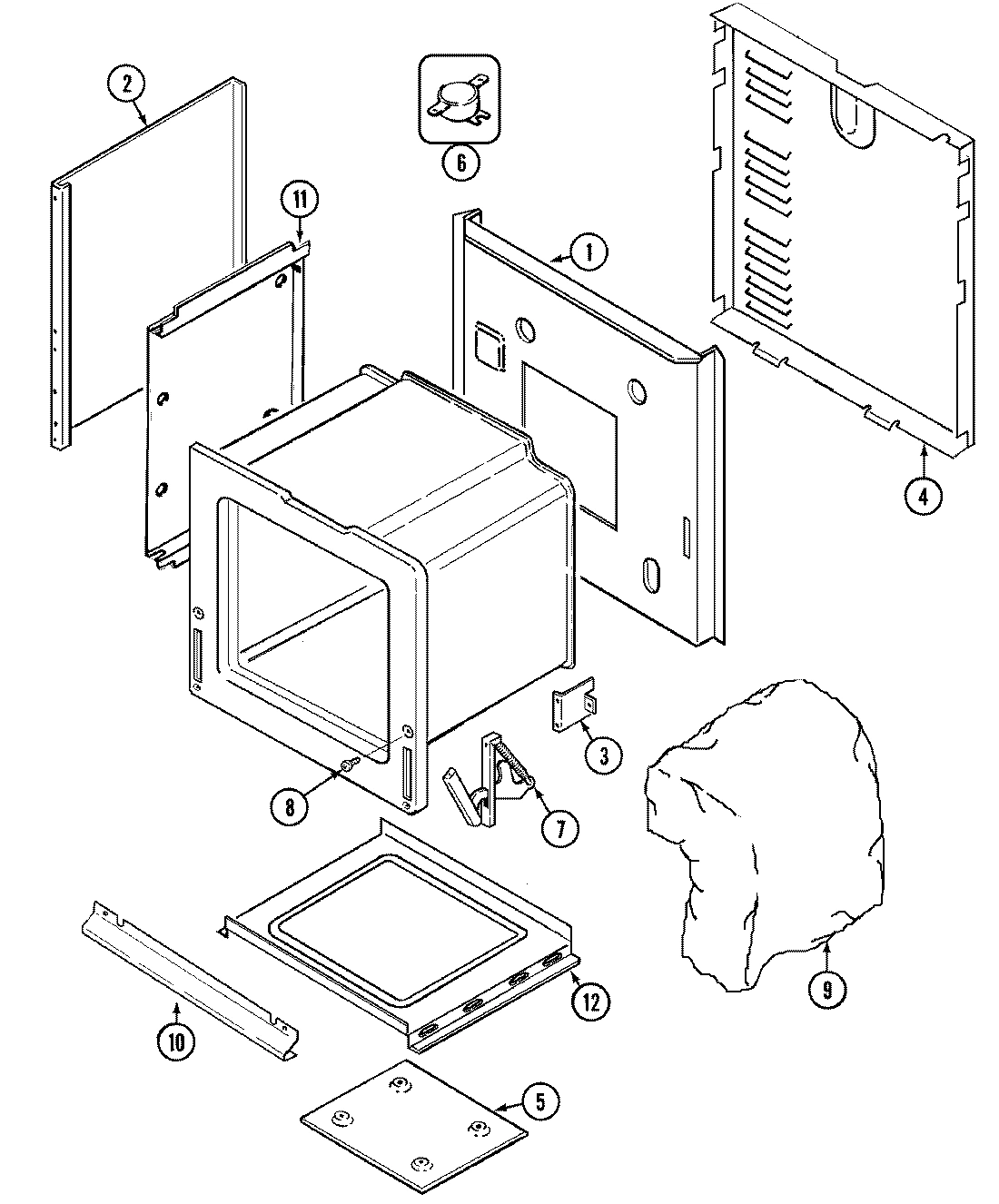

01 - BODY

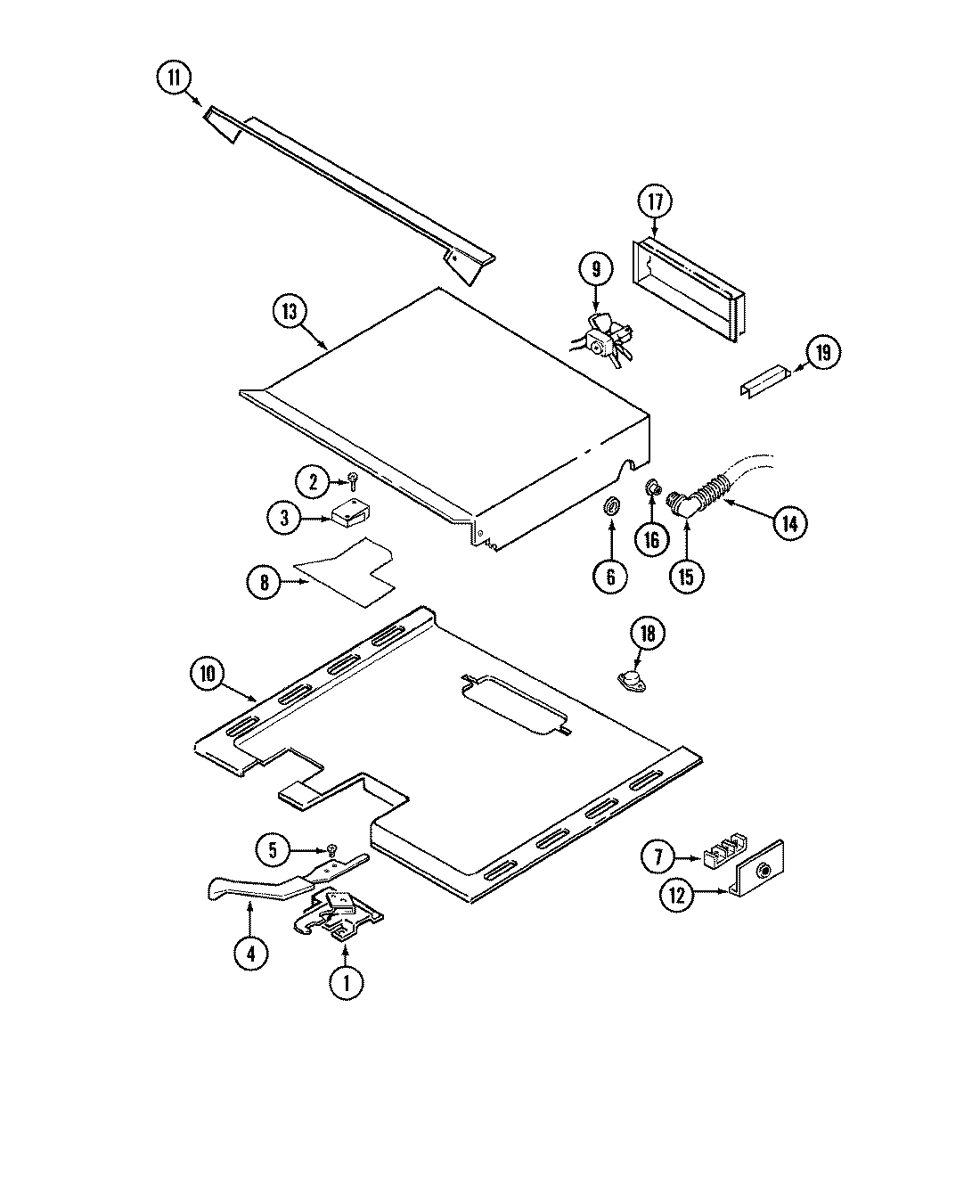

04 - INTERNAL CONTROLS

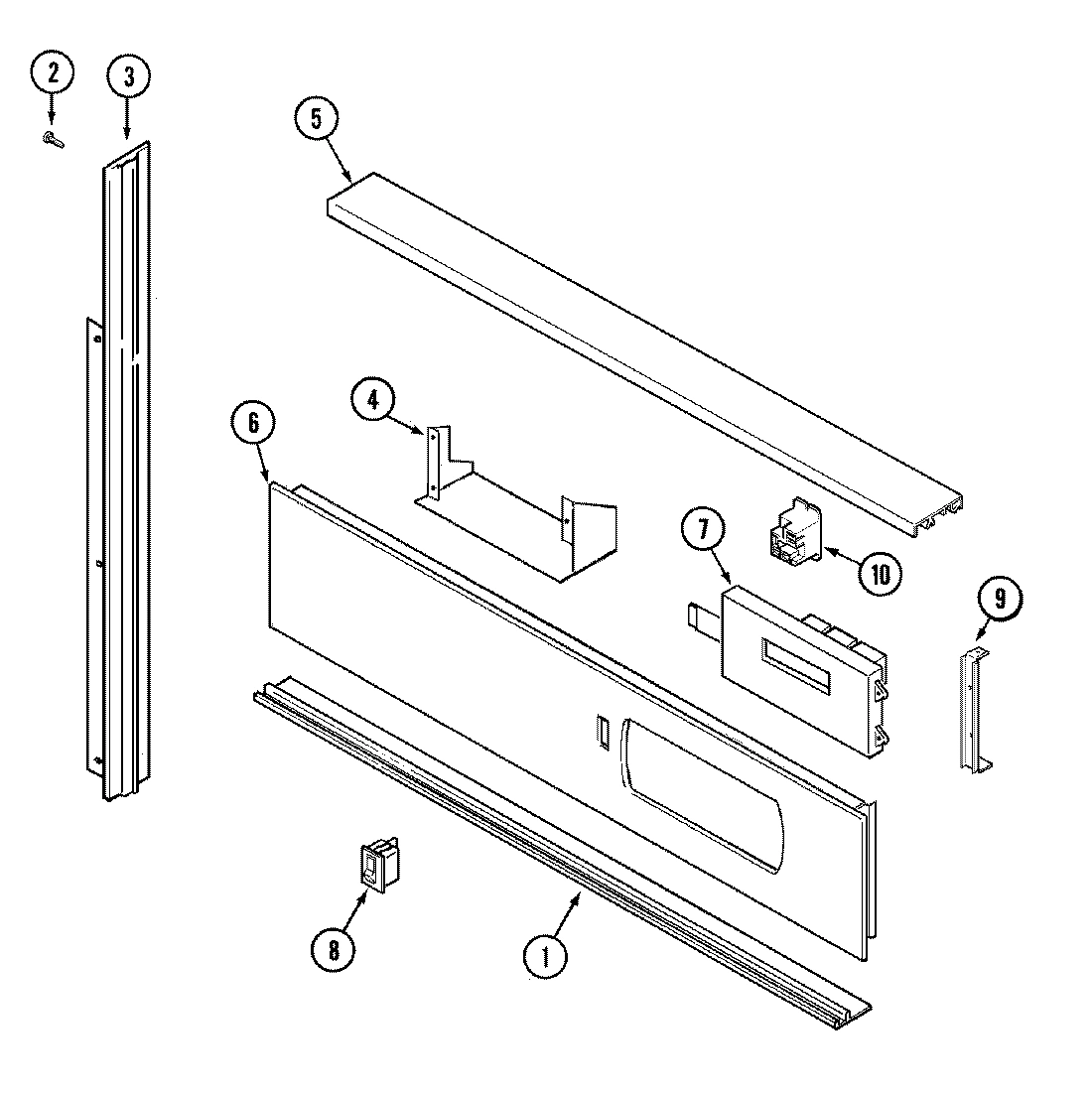

02 - CONTROL PANEL

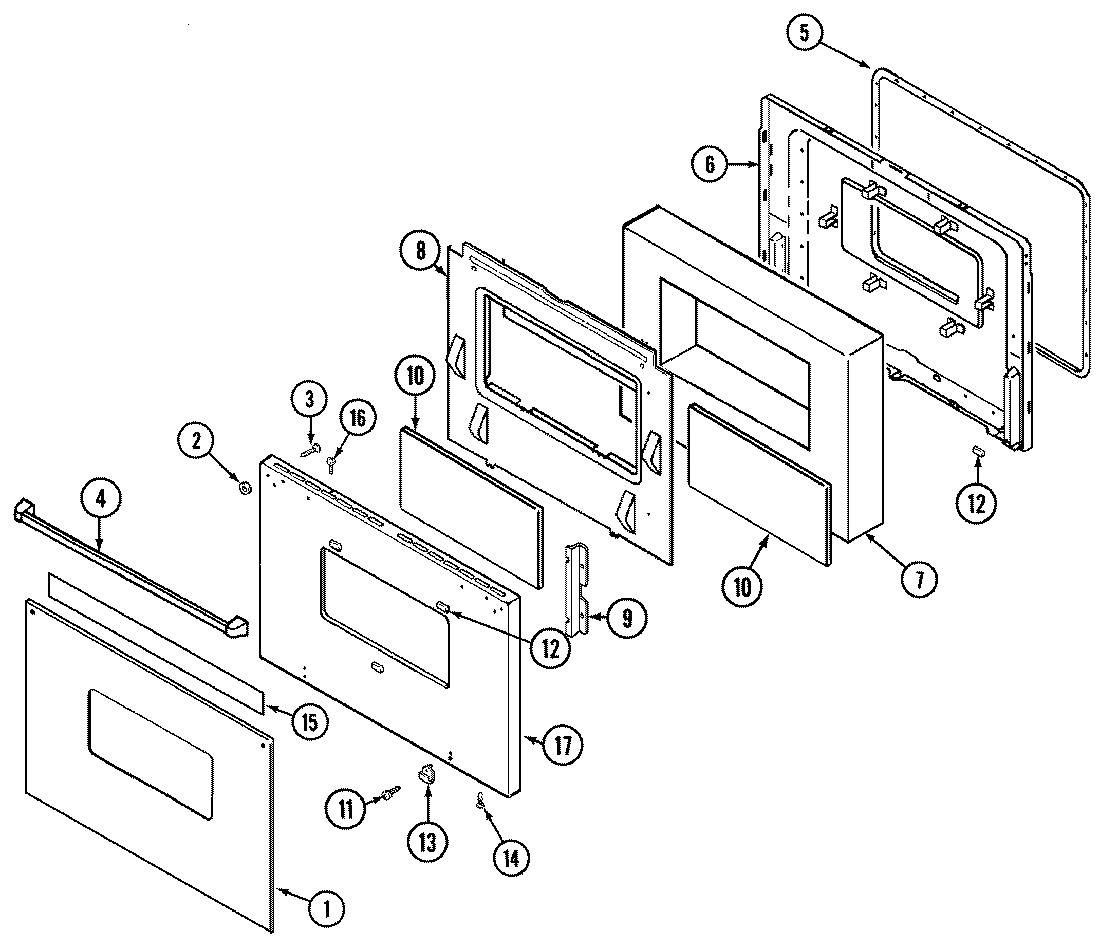

03 - DOOR

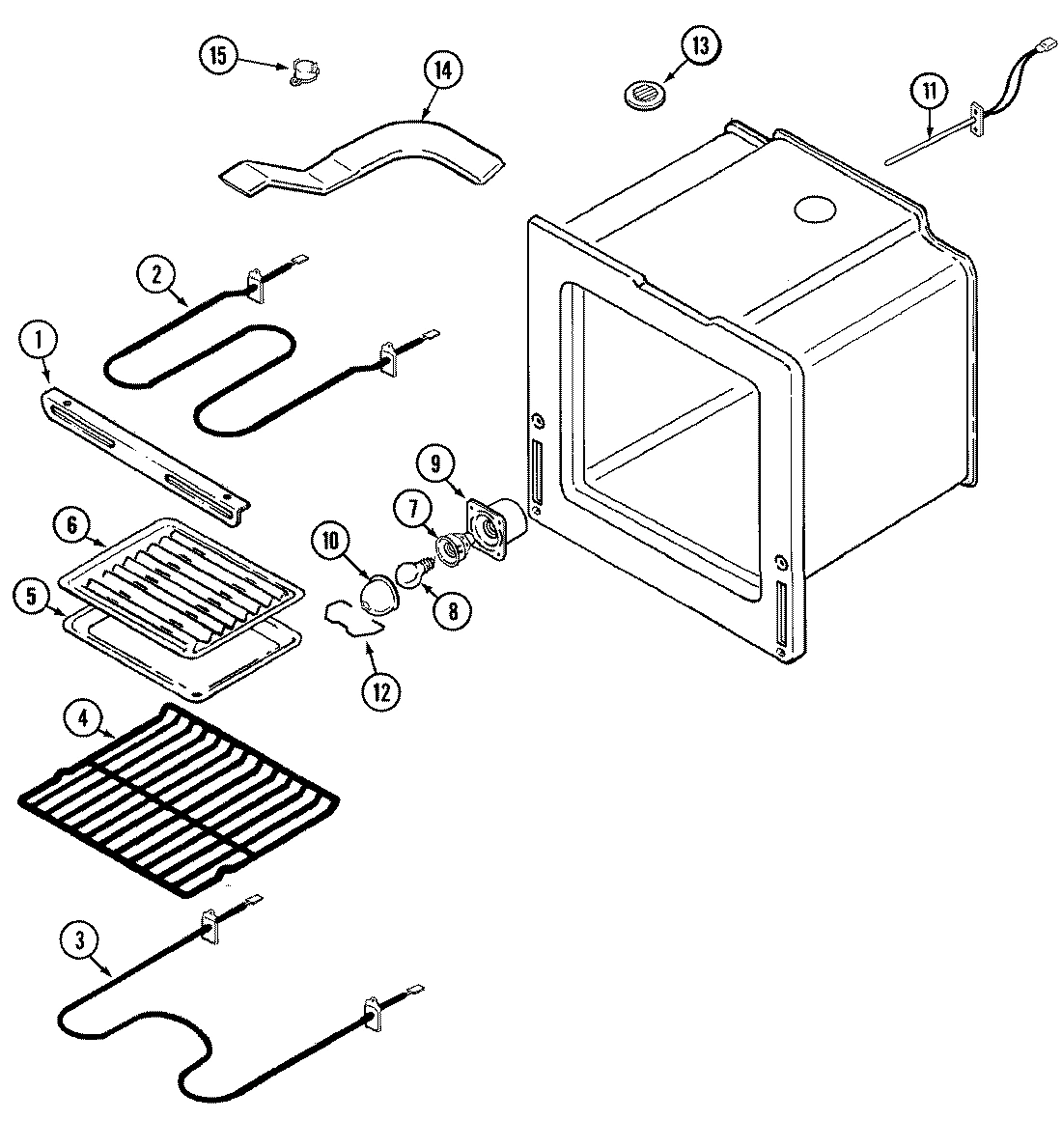

05 - OVEN/BASE

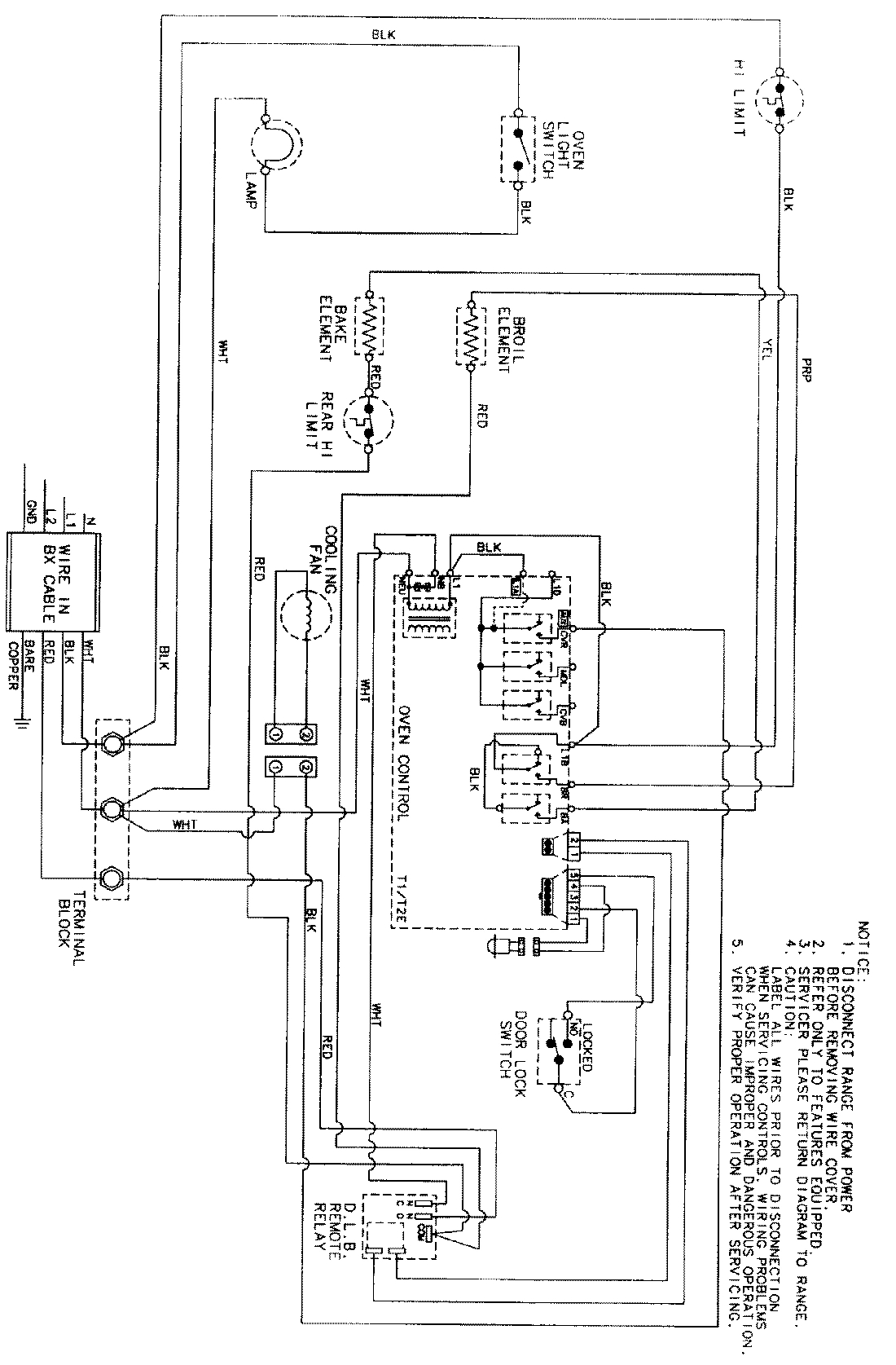

06 - WIRING INFORMATION (CEW3330ACx)
Common parts from model Whirlpool CEW3330ACW ELECTRIC WALL OVEN
1
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
1
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
1
LATCH, DOOR WPL 74003380 Contact Us For Availability
1
TRIM, VENT (CHR) WPL 71003298 Contact Us For Availability
1
GLASS, OVEN DOOR (WHT) WPL 74004104 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08251 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
2
ELEMENT, BROIL (4 PASS) WPL 74004040 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
3
TRIM, SIDE (LT-WHT) WPL 71003306 Contact Us For Availability
3
TRIM, SIDE (RT-WHT) WPL 71003307 Contact Us For Availability
3
TRIM, SIDE (RT-WHT) WPL 74004758 Contact Us For Availability
3
TRIM, SIDE (LT-WHT) WPL 74004759 Contact Us For Availability
3
SCREW WPL 7101P32660 Contact Us For Availability
3
ELEMENT, BAKE WPL 74004039 Contact Us For Availability
4
COVER, REAR WPL 4005F43451 Contact Us For Availability
4
INSULATOR, OVEN LIGHT WPL 74002240 Contact Us For Availability
4
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
4
INSULATION, FIBERBOARD WPL 71003304 Contact Us For Availability
4
HANDLE, OVEN DOOR (WHT) WPL 74003991 Contact Us For Availability
5
SHIELD, HEAT WPL 74003035 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
TRIM, TOP (WHT) WPL 71003300 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SWITCH, HI-LIMIT WPL 7403P31660 Contact Us For Availability
6
WASHER WPL 7109P00260 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 74004100 Contact Us For Availability
6
LINING, DOOR WPL 74003244 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
BLOCK, DISCONNECT (MALE) WPL 74002230 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
7
CLOCK (WHT) WPL 71003316 Contact Us For Availability
7
OVERLAY, CLOCK (WHT) WPL 74004102 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
INSULATOR, LATCH SWITCH WPL 74001804 Contact Us For Availability
8
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
8
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
INSULATION, OVEN WRAP WPL 74003036 Contact Us For Availability
9
BRACKET, CLOCK MOUNTING WPL 71003305 Contact Us For Availability
9
RETAINER, GLASS WPL 74001844 Contact Us For Availability
9
HOUSING, BULB WPL 74003388 Contact Us For Availability
10
SHIELD, VENT (LWR-WHT) WPL 74004095 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 74004094 Contact Us For Availability
10
GLASS, INNER WPL 74001841 Contact Us For Availability
10
COVER, BULB WPL 74003389 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 74001436 Contact Us For Availability
11
COVER, FAN HOUSING WPL 4005F43151 Contact Us For Availability
12
BOTTOM, MAIN WPL 74001742 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
12
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
12
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09251 Contact Us For Availability
13
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
13
SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability
14
TUBING, CONDUIT WPL 74003953 Contact Us For Availability
14
TUBE, VENT WPL 74004097 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
SWITCH, FAN WPL 74004098 Contact Us For Availability
16
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
16
GROMMET WPL 8008P01760 Contact Us For Availability
17
COVER, FAN WPL 4005F26251 Contact Us For Availability
17
PANEL, DOOR (WHT) WPL 71002809 Contact Us For Availability
18
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P31360 Contact Us For Availability
19
RACEWAY, WIRE WPL 3830F00851 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
HARNESS, MAIN WPL 71003317 Contact Us For Availability
NI
SCREW (WHT) WPL 74001388 Contact Us For Availability
NI
SPACER, MTG. ADAPTER (WHT) WPL 74001393 Contact Us For Availability
NI
MANUAL, USE & CARE (FCH) WPL 74004103 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002473 Contact Us For Availability
× ![]()
