Model Electrolux CEC1M2WSAC RANGE – Common Parts & Diagrams

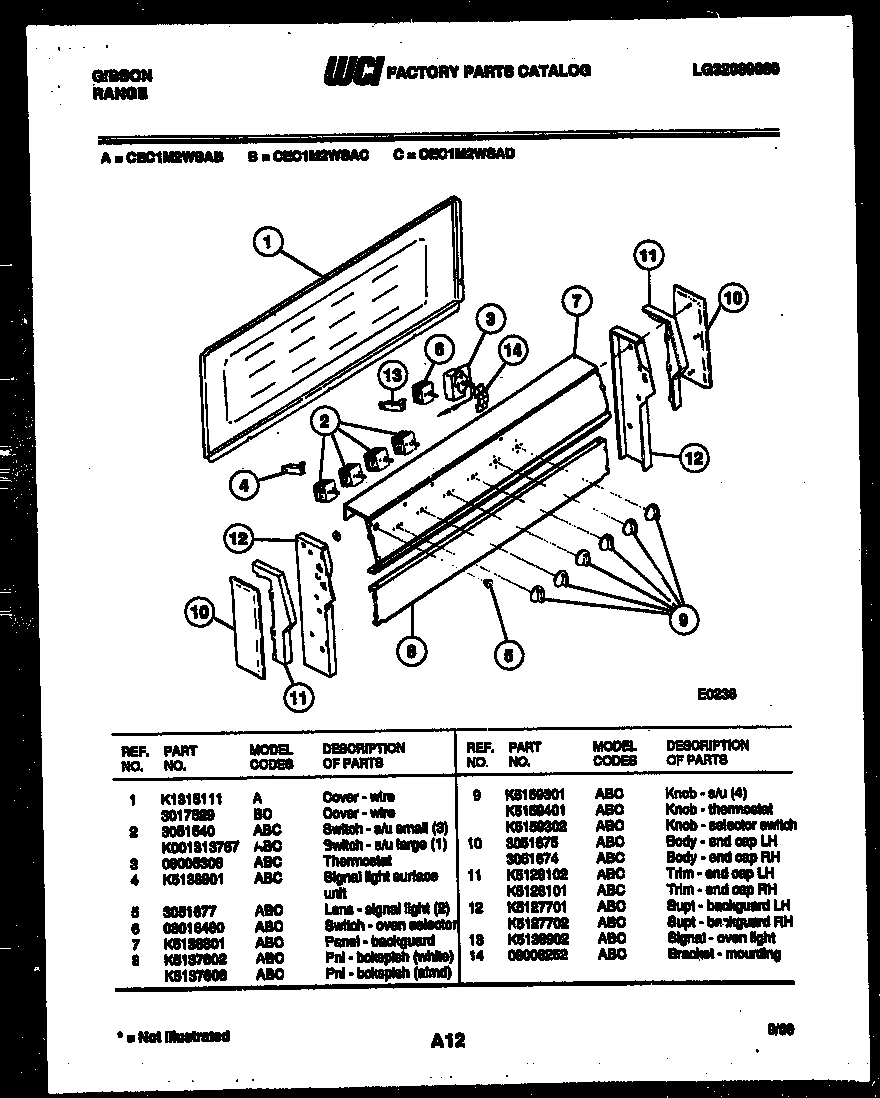

02 - BACKGUARD

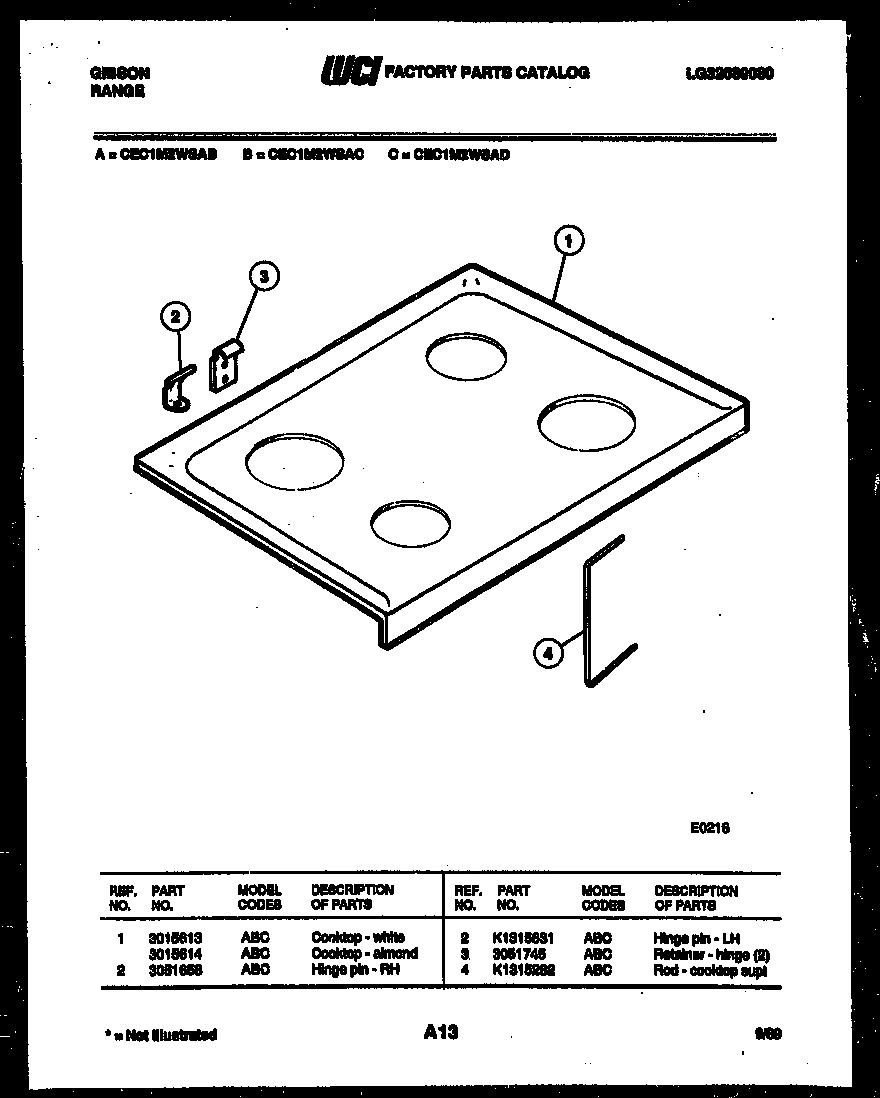

03 - COOKTOP PARTS

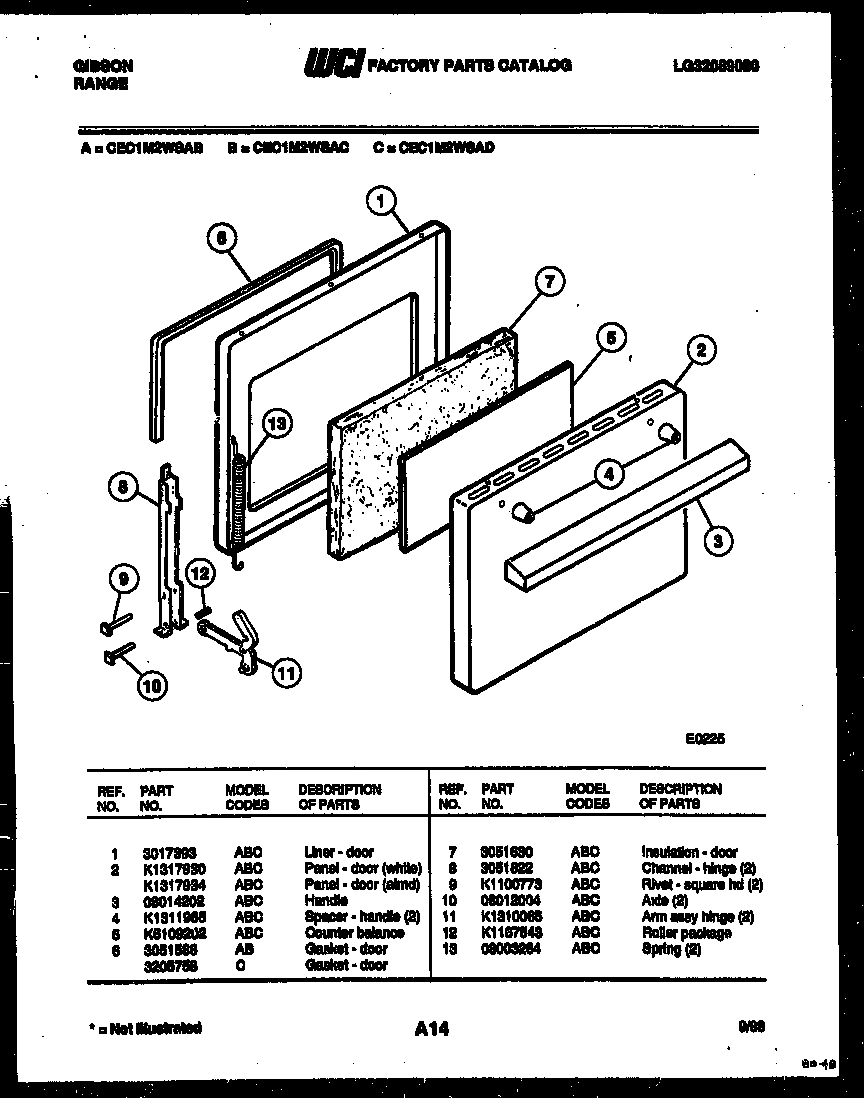

04 - DOOR PARTS

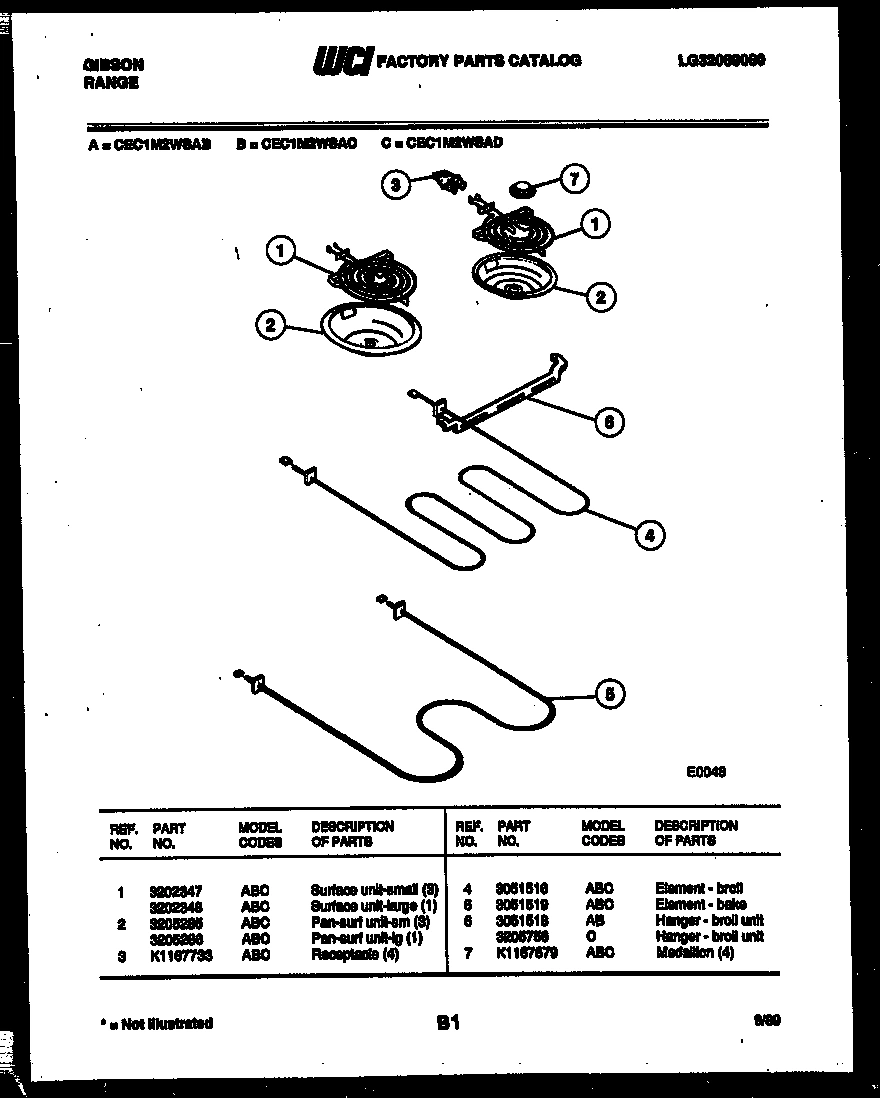

05 - BROILER PARTS

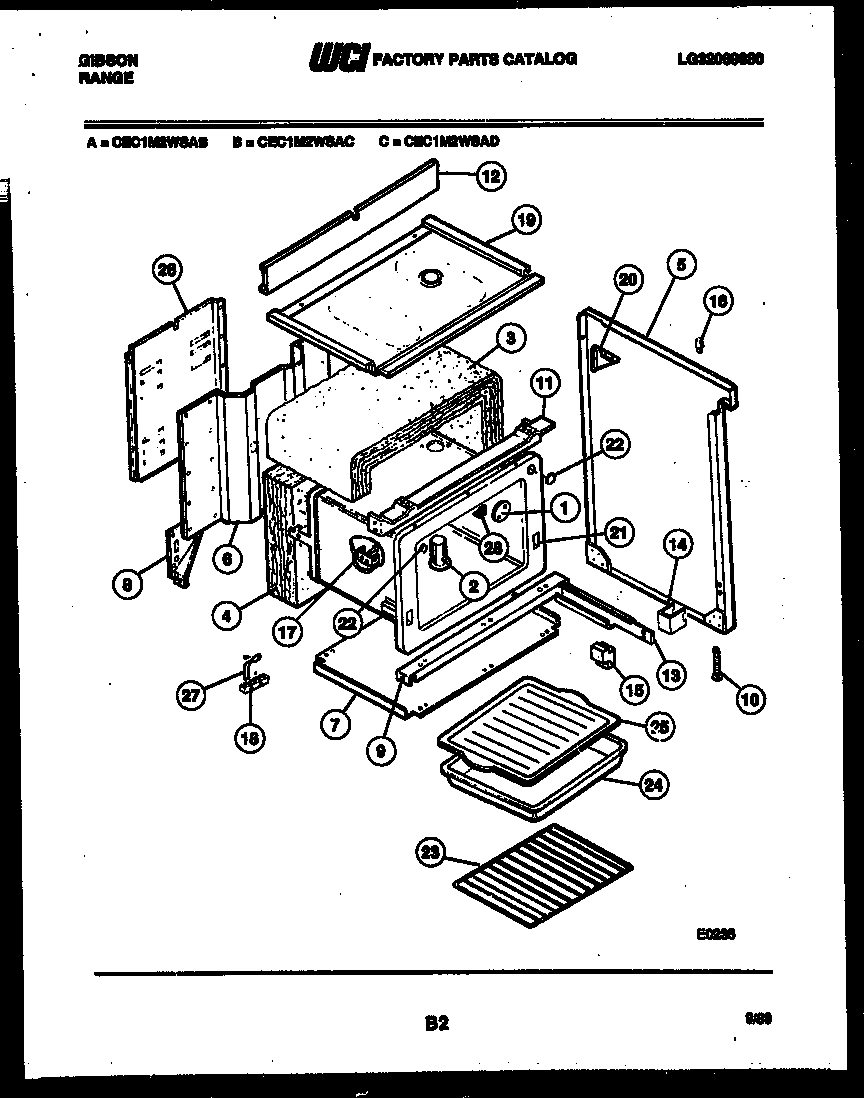

06 - BODY PARTS

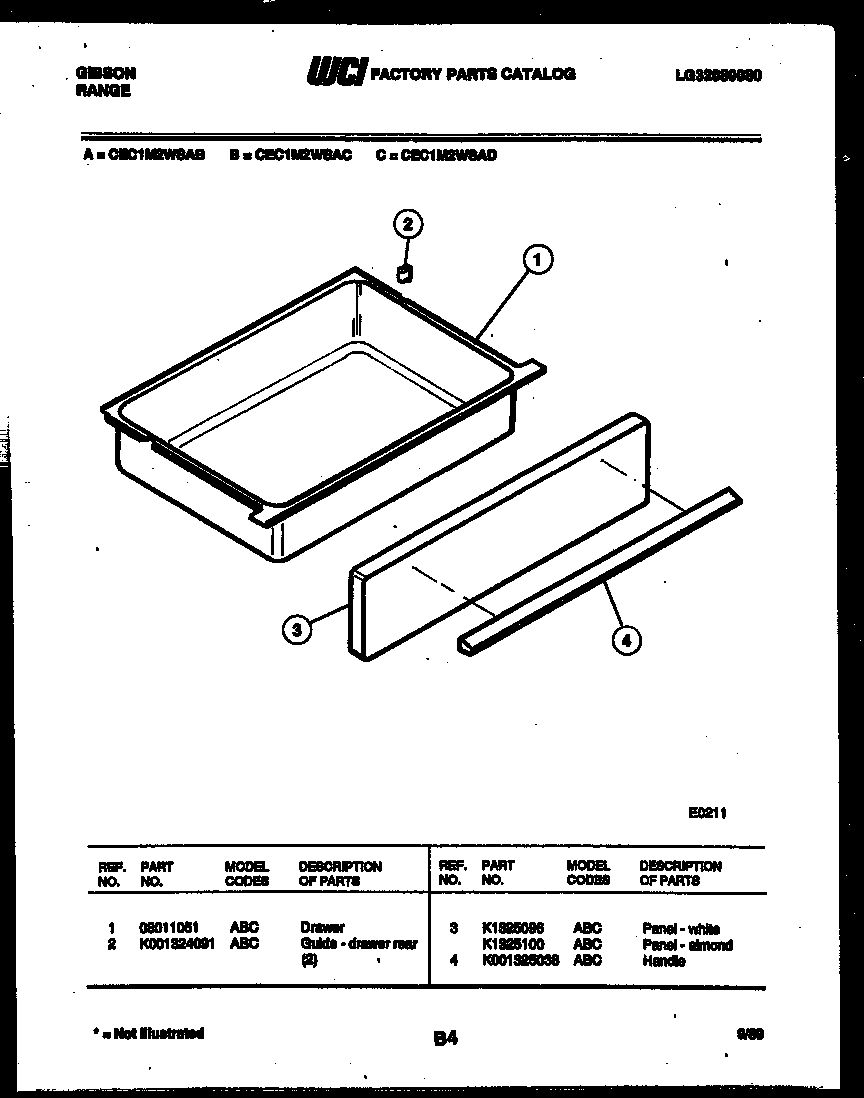

07 - DRAWER PARTS
Common parts from model Electrolux CEC1M2WSAC RANGE
*18985
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017529 WCI 3017529 Contact Us For Availability
1
WCI 3015613 WCI 3015613 Contact Us For Availability
1
WCI 3015614 WCI 3015614 Contact Us For Availability
1
WCI 3017393 WCI 3017393 Contact Us For Availability
1
COVER-OVEN LIGHT HOLE WCI K1325524 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
2
WCI 3051658 WCI 3051658 Contact Us For Availability
2
WCI K1315631 WCI K1315631 Contact Us For Availability
2
PANEL-DOOR WHITE WCI K1317930 Contact Us For Availability
2
WCI K1317934 WCI K1317934 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
2
WCI K001324091 WCI K001324091 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
3
WCI 08014202 WCI 08014202 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
PANEL, WHITE WCI K1325096 Contact Us For Availability
3
WCI K1325100 WCI K1325100 Contact Us For Availability
4
SIGNAL LIGHT SURFACE UNIT WCI K5138901 Contact Us For Availability
4
ROD, COOKTOP SUPT. WCI K1315232 Contact Us For Availability
4
SPACER HANDLE (2) WCI K1311965 Contact Us For Availability
4
INSULATION - OVEN BACK WCI 3051522 Contact Us For Availability
4
WCI K001325038 WCI K001325038 Contact Us For Availability
5
LENS - SIGNAL LIGHT (2) WCI 3051677 Contact Us For Availability
5
COUNTER BALANCE WCI K5109202 Contact Us For Availability
5
PNL - SIDE RH (WHITE) WCI K5024601 Contact Us For Availability
5
PNL - SIDE RH (ALMD) WCI K5024603 Contact Us For Availability
5A
PNL - SIDE LH (WHITE) WCI K5024602 Contact Us For Availability
5A
PNL - SIDE LH (ALMD) WCI K5024604 Contact Us For Availability
6
WCI 08016480 WCI 08016480 Contact Us For Availability
6
GASKET-DOOR WCI 3051586 Contact Us For Availability
6
HANGER - BROIL UNIT WCI 3051518 Contact Us For Availability
6
WCI K5275802 WCI K5275802 Contact Us For Availability
7
WCI K5138801 WCI K5138801 Contact Us For Availability
7
INSULATION-DOOR WCI 3051630 Contact Us For Availability
7
MEDALLION (4) WCI K1167679 Contact Us For Availability
7
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
8
PNL - BCKSPLSH (WHITE) WCI K5137602 Contact Us For Availability
8
WCI K5137606 WCI K5137606 Contact Us For Availability
8
CHANNEL - HINGE (2) WCI 3051822 Contact Us For Availability
8
GUSSET - REAR (2) WCI 3051636 Contact Us For Availability
9
KNOB-S/U (4) WCI K5159301 Contact Us For Availability
9
RIVET - SQUARE HD (2) WCI K1100773 Contact Us For Availability
9
WCI 3200927 WCI 3200927 Contact Us For Availability
9A
WCI K5159401 WCI K5159401 Contact Us For Availability
9B
KNOB - SELECTOR SWITCH WCI K5159302 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
AXLE (2) WCI 08012004 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI K5128102 WCI K5128102 Contact Us For Availability
11
ARM ASSY HINGE (2) WCI K1310065 Contact Us For Availability
11
WCI 3200926 WCI 3200926 Contact Us For Availability
11A
WCI K5128101 WCI K5128101 Contact Us For Availability
12
SUPT - BACKGUARD LH WCI K5127701 Contact Us For Availability
12
ROLLER PACKAGE WCI K1167543 Contact Us For Availability
12
WCI 3205755 WCI 3205755 Contact Us For Availability
12A
SUPT - BACKGUARD RH WCI K5127702 Contact Us For Availability
13
SIGNAL - OVEN LIGHT WCI K5138902 Contact Us For Availability
13
WCI 08003264 WCI 08003264 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
WCI 08003252 WCI 08003252 Contact Us For Availability
14
SPACER-DRAWER RAIL (2) WCI K1324860 Contact Us For Availability
15
GUIDE-DRAWER FRONT (2) WCI K1315216 Contact Us For Availability
16
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
17
BRKT - THERMO BULB (2) WCI K1311369 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
GUSSET-BACKGUARD (2) WCI K1315230 Contact Us For Availability
21
WCI 3204603 WCI 3204603 Contact Us For Availability
22
WCI 3051784 WCI 3051784 Contact Us For Availability
24
WCI 3205232 WCI 3205232 Contact Us For Availability
25
GRILL - BROILER WCI 3205234 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
× ![]()
