Model Whirlpool CDU600CB DISHWASHER – Common Parts & Diagrams

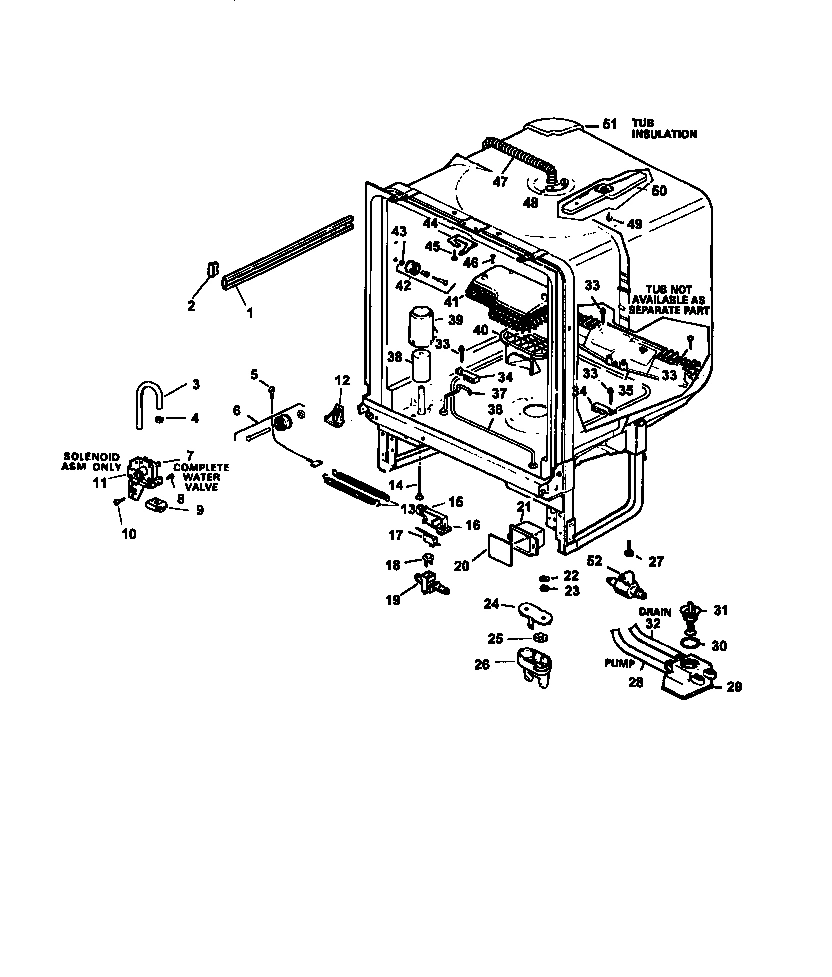

06 - TUB

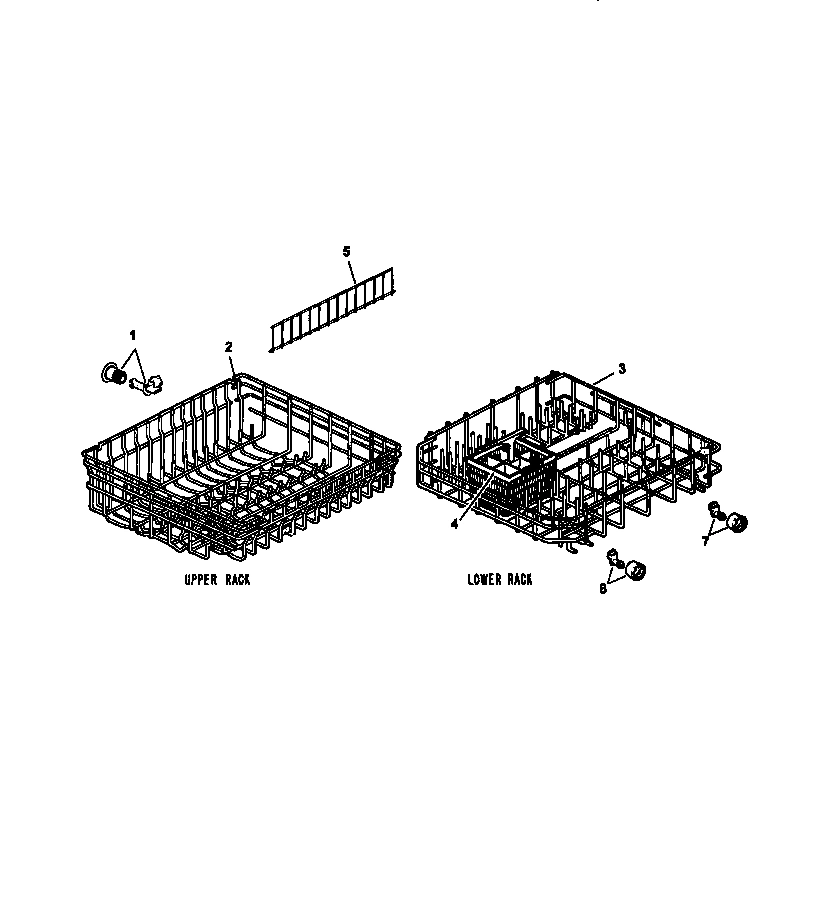

05 - RACK

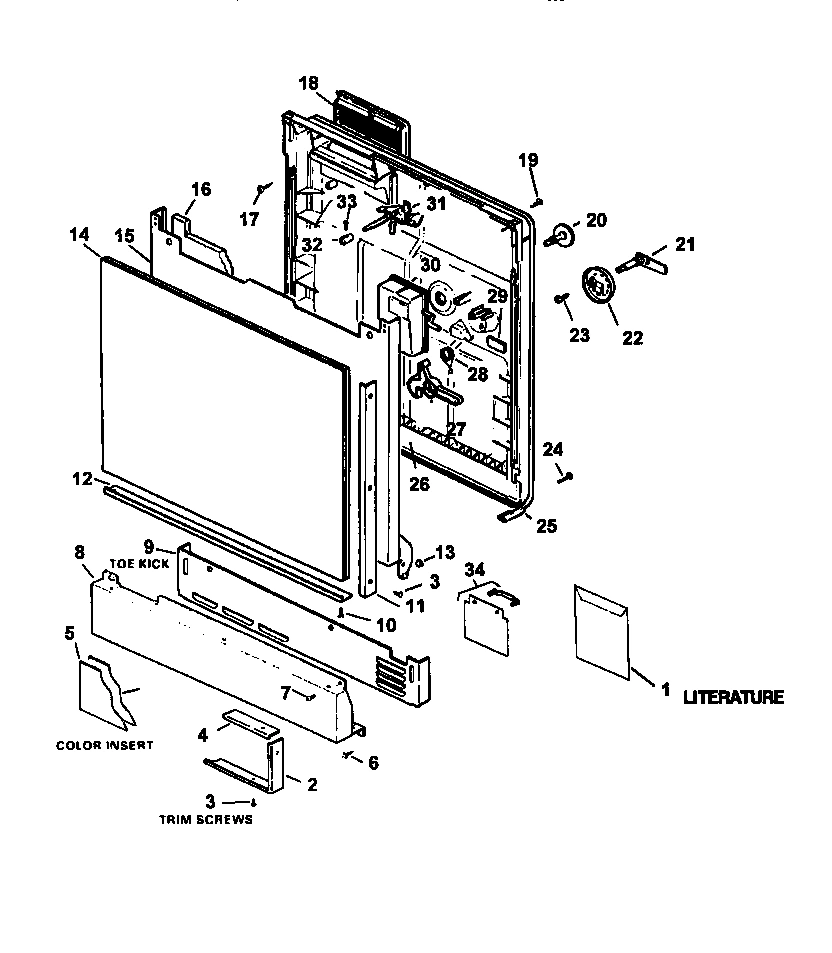

02 - DOOR

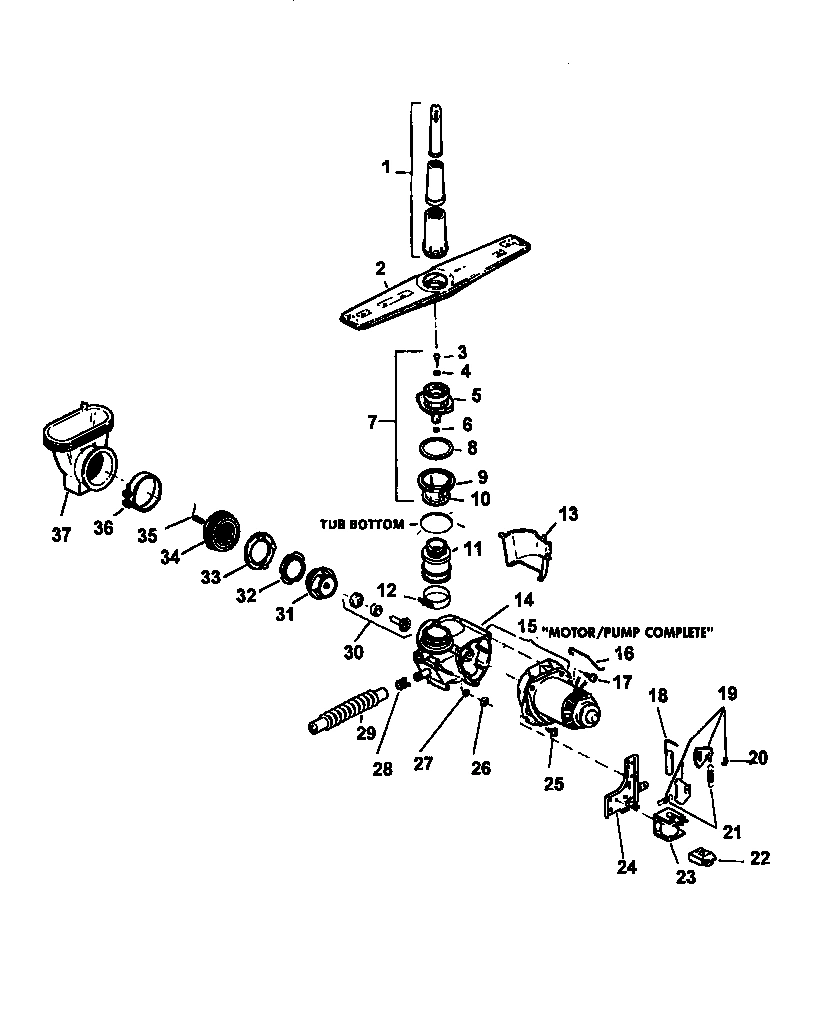

04 - MOTOR/PUMP

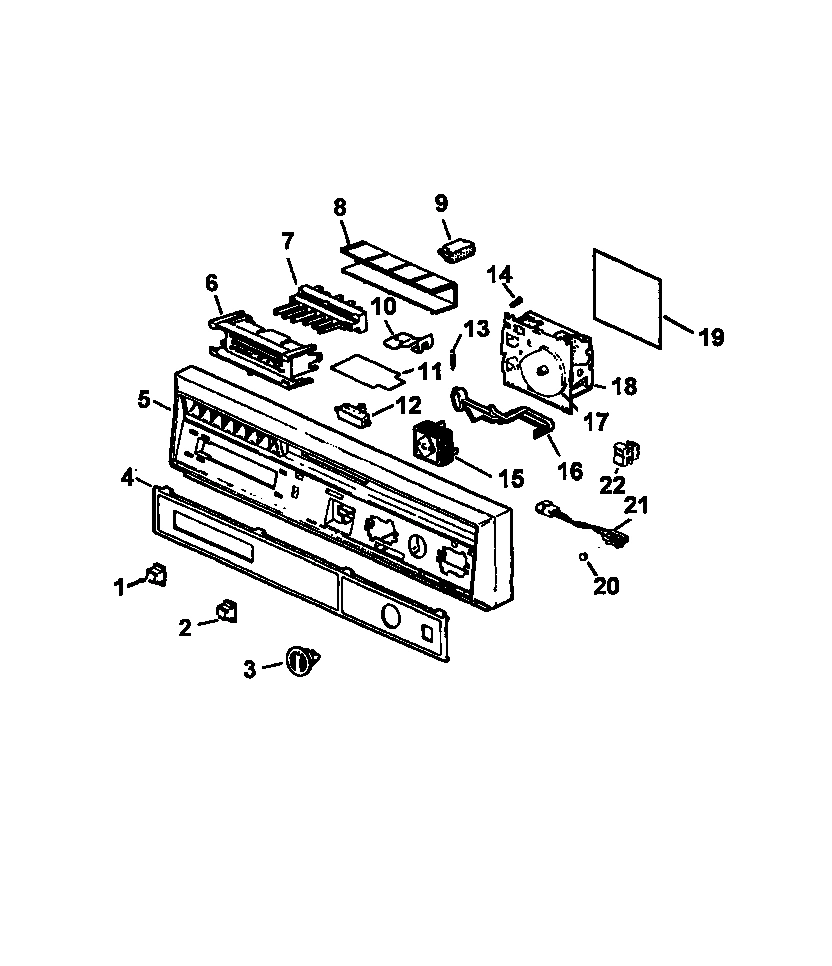

01 - CONTROL PANEL

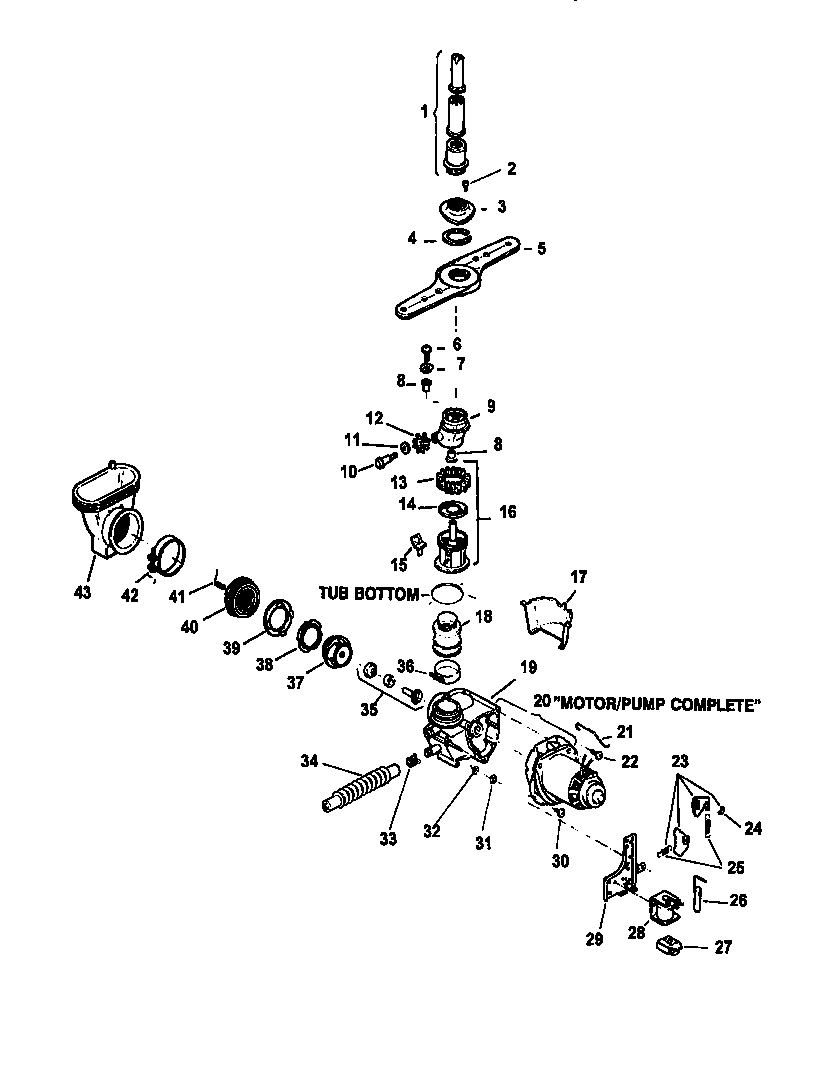

03 - MOTOR/PUMP
Common parts from model Whirlpool CDU600CB DISHWASHER
1
RACK SLIDE WPL R0905567 Contact Us For Availability
1
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
1
INSTR INSTALL {DW} WPL R0913059 Contact Us For Availability
1
OWNERS MANUAL (AM DISHWASHER) WPL R0913060 Contact Us For Availability
1
INSTR. OPERATING WPL R0913079 Contact Us For Availability
1
MNL, MINI SHEET WPL R0913080 Contact Us For Availability
1
ASSEMBLY-CENTER SPRAY WPL R0910057 Contact Us For Availability
1
PUSH BUTTON WPL R0903542 Contact Us For Availability
1
CENTER SPRAY ASSY WPL R0910017 Contact Us For Availability
2
END CAP WPL R0903517 Contact Us For Availability
2
UPPER RACK & ROLLER TM WPL R0910161 Contact Us For Availability
2
TRIM-SIDE/BOT SERV PANEL WPL R0905653 Contact Us For Availability
2
ASSY SPRAY ARM SHIELD WPL R0910055 Contact Us For Availability
2
PUSHBUTTON WPL R0903540 Contact Us For Availability
3
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
3
RACK & ROLLER ASSY. (LWR) WPL R0910162 Contact Us For Availability
3
SCREW, HUB WPL R0900026 Contact Us For Availability
3
ASSY, TIMER KNOB WPL R0903601 Contact Us For Availability
3
ADAPTER PWR TWR WPL R0905558 Contact Us For Availability
4
BASKET, SILVERWARE WPL R0910060 Contact Us For Availability
4
TRIM-TOP SERV PANEL WPL R0905648 Contact Us For Availability
4
THRUST WASHER WPL R0900508 Contact Us For Availability
4
INSERT ESCUTCHEON WPL R0905751 Contact Us For Availability
4
SEAL, SPLIT RING WPL R0905557 Contact Us For Availability
5
CABLE AND EYELET WPL R0905640 Contact Us For Availability
5
SHELF CUP WPL R0910157 Contact Us For Availability
5
INSERT, DOOR PANEL WPL R0903019 Contact Us For Availability
5
SPRAY ARM HUB WPL R0910056 Contact Us For Availability
5
ESCUTCHEON WPL R0905749 Contact Us For Availability
5
SPRAY ARM WPL R0910051 Contact Us For Availability
6
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
6
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
6
LOWER ROLLER ASSY WPL R0910149 Contact Us For Availability
6
RETAINER WPL R0905592 Contact Us For Availability
6
SCREW, HUB WPL R0900045 Contact Us For Availability
7
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
7
ROLLER ASSY WPL R0910150 Contact Us For Availability
7
SCREW WPL R0900017 Contact Us For Availability
7
HUB & SUPPT. WPL R0903515 Contact Us For Availability
7
SWITCH, PUSH BUTTON WPL R0902531 Contact Us For Availability
7
WASHER WPL R0900502 Contact Us For Availability
8
SCREW WPL R0900011 Contact Us For Availability
8
PANEL,ACCESS AND SCREW BK WPL R0903035 Contact Us For Availability
8
KIT SPRAY ASSY WPL R0903535 Contact Us For Availability
8
COVER WPL R0905593 Contact Us For Availability
8
BEARING WPL R0905556 Contact Us For Availability
9
TOE KICK ASSY WPL R0903022 Contact Us For Availability
9
SEE NOTE NOT STOCKED SEPARATELY-SEE ITEM 7 FO WPL Y00000000 Contact Us For Availability
9
HOUSING TERMINAL WPL R0910049 Contact Us For Availability
9
TERM SPEC.(1=12) WPL R0910050 Contact Us For Availability
9
HUB/PINION ASSY WPL R0905555 Contact Us For Availability
10
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
10
SWITCH LEAF WPL R0905533 Contact Us For Availability
11
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
11
TRIM DOOR SIDE WPL R0905644 Contact Us For Availability
11
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
11
WASHER WPL R0900504 Contact Us For Availability
12
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
12
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
12
TRIM-DOOR BOTTOM WPL R0905645 Contact Us For Availability
12
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
12
PINION GEAR WPL R0910016 Contact Us For Availability
13
DOOR SPRING BLUE WPL R0905503 Contact Us For Availability
13
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
13
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
13
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
13
NUT WPL R0901004 Contact Us For Availability
14
FLOAT STEM WPL R0905512 Contact Us For Availability
14
INSERT, DOOR PANEL WPL R0903018 Contact Us For Availability
14
SCREW WPL R0900009 Contact Us For Availability
14
SEAL LOWER WPL R0910029 Contact Us For Availability
15
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
15
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
15
CHECK VALVE WPL R0910037 Contact Us For Availability
15
SWITCH, CYCLE WPL R0902507 Contact Us For Availability
16
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
16
INSULATION WPL R0904524 Contact Us For Availability
16
LEVER, TIMER WPL R0905545 Contact Us For Availability
16
SUPT & NUT ARM WPL R0901009 Contact Us For Availability
17
SWITCH FLOOD WPL R0902501 Contact Us For Availability
17
GUARD WPL R0905522 Contact Us For Availability
17
CAM-TIMER WPL R0904009 Contact Us For Availability
18
THERMOSTAT, WATER WPL R0911002 Contact Us For Availability
18
DOOR VENT WPL R0905536 Contact Us For Availability
18
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
18
TIMER WPL R0904022 Contact Us For Availability
19
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
19
SHIELD, TIMER WPL R0904016 Contact Us For Availability
20
COVER, JUNC BOX WPL R0903032 Contact Us For Availability
20
ASSY RINSE AID DISP. WPL R0910155 Contact Us For Availability
20
MOTOR/PUMP ASSY DISHWA WPL R0907005 Contact Us For Availability
20
LENS WPL R0910061 Contact Us For Availability
21
BOX, JUNCTION WPL R0903587 Contact Us For Availability
21
SHAFT HAND D CUP WPL R0905538 Contact Us For Availability
21
HANGER MECHANISM WPL R0905712 Contact Us For Availability
21
ASS`Y PILOT LIGHT WPL R0910163 Contact Us For Availability
22
WASHER WPL R0900501 Contact Us For Availability
22
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
22
SCREW WPL R0900007 Contact Us For Availability
23
GROMMET WPL R0906502 Contact Us For Availability
23
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
24
BASE BARRIER WPL R0903580 Contact Us For Availability
24
SCREW WPL R0900006 Contact Us For Availability
24
RETAINER WPL R0901503 Contact Us For Availability
25
NUT WPL R0901001 Contact Us For Availability
25
DOOR GASKET WPL R0904501 Contact Us For Availability
25
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
26
BARRIER, HTG ELEMENT WPL R0903581 Contact Us For Availability
26
DOOR, INNER WPL R0903021 Contact Us For Availability
26
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
27
INSUL, HSG TERMINAL WPL R0903582 Contact Us For Availability
27
LEG, LEVELING WPL R0905506 Contact Us For Availability
27
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
28
HOSE, CHAMBER WPL R0906506 Contact Us For Availability
28
TRIP SPRING WPL R0905542 Contact Us For Availability
28
SOLENOID KIT WPL R0909003 Contact Us For Availability
29
COLL. CHAMBER WPL R0910054 Contact Us For Availability
29
DEFLECTER WPL R0905523 Contact Us For Availability
29
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
30
GASKET WPL R0904503 Contact Us For Availability
30
SCREW WPL R0900002 Contact Us For Availability
30
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
31
PISTON & NUT ASSY WPL R0903586 Contact Us For Availability
31
LATCH ASM WPL R0910121 Contact Us For Availability
31
NUT WPL R0906510 Contact Us For Availability
32
HOSE, CHAMBER TO CHECK VALVE WPL R0906511 Contact Us For Availability
32
KNOB, LATCH WPL R0903532 Contact Us For Availability
32
SEAL, SHAFT WPL R0906504 Contact Us For Availability
33
CLAMP WPL R0901510 Contact Us For Availability
34
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
34
DRIP SHIELD WPL R0910011 Contact Us For Availability
34
DRAIN TUBE ASM WPL R0903584 Contact Us For Availability
35
ASSY, FILTER FRAME WPL R0910122 Contact Us For Availability
35
SEAL,PUMP WPL R0910148 Contact Us For Availability
36
HEATER WPL R0911009 Contact Us For Availability
37
SUPPORT, HEATER WPL R0911008 Contact Us For Availability
37
PUMP IMPELLER WPL R0905519 Contact Us For Availability
38
FLOOD FLOAT WPL R0903501 Contact Us For Availability
38
WEAR RING WPL R0905520 Contact Us For Availability
39
FLOAT WPL R0905511 Contact Us For Availability
39
WEAR RING BASE WPL R0905518 Contact Us For Availability
40
CAP, SUMP WPL R0905718 Contact Us For Availability
40
NUT WPL R0905563 Contact Us For Availability
41
COVER INLET WPL R0905717 Contact Us For Availability
41
SPRING, CUTTER WPL R0905521 Contact Us For Availability
42
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
43
SUMP, INLET WPL R0905719 Contact Us For Availability
44
LATCH KEEPER WPL R0905505 Contact Us For Availability
45
SCREW WPL R0900025 Contact Us For Availability
46
SCREW WPL R0900008 Contact Us For Availability
47
HOSE, SHOWER ASSY WPL R0903527 Contact Us For Availability
48
NUT WPL R0901003 Contact Us For Availability
49
SCREW WPL R0900013 Contact Us For Availability
50
ASSY, PWR SHOWER WPL R0905554 Contact Us For Availability
51
INSULATION, TUB WPL R0904534 Contact Us For Availability
52
CHECK VALVE WPL R0910053 Contact Us For Availability
NI
CAP, POWER SHOWER WPL R0903508 Contact Us For Availability
NI
WASHER WPL R0900507 Contact Us For Availability
× ![]()
