Model Whirlpool CDU2404 DISHWASHER – Common Parts & Diagrams

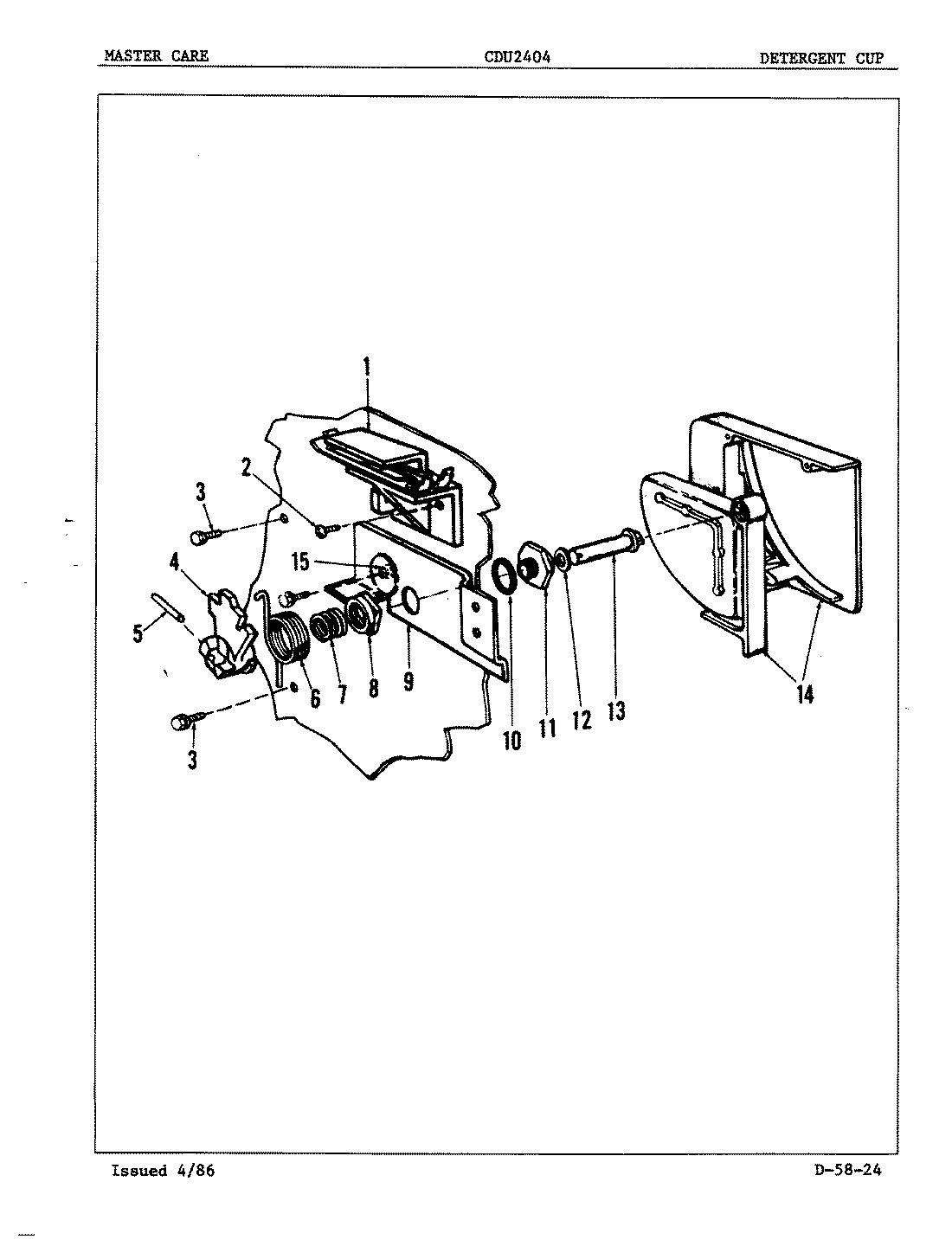

02 - DETERGENT CUP

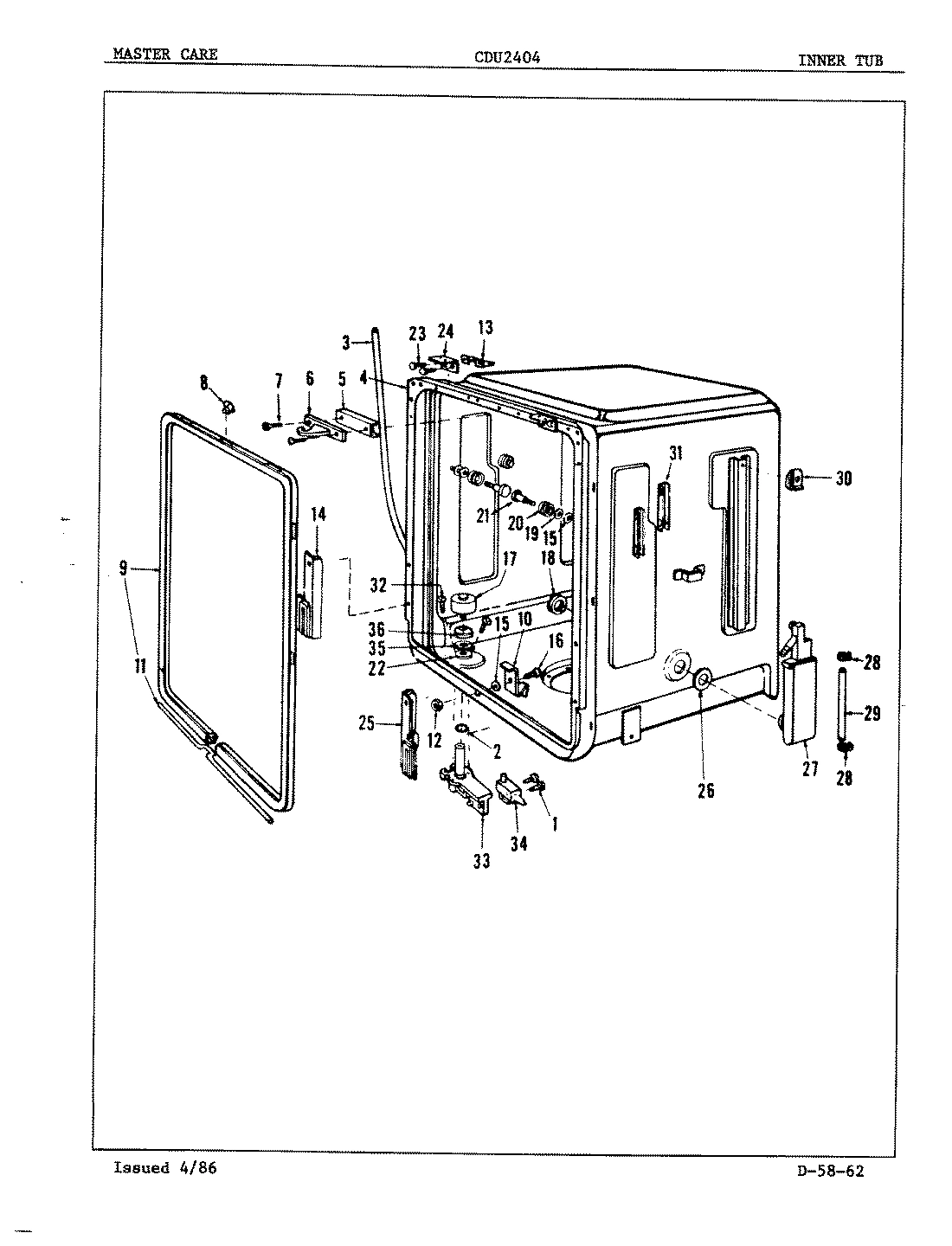

07 - TUB (INNER)

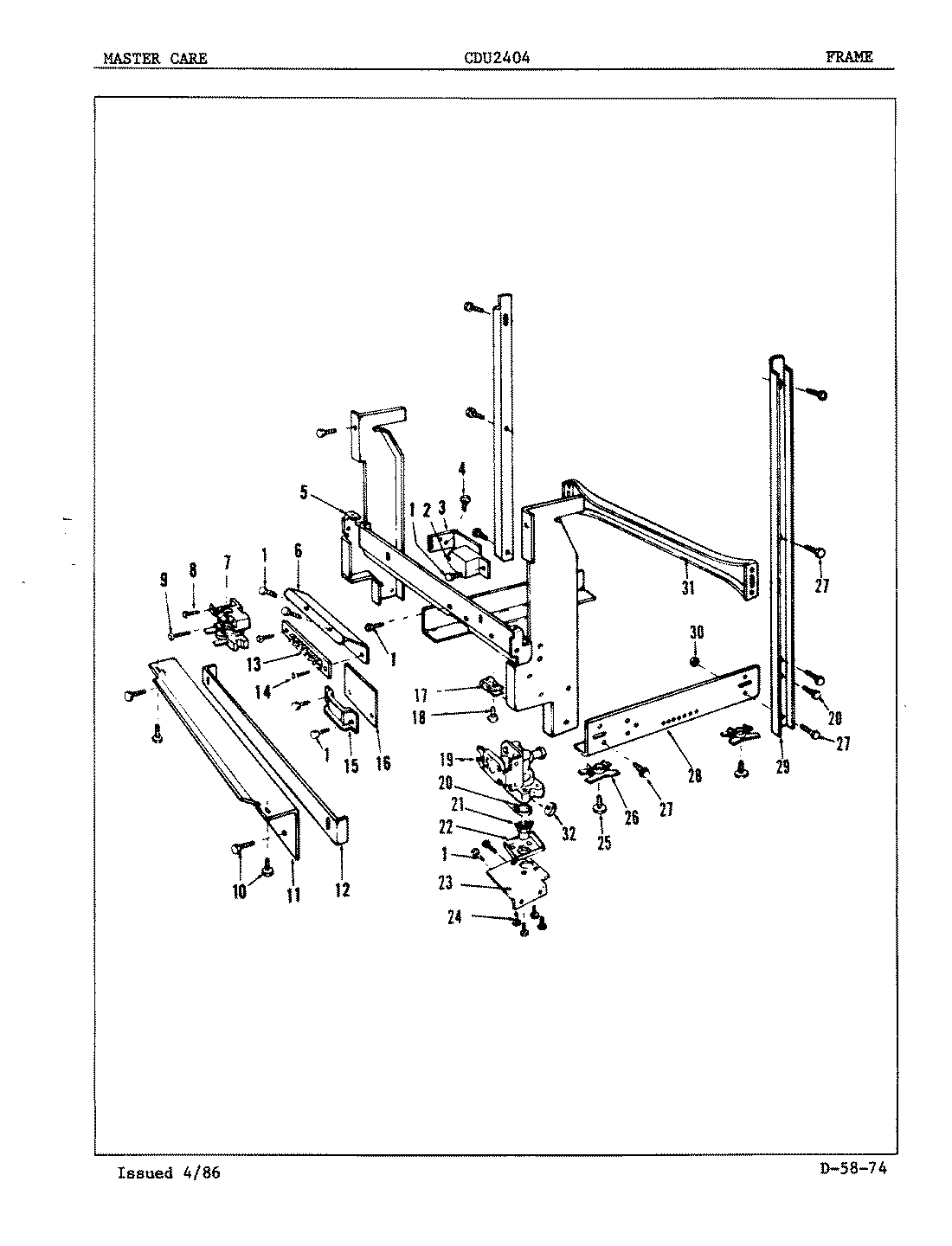

04 - FRAME

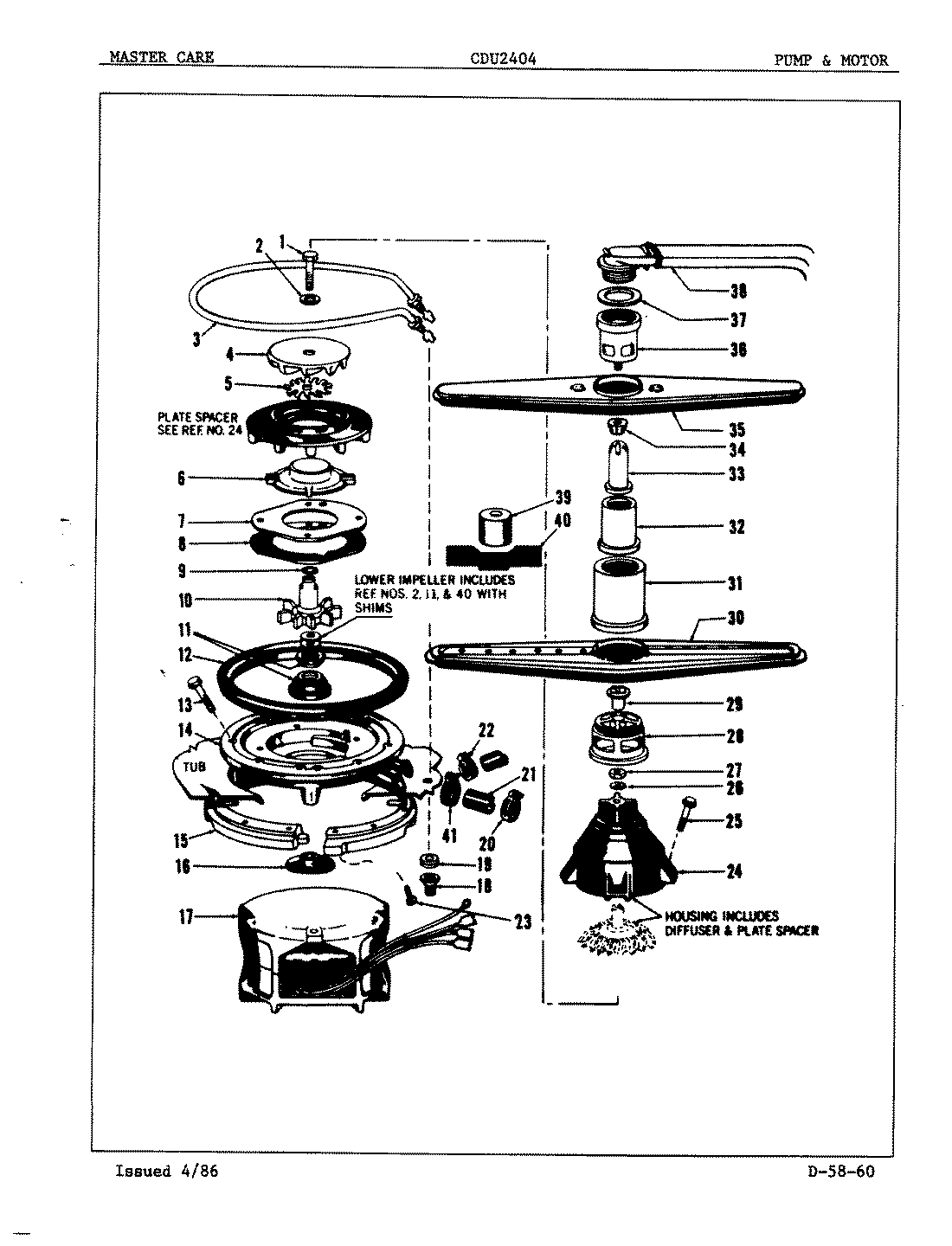

05 - PUMP & MOTOR

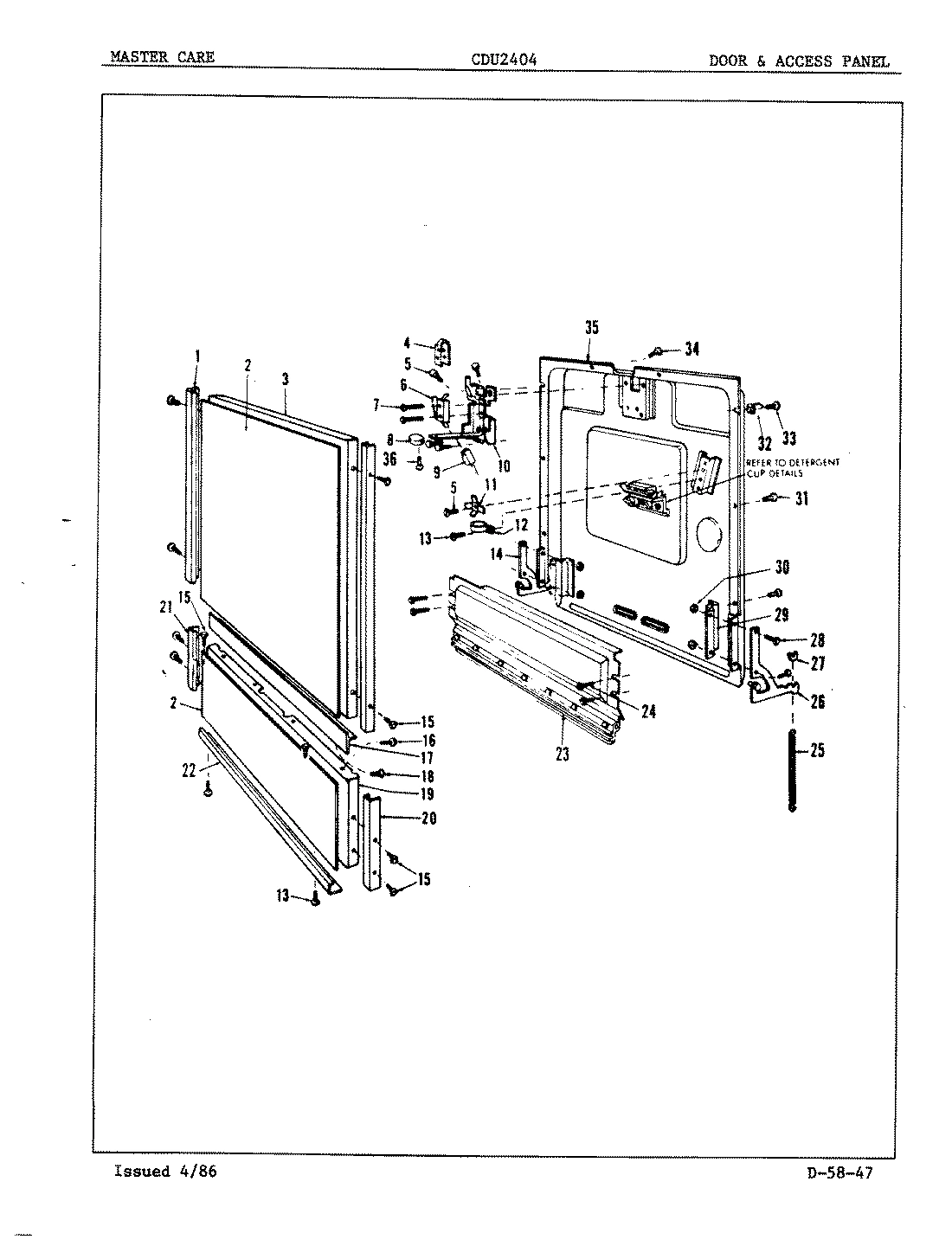

03 - DOOR & ACCESS PANEL

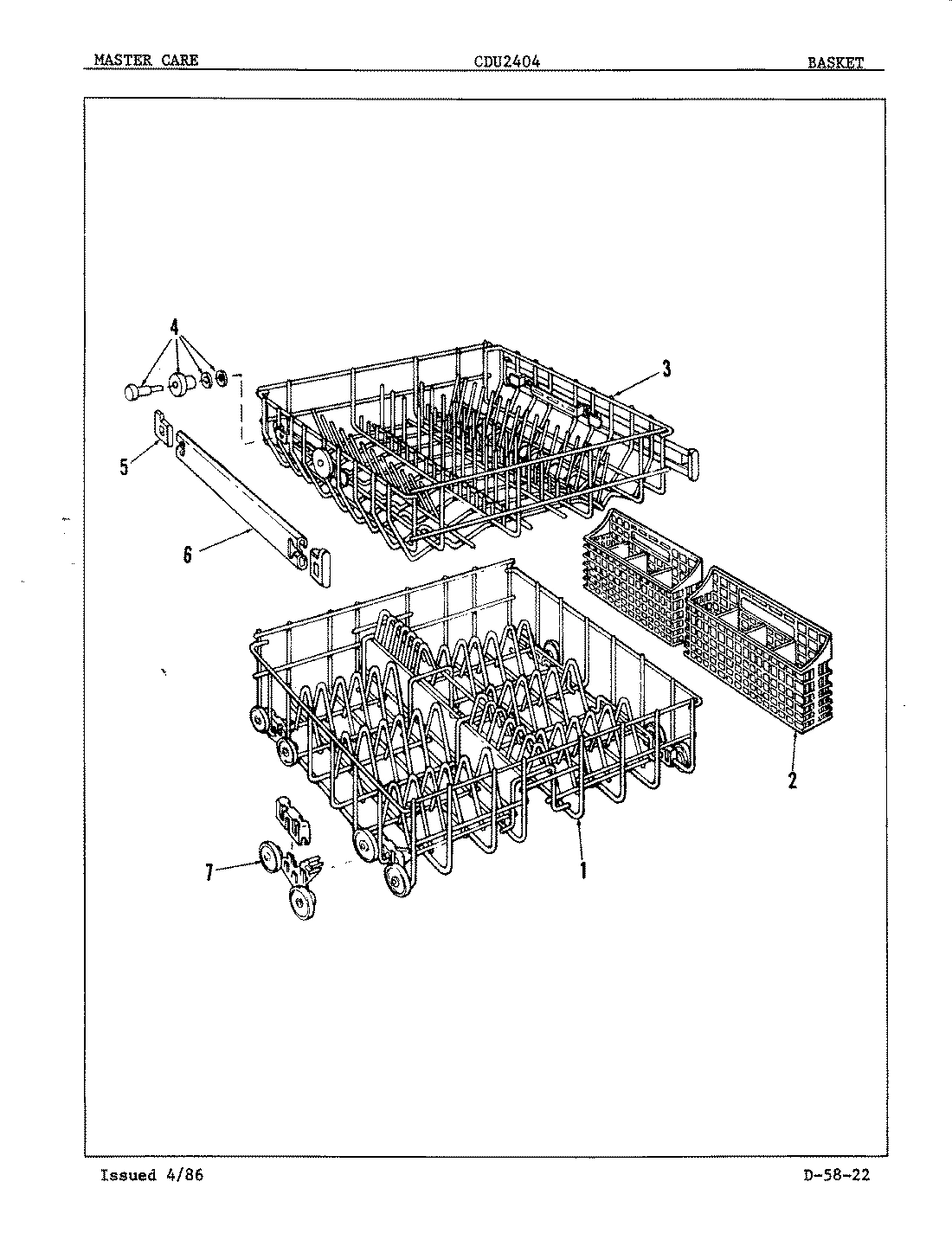

06 - RACKS

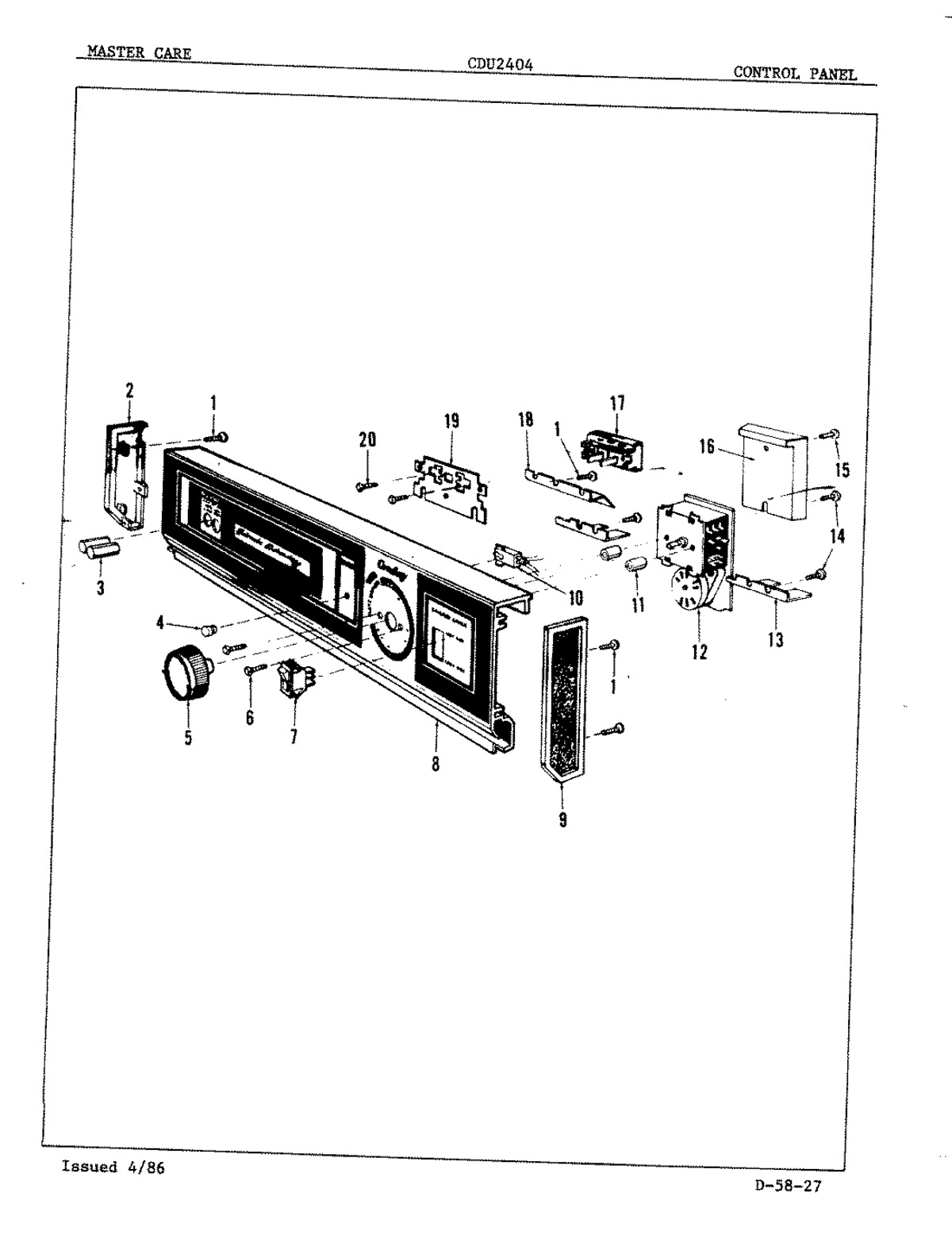

01 - CONTROL PANEL
Common parts from model Whirlpool CDU2404 DISHWASHER
1
TRIGGER WPL 806564 Contact Us For Availability
1
BOLT WPL 804594 Contact Us For Availability
1
SCREW WPL 806353 Contact Us For Availability
1
DOOR TRIM WPL 808026 Contact Us For Availability
1
LOWER RACK WPL 808189 Contact Us For Availability
1
SCREW WPL 806943 Contact Us For Availability
2
O RING WPL 807759 Contact Us For Availability
2
WASHER WPL 803367 Contact Us For Availability
2
TERMINAL COVER WPL 800222 Contact Us For Availability
2
INSERT, DOOR PANEL WPL 807645 Contact Us For Availability
2
SILVRWR BASKET WPL 807512 Contact Us For Availability
2
LH END CAP WPL 806407 Contact Us For Availability
3
SCREW WPL 808209 Contact Us For Availability
3
DRAIN HOSE WPL 806089 Contact Us For Availability
3
BRACKET WPL 807019 Contact Us For Availability
3
HEATER KIT WPL 806836 Contact Us For Availability
3
OUTER PANEL WPL 807262 Contact Us For Availability
3
UPPER RACK WPL 807902 Contact Us For Availability
3
PUSH BUTTON WPL 807091 Contact Us For Availability
4
ROLLPIN WPL 804734 Contact Us For Availability
4
TUB WPL 808187 Contact Us For Availability
4
SCREW WPL 806539 Contact Us For Availability
4
UPPER IMPELLER WPL 808041 Contact Us For Availability
4
SWITCH COVER WPL 807450 Contact Us For Availability
4
WHEEL ASM WPL 807957 Contact Us For Availability
4
RED LENS WPL 805664 Contact Us For Availability
5
CAM WPL 806566 Contact Us For Availability
5
STRIKE SHIM WPL 807073 Contact Us For Availability
5
SCREW WPL 806830 Contact Us For Availability
5
HINGE WPL 807848 Contact Us For Availability
5
MACERATOR BLADE WPL 808075 Contact Us For Availability
5
END CAP WPL 807853 Contact Us For Availability
5
TIMER KNOB WPL 807094 Contact Us For Availability
6
SPRING WPL 805227 Contact Us For Availability
6
STRIKE WPL 807015 Contact Us For Availability
6
BRACKET WPL 807849 Contact Us For Availability
6
SHROUD WPL 806267 Contact Us For Availability
6
SWITCH WPL 807043 Contact Us For Availability
6
RACK SLIDE WPL 807854 Contact Us For Availability
6
SCREW WPL 805324 Contact Us For Availability
7
SPRING WPL 806567 Contact Us For Availability
7
SUB 805255 WPL 806121 Contact Us For Availability
7
PUMP PLATE WPL 807884 Contact Us For Availability
7
SCREW WPL 808425 Contact Us For Availability
7
WHEEL ASM WPL 807008 Contact Us For Availability
7
SWITCH WPL 807665 Contact Us For Availability
8
NUT WPL 806568 Contact Us For Availability
8
CLIP KIT (TUB GASKET) WPL 805763 Contact Us For Availability
8
GASKET WPL 807709 Contact Us For Availability
8
LATCH KNOB WPL 806398 Contact Us For Availability
8
CONTROL PANEL WPL 808173 Contact Us For Availability
9
BRACKET WPL 806569 Contact Us For Availability
9
GRAY GASKET WPL 808071 Contact Us For Availability
9
SCREW WPL 804672 Contact Us For Availability
9
O RING WPL 806521 Contact Us For Availability
9
INSULATOR WPL 806846 Contact Us For Availability
9
RH END CAP WPL 806406 Contact Us For Availability
10
GASKET WPL 802836 Contact Us For Availability
10
CLIP WPL 808115 Contact Us For Availability
10
SCREW WPL 807001 Contact Us For Availability
10
IMPELLER KIT WPL 808042 Contact Us For Availability
10
LATCH ASM WPL 807016 Contact Us For Availability
10
LIGHT ASM WPL 805866 Contact Us For Availability
11
BUSHING WPL 805626 Contact Us For Availability
11
GASKET WIRE WPL 808114 Contact Us For Availability
11
TOE PLATE WPL 807850 Contact Us For Availability
11
GASKET WPL 803903 Contact Us For Availability
11
GROUND TERMINAL WPL 807213 Contact Us For Availability
11
SPACER WPL 805323 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
12
NUT WPL 803346 Contact Us For Availability
12
TOE PLATE WPL 806295 Contact Us For Availability
12
PUMP GASKET WPL 807710 Contact Us For Availability
12
CLAMP WPL 807212 Contact Us For Availability
12
TIMER WPL 808134 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
13
PLASTIC NUT WPL 807018 Contact Us For Availability
13
SCREW WPL 807268 Contact Us For Availability
13
TERMINAL BLOCK WPL 807486 Contact Us For Availability
13
BTM DOOR TRIM WPL 806912 Contact Us For Availability
14
DETRG CUP KIT WPL 807261 Contact Us For Availability
14
LH GUIDE WPL 807470 Contact Us For Availability
14
SCREW WPL 803416 Contact Us For Availability
14
PUMP HOUSING WPL 807711 Contact Us For Availability
14
LH ARM WPL 805682 Contact Us For Availability
15
SHAFT KIT WPL 806674 Contact Us For Availability
15
O RING WPL 808210 Contact Us For Availability
15
SEALER WPL 805776 Contact Us For Availability
15
CLAMP RING WPL 807712 Contact Us For Availability
15
SCREW WPL 806894 Contact Us For Availability
16
WIRE SHIELD WPL 808013 Contact Us For Availability
16
SLINGER WPL D800062 Contact Us For Availability
16
SPLASH PAN WPL 807425 Contact Us For Availability
17
FLOAT WPL 804630 Contact Us For Availability
17
SPEEDNUT WPL 808170 Contact Us For Availability
17
MOTOR WPL 806300 Contact Us For Availability
17
DOOR TRIM WPL 807347 Contact Us For Availability
17
SWITCH WPL 807281 Contact Us For Availability
18
NUT WPL 805669 Contact Us For Availability
18
SCREW WPL 807501 Contact Us For Availability
18
NUT WPL 806834 Contact Us For Availability
18
SWITCH GUARD WPL 807221 Contact Us For Availability
19
INLET VALVE WPL 806900 Contact Us For Availability
19
GROMMET WPL 806833 Contact Us For Availability
19
PANEL WPL 807257 Contact Us For Availability
19
SWITCH BRACKET WPL 806594 Contact Us For Availability
20
ROLLER WPL 807180 Contact Us For Availability
20
GASKET WPL 806100 Contact Us For Availability
20
CLAMP WPL 805495 Contact Us For Availability
20
RH TRIM WPL 808028 Contact Us For Availability
20
SCREW WPL 807141 Contact Us For Availability
21
SCREW WPL 807181 Contact Us For Availability
21
VALVE FITTING WPL 807614 Contact Us For Availability
21
HOSE CONNECTOR WPL 808174 Contact Us For Availability
21
LH TRIM WPL 808029 Contact Us For Availability
22
GASKET WPL 808063 Contact Us For Availability
22
RETAINER WPL 808458 Contact Us For Availability
22
CLAMP WPL 806090 Contact Us For Availability
22
BOTTOM TRIM WPL 808027 Contact Us For Availability
23
SCREW WPL 807036 Contact Us For Availability
23
VALVE BRACKET WPL 807613 Contact Us For Availability
23
SCREW WPL 806945 Contact Us For Availability
23
VENT PLATE WPL 807044 Contact Us For Availability
24
CLIP WPL 805069 Contact Us For Availability
24
SCREW WPL 804518 Contact Us For Availability
24
PUMPHOUSING KIT WPL 806978 Contact Us For Availability
24
SCREW WPL 806810 Contact Us For Availability
25
RH GUIDE WPL 807471 Contact Us For Availability
25
LEVELER WPL 807672 Contact Us For Availability
25
SCREW WPL 807359 Contact Us For Availability
25
DOOR SPRING WPL 805683 Contact Us For Availability
26
WASHER WPL 803573 Contact Us For Availability
26
TEENUT WPL 807671 Contact Us For Availability
26
LOCKWASHER WPL 804526 Contact Us For Availability
26
RH ARM WPL 805681 Contact Us For Availability
27
WATER INLET WPL 806470 Contact Us For Availability
27
SCREW WPL 806889 Contact Us For Availability
27
NUT WPL 804527 Contact Us For Availability
27
SPRING PAD WPL 805884 Contact Us For Availability
28
CLAMP WPL 807813 Contact Us For Availability
28
SIDE CHANNEL WPL 807851 Contact Us For Availability
28
LOWER BEARING WPL 808175 Contact Us For Availability
28
SCREW WPL 803311 Contact Us For Availability
29
INLET TUBE WPL 807891 Contact Us For Availability
29
CHANNEL WPL 806290 Contact Us For Availability
29
NUT WPL 808176 Contact Us For Availability
29
ARM BRACKET WPL 806717 Contact Us For Availability
30
CAGE NUT WPL 806291 Contact Us For Availability
30
SPRAY ARM WPL 808177 Contact Us For Availability
30
NUT WPL 800928 Contact Us For Availability
31
TAPPING PLATE WPL 807038 Contact Us For Availability
31
REAR BRACE WPL 807852 Contact Us For Availability
31
TOWER BASE WPL 808178 Contact Us For Availability
31
SCREW WPL 806967 Contact Us For Availability
32
FLOW WASHER WPL 807609 Contact Us For Availability
32
TOWER SECTION WPL 808179 Contact Us For Availability
32
DOOR GUIDE WPL 807449 Contact Us For Availability
33
FLOAT ASM WPL 807677 Contact Us For Availability
33
TOWER TIP WPL 808180 Contact Us For Availability
33
TRUSS HD. CAD. PL. WPL 806926 Contact Us For Availability
34
FLOAT SWITCH WPL 807680 Contact Us For Availability
34
NUT WPL 808181 Contact Us For Availability
35
PLATE, FLOAT TUBE WPL 808064 Contact Us For Availability
35
UPR SPRAY ARM WPL 808182 Contact Us For Availability
35
INNER PANEL WPL 807191 Contact Us For Availability
36
COLLAR WPL 804149 Contact Us For Availability
36
DISTRIBUTOR WPL 808183 Contact Us For Availability
36
SCREW WPL 808715 Contact Us For Availability
37
GASKET WPL 808184 Contact Us For Availability
38
ELBOW & TUBE WPL 808185 Contact Us For Availability
39
SEAL TOOL WPL 803923 Contact Us For Availability
40
SHIM GAUGE WPL 807077 Contact Us For Availability
× ![]()
