Model Maytag CDP2406A DISHWASHER – Common Parts & Diagrams

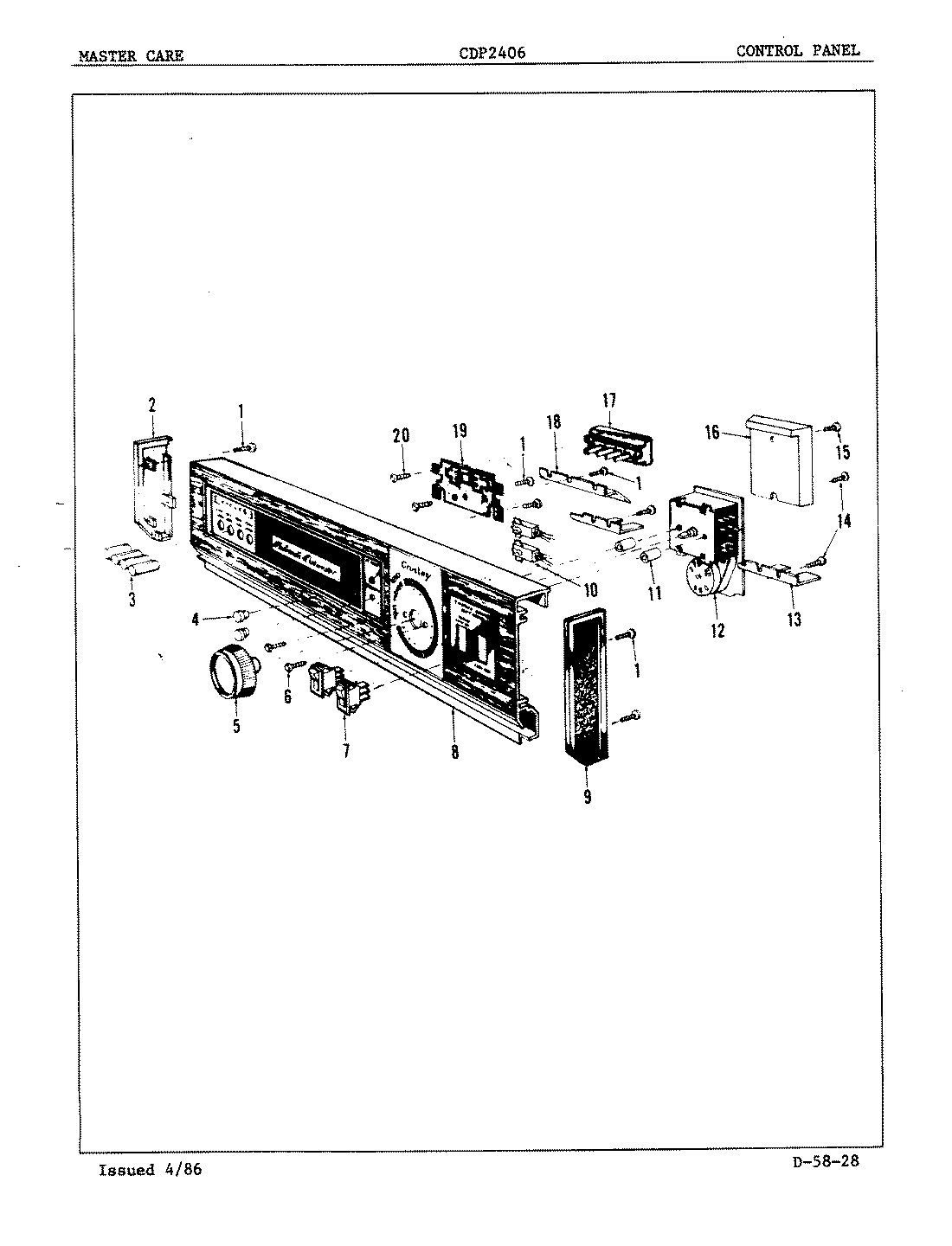

01 - CONTROL PANEL

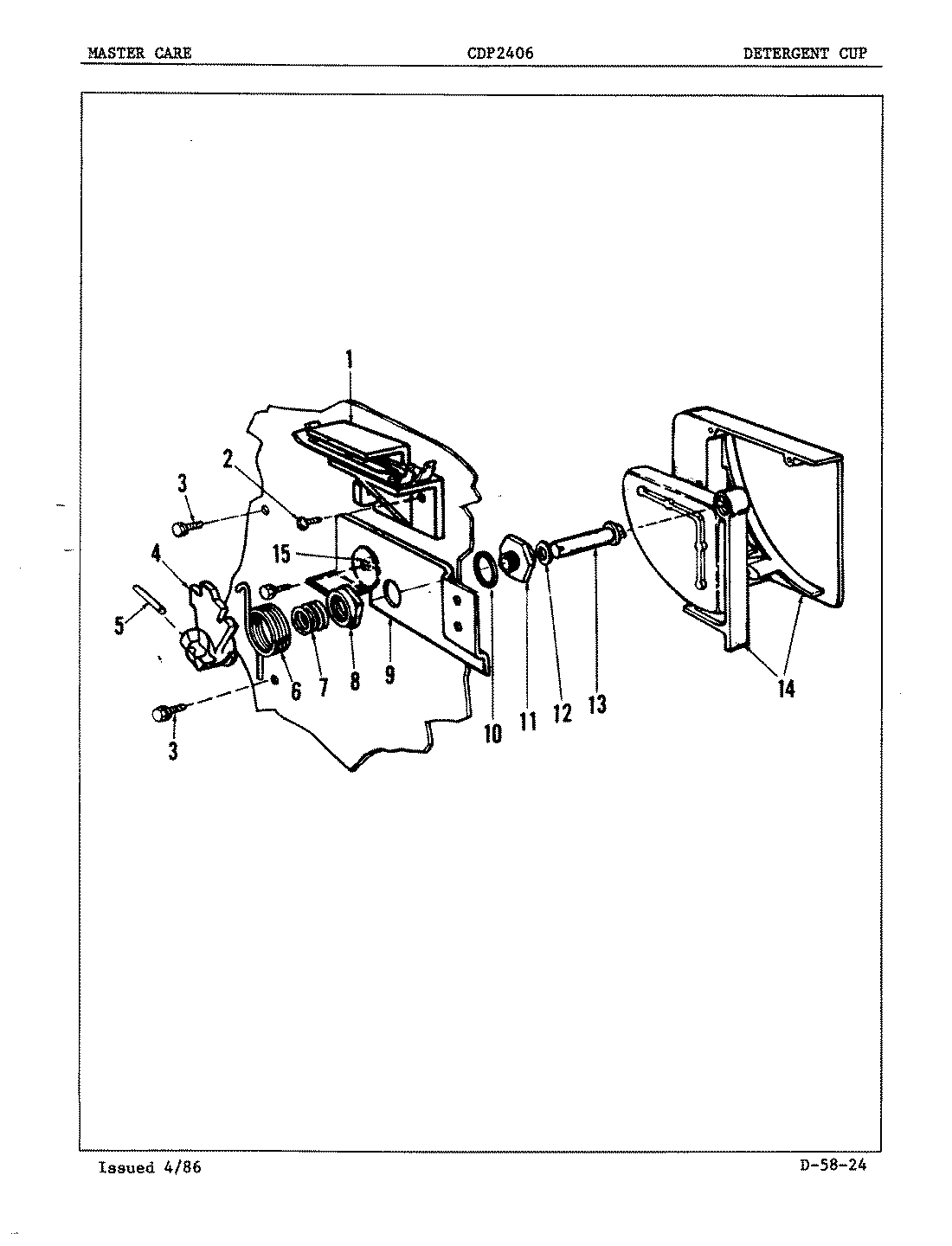

02 - DETERGENT CUP

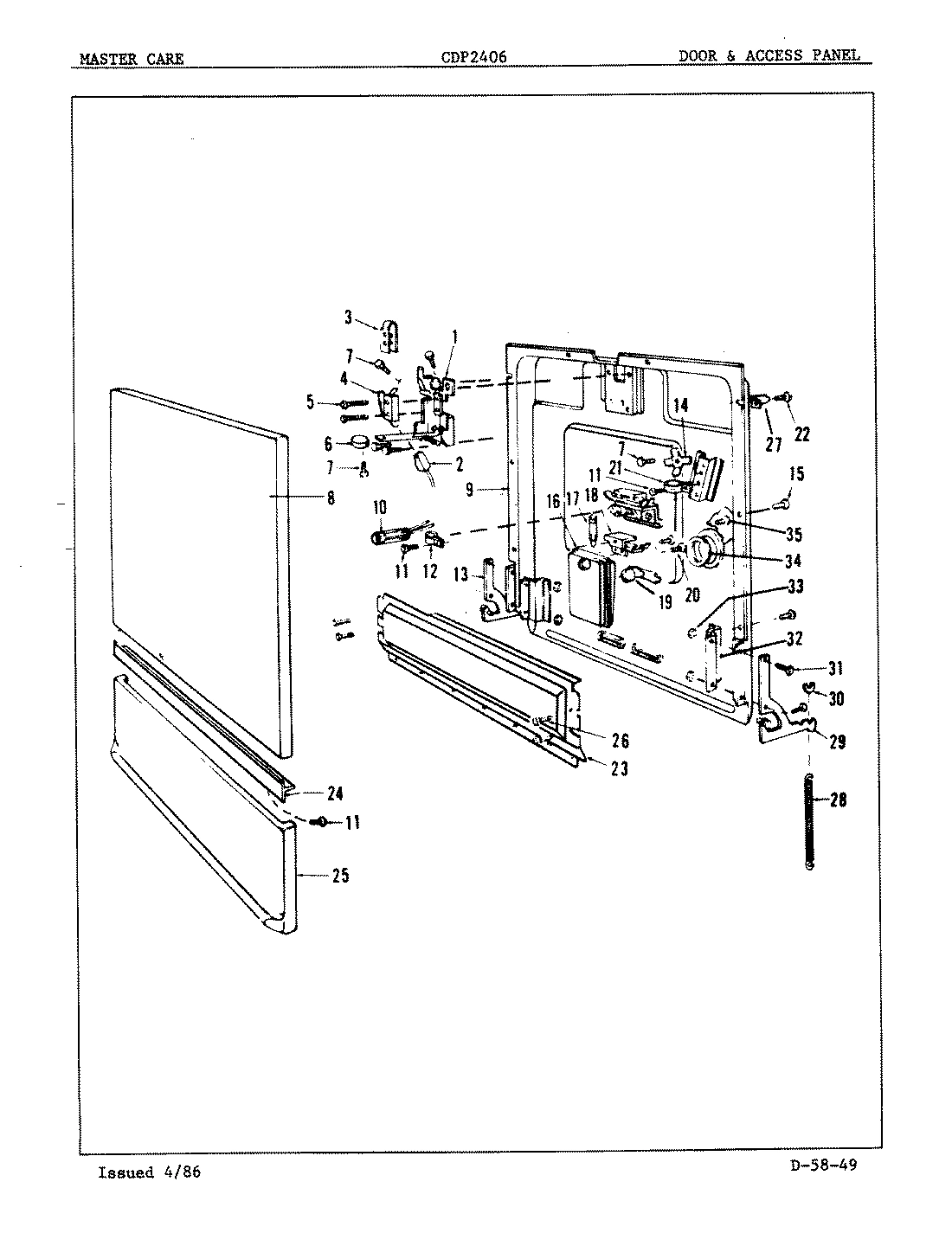

03 - DOOR & ACCESS PANEL

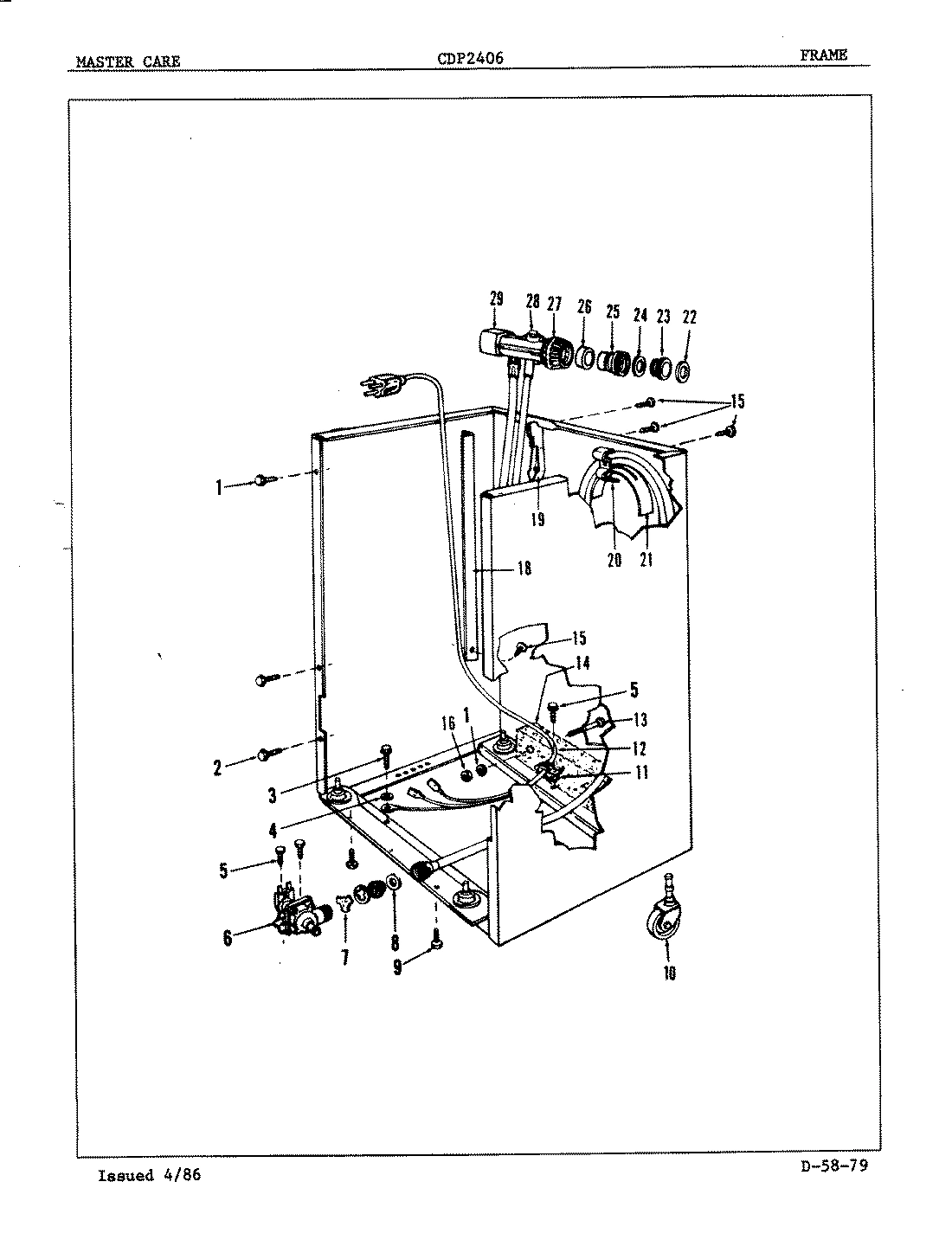

04 - FRAME

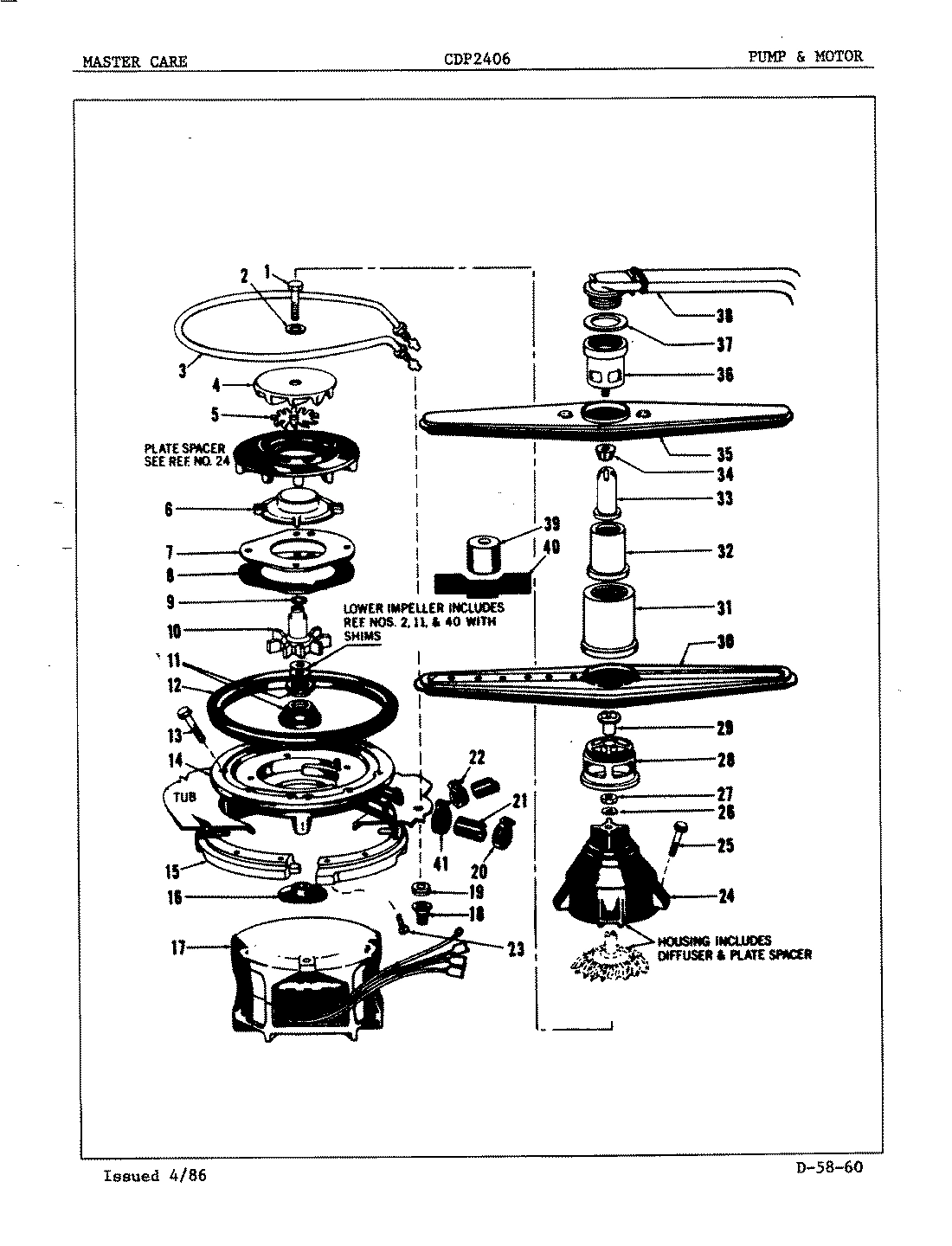

05 - PUMP & MOTOR

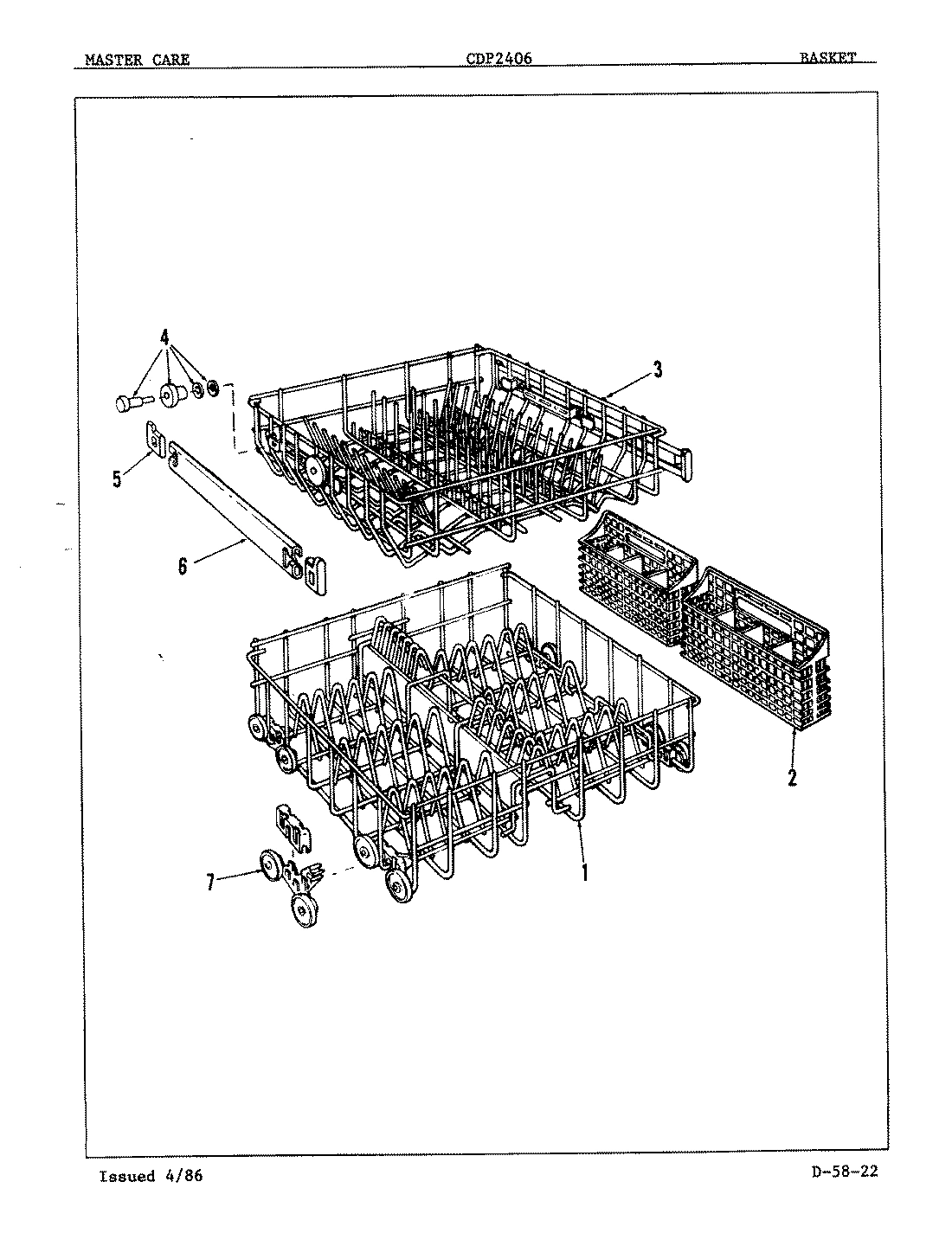

06 - RACKS

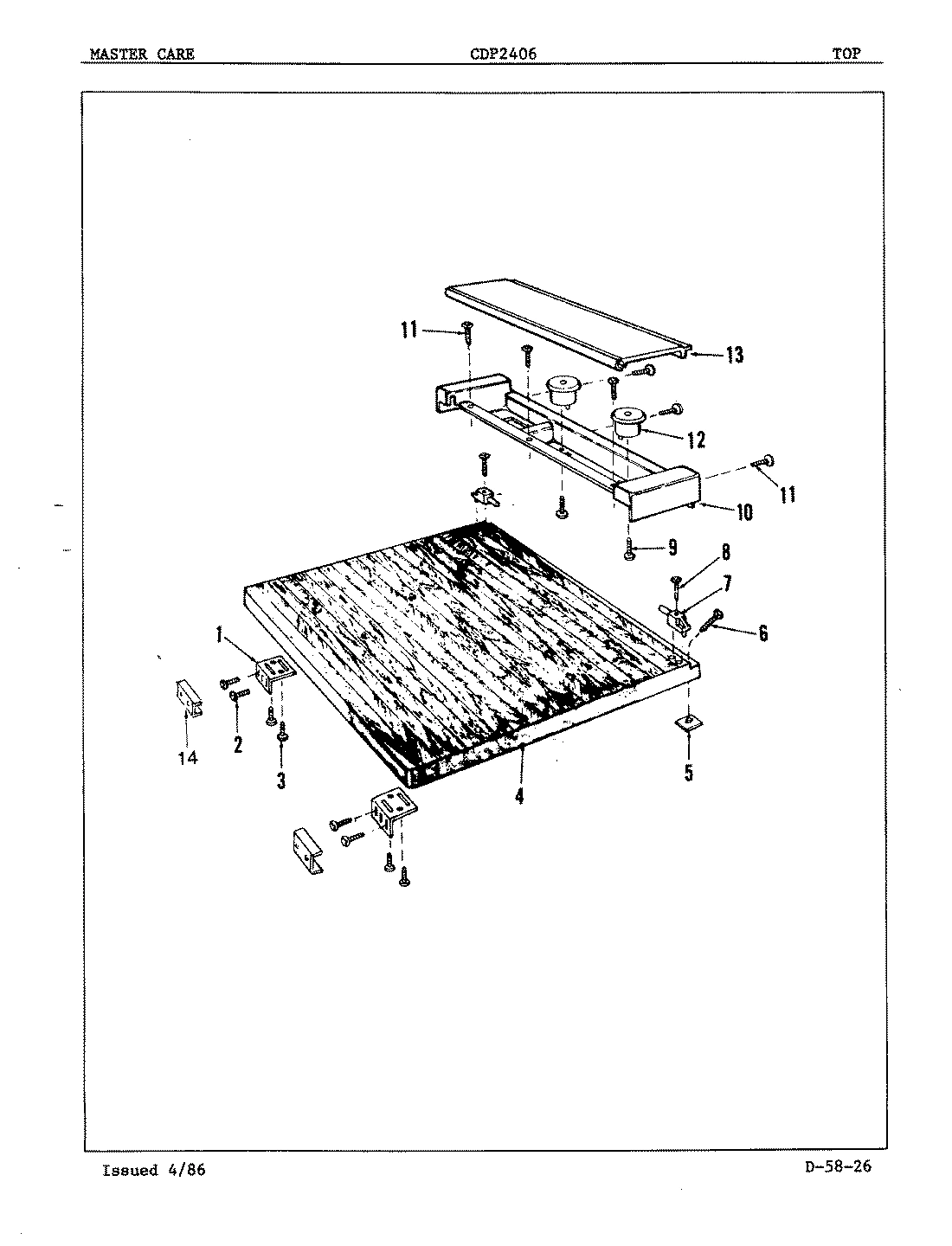

07 - TOP ASSEMBLY

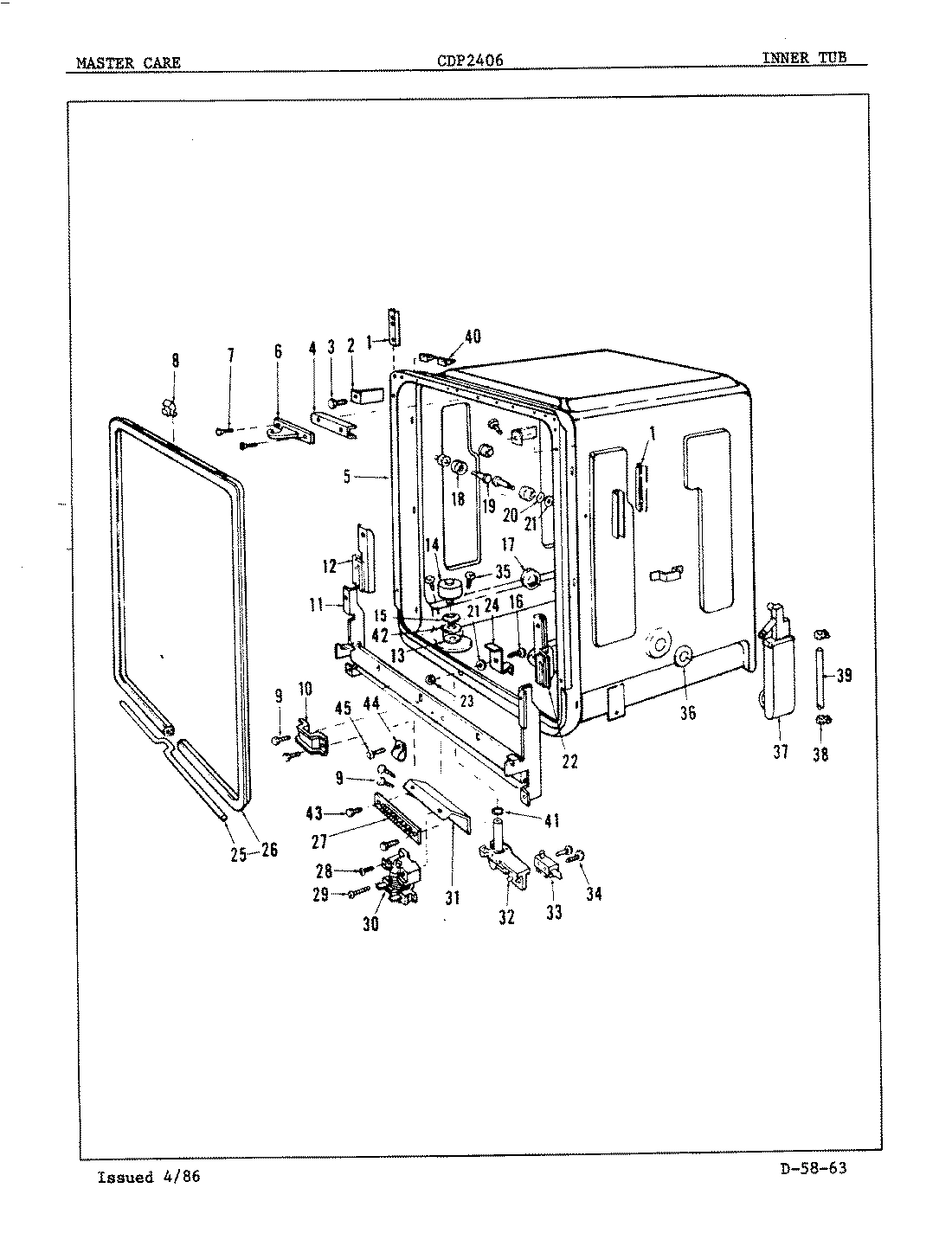

08 - TUB (INNER)
Common parts from model Maytag CDP2406A DISHWASHER
1
SCREW MAY 806943 Contact Us For Availability
1
MAY 806564 MAY 806564 Contact Us For Availability
1
LATCH ASM MAY 807016 Contact Us For Availability
1
MAY 806353 MAY 806353 Contact Us For Availability
1
MAY 808189 MAY 808189 Contact Us For Availability
1
CLIP MAY 805069 Contact Us For Availability
1
TAPPING PLATE MAY 807038 Contact Us For Availability
2
LH END CAP MAY 806407 Contact Us For Availability
2
MAY 807421 MAY 807421 Contact Us For Availability
2
INSULATOR MAY 806846 Contact Us For Availability
2
SCREW MAY 806663 Contact Us For Availability
2
SILVRWR BASKET MAY 807512 Contact Us For Availability
2
SCREW MAY 807036 Contact Us For Availability
2
MAY 807454 MAY 807454 Contact Us For Availability
3
PUSH BUTTON MAY 807091 Contact Us For Availability
3
SCREW MAY 808209 Contact Us For Availability
3
SWITCH COVER MAY 807450 Contact Us For Availability
3
MAY 806539 MAY 806539 Contact Us For Availability
3
MAY 807951 MAY 807951 Contact Us For Availability
3
HEATER KIT MAY 806836 Contact Us For Availability
3
UPPER RACK MAY 807902 Contact Us For Availability
3
MAY 807270 MAY 807270 Contact Us For Availability
4
RED LENS MAY 805664 Contact Us For Availability
4
ROLLPIN MAY 804734 Contact Us For Availability
4
MAY 807043 MAY 807043 Contact Us For Availability
4
MAY 807373 MAY 807373 Contact Us For Availability
4
UPPER IMPELLER MAY 808041 Contact Us For Availability
4
WHEEL ASM MAY 807957 Contact Us For Availability
4
MAY 808191 MAY 808191 Contact Us For Availability
4
STRIKE SHIM MAY 807073 Contact Us For Availability
5
MAY 807094 MAY 807094 Contact Us For Availability
5
MAY 806566 MAY 806566 Contact Us For Availability
5
MAY 803051 MAY 803051 Contact Us For Availability
5
MACERATOR BLADE MAY 808075 Contact Us For Availability
5
END CAP MAY 807853 Contact Us For Availability
5
MAY 807819 MAY 807819 Contact Us For Availability
5
MAY 808187 MAY 808187 Contact Us For Availability
6
MAY 805324 MAY 805324 Contact Us For Availability
6
SPRING MAY 805227 Contact Us For Availability
6
MAY 806398 MAY 806398 Contact Us For Availability
6
MAY 804982 MAY 804982 Contact Us For Availability
6
SHROUD MAY 806267 Contact Us For Availability
6
MAY 807854 MAY 807854 Contact Us For Availability
6
MAY 807817 MAY 807817 Contact Us For Availability
6
STRIKE MAY 807015 Contact Us For Availability
7
MAY 804665 MAY 804665 Contact Us For Availability
7
SPRING MAY 806567 Contact Us For Availability
7
MAY 803830 MAY 803830 Contact Us For Availability
7
MAY 807607 MAY 807607 Contact Us For Availability
7
PUMP PLATE MAY 807884 Contact Us For Availability
7
WHEEL ASM MAY 807008 Contact Us For Availability
7
HINGE MAY 808193 Contact Us For Availability
7
MAY 806890 MAY 806890 Contact Us For Availability
8
MAY 808172 MAY 808172 Contact Us For Availability
8
NUT MAY 806568 Contact Us For Availability
8
OUTER PANEL MAY 807262 Contact Us For Availability
8
MAY 807595 MAY 807595 Contact Us For Availability
8
MAY 807643 MAY 807643 Contact Us For Availability
8
HOSE WASHER MAY 800787 Contact Us For Availability
8
GASKET MAY 807709 Contact Us For Availability
8
SCREW MAY 806382 Contact Us For Availability
8
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
9
RH END CAP MAY 806406 Contact Us For Availability
9
MAY 806569 MAY 806569 Contact Us For Availability
9
INNER PANEL MAY 807194 Contact Us For Availability
9
MAY 808658 MAY 808658 Contact Us For Availability
9
O RING MAY 806521 Contact Us For Availability
9
SCREW MAY 806830 Contact Us For Availability
10
LIGHT ASM MAY 805866 Contact Us For Availability
10
GASKET MAY 802836 Contact Us For Availability
10
MAY 807462 MAY 807462 Contact Us For Availability
10
SCREW MAY 804518 Contact Us For Availability
10
MAY 806171 MAY 806171 Contact Us For Availability
10
IMPELLER KIT MAY 808042 Contact Us For Availability
10
LID BASE MAY 808192 Contact Us For Availability
10
CLAMP MAY 806723 Contact Us For Availability
11
MAY 805323 MAY 805323 Contact Us For Availability
11
MAY 805626 MAY 805626 Contact Us For Availability
11
MAY 804426 MAY 804426 Contact Us For Availability
11
GASKET MAY 803903 Contact Us For Availability
11
HINGE MAY 807885 Contact Us For Availability
12
MAY 808128 MAY 808128 Contact Us For Availability
12
O RING MAY 806647 Contact Us For Availability
12
MAY 805340 MAY 805340 Contact Us For Availability
12
POWER CORD MAY 805046 Contact Us For Availability
12
MAY 807883 MAY 807883 Contact Us For Availability
12
MAY 807710 MAY 807710 Contact Us For Availability
12
MAY 808195 MAY 808195 Contact Us For Availability
12
LH GUIDE MAY 807470 Contact Us For Availability
13
MAY 806648 MAY 806648 Contact Us For Availability
13
LH ARM MAY 805682 Contact Us For Availability
13
SCREW MAY 806812 Contact Us For Availability
13
MAY 808194 MAY 808194 Contact Us For Availability
13
GASKET MAY 808063 Contact Us For Availability
14
DETRG CUP KIT MAY 807261 Contact Us For Availability
14
GROUND TERMINAL MAY 807213 Contact Us For Availability
14
MAY 808615 MAY 808615 Contact Us For Availability
14
PUMP HOUSING MAY 807711 Contact Us For Availability
14
COVER, TOP CLIP MAY 808743 Contact Us For Availability
14
MAY 804630 MAY 804630 Contact Us For Availability
15
SCREW MAY 806894 Contact Us For Availability
15
SHAFT KIT MAY 806674 Contact Us For Availability
15
O RING MAY 808210 Contact Us For Availability
15
SCREW MAY 806967 Contact Us For Availability
15
CLAMP RING MAY 807712 Contact Us For Availability
15
MAY 804149 MAY 804149 Contact Us For Availability
16
MAY 807425 MAY 807425 Contact Us For Availability
16
DISPENSER MAY 806753 Contact Us For Availability
16
MAY 808661 MAY 808661 Contact Us For Availability
16
MAY D800062 MAY D800062 Contact Us For Availability
16
MAY 803319 MAY 803319 Contact Us For Availability
17
MAY 808171 MAY 808171 Contact Us For Availability
17
MAY 806757 MAY 806757 Contact Us For Availability
17
MAY 808613 MAY 808613 Contact Us For Availability
17
MOTOR MAY 806300 Contact Us For Availability
17
MAY 805669 MAY 805669 Contact Us For Availability
18
MAY 807221 MAY 807221 Contact Us For Availability
18
BRACKET MAY 806756 Contact Us For Availability
18
NUT MAY 806834 Contact Us For Availability
18
ROLLER MAY 807180 Contact Us For Availability
19
MAY 806594 MAY 806594 Contact Us For Availability
19
MAY 806843 MAY 806843 Contact Us For Availability
19
HOSE GUIDE MAY 805859 Contact Us For Availability
19
GROMMET MAY 806833 Contact Us For Availability
19
SCREW MAY 807181 Contact Us For Availability
20
MAY 807141 MAY 807141 Contact Us For Availability
20
MAY 805063 MAY 805063 Contact Us For Availability
20
HOSE CLAMP MAY 806142 Contact Us For Availability
20
MAY 803367 MAY 803367 Contact Us For Availability
20
CLAMP MAY 805495 Contact Us For Availability
21
HOSE SUPPORT MAY 806143 Contact Us For Availability
21
HOSE CONNECTOR MAY 808174 Contact Us For Availability
21
SEALER MAY 805776 Contact Us For Availability
22
MAY 806976 MAY 806976 Contact Us For Availability
22
MAY 803393 MAY 803393 Contact Us For Availability
22
CLAMP MAY 806090 Contact Us For Availability
22
RH GUIDE MAY 807471 Contact Us For Availability
23
MAY 807044 MAY 807044 Contact Us For Availability
23
ADAPTOR MAY 800782 Contact Us For Availability
23
MAY 806945 MAY 806945 Contact Us For Availability
23
MAY 803346 MAY 803346 Contact Us For Availability
24
MAY 806912 MAY 806912 Contact Us For Availability
24
MAY 803390 MAY 803390 Contact Us For Availability
24
PUMPHOUSING KIT MAY 806978 Contact Us For Availability
24
MAY 808115 MAY 808115 Contact Us For Availability
25
MAY 808069 MAY 808069 Contact Us For Availability
25
MAY 808081 MAY 808081 Contact Us For Availability
25
MAY 808084 MAY 808084 Contact Us For Availability
25
MAY 803391 MAY 803391 Contact Us For Availability
25
SCREW MAY 807359 Contact Us For Availability
25
MAY 808114 MAY 808114 Contact Us For Availability
26
SCREW MAY 806810 Contact Us For Availability
26
U PACKING MAY 806584 Contact Us For Availability
26
MAY 804526 MAY 804526 Contact Us For Availability
26
MAY 808071 MAY 808071 Contact Us For Availability
27
DOOR GUIDE MAY 807449 Contact Us For Availability
27
COLLAR KIT MAY 807499 Contact Us For Availability
27
MAY 804527 MAY 804527 Contact Us For Availability
27
MAY 807486 MAY 807486 Contact Us For Availability
28
DOOR SPRING MAY 805683 Contact Us For Availability
28
RELIEF KIT MAY 807498 Contact Us For Availability
28
LOWER BEARING MAY 808175 Contact Us For Availability
28
MAY 806593 MAY 806593 Contact Us For Availability
29
RH ARM MAY 805681 Contact Us For Availability
29
HOSE ASM MAY 807496 Contact Us For Availability
29
NUT MAY 808176 Contact Us For Availability
29
MAY 804672 MAY 804672 Contact Us For Availability
30
SPRING PAD MAY 805884 Contact Us For Availability
30
MAY 808177 MAY 808177 Contact Us For Availability
30
SUB 805255 MAY 806121 Contact Us For Availability
31
MAY 803311 MAY 803311 Contact Us For Availability
31
TOWER BASE MAY 808178 Contact Us For Availability
31
MAY 807849 MAY 807849 Contact Us For Availability
32
ARM BRACKET MAY 806717 Contact Us For Availability
32
MAY 808179 MAY 808179 Contact Us For Availability
32
FLOAT ASM MAY 807677 Contact Us For Availability
33
MAY 800928 MAY 800928 Contact Us For Availability
33
MAY 808180 MAY 808180 Contact Us For Availability
33
FLOAT SWITCH MAY 807680 Contact Us For Availability
34
GROMMET MAY 805631 Contact Us For Availability
34
MAY 808181 MAY 808181 Contact Us For Availability
34
BOLT MAY 804594 Contact Us For Availability
35
SCREW MAY 806863 Contact Us For Availability
35
MAY 807268 MAY 807268 Contact Us For Availability
35
MAY 808182 MAY 808182 Contact Us For Availability
36
MAY 808183 MAY 808183 Contact Us For Availability
36
WASHER MAY 803573 Contact Us For Availability
37
MAY 808184 MAY 808184 Contact Us For Availability
37
MAY 806470 MAY 806470 Contact Us For Availability
38
ELBOW & TUBE MAY 808185 Contact Us For Availability
38
MAY 807813 MAY 807813 Contact Us For Availability
39
SEAL TOOL MAY 803923 Contact Us For Availability
39
INLET TUBE MAY 807891 Contact Us For Availability
40
SHIM GAUGE MAY 807077 Contact Us For Availability
40
MAY 807018 MAY 807018 Contact Us For Availability
41
MAY 808186 MAY 808186 Contact Us For Availability
41
O RING MAY 807759 Contact Us For Availability
42
PLATE, FLOAT TUBE MAY 808064 Contact Us For Availability
43
MAY 807501 MAY 807501 Contact Us For Availability
44
MAY 807212 MAY 807212 Contact Us For Availability
45
SCREW MAY 803416 Contact Us For Availability
× ![]()
