Model Whirlpool CDC81DA-01 DISHWASHER – Common Parts & Diagrams
02 - DOOR

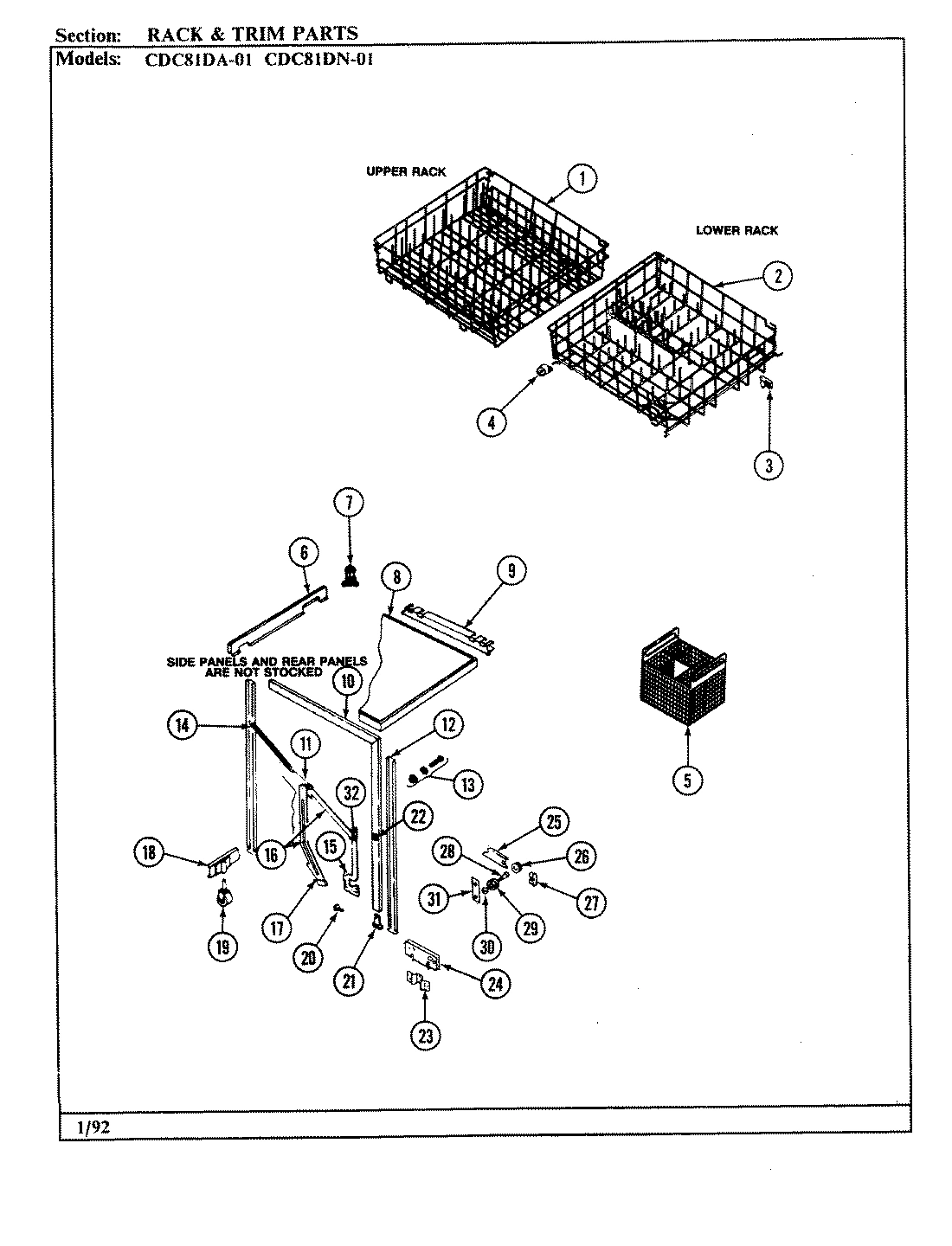

04 - RACKS

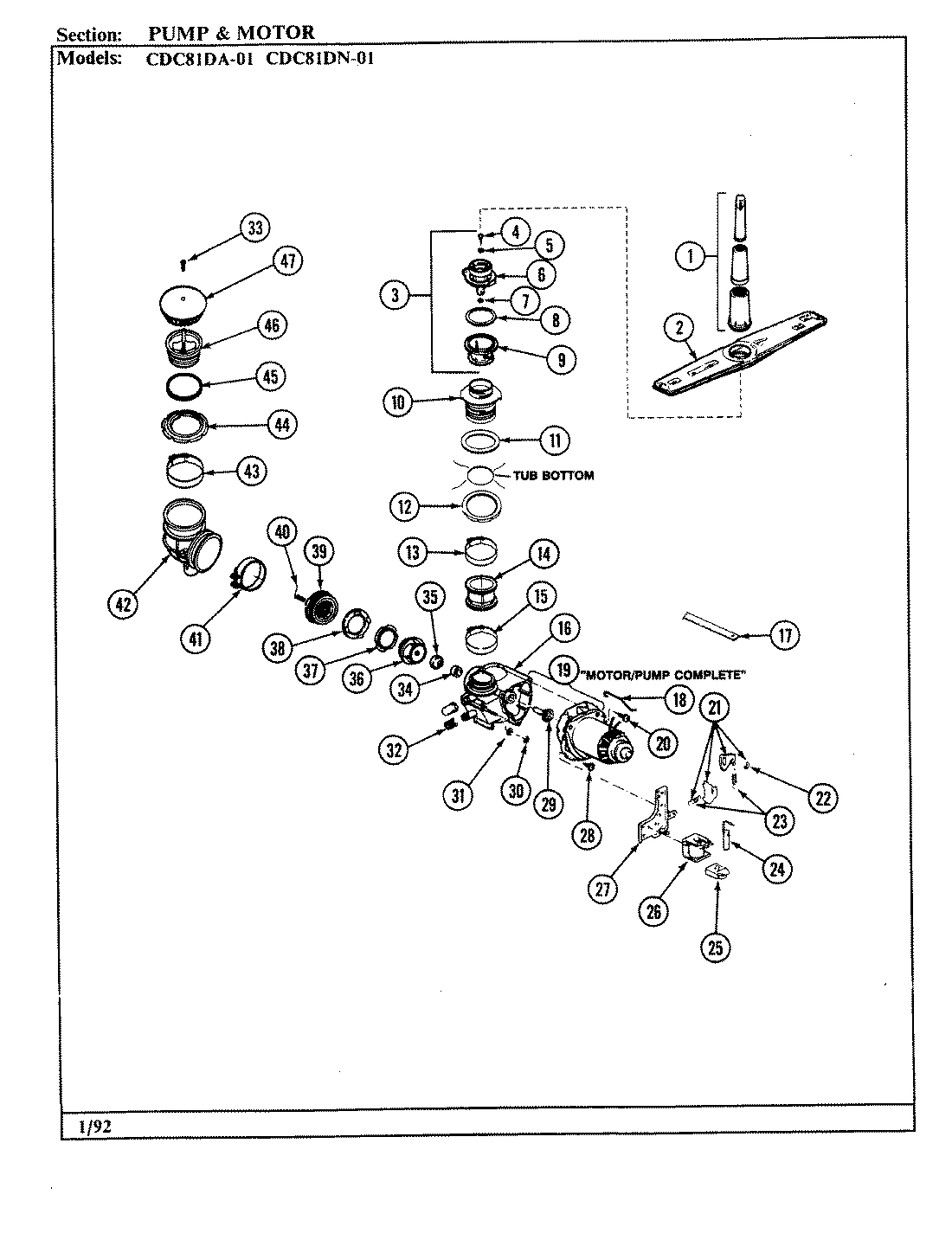

03 - PUMP & MOTOR

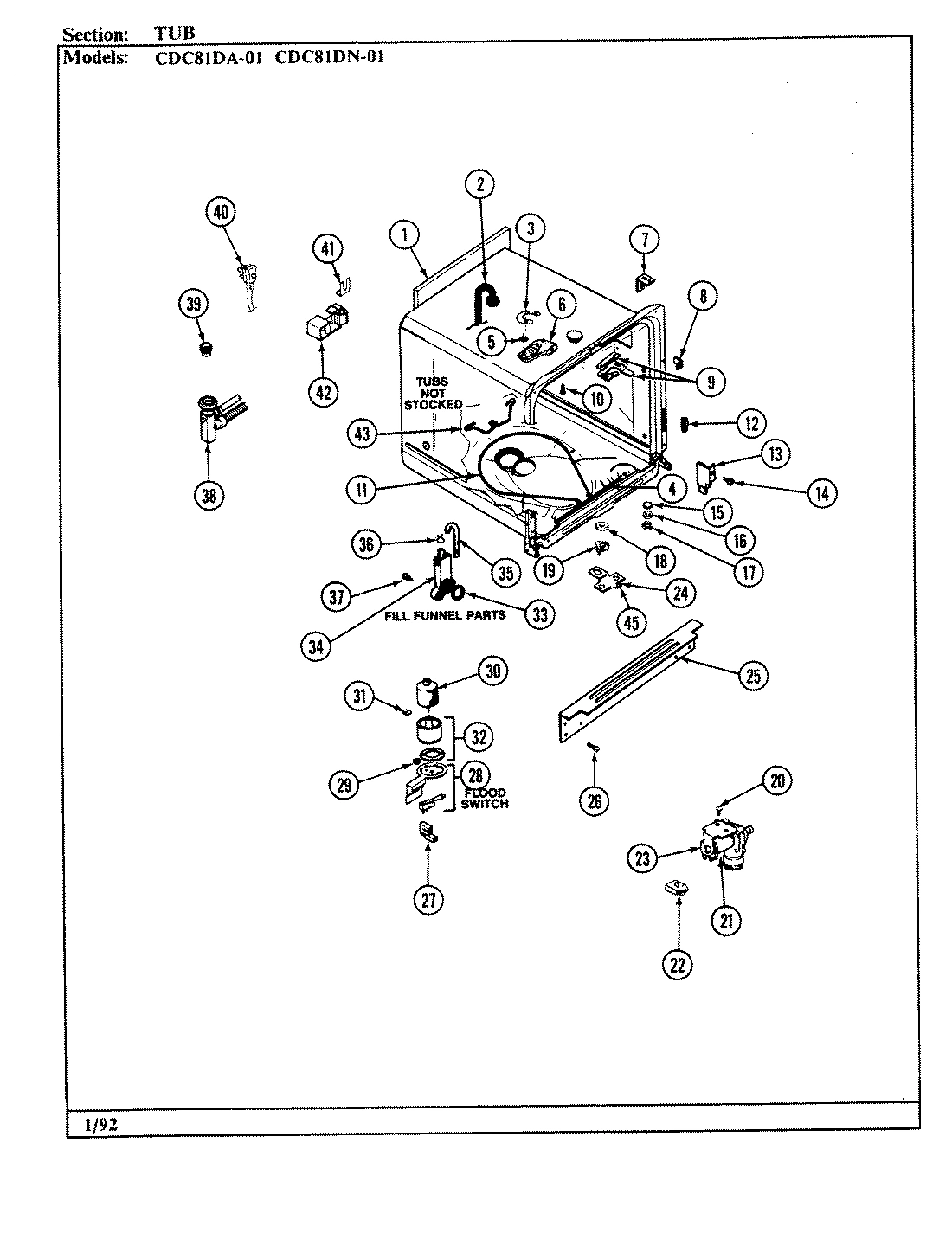

05 - TUB

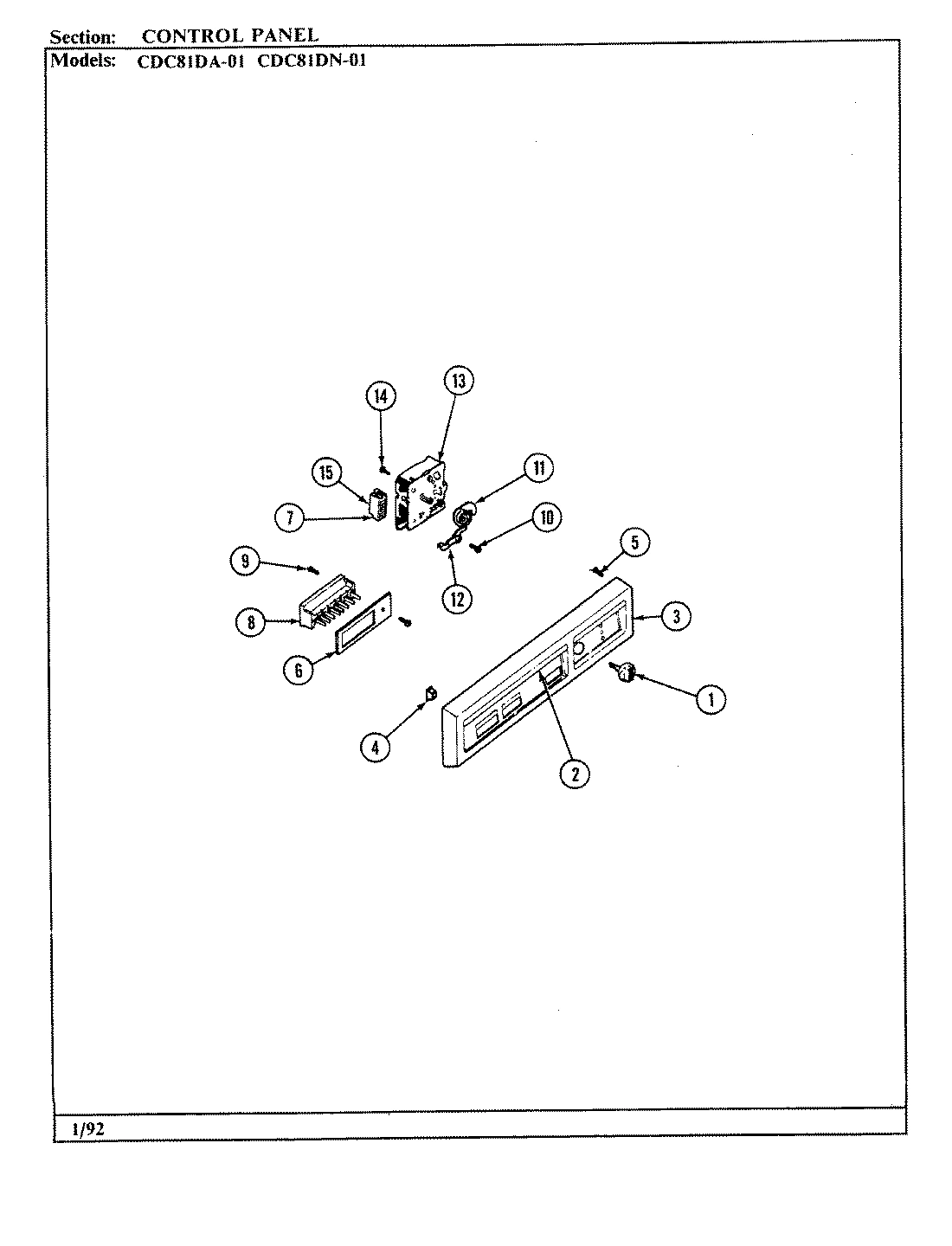

01 - CONTROL PANEL
Common parts from model Whirlpool CDC81DA-01 DISHWASHER
1
LATCH ASSEMBLY WPL 26450010 Contact Us For Availability
1
SPACER, LATCH WPL 30650002 Contact Us For Availability
1
UPPER RACK WPL Y03000131 Contact Us For Availability
1
NOZZLE, ASSEMBLY WPL 31750002 Contact Us For Availability
1
INSULATION WPL 25850001 Contact Us For Availability
1
KNOB, TIMER WPL 03000167 Contact Us For Availability
2
SCREW WPL 30050029 Contact Us For Availability
2
LOWER RACK WPL 03000136 Contact Us For Availability
2
SPRAY ARM WPL 20200005 Contact Us For Availability
2
HOSE, POWER SHOWER WPL Y03000129 Contact Us For Availability
2
TRIM, HANDLE WPL 32300032 Contact Us For Availability
3
KNOB, LATCH HANDLE WPL 03000169 Contact Us For Availability
3
RACK STOP WPL 03000132 Contact Us For Availability
3
HUB & SUPPORT ARM WPL 31300012 Contact Us For Availability
3
NUT-STRIP WPL 31200002 Contact Us For Availability
3
ESCUTCHEON & INSERT WPL 03000172 Contact Us For Availability
4
SCREW WPL 30050016 Contact Us For Availability
4
ROLLER, LOWER WPL 29550001 Contact Us For Availability
4
SCREW WPL 30050004 Contact Us For Availability
4
PUSH BUTTON WPL 21700001 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 31350002 Contact Us For Availability
5
BASKET, SILVERWARE WPL Y03000021 Contact Us For Availability
5
WASHER WPL 32800002 Contact Us For Availability
5
WASHER, RUBBER WPL 32800005 Contact Us For Availability
5
SCREW WPL 30050011 Contact Us For Availability
6
GUARD, SWITCH WPL 24850002 Contact Us For Availability
6
TRIM BACK WPL 03000150 Contact Us For Availability
6
HUB, SPRAY ARM WPL 25400002 Contact Us For Availability
6
NOZZLE, SCREW ASY WPL 27300002 Contact Us For Availability
6
BRACKET, SWITCH WPL 03000168 Contact Us For Availability
7
CUP, DET. ASSY WPL 03000161 Contact Us For Availability
7
TRIM CORNER WPL 03000151 Contact Us For Availability
7
BRACKET, HOLD-DOWN WPL 21450002 Contact Us For Availability
7
WASHER WPL 32800003 Contact Us For Availability
7
TERMINAL, HOUSING WPL Y03000072 Contact Us For Availability
8
WOODTOP WPL 03000152 Contact Us For Availability
8
CLAMP WPL 03000154 Contact Us For Availability
8
SCREW WPL 30050015 Contact Us For Availability
8
SEAL, SPLIT RING WPL 30100005 Contact Us For Availability
8
SPEEDNUT WPL 03000124 Contact Us For Availability
8
SWITCH, PUSHBUTTON WPL 31350057 Contact Us For Availability
9
SHAFT, DET. CUP WPL 03000162 Contact Us For Availability
9
MOUNTING BRACKET WPL Y03000155 Contact Us For Availability
9
VALVE, CHECK WPL 32550001 Contact Us For Availability
9
LATCH KEEPER WPL 23850005 Contact Us For Availability
9
SCREW WPL 30050012 Contact Us For Availability
9
SCREW WPL 30050022 Contact Us For Availability
10
VENT WPL 32650001 Contact Us For Availability
10
SIDE TRIM LH WPL 03000156 Contact Us For Availability
10
SIDE TRIM RH WPL 03000157 Contact Us For Availability
10
ADAPTOR WPL 20100001 Contact Us For Availability
10
SCREW WPL 30050030 Contact Us For Availability
10
SCREW WPL 30050024 Contact Us For Availability
11
COVER, VENT WPL 22750003 Contact Us For Availability
11
EXTENSION SPRING WPL 03000122 Contact Us For Availability
11
EXTENSION, SPRING WPL 23650001 Contact Us For Availability
11
GASKET WPL 24500001 Contact Us For Availability
11
HEATER WPL 23500003 Contact Us For Availability
11
CAM, DET & VENT TRIP WPL 21950005 Contact Us For Availability
12
GASKET, DOOR VENT WPL 24500005 Contact Us For Availability
12
LEG PEDESTAL WPL 03000148 Contact Us For Availability
12
NUT, SUPPORT WPL 27350002 Contact Us For Availability
12
GROMMET WPL 24800001 Contact Us For Availability
12
BUSHING, VENT LEVER WPL 21650001 Contact Us For Availability
12
LEVER, VENT WPL 26600002 Contact Us For Availability
13
GASKET, SHAFT WPL 24500004 Contact Us For Availability
13
GASKET, SIDE BRACE WPL 24500007 Contact Us For Availability
13
PALNUT WPL 27850001 Contact Us For Availability
13
TRIM, CORNER-LEFT WPL 32300002 Contact Us For Availability
13
TRIM, CORNER-RIGHT WPL 32300003 Contact Us For Availability
13
TIMER WPL Y03000166 Contact Us For Availability
14
DOOR GASKET WPL Y03000164 Contact Us For Availability
14
SPRING, HINGE WPL 30700004 Contact Us For Availability
14
TUBE, SPRAY ARM WPL 32350001 Contact Us For Availability
14
SCREW WPL 30050020 Contact Us For Availability
15
CLIP, GASKET WPL 22400003 Contact Us For Availability
15
HINGE, DOOR-LEFT WPL 25200001 Contact Us For Availability
15
HINGE, DOOR-RIGHT WPL 25200002 Contact Us For Availability
15
CLAMP WPL 22350007 Contact Us For Availability
15
``O`` RING WPL 32800007 Contact Us For Availability
15
TERMINAL WPL Y03000076 Contact Us For Availability
16
CAP, FILL ASSEMBLY WPL 22050002 Contact Us For Availability
16
ANTITIP & PAD LH WPL 03000135 Contact Us For Availability
16
ANTITIP & PAD RH WPL 03000137 Contact Us For Availability
16
HOUSING PUMP ASSEMBLY WPL 25350001 Contact Us For Availability
16
WASHER, HEATER WPL 32800008 Contact Us For Availability
17
NUT, RINSE INT WPL 27350023 Contact Us For Availability
17
PAD, ANTITIP WPL 03000171 Contact Us For Availability
17
STRAP, MOTOR WPL 31100001 Contact Us For Availability
17
NUT, HEATER WPL 27350007 Contact Us For Availability
18
BAFFLE, VENT WPL 20450001 Contact Us For Availability
18
SOCKET CASTER WPL 03000144 Contact Us For Availability
18
HANGER, MOTOR WPL 25100001 Contact Us For Availability
18
INSULATOR, THERM WPL 25900007 Contact Us For Availability
19
SCREW WPL 30050010 Contact Us For Availability
19
CASTER WPL Y03000145 Contact Us For Availability
19
PUMP ASSY. WPL 27200001 Contact Us For Availability
19
THERMOSTAT WPL 31600004 Contact Us For Availability
20
PANEL, INNER DOOR WPL 28000001 Contact Us For Availability
20
SCREW WPL 30050009 Contact Us For Availability
20
SCREW WPL 30050113 Contact Us For Availability
21
BODY RINSE AGENT WPL 21300001 Contact Us For Availability
21
GASKET, RINSE AID WPL 24500012 Contact Us For Availability
21
SIDE TRIP CAP WPL 03000143 Contact Us For Availability
21
GATE VALVE ARM KIT WPL Y03000032 Contact Us For Availability
21
SOLENOID, ASSEMBLY WPL 22500002 Contact Us For Availability
22
B/METAL, RINSE AID WPL 21050001 Contact Us For Availability
22
INSULATOR, B/METAL WPL 25900008 Contact Us For Availability
22
PUSHNUT, HINGE WPL 27350008 Contact Us For Availability
22
RETAINER WPL 29400001 Contact Us For Availability
22
INSULATOR WPL 25900004 Contact Us For Availability
23
VALVE, PIN & SEAL WPL 32550004 Contact Us For Availability
23
GUIDE BRACKET WPL 03000146 Contact Us For Availability
23
SPRING, GATE VALVE WPL 30700002 Contact Us For Availability
23
WATER VALVE WPL Y03000147 Contact Us For Availability
24
INSERT, PLASTIC WPL 25800001 Contact Us For Availability
24
GUIDE ASSY RH WPL 03000138 Contact Us For Availability
24
GUIDE ASSY LH WPL 03000139 Contact Us For Availability
24
LINK & ARMATURE WPL 20250001 Contact Us For Availability
24
BRACKET, THERMOSTAT WPL 21450041 Contact Us For Availability
25
SCREW, SEAL WPL 03000160 Contact Us For Availability
25
SLIDE, RACK WPL 30450002 Contact Us For Availability
25
INSULATOR WPL 25900001 Contact Us For Availability
25
KICKPLATE WPL 03000158 Contact Us For Availability
26
SPRING, CUP WPL 30700003 Contact Us For Availability
26
ROLLER, SLIDE & STUD WPL 29550002 Contact Us For Availability
26
SOLENOID, DRAIN COIL WPL 22500001 Contact Us For Availability
26
SCREW,No.10-16X1/2 WPL 30050007 Contact Us For Availability
27
SPACER, PIVOT WPL 30650001 Contact Us For Availability
27
END CAP, RACK SLIDE WPL 23550002 Contact Us For Availability
27
BRACKET, SOLENOID WPL 03000106 Contact Us For Availability
27
HOUSING TERMINAL WPL Y03000125 Contact Us For Availability
28
LEVER WPL 26600001 Contact Us For Availability
28
STUD WPL 31250001 Contact Us For Availability
28
SCREW WPL 30050014 Contact Us For Availability
28
FLOAT SWITCH WPL Y03000123 Contact Us For Availability
29
SCREW WPL 30050019 Contact Us For Availability
29
ROLLER, TUB WPL 29550003 Contact Us For Availability
29
SHAFT GUARD, SLINGER WPL 30500001 Contact Us For Availability
29
WASHER, FLOAT TUBE WPL 32800006 Contact Us For Availability
30
LEVER, CAM WPL 03000163 Contact Us For Availability
30
WASHER WPL 32800004 Contact Us For Availability
30
NUT WPL 27350041 Contact Us For Availability
30
FLOAT WPL 24100001 Contact Us For Availability
31
PANEL, DOOR-A WPL 28050002 Contact Us For Availability
31
PANEL, DOOR-Y WPL 28080002 Contact Us For Availability
31
PANEL, DOOR-N WPL 28090002 Contact Us For Availability
31
STRIP WPL 31200001 Contact Us For Availability
31
SEAL, SHAFT WPL 30100002 Contact Us For Availability
31
PUSHNUT WPL 03000126 Contact Us For Availability
32
PANEL, ACCESS-A WPL 28050001 Contact Us For Availability
32
PANEL, ACCESS-Y WPL 28080001 Contact Us For Availability
32
PANEL, ACCESS-N WPL 28090001 Contact Us For Availability
32
RIVET, HINGE WPL 29500001 Contact Us For Availability
32
TUBE, FLOAT WPL 32350002 Contact Us For Availability
33
SCREW WPL 30050003 Contact Us For Availability
33
GASKET, INLET WPL 24500006 Contact Us For Availability
34
SEAL, SEAT WPL 30100003 Contact Us For Availability
34
INLET, WATER WPL 25750003 Contact Us For Availability
35
SEAL, SHAFT WPL 30100004 Contact Us For Availability
35
HOSE, FILL WPL 25300002 Contact Us For Availability
36
CLAMP, FILL HOSE WPL 22350004 Contact Us For Availability
36
PUMP IMPELLER WPL 25600003 Contact Us For Availability
37
SCREW WPL 30050013 Contact Us For Availability
37
WEAR RING WPL 29450001 Contact Us For Availability
38
BASE, WEAR RING WPL 20850001 Contact Us For Availability
39
GRADER/NUT WPL 24650002 Contact Us For Availability
39
ADAPTER, FAUCET WPL Y03000159 Contact Us For Availability
40
SPRING, CUTTER WPL 30700001 Contact Us For Availability
40
SHIELD CORD WPL 03000140 Contact Us For Availability
41
GUIDE CORD WPL 03000142 Contact Us For Availability
42
CONNECTOR PUMP INLET WPL 03000127 Contact Us For Availability
42
CAP WPL 28500001 Contact Us For Availability
42
HOSE GUIDE ASSY WPL 03000134 Contact Us For Availability
43
CLAMP WPL 22350008 Contact Us For Availability
43
STABILIZER, HEATER WPL 30750001 Contact Us For Availability
44
NUT, SUMP INLET WPL 27350003 Contact Us For Availability
45
GASKET, SUMP INLET WPL 24500002 Contact Us For Availability
46
INLET, SUMP WPL 25750001 Contact Us For Availability
47
COVER, SUMP WPL 22750001 Contact Us For Availability
NI
CONVERSION KIT WPL 03000170 Contact Us For Availability
× ![]()
