Model Maytag CDB7000AWS5 DISHWASHER – Common Parts & Diagrams

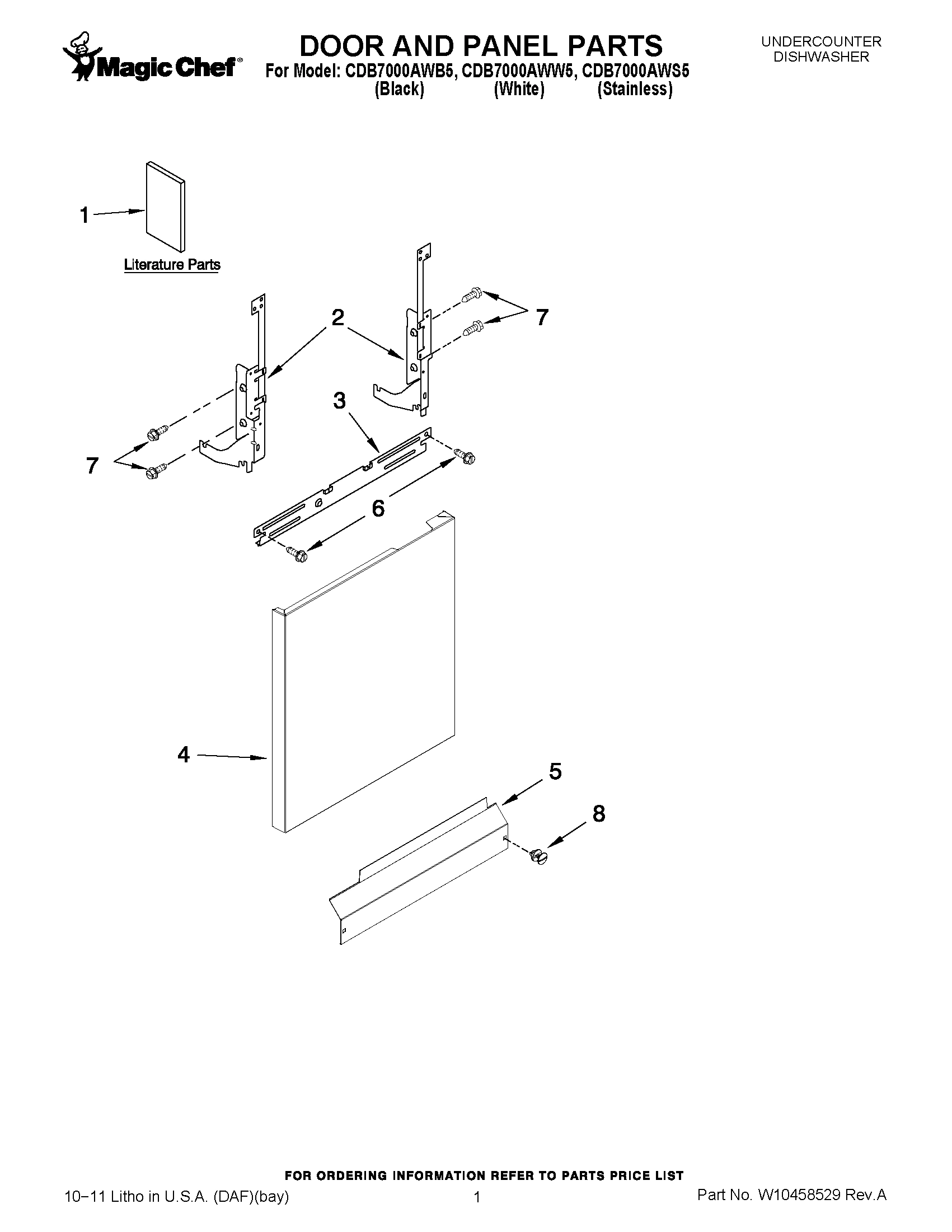

01 - DOOR AND PANEL PARTS

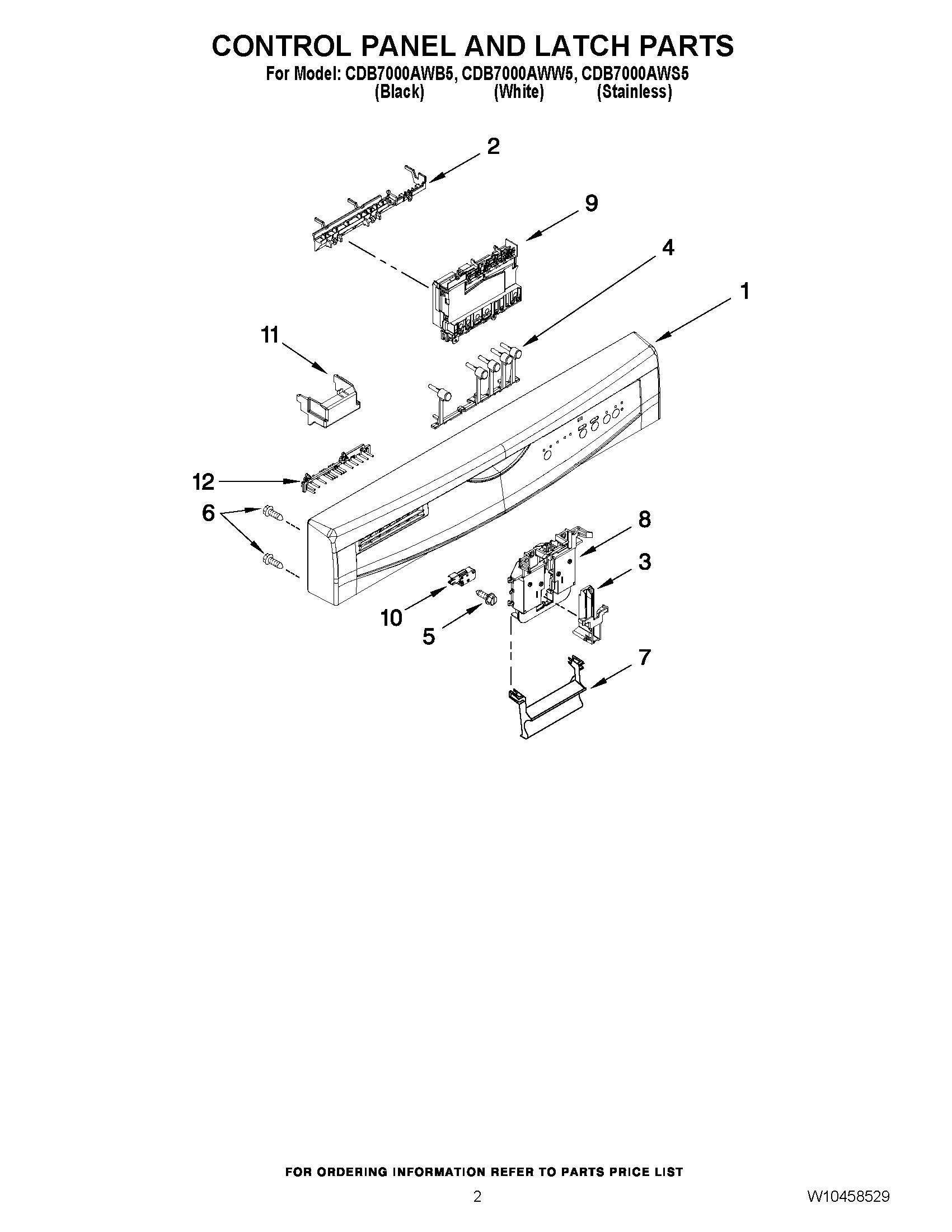

02 - CONTROL PANEL AND LATCH PARTS

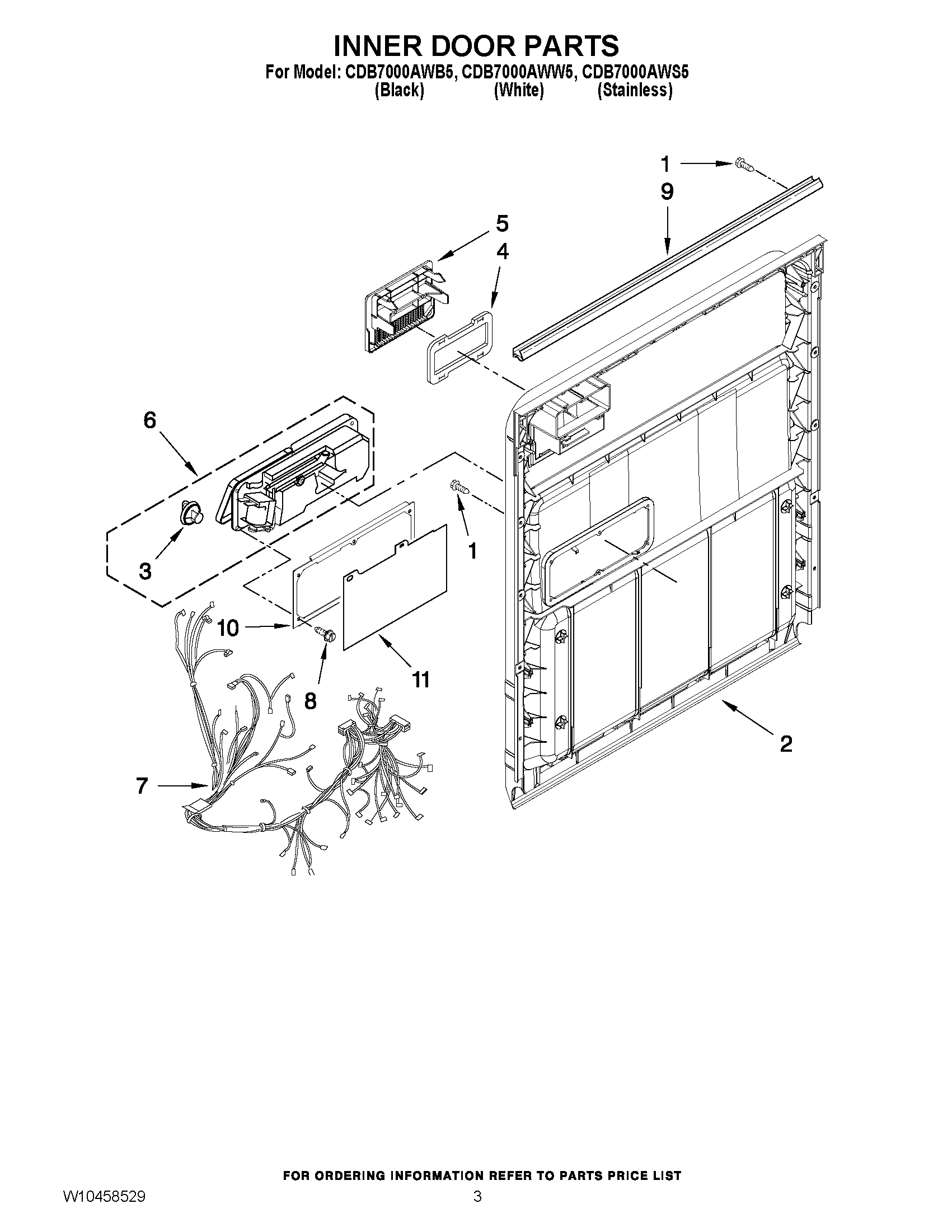

03 - INNER DOOR PARTS

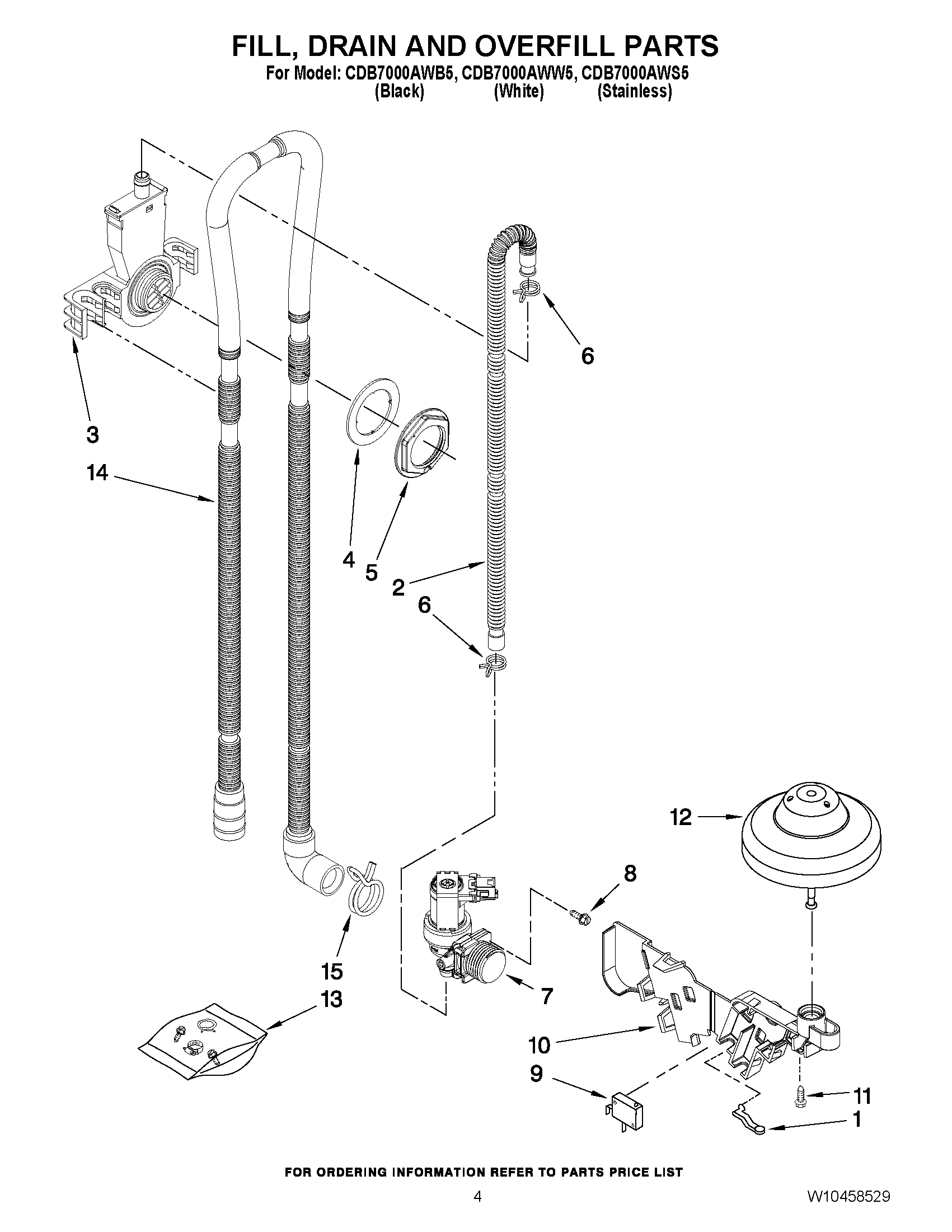

04 - FILL, DRAIN AND OVERFILL PARTS

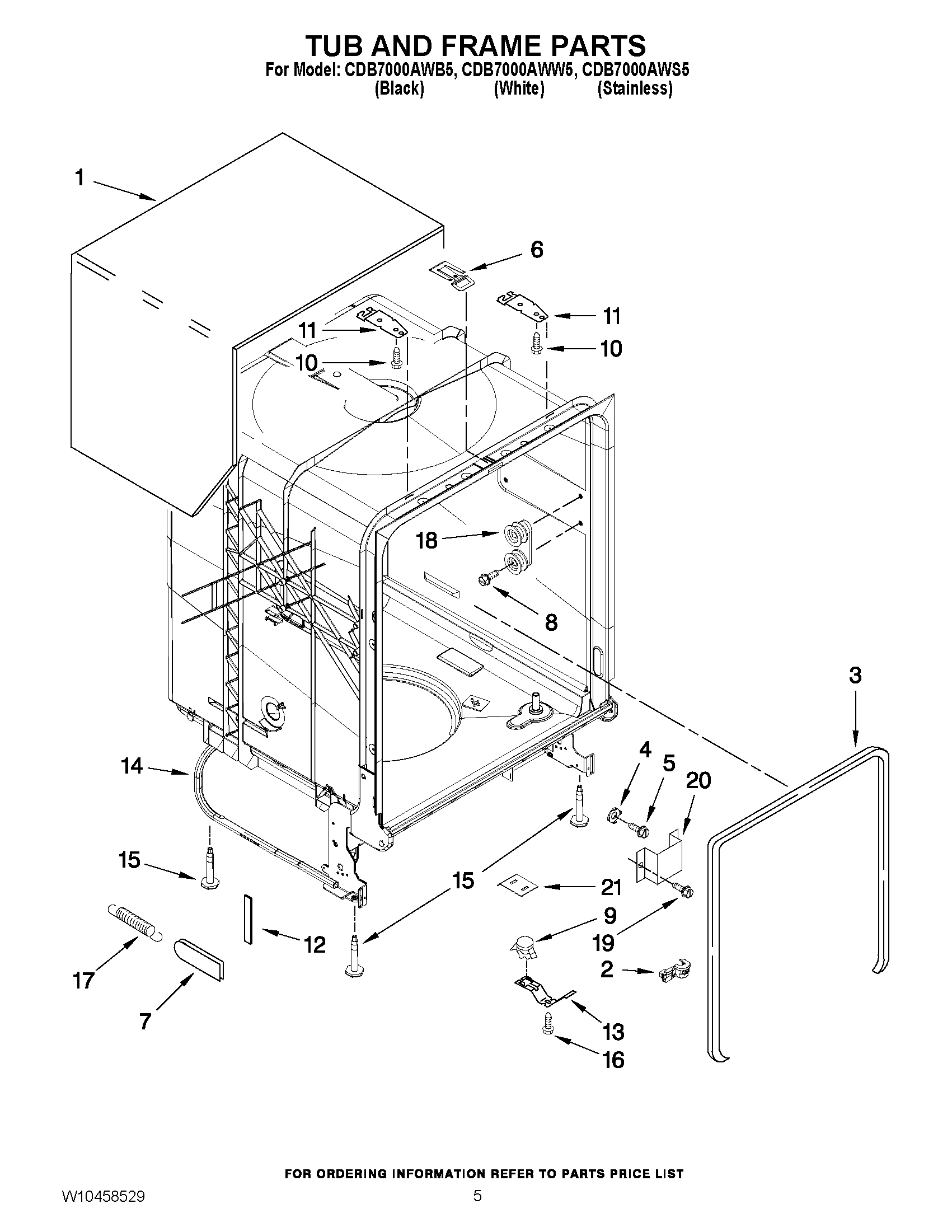

05 - TUB AND FRAME PARTS

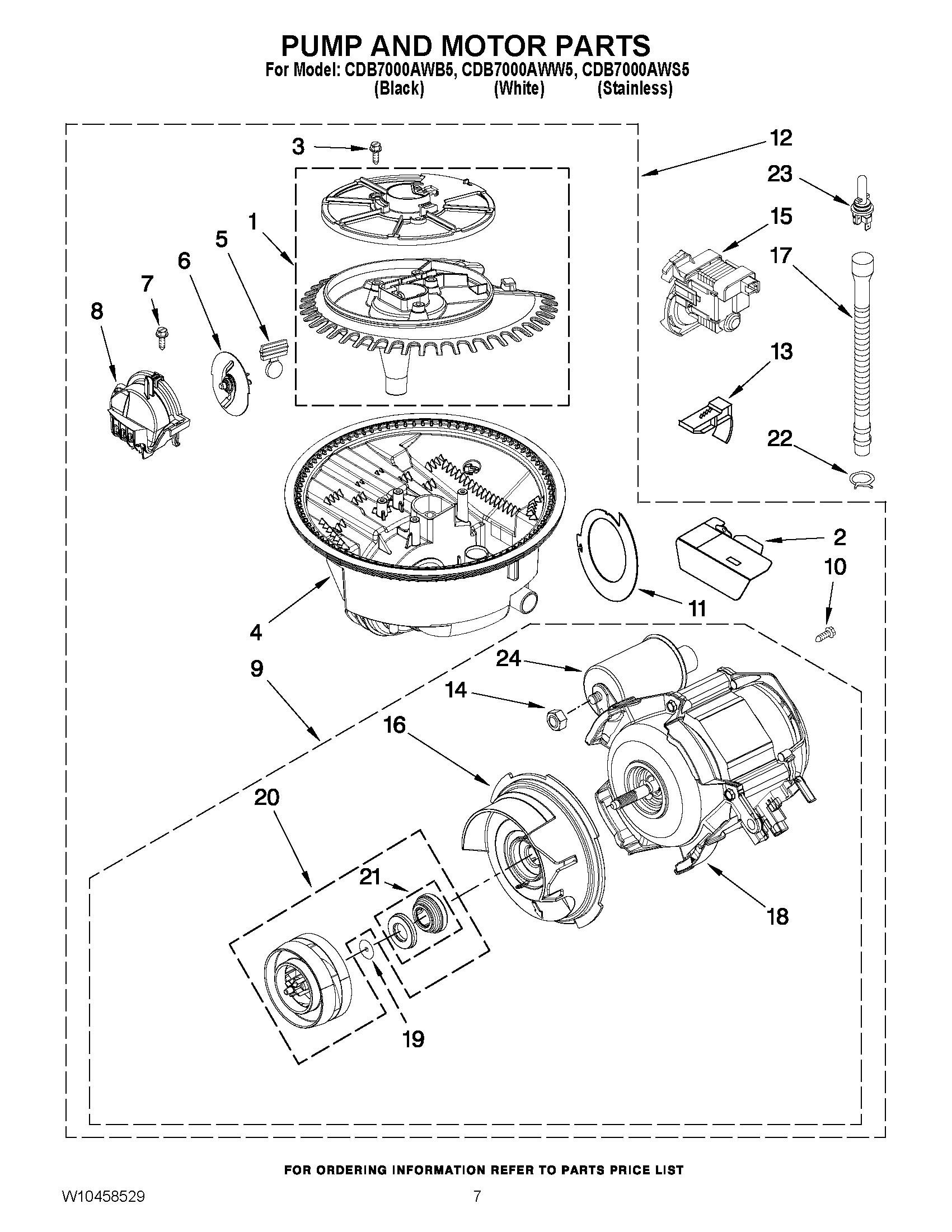

06 - PUMP AND MOTOR PARTS

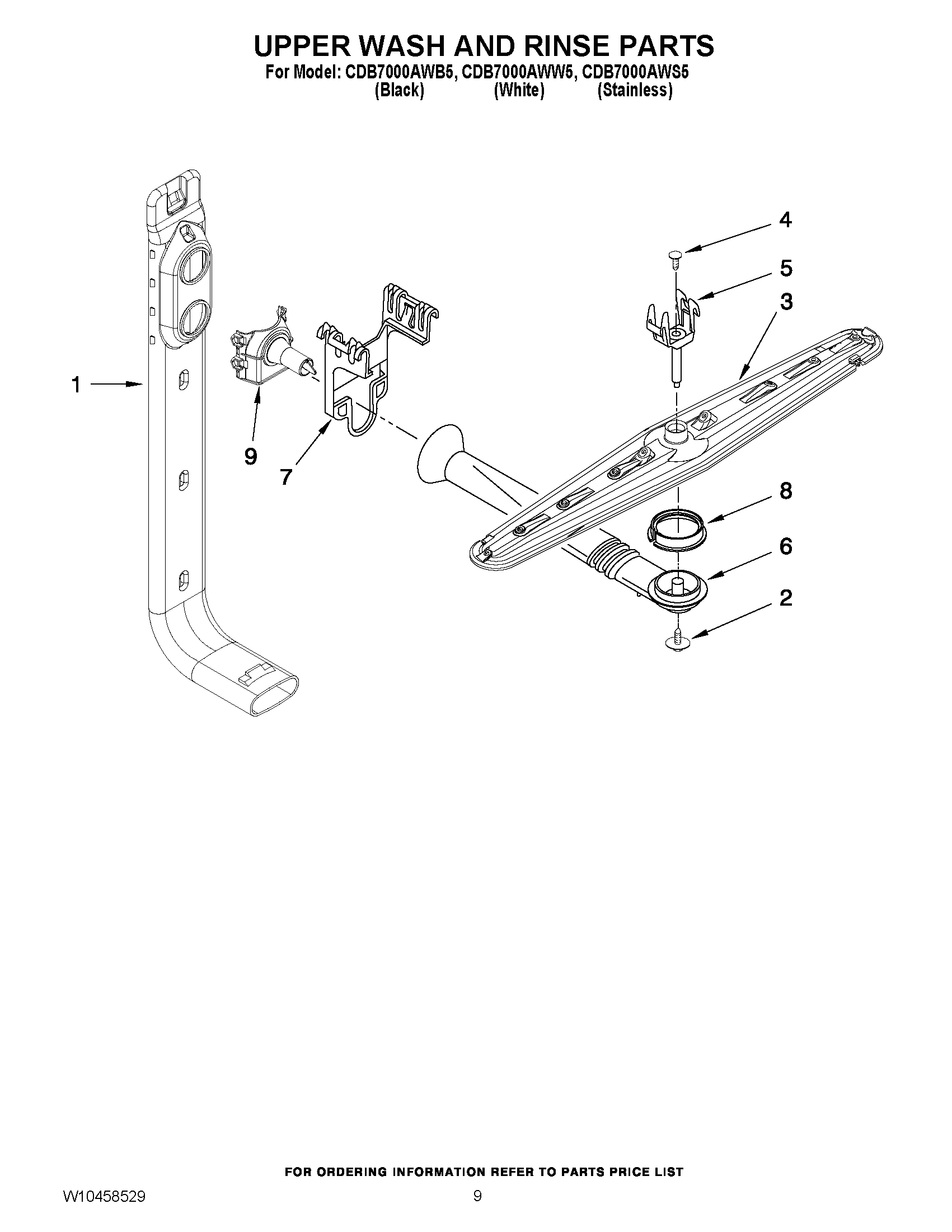

07 - UPPER WASH AND RINSE PARTS

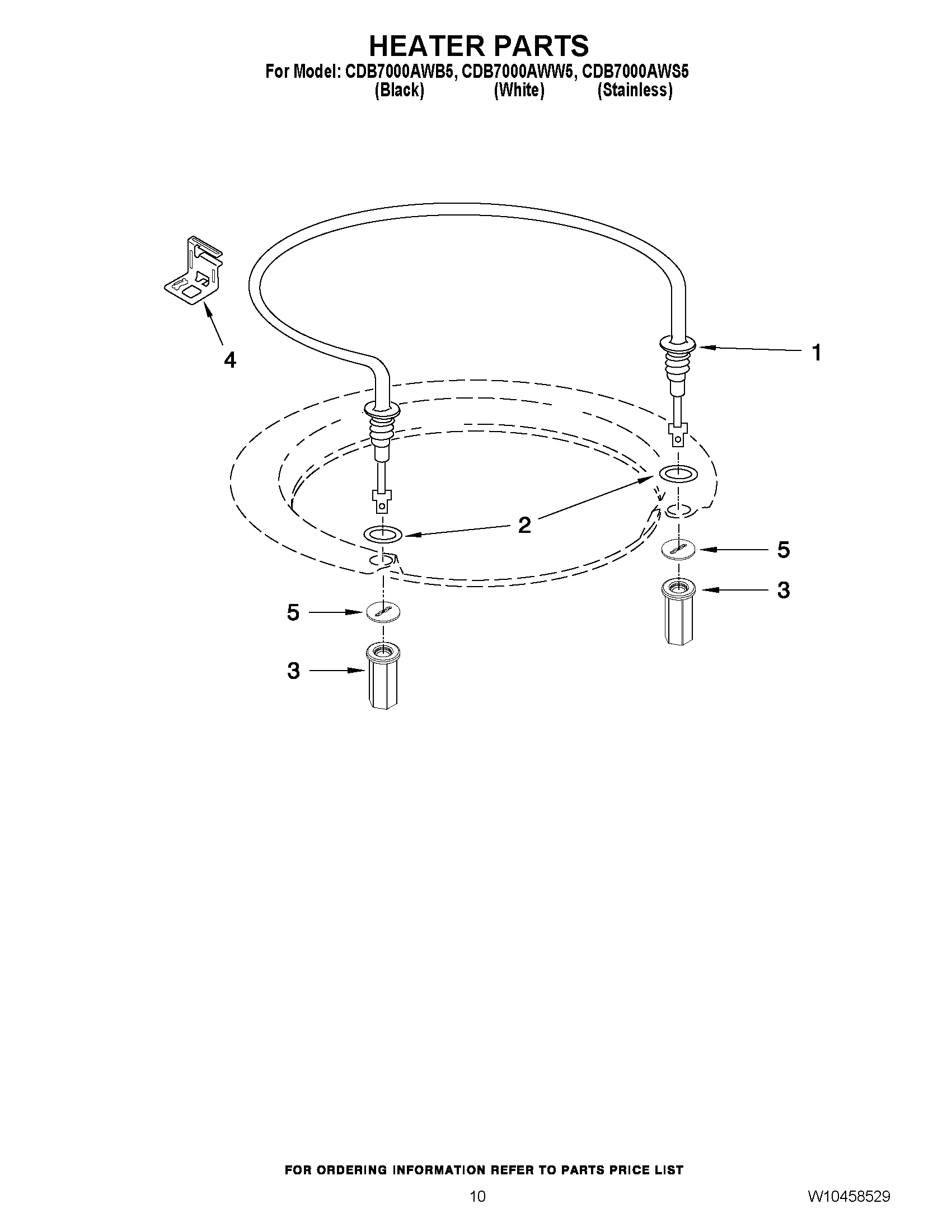

08 - HEATER PARTS

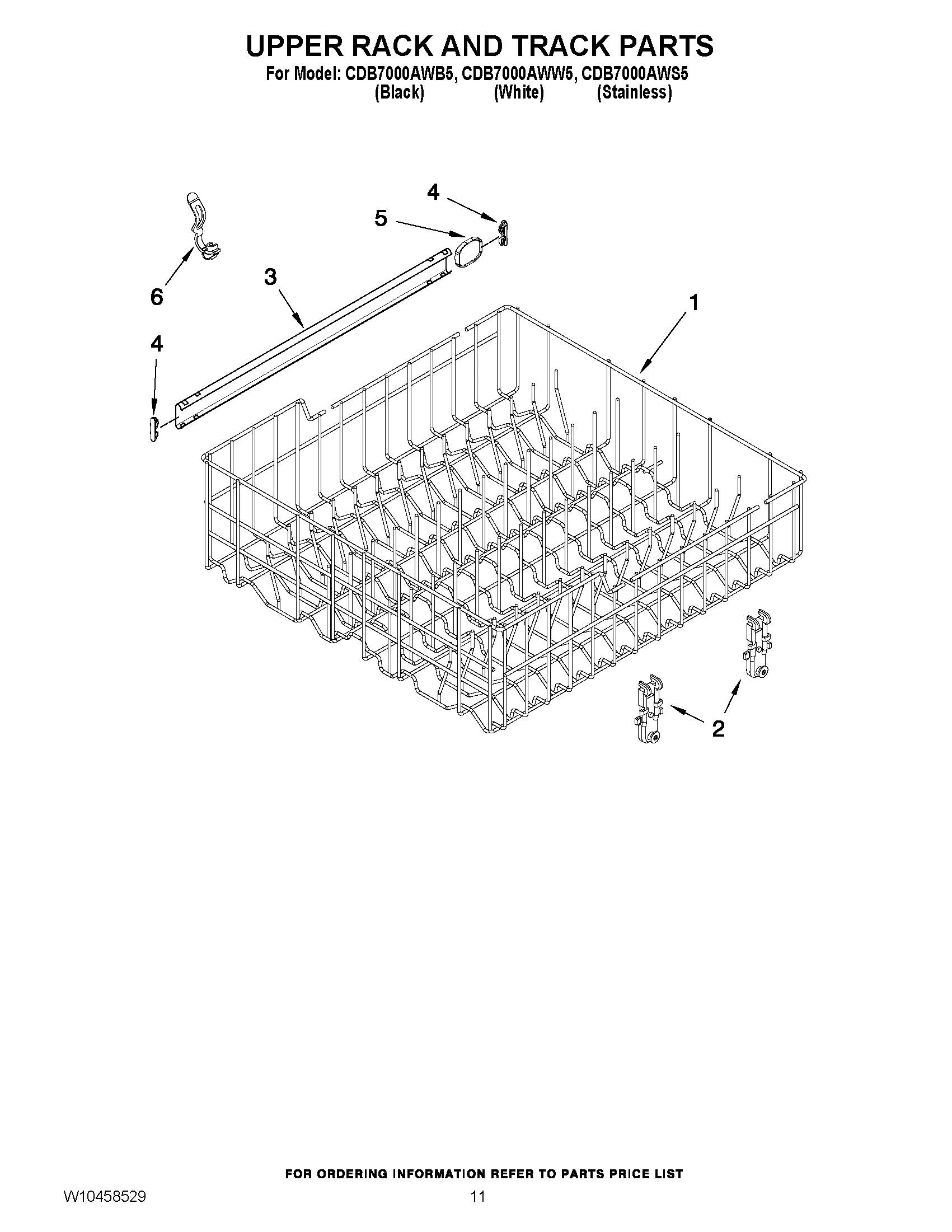

09 - UPPER RACK AND TRACK PARTS

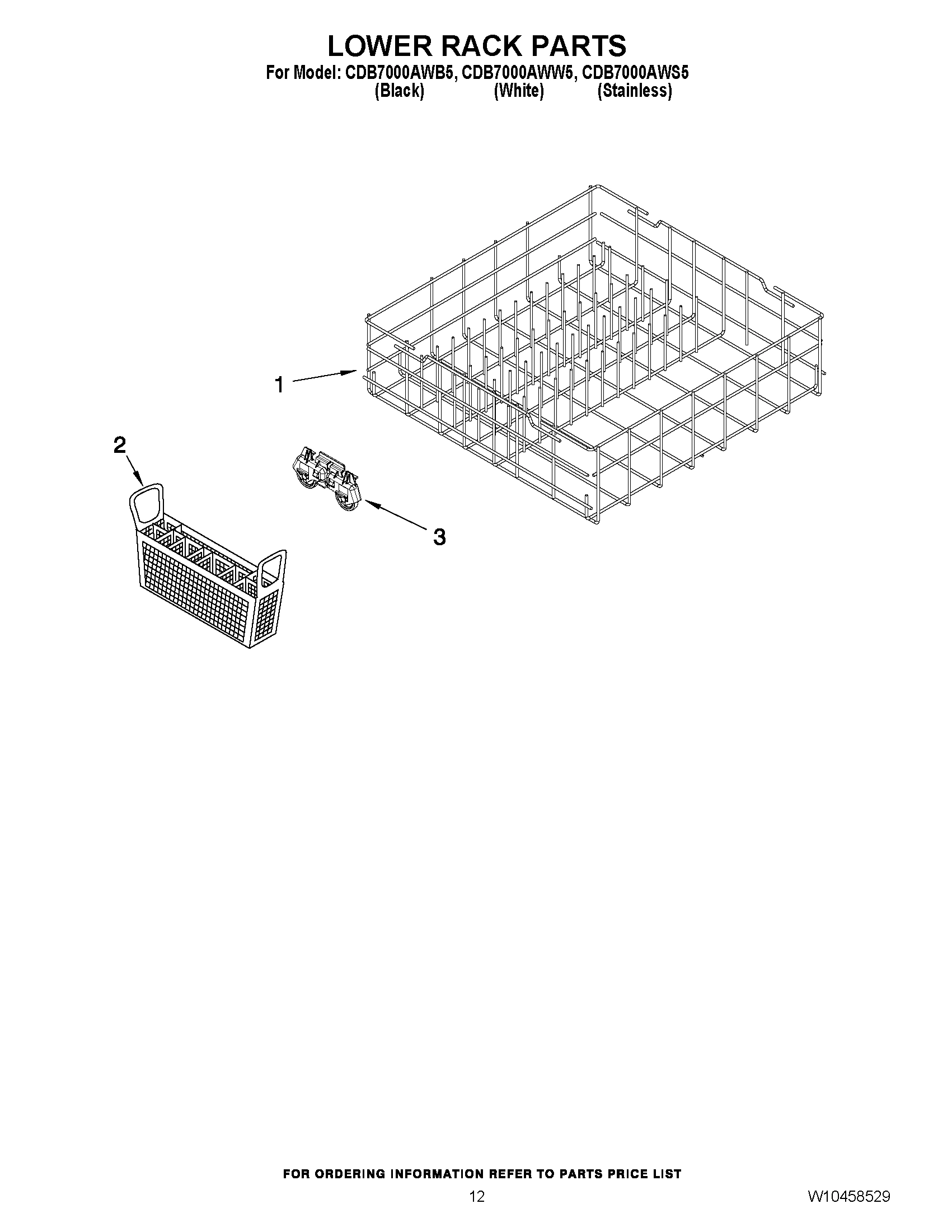

10 - LOWER RACK PARTS

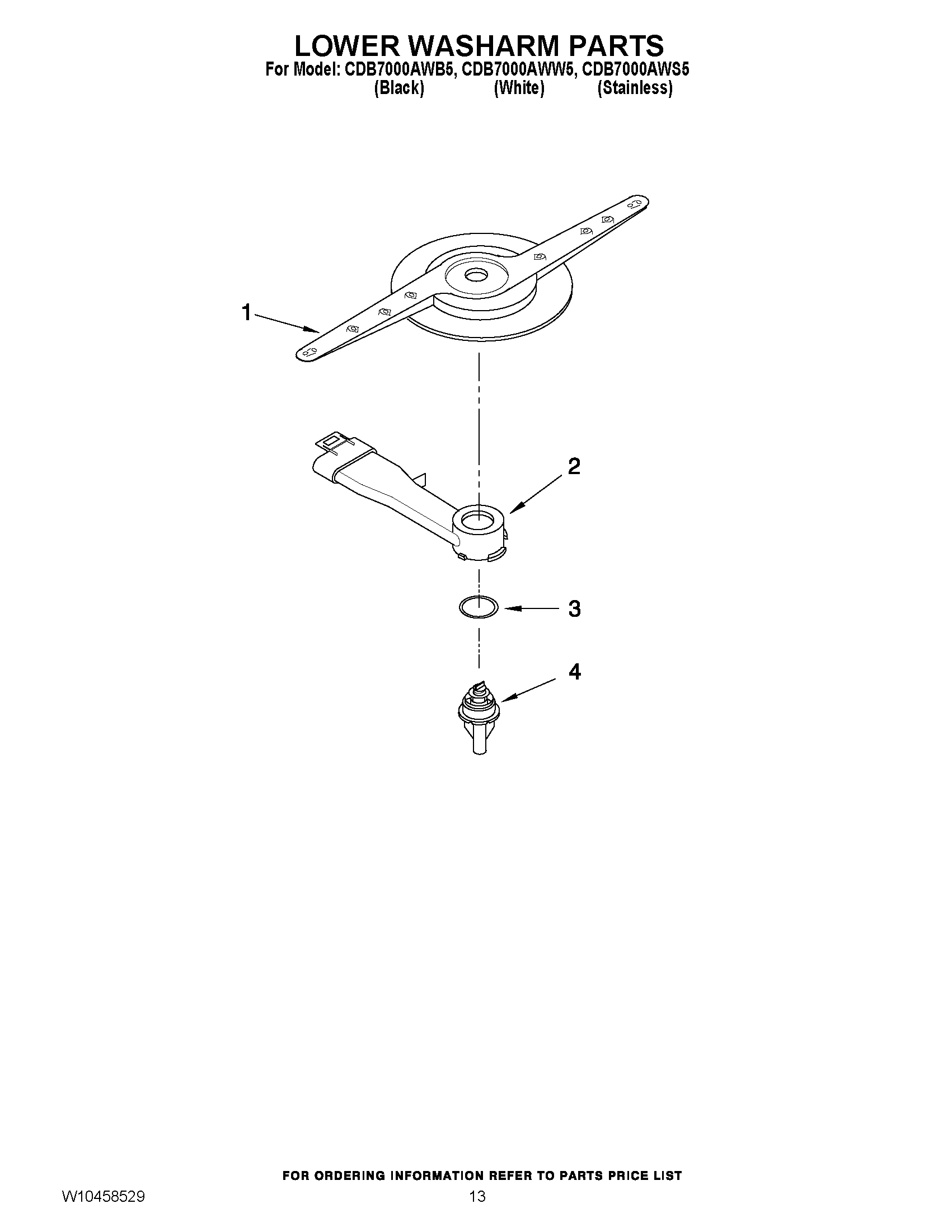

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag CDB7000AWS5 DISHWASHER
1
USE & CARE GUIDE (ENGLISH/FRENCH) MAY W10310535 Contact Us For Availability
1
USE & CARE GUIDE (SPANISH) MAY W10310536 Contact Us For Availability
1
MAY W10321979 MAY W10321979 Contact Us For Availability
1
TECH SHEET (FRENCH) MAY W10321980 Contact Us For Availability
1
MAY W10398611 MAY W10398611 Contact Us For Availability
1
MAY W10435039 MAY W10435039 Contact Us For Availability
1
MAY W10389141 MAY W10389141 Contact Us For Availability
1
MAY W10389142 MAY W10389142 Contact Us For Availability
1
SCREW, DOOR MAY W10348413 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10266934 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
MAY W10254531 MAY W10254531 Contact Us For Availability
1
MAY W10134009 MAY W10134009 Contact Us For Availability
1
MAY W10164198 MAY W10164198 Contact Us For Availability
1
LOWER RACK ASSEMBLY (INCLUDES ITEM 3) MAY 8561705 Contact Us For Availability
1
MAY 8268333 MAY 8268333 Contact Us For Availability
2
MAY W10143373 MAY W10143373 Contact Us For Availability
2
MAY W10143374 MAY W10143374 Contact Us For Availability
2
BRACE CONTROL CONNECTOR MAY W10372484 Contact Us For Availability
2
INNER DOOR (ALSO ORDER ITEM 4) MAY W10254547 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY 8573061 MAY 8573061 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY W10349488 MAY W10349488 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
MOUNT, WHEEL MAY 8575281 Contact Us For Availability
2
SILVERWARE BASKET MAY 8268866 Contact Us For Availability
2
MAY 8268317 MAY 8268317 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
MAY 8524471 MAY 8524471 Contact Us For Availability
3
MAY 8533380 MAY 8533380 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
MAY W10284090 MAY W10284090 Contact Us For Availability
3
MAY W10348405 MAY W10348405 Contact Us For Availability
3
MAY 8535083 MAY 8535083 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
TRACK, RACK MAY 3385089 Contact Us For Availability
3
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
3
MAY 8268340 MAY 8268340 Contact Us For Availability
4
MAY W10274895 MAY W10274895 Contact Us For Availability
4
MAY W10274896 MAY W10274896 Contact Us For Availability
4
MAY W10274902 MAY W10274902 Contact Us For Availability
4
BUTTON TREE MAY W10274843 Contact Us For Availability
4
MAY W10254545 MAY W10254545 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY 3378128 MAY 3378128 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY 3400919 MAY 3400919 Contact Us For Availability
4
MAY 8269262 MAY 8269262 Contact Us For Availability
4
STOP TRACK MAY 8565920 Contact Us For Availability
4
MAY 8268342 MAY 8268342 Contact Us For Availability
5
ACCESS PANEL MAY W10441006 Contact Us For Availability
5
MAY 3400412 MAY 3400412 Contact Us For Availability
5
MAY W10254548 MAY W10254548 Contact Us For Availability
5
MAY 8531326 MAY 8531326 Contact Us For Availability
5
MAY 3400014 MAY 3400014 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
MAY 3385159 MAY 3385159 Contact Us For Availability
5
SHIELD, HEATER NUT MAY W10343251 Contact Us For Availability
5
SPACER, TRACK MAY W10306228 Contact Us For Availability
6
MAY W10195411 MAY W10195411 Contact Us For Availability
6
STRIKE, LATCH MAY 8580309 Contact Us For Availability
6
MAY 8268383 MAY 8268383 Contact Us For Availability
6
MAY W10258149 MAY W10258149 Contact Us For Availability
6
MAY W10286810 MAY W10286810 Contact Us For Availability
7
MAY 489470 MAY 489470 Contact Us For Availability
7
MAY 8269323 MAY 8269323 Contact Us For Availability
7
MAY 8269324 MAY 8269324 Contact Us For Availability
7
WIRING HARNESS MAY W10416609 Contact Us For Availability
7
MAY W10195047 MAY W10195047 Contact Us For Availability
7
MAY 8268990 MAY 8268990 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
HOLDER, FEED TUBE MAY 3385160 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
FASTENER MAY W10331789 Contact Us For Availability
8
MAY W10274884 MAY W10274884 Contact Us For Availability
8
MAY W10177098 MAY W10177098 Contact Us For Availability
8
MAY W10341745 MAY W10341745 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
MAY 8268433 MAY 8268433 Contact Us For Availability
9
CONTROL ELECTRONIC MAY W10375799 Contact Us For Availability
9
MAY 8269296 MAY 8269296 Contact Us For Availability
9
MAY W10102495 MAY W10102495 Contact Us For Availability
9
MAY W10339474 MAY W10339474 Contact Us For Availability
9
MAY W10231538 MAY W10231538 Contact Us For Availability
9
MAY 8562095 MAY 8562095 Contact Us For Availability
10
MAY W10274880 MAY W10274880 Contact Us For Availability
10
BRACKET, DISPENSER MAY W10341423 Contact Us For Availability
10
MAY W10175383 MAY W10175383 Contact Us For Availability
10
MAY 3367670 MAY 3367670 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
11
MAY W10401190 MAY W10401190 Contact Us For Availability
11
MAY W10385977 MAY W10385977 Contact Us For Availability
11
MAY 8269145 MAY 8269145 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
LIGHT PIPE MAY W10274837 Contact Us For Availability
12
MAY 8268913 MAY 8268913 Contact Us For Availability
12
MAY 8268961 MAY 8268961 Contact Us For Availability
12
MAY W10237167 MAY W10237167 Contact Us For Availability
13
MISCELLANEOUS PARTS BAG (INCL. 2 SCREWS, 2 HO MAY W10292152 Contact Us For Availability
13
MAY 3378595 MAY 3378595 Contact Us For Availability
13
MAY W10300599 MAY W10300599 Contact Us For Availability
14
MAY W10137608 MAY W10137608 Contact Us For Availability
14
MAY W10271702 MAY W10271702 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
MAY 371505 MAY 371505 Contact Us For Availability
15
MAY 8524584 MAY 8524584 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
SCREW MAY 304231 Contact Us For Availability
16
VOLUTE W/ SEAL (ALSO ORDER ITEMS 19 & 21) MAY W10142656 Contact Us For Availability
17
MAY 8524473 MAY 8524473 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 8270016 MAY 8270016 Contact Us For Availability
18
MAY W10226459 MAY W10226459 Contact Us For Availability
19
MAY 3400892 MAY 3400892 Contact Us For Availability
19
MAY 8531018 MAY 8531018 Contact Us For Availability
20
MAY 8268991 MAY 8268991 Contact Us For Availability
20
IMPELLER KIT (ALSO ORDER ITEM 19) MAY 8531017 Contact Us For Availability
21
SHIELD, THERMOSTAT MAY W10339699 Contact Us For Availability
21
FACE SEAL ASSEMBLY (ALSO ORDER ITEM 19) MAY 8268403 Contact Us For Availability
22
MAY 370445 MAY 370445 Contact Us For Availability
23
MAY 8578828 MAY 8578828 Contact Us For Availability
24
MAY W10334457 MAY W10334457 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
ANTI-TIP KIT (FLOOR MOUNT KIT) MAY 4396194 Contact Us For Availability
NI
MAY 4396199 MAY 4396199 Contact Us For Availability
NI
MAY 4396200 MAY 4396200 Contact Us For Availability
NI
MAY 4396201 MAY 4396201 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
TIP TINE REPAIR KIT TIP TINE REPAIR KIT (ENOU MAY 4396838 Contact Us For Availability
NI
TIP TINE REPAIR KIT TIP TINE REPAIR KIT (ENOU MAY 4396840 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ.) (WHITE) MAY 676453 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ.) (GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
