Whirlpool CCS447B-C Parts List

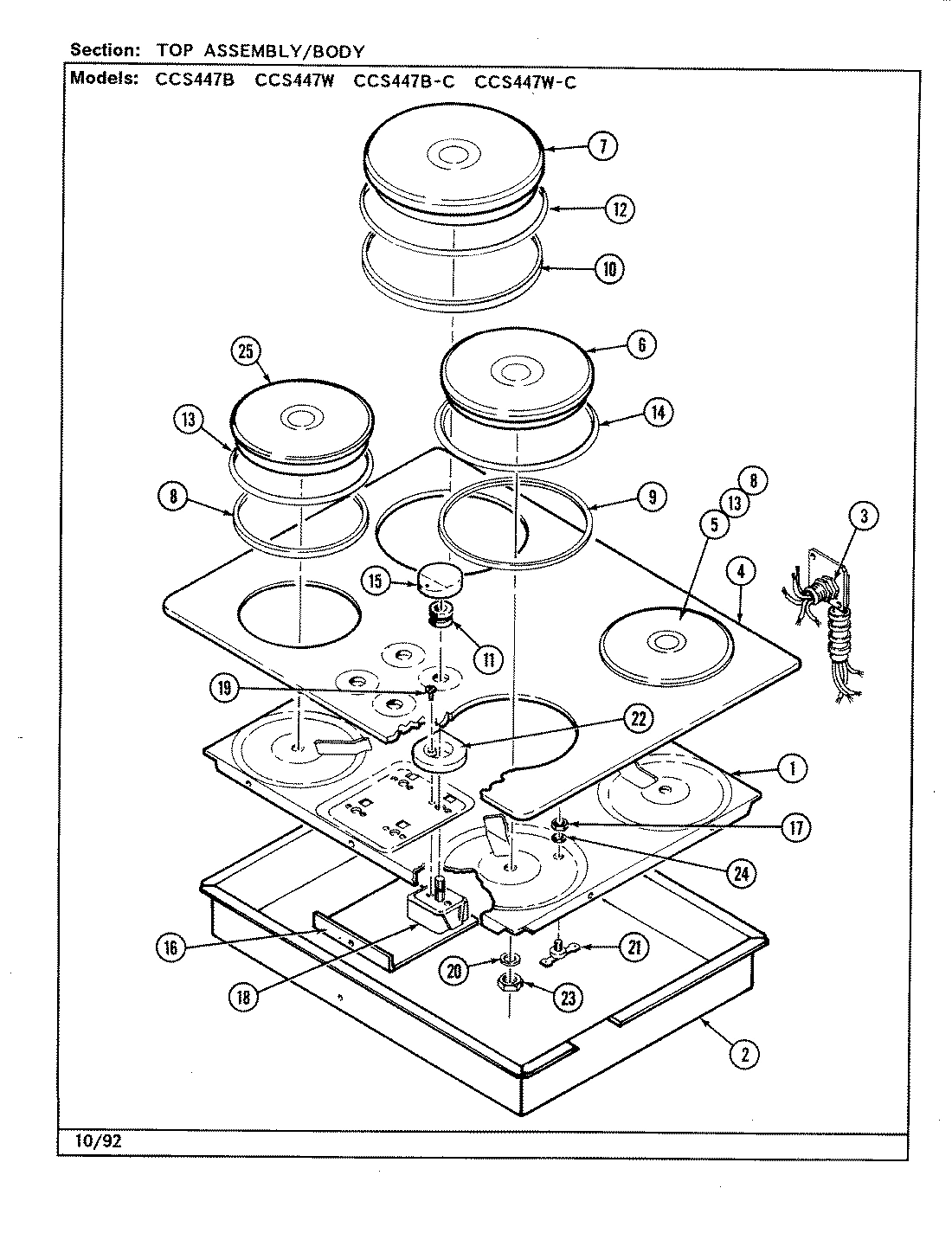

Model Whirlpool CCS447B-C ELECTRIC COOK-TOP – Common Parts & Diagrams

Common parts from model Whirlpool CCS447B-C ELECTRIC COOK-TOP

WIRE CABLE ASSY

WIRE CABLE ASSY WPL 04100449 Contact Us For Availability

GLASS, COOKTOP (BLK)

GLASS, COOKTOP (BLK) WPL Y04100365 Contact Us For Availability

ELEMENT, SURFACE 145MM (2000W)

ELEMENT, SURFACE 145MM (2000W) WPL 04100345 Contact Us For Availability

ELEMENT, SURFACE 180MM (2000W)

ELEMENT, SURFACE 180MM (2000W) WPL 04100346 Contact Us For Availability

ELEMENT, SURFACE 220MM (3200W)

ELEMENT, SURFACE 220MM (3200W) WPL Y04100347 Contact Us For Availability

GASKET (SMALL)

GASKET (SMALL) WPL 04100348 Contact Us For Availability

SEAL, LARGE

SEAL, LARGE WPL 04100349 Contact Us For Availability

GASKET, 220MM

GASKET, 220MM WPL Y04100350 Contact Us For Availability

GROMMETT

GROMMETT WPL 04100373 Contact Us For Availability

COLLAR, 220MM

COLLAR, 220MM WPL 04100351 Contact Us For Availability

COLLAR, SMALL (145MM)

COLLAR, SMALL (145MM) WPL 04000006 Contact Us For Availability

COLLAR, 180MM (LARGE)

COLLAR, 180MM (LARGE) WPL 04000007 Contact Us For Availability

KNOB, INFINITE (BLK)

KNOB, INFINITE (BLK) WPL Y04100366 Contact Us For Availability

HEAT SHIELD

HEAT SHIELD WPL 04100353 Contact Us For Availability

NUT, HEX----NA

NUT, HEX----NA WPL 04100354 Contact Us For Availability

W11120791 Whirlpool Range Surface Element Inf

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $70.11

71002058 Whirlpool Screw 8-32 x 0.18

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.41

WASHER, No.8

WASHER, No.8 WPL 04100364 Contact Us For Availability

SENSOR, GLASS PROTECTOR

SENSOR, GLASS PROTECTOR WPL Y04100080 Contact Us For Availability

BOX, LIGHT

BOX, LIGHT WPL Y706061 Contact Us For Availability

WP71001171 Whirlpool Screw

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $4.82

WP90767 Whirlpool Screw

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

NUT, DISC ELEMENT

NUT, DISC ELEMENT WPL 04000003 Contact Us For Availability

BREAKER (30 AMP)

BREAKER (30 AMP) WPL 702008 Contact Us For Availability

BOX, BREAKER

BOX, BREAKER WPL 704165 Contact Us For Availability

WASHER, LOCK

WASHER, LOCK WPL 715910 Contact Us For Availability

ELEMENT W/RING (SMALL)

ELEMENT W/RING (SMALL) WPL Y04100362 Contact Us For Availability

MANUAL, SERVICE

MANUAL, SERVICE WPL 16010241 Contact Us For Availability
