Model Whirlpool CCG2420B GAS COOK-TOP – Common Parts & Diagrams
03 - WIRING INFORMATION

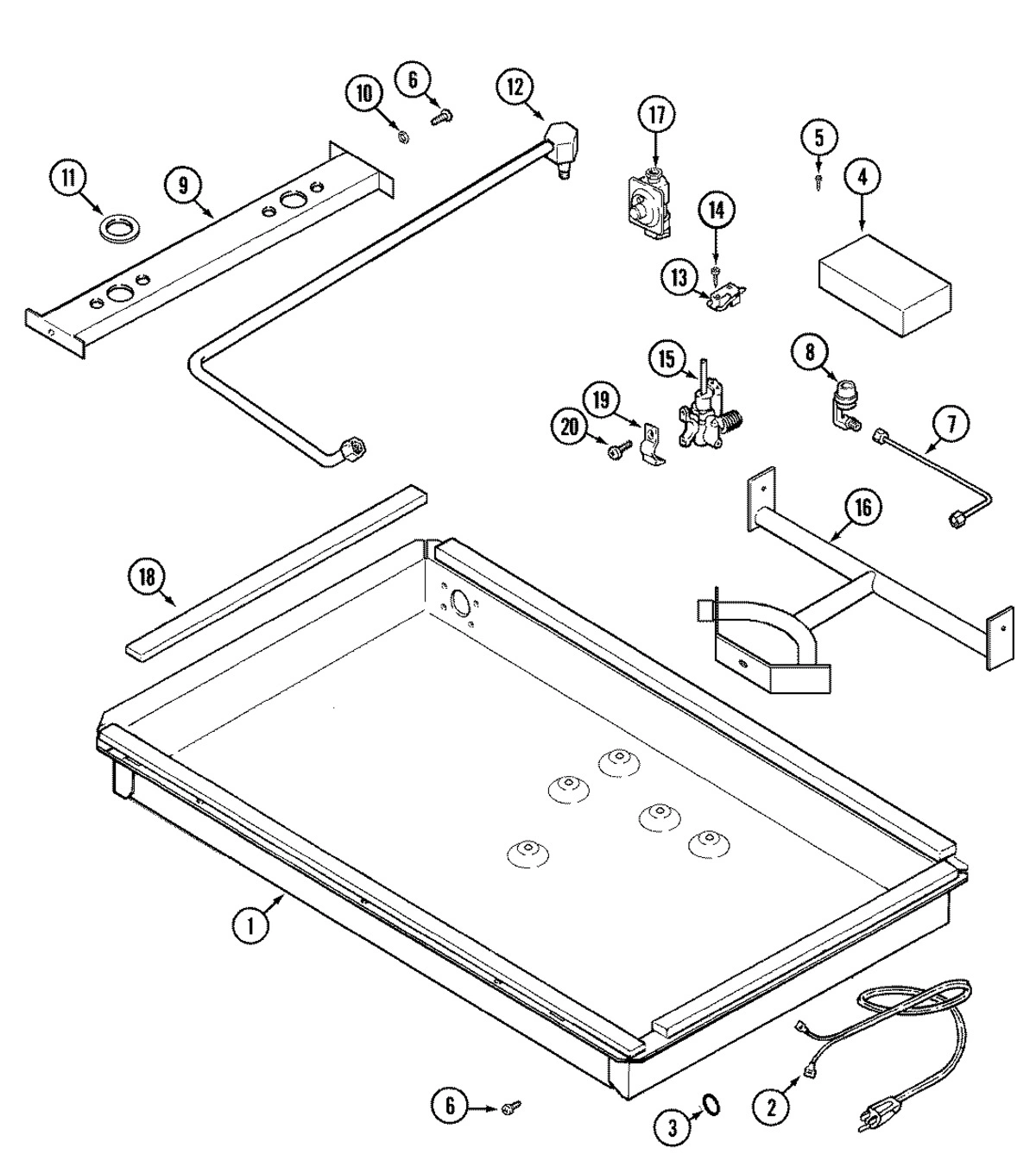

01 - BODY

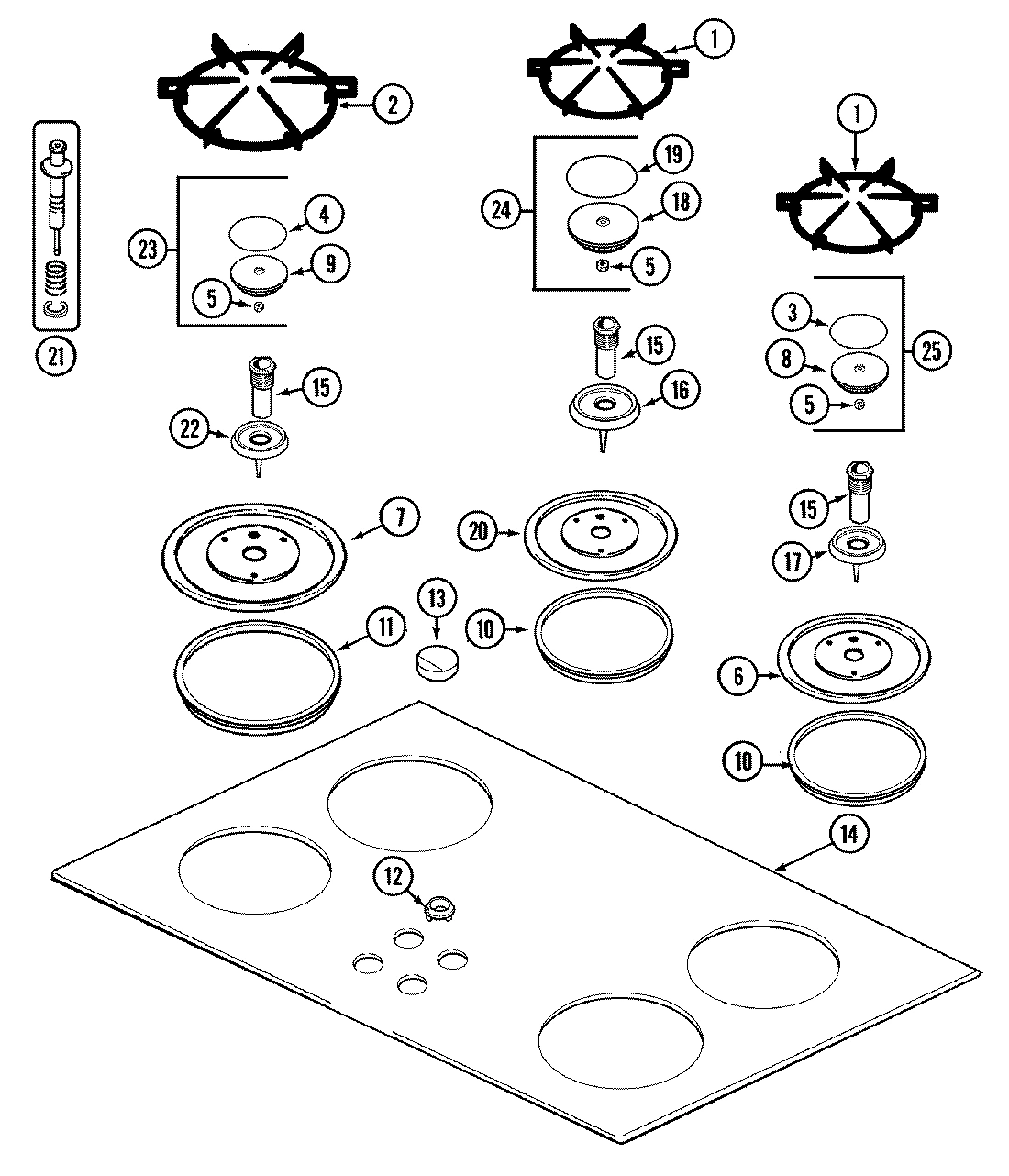

02 - TOP ASSEMBLY
Common parts from model Whirlpool CCG2420B GAS COOK-TOP
1
GRATE (SM/BLK) WPL 71001681 Contact Us For Availability
2
CORD, POWER WPL Y705805 Contact Us For Availability
2
GRATE (LG/BLK) WPL 71001682 Contact Us For Availability
3
RELIEF, STRAIN WPL 705833 Contact Us For Availability
3
CAP, BURNER (RR-BLK) WPL 71001683 Contact Us For Availability
4
SHIELD, SPARK MODULE WPL 71001666 Contact Us For Availability
4
MODULE, SPARK----NA WPL Y705823 Contact Us For Availability
4
0-RING (MIXER) WPL Y705879 Contact Us For Availability
4
CAP (LG-BLK) WPL 71001074 Contact Us For Availability
5
SCREW WPL 708765 Contact Us For Availability
6
PAN, BURNER (SM/BLK) WPL 71001684 Contact Us For Availability
7
WASHER WPL 04100717 Contact Us For Availability
7
TUBE, BURNER (RT FT) WPL 71001699 Contact Us For Availability
7
TUBE, BURNER (LT FT) WPL 71001700 Contact Us For Availability
7
TUBE, BURNER (RR) WPL 71001701 Contact Us For Availability
7
TUBE, BURNER (LR)----NA WPL 71001702 Contact Us For Availability
7
PAN, BURNER (LG/BLK) WPL 71001688 Contact Us For Availability
8
HOLDER, ORIFICE (12K) WPL 71001086 Contact Us For Availability
8
HOLDER, ORIFICE (6.5K) WPL 71001087 Contact Us For Availability
8
HOLDER, ORIFICE (10.5K) WPL 71001088 Contact Us For Availability
8
ORIFICE (12K) WPL 71001089 Contact Us For Availability
8
ORIFICE (10.5K) WPL 71001090 Contact Us For Availability
8
ORIFICE (6.5K) WPL 71001091 Contact Us For Availability
8
HOLDER, ORIFICE (9.1) WPL 71002448 Contact Us For Availability
8
ORIFICE (9.1K) WPL 71002863 Contact Us For Availability
8
HEAD, BURNER (SM) WPL 71001664 Contact Us For Availability
9
SUPPORT, CROSS WPL 71001667 Contact Us For Availability
9
HEAD, BURNER (LG) WPL 71001079 Contact Us For Availability
10
WASHER, LOCK WPL 715910 Contact Us For Availability
11
NUT WPL 71001697 Contact Us For Availability
12
TUBE, SUPPLY WPL 71001703 Contact Us For Availability
12
SEAL, RING----NA WPL 71001237 Contact Us For Availability
12
GROMMET, SPILL (BLK) WPL 71001690 Contact Us For Availability
13
SWITCH, VALVE WPL 71001083 Contact Us For Availability
13
KNOB (BLK) WPL 705800 Contact Us For Availability
14
SCREW, SWITCH WPL 71001153 Contact Us For Availability
14
GLASS, COOKTOP (BLK) WPL 71001692 Contact Us For Availability
15
SEAL, VALVE WPL 705858 Contact Us For Availability
15
VALVE, BURNER (RF) WPL 71001704 Contact Us For Availability
15
VALVE, BURNER (LR) WPL 71001705 Contact Us For Availability
15
VALVE, BURNER (RR) WPL 71001706 Contact Us For Availability
15
VALVE, BURNER (LF) WPL 71001707 Contact Us For Availability
15
VENTURI WPL 71001082 Contact Us For Availability
16
MANIFOLD, GAS PIPE ASSY. WPL 71001708 Contact Us For Availability
16
O-RING, BASE (SMR) WPL 71001076 Contact Us For Availability
16
BASE, BURNER (SM) WPL 71001080 Contact Us For Availability
17
O-RING, BASE (SM) WPL 71001672 Contact Us For Availability
17
BASE, BURNER (SM) WPL 71001696 Contact Us For Availability
18
TAPE, SEAL SILICONE WPL 705829 Contact Us For Availability
18
HEAD, BURNER (LF) WPL 71001078 Contact Us For Availability
19
BRACKET, VALVE WPL 705859 Contact Us For Availability
19
CAP, BURNER (SMR-BLK) WPL 71001072 Contact Us For Availability
20
SCREW, VALVE WPL 705860 Contact Us For Availability
20
PAN, BURNER (SMR/BLK) WPL 71001686 Contact Us For Availability
21
IGNITER WPL 71001694 Contact Us For Availability
21
CLIP, IGNITER WPL 71001695 Contact Us For Availability
22
O-RING, BASE (LG) WPL 71001077 Contact Us For Availability
22
BASE, BURNER (LG) WPL 71001081 Contact Us For Availability
23
HEAD, BURNER ASSY. (LG/BLK) WPL 71001069 Contact Us For Availability
24
HEAD, BURNER ASSY. (SMR/BLK) WPL 71001066 Contact Us For Availability
25
HEAD, BURNER (SM/BLK) WPL 71001689 Contact Us For Availability
NI
WIRE, WHT (14``) WPL 71001737 Contact Us For Availability
NI
WIRE, WHT (LR-27``) WPL 71001738 Contact Us For Availability
NI
WIRE, HV (29``) WPL 71001739 Contact Us For Availability
NI
WIRE WHT (25``) WPL 71001740 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
ORIFICE (LP) (4 ORIFICE/JET) WPL 71001693 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71001729 Contact Us For Availability
× ![]()
