Model Whirlpool CCE3450W ELECTRIC COOK-TOP – Common Parts & Diagrams
01 - BODY

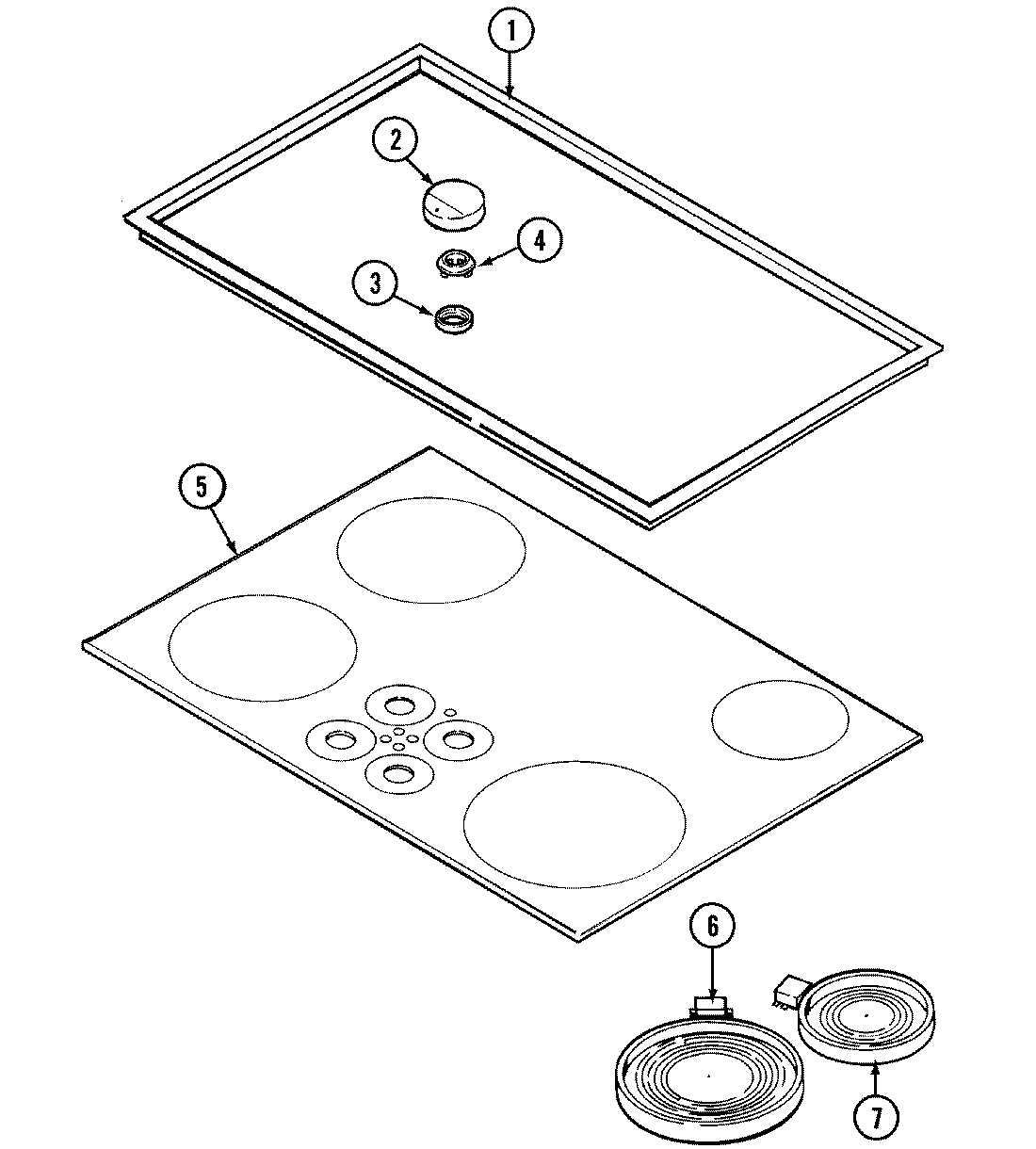

02 - TOP ASSEMBLY
Common parts from model Whirlpool CCE3450W ELECTRIC COOK-TOP
1
BOTTOM, BURNER BOX WPL 71001243 Contact Us For Availability
1
FRAME, TOP (WHT) WPL 71001110 Contact Us For Availability
2
GASKET, SWITCH WPL Y705255 Contact Us For Availability
2
KNOB, INF. (WHITE) WPL Y04100412 Contact Us For Availability
3
CARTRIDGE, INDUCTION WPL 71001104 Contact Us For Availability
3
SEAL, RING----NA WPL 71001237 Contact Us For Availability
4
GROMMET (WHT) WPL Y04100371 Contact Us For Availability
5
PLATE, SWITCH WPL 71001107 Contact Us For Availability
5
GLASS, MAIN TOP (WHT CERAN) WPL 71001244 Contact Us For Availability
5
TAPE, FOAM (30``) WPL 71003286 Contact Us For Availability
6
WIRE, PILOT LIGHT WPL Y706091 Contact Us For Availability
6
LIGHT, INDICATOR WPL Y706125 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
7
SUPPORT, SW. PLATE WPL 71001106 Contact Us For Availability
7
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
8
SUPPORT, GLASS WPL 71001108 Contact Us For Availability
9
PAD, GLASS SUPPORT WPL 71001239 Contact Us For Availability
10
SCREW WPL 702731 Contact Us For Availability
10
WIRE CABLE ASSY. WPL 71001242 Contact Us For Availability
11
CROSSBAR, ELEM SUPPORT WPL Y04100419 Contact Us For Availability
13
WIRE, ORANGE (HOT) WPL 71001238 Contact Us For Availability
13
SWITCH, PUSH TO TURN WPL 71001240 Contact Us For Availability
13
WIRE (WHT) WPL 71001436 Contact Us For Availability
13
WIRE, YELLOW (15``) WPL Y04100424 Contact Us For Availability
13
WIRE, VIOLET (18``) WPL Y04100425 Contact Us For Availability
13
WIRE, YELLOW WPL Y04100433 Contact Us For Availability
14
FILTER, INDUCTION----NA WPL 71001425 Contact Us For Availability
14
WIRE, VIOLET WPL 71001426 Contact Us For Availability
14
WIRE, VIOLET WPL 71001427 Contact Us For Availability
14
WIRE, YELLOW WPL 71001428 Contact Us For Availability
14
WIRE, YELLOW WPL 71001429 Contact Us For Availability
15
TOP, SWITCH FRAME WPL 71001099 Contact Us For Availability
16
SHAFT, SWITCH WPL 71001101 Contact Us For Availability
17
SHIELD, PUSH TO TURN WPL 71001948 Contact Us For Availability
19
SPRING, SWITCH WPL 71001241 Contact Us For Availability
20
BOTTOM, SWITCH FRAME WPL 71001100 Contact Us For Availability
21
POTENTIOMETER WPL 71001102 Contact Us For Availability
NI
MANUAL, SERVICE WPL 16010241 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71001437 Contact Us For Availability
× ![]()
