Model Whirlpool CC3878XRW ELECTRIC RANGE – Common Parts & Diagrams
04 - TOP ASSEMBLY

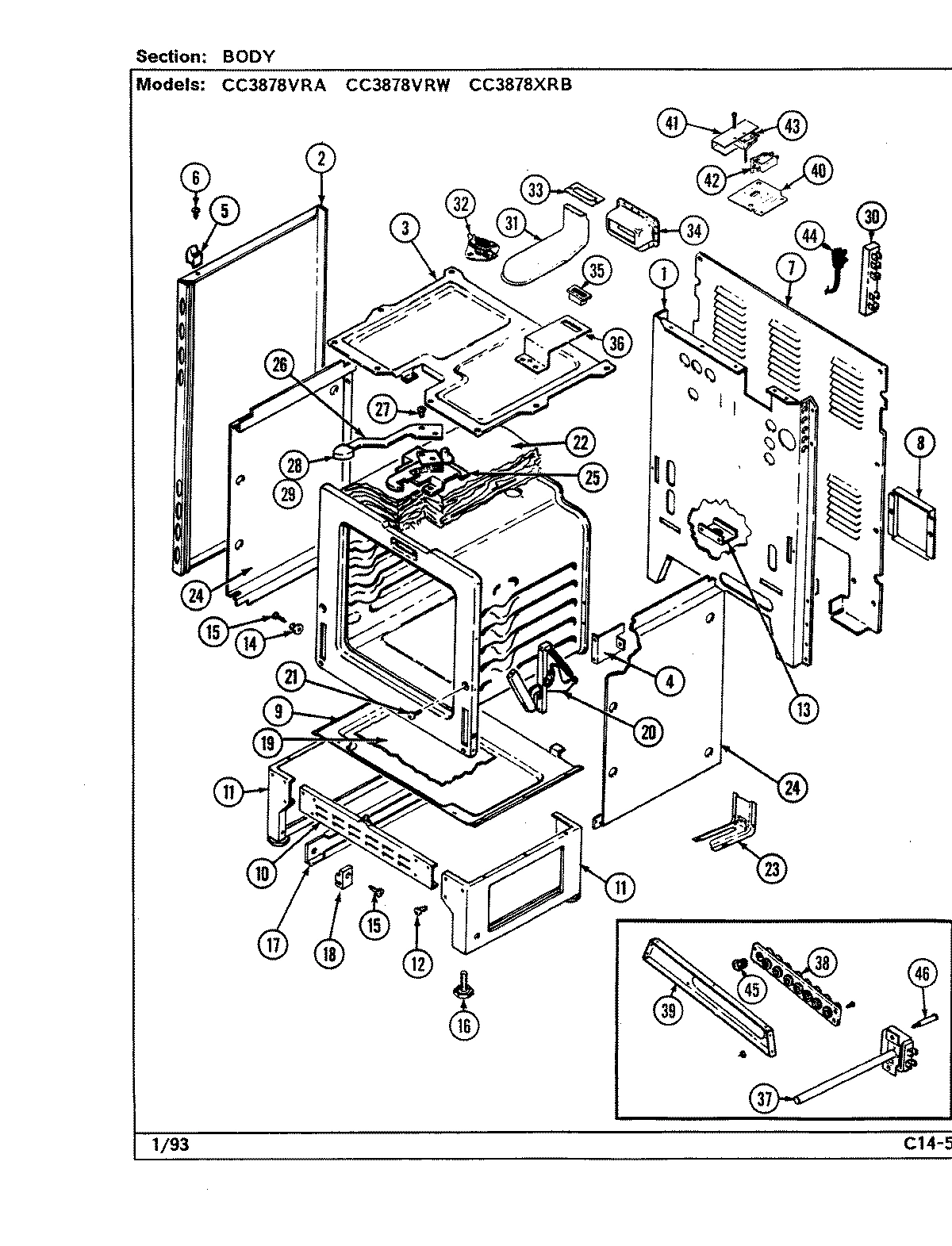

01 - BODY

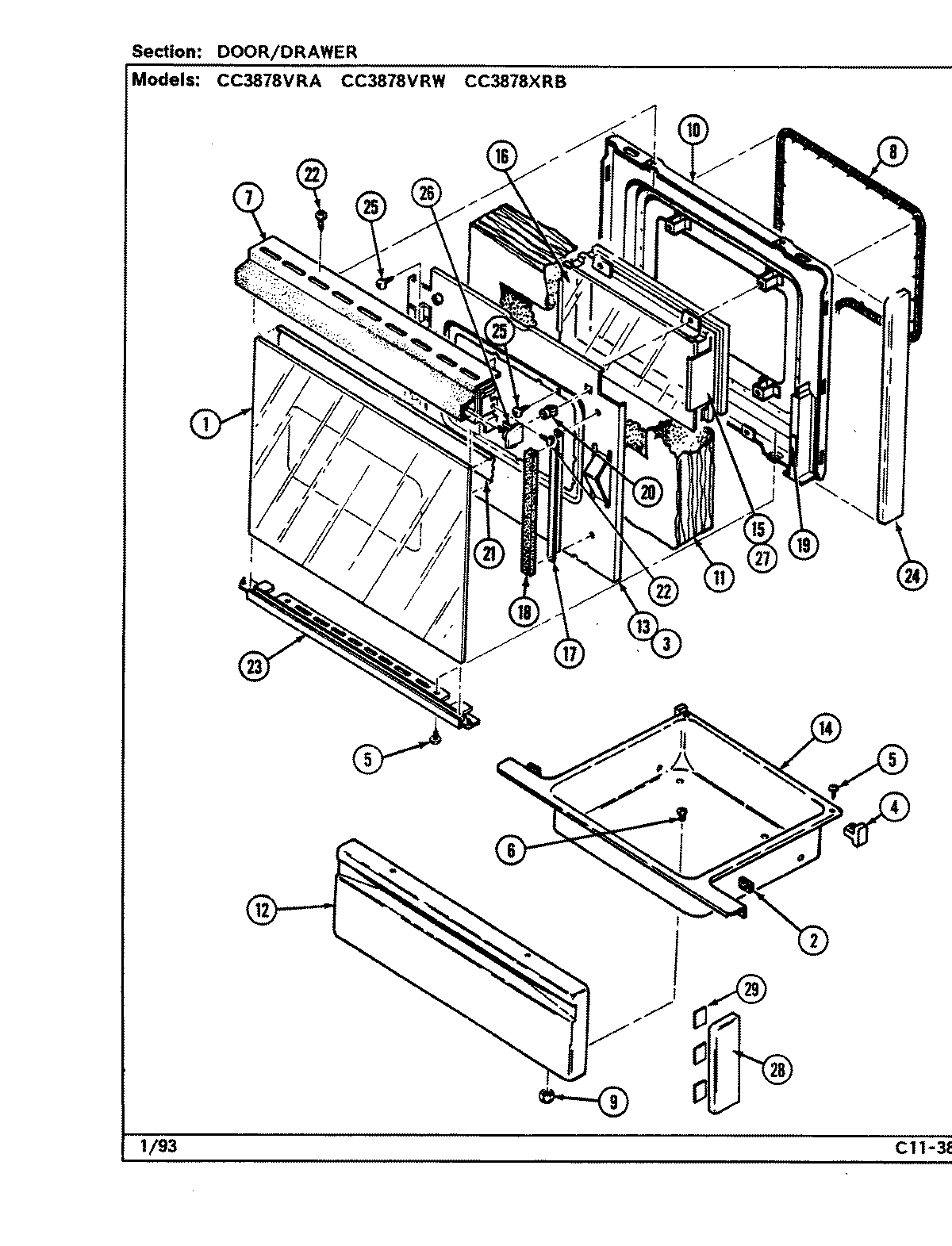

02 - DOOR/DRAWER

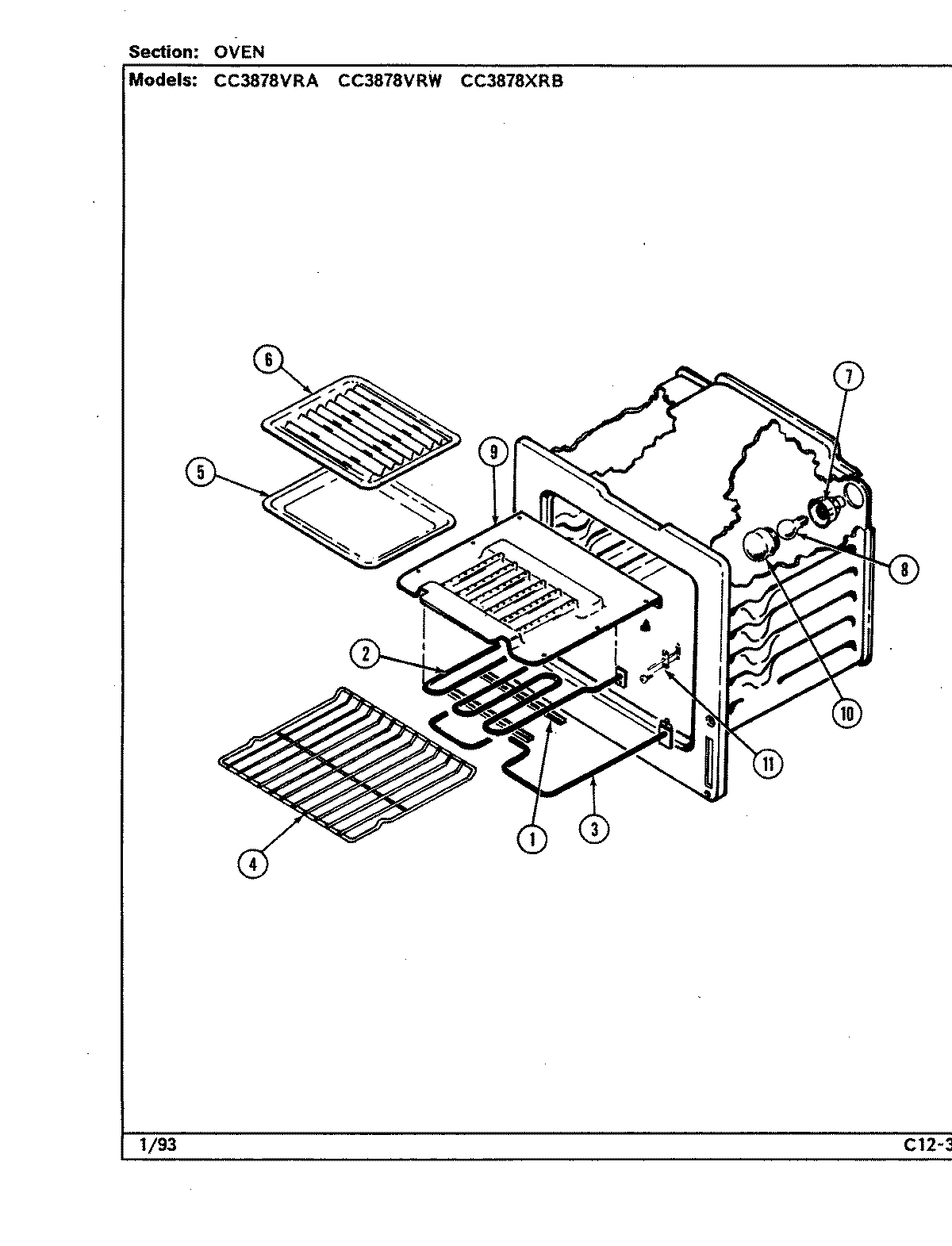

03 - OVEN
Common parts from model Whirlpool CC3878XRW ELECTRIC RANGE
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
BACK, MAIN WPL 4002F18480 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
RACK WPL 7801P04060 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
9
NUT, SPEED WPL 7103P12960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
10
GLIDE, MAIN TOP WPL 8016P01460 Contact Us For Availability
10
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
11
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
11
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
11
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
12
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
12
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
12
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
12
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
15
FRAME, WINDOW WPL 7907P00960 Contact Us For Availability
16
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
16
GLASS WINDOW 16-1/2 X 8-1/4 WPL 7902P32360 Contact Us For Availability
16
GLASS DOOR 16-1/2 X 8-1/4 WPL 7902P34160 Contact Us For Availability
16
GLASS DOOR 16-1/2 X 8-1/4 WPL 7902P34260 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
19
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
20
SPACER WPL 8010P07560 Contact Us For Availability
21
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
22
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
22
SCREW WPL 7101P32960 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
24
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
25
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
25
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
26
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
26
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
26
END CAP (RT) WPL 7744P07560 Contact Us For Availability
26
END CAP (LT) WPL 7744P07660 Contact Us For Availability
27
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
27
WASHER WPL 7109P01560 Contact Us For Availability
27
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
28
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
29
TAPE WPL 8270P09860 Contact Us For Availability
30
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
31
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
33
GASKET, VENT WPL 7201P05460 Contact Us For Availability
34
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
35
LIGHT, INDICATOR WPL 7407P08960 Contact Us For Availability
36
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
37
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
38
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
39
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
40
PLATE, SW MTG WPL 3605F18551 Contact Us For Availability
41
INSUL, SWITCH WPL 7003P04960 Contact Us For Availability
42
SWITCH, LATCH (DOUBLE LOCK) WPL 74001743 Contact Us For Availability
42
SWITCH, LOCK WPL 7403P31760 Contact Us For Availability
43
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
43
SWITCH, LOCK----NA WPL 7403P32360 Contact Us For Availability
44
CORD, POWER WPL 7402P03660 Contact Us For Availability
45
FUSE, 125V 30A WPL 7416P00460 Contact Us For Availability
45
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
45
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
46
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
46
HARNESS, DOOR LATCH WPL 5195D09260 Contact Us For Availability
46
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
× ![]()
