Model Whirlpool CC3531WRA ELECTRIC RANGE – Common Parts & Diagrams

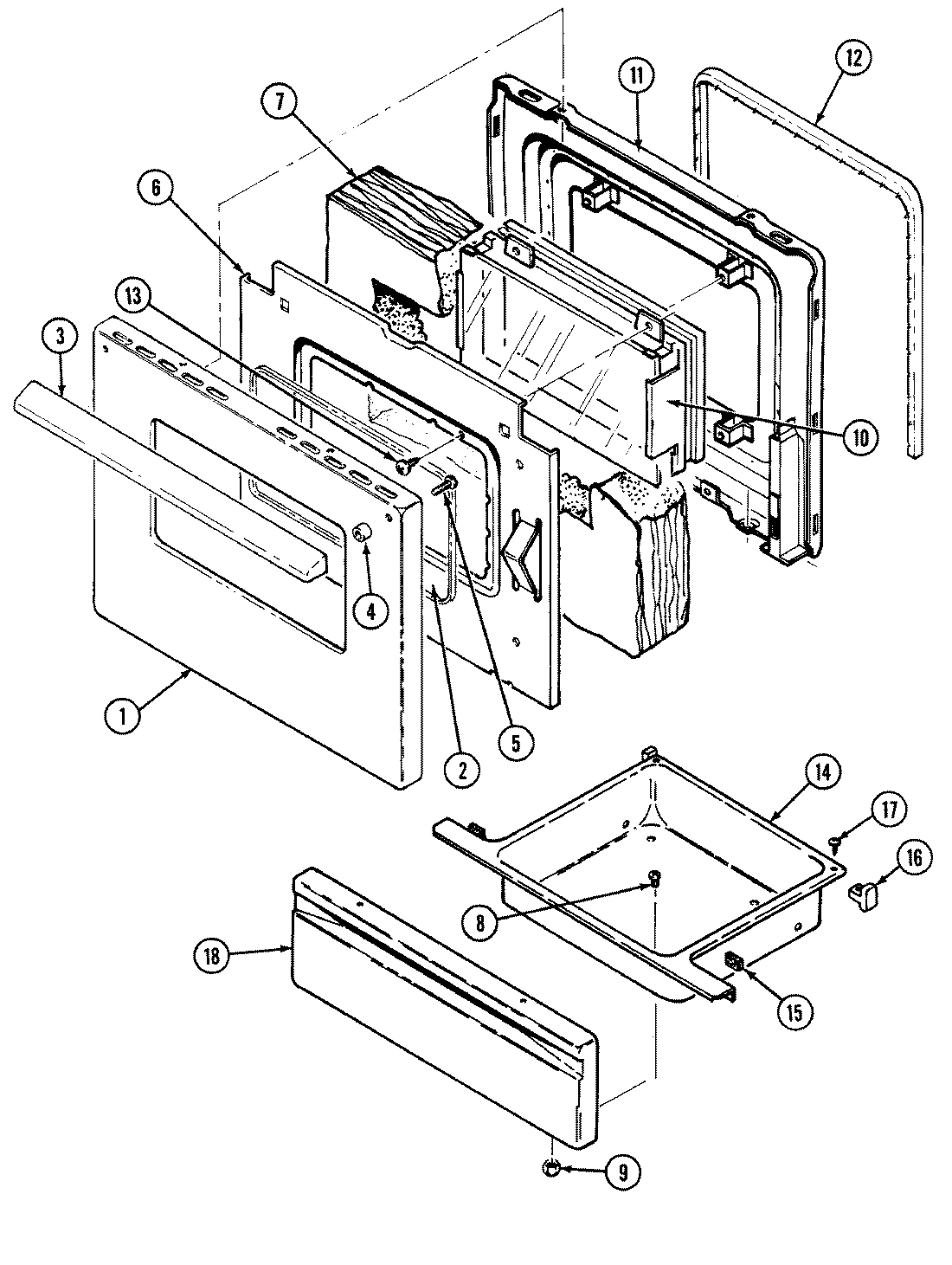

02 - DOOR/DRAWER (CC3531WRW, CC3531WRV)
01 - BODY
03 - TOP ASSEMBLY
Common parts from model Whirlpool CC3531WRA ELECTRIC RANGE
1
PANEL, DOOR (WHT) WPL 2401F09771 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
1
COVER, MAIN BACK WIRE WPL 4005F38151 Contact Us For Availability
2
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
3
BACK, MAIN WPL 4002F18480 Contact Us For Availability
3
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
3
ELEMENT (6``) WPL 7406P08760 Contact Us For Availability
4
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08860 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
BOX, BURNER WPL 4011F20819 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
6
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
7
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01560 Contact Us For Availability
10
GLASS ASY. WPL 7907P02260 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
10
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
11
LINING, DOOR WPL 2402W20319 Contact Us For Availability
11
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
12
COVER, VENT WPL 4005F43245 Contact Us For Availability
12
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
12
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
12
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
13
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
13
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
14
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
14
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
14
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
15
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
16
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
SCREW WPL 7101P32960 Contact Us For Availability
17
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
19
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
19
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
20
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
21
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
24
SCREW WPL 7101P30060 Contact Us For Availability
25
INSULATION, OVEN BACK WPL 4804F03160 Contact Us For Availability
25
INSULATION, OVEN WRAPPER WPL 4804F03260 Contact Us For Availability
26
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
27
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
28
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
29
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
30
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
31
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
32
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
33
SCREW WPL 7101P06860 Contact Us For Availability
34
NUT WPL 7103P06460 Contact Us For Availability
35
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
35
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
36
COVER, FUSE BLOCK WPL 4005F41751 Contact Us For Availability
36
SCREW WPL 7101P26360 Contact Us For Availability
37
CORD, POWER WPL 7402P03660 Contact Us For Availability
× ![]()
