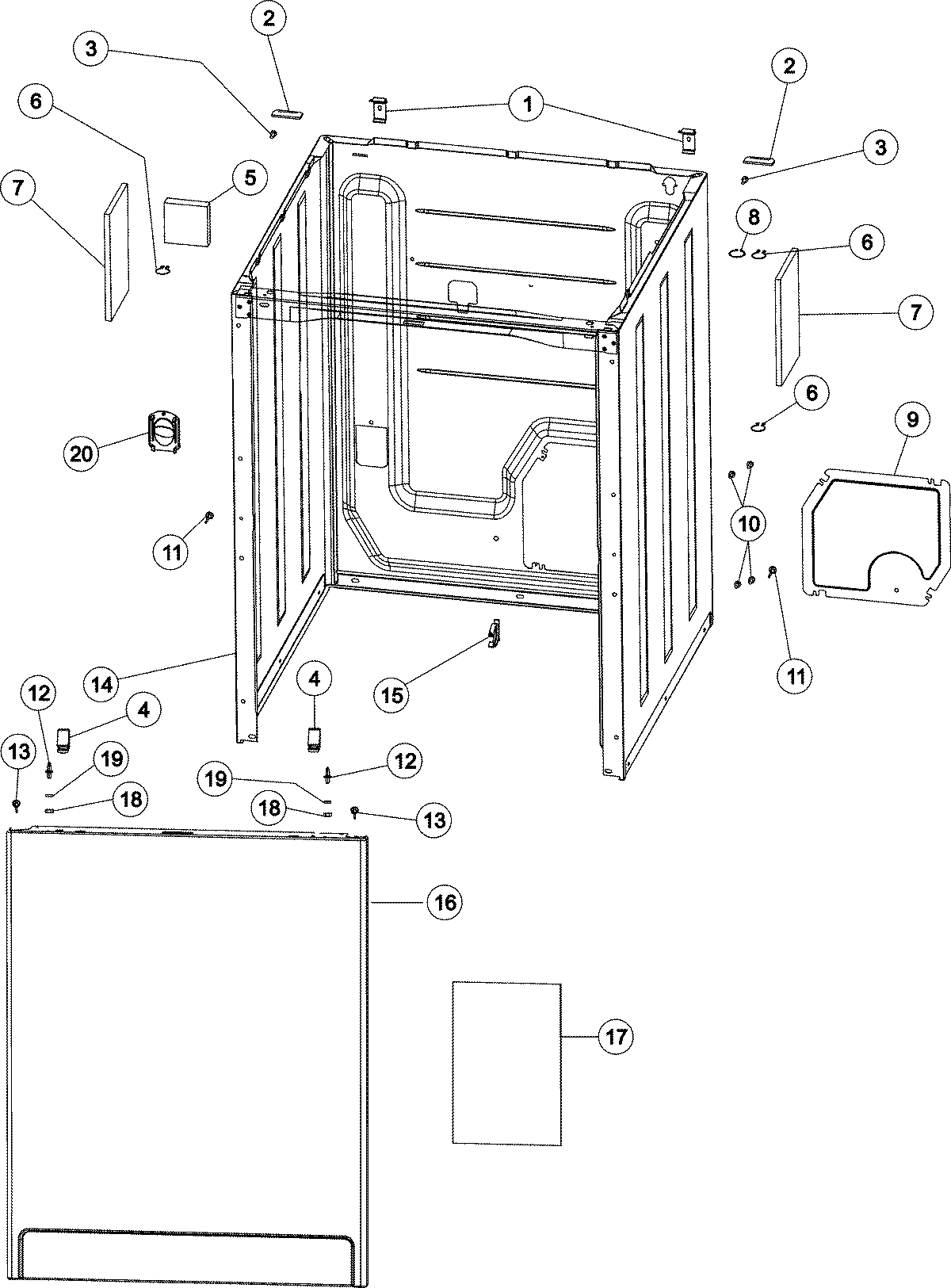

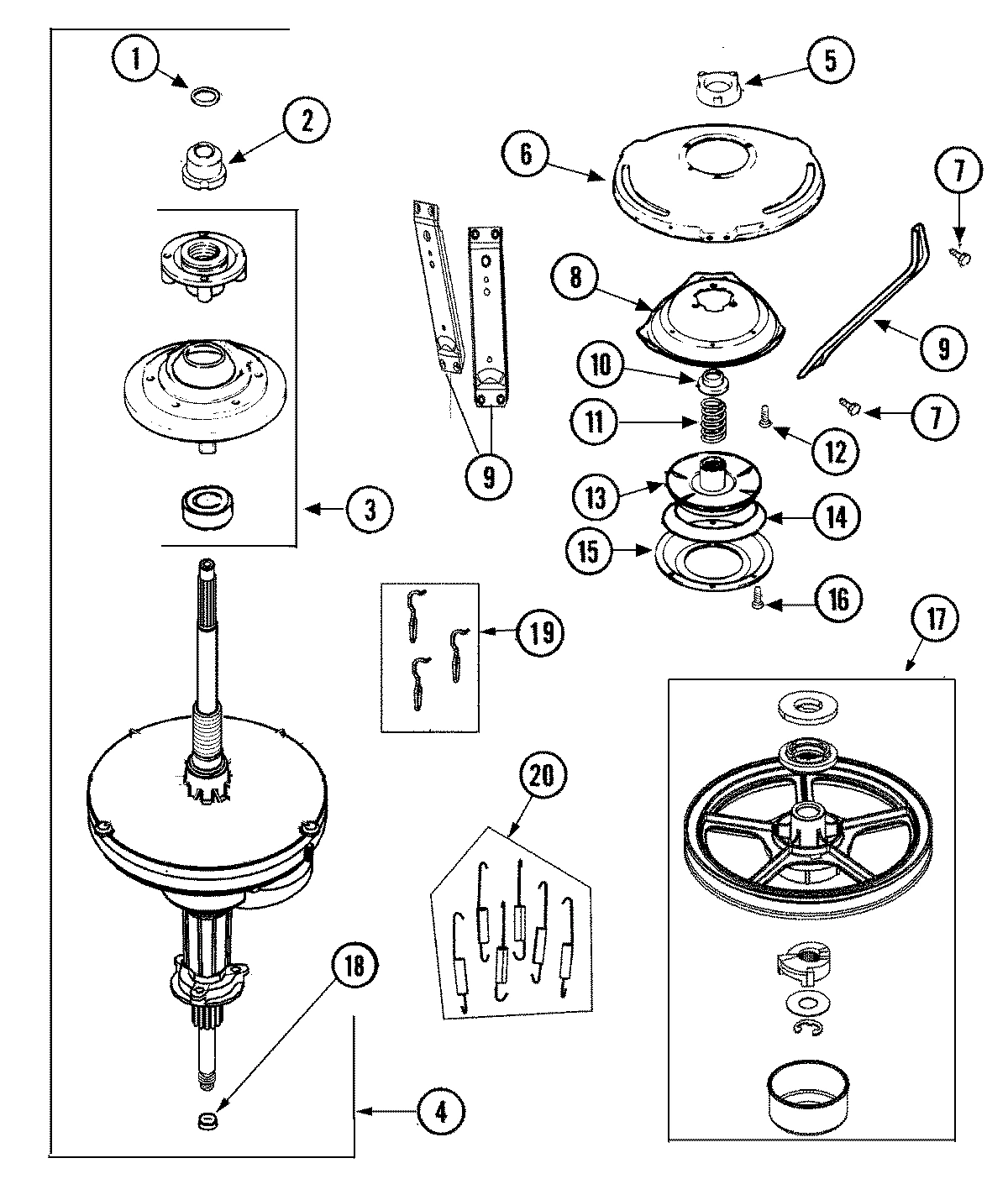

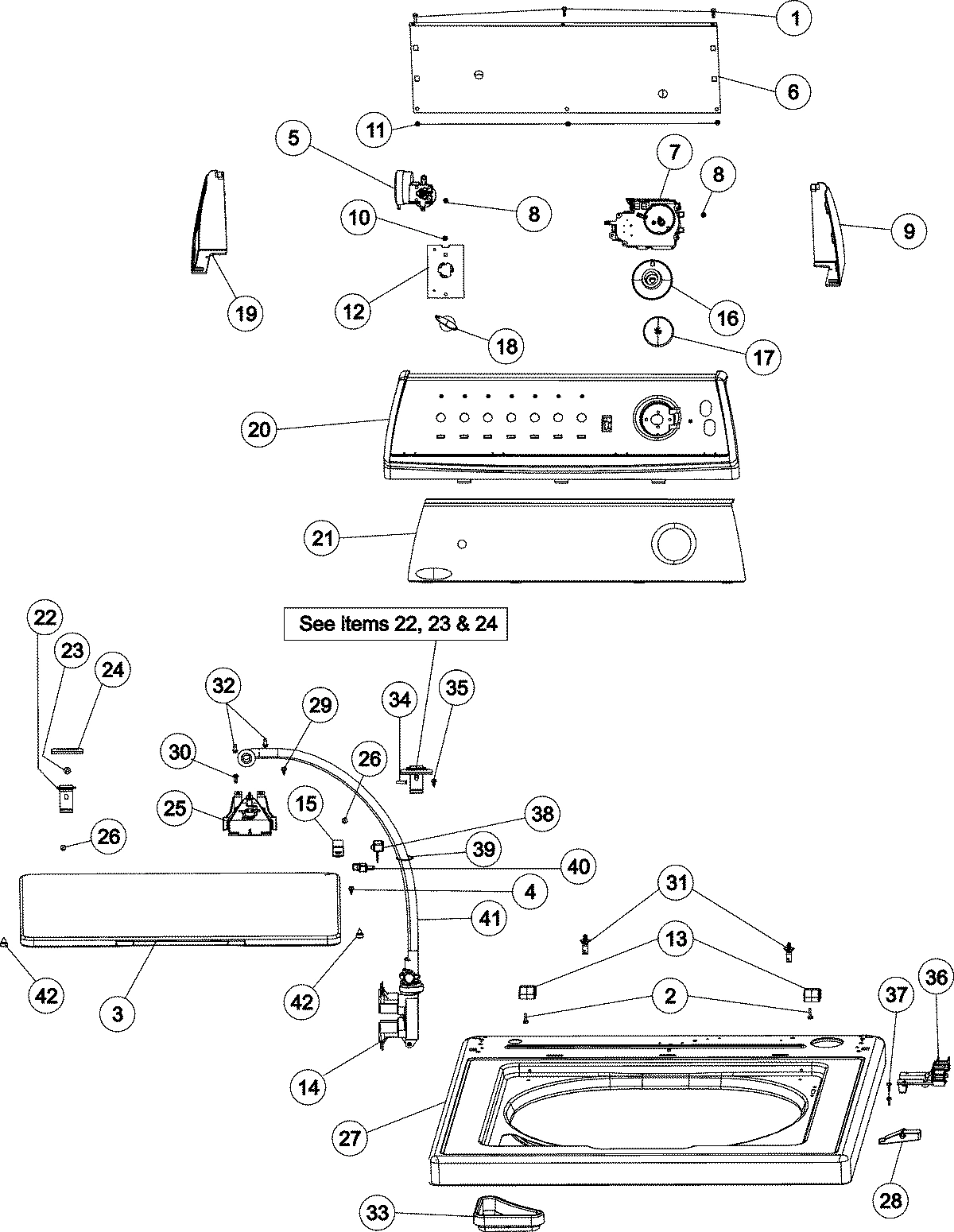

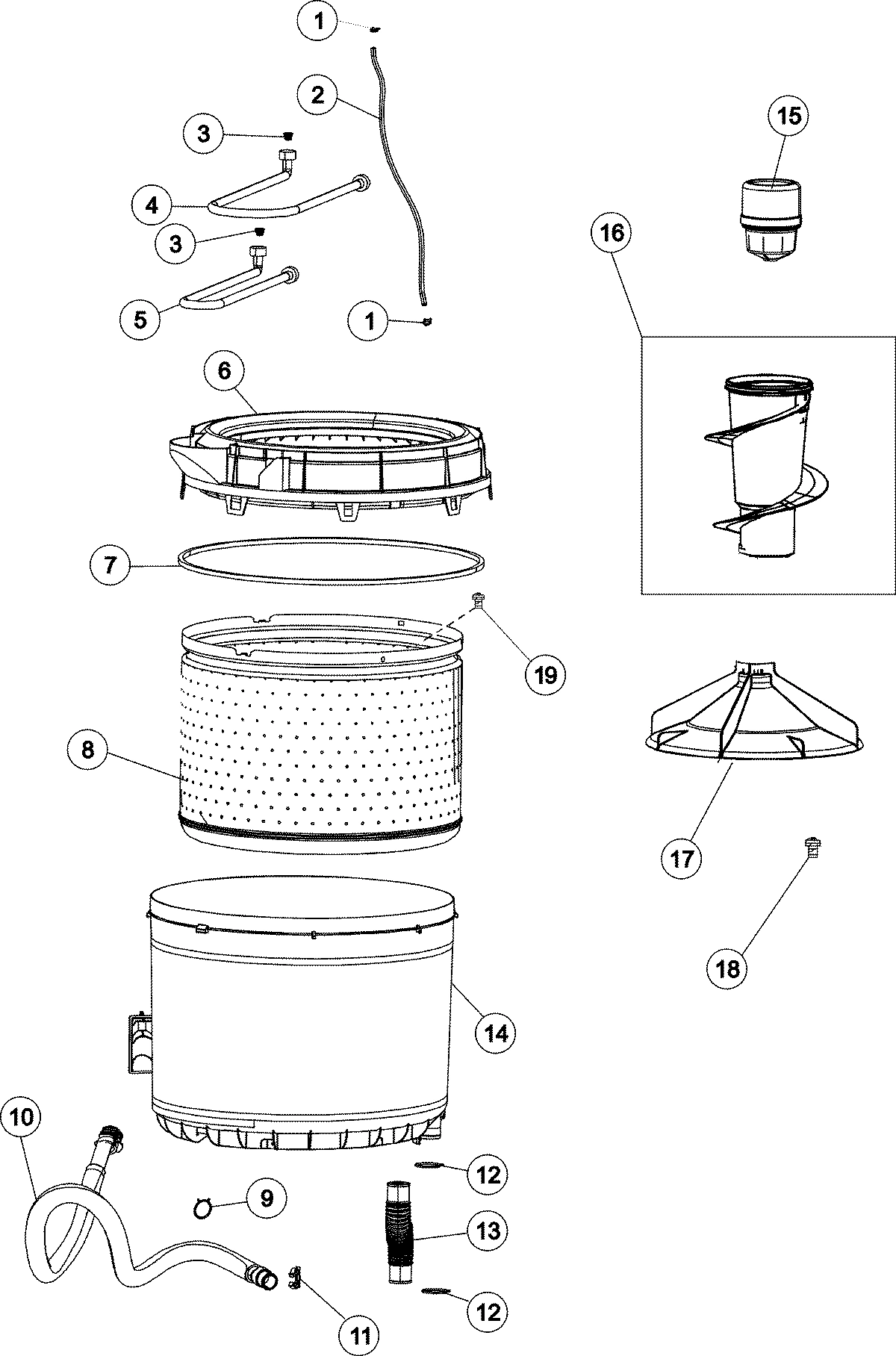

Model Whirlpool CAV2005AWW WASHER – Common Parts &amp; Diagrams

1

CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability

1

``O`` RING WPL 257941 Contact Us For Availability

2

SEAL NUT ASSEMBLY WPL 21001533 Contact Us For Availability

3

LID (WHT) (DOOR) WPL 352026 Contact Us For Availability

3

SEAL HUB ASSEMBLY (HT TRAN) WPL 21001868 Contact Us For Availability

4

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

4

HOSE, INLET WPL 350874 Contact Us For Availability

4

HT TRANS/SEAL HUB ASSEMBLY WPL 21001867 Contact Us For Availability

5

WP22004376 Whirlpool Spring Motor In Stock WPL WP22004376 $6.02

5

PAD, FOAM WPL 350706 Contact Us For Availability

5

SWITCH, PRESSURE WPL Y2201474 Contact Us For Availability

5

HOSE, 4` INLET WPL 337891 Contact Us For Availability

5

HOUSING/LWR.BEARING ASSY. WPL 21001511 Contact Us For Availability

6

16515 Whirlpool Clip Backorder WPL 16515 $12.46

6

ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability

6

SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability

6

TOP, TUB (PLASTIC) WPL 21001531 Contact Us For Availability

6

SUPPORT, TUB WPL 21001518 Contact Us For Availability

7

SPACER WPL 257831 Contact Us For Availability

7

PAD, CABINET WPL 21002011 Contact Us For Availability

7

TIMER WPL 21002056 Contact Us For Availability

7

SEAL, TUB TOP WPL 352328 Contact Us For Availability

7

SCREW 5/16-18X1/2 WPL 21001858 Contact Us For Availability

8

SPACER WPL 257830 Contact Us For Availability

8

BASKET ASSEMBLY (PLASTIC) WPL 21001529 Contact Us For Availability

8

HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability

9

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

9

WASHER, MOTOR PIVOT WPL 353570 Contact Us For Availability

9

ENDCAP, PANEL (RT-WHT) WPL 21001547 Contact Us For Availability

9

BRACE, TUB WPL 21001532 Contact Us For Availability

WP21001872 Whirlpool Hose Backorder WPL WP21001872 $60.95

ISOLATOR, MOTOR WPL 339946 Contact Us For Availability

SCREW WPL 257733 Contact Us For Availability

RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability

11

WP22002765 Whirlpool Hose Clip Backorder WPL WP22002765 $6.93

11

SLIDE, MOTOR PIVOT WPL 353571 Contact Us For Availability

11

POST, LOCATING WPL 21001829 Contact Us For Availability

WASHER, FLAT WPL 257047 Contact Us For Availability

CLAMP, HOSE WPL 256068 Contact Us For Availability

PIN, LOCATOR WPL 530643 Contact Us For Availability

SHIELD, CONTROL-1 HOLE/CONSOLE WPL 21002077 Contact Us For Availability

SCREW,HIGH PERFORMANCE PLASTIC WPL 21001509 Contact Us For Availability

WP21001915 Whirlpool Hose Tub In Stock WPL WP21001915 $19.37

WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability

HINGE, LID WPL 352044 Contact Us For Availability

BRAKE ROTOR & LINING ASM WPL 21002010 Contact Us For Availability

WP21001932 Whirlpool Washer Water Valve In Stock WPL WP21001932 $160.23

WP21002026 Whirlpool Snubber Assembly In Stock WPL WP21002026 $6.81

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

CABINET (WHT) WPL 21001871 Contact Us For Availability

TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability

15

SWITCH, LID/DOOR SAFETY SPIN WPL 21001148 Contact Us For Availability

15

FABRIC DISP ASSEMBLY (WHT) WPL 21002006 Contact Us For Availability

15

STATOR, BRAKE WPL 356918 Contact Us For Availability

WP21352320 Whirlpool Washer Drive Belt In Stock WPL WP21352320 $17.32

TOP, AGITATOR WPL 21001521 Contact Us For Availability

PANEL, FRONT (WHT) WPL 352084 Contact Us For Availability

SKIRT, TIMER KNOB (WHT) WPL 21001520 Contact Us For Availability

17

DAMPER, SOUND PAD WPL 21001281 Contact Us For Availability

17

KNOB, TIMER (WHT) WPL 21001526 Contact Us For Availability

17

BASE, AGITATOR WPL 21001530 Contact Us For Availability

NUT, LOCATOR PIN WPL 250224 Contact Us For Availability

KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability

SCREW, AGITATOR RETENTION WPL 258004 Contact Us For Availability

SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability

WP21001166 Whirlpool Hook Backorder WPL WP21001166 $4.82

WP35-6780 Whirlpool Water Pump In Stock WPL WP35-6780 $119.24

BUMPER, CABINET WPL 354129 Contact Us For Availability

ENDCAP, PANEL (LT-WHT) WPL 21001546 Contact Us For Availability

SCREW, SHOULDER WPL 257967 Contact Us For Availability

12002213 Whirlpool Washer Pulley and Thrust B In Stock WPL 12002213 $34.02

12002773 Whirlpool Spring Kit (Pack of 6) In Stock WPL 12002773 $61.88

OUTLET, DRAIN HOSE WPL 21001874 Contact Us For Availability

FRAME (WHT), CONTROL PANEL WPL 21001552 Contact Us For Availability

21

WASHER,1.25ODX.530IDX.032 WPL 352132 Contact Us For Availability

21

FACIA WPL 21002154 Contact Us For Availability

22

HINGE, CABINET TOP WPL 352846 Contact Us For Availability

23

SLIDE, FOOT WPL 21001486 Contact Us For Availability

23

SCREW WPL 257732 Contact Us For Availability

24

STABILIZER BAR KIT WPL 21002221 Contact Us For Availability

24

PAD, HINGE WPL 354128 Contact Us For Availability

25

SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability

25

FLUME ASSEMBLY /WATER DIVERTER WPL 21001760 Contact Us For Availability

26

BASE, WASHER WPL 21001893 Contact Us For Availability

26

SCREW WPL 257893 Contact Us For Availability

27

FOOT & PAD ASSEMBLY WPL 25001119 Contact Us For Availability

27

TOP, CABINET (WHT) WPL 21001602 Contact Us For Availability

28

LEVER, LID SWITCH WPL 21001134 Contact Us For Availability

28

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

29

PLATE, MOTOR WPL 21001366 Contact Us For Availability

29

SCREW WPL 253092 Contact Us For Availability

30

WASHER, ROLLER WPL 31001560 Contact Us For Availability

31

CLIP, PLASTIC SNAP-IN WPL 21001857 Contact Us For Availability

33

DISPENSER, BLEACH WPL 21001597 Contact Us For Availability

34

SCREW WPL 257438 Contact Us For Availability

35

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

36

WP21001135 Whirlpool Housing Backorder WPL WP21001135 $2.34

37

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $4.82

38

ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability

39

CLIP, WIRING HARNESS WPL 257430 Contact Us For Availability

40

PIN, HINGE WPL 352045 Contact Us For Availability

41

12002749 Whirlpool Flume Hose Kit Backorder WPL 12002749 $18.28

41

HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability

42

BUMPER, DOOR (LID) WPL 350581 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

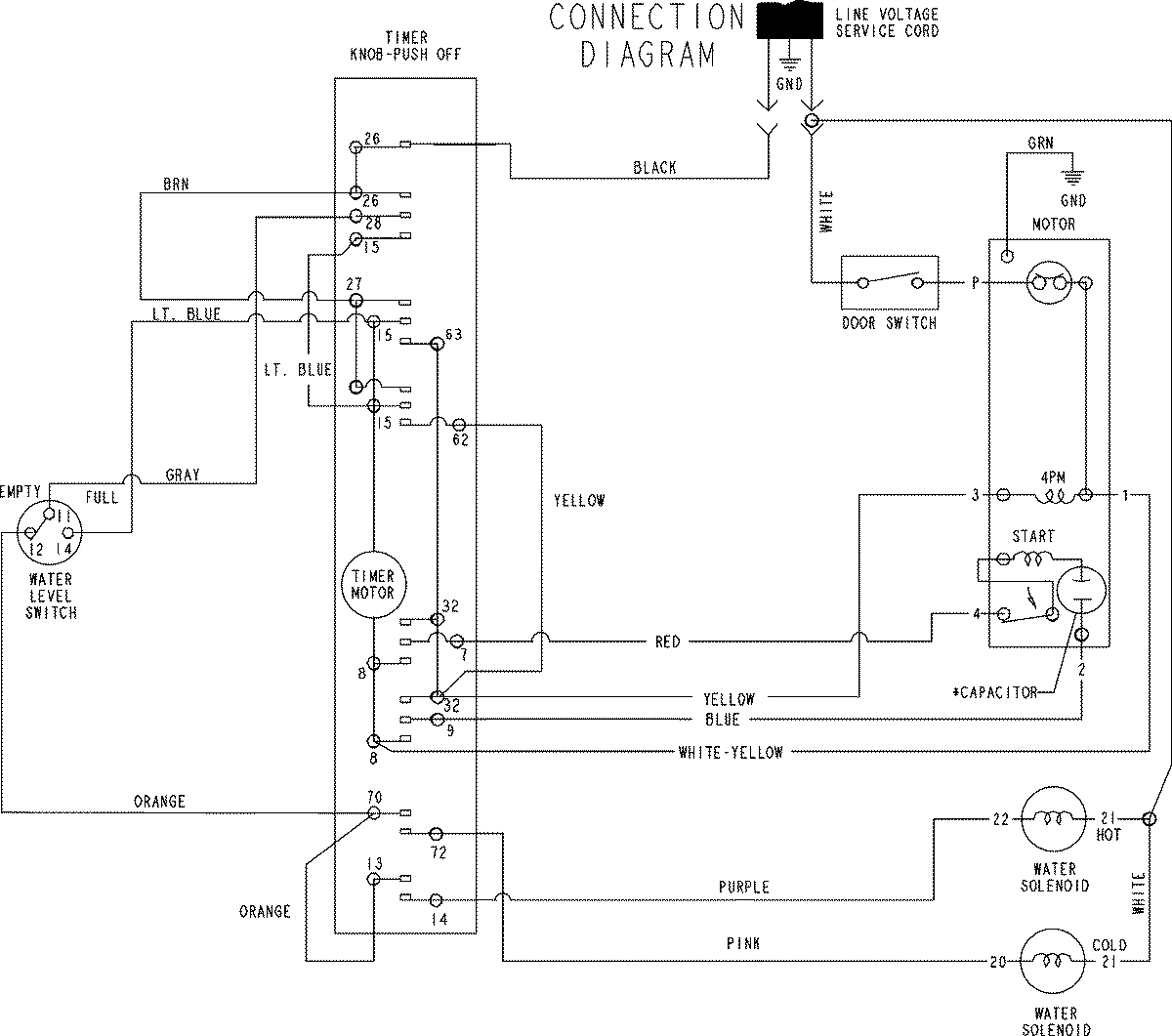

WIRING INFORMATION WPL 15003777 Contact Us For Availability

SVC MAN, DOM WASHER WPL 16026502 Contact Us For Availability

TECH SHT, DOM WASHER WPL 16026746 Contact Us For Availability

CORD, POWER WPL 21001592 Contact Us For Availability

LEAD ASSEMBLY (DR SWITCH) WPL 21001979 Contact Us For Availability

LEAD ASSEMBLY (GROUND) WPL 21001980 Contact Us For Availability

HARNESS, WIRING WPL 21002078 Contact Us For Availability

LABEL, ENERGY GUIDE - CA WPL 21002206 Contact Us For Availability

MANUAL, USE & CARE MAGIC CHEF WPL 2206666 Contact Us For Availability

MANUAL, USE & CARE WPL Y2205348 Contact Us For Availability
