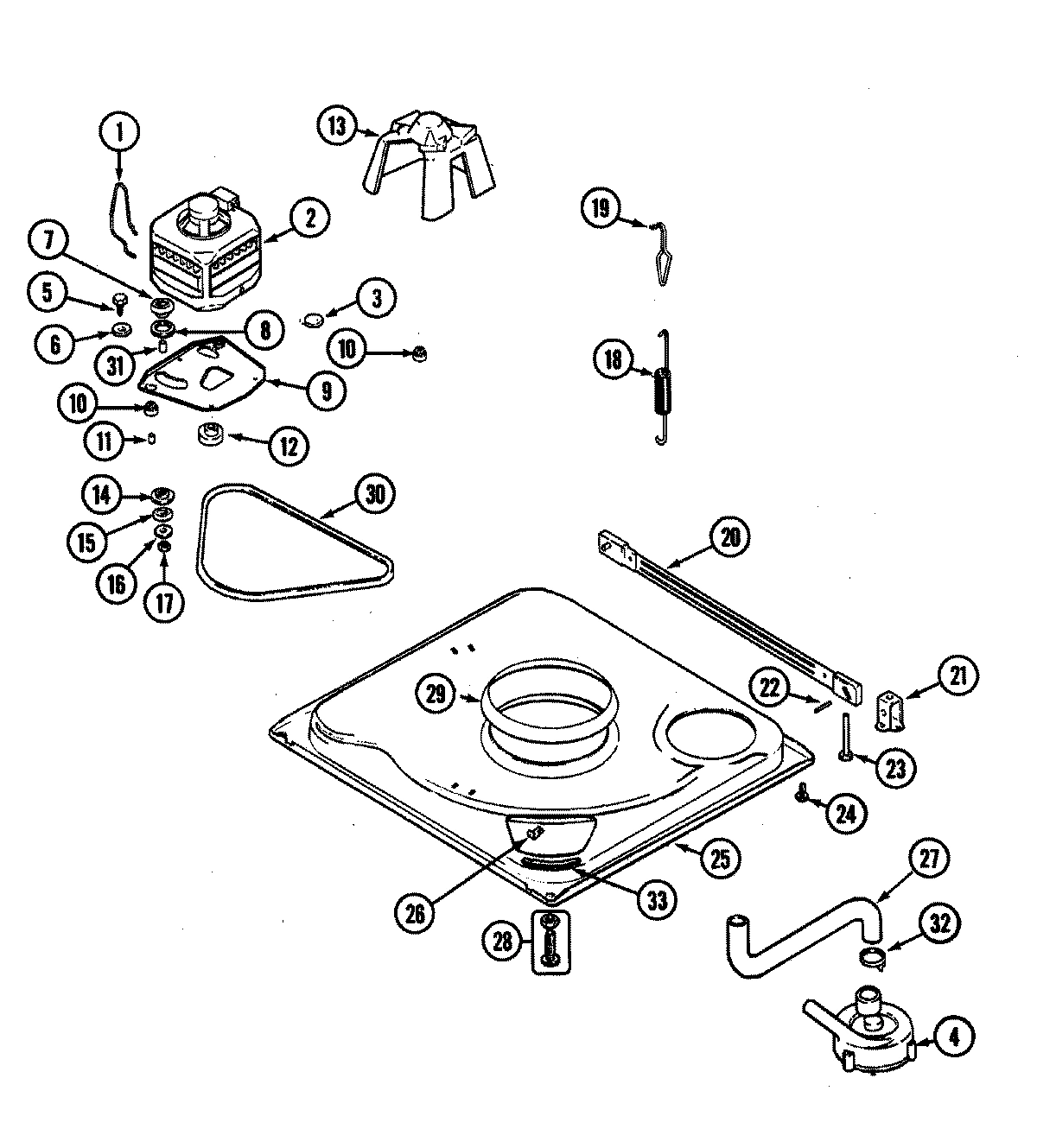

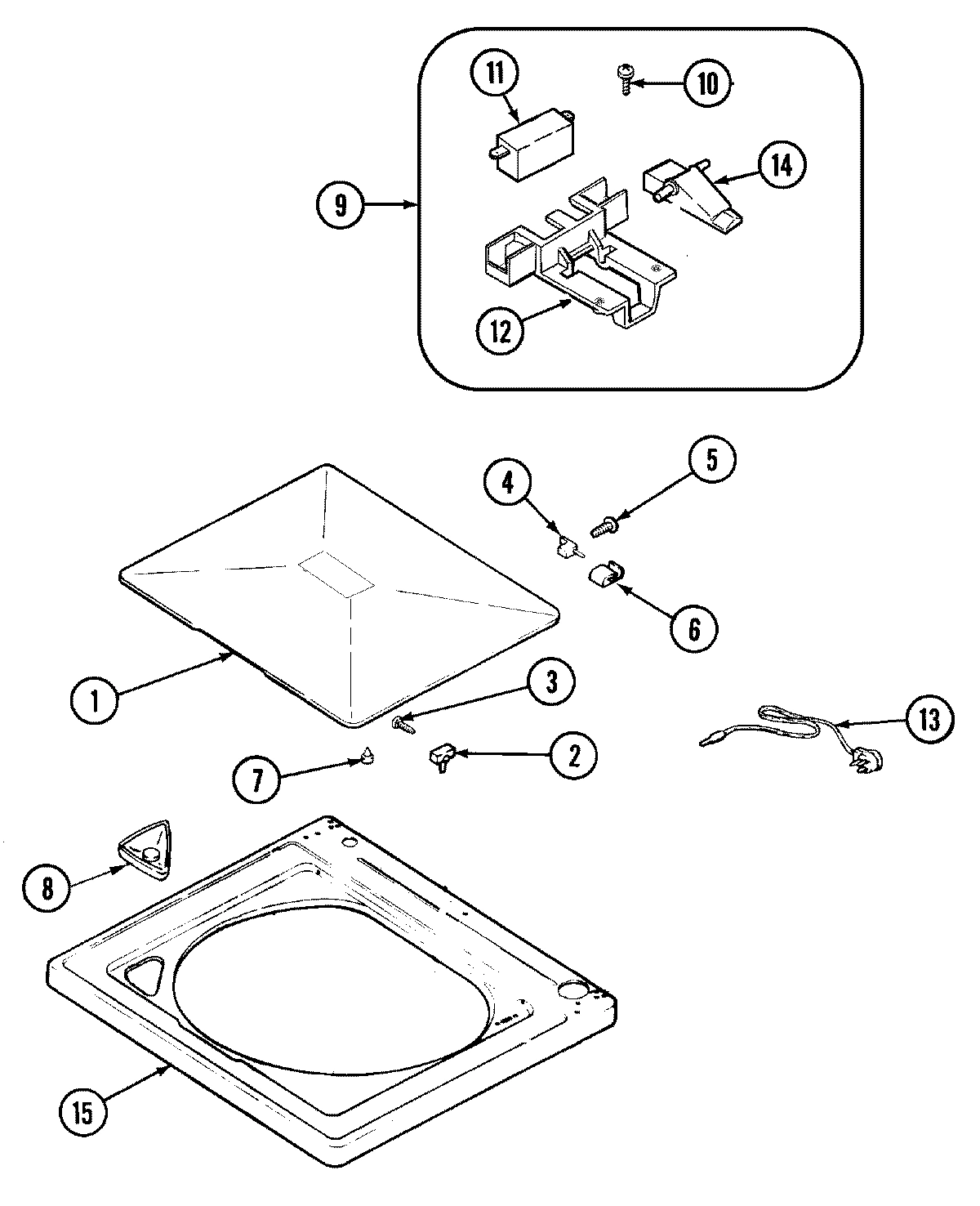

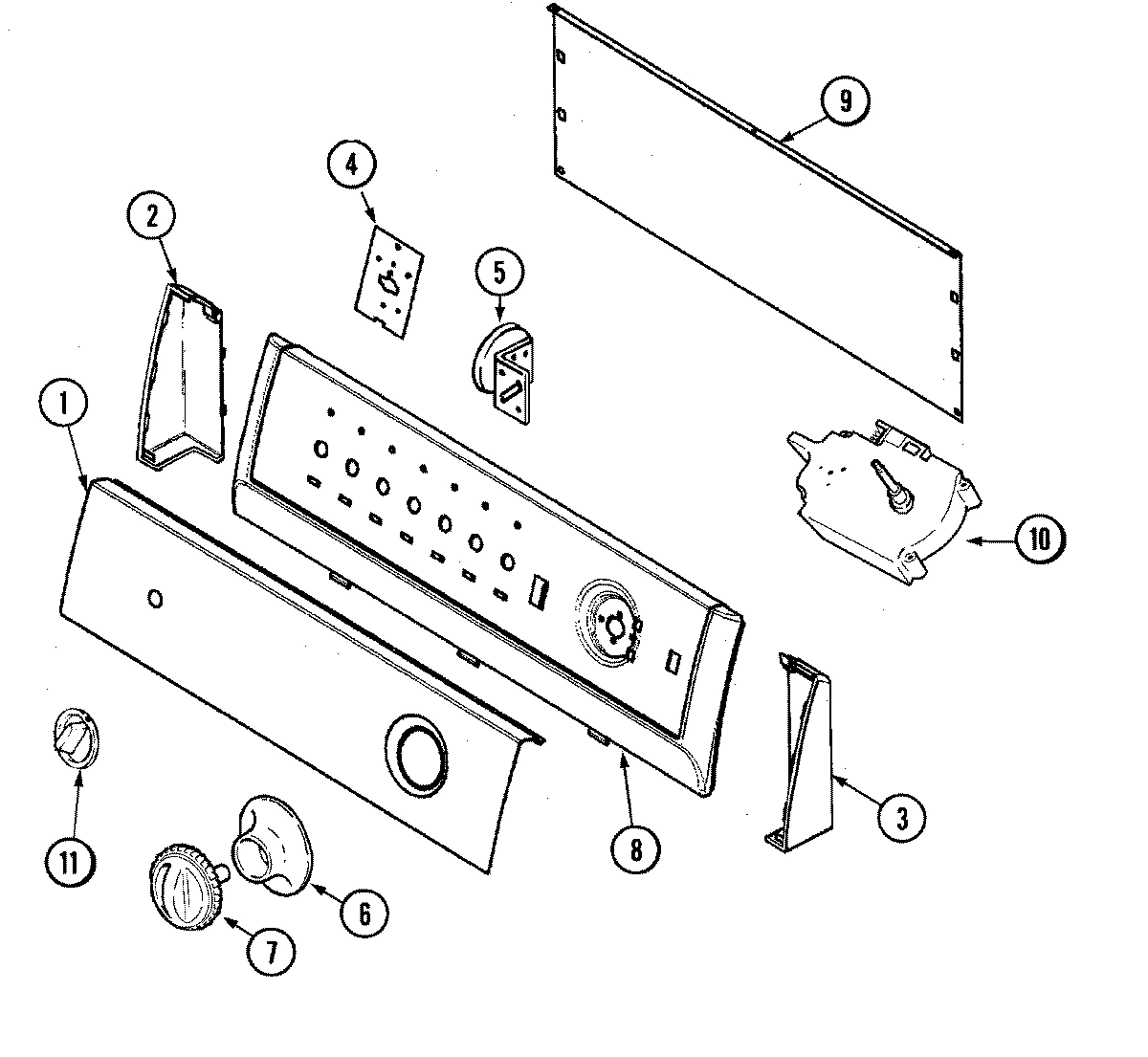

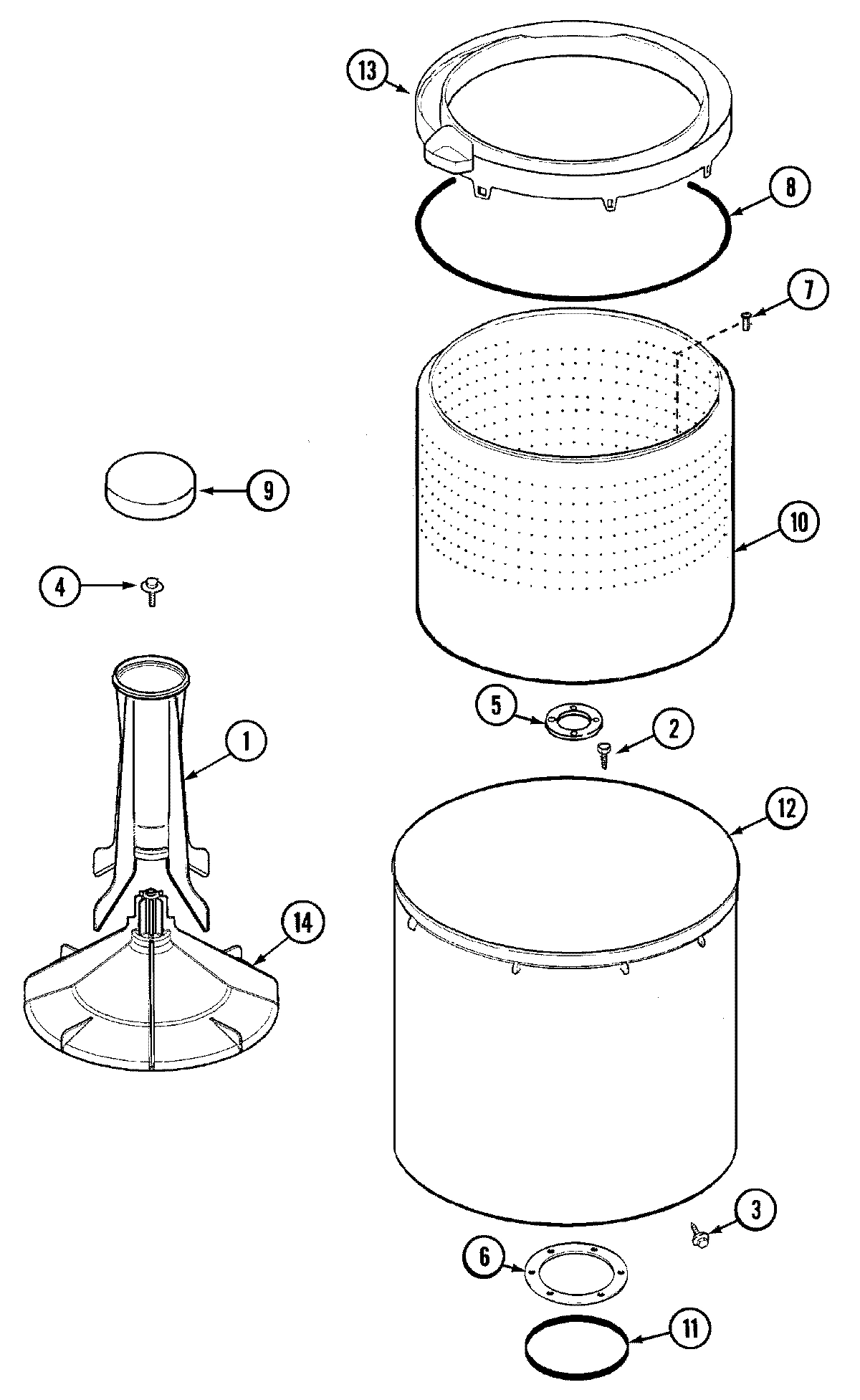

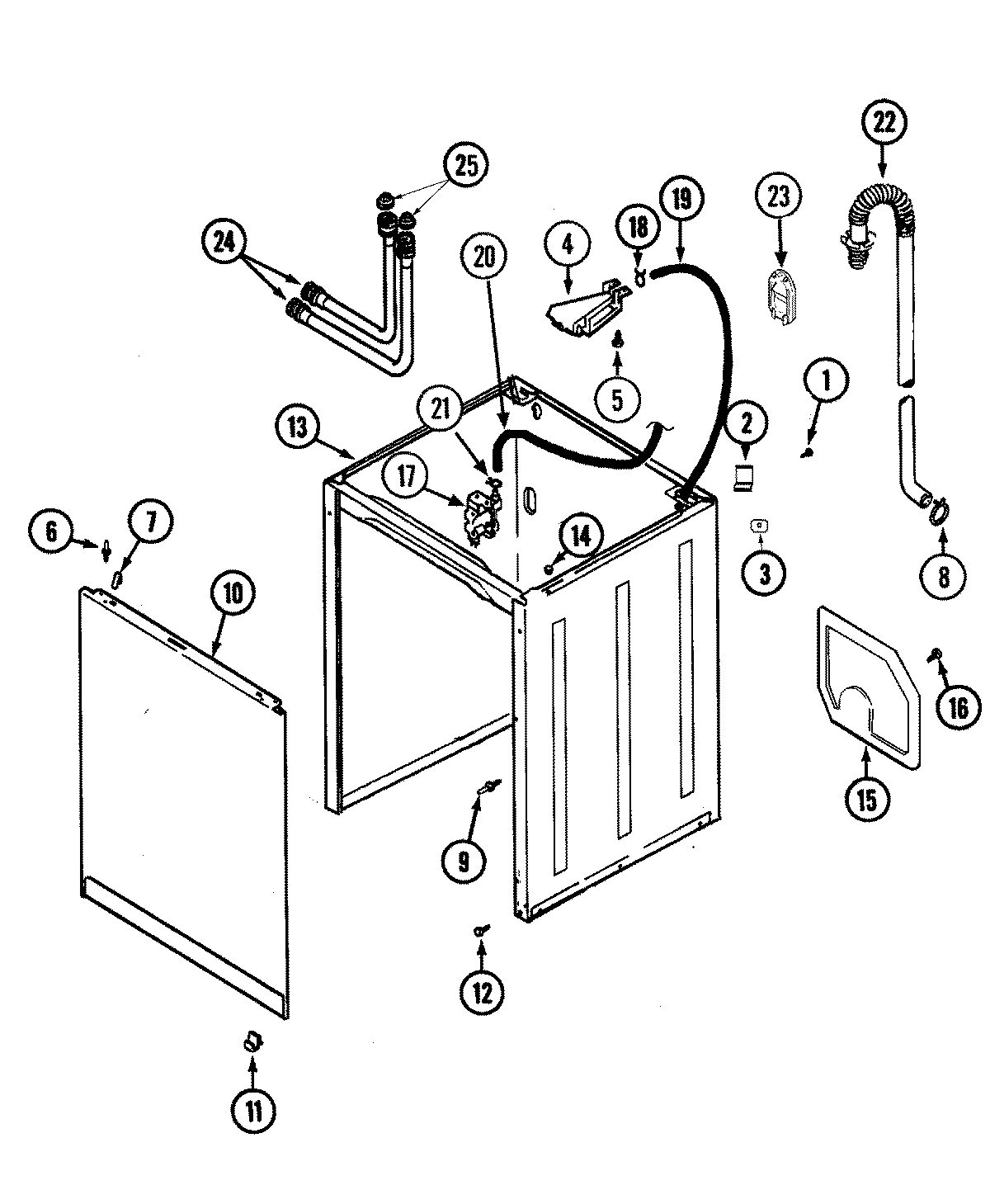

Model Whirlpool CAV1004AWW WASHER – Common Parts &amp; Diagrams

1

TOP, AGITATOR WPL 21001521 Contact Us For Availability

1

LID (WHT) (DOOR) WPL 352026 Contact Us For Availability

1

SCREW WPL 257893 Contact Us For Availability

1

FACIA WPL 21002163 Contact Us For Availability

1

PANEL, CONTROL (FACIA) WPL Y2201400 Contact Us For Availability

2

WP22002947 Whirlpool Screw Backorder WPL WP22002947 $7.59

2

ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability

2

ENDCAP, PANEL (LT-WHT) WPL 21001546 Contact Us For Availability

2

HINGE, CABINET TOP WPL 352846 Contact Us For Availability

3

SCREW WPL 257438 Contact Us For Availability

3

SCREW WPL 257953 Contact Us For Availability

3

SLIDE, FOOT WPL 21001486 Contact Us For Availability

3

ENDCAP, PANEL (RT-WHT) WPL 21001547 Contact Us For Availability

3

PAD, HINGE WPL 354128 Contact Us For Availability

4

WP35-6780 Whirlpool Water Pump In Stock WPL WP35-6780 $119.24

4

PIN, HINGE WPL 352045 Contact Us For Availability

4

SCREW, AGITATOR RETENTION WPL 258004 Contact Us For Availability

4

SHIELD, CONTROL-1 HOLE/CONSOLE WPL 21002077 Contact Us For Availability

4

SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability

4

FLUME ASSEMBLY /WATER DIVERTER WPL 21001760 Contact Us For Availability

5

GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability

5

SCREW WPL 257833 Contact Us For Availability

5

SWITCH, WATER LEVEL (PRESSURE) WPL 21002031 Contact Us For Availability

5

SWITCH, PRESSURE WPL Y2201474 Contact Us For Availability

5

SCREW WPL 253092 Contact Us For Availability

6

SUPPORT, TUB WPL 21001518 Contact Us For Availability

6

HINGE, LID WPL 352044 Contact Us For Availability

6

GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability

6

WASHER WPL 257834 Contact Us For Availability

6

SKIRT, TIMER KNOB (WHT) WPL 21001520 Contact Us For Availability

6

NUT, LOCATOR PIN WPL 250224 Contact Us For Availability

6

SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability

6

PIN, LOCATOR WPL 530643 Contact Us For Availability

7

SCREW 5/16-18X1/2 WPL 21001858 Contact Us For Availability

7

BUMPER, DOOR (LID) WPL 350581 Contact Us For Availability

7

SCREW, SHOULDER WPL 257967 Contact Us For Availability

7

ISOLATOR, MOTOR WPL 339946 Contact Us For Availability

7

KNOB, TIMER (WHT) WPL 21001526 Contact Us For Availability

7

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

8

HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability

8

DISPENSER, BLEACH WPL 21001597 Contact Us For Availability

8

SEAL, TUB TOP WPL 352328 Contact Us For Availability

8

MANUAL, USE & CARE WPL Y2205348 Contact Us For Availability

8

WASHER, MOTOR PIVOT WPL 353570 Contact Us For Availability

8

FRAME (WHT), CONTROL PANEL WPL 21001552 Contact Us For Availability

8

MANUAL, USE & CARE WPL 21001575 Contact Us For Availability

9

BRACE, TUB WPL 21001532 Contact Us For Availability

9

LID SWITCH ASSY.-W/LEADS WPL 21001137 Contact Us For Availability

9

CAP, AGITATOR WPL 21001528 Contact Us For Availability

9

PLATE & SCREW ASSEMBLY WPL 21001783 Contact Us For Availability

9

SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability

9

POST, LOCATING WPL 21001829 Contact Us For Availability

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $4.82

RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability

BASKET ASSEMBLY (PLASTIC) WPL 21001529 Contact Us For Availability

ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability

TIMER WPL 21001695 Contact Us For Availability

TIMER WPL 21002056 Contact Us For Availability

PAD, CABINET WPL 21002011 Contact Us For Availability

PANEL, FRONT (WHT) WPL 352084 Contact Us For Availability

SEAL, TUB/HOUSING WPL 352978 Contact Us For Availability

SWITCH, LID/DOOR SAFETY SPIN WPL 21001148 Contact Us For Availability

SPACER WPL 257831 Contact Us For Availability

KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

WP21001135 Whirlpool Housing Backorder WPL WP21001135 $2.34

WP21001950 Whirlpool Drive Motor In Stock WPL WP21001950 $204.27

SCREW,HIGH PERFORMANCE PLASTIC WPL 21001509 Contact Us For Availability

TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability

BUMPER, CABINET WPL 354129 Contact Us For Availability

BRAKE ROTOR & LINING ASM WPL 21002010 Contact Us For Availability

TOP, TUB (PLASTIC) WPL 21001531 Contact Us For Availability

SHIELD, MOTOR WPL 22002721 Contact Us For Availability

CABINET (WHT) WPL 21001871 Contact Us For Availability

LEVER, LID SWITCH WPL 21001134 Contact Us For Availability

BASE, AGITATOR WPL 21001530 Contact Us For Availability

SLIDE, MOTOR PIVOT WPL 353571 Contact Us For Availability

BUMPER, CABINET WPL 332653 Contact Us For Availability

STATOR, BRAKE WPL 356918 Contact Us For Availability

TOP, CABINET (WHT) WPL 21001602 Contact Us For Availability

WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability

SHIELD, REAR WPL 21001876 Contact Us For Availability

16

WASHER, FLAT WPL 257047 Contact Us For Availability

16

SCREW WPL 257732 Contact Us For Availability

17

12002213 Whirlpool Washer Pulley and Thrust B In Stock WPL 12002213 $34.02

17

WP21001932 Whirlpool Washer Water Valve In Stock WPL WP21001932 $160.23

17

NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability

18

12002773 Whirlpool Spring Kit (Pack of 6) In Stock WPL 12002773 $61.88

18

SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability

18

CLAMP WPL 257867 Contact Us For Availability

19

12002749 Whirlpool Flume Hose Kit Backorder WPL 12002749 $18.28

19

WP21001166 Whirlpool Hook Backorder WPL WP21001166 $4.82

19

HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability

20

BAR, STABILIZER WPL 21001754 Contact Us For Availability

21

BRACKET, STABILIZER WPL 352046 Contact Us For Availability

21

CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability

22

WP21001872 Whirlpool Hose Backorder WPL WP21001872 $60.95

22

PIN, STABILIZER WPL 352052 Contact Us For Availability

23

FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability

23

OUTLET, DRAIN HOSE WPL 21001874 Contact Us For Availability

24

SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability

24

HOSE, 4` INLET WPL 337891 Contact Us For Availability

24

HOSE, INLET WPL 350874 Contact Us For Availability

25

BASE, WASHER WPL 21001893 Contact Us For Availability

25

STRAINER & WASHER KIT WPL 334264N Contact Us For Availability

26

SPEEDNUT WPL 257845 Contact Us For Availability

27

WP21001915 Whirlpool Hose Tub In Stock WPL WP21001915 $19.37

28

FOOT & PAD ASSY WPL 353507 Contact Us For Availability

29

WP21002026 Whirlpool Snubber Assembly In Stock WPL WP21002026 $6.81

30

WP21352320 Whirlpool Washer Drive Belt In Stock WPL WP21352320 $17.32

30

BELT, DRIVE WPL 352279 Contact Us For Availability

31

SPACER WPL 257830 Contact Us For Availability

32

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

32

CLAMP, HOSE WPL 256068 Contact Us For Availability

33

PAD, MOTOR PLATE WPL 352065 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

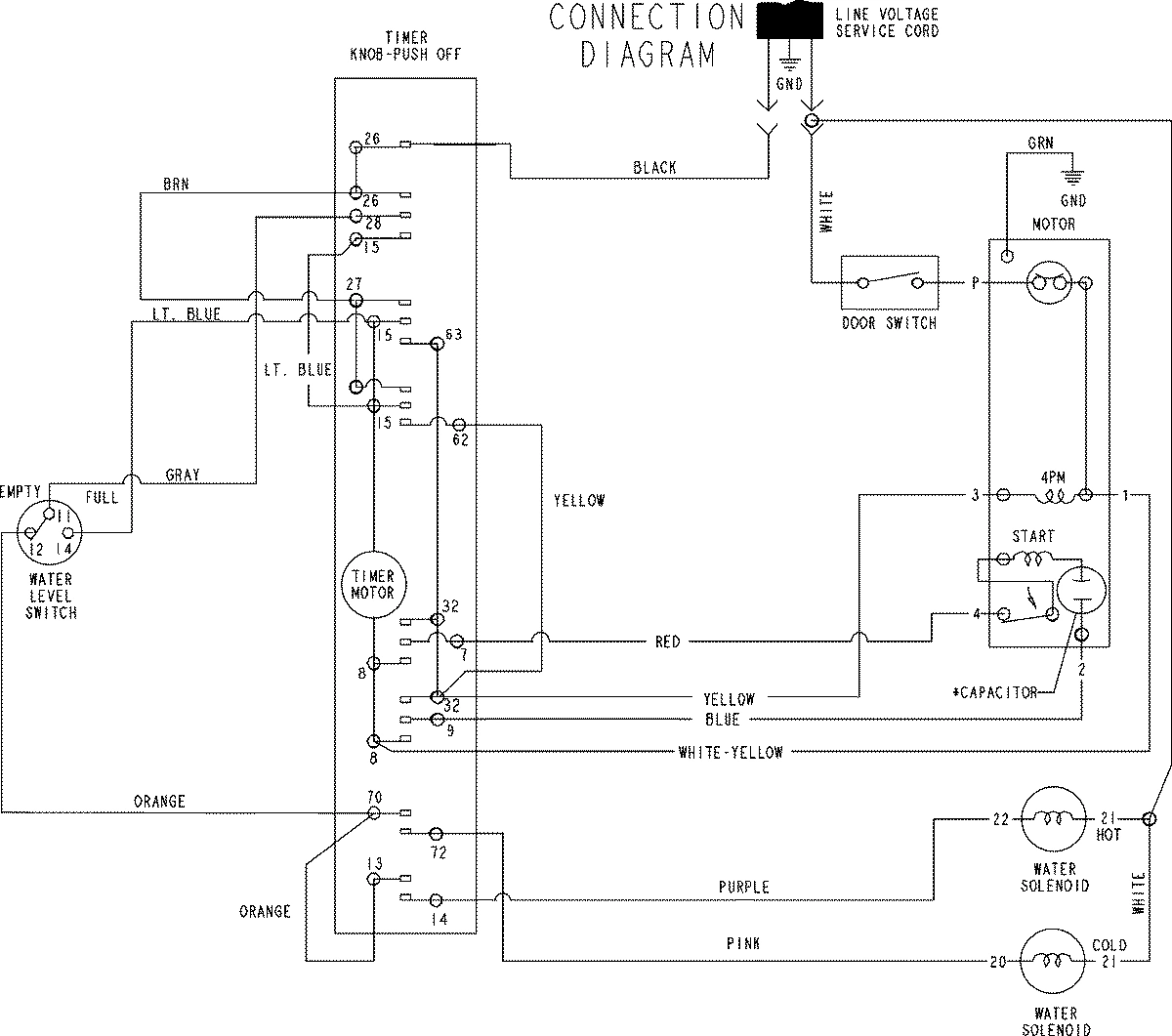

WIRING INFORMATION WPL 15003777 Contact Us For Availability

CORD, POWER WPL 21001592 Contact Us For Availability

WIRE KIT (HERRIN LAUNDRY) WPL 12002417 Contact Us For Availability

MANUAL, SRVC WASHER-NO REFUND WPL 16008333 Contact Us For Availability

TECH SHT, DOM WASHER WPL 16026746 Contact Us For Availability

HARNESS, WIRING WPL 21001919 Contact Us For Availability

LEAD ASSEMBLY (DR SWITCH) WPL 21001979 Contact Us For Availability

LEAD ASSEMBLY (GROUND) WPL 21001980 Contact Us For Availability

MANUAL, USE & CARE WPL 21002059 Contact Us For Availability

HARNESS, WIRING WPL 21002078 Contact Us For Availability

MANUAL, USE & CARE MAGIC CHEF WPL 2206666 Contact Us For Availability
