Model Whirlpool CAR30WCK0 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT, LITERATURE
03 - CABINET
05 - INSTALLATION

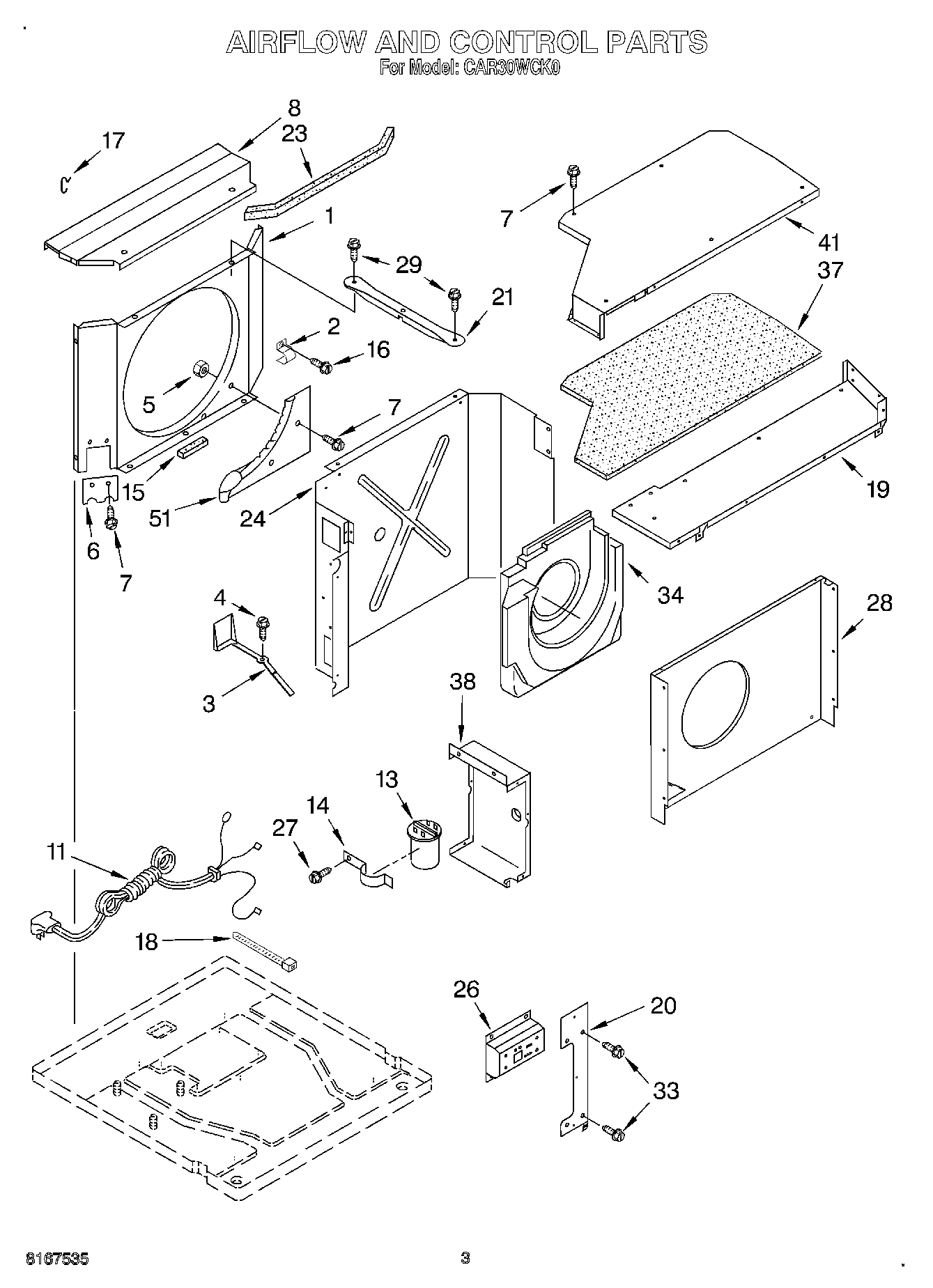

02 - AIR FLOW AND CONTROL

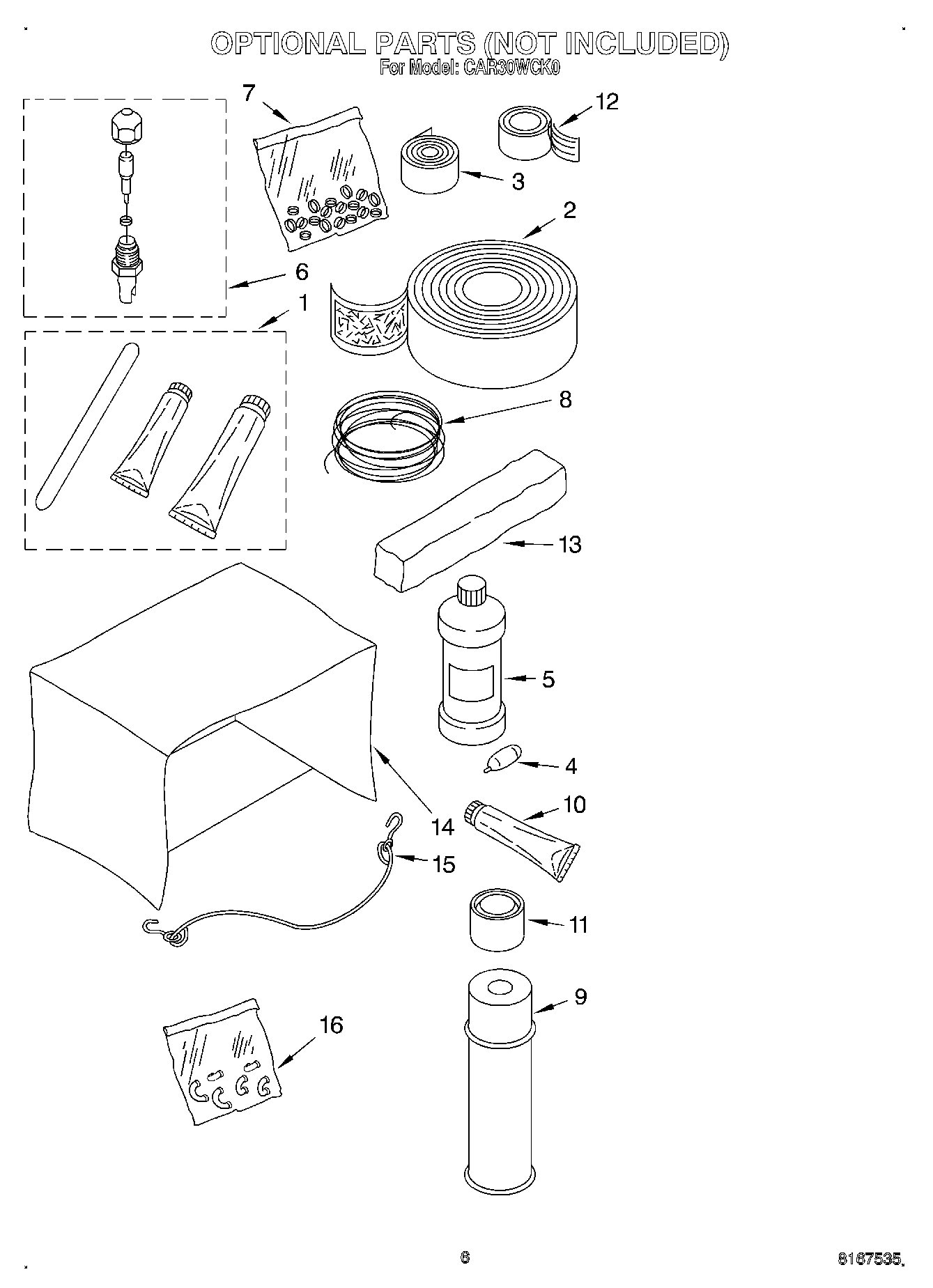

04 - OPTIONAL
Common parts from model Whirlpool CAR30WCK0 ROOM AIR CONDITIONER
1
Cabinet (Includes Insulation) WPL 1168478 Contact Us For Availability
1
Shroud, Condenser WPL 1161244 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Clip, Wet Loop WPL 1161248 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Door, Exhaust WPL 1183344 Contact Us For Availability
4
Seal, Front Side WPL 1163767 Contact Us For Availability
4
Screw WPL 8031309 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Insulation, Top (Cabinet) WPL 1183415 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
6
Clip, Nylon WPL 1161249 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Front, Cabinet WPL 1184974 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1183414 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Cord, Appliance WPL 1184711 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Capacitor WPL 1180113 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Control, Remote WPL 1184821 Contact Us For Availability
15
Seal, Condenstate Cup WPL 1163332 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1183528 Contact Us For Availability
20
Link, Louver (Horizontal) WPL 1166672 Contact Us For Availability
20
Panel, Control WPL 1184599 Contact Us For Availability
21
Louver, Horizontal (8) WPL 1168509 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Louver, Horizontal W/ Handle, Left WPL 1168511 Contact Us For Availability
23
Tube, Crossover WPL 1184736 Contact Us For Availability
23
Front, Complete WPL 1184973 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
24
Locknut (3) WPL 1160798 Contact Us For Availability
24
Louver, Horizontal W/ Handle, Right WPL 1168510 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
25
Louver, Horizontal (Notch Right) WPL 1168512 Contact Us For Availability
25
Louver, Horizontal (Notch Left) WPL 1168513 Contact Us For Availability
26
Distributor WPL 1163760 Contact Us For Availability
26
Control, Electronic WPL 1184703 Contact Us For Availability
27
Tube, Wetloop Connect WPL 1183830 Contact Us For Availability
28
Actuator, Louver WPL 1182348 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
29
Filter WPL 1185312 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1162528 Contact Us For Availability
32
Manifold, Suction WPL 1184616 Contact Us For Availability
32
Spring, Detent WPL 1167095 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
34
Tube, Suction WPL 1166426 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Insulation, Top Cover WPL 1163758 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Control Box WPL 1184814 Contact Us For Availability
41
Anticipator WPL 1185173 Contact Us For Availability
41
Cover, Top WPL 1183529 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1164476 Contact Us For Availability
47
Retainer, Cover WPL 1161083 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
49
Spacer, Grommet WPL 1160654 Contact Us For Availability
50
Sleeve, Mounting WPL 1160655 Contact Us For Availability
51
Tube, Feeder WPL 1184786 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
52
Tube, Feeder WPL 1184785 Contact Us For Availability
53
Tube, Discharge Top Assembly (Includes 51 & 5 WPL 1184740 Contact Us For Availability
55
Bend, Return WPL 1184615 Contact Us For Availability
56
Tube, Riser (2) WPL 1155432 Contact Us For Availability
× ![]()
