Model Whirlpool CAKE30E2 ELECTRIC COOK-TOP – Common Parts & Diagrams
02 - FUSE BOX ASSY--CANADIAN UNITS ONLY

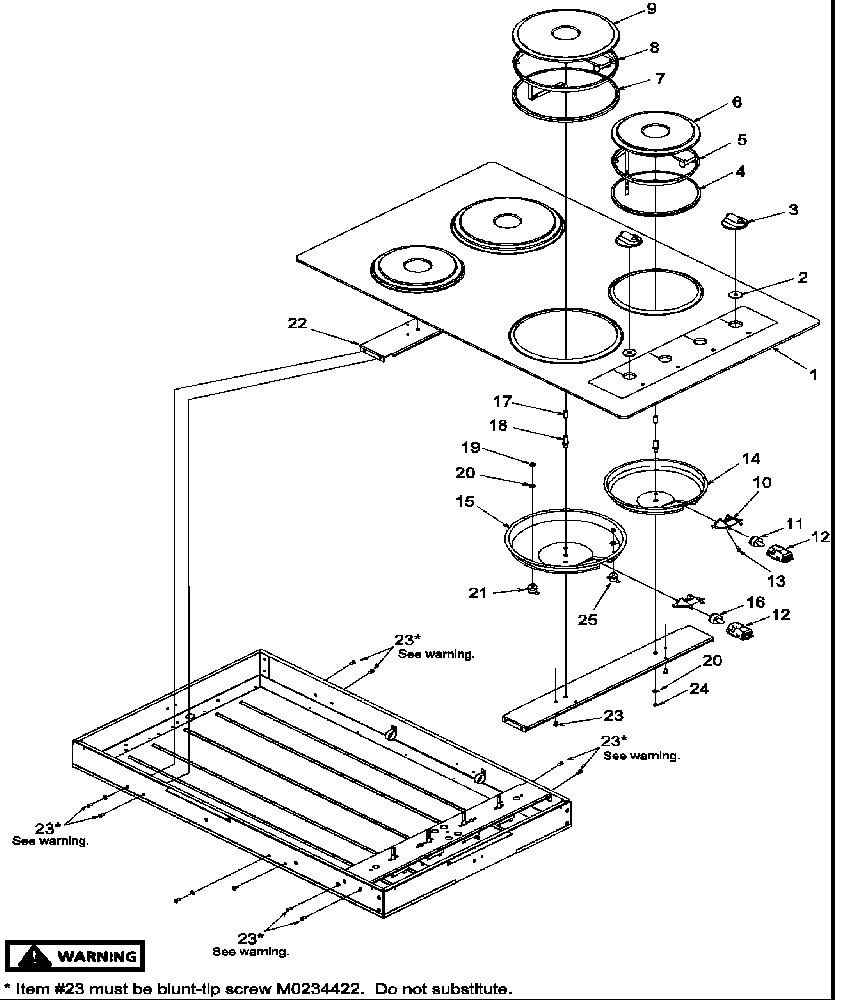

01 - COOKTOP ASSY
03 - HEATER BOX ASSY
Common parts from model Whirlpool CAKE30E2 ELECTRIC COOK-TOP
1
COVER, FUSE WPL 10415102 Contact Us For Availability
1
GLASS, TOP WPL 10397201 Contact Us For Availability
1
CONTROL MOUNTING BRACKET WPL 10397804 Contact Us For Availability
2
FUSE 20 AMP WPL M0800301 Contact Us For Availability
2
COVER, CONTROL HOLE K WPL B5037602 Contact Us For Availability
3
FUSE PLUG, RESTRICTER WPL A4428502 Contact Us For Availability
3
KNOB, CONTROL (BLK) WPL 10431205 Contact Us For Availability
3
LOCK WASHER WPL M0272803 Contact Us For Availability
4
FUSE HOLDER STD BASE WPL D8607301 Contact Us For Availability
4
GASKET WPL B5036801 Contact Us For Availability
4
CONTROL, SURFACE WPL 10027907 Contact Us For Availability
5
SCREW- MACH WPL M0202311 Contact Us For Availability
5
GASKET, RING WPL C2740401 Contact Us For Availability
5
ANGLE, SUPPORT WPL B8393402 Contact Us For Availability
6
ELEMENT 6`` 1500W WPL 10397101 Contact Us For Availability
7
PLATE, FUSE WPL 10415001 Contact Us For Availability
7
GASKET WPL B5036802 Contact Us For Availability
7
END, HTR BOX WPL 10373310 Contact Us For Availability
8
GASKET, RING WPL C2740402 Contact Us For Availability
8
SIDE HEATER BOX WPL 10373514 Contact Us For Availability
9
ELEMENT 8`` 2600W WPL 10397102 Contact Us For Availability
9
HEATER BOX, SIDE WPL 10373414 Contact Us For Availability
10
HOLDER, LAMP WPL 10397601 Contact Us For Availability
10
PANEL, ACCESS (BLACK) WPL 10398106 Contact Us For Availability
11
SCREW WPL M0217224 Contact Us For Availability
11
ASSY, LAMP 15W WPL 10397701 Contact Us For Availability
11
CLAMP, TUBE (1/2``) WPL M0107801 Contact Us For Availability
12
HARNESS-CONDUIT WPL 10415201 Contact Us For Availability
12
ASSY, LAMP 15W WPL 10397501 Contact Us For Availability
12
SCREW WPL M0210418 Contact Us For Availability
13
SCREW WPL M0234003 Contact Us For Availability
14
PALNUT WPL M0287303 Contact Us For Availability
14
REFLECTOR SMALL WPL 10397401 Contact Us For Availability
15
WASHER LOCK WPL M0272802 Contact Us For Availability
15
REFLECTOR, LARGE WPL 10397402 Contact Us For Availability
16
SCREW WPL M0227817 Contact Us For Availability
16
INSULATOR, POD K WPL M0325501 Contact Us For Availability
16
LAMP, LARGE BURNER WPL 10397702 Contact Us For Availability
17
SPACER WPL 10400501 Contact Us For Availability
18
BUSHING, CONDUIT WPL M0327601 Contact Us For Availability
18
EXTENSION WPL 10409301 Contact Us For Availability
19
CONNECTOR, CONDUIT WPL M0321505 Contact Us For Availability
19
NUT WPL M0294301 Contact Us For Availability
21
USR 0041847 WPL M0282402 Contact Us For Availability
21
TCO-ELEMENT WPL B5036401 Contact Us For Availability
22
ELEMENT MTG BRKT WPL 10397904 Contact Us For Availability
22
CLAMP TUBE WPL M0107802 Contact Us For Availability
23
RIVET-POP WPL A4539615 Contact Us For Availability
24
NUT WPL M0294302 Contact Us For Availability
24
BRACKET, CORNER WPL 10451901 Contact Us For Availability
25
TCO, ELEMENT WPL B5036402 Contact Us For Availability
NI
ASSY, FUSE PLATE WPL 10415401 Contact Us For Availability
NI
DIODE/JUMPER WIRE WPL 10411301 Contact Us For Availability
NI
SWITCH GASKET XET-490 WPL Y0041991 Contact Us For Availability
× ![]()
