Model Whirlpool CAH24WCR1 Air Conditioner – Common Parts & Diagrams
UNIT PARTS

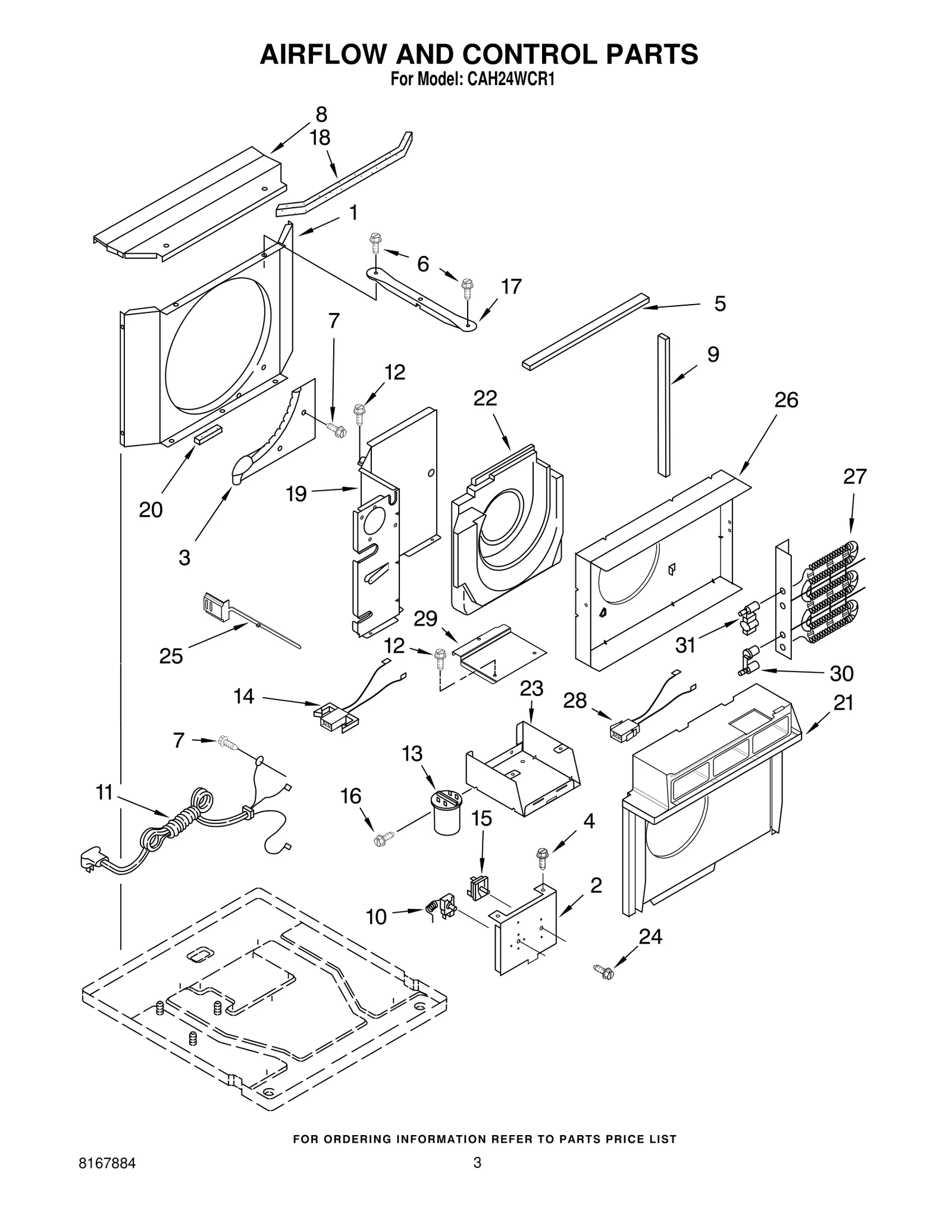

AIRFLOW AND CONTROL PARTS

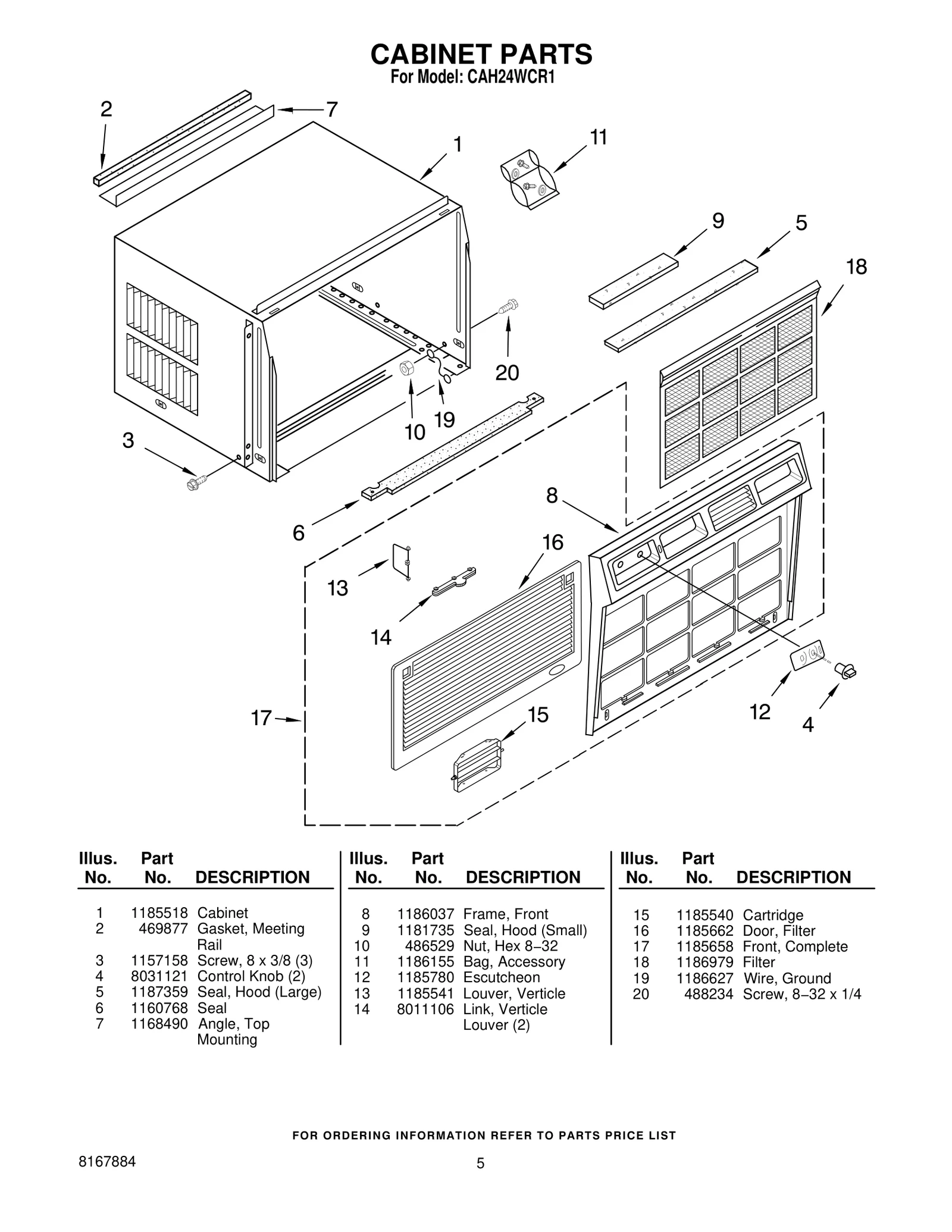

CABINET PARTS

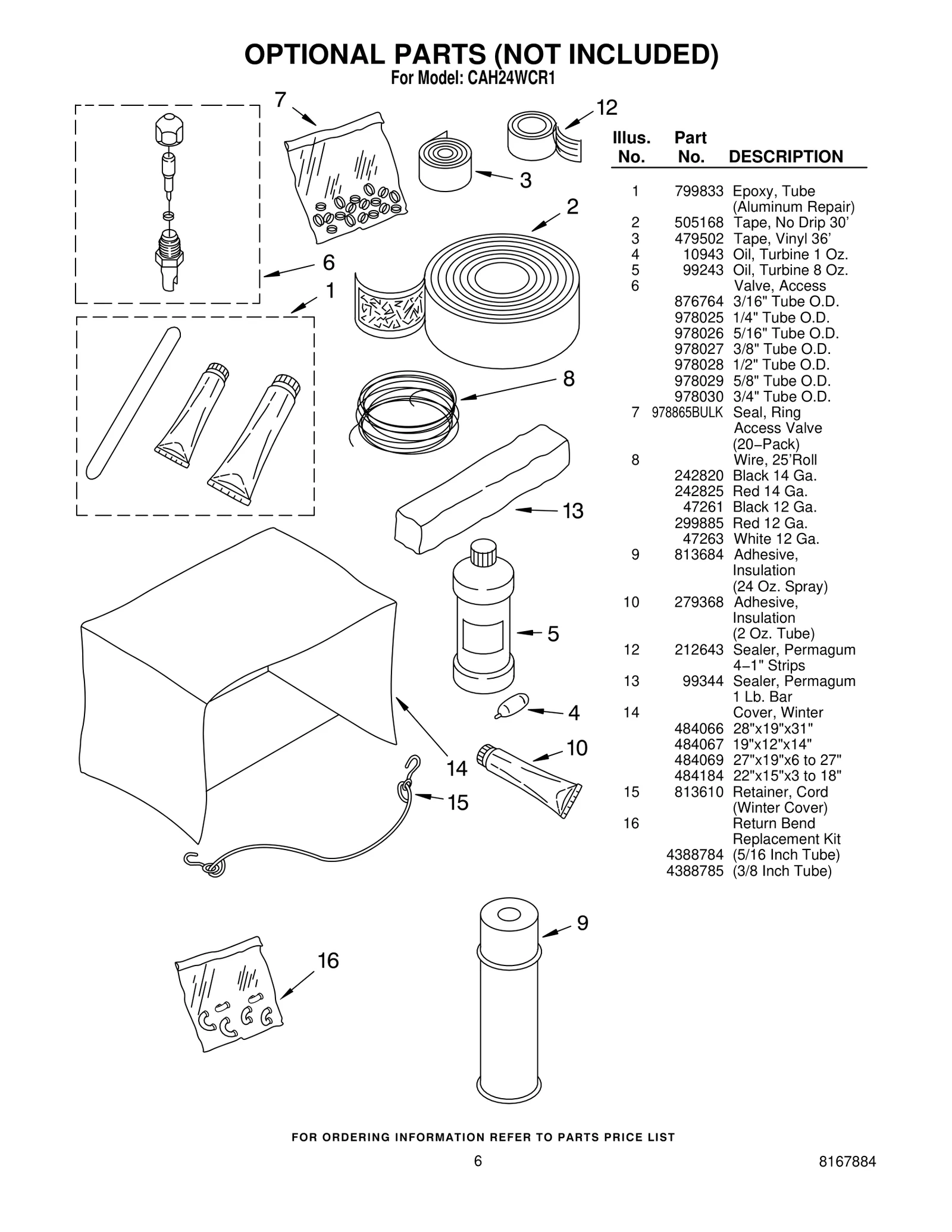

OPTIONAL PARTS (NOT INCLUDED)

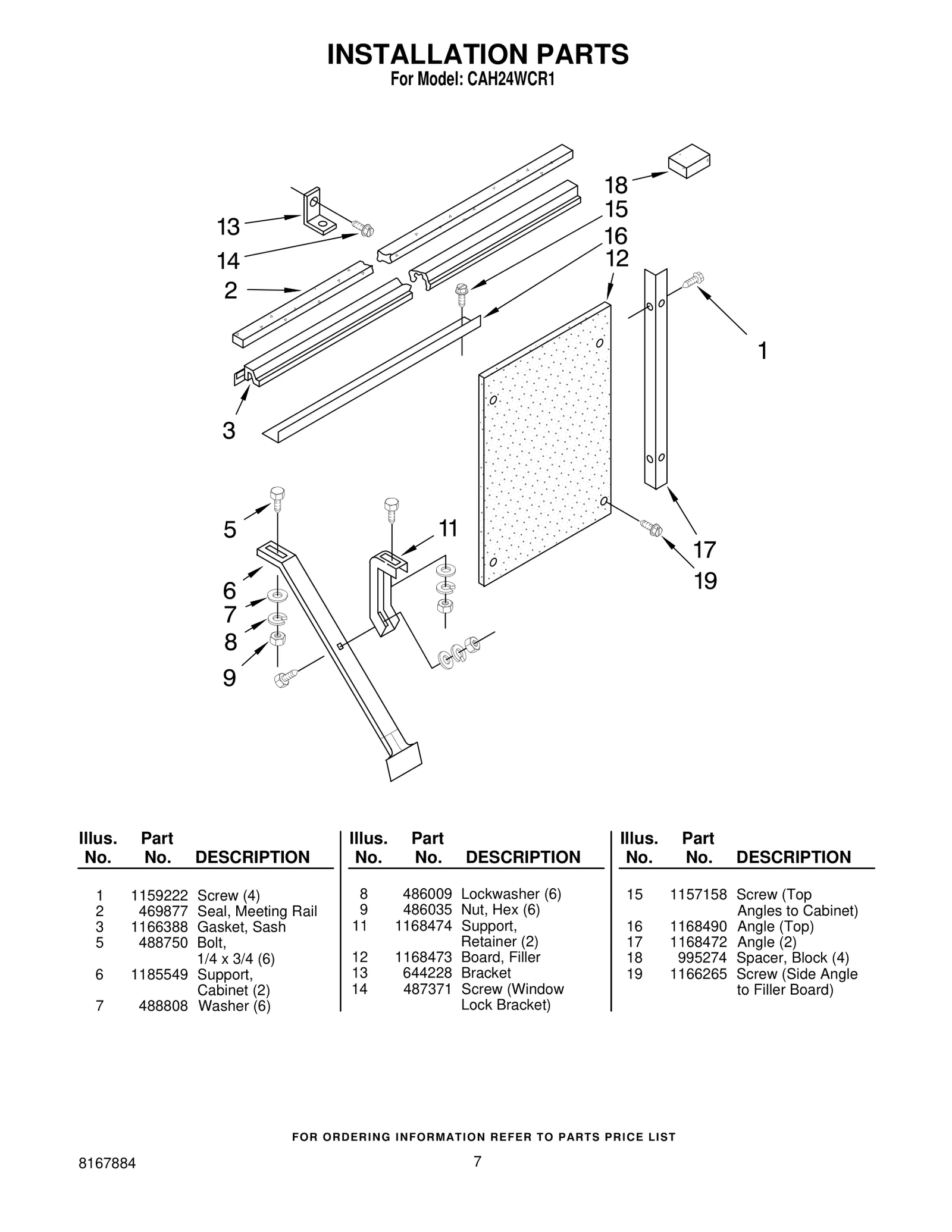

INSTALLATION PARTS
Common parts from model Whirlpool CAH24WCR1 Air Conditioner
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Screw (4) WPL 1159222 Contact Us For Availability
1
Cabinet WPL 1185518 Contact Us For Availability
2
Panel, Control WPL 1185532 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Cup, Condensate WPL 1160684 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Seal, Hood (Large) WPL 1187359 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 1185549 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Frame, Front WPL 1186037 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Seal, Hood (Small) WPL 1181735 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
10
Thermostat WPL 1185753 Contact Us For Availability
11
Cord, Appliance WPL 1187851 Contact Us For Availability
11
Bag, Accessory WPL 1186155 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Screw WPL 488624 Contact Us For Availability
12
Escutcheon WPL 1185780 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Capacitor WPL 1186507 Contact Us For Availability
13
Louver, Verticle WPL 1185541 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
14
Harness, Heater WPL 1186586 Contact Us For Availability
14
Link, Verticle Louver (2) WPL 8011106 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Switch, Rotary WPL 1186500 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Door, Filter WPL 1185662 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Front, Complete WPL 1185658 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Filter WPL 1186979 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Dividing Wall WPL 1185505 Contact Us For Availability
19
Wire, Ground WPL 1186627 Contact Us For Availability
19
Screw (Side Angle to Filler Board) WPL 1166265 Contact Us For Availability
20
Harness, Wiring Compressor WPL 1188312 Contact Us For Availability
20
Seal, Cup WPL 1163332 Contact Us For Availability
21
Compressor WPL 1188222 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1187338 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Housing, Air WPL 1187339 Contact Us For Availability
23
Return Bend 3−Way Condenser (1) WPL 1158685 Contact Us For Availability
23
Control Box WPL 1187820 Contact Us For Availability
24
Locknut (3) Connect WPL 858121 Contact Us For Availability
24
Screw WPL 488734 Contact Us For Availability
25
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
25
Door, Exhaust WPL 1185506 Contact Us For Availability
26
Evaporator, Shroud WPL 1185747 Contact Us For Availability
27
Element, Heating WPL 1182738 Contact Us For Availability
28
Plug, Heater Harness WPL 1186546 Contact Us For Availability
29
Insulation, Base WPL 1167085 Contact Us For Availability
29
Cover, Control Box WPL 1186663 Contact Us For Availability
30
Wheel, Blower WPL 1185544 Contact Us For Availability
30
Link, Fuse WPL 4388360 Contact Us For Availability
31
Switch, Limit WPL 4388458 Contact Us For Availability
32
Manifold, Suction WPL 1186028 Contact Us For Availability
34
Tube, Suction WPL 1188282 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1188283 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
49
Distributor WPL 1184612 Contact Us For Availability
50
Tube, Crossover WPL 1185265 Contact Us For Availability
51
Tube, Feeder WPL 1188278 Contact Us For Availability
52
Tube, Feeder WPL 1188279 Contact Us For Availability
53
Tube, Flow Divider REFRIGERANT CHARGE 46.75 o WPL 1159832 Contact Us For Availability
OPT-1
Epoxy, Tube WPL 799833 Contact Us For Availability
OPT-2
Tape, No Drip 30’ WPL 505168 Contact Us For Availability
OPT-3
Tape, Vinyl 36’ WPL 479502 Contact Us For Availability
OPT-4
Oil, Turbine 1 Oz. WPL 10943 Contact Us For Availability
OPT-5
Oil, Turbine 8 Oz. WPL 99243 Contact Us For Availability
OPT-10
1/2" Tube O.D. WPL 978028 Contact Us For Availability
OPT-11
5/8" Tube O.D. WPL 978029 Contact Us For Availability
OPT-13
Seal, Ring WPL 978865BULK Contact Us For Availability
OPT-14
Black 14 Ga. WPL 242820 Contact Us For Availability
OPT-15
Red 14 Ga. WPL 242825 Contact Us For Availability
OPT-16
Black 12 Ga. WPL 47261 Contact Us For Availability
OPT-17
Red 12 Ga. WPL 299885 Contact Us For Availability
OPT-18
White 12 Ga. WPL 47263 Contact Us For Availability
OPT-19
Adhesive, WPL 813684 Contact Us For Availability
OPT-23
28"x19"x31" WPL 484066 No Longer Available
OPT-24
19"x12"x14" WPL 484067 Contact Us For Availability
OPT-25
27"x19"x6 to 27" WPL 484069 Contact Us For Availability
OPT-26
22"x15"x3 to 18" WPL 484184 Contact Us For Availability
OPT-27
Retainer, Cord WPL 813610 Contact Us For Availability
OPT-28
(5/16 Inch Tube) WPL 4388784 Contact Us For Availability
OPT-29
(3/8 Inch Tube) WPL 4388785 Contact Us For Availability
× ![]()
