Model Whirlpool CA8WR41 ROOM AIR CONDITIONER – Common Parts & Diagrams
04 - OPTIONAL PARTS
02 - AIR FLOW AND CONTROL

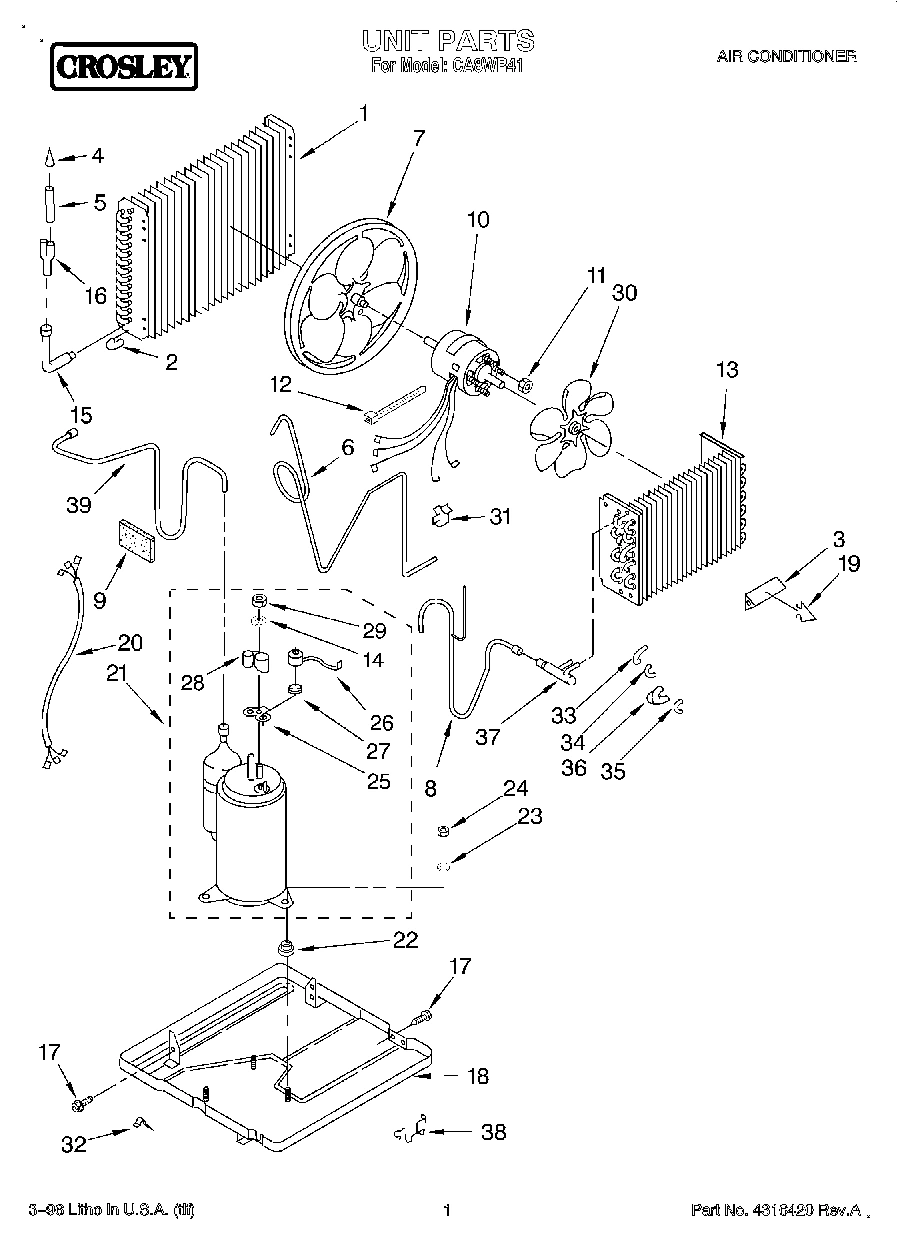

01 - UNIT, LITERATURE

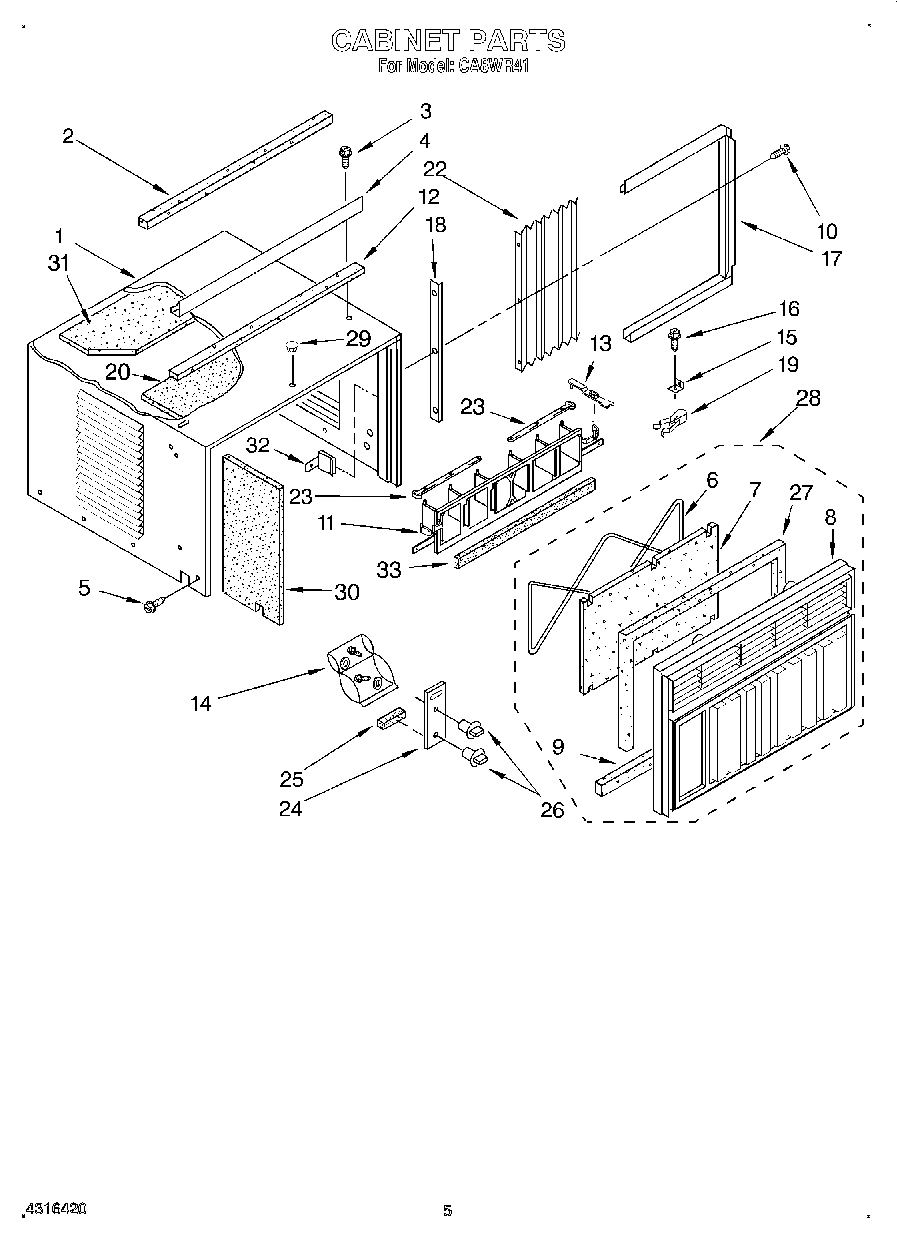

03 - CABINET

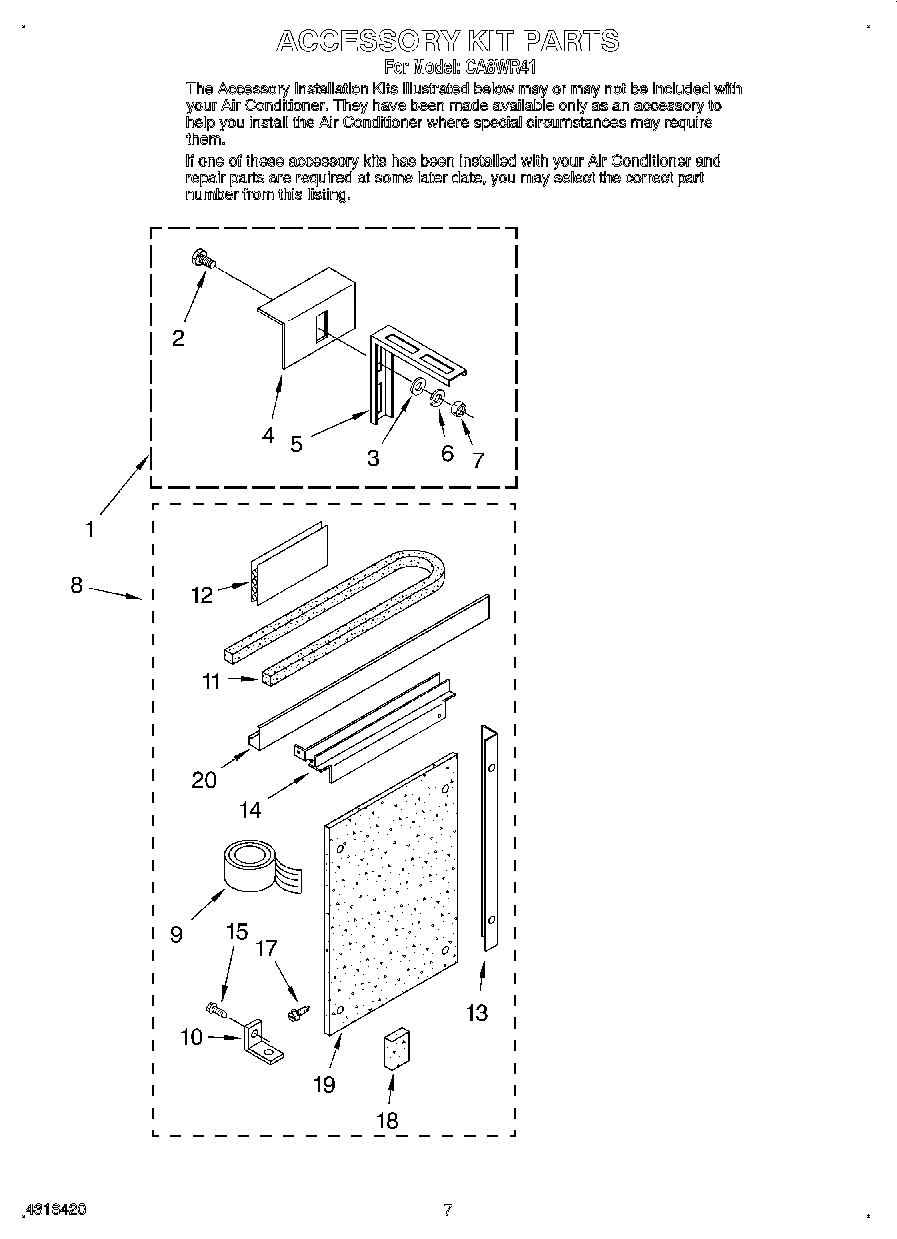

05 - ACCESSORY KITS
Common parts from model Whirlpool CA8WR41 ROOM AIR CONDITIONER
Guide, Use and Care WPL LIT1161898 Contact Us For Availability
Installation Instructions WPL LIT1161947 Contact Us For Availability
Wiring Diagram WPL LIT1165234 Contact Us For Availability
Sheet, Tech WPL LIT1165235 Contact Us For Availability
1
Shroud, Condenser WPL 856037 Contact Us For Availability
1
Condenser WPL 1160065 Contact Us For Availability
1
Cabinet WPL 1163513 Contact Us For Availability
1
Kit, Outside Sill (For Additional) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bolt WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Anticipator, Temperature WPL 996773 Contact Us For Availability
4
Retainer, Exhaust Door WPL 858765 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Channel, Top WPL 993786 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Actuator, Exhaust Door WPL 1167161 Contact Us For Availability
5
Tube, Outlet (Includes Illus 4) WPL 950825 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Lockwasher (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Thermostat WPL 1166758 Contact Us For Availability
6
Tube, Restrictor WPL 1159259 Contact Us For Availability
6
Retainer, Filter WPL 646963 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1161594 Contact Us For Availability
7
Filter, Air WPL 855246 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
8
Extension, Dividing Wall WPL 994561 Contact Us For Availability
8
Tube, Suction WPL 1163931 Contact Us For Availability
8
Front, Cabinet WPL 1159826 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
9
Seal, Front WPL 852923 Contact Us For Availability
9
Seal, Strip WPL 855265 Contact Us For Availability
10
Motor, Fan WPL 1165209 Contact Us For Availability
10
Screw WPL 1161561 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
11
Seal, Meeting Rail WPL 855841 Contact Us For Availability
11
Cord, Appliance WPL 1165240 Contact Us For Availability
11
Louver, Vertical WPL 1166081 Contact Us For Availability
12
Support, Unit WPL 1156536 Contact Us For Availability
12
Strip, Seal WPL 856989 Contact Us For Availability
13
Capacitor, Running WPL 1162599 Contact Us For Availability
13
Evaporator WPL 1156641 Contact Us For Availability
13
Handle, Louver (2) WPL 1161636 Contact Us For Availability
13
Angle, Side (2) WPL 646233 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bag, Accessory WPL 476180 Contact Us For Availability
14
Bracket, Top (Right Side) WPL 645562 Contact Us For Availability
14
Bracket, Top (Left Side) WPL 645563 Contact Us For Availability
15
Door, Exhaust WPL 644206 Contact Us For Availability
15
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
15
Screw, Wood WPL 47435 Contact Us For Availability
16
Arm, Exhaust Door WPL 856042 Contact Us For Availability
16
Tube, Flow Divider WPL 947364 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Screen, Insulation Assembly WPL 1162926 Contact Us For Availability
17
Screw, S.M.No.10 x 1/2 WPL 488481 Contact Us For Availability
17
Housing, Curtain (Left Side) (Includes No.22) WPL 1164154 Contact Us For Availability
17
Housing, Curtain (Right Side) WPL 1164155 Contact Us For Availability
18
Insulation (Back, Dividing Wall) WPL 1166338 Contact Us For Availability
18
Base WPL 951570 Contact Us For Availability
18
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
18
Spacer, Block (2) WPL 995274 Contact Us For Availability
19
Spacer WPL 1159175 Contact Us For Availability
19
Clip, Anticipator WPL 475577 Contact Us For Availability
19
Spring, Detent (2) WPL 644006 Contact Us For Availability
19
Board, Filler (2) WPL 876826 Contact Us For Availability
20
Insulation (Side, Dividing Wall) WPL 1166339 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
Insul. Cab. Top. WPL 1163429 Contact Us For Availability
20
Instructions, Installation (Economy Window Mo WPL 1155124 Contact Us For Availability
20
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
21
Switch, Rotary WPL 1165243 Contact Us For Availability
22
Clip, Retainer WPL 644401 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Curtain (2) WPL 947160 Contact Us For Availability
23
Insulation, Evaporator Shroud WPL 1166282 Contact Us For Availability
23
Link (2) WPL 855158 Contact Us For Availability
24
Dividing Wall WPL 1167154 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Plate, Escutcheon WPL 1167791 Contact Us For Availability
25
Insulation, Control Panel (Top) WPL 1158576 Contact Us For Availability
25
Spacer, Escutcheon WPL 470036 Contact Us For Availability
26
Knob, Control (2) (Black W/ Silver Indicator) WPL 1162672 Contact Us For Availability
26
Knob, Control (2) (Brown W/ White Indicator) WPL 1168377 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Seal, Front (Top And Sides) WPL 645883 Contact Us For Availability
28
Shroud Assembly, Evaporator (Includes Item 23 WPL 948219 Contact Us For Availability
28
Front, Complete WPL 1159825 Contact Us For Availability
29
Seal, Condenser Top WPL 948090 Contact Us For Availability
29
Cover, Hole WPL 1157126 Contact Us For Availability
30
Clip, Exh. Door WPL 1162627 Contact Us For Availability
30
Blade, Fan (Evaporator) WPL 1160946 Contact Us For Availability
30
Insulation, Cab. (Right, Side) WPL 1163430 Contact Us For Availability
30
Insulation, Cab. (Left, Side) WPL 1163431 Contact Us For Availability
31
Insul., Sleeve WPL 475841 Contact Us For Availability
31
Clamp, Cable WPL 852451 Contact Us For Availability
31
Insulation Cab. To Cond. WPL 1158501 Contact Us For Availability
32
Clamp, Tube WPL 855930 Contact Us For Availability
32
Clip, Louver WPL 1158294 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Bend Return WPL 1158407 Contact Us For Availability
33
Seal, Vertical Louver Assembly WPL 855238 Contact Us For Availability
34
Panel, Control WPL 996966 Contact Us For Availability
34
Bend, Return (6) WPL 708532 Contact Us For Availability
35
Bend, Return (5) WPL 708531 Contact Us For Availability
36
Bend, Return (3-Way) WPL 1156107 Contact Us For Availability
37
Maniflod, Header WPL 1156642 Contact Us For Availability
38
Clip, Mtg. (2) WPL 949634 Contact Us For Availability
39
Tube, Discharge WPL 1156452 Contact Us For Availability
× ![]()
