Model LG CA30N BD Writer Notebook – Common Parts & Diagrams

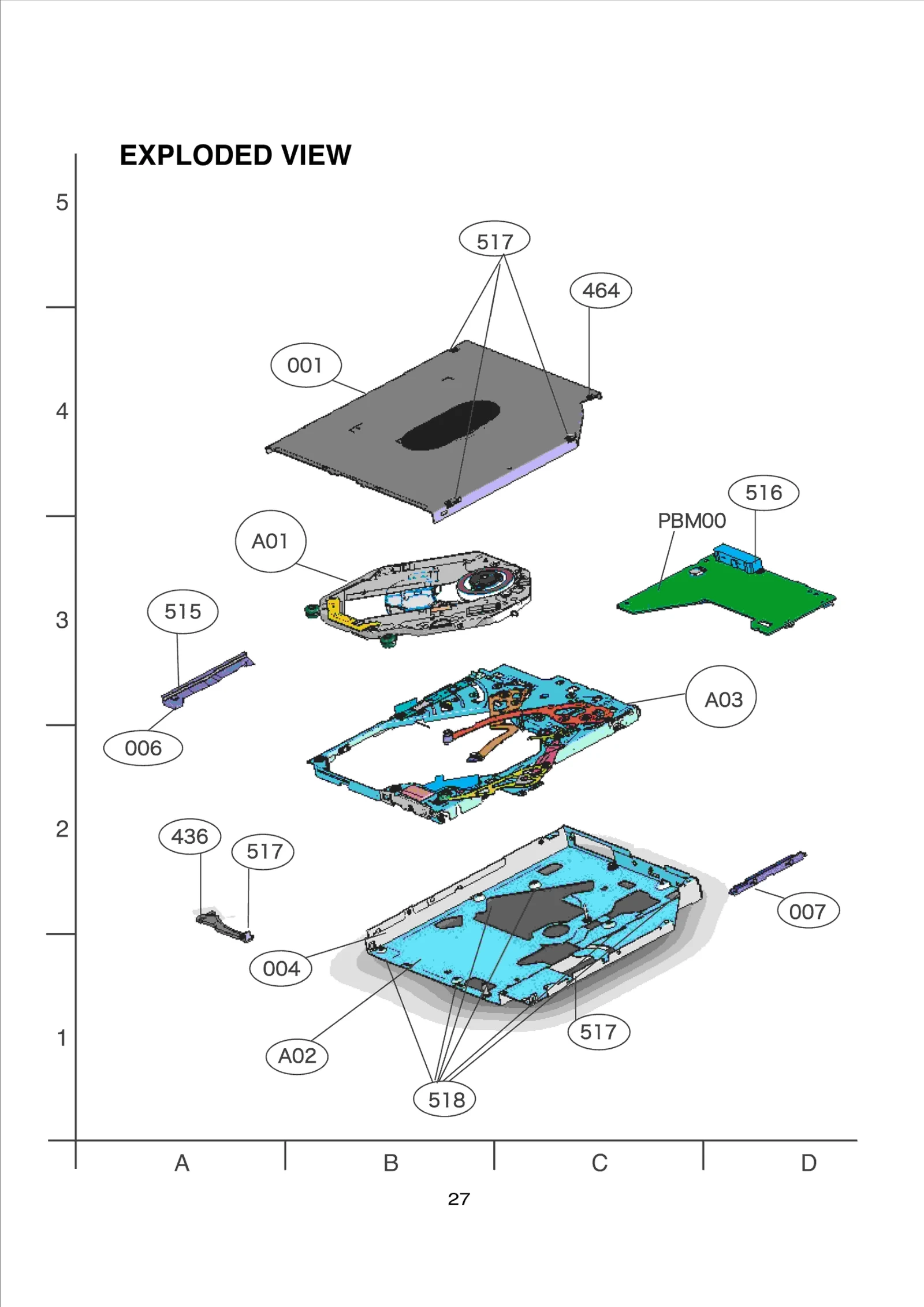

Diagram 0
Diagram 1
Common parts from model LG CA30N BD Writer Notebook
004
Cover LGE MCK62240801 Contact Us For Availability
007
Guide LGE MEA42987901 Contact Us For Availability
436
Screw,Machine LGE FAB30353501 Contact Us For Availability
464
Screw,Customized LGE 1SZZH-1078D Contact Us For Availability
515
Screw,Machine LGE FAB30093901 Contact Us For Availability
516
Screw,Machine LGE FAB31141101 Contact Us For Availability
517
Screw,Machine LGE FAB30093907 Contact Us For Availability
518
Screw,Machine LGE FAB30248601 Contact Us For Availability
806
Box LGE MAY41526902 Contact Us For Availability
807
Bag LGE MAF62807401 Contact Us For Availability
807
Bag LGE MAF62967501 Contact Us For Availability
808
Packing LGE 3920H-1005E Contact Us For Availability
A00
Mechanism Assembly LGE AFP72916714 Contact Us For Availability
A01
Base Assembly LGE AAN73211903 Contact Us For Availability
A02
Base Assembly LGE AAN72928303 Contact Us For Availability
C111
Capacitor,Ceramic,Chip LGE 0CC470BK41A Contact Us For Availability
C113
Capacitor,Ceramic,Chip LGE 0CH2391K668 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK152BK56A Contact Us For Availability
C123
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C152
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CC105BC5DA Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE 0CK220BK4CA Contact Us For Availability
C318
Capacitor,Ceramic,Chip LGE 0CC151BKF1A Contact Us For Availability
C403
Capacitor,Ceramic,Chip LGE 0CC823BDGDA Contact Us For Availability
C404
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C406
Capacitor,Ceramic,Chip LGE 0CK104BDG7A Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE 0CK333BD56A Contact Us For Availability
C701
Capacitor,Ceramic,Chip LGE 0CK103BF56A Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CK106DC57A Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE 0CC101BK41A Contact Us For Availability
C713
CAPACITOR,FIXED CERA LGE 0CK106EFG7A Contact Us For Availability
C718
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
D202
Diode,Switching LGE EAH60705501 Contact Us For Availability
D601
Diode,Schottky LGE EAH60703201 Contact Us For Availability
IC101
IC,Digital Signal Processors LGE EAN54936601 Contact Us For Availability
IC601
IC,Motor Driver LGE EAN52412403 Contact Us For Availability
IC701
IC,DC,DC Converter LGE EAN35662910 Contact Us For Availability
L203
Filter,Bead LGE EAM61630303 Contact Us For Availability
L203
Filter,Bead LGE 6200JB8011C Contact Us For Availability
L702
Inductor,Wire Wound,Chip LGE EAP39152702 Contact Us For Availability
L703
Inductor,Wire Wound,Chip LGE EAP60240103 Contact Us For Availability
L707
Filter,Bead LGE EAM61630302 Contact Us For Availability
PBM00
PCB Assembly,Main LGE EBR73328301 Contact Us For Availability
Q301
TR,Bipolar LGE EBK51439903 Contact Us For Availability
Q301
TR,Bipolar LGE EBK51439902 Contact Us For Availability
R101
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R116
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R125
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R216
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R220
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R223
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R317
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R413
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ1801C478 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ1001C478 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
SW201
Switch,Detector LGE EBF50727501 Contact Us For Availability
SW203
Switch,Detector LGE EBF50143501 Contact Us For Availability
SW204
Switch,Detector LGE EBF60681901 Contact Us For Availability
TH201
Poly Switch LGE EAF35527303 Contact Us For Availability
TH701
Poly Switch LGE EAF35527301 Contact Us For Availability
X301
Resonator,Ceramic LGE EAW60667201 Contact Us For Availability
× ![]()
