Model Whirlpool CA14WC00 ROOM AIR CONDITIONER – Common Parts & Diagrams
04 - OPTIONAL
03 - CABINET

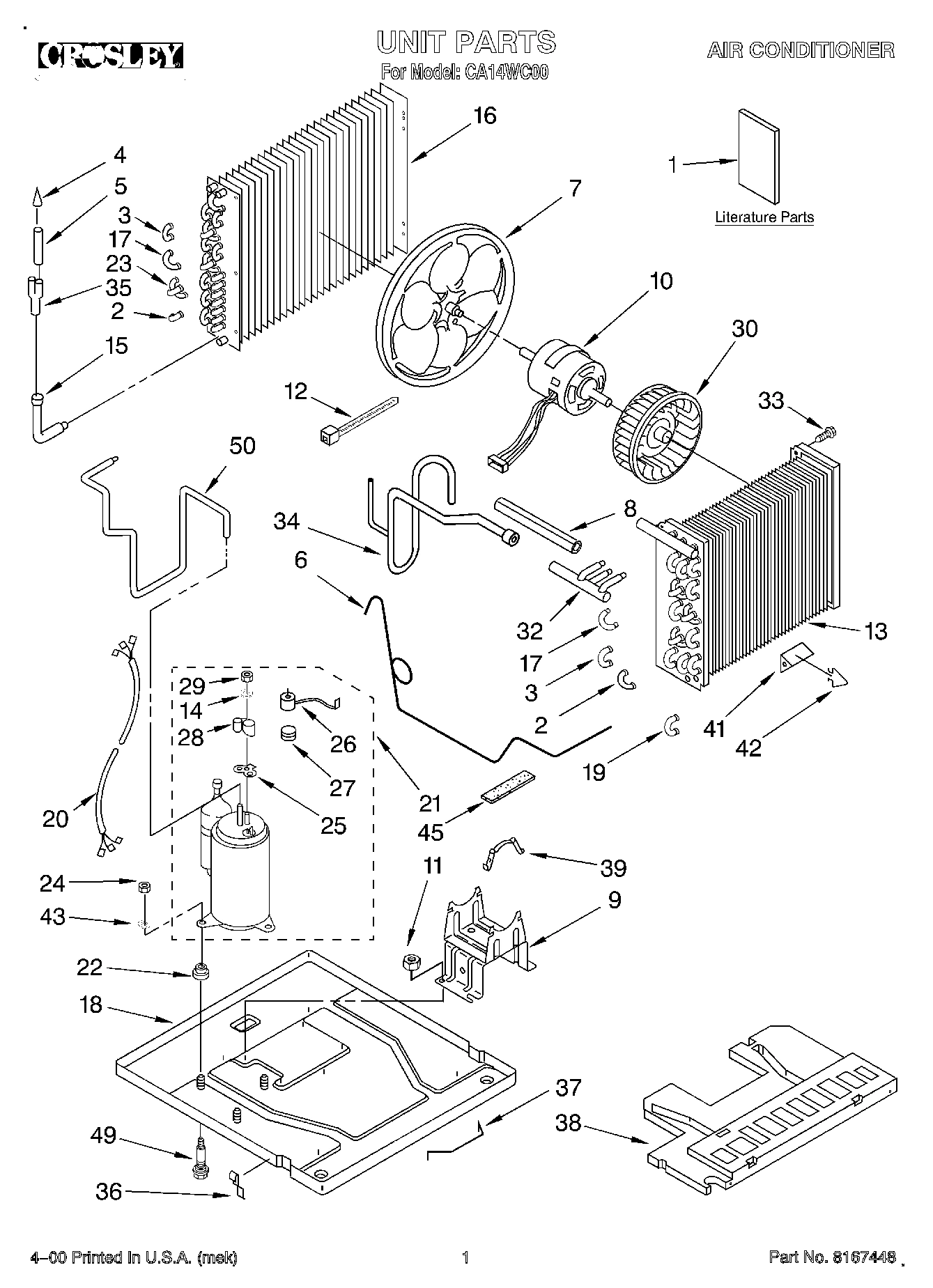

01 - UNIT, LITERATURE

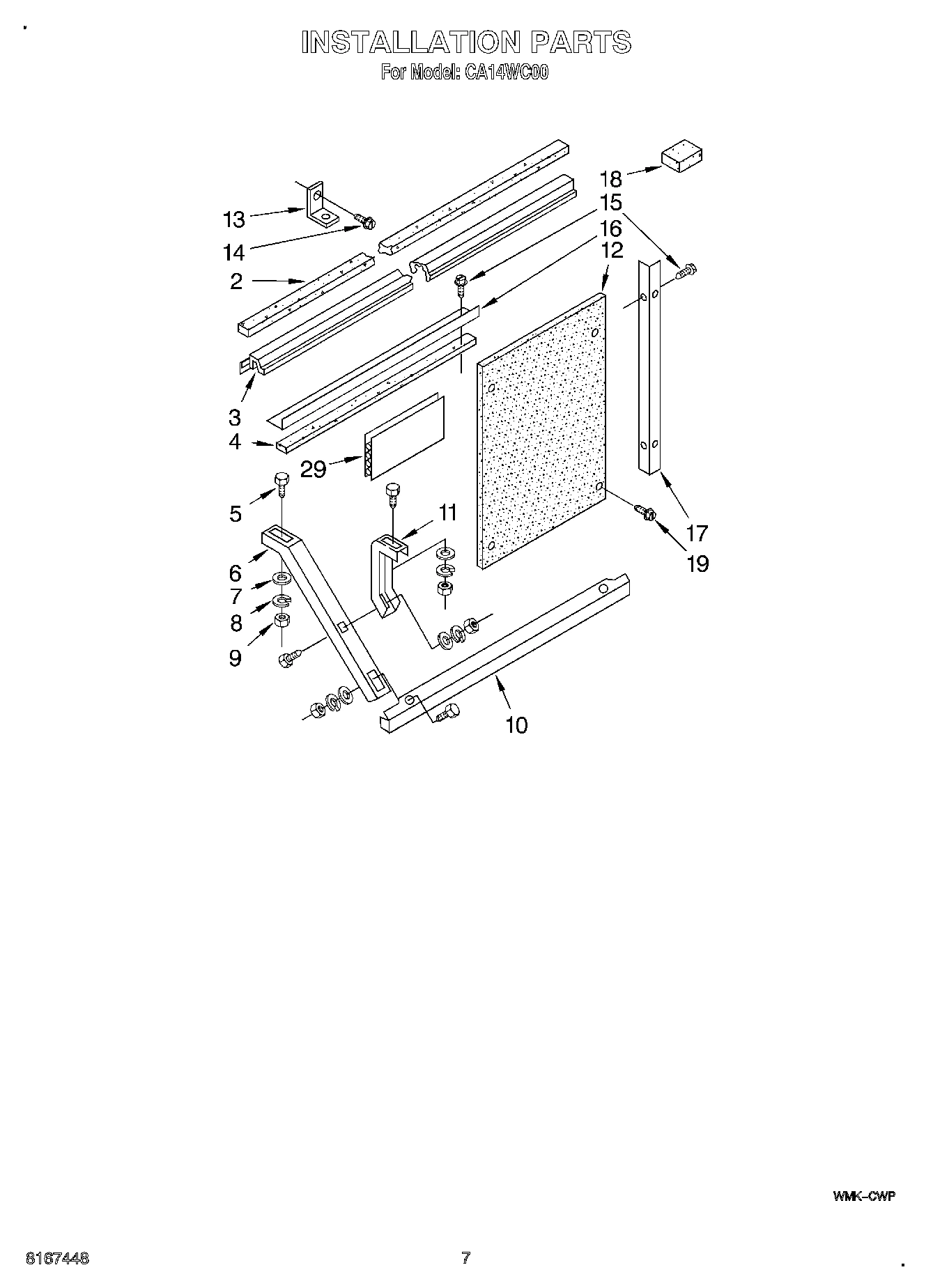

05 - INSTALLATION

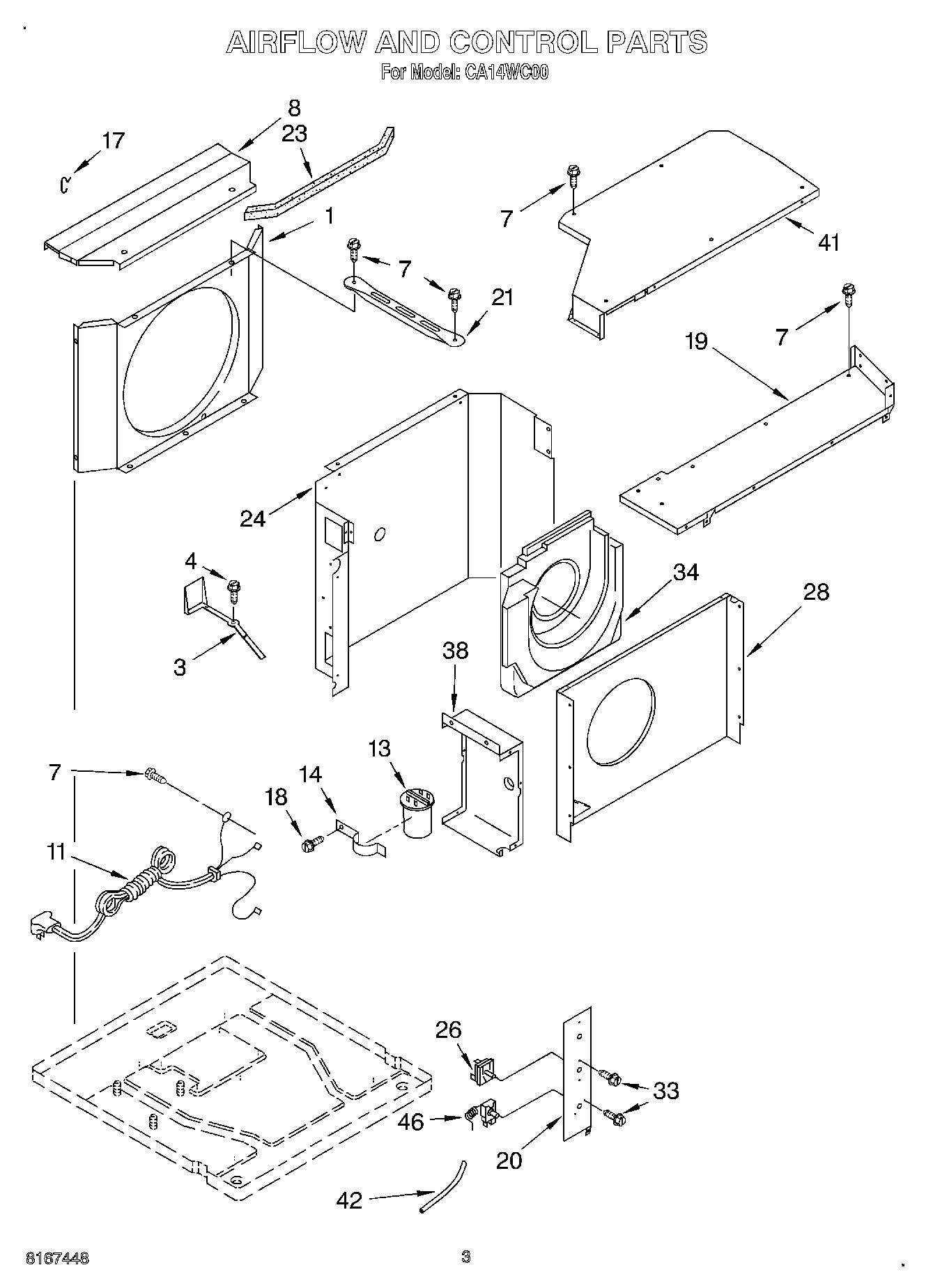

02 - AIR FLOW AND CONTROL
Common parts from model Whirlpool CA14WC00 ROOM AIR CONDITIONER
1
Cabinet (Includes Insulation) WPL 1168478 Contact Us For Availability
1
Wiring Diagram WPL LIT1165607 Contact Us For Availability
1
Use & Care Guide WPL LIT1182935 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return Condenser (11) Evaporator (10) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (12) Evaporator (8) WPL 708531 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Door, Exhaust WPL 1183344 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Screw, 8-18 x .437 WPL 8031309 Contact Us For Availability
5
Insulation, Top (Cabinet) WPL 1183415 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 950816 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1161074 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Cabinet Front WPL 1168499 Contact Us For Availability
8
Seal, Suction Tube WPL 1161045 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1183414 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
10
Motor, Fan WPL 1183430 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Cable, Appliance WPL 1167644 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Evaporator WPL 1169381 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
CAPACITOR WPL 1162606 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Condenser WPL 1161332 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
17
Bend, Return Condenser (1) Evaporator (3) WPL 1156329 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Base WPL 1168486 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
19
Return Bend (2) WPL 1158407 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1183528 Contact Us For Availability
20
Link, Horizontal Louver (5) WPL 1168496 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1183656 Contact Us For Availability
20
Panel, Control WPL 1182954 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1168493 Contact Us For Availability
21
Compressor WPL 1157102 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1168492 Contact Us For Availability
23
Front, Complete WPL 1168498 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1168494 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1168495 Contact Us For Availability
26
Overload, Protector WPL 1155007 Contact Us For Availability
26
Switch, Rotary WPL 1183369 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Actuator, Louver (2) WPL 1182348 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
29
Filter WPL 1168500 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
32
Spring, Detent (2) WPL 1167095 Contact Us For Availability
32
Manifold, Suction WPL 1161502 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Tube, Suction WPL 1163922 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Plate, Escutcheon WPL 1182945 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Control Box (R.S.) WPL 1182937 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
41
Cover, Top WPL 1183529 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
42
Sleeve, Insulating WPL 8011238 Contact Us For Availability
45
Insul. Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1183372 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Discharge WPL 1167366 Contact Us For Availability
× ![]()
