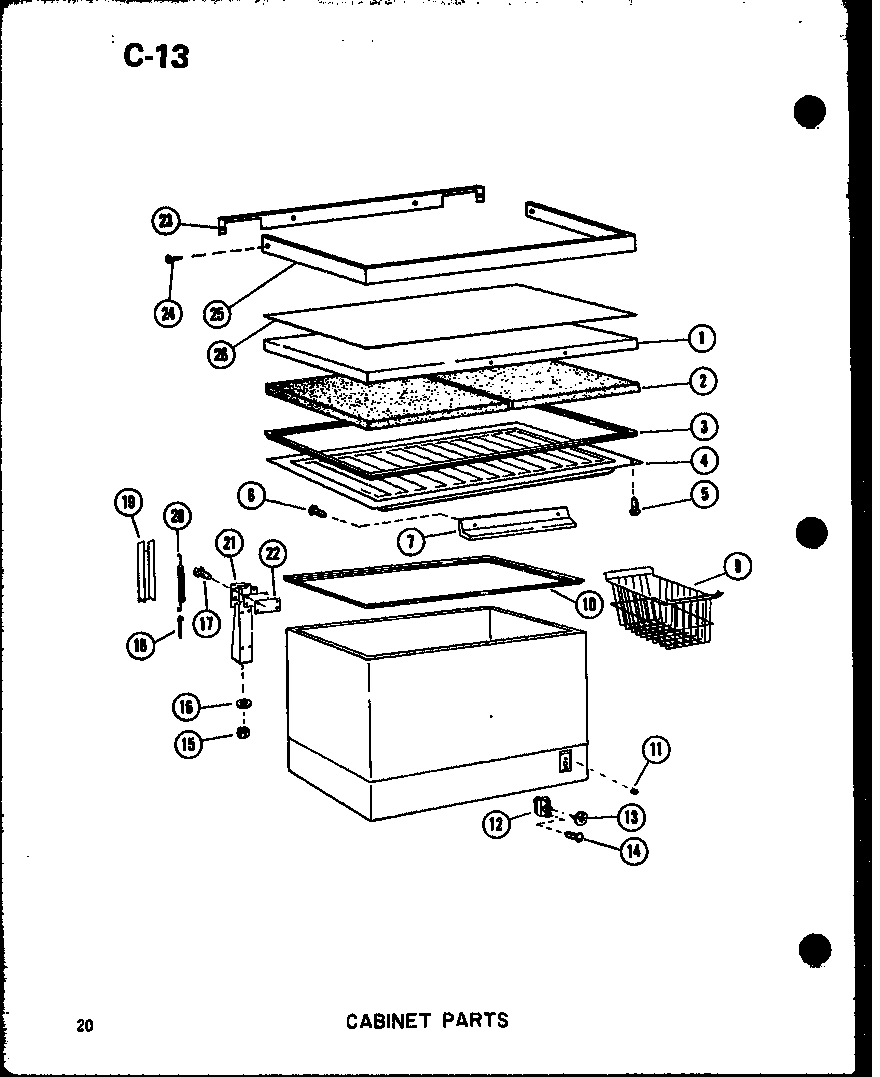

Model Whirlpool C9 FREEZER – Common Parts & Diagrams

1
OUTER LID SHELL, WHITE
OUTER LID SHELL, WHITE WPL C8719009 Contact Us For Availability
View on Model
1
OUTER LID SHELL, COPPERTONE
OUTER LID SHELL, COPPERTONE WPL C8719010 Contact Us For Availability
View on Model
1
OUTER LID SHELL, AVOCADO
OUTER LID SHELL, AVOCADO WPL C8719011 Contact Us For Availability
View on Model
1
OUTER LID SHELL, AUTUMN GOLD
OUTER LID SHELL, AUTUMN GOLD WPL C8719012 Contact Us For Availability
View on Model
2
INSULATION
INSULATION WPL A3073025 Contact Us For Availability
View on Model
3
GASKET
GASKET WPL B5675703 Contact Us For Availability
View on Model
4
LID LINER
LID LINER WPL D7134401 Contact Us For Availability
View on Model
5
SCREW-SM
SCREW-SM WPL M0241118 Contact Us For Availability
View on Model
6
SCREW-HANDLE
SCREW-HANDLE WPL M0225244 Contact Us For Availability
View on Model
7
HANDLE
HANDLE WPL D7218302 Contact Us For Availability
View on Model
9
BASKET
BASKET WPL D7134701 Contact Us For Availability
View on Model
10
COLLAR BREAKER
COLLAR BREAKER WPL B5675806 Contact Us For Availability
View on Model
11
RIVET PLASTIC
RIVET PLASTIC WPL A3032601 Contact Us For Availability
View on Model
12
COLD CONTROL
COLD CONTROL WPL C3628405 Contact Us For Availability
View on Model
13
KNOB K
KNOB K WPL C3581901 Contact Us For Availability
View on Model
15
NUT
NUT WPL M0281007 Contact Us For Availability
View on Model
16
WASHER
WASHER WPL M0270513 Contact Us For Availability
View on Model
17
SCREW
SCREW WPL M0246033 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL M0200102 Contact Us For Availability
View on Model
19
HINGE COVER-COPPER
HINGE COVER-COPPER WPL B0583402 Contact Us For Availability
View on Model
19
HINGE COVER W
HINGE COVER W WPL B0583403 Contact Us For Availability
View on Model
19
HINGE COVER-AVOCADO
HINGE COVER-AVOCADO WPL B0583404 Contact Us For Availability
View on Model
19
HINGE COVER-GOLD
HINGE COVER-GOLD WPL B0583405 Contact Us For Availability
View on Model
20
HINGE SPRING
HINGE SPRING WPL B0551701 Contact Us For Availability
View on Model
21
HINGE ASSY PMT
HINGE ASSY PMT WPL C3582301 Contact Us For Availability
View on Model
21
HINGE
HINGE WPL C3582302 Contact Us For Availability
View on Model
21
HINGE ASS`Y.
HINGE ASS`Y. WPL C3582304 Contact Us For Availability
View on Model
21
HINGE ASSY-GOLD
HINGE ASSY-GOLD WPL C3582305 Contact Us For Availability
View on Model
22
SHIM
SHIM WPL A0383301 Contact Us For Availability
View on Model
28
SPEED NUT-ANGLE MT
SPEED NUT-ANGLE MT WPL M0288109 Contact Us For Availability
View on Model
29
SCREW
SCREW WPL M0250531 Contact Us For Availability
View on Model
30
ANGLE-COMP MT
ANGLE-COMP MT WPL B5675604 Contact Us For Availability
View on Model
32
GROMMET K
GROMMET K WPL A3026101 Contact Us For Availability
View on Model
33
KIT, COMPRESSOR
KIT, COMPRESSOR WPL D7199801 Contact Us For Availability
View on Model
34
WIRING HARNESS-COMP
WIRING HARNESS-COMP WPL B5680501 Contact Us For Availability
View on Model
37
SCREW
SCREW WPL M0221461 Contact Us For Availability
View on Model
42
STRAP K
STRAP K WPL A3041801 Contact Us For Availability
View on Model
43
SPRING K
SPRING K WPL A3043601 Contact Us For Availability
View on Model
44
COVER K
COVER K WPL B0559501 Contact Us For Availability
View on Model
45
OVERLOAD K
OVERLOAD K WPL C8704701 Contact Us For Availability
View on Model
46
RELAY K
RELAY K WPL C8704801 Contact Us For Availability
View on Model
47
WIRING HARNESS, CABINET
WIRING HARNESS, CABINET WPL D7149701 Contact Us For Availability
View on Model
48
CLIP
CLIP WPL M0110502 Contact Us For Availability
View on Model
49
STRAIN RELIEF K
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
View on Model
50
CLIP
CLIP WPL M0113402 Contact Us For Availability
View on Model
NI
GROMMET K
GROMMET K WPL A4002702 Contact Us For Availability
View on Model
