Model Whirlpool C3888VRV ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

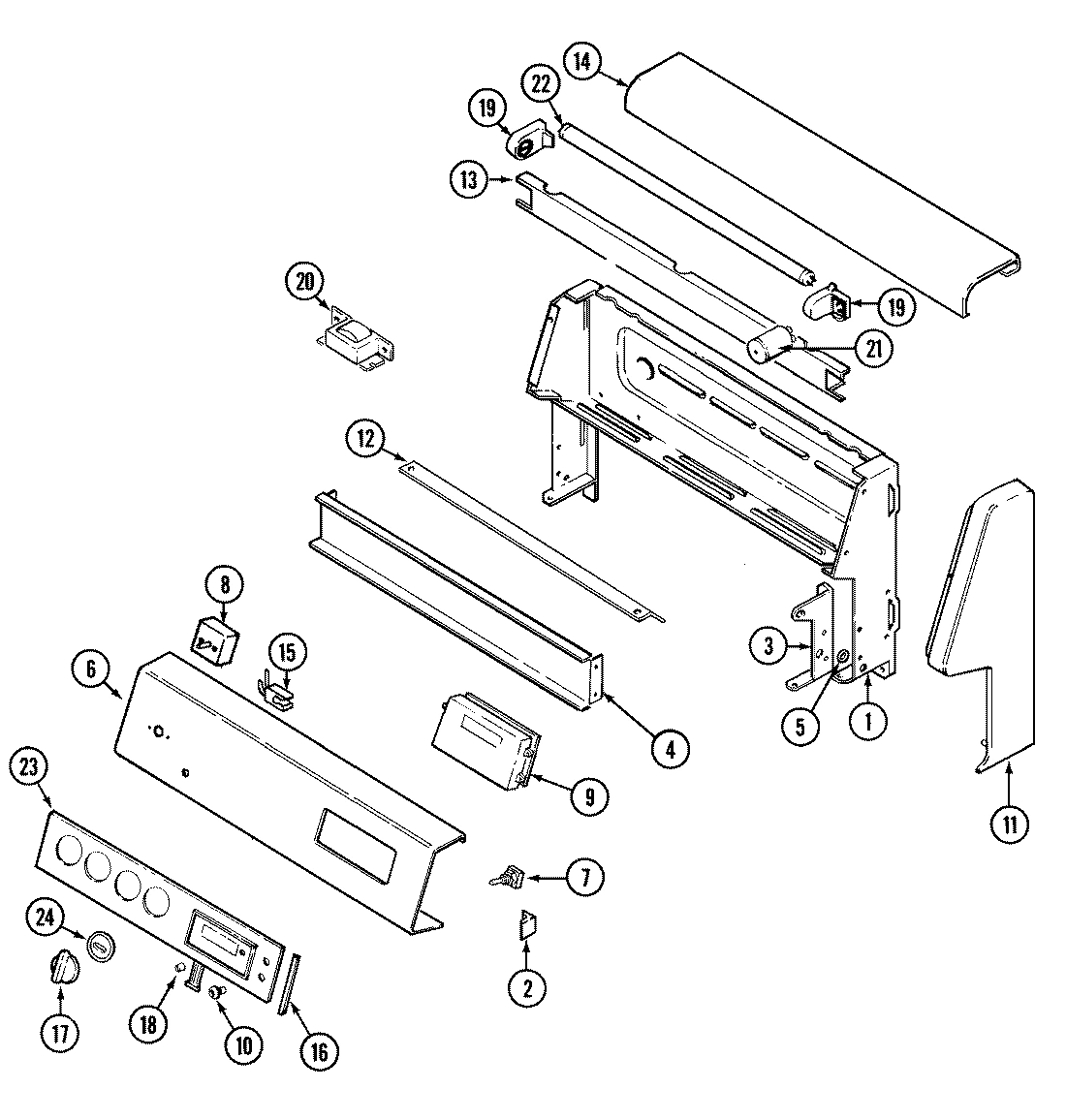

02 - CONTROL PANEL

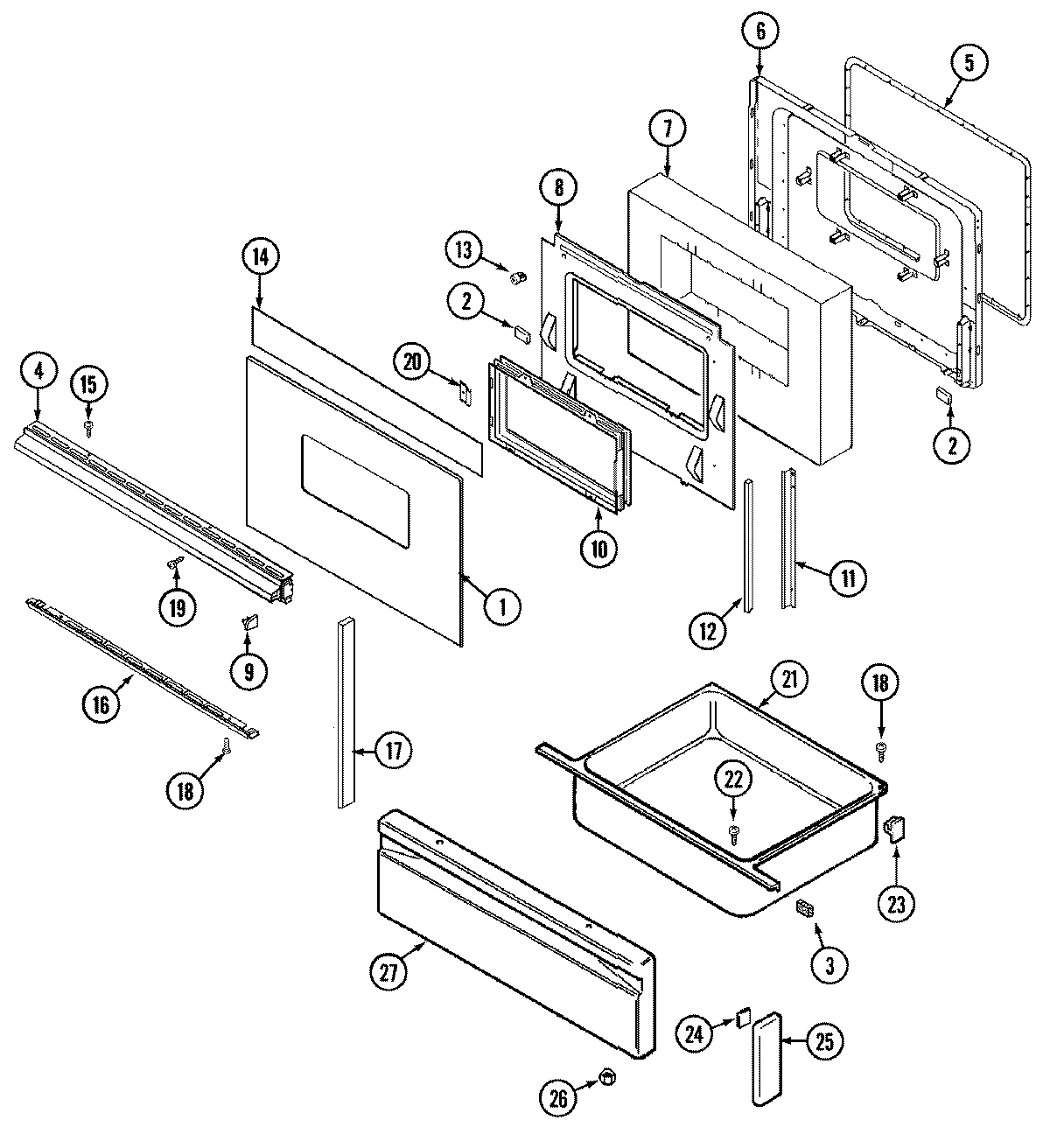

03 - DOOR/DRAWER

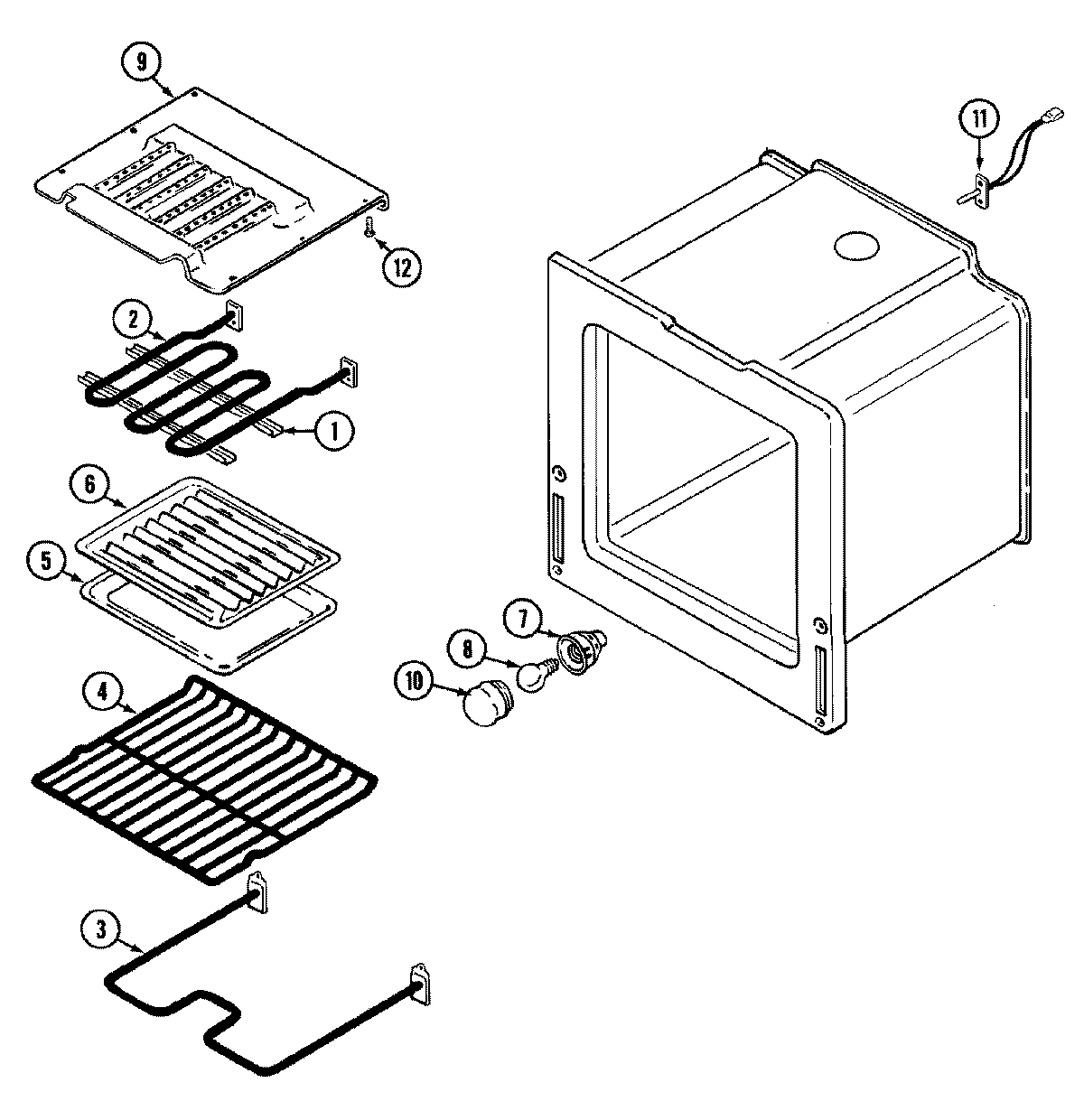

04 - OVEN
06 - WIRING INFORMATION

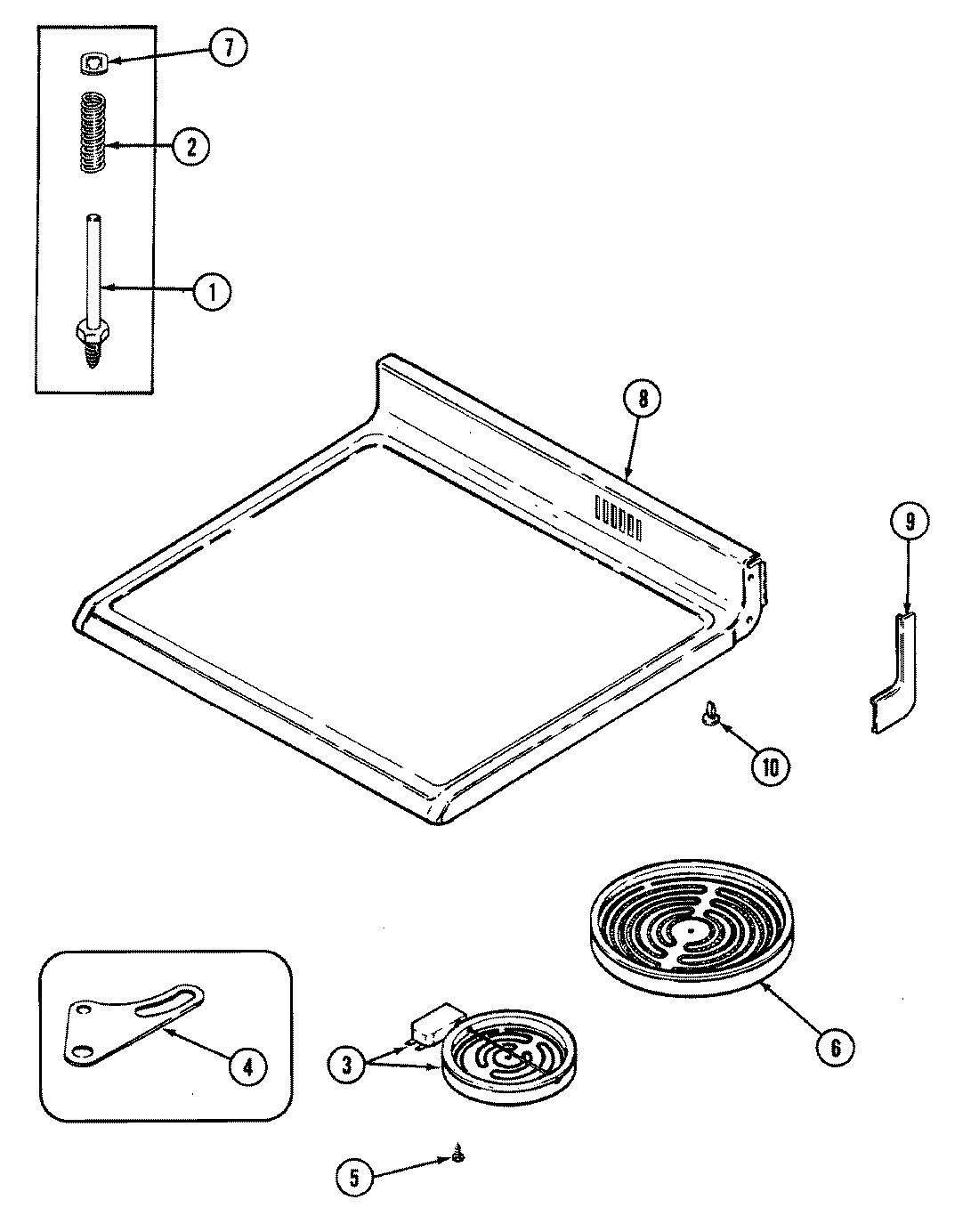

05 - TOP ASSEMBLY
Common parts from model Whirlpool C3888VRV ELECTRIC RANGE
1
BACK, MAIN WPL 4002F20380 Contact Us For Availability
1
BACK, MAIN WPL 74001341 Contact Us For Availability
1
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
1
HOUSING, BACKGUARD WPL 4001F08951 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
3
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
3
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 7701P14560 Contact Us For Availability
4
RACK, OVEN WPL 7801P03660 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
NUT, SPEED WPL 7103P12960 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 7703P45560 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
7
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
7
SWITCH, PUSH (WHT) WPL 7403P20460 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
8
CORD, POWER WPL 7402P05060 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
LAMP, OVEN WPL 7407P09160 Contact Us For Availability
8
TOP ASSY (WHT GLASS/WHT FRAME) WPL 5706S01681 Contact Us For Availability
8
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
9
COVER, WIRE WPL 4005F45451 Contact Us For Availability
9
CLOCK WPL 7601P20560 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
9
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
GLIDE WPL 8016P01360 Contact Us For Availability
10
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
10
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
END CAP (RT-WHT) WPL 7726P07360 Contact Us For Availability
11
END CAP (LT-WHT) WPL 7726P07460 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020F00280 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
COVER, LIGHT (WHT)----NA WPL 7724P05960 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
LAMP SIGNAL WPL 7407P09060 Contact Us For Availability
15
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
TRIM, GLASS RETAINER (WHT) WPL 7720P16060 Contact Us For Availability
16
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
17
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
17
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
18
KNOB, CLOCK (WHT) WPL 7711P43260 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
SCREW WPL 7101P29160 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
BALLAST WPL 7412P00760 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
21
STARTER WPL 7415P00160 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
22
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
22
SCREW WPL 7101P07260 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
23
PANEL, CONTROL ASSY WPL 4876S01659 Contact Us For Availability
23
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
24
HARNESS, CONTROL PANEL WPL 5170D14260 Contact Us For Availability
24
HARNESS, COOKTOP WPL 5175D07760 Contact Us For Availability
24
HARNESS, DOOR LATCH WPL 5195D09260 Contact Us For Availability
24
HARNESS, BURNER BOX WPL 74001010 Contact Us For Availability
24
BEZEL, KNOB (WHT) WPL 7740P02660 Contact Us For Availability
24
TAPE, DOUBLE-SIDED WPL 8270P09460 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
25
END CAP, DRAWER (WHT) WPL 7744P06960 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
26
NUT, LOCK WPL 7103P13960 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
28
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
29
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
29
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
30
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
31
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
31
WASHER WPL 7109P01560 Contact Us For Availability
32
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
33
HANDLE, LATCH (WHT) WPL 7701P08960 Contact Us For Availability
34
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
35
SCREW WPL 7101P10360 Contact Us For Availability
36
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
36
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
37
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
38
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
39
LIGHT, INDICATOR WPL 7407P08960 Contact Us For Availability
39
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
40
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
41
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
42
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
43
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
43
FUSE, 125V 30A WPL 7416P00460 Contact Us For Availability
43
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
43
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
44
COVER, FUSE BLOCK WPL 4005F41751 Contact Us For Availability
44
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 8113P05560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002283 Contact Us For Availability
× ![]()
