Model Whirlpool C3882VVV ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

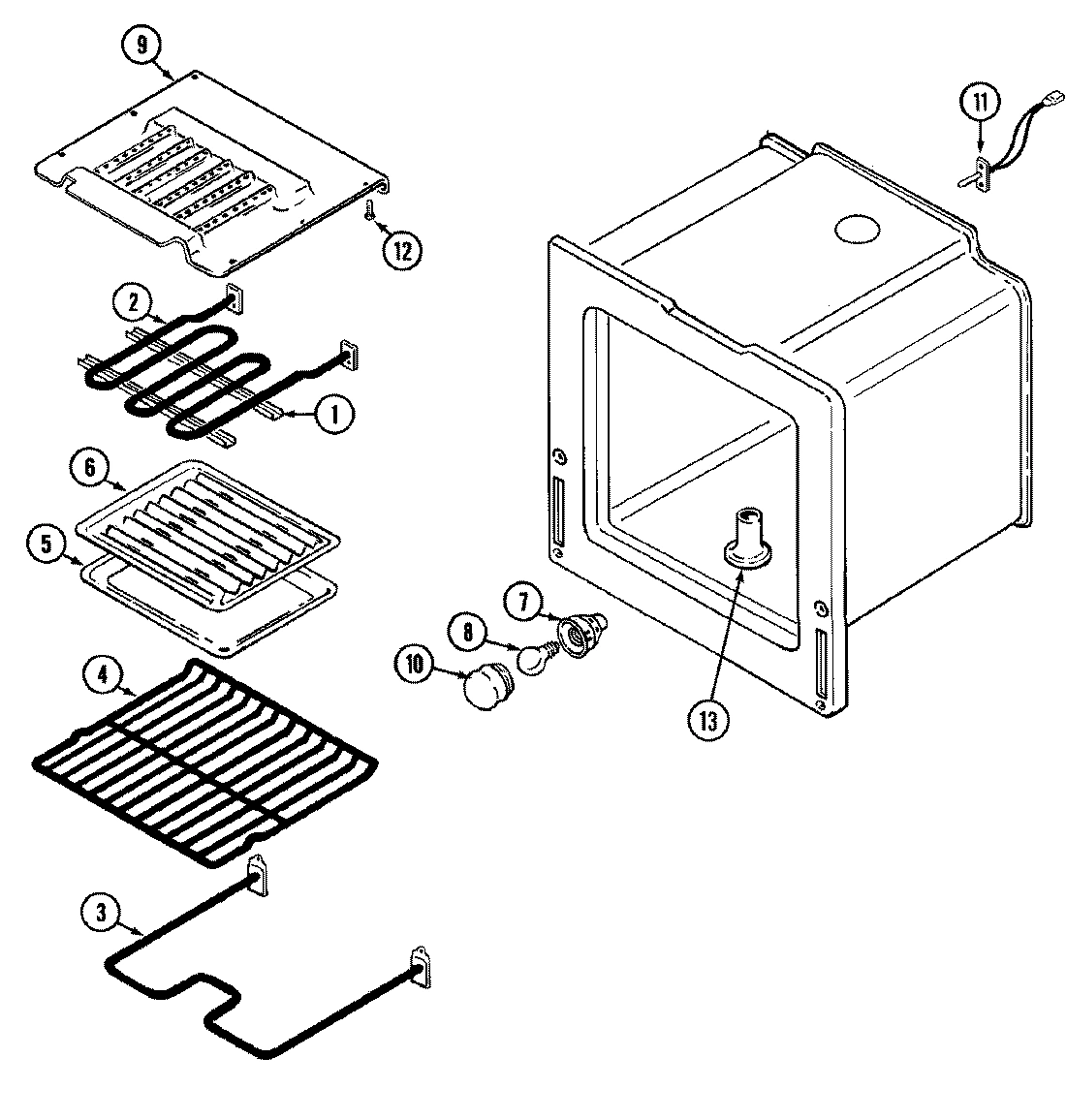

04 - OVEN

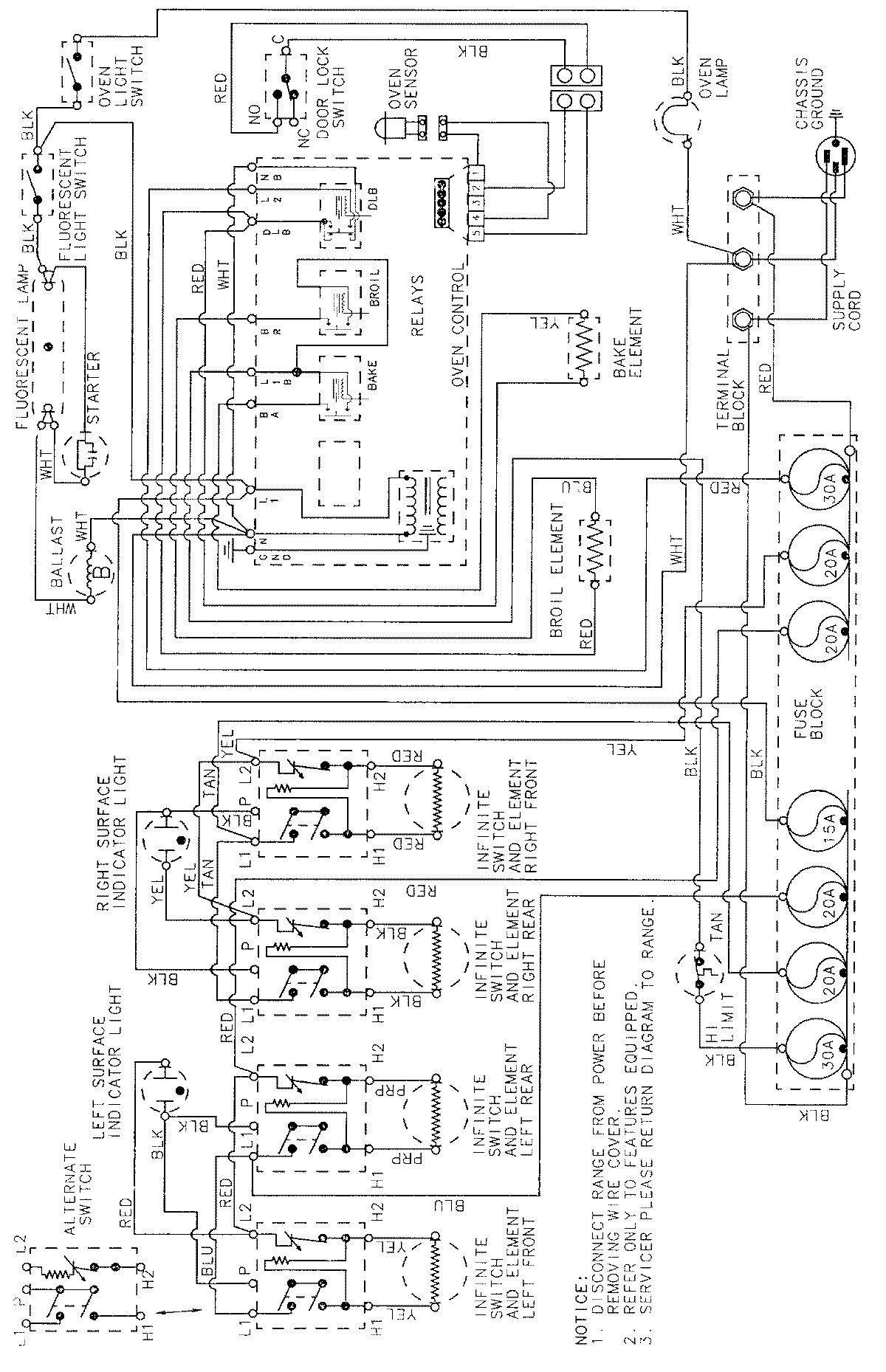

06 - WIRING INFORMATION

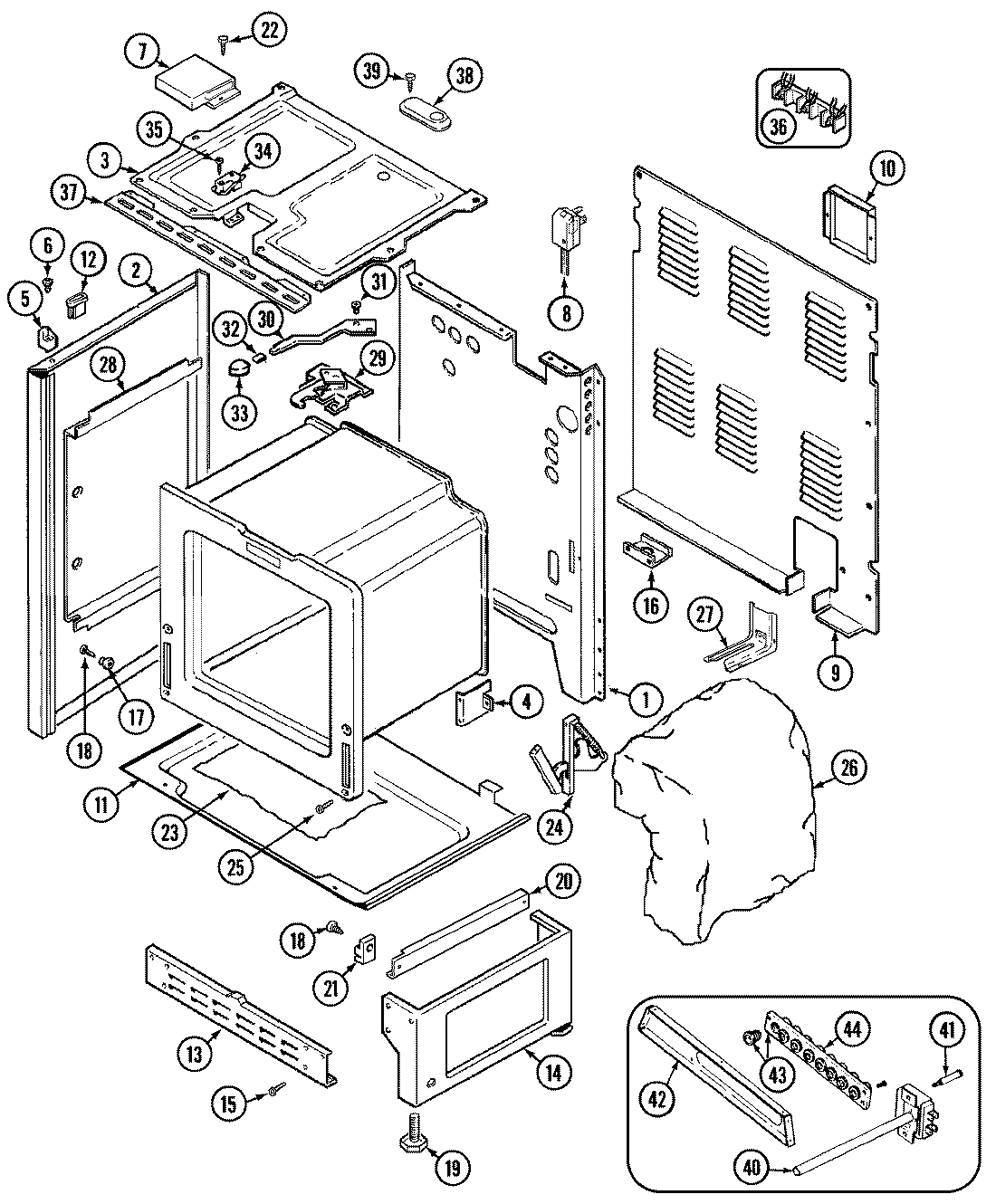

01 - BODY

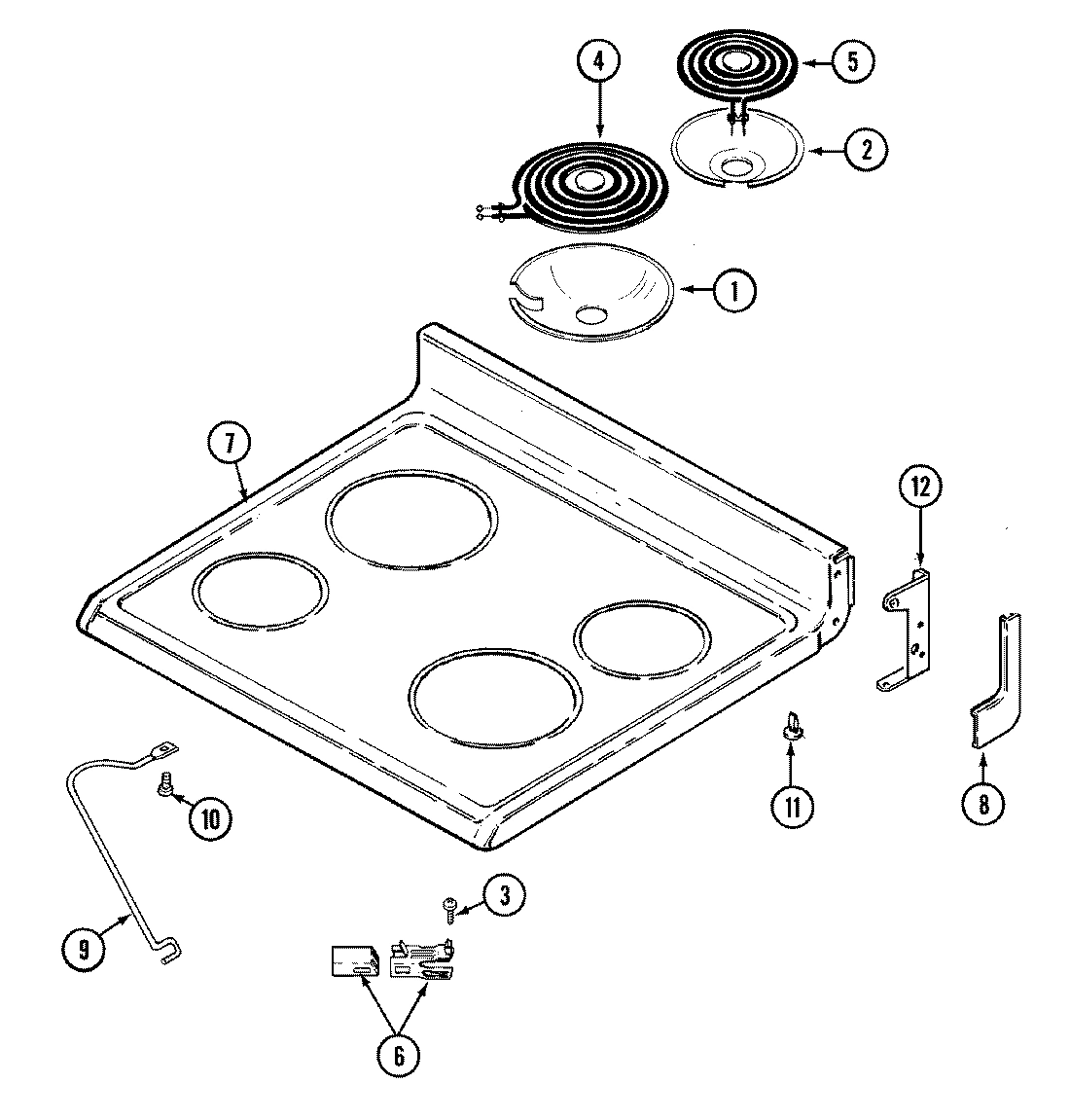

05 - TOP ASSEMBLY

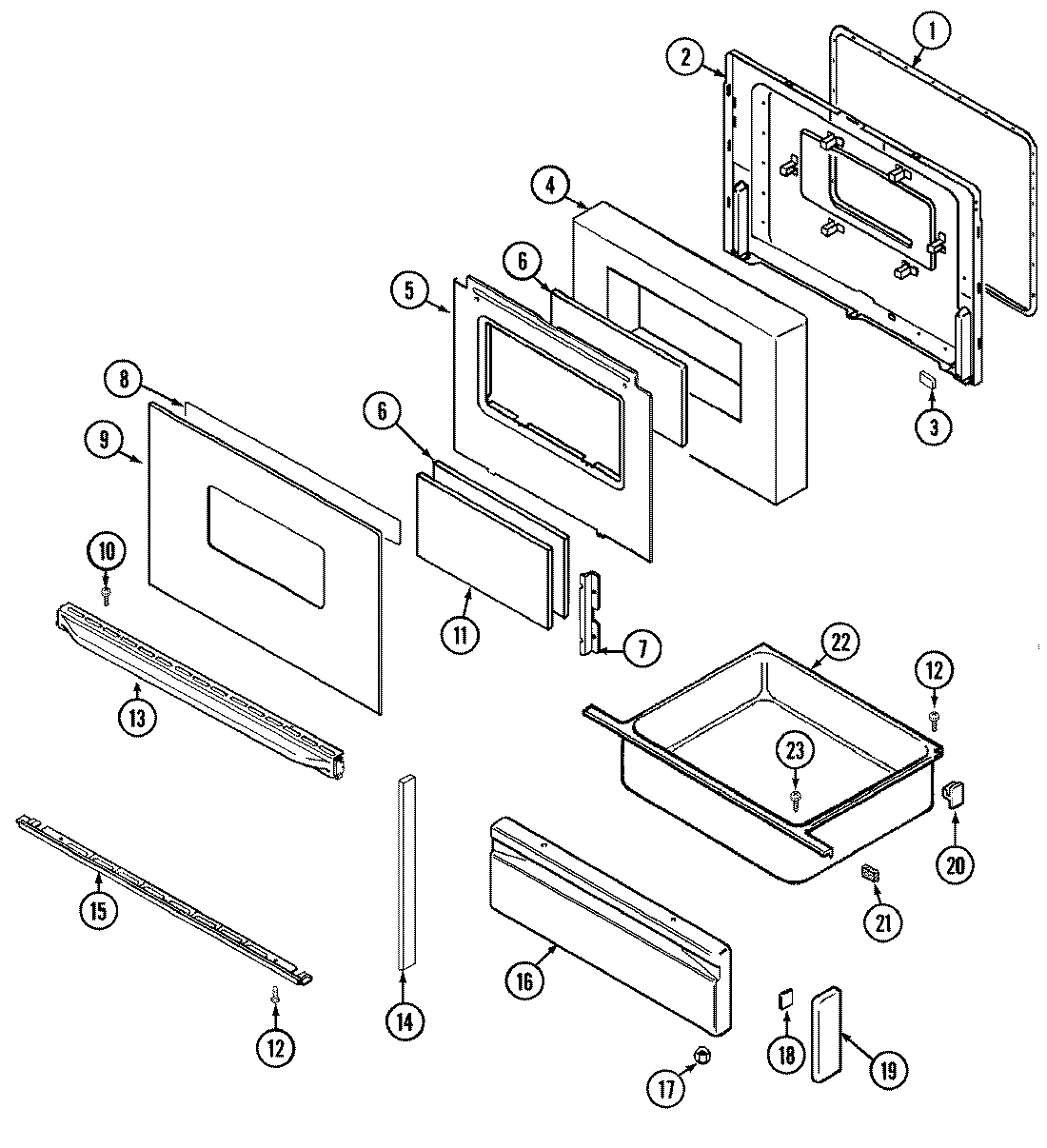

03 - DOOR/DRAWER (SER. PRE. 21)
Common parts from model Whirlpool C3882VVV ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
1
BOWL, DRIP (8``) (CHR) WPL 7725P01960 Contact Us For Availability
1
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
1
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
2
BRACKET, CLOCK WPL 3801F33745 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
BOWL, DRIP (6``) (CHR) WPL 7725P01860 Contact Us For Availability
2
BOWL, DRIP (6``-CHR) WPL 7725P04860 Contact Us For Availability
2
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
3
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
BOX, BURNER WPL 74001132 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
4
PANEL, CONTROL (WHT) WPL 7703P58560 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
BALLAST WPL 7412P00760 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W09981 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
CORD, POWER WPL 7402P05060 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
9
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
9
CLOCK (WHT) WPL 74002297 Contact Us For Availability
9
CLOCK (WHT) WPL 7601P23560 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23745 Contact Us For Availability
9
COVER, WIRE WPL 4005F45551 Contact Us For Availability
9
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
9
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
10
NUT, SPEED WPL 7103P04460 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
10
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
11
KNOB, CLOCK (WHT) WPL 7711P49360 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED WPL W10124350 Contact Us For Availability
11
SWITCH, FLAME WPL 7403P01060 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
GLIDE WPL 8016P01560 Contact Us For Availability
11
GLASS, INNER WPL 74002002 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
12
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
13
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
13
TUBE, VENT WPL 8026P01960 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 7701P14560 Contact Us For Availability
14
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
14
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
15
END CAP (RT-WHT) WPL 7726P07360 Contact Us For Availability
15
END CAP (LT-WHT) WPL 7726P07460 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
16
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
17
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
18
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
18
TAPE WPL 8270P09860 Contact Us For Availability
19
STARTER WPL 7415P00160 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
END CAP, DRAWER (WHT) WPL 7744P06960 Contact Us For Availability
20
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
21
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
21
COVER, LIGHT (WHT)----NA WPL 7724P05960 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
21
SEAL WPL 7208P00260 Contact Us For Availability
22
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
22
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE WPL 7106P05660 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
26
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
28
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
29
PLATE, LATCH SWITCH WPL 3605F19751 Contact Us For Availability
29
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
29
PLATE, LATCH SWITCH WPL 74001744 Contact Us For Availability
29
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
30
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
30
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
31
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
31
WASHER WPL 7109P01560 Contact Us For Availability
32
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
33
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
34
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
34
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
35
SCREW WPL 7101P10360 Contact Us For Availability
36
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
37
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
38
COVER, VENT WPL 4005F43245 Contact Us For Availability
40
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
41
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
42
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
42
BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability
43
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
43
FUSE, 125V 30A WPL 7416P00460 Contact Us For Availability
43
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
43
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
44
COVER, FUSE BLOCK WPL 4005F41751 Contact Us For Availability
44
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 16007454 Contact Us For Availability
NI
HARNESS, LOOSE WIRE (CAN) WPL 5125A38260 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D20160 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 5170P20560 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
NI
HARNESS, FUSE BLOCK WPL 74001009 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 74001427 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001549 Contact Us For Availability
× ![]()
